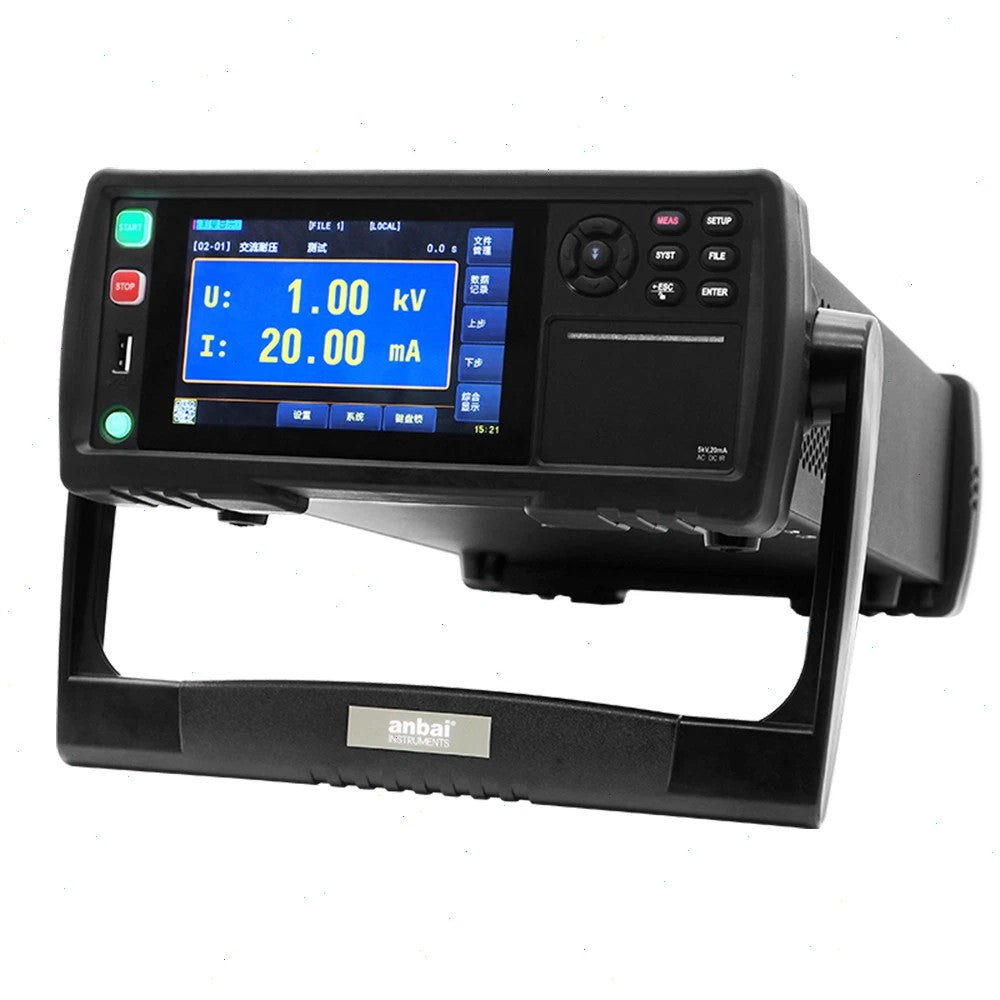

VTSYIQI AC DC Withstand Voltage Insulation Tester wtih AC Withstand Voltage Rate Ouput AC 5.000kV/20mA DC Withstand Voltage Rate Output DC 6kV/10mA Test Functions AC Withstand Voltage DC Withstand Voltage Insulation Resistance
- Regular price
- $1,533.00
Introduction:
The item AC/DC withstand voltage insulation tester is an instrument that integrates multiple testing functions such as electrical strength (AC/DC withstand voltage) and insulation resistance. It is an important testing equipment for various electrical manufacturers and quality inspection departments.
The item uses a high-speed microprocessor as the control core and can measure various safety and regulatory parameters of the tested object in real-time. It can complete three tests within 4 seconds, especially meeting the requirements of production lines for fast testing.

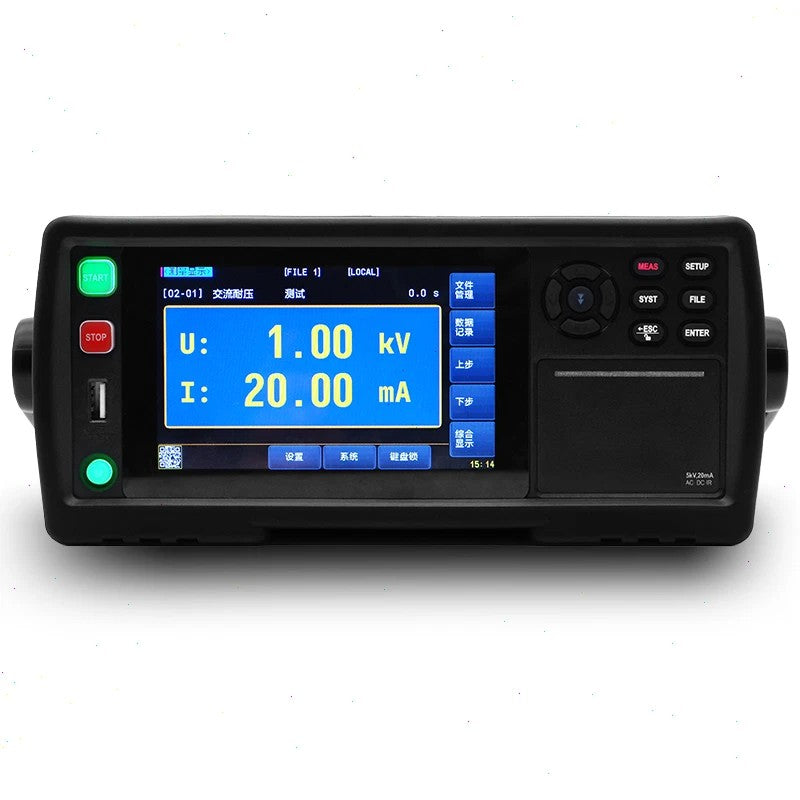

The item adopts a 5-inch color LCD touch screen, which is easy to operate; Equipped with intelligent upper and lower limit judgment function, it can automatically identify defective products.
The entire circuit adopts various anti-interference measures, with strong anti-interference ability. It has both hardware and software protection, greatly improving the reliability of the instrument. Automatic overvoltage and overcurrent protection for safer use.
Features:
It can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance 1kv/50GΩ testing
Controllable sine generator: can be set to operate at 50 or 60Hz during AC output, no longer limited by line voltage
Linear power amplifier: Low distortion of voltage waveform, simple control, and high reliability
Anti electric shock protection/arc detection/short circuit protection
It can independently conduct AC withstand voltage test, DC withstand voltage test, and insulation resistance test, and can pass the test
Set up a trial project and conduct sequential testing of multiple projects.
The insulation withstand voltage tester can be widely used for safety performance inspection of household appliances, transformers, electrical equipment, and components.

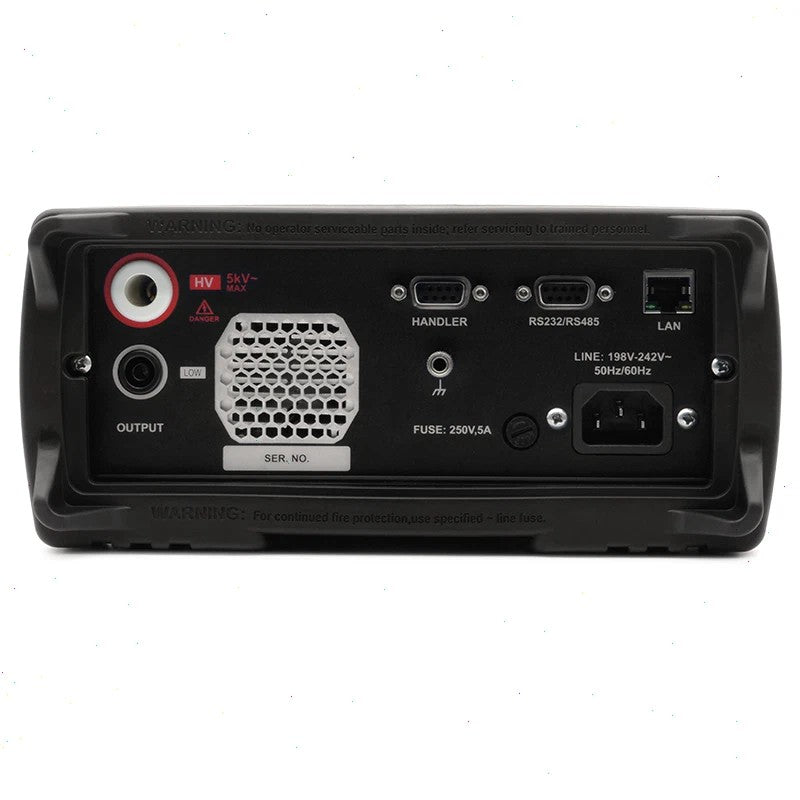

The instrument is equipped with a Handler interface (PLC interface), RS232C, and USB for convenient data communication and remote control with a PC, meeting the requirements of automated testing and improving production efficiency.
Interface：RS232/Handler
Arc Detection：9 Levels (AC/DC)
Other Functions：
LIST Edit
Discharge Function
5“ LCD + Touch panel
Rate Ouput：AC 5.000kV/20mA
Output Voltage：0.050kV-5.000KV AC
Resolution: 10V
Voltage Accuracy：2% of reading + 5 digits
Output Regulation：2% of reading +5V
Output Frequency：50Hz/60Hz
Measurement Current：0.001mA-20.00mA
Resolution: 0.001 / 0.01
Current Accuracy：2% of reading + 5 digits
Rising Time：0.4s-999.9s
Testing Time：0.5s-999.9s
Falling Time：0.1s-999.9s，OFF
DC Withstand Voltage
Rate Output：DC 6kV/10mA
Output Voltage：0.050kV-6.000kV DC
Resolution: 10V
Voltage Accuracy：2% of reading + 5 digits
Output Regulation：2% of reading +5V
Current Measurement：0.1μA-10.000mA
Current Accuracy：2% of reading +5 digits
Rising Time：0.4s-999.9s
Testing Time：0.5s-999.9s
Falling Time：0.1s-999.9s
Insulation Resistance
Rate Output：DC 1kV/50GΩ
Output Voltage：0.050kV-1.000kV DC
Resolution： 1V
Voltage Accuracy：2% of the set value + 5 V
Measurement Range：1MΩ-49999MΩ
Power Supply：
220V 50/60Hz
550VA
Dimension & Weight：
215mm( W )x88mm( H )x400mm ( D )
8kg
Accessories：
ATL900E Withstand voltage test line
ATL108 RS232 Communication
DB9-handler
