Introduction:
The item AC/DC withstand voltage insulation tester is an instrument that integrates multiple testing functions such as electrical strength (AC/DC withstand voltage) and insulation resistance. It is an important testing equipment for various electrical manufacturers and quality inspection departments.

The item uses a high-speed microprocessor as the control core and can measure various safety and regulatory parameters of the tested object in real-time. It can complete three tests within 4 seconds, especially meeting the requirements of production lines for fast testing.

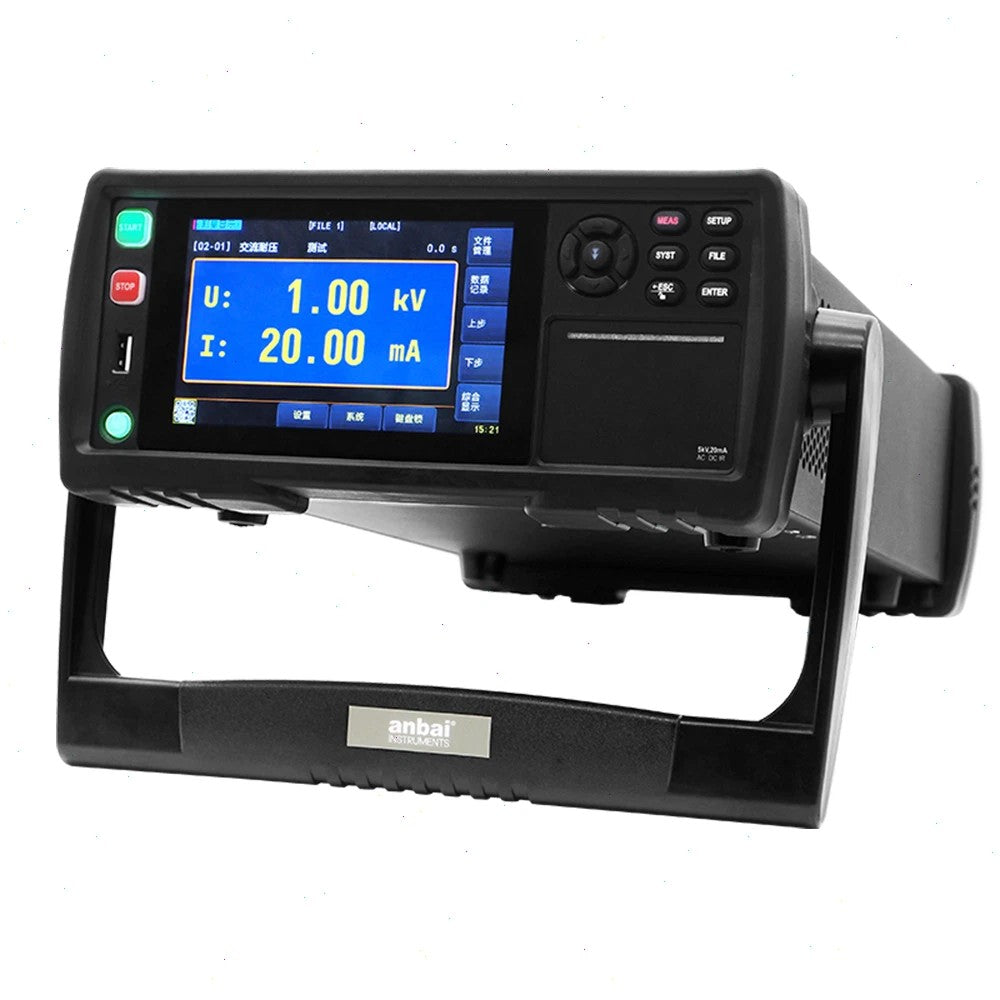

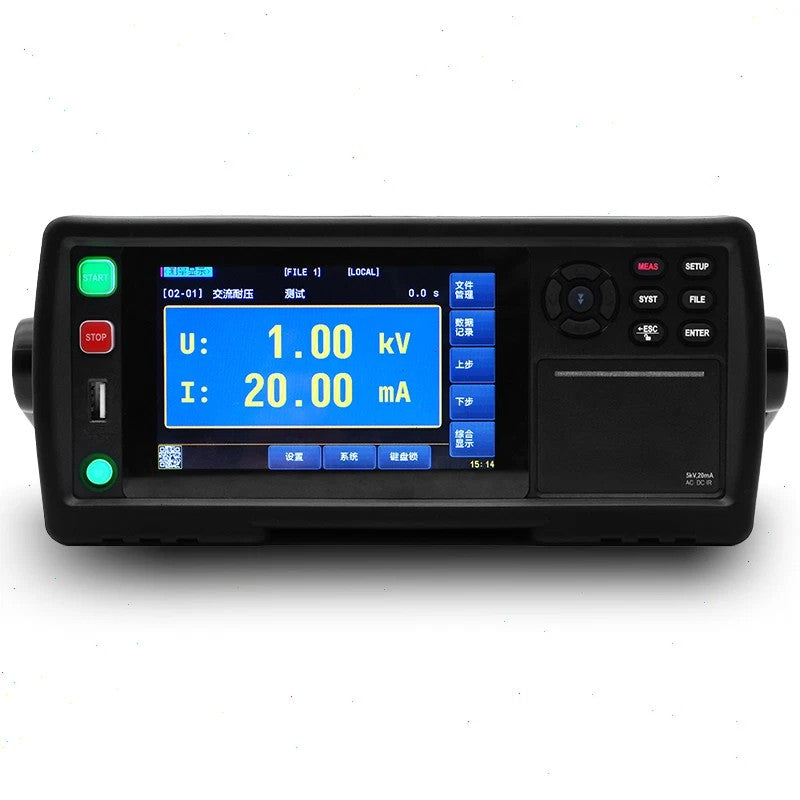

The item adopts a 5-inch color LCD touch screen, which is easy to operate; Equipped with intelligent upper and lower limit judgment function, it can automatically identify defective products.

The entire circuit adopts various anti-interference measures, with strong anti-interference ability. It has both hardware and software protection, greatly improving the reliability of the instrument. Automatic overvoltage and overcurrent protection for safer use.

Features:

It can provide 5kVAC/10mA withstand voltage, 6kVDC/5mA withstand voltage, and insulation resistance 1kv/50GΩ testing

Controllable sine generator: can be set to operate at 50 or 60Hz during AC output, no longer limited by line voltage

Linear power amplifier: Low distortion of voltage waveform, simple control, and high reliability

Anti electric shock protection/arc detection/short circuit protection

It can independently conduct AC withstand voltage test, DC withstand voltage test, and insulation resistance test, and can pass the test

Set up a trial project and conduct sequential testing of multiple projects.

Applications:

The insulation withstand voltage tester can be widely used for safety performance inspection of household appliances, transformers, electrical equipment, and components.

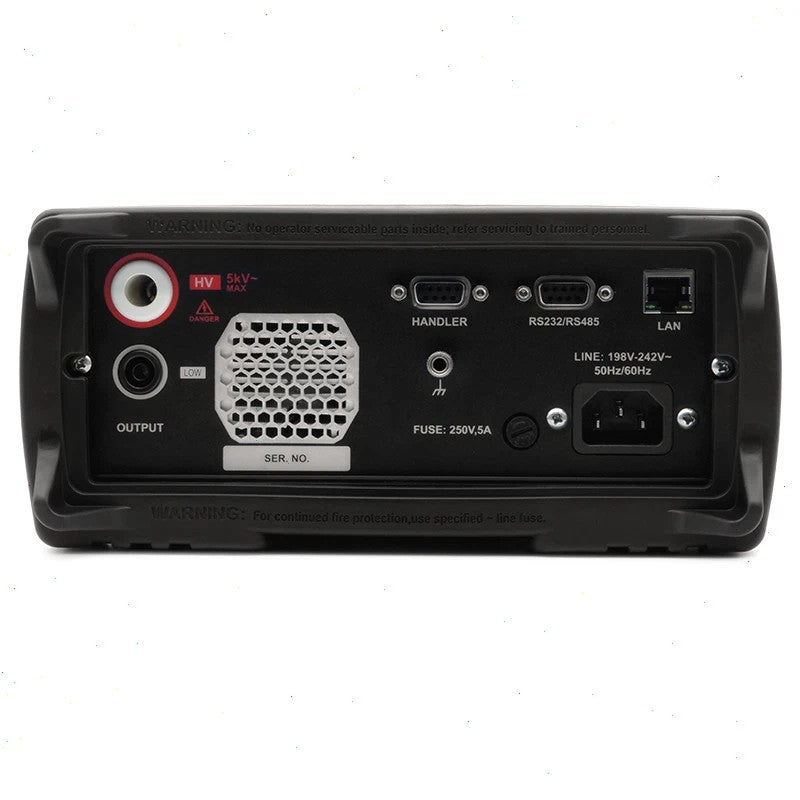

The instrument is equipped with a Handler interface (PLC interface), RS232C, and USB for convenient data communication and remote control with a PC, meeting the requirements of automated testing and improving production efficiency.

Specifications:

Measurement Functions：AC/DC Withstanding Voltage & IR

Interface：RS232/Handler

Arc Detection：9 Levels (AC/DC)

Other Functions：
LIST Edit
Discharge Function
5“ LCD + Touch panel

AC Withstand Voltage

Rate Ouput：AC 5.000kV/10mA
Output Voltage：
0.050kV-5.000KV AC
Resolution: 10V
Voltage Accuracy：
2% of reading + 5 digits
Output Regulation：2% of reading +5V
Output Frequency：50Hz/60Hz
Measurement Current：0.001mA-20.00mA
Resolution: 0.001 / 0.01
Current Accuracy：2% of reading + 5 digits
Rising Time：0.4s-999.9s
Testing Time：0.5s-999.9s
Falling Time：0.1s-999.9s，OFF

DC Withstand Voltage

Rate Output：DC 6kV/5mA
Output Voltage：0.050kV-6.000kV DC
Resolution: 10V
Voltage Accuracy：2% of reading + 5 digits
Output Regulation：2% of reading +5V
Current Measurement：0.1μA-10.000mA
Current Accuracy：2% of reading +5 digits
Rising Time：0.4s-999.9s
Testing Time：0.5s-999.9s
Falling Time：0.1s-999.9s

Insulation Resistance

Rate Output：DC 1kV/50GΩ
Output Voltage：0.050kV-1.000kV DC
Resolution： 1V
Voltage Accuracy：1% of reading + 2 digits
Measurement Range：1MΩ-49999MΩ
Power Supply：
220V 50/60Hz
550VA
Dimension & Weight：
215mm( W )x88mm( H )x400mm ( D )
8kg
Accessories：
ATL900E Withstand voltage test line
ATL108 RS232 Communication
DB9-handler
