VTSYIQI Digital Concrete Rebar Corrosion Detector with Measuring Potential ±1000mV Test Accuracy ± 1mV Measurement Point Spacing 1-100cm Potential Method and Gradient Method Two Methods of Measurement

About this item

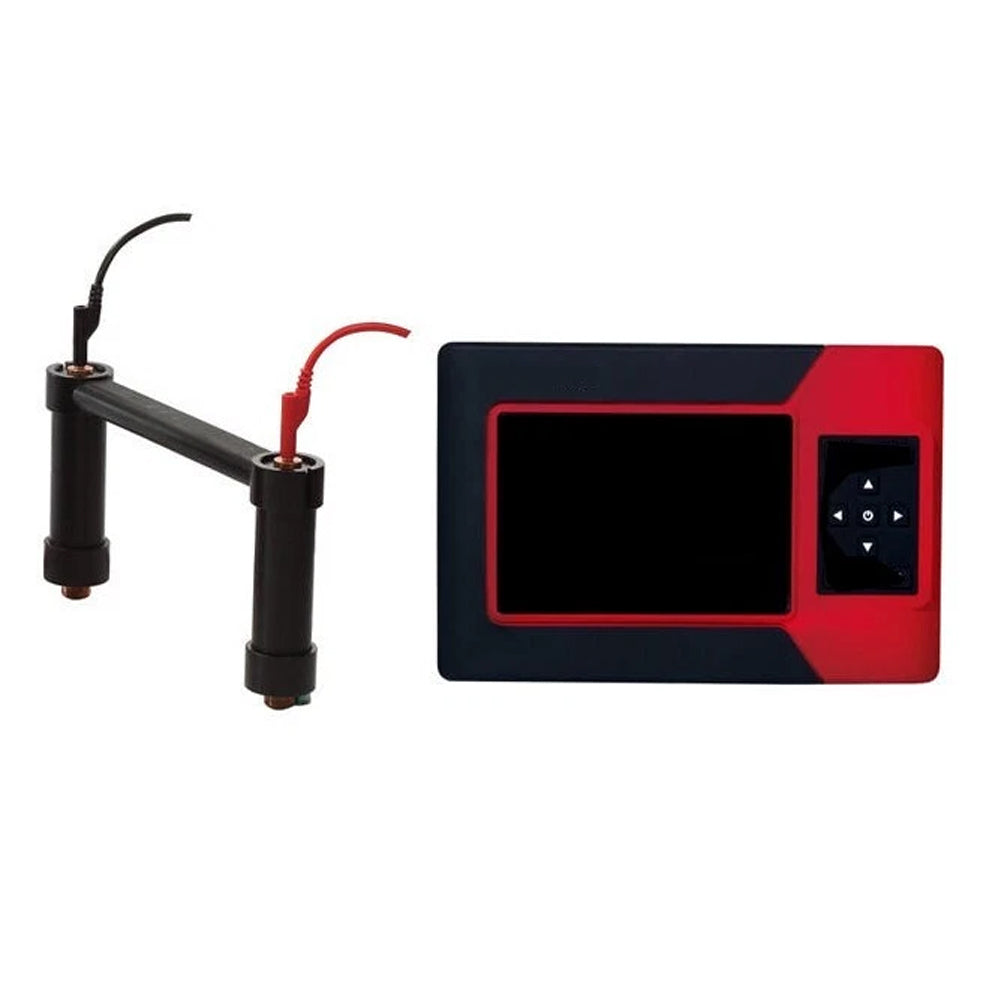

◆Two measurement methods, potential method and gradient method, equipped with potential electrode and gradient electrode;

◆Permanent fixed metal electrode, no need to pour or replace copper sulfate solution, avoiding the interference of copper sulfate solution during operation Damage to personnel and environment

◆Full color LCD screen, silicone dustproof buttons, more comfortable on-site operation

◆Adopting a brand new ARM high-speed acquisition system, the detection speed and accuracy have been greatly improved

◆Multi-Function Concrete Rebar Detector Rebar finder Data can be exported from a USB flash drive

◆Brightness adjustment, according to the external environment lighting degree, backlight brightness level selection, eight gear adjustable

Product Features:

Measure the probability of corrosion of steel bars inside concrete walls, beams, and columns

Technical features:

1. Permanent fixed metal electrode, no need to pour or replace copper sulfate solution, avoiding the interference of copper sulfate solution during operation

Damage to personnel and environment;

2. Two measurement methods, potential method and gradient method, equipped with potential electrode and gradient electrode;

3. Adopting a brand new ARM high-speed acquisition system, the detection speed and accuracy have been greatly improved

4. Full color LCD screen, silicone dustproof buttons, more comfortable on-site operation

5. Brightness adjustment, the backlight brightness level can be selected according to the degree of external environmental lighting, with eight adjustable levels

6. Theme selection can improve the impact of outdoor lighting on screen visibility

Product Name:

Steel corrosion tester

Measure potential:±1000mV

Testing accuracy:±1mV

Distance between measurement points:1-100cm

Measure area:8100 m2

LCD screen resolution:480*800

Host volume:219mm*56mm*139mm
