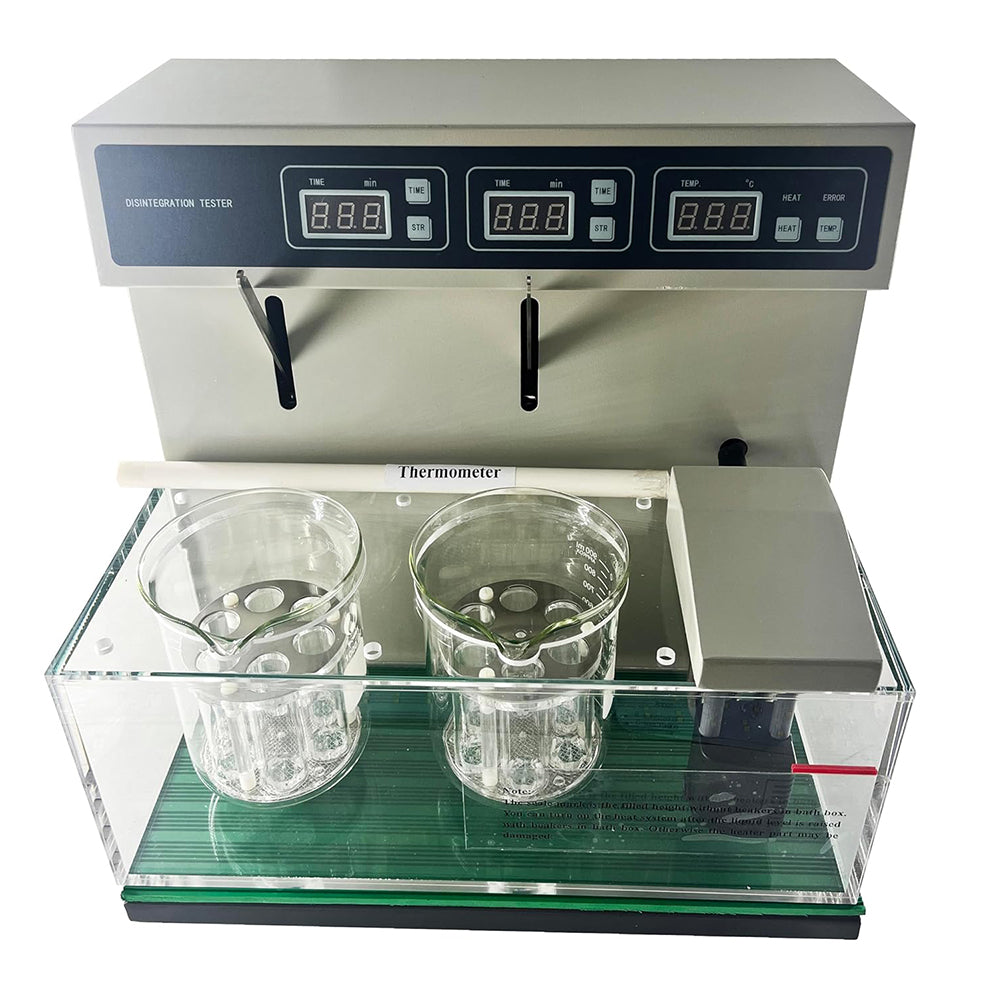

VTSYIQI Disintegration Tester Tablet Disintegration Tester Disintegration Time Limit Tester with Automatic Temperature Control Double Cup 12 Number of Hanging Glass Tubes

application

Disintegration time limit tester is used to check the disintegration of solid preparations under specified conditions.

Features

Two cups, twelve tubes.

Double cups and two channels, each channel runs independently and can be controlled separately; automatic timing shutdown.

Automatic temperature control, high temperature control accuracy.

The hanging blue and the hanging rod are made of imported stainless steel.

Using a micro water pump circulating water flow uniform heating system, the temperature of the water bath is uniform.

Automatic and intelligent control of three parameters: temperature, time and round-trip frequency.

You can preset time parameters at will; display preset value and real-time value in time division.

Automation, automatic detection, automatic diagnosis, automatic alarm.

Technical indicators

Basket assembly： 2

Number of hanging glass tubes: 12

Flat bottom beaker volume ：1000ml

Basket round-trip frequency： (30～32) times/min

Basket round trip ：(55±1)mm

Minimum spacing of screen mesh： (25±2)mm

Timing range： (1 to 900) minutes

Timing accuracy： ±0.5min

Temperature preset range： (20～45)℃

Automatic temperature control accuracy： ±0.5℃

Heater power： 500W

Continuous working time： more than 24 hours

Power supply ：220V/ 50Hz/ 600W or 110V/ 60Hz/ 600W

Power： 600W

Overall dimensions： (40×30×42)cm3

Weight ：18kg
