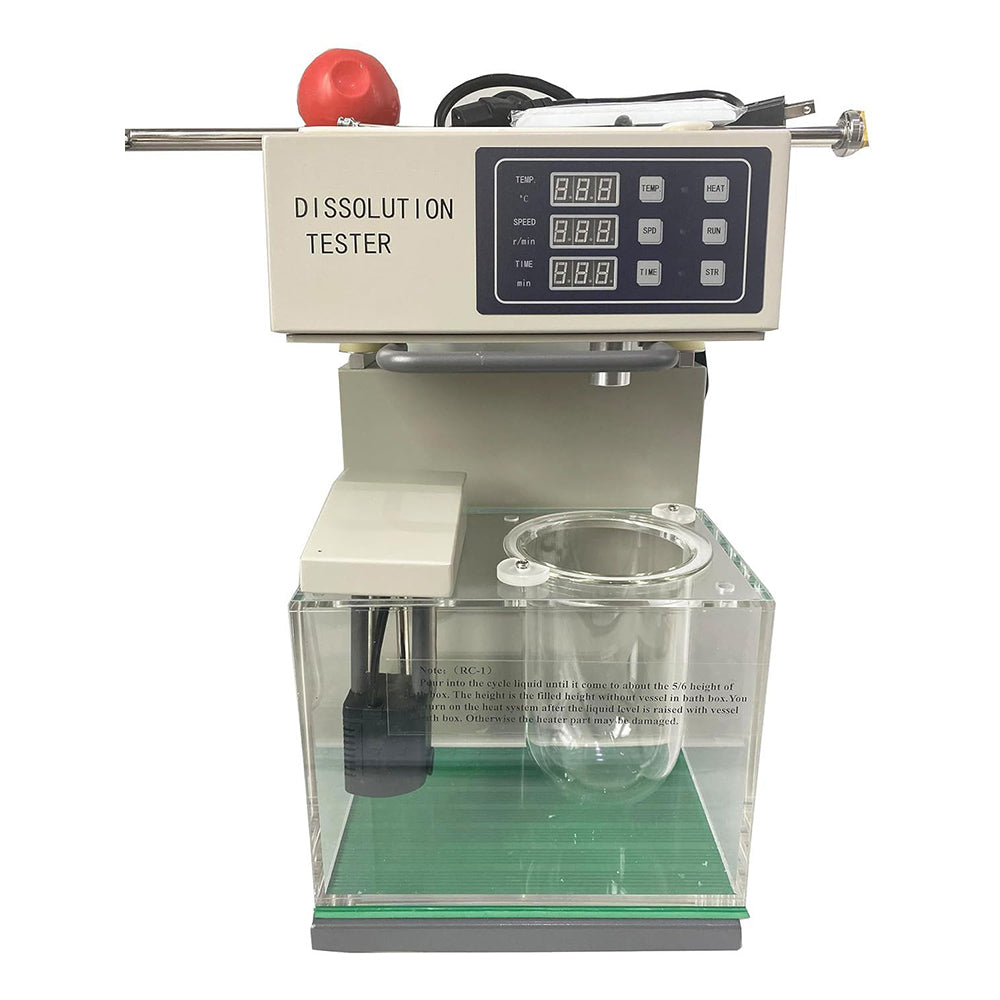

VTSYIQI Dissolution Apparatus Dissolution Rate and Degree Detector with Speed Range 20-200rpm Speeding Accuracy ±2rpm One Cup and One Lever Automatic Intelligent Control of Temperature Speed and Time Parameters

Introduction

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Features:

One cup and one lever.

The head part of the machine is manually turned over, smooth and flexible.

The turning blue and paddle bar etc. are made of imported SUS316L stainless steel.

Using micro water pump circulating water flow even heat system, the water bath temperature is even.

Automatic intelligent control of temperature, speed and time parameters.

The parameters can be preset at will; the preset value and the real time value are displayed in time division.

Automation, automatic detection, automatic diagnosis and automatic alarm.

Technical specifications

Speed range: (20-200) rpm

Speeding accuracy: ±2rpm

Temperature control range: (room temperature ~ 45.0)℃

Temperature control accuracy: ±0.3℃

Timing range: (5～900)min (6 points)

Timing accuracy: ±0.3%

Basket swing range: ±1mm

Paddle oscillation range: ±0.5mm

Eccentricity of rotating shaft: ±2.0mm

Power of electric heater: 500W

Continuous working time: more than 24 hours

Power supply : 220V/50Hz/600W or 110V/60Hz/600W

Power : 600W

Dimensions: (26×30×48)cm3

Weight : 19kg
