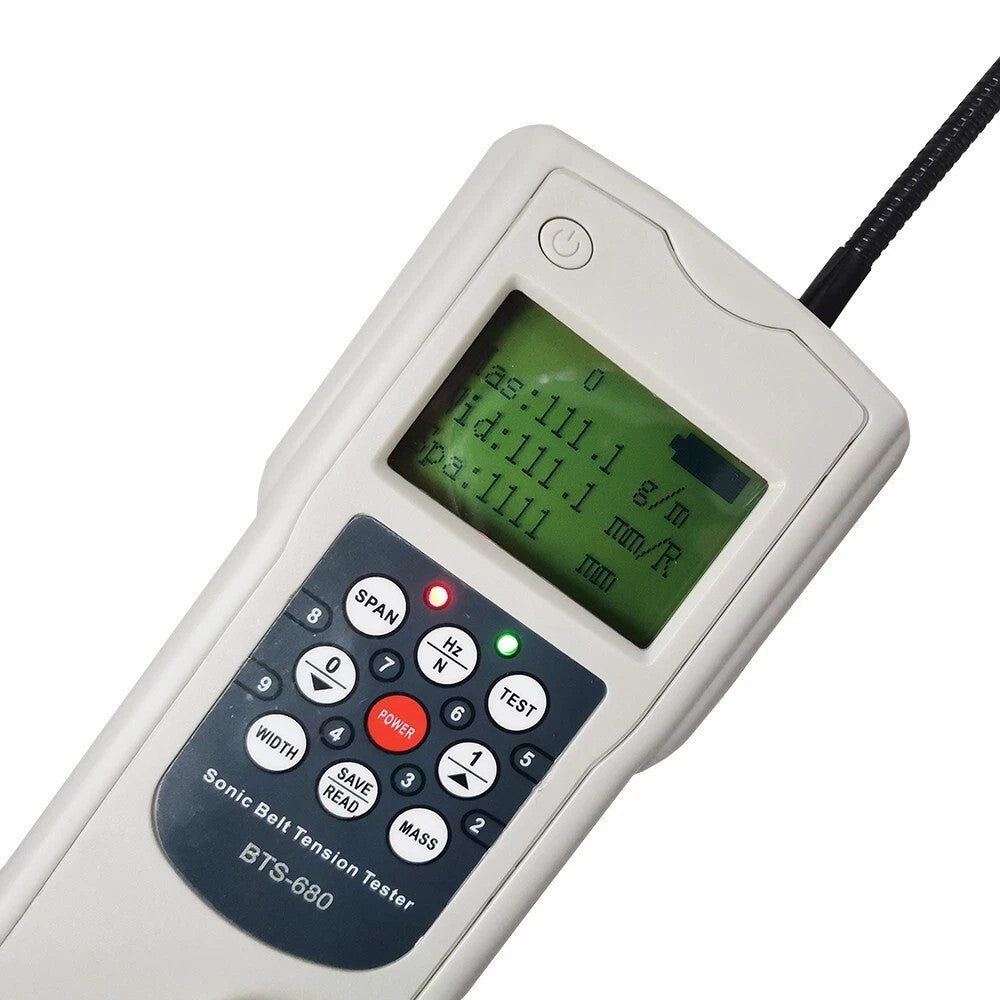

  • VTSYIQI Digital Sonic Tension Meter Belt Tensioner with Measuring Range 10HZ-680HZ LCD Display Stored 20 Set Belt Parameters for Measure the Frequency of Vibration of Drive Belts Upon Impact or Rapid Movement

VTSYIQI

VTSYIQI Digital Sonic Tension Meter Belt Tensioner with Measuring Range 10HZ-680HZ LCD Display Stored 20 Set Belt Parameters for Measure the Frequency of Vibration of Drive Belts Upon Impact or Rapid Movement

$41500
In stock
$41500

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

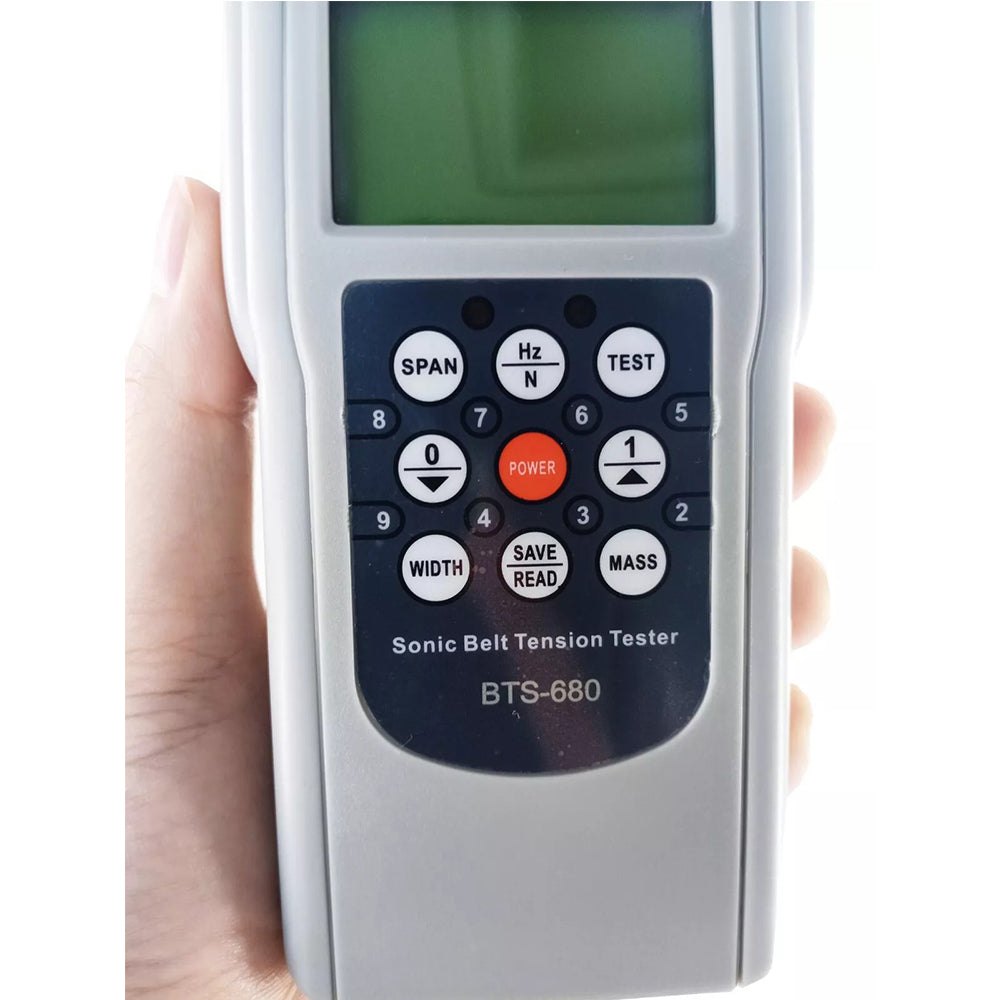

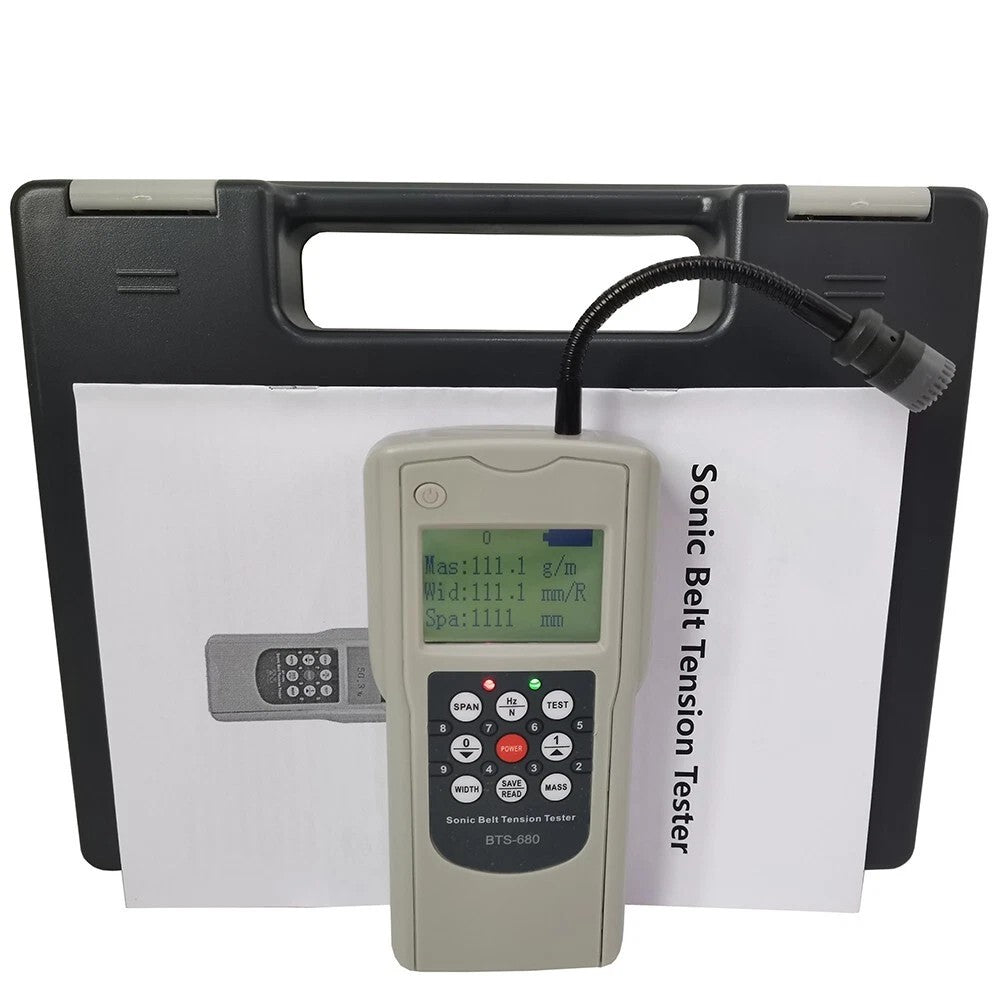

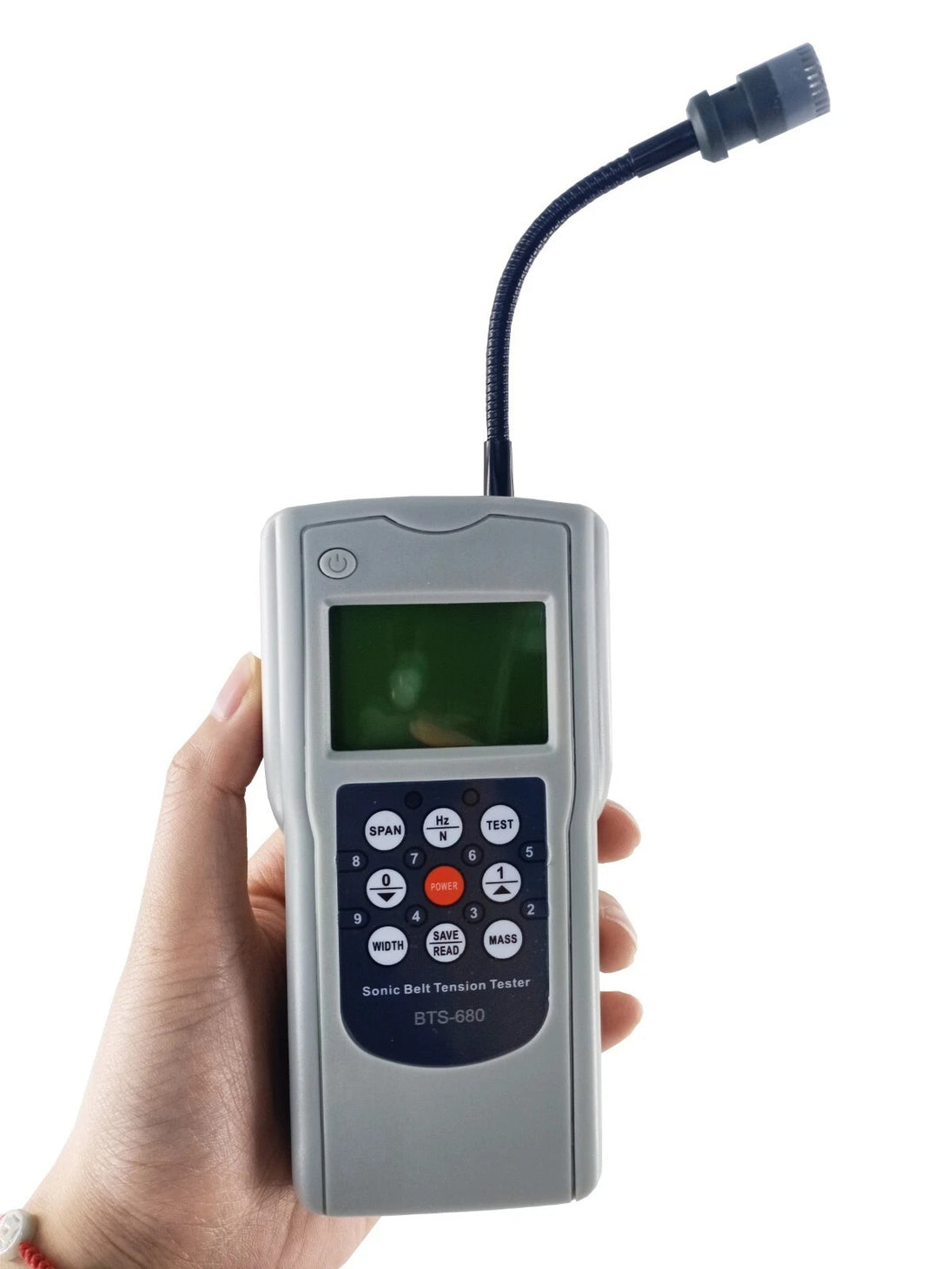

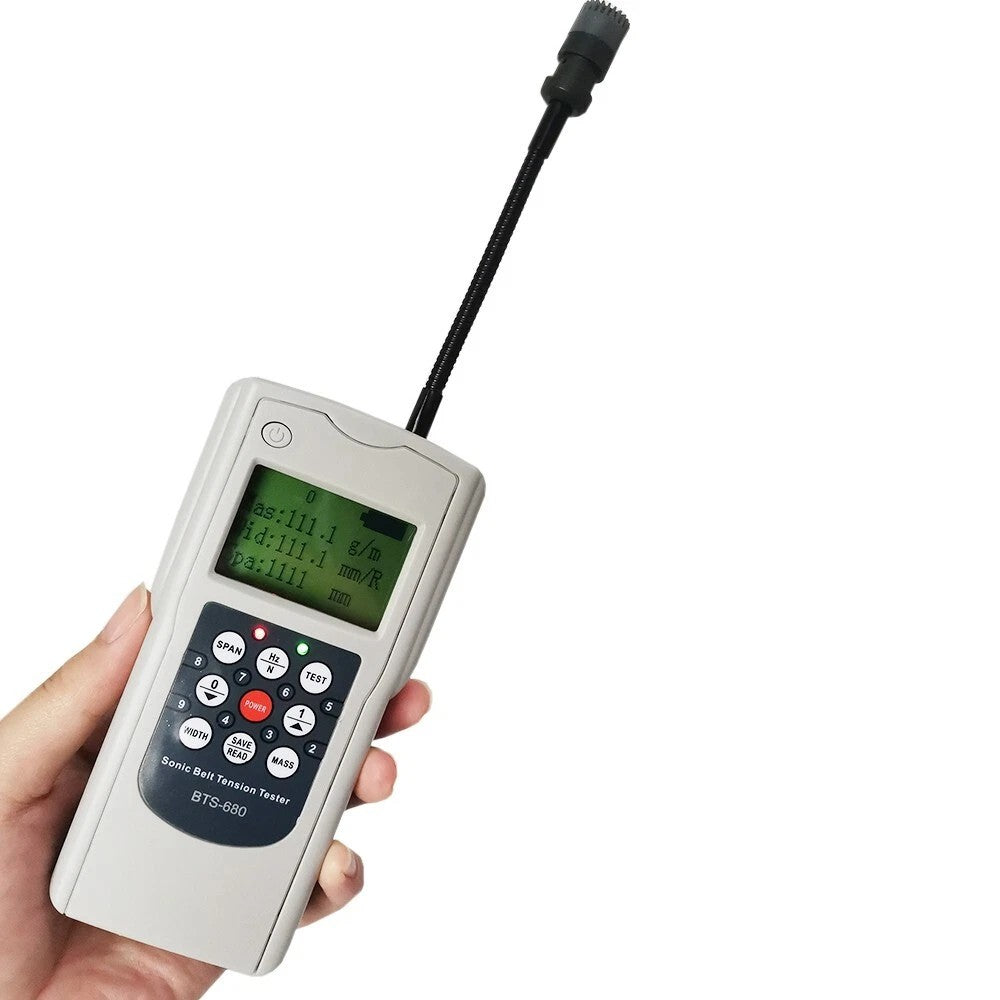

VTSYIQI Digital Sonic Tension Meter Belt Tensioner with Measuring Range 10HZ-680HZ LCD Display Stored 20 Set Belt Parameters for Measure the Frequency of Vibration of Drive Belts Upon Impact or Rapid Movement

About this item

It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.

Maximum frequency: 680 Hz.

Can store 20 set belt parameters.

Adjustable probe.

Automatic shutdown, etc.

Product Description:
◆It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.

Features

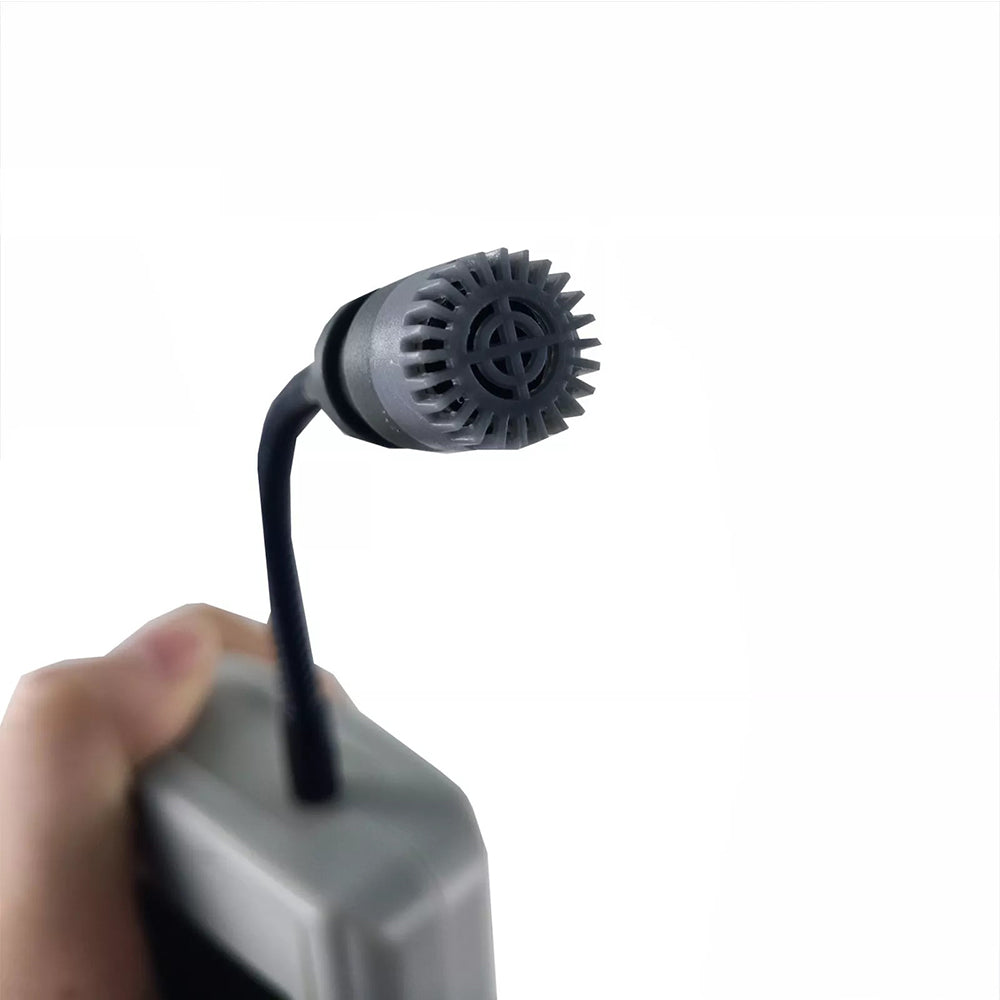

◆The probe can be adjusted.
◆Can store 20 set belt parameters.
◆Maximum frequency: 680 Hz.
◆Automatic shutdown, etc.

Product Parameters
◆Measuring range:10Hz-680Hz
◆Belt free strand length:Up to 9999 mm
◆Belt width:Up to 999.9 mm/R
◆Belt mass:Up to 999.9 g/m
◆Precision:±1HZ<100HZ AND ±1%>100HZ
◆Digital sampling accuracy:<1%
◆Display accuracy:土1Hz
◆Overall accuracy:<5%
◆Operating temperature:+10°C to +50° C
◆Transport temperature:-5° C to +70° C
◆Display:LCD
◆Measurement unit:Hz/N

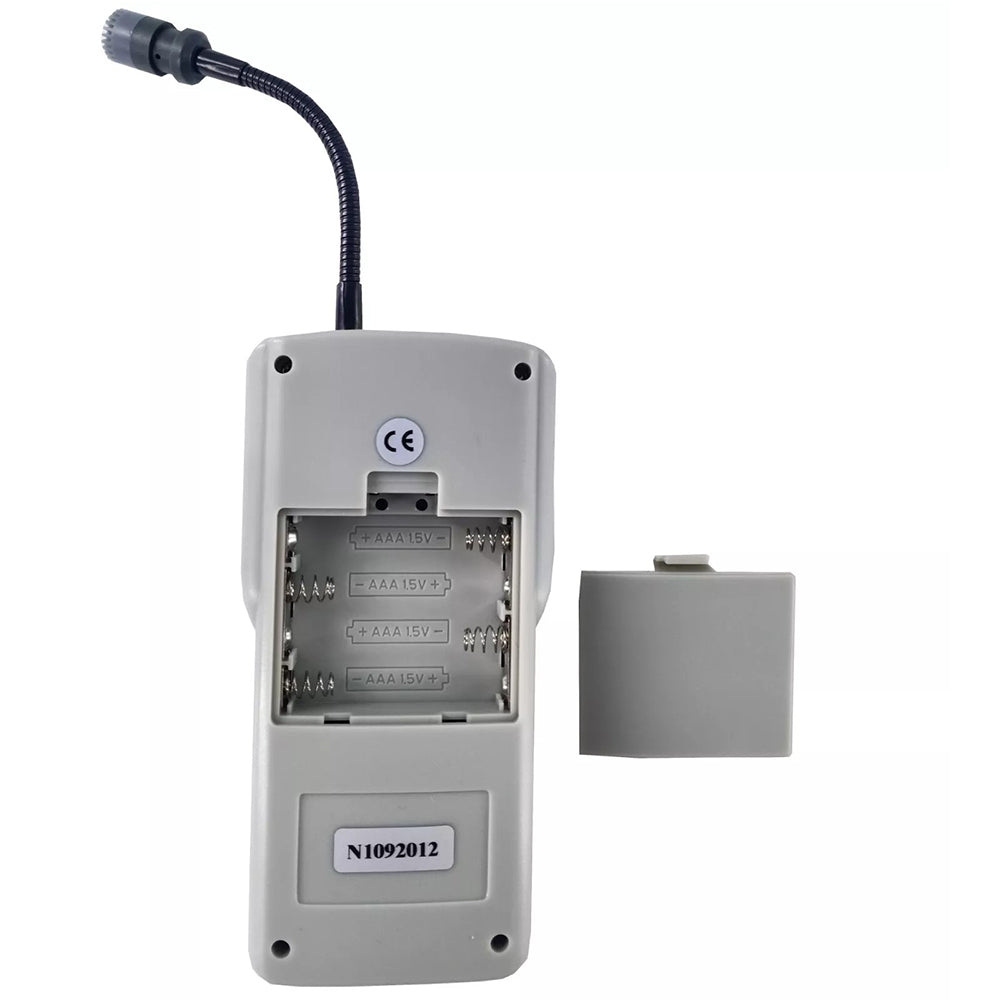

◆Power Supply:4x1.5V AAA（Batteries not included during the shipping）
◆Housing:Plastic(ABS)
◆Dimensions:140x72x34mm
◆Package size:248mmx206mmx52mm
◆Standard Accessories:
Main Unit
Portable suitcase(
Operation Manual
