VTSYIQI Infrared Belt Tension Meter Infrared Belt Tension Tester with Two Different Units of Metric or Imperial System Measurement Range 10Hz~800Hz LCD Display Digital Sampling Error <1% Display Error ±1Hz

Note: Battery not Included During The Shipping !!!

About this item

* Adopt laser sensor, direct measurement, more convenient than mechanical sensor.

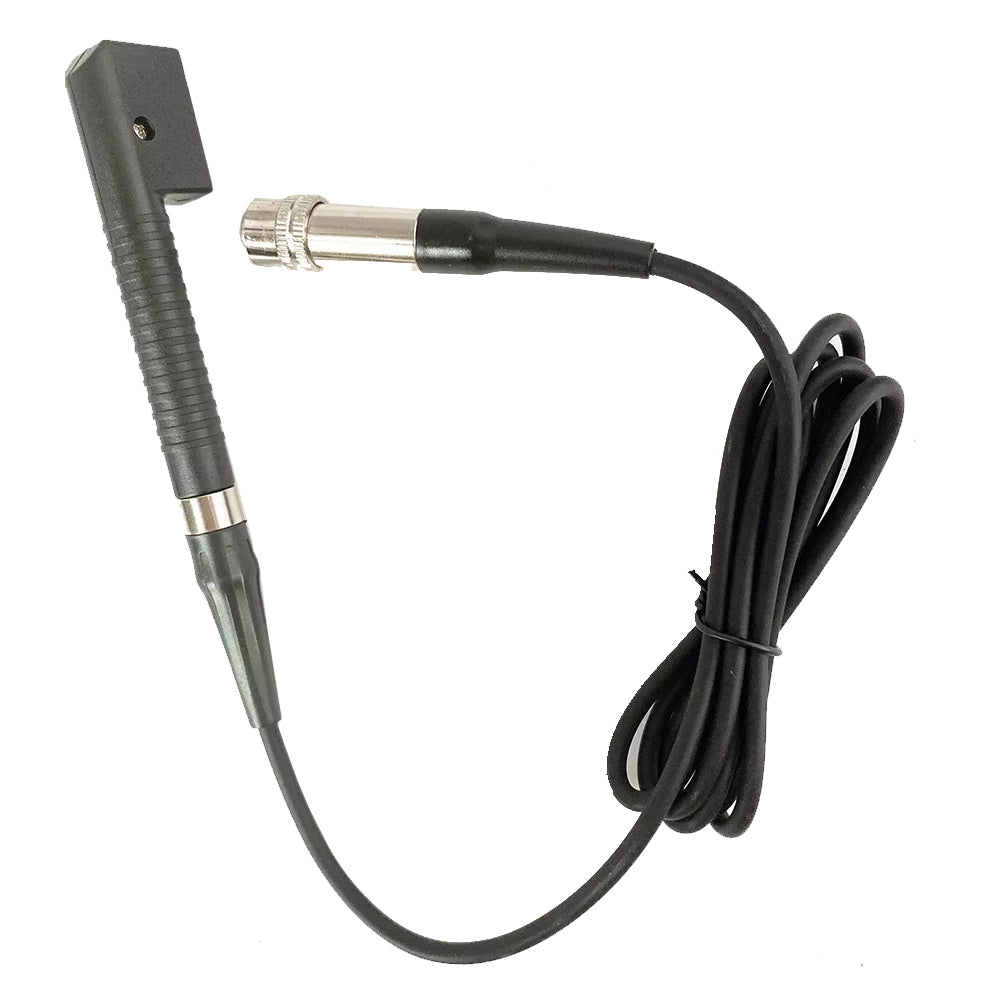

* The small size of the split sensor makes it suitable for measuring in tight spaces.

* Readings can be displayed in either metric or imperial units.

With automatic shutdown function.

Product Description:
The laser belt tension meter quickly measures the belt tension of motors and other machinery. This tension meter measures the natural vibration frequency of the belt by transmitting and receiving a laser, and then calculates the belt tension value by combining the input belt mass and the free belt length.

Product Features
* Direct measurement by laser sensor, which is more convenient than mechanical sensor.
* The split sensor is small in size, suitable for measurement in small spaces.
* Two different units of metric or imperial system are available to display the reading.
* With automatic shutdown function

Product parameters
Measurement range: 10Hz~800Hz
Input range:
Free section belt length Max 99.99m
Belt mass Max 9.999kg/m
Digital sampling error: <1%
Display error: ±1Hz
Total error: <5%
Operating temperature range: +10°C~50°C, transport temperature range: -5°C~70°C

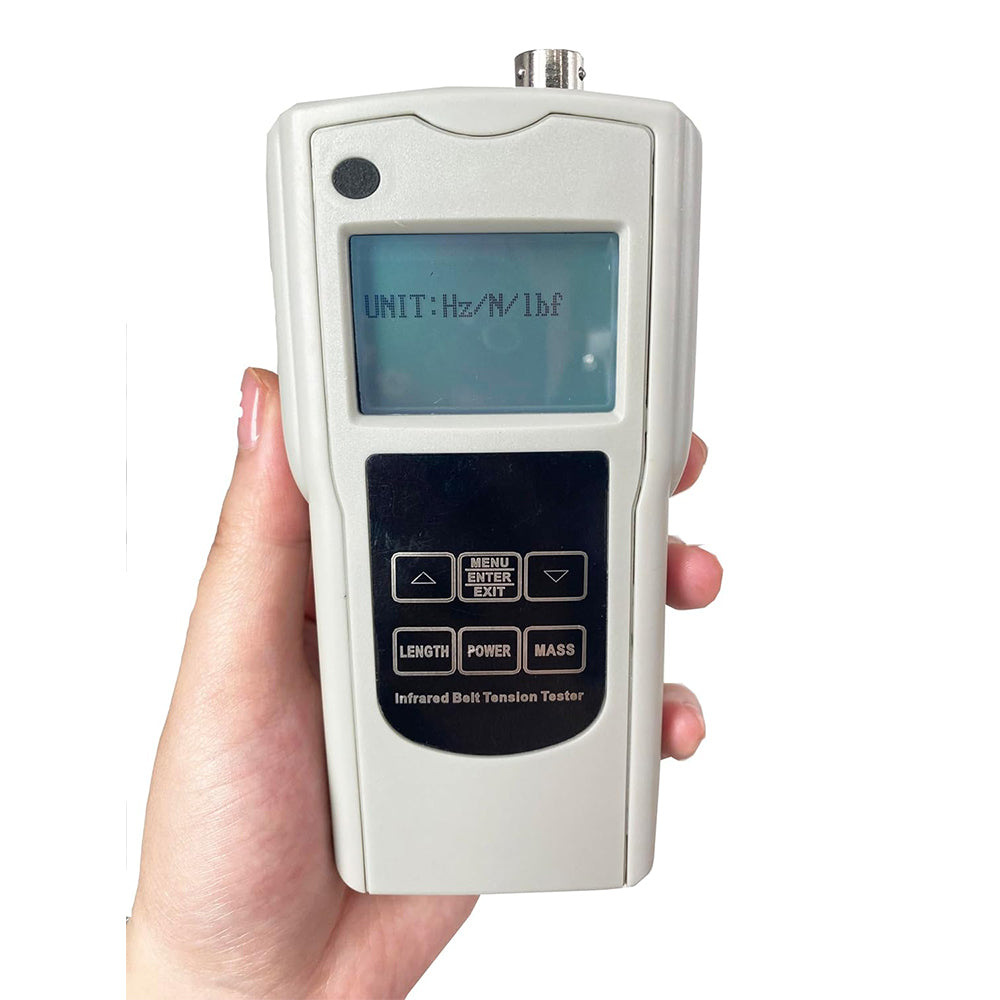

Display: LCD
Measurement physical units
Metric system: m, kg/m, N
Inch: inch, lbs/foot, lbf
Optical path measurement distance: 3mm ~ 20mm
Separate probe can be deep: about 66mm

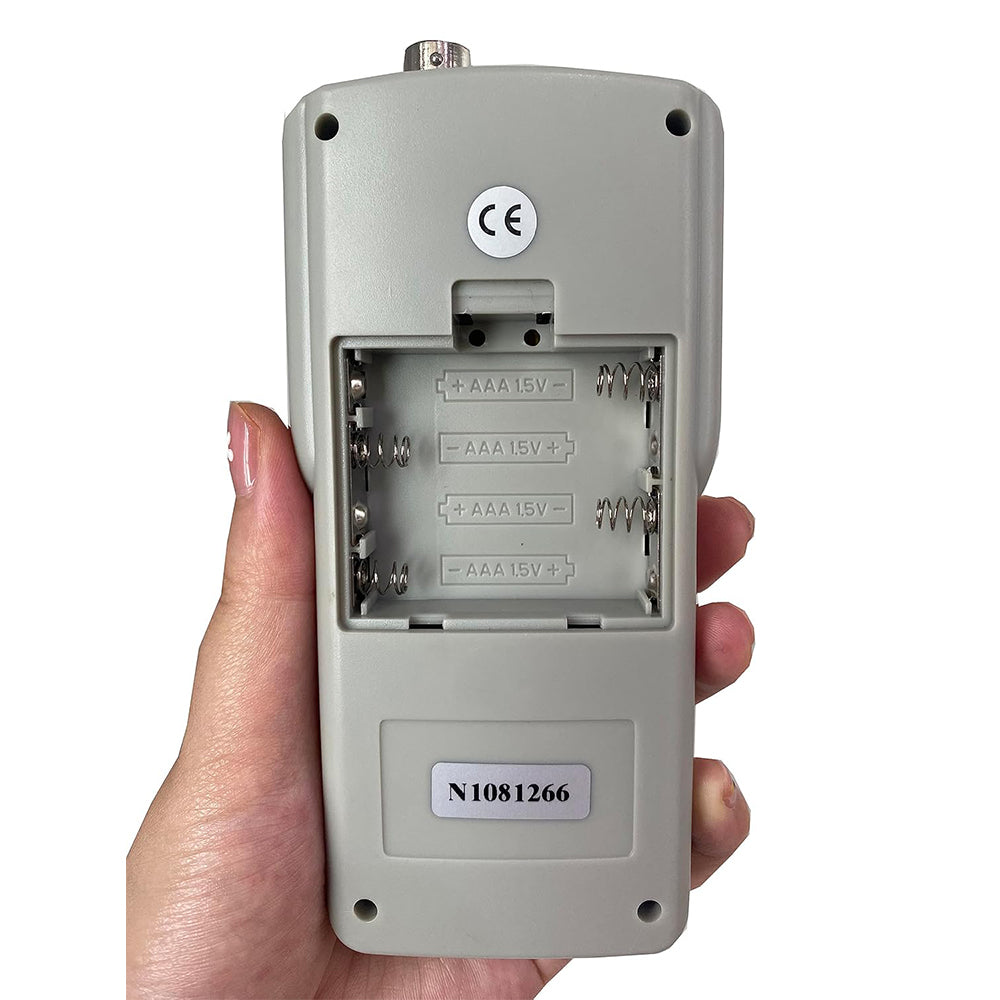

Power supply: 4x1.5v AAA 7 batteries (batteries are not included in transit)
Host size:
Main body: 140mmx 70mmx 31mm
Sensor: 124mmx 21mmx 12mm
Host weight: 130g (without batteries)
