VTSYIQI Benchtop Ion Meter for I Lodide Ion Concentration Meter with Standard Calibration Range 0.06 to 127000 ppm Accuracy±1% F.S.Range -1999.9 to 1999.9 mV Calibration Fluid Automatic Temperature Compensation

About this item:

Professional iodide ion meter, suitable for laboratory applications, measurement range 0.06 to 127000 ppm

2 to 5 points calibration, including the selection of 8 concentration points

Selectable concentration units - ppm, mg/L and mol/L

Automatic electrode diagnosis shows the calibration points and slopes

Automatic temperature compensation ensures accurate readings over the entire range

Features:

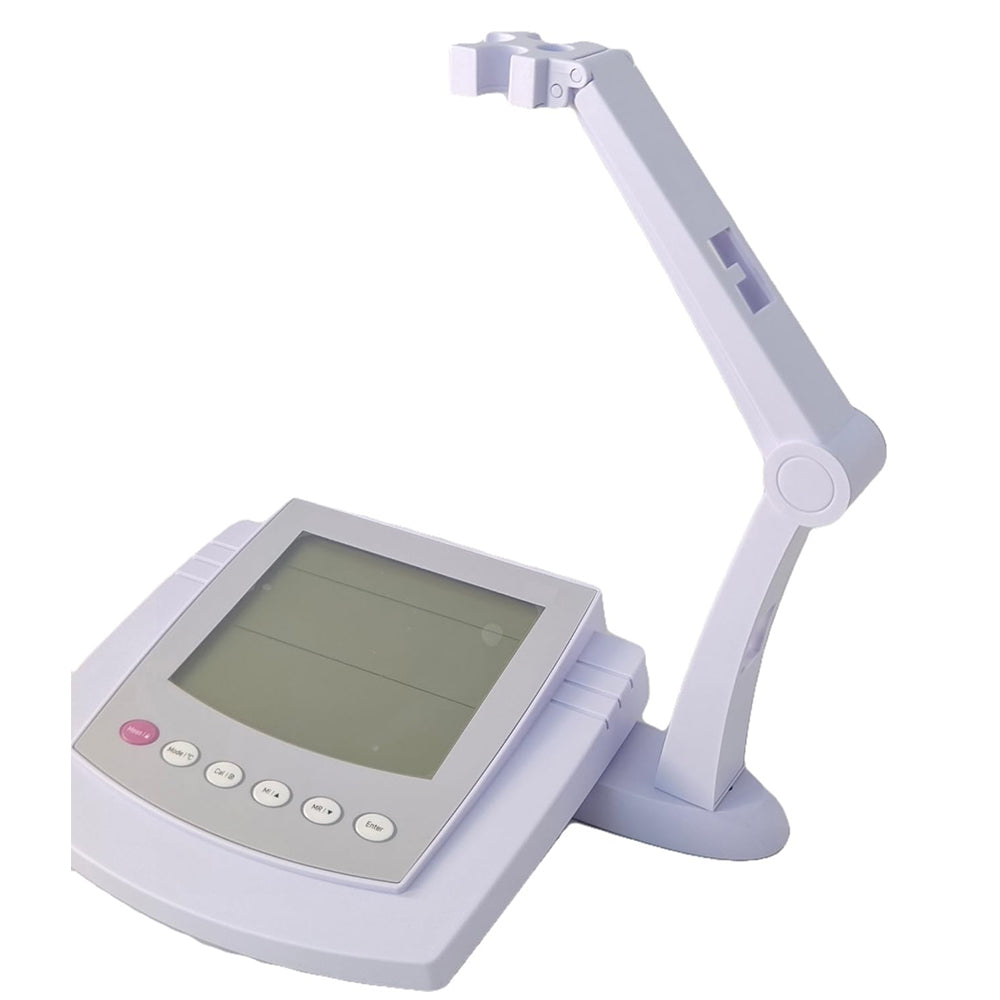

Professional iodide ion meter is equipped with a large backlit LCD display.

2 to 5 points calibration, including the selection of 8 concentration points.

Direct ion concentration readout simplifies the measurement process.

Selectable concentration units - ppm, mg/L and mol/L.

Automatic temperature compensation ensures accurate readings over the entire range.

Auto-read function senses and locks the measurement endpoint.

Calibration due alarm reminds user to calibrate the meter regularly.

Automatic electrode diagnosis shows the calibration points and slopes.

Setup menu allows setting the number of calibration points, ionic valency, stability criteria, temperature unit, auto-power off, etc.

Reset function automatically restores all settings to the factory defaults.

Expanded memory stores or recalls up to 500 data sets.

USB communication interface enables easy data transfer and timed interval readings.

Specifications

Ion Concentration

Range 0.06 to 127000 ppm

Resolution 0.001, 0.01, 0.1, 1, automatic

Accuracy ±1% F.S.

Calibration 2 to 5 points

Calibration Solutions 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000

Measurement Units ppm, mg/L, mol/L, mmol/L

mV

Range -1999.9 to 1999.9 mV

Resolution 0.1 mV

Accuracy ±0.2 mV

Temperature

Range 0 to 105°C / 32 to 221°F

Resolution 0.1°C/°F

Accuracy ±0.5°C / ±0.9°F

Calibration 1 point

Calibration Range Reading ±10°C/°F

Other Specifications

Temperature Compensation 0 to 100°C / 32 to 212°F, manual or automatic

Hold Function Manual / Auto-read measurement endpoint

Stability Criteria Low / High

Calibration Due Alarm 1 to 31 days or off

Memory Stores up to 500 data sets

Output USB communication interface

Connector BNC, 3.5 mm jack socket

Display Custom LCD (125 × 100 mm)

Power Supply 5V DC power adapter

Environmental Conditions 0 to 50°C / 32 to 122°F, relative humidity < 80%

Dimensions 210 × 188 × 60 mm

Weight 1.5 kg

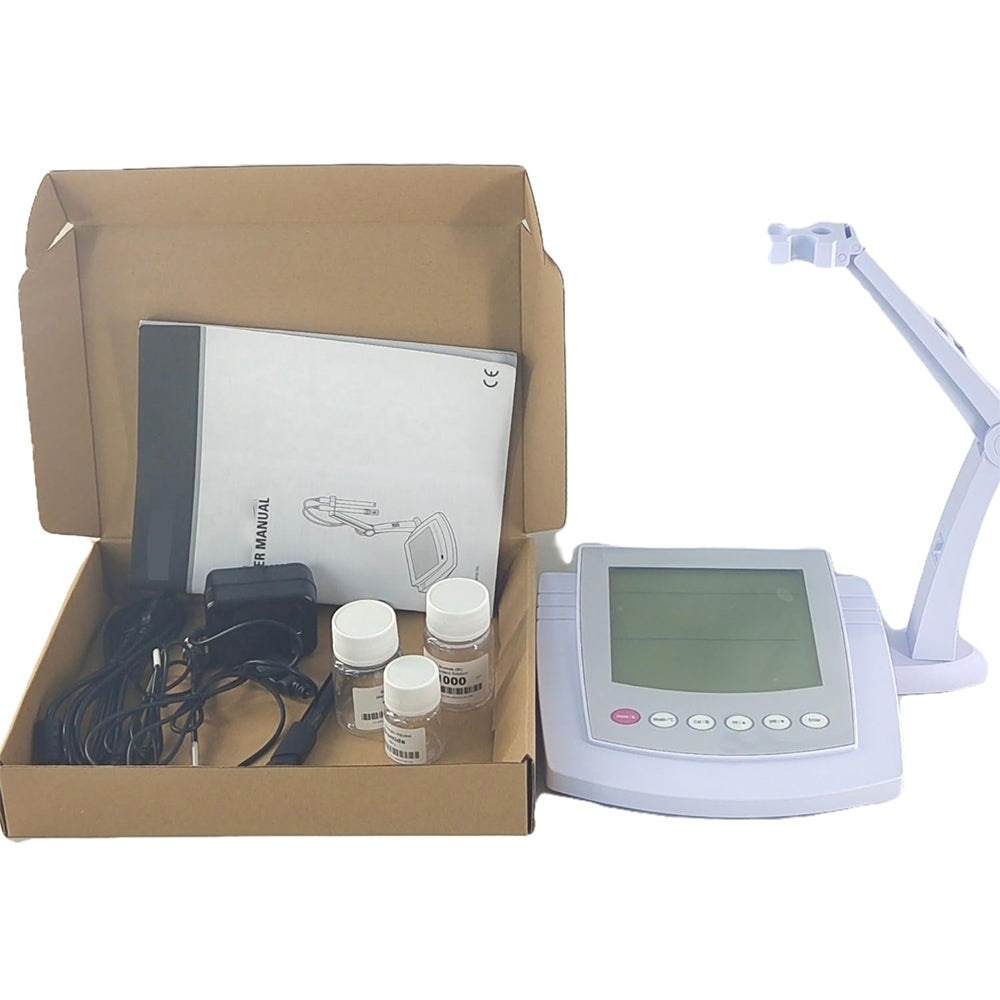

Meter Includes

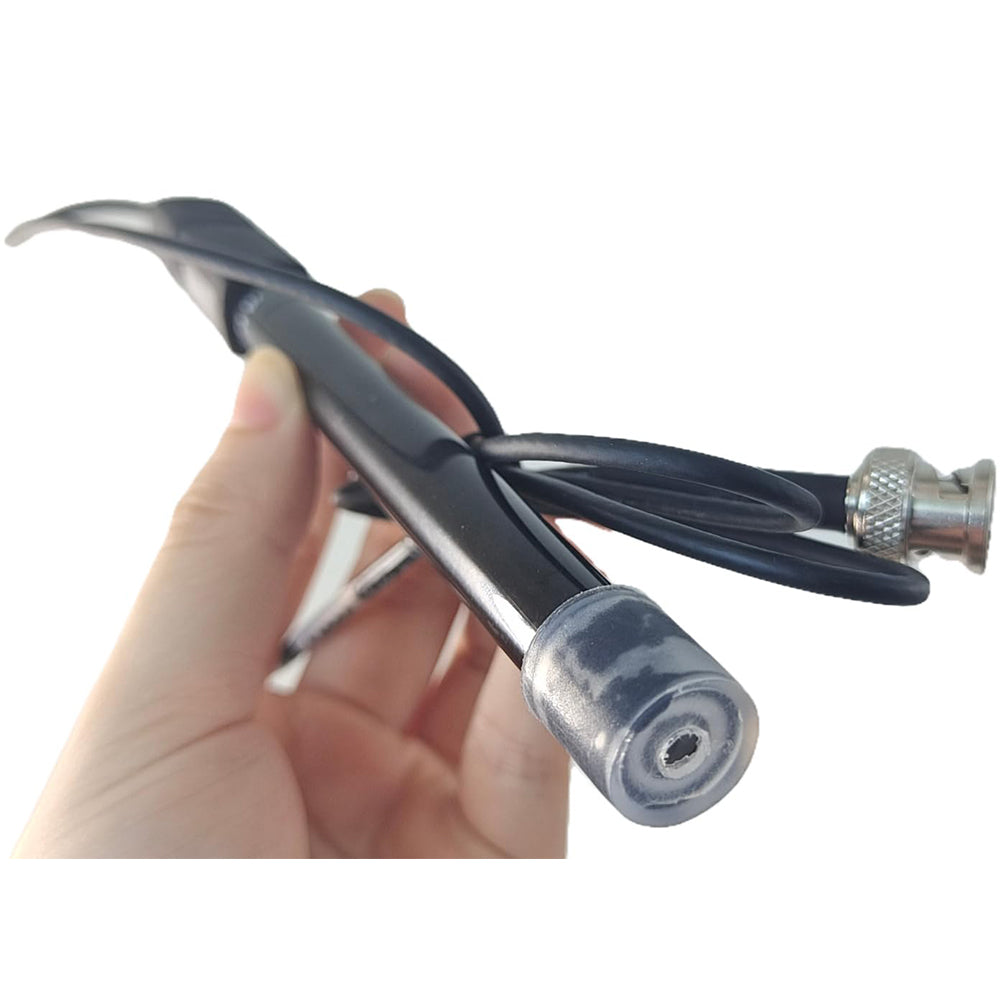

ISE-I iodide electrode

TP-10K temperature probe

Iodide standard solutions 100, 1000 ppm

Ionic strength adjuster

USB cable

5V DC power adapter
