VTSYIQI Concrete Rebound Hammer Tester Resiliometer Tester Schmidt Rebound Hammer 10 to 60Mpa

About this item

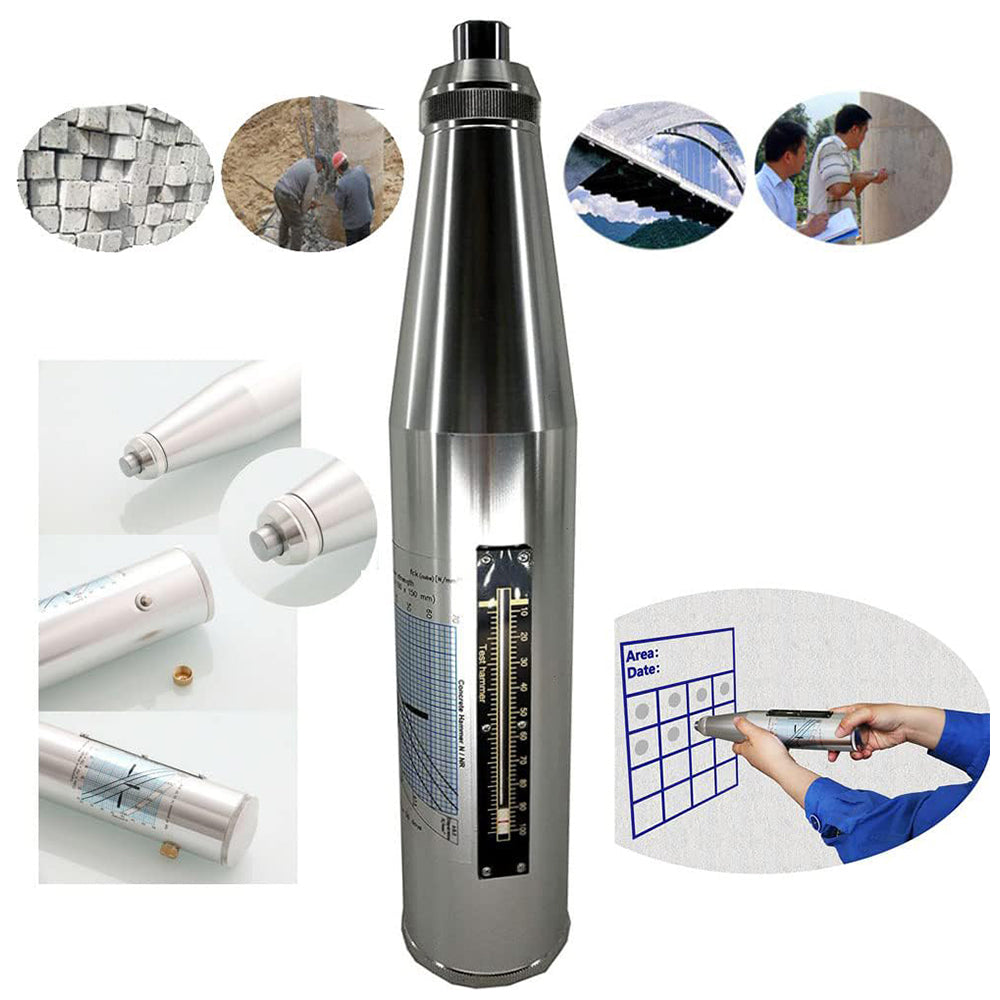

★Concrete rebound test hammer Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.

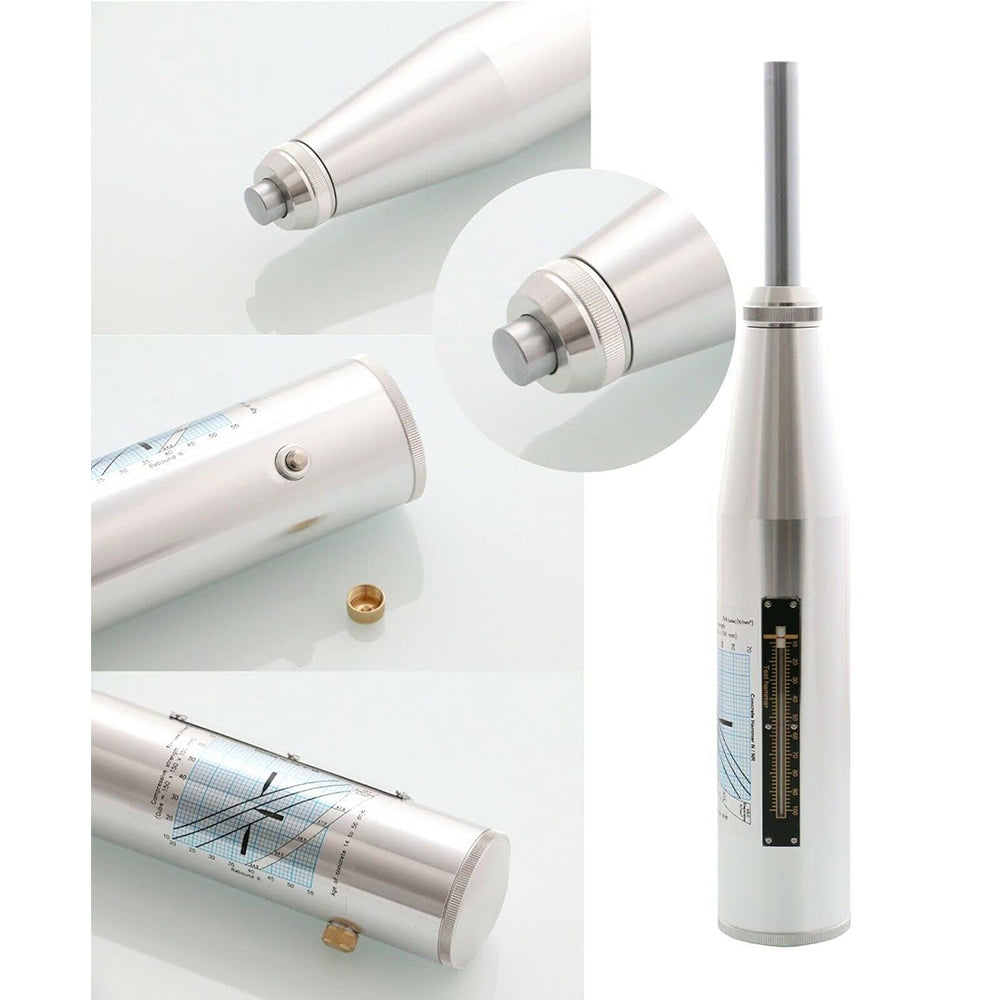

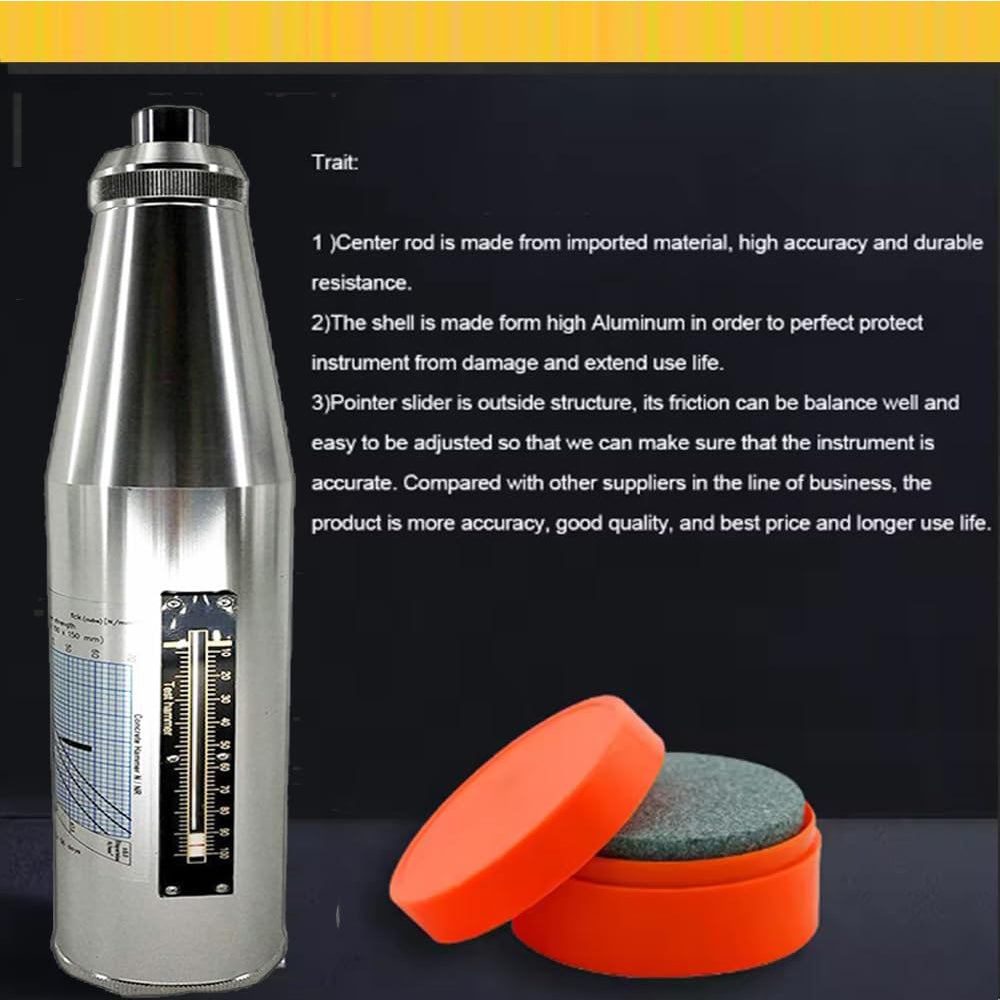

★Concrete rebound hammer test Center rod is made from imported material, high accuracy and durable resistance.

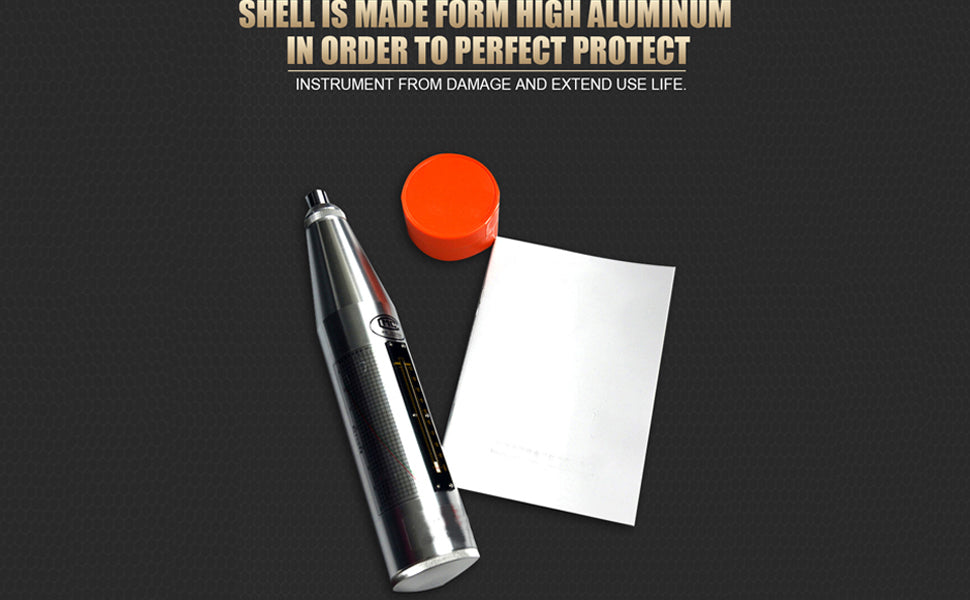

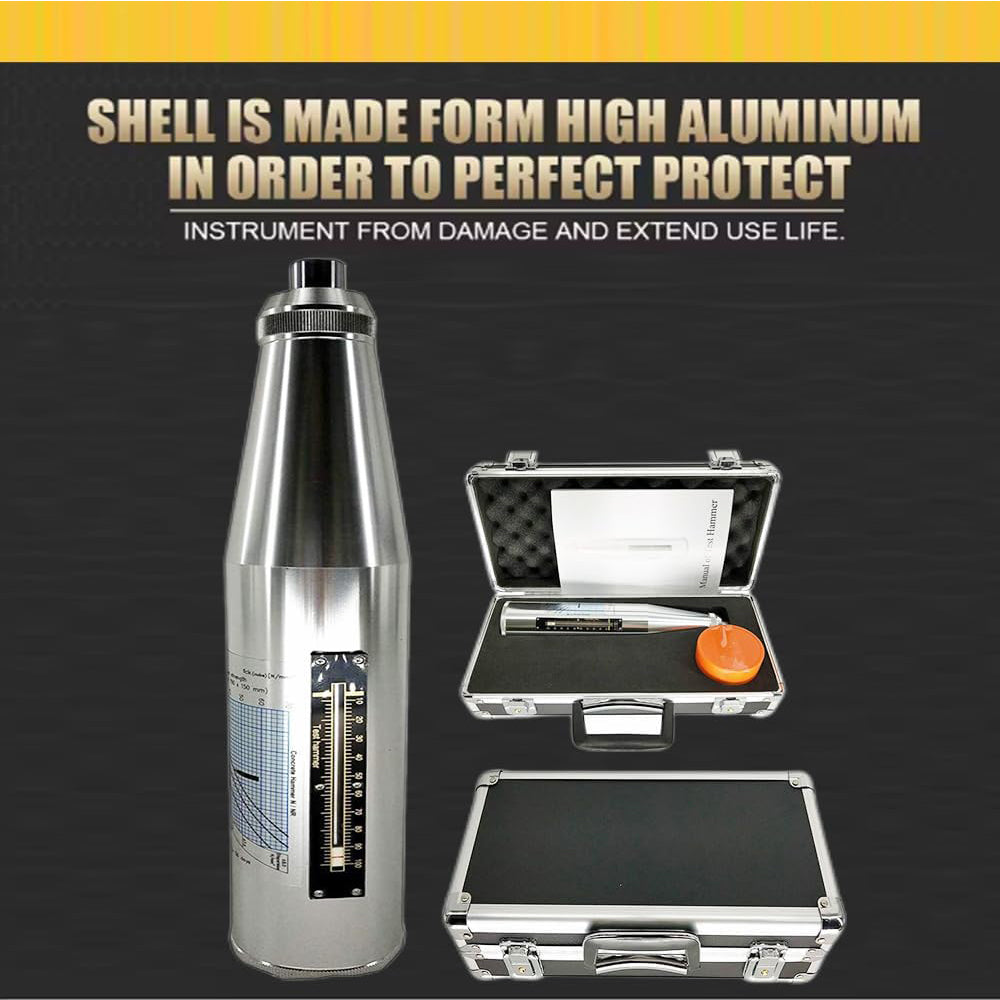

★Concrete strength test hammer The shell is made form high Aluminum in order to perfect protect instrument from damage and extend use life.

★Concrete hammer test machine Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate.

★Non destructive testing rebound hammer Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.

Brief introduction:

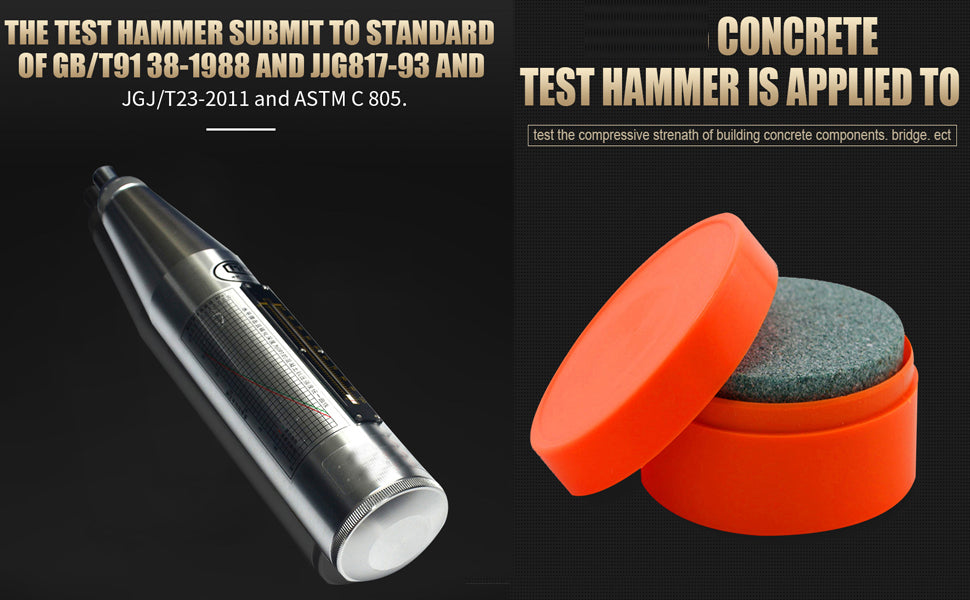

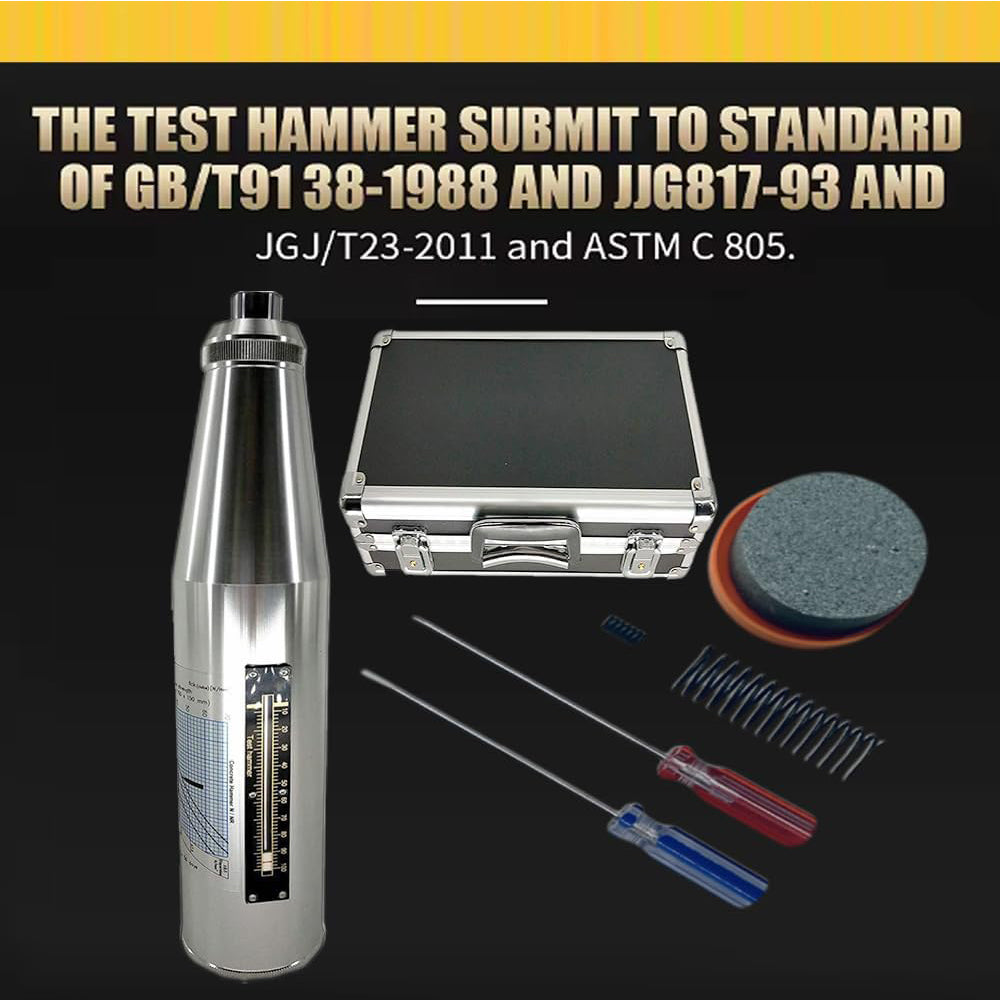

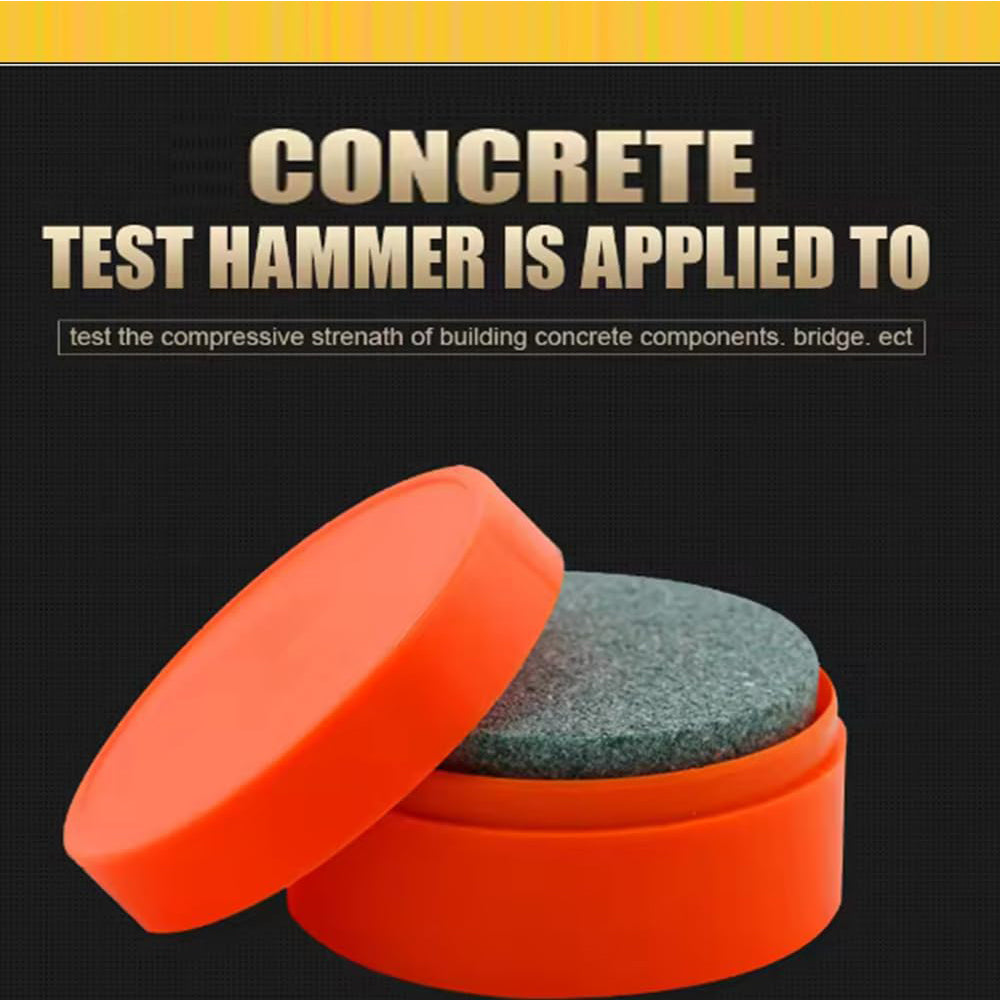

The test hammer submit to standard of GB/T9138-1988 and JJG817-93 and JGJ/T23-2011 and ASTM C 805. concrete test hammer is applied to test the compressive strength of building concrete components, bridge and so on.

Technical Specifications

Test range: 10~60Mpa

Standard impact energy: 2.207J(0.225Kgf.m)

Stroke of rebound hammer: 75mm

Friction of pointer slider: 0.5N~0.8N

Sphere radius of rebound pole SR: 25mm±1mm

Average rebound value on steel anvil Rm: 80±2

Size: Φ54*278mm

Weight: ≈1KG
