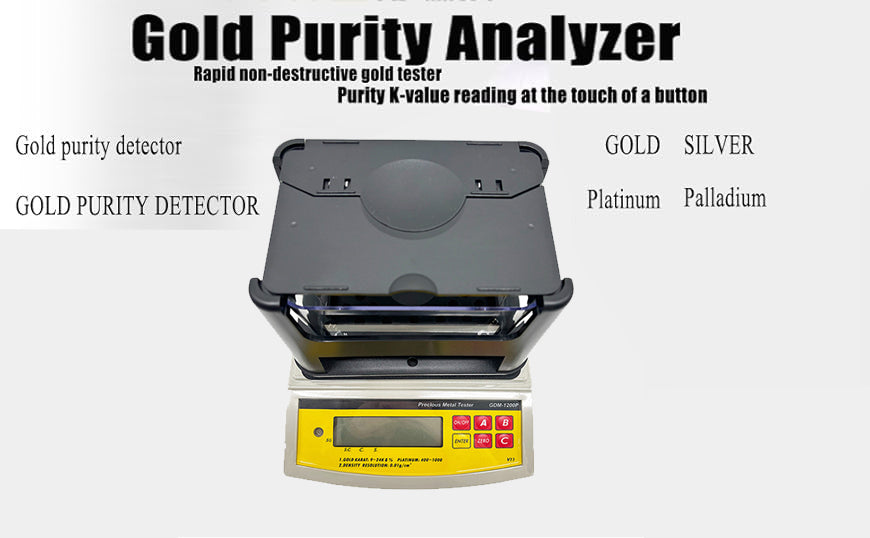

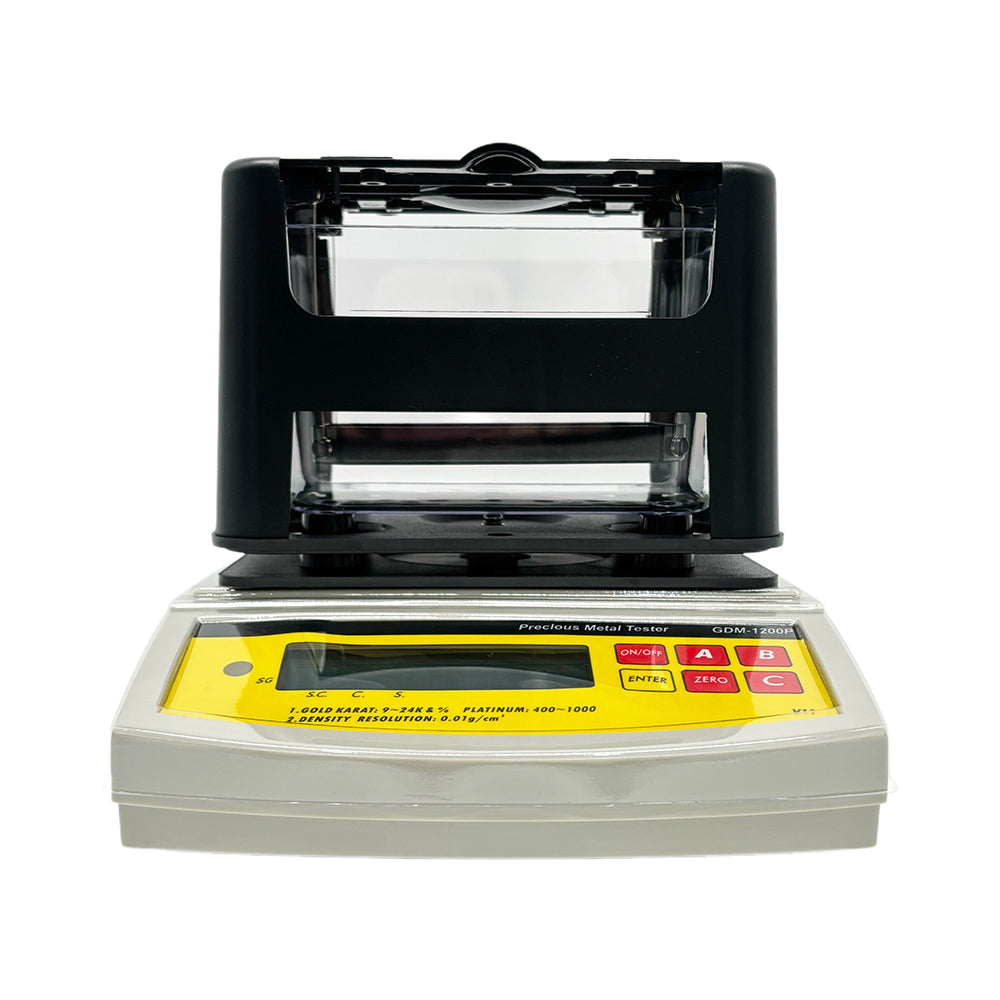

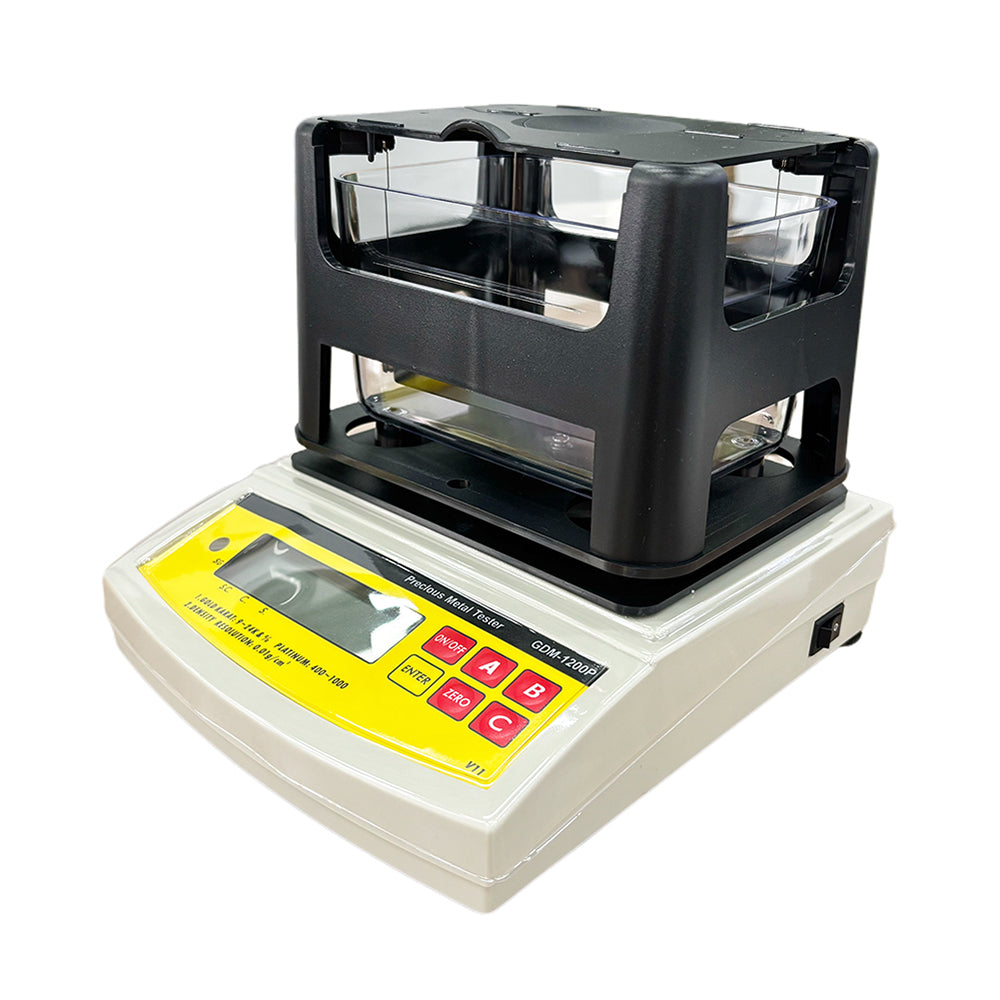

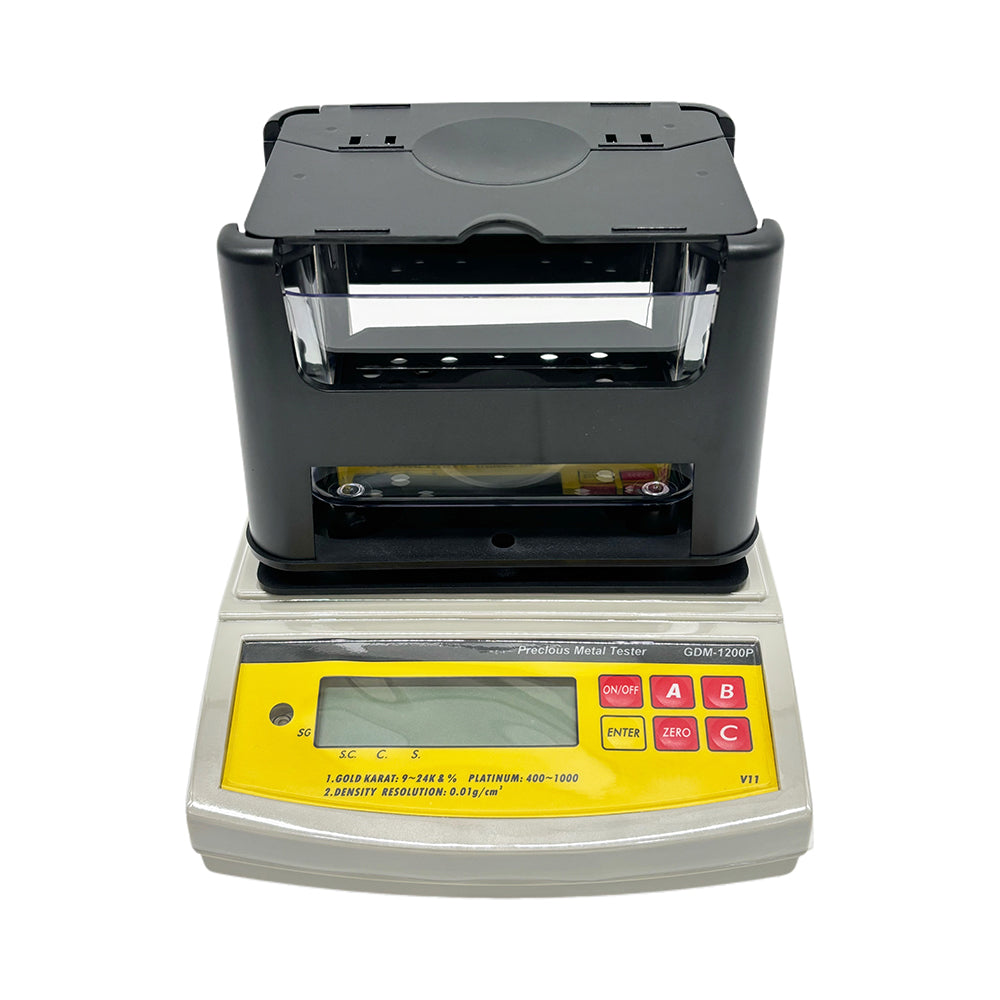

VTSYIQI Digital Electronic Gold Purity Tester Meter Gold Purity Testing Analyzer Machine with Maximum Weight 1200g Interface of RS-232C is included Weight Resolution 0.01g Density Resolution 0.001g/cm3

Notes: Please be noted that the machine has limited function which is determined by its' principle.

Following gold type can't be tested:

(1) Gold has any decoration.

(2) Gold has the painting.

(3) Gold inside is hollow.

About this item

◆ The purity of gold,platinum,and other precious metals can be measured in a short time.; Multi-mode,gold mode,platinum mode,other precious metals mode can be shifted; Interface of RS-232C is included

◆ Maximum weight: 1200g; Weight resolution: 0.01g; Multi-function; the purity of other precious metals can be measured.such as tin,copper, silver., etc. also can be used as precision balance; Main features: Simple operation,digital display,accurate measurement,stable,durable

◆ Density resolution: 0.001g/cm3; Measuring time: 15S; Function of top and bottom limitation;it can display"OK,HI,LO" in the state of qualified, exceed, less; Prompt alarm.; Function of automatic zero tracking,buzzer warning,and overload warning.

◆ Combine archimedes principle with micro electronic technique; the purity can be calculated through measuring density of precious metals.features of no damage on sample; simple operation,fast and accurate

◆ Measurement Procedure: a)Measure the gold weight in air,and then press the ENTER button to memory.; b)Place the gold into water to measure the weight,and then press the ENTER button to memory.show the K value of gold,purity percent,density value.

Application: pawn broking, bank, jewelry shop, precious-metals recovery, jewelry factory, Gemstone Testing Center,precious metals researching.etc.In accordance with archimedes principle water buoyancy method, GB/T1423 of precious metals testing standard,and so on.
K value of gold,PT value of platinum,density value,purity percentage can be measured.

Technical Specifications
Maximum weight: 1200g
Weight resolution: 0.01g
Density resolution: 0.001g/cm3
Measuring time: 15S
Testing board: Completed high-capacity plastic testing board
Measuring type: Traditional gold and platinum jewelry, necklace, bracelet,ring ,large bullion,craft, and gold, silver, copper, cadmium,nickel,tin.etc.
Gold mode:
* Display k value: The K value of mixture of gold,silver,and copper; mixture of gold and copper;mixture of gold and silver;
* Display purity percent: The purity content of mixture of gold,silver and copper; ;mixture of gold and copper;mixture of gold and silver;
* K value: range 9K~24K
* Copper and silver proportion setting: Cycle seting as user prefer(default 7:3)
Platinum:
* Display value: PT percent,density value,volume
* PT value range: Pt600 - Pt1000
Measuring container: completed injection forming transparent professional measurement tank(size: 16.9mm x 9.8mm x 8.3mm)
Parameter setting: water temperature setting,measuring medium density setting
Principle: Archimedes principle
Memory method: Two procedures
Correction method: auto correction with one button,auto detection.
Output method: output and print testing data conveniently with standard communication interface of RS-232C.

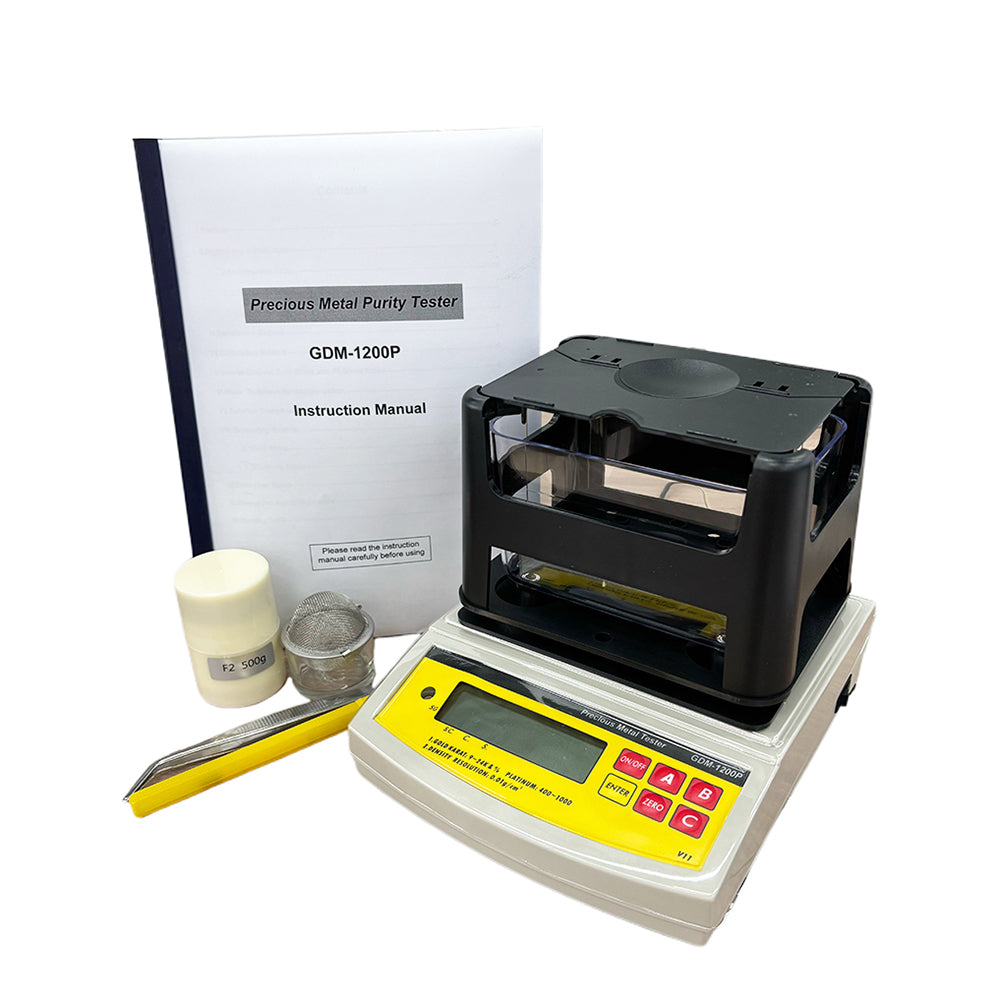

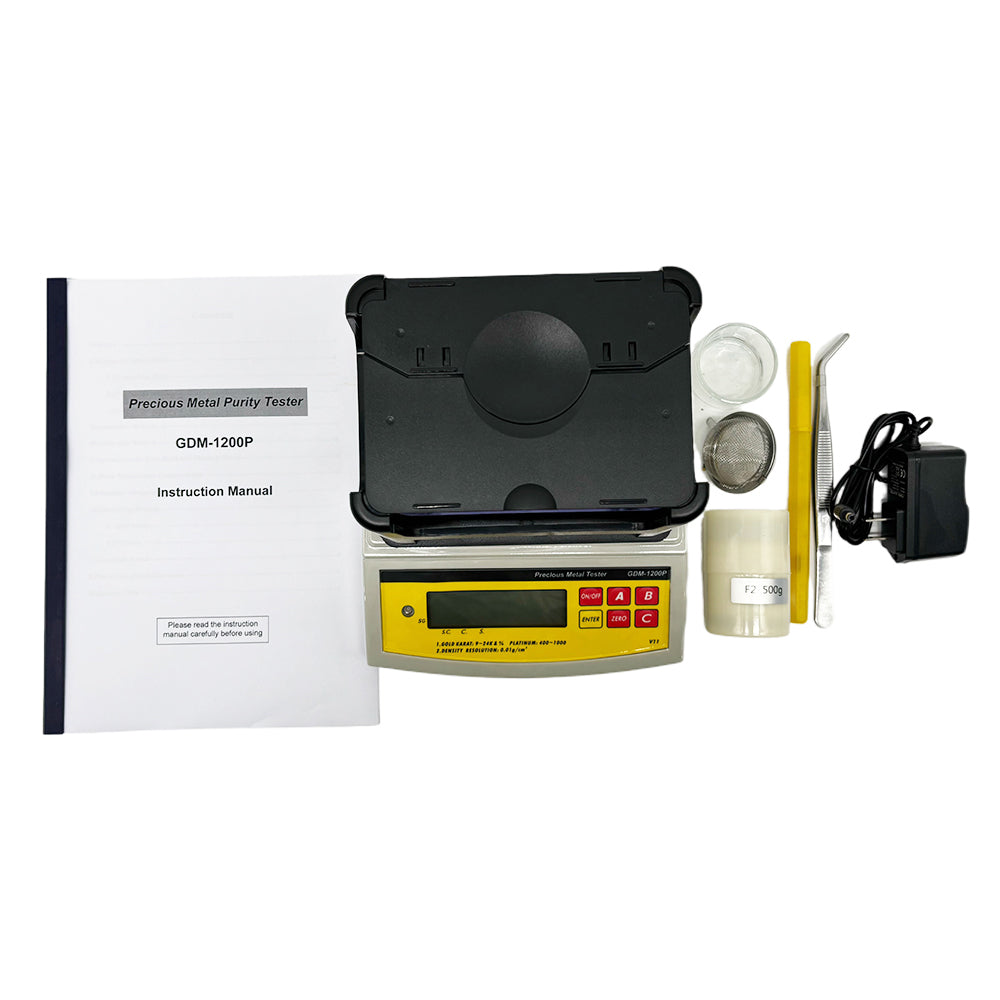

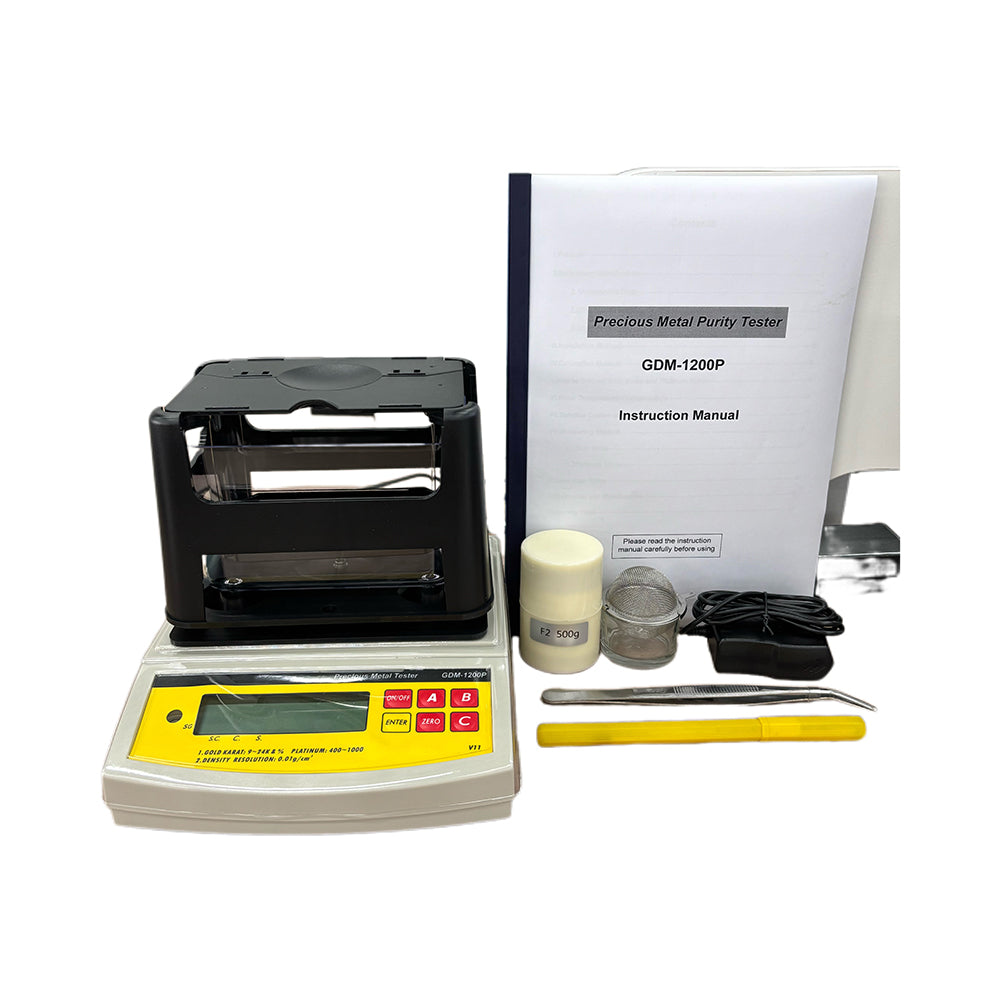

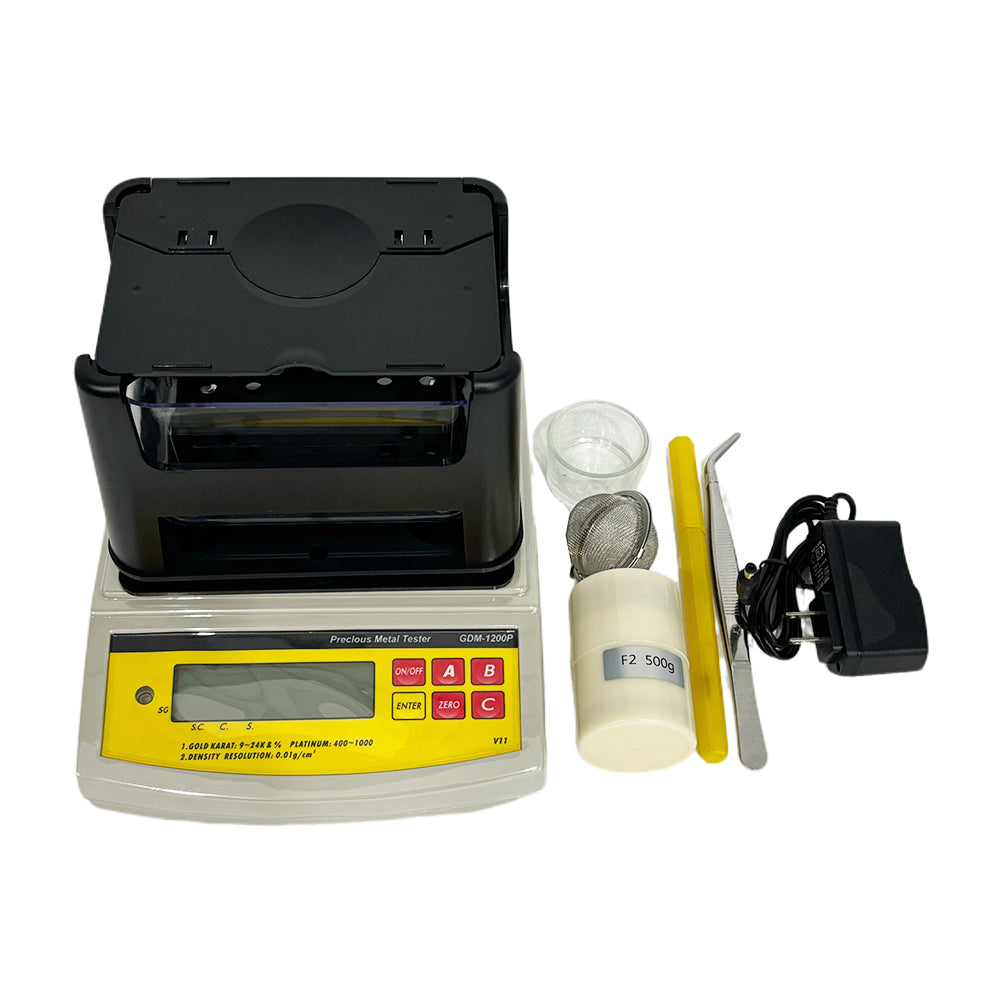

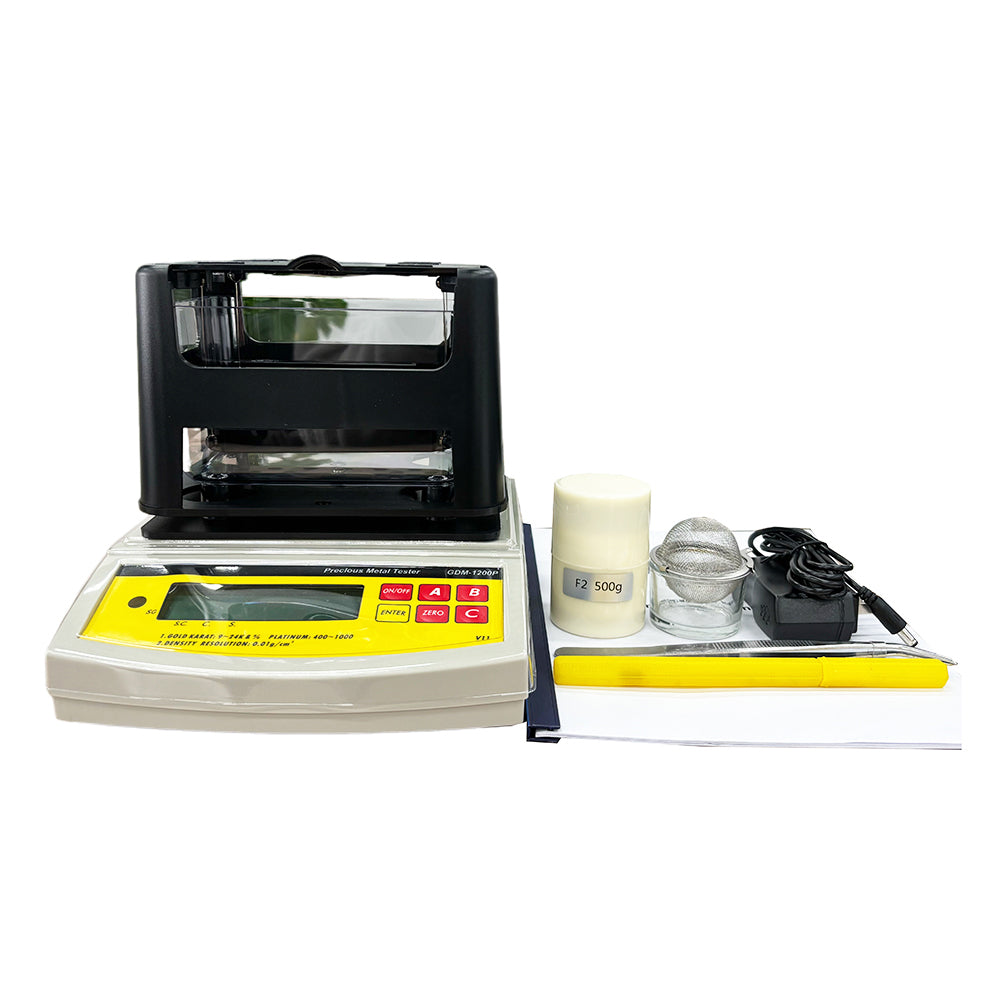

Standard accessories: Host,tank,test board,tweezer,thermometer,weight,wind and dust cover,a set of measuring particle parts,a set of measuring floating body parts,power transformer,
wind and dust cover: Adopt the unicase dedicated wind and dust cover
Power: AC100V - 240V
