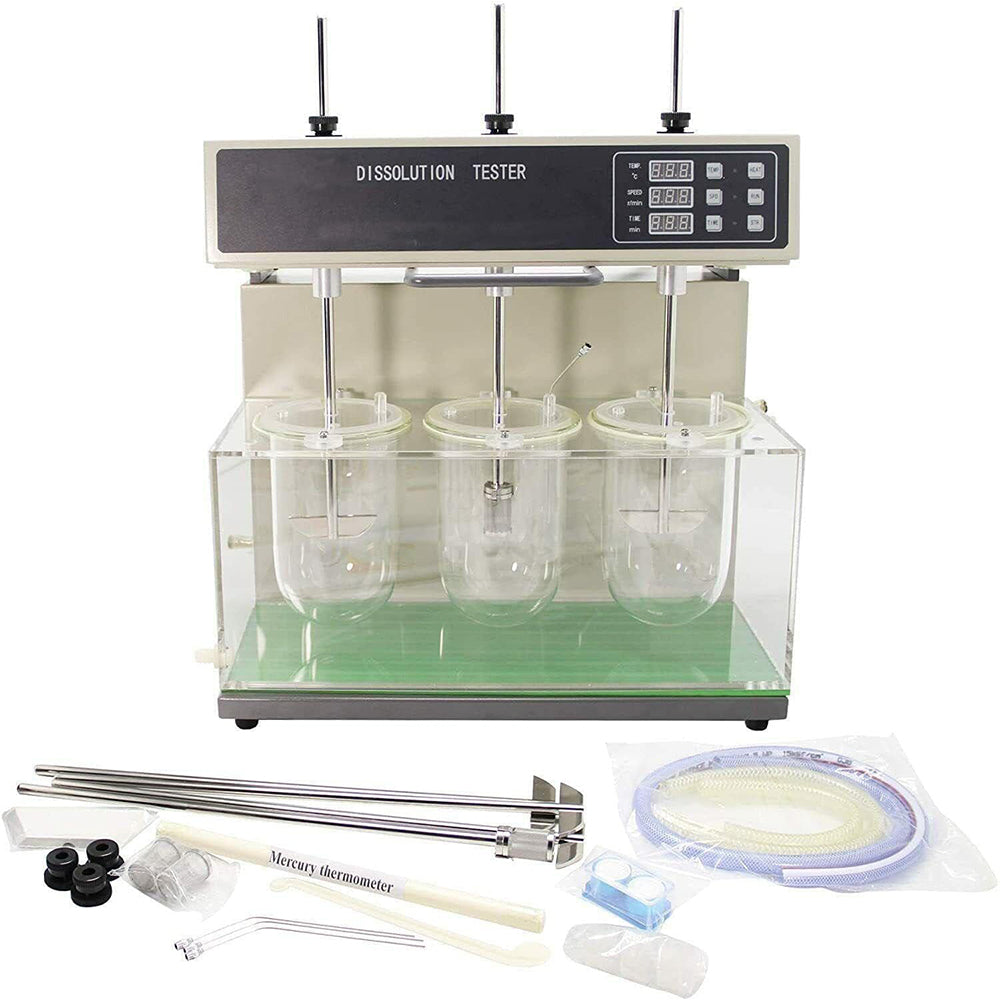

VTSYIQI Dissolution Apparatus Dissolution Equipment Tablet Dissolution Testing with Three Cups and Three Levers Speeding Accuracy ±2rpm Speed Range 20-200 RPM Temperature Speed and Time Automatic Intelligent Control

Introduction

RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.

Features:

Three cups and three levers, one single row.

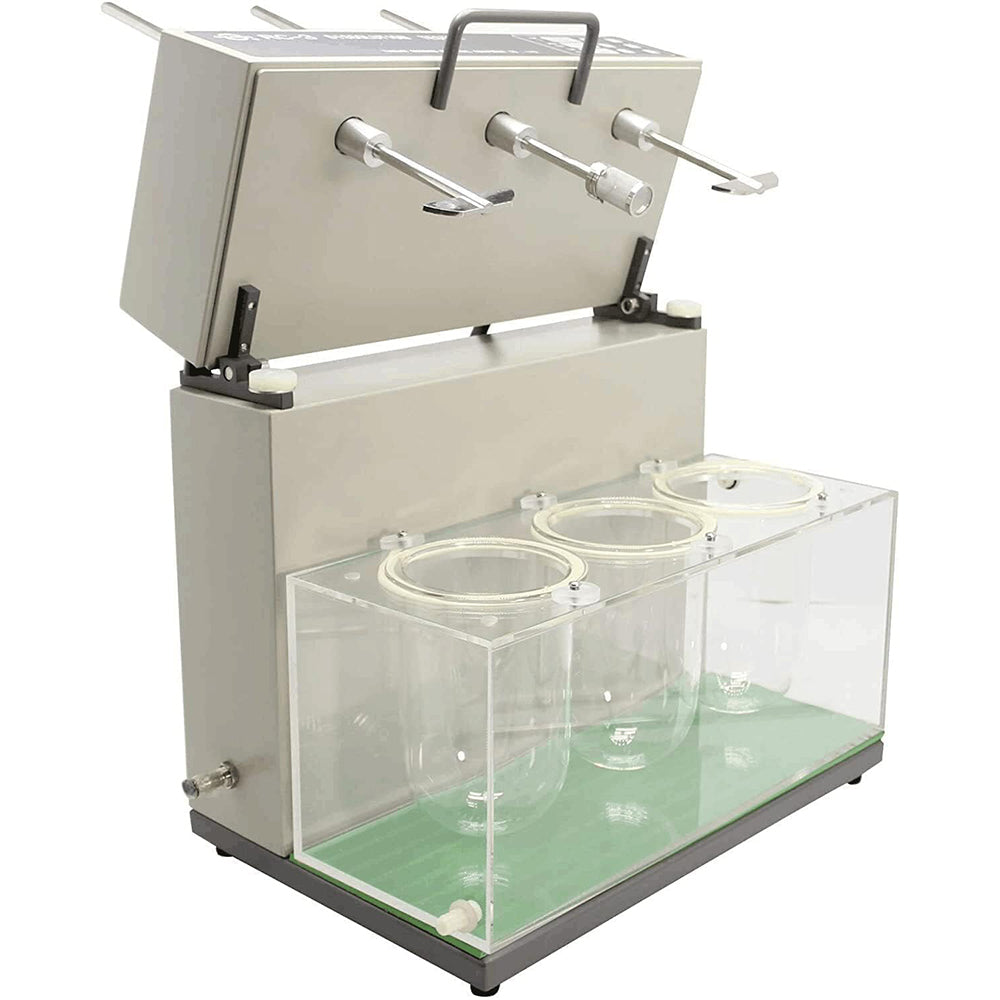

The head section is manually turned over, smooth and flexible.

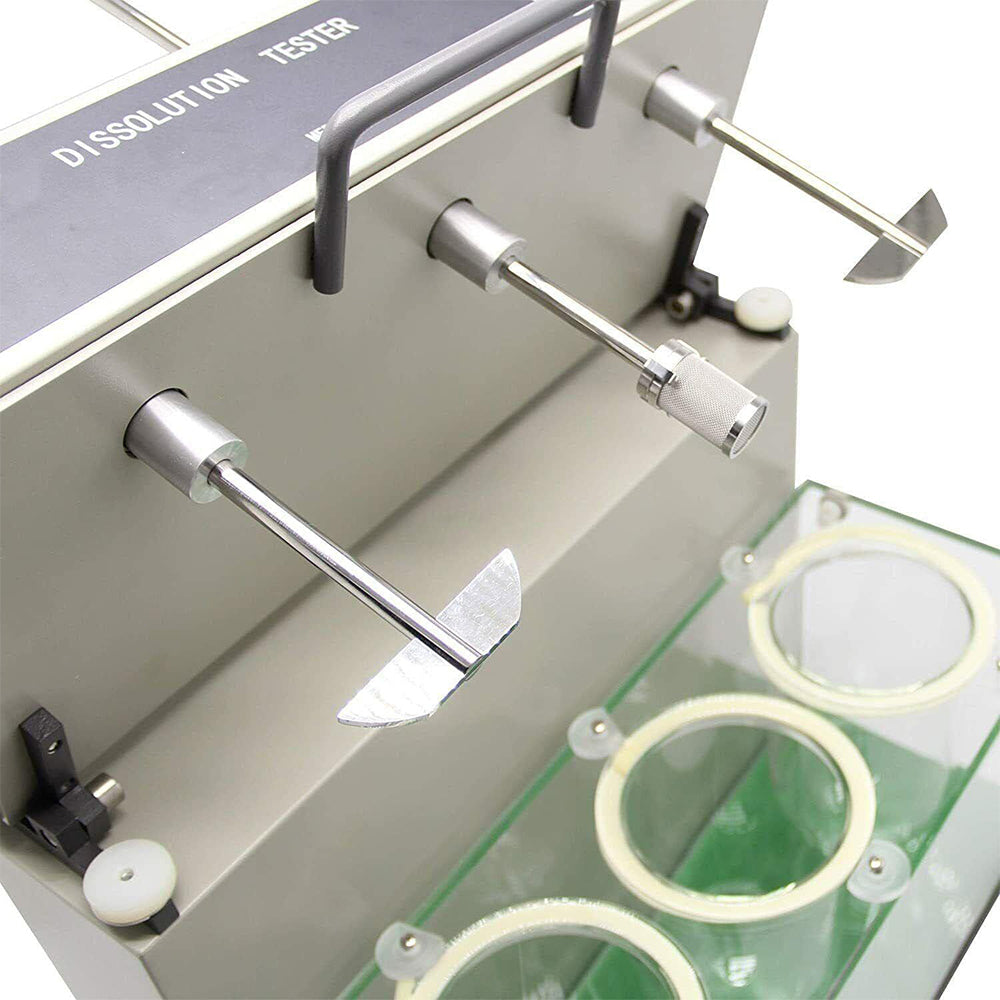

The turning blue and paddle bar etc. are made of imported SUS316L stainless steel.

Adopting magnetic water pump circulating water flow even heat system, the water bath temperature is even.

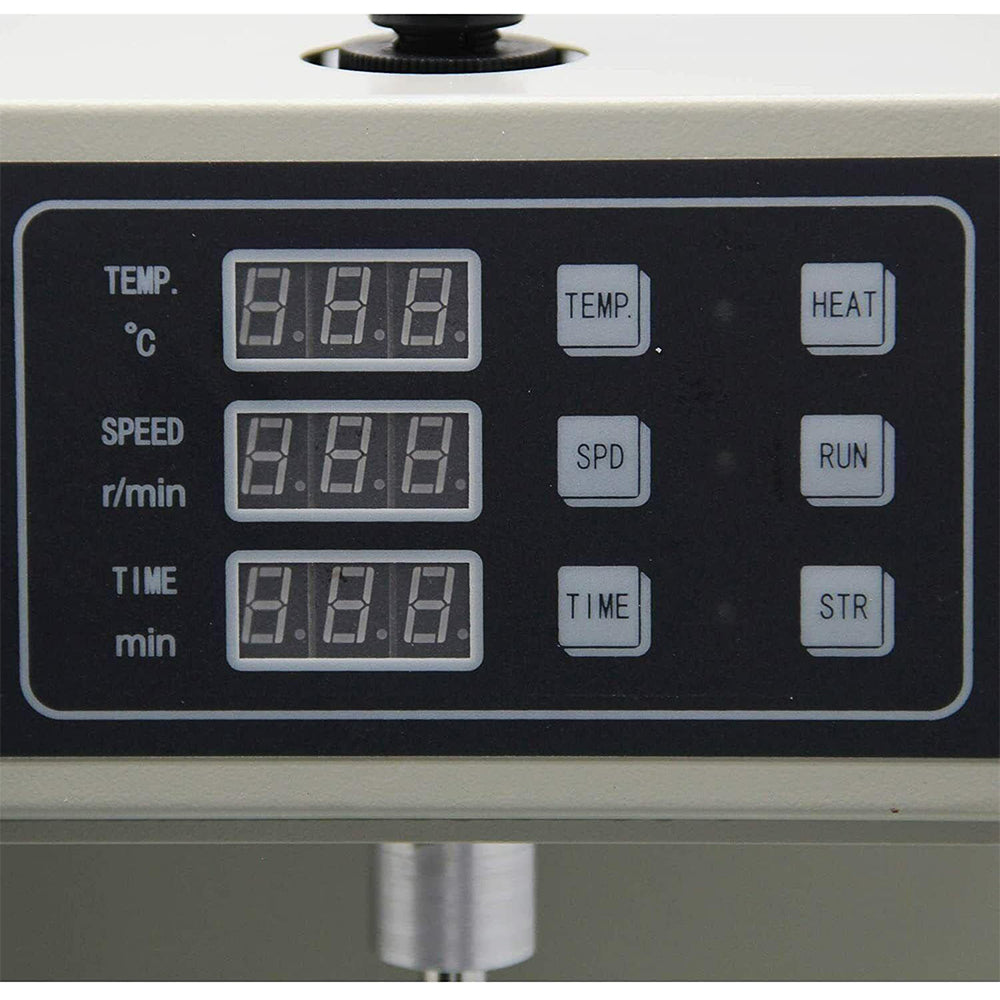

Automatic intelligent control of three parameters: temperature, speed and time.

The parameters can be preset at will; the preset value and the real time value are displayed in time division.

Automation, automatic detection, automatic diagnosis and automatic alarm.

Technical specifications

Speed range: (20-200) rpm

Speeding accuracy: ±2rpm

Temperature control range: (room temperature ~ 45.0)℃

Temperature control accuracy: ±0.3℃

Timing range: (5～900)min (6 points)

Timing accuracy: ±0.3%

Basket swing range: ±1mm

Paddle oscillation range: ±0.5mm

Eccentricity of rotating shaft: ±2.0mm

Power of electric heater: 500W

Continuous working time: more than 24 hours

Power supply : 220V/50Hz/600W or 110V/60Hz/600W

Power : 600W

Dimensions: (26×30×48)cm3

Weight : 19kg
