Introduction:

Industrial online dissolved oxygen controller, 1 or 2 point calibration, 4 to 20 mA outputs, the meter is suitable for monitoring dissolved oxygen concentration and % saturation in water.

Features:

Economical online dissolved oxygen controller is equipped with a polarographic electrode.

1 or 2 points calibration using the air-saturated water or zero oxygen solution.

Salinity and barometric pressure compensations eliminate measurement errors.

Automatic temperature compensation ensures accurate readings over the entire range.

Setup menu allows setting the number of calibration points, measurement unit, alarm limits, hysteresis value, 4 to 20 mA output, etc.

Reset function automatically restores all settings to the factory defaults.

Specification:

Dissolved Oxygen

1. Range:0.00 to 20.00 mg/L
2. Resolution:0.01 mg/L
3. Accuracy:±0.5 mg/L

% Saturation of Oxygen

1. Range:0.0 to 200.0%
2. Resolution:0.1%
3. Accuracy:±2.0%

Communication

1. Signal Output:4 to 20 mA
2. High/Low Limit Alarm:0.00 to 20.00 mg/L, selectable
3. Load:Maximum 500 Ω
4. Communication Interface:RS485
5. Connection Terminals:Detachable screw terminals

Other Specifications

1. Calibration:1 or 2 points
2. Temperature Compensation:0 to 40°C / 32 to 104°F, automatic
3. Pressure Correction:60.0 to 112.5 kPa / 450 to 850 mmHg
4. Salinity Correction:0.0 to 35.0 g/L
5. Environmental Conditions:0 to 50°C / 32 to 122°F, relative humidity < 80%
6. Power Supply:DC 24V
7. Dimensions:96 × 96 × 75 mm
8. Weight:350 g

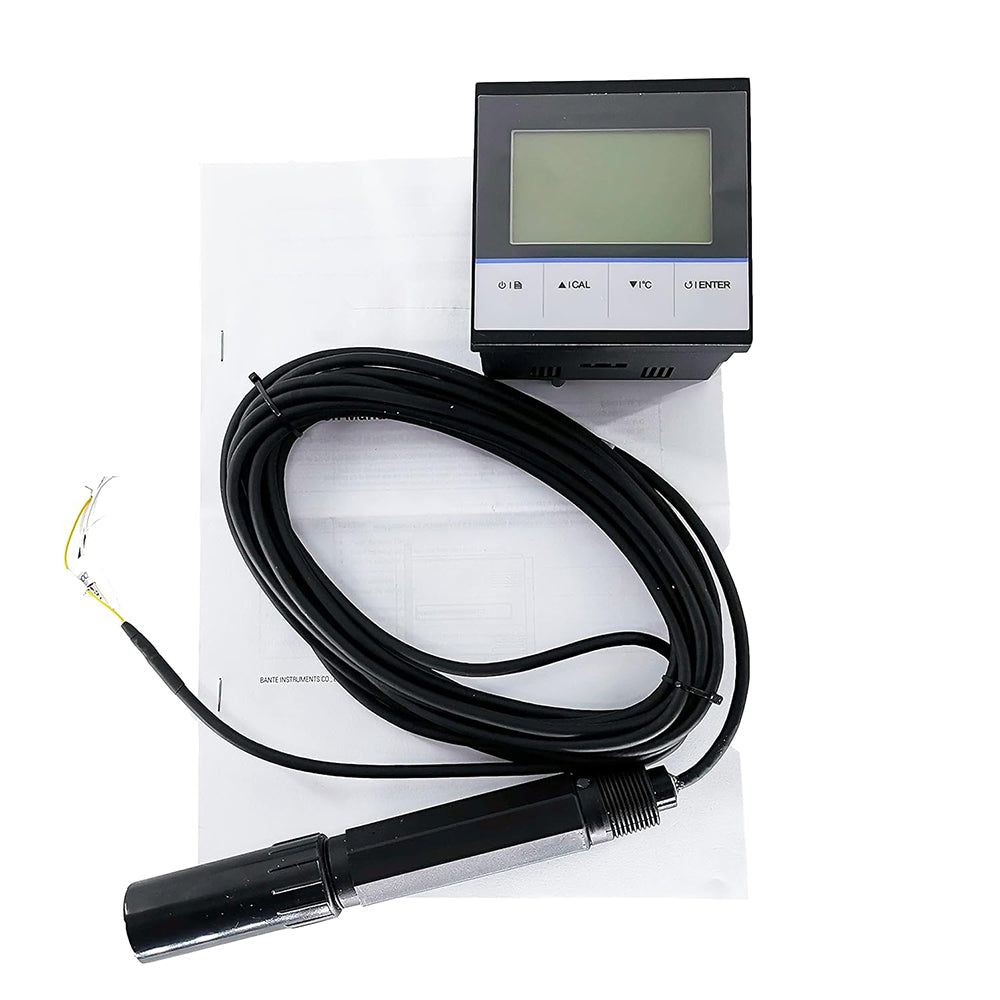

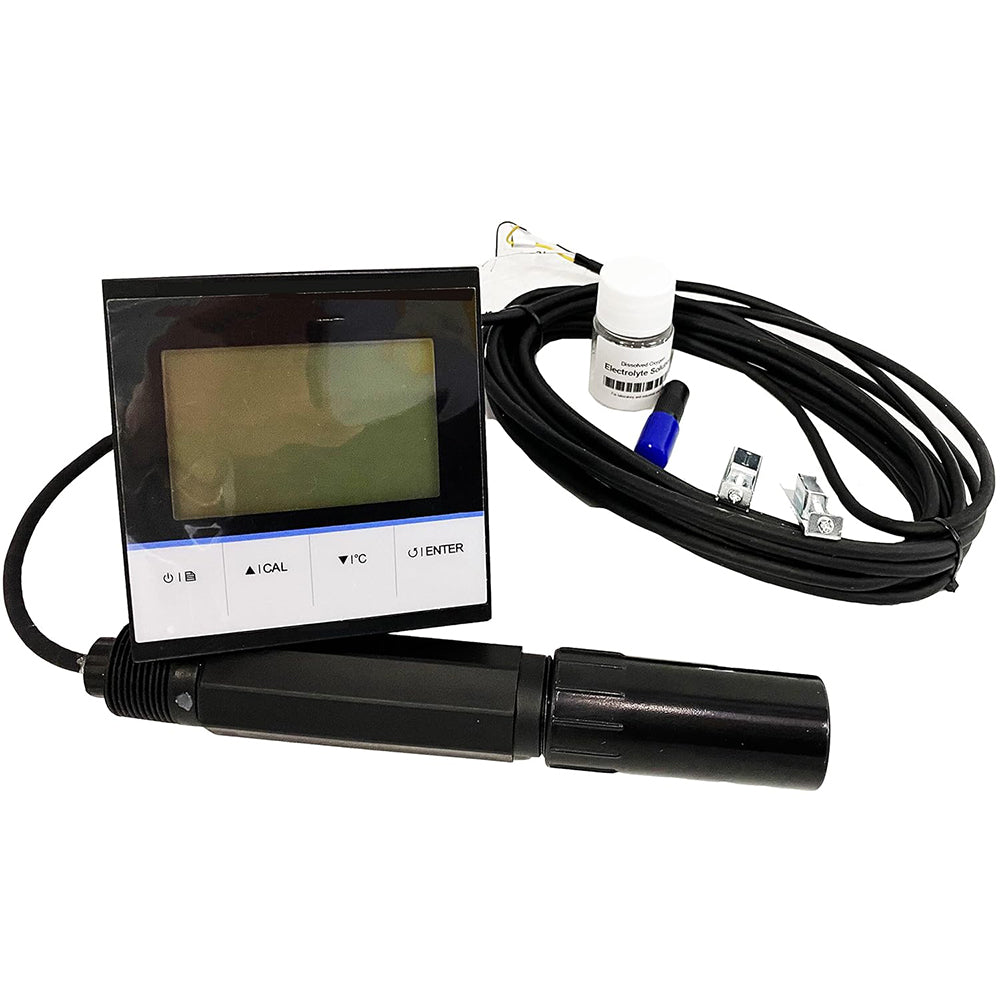

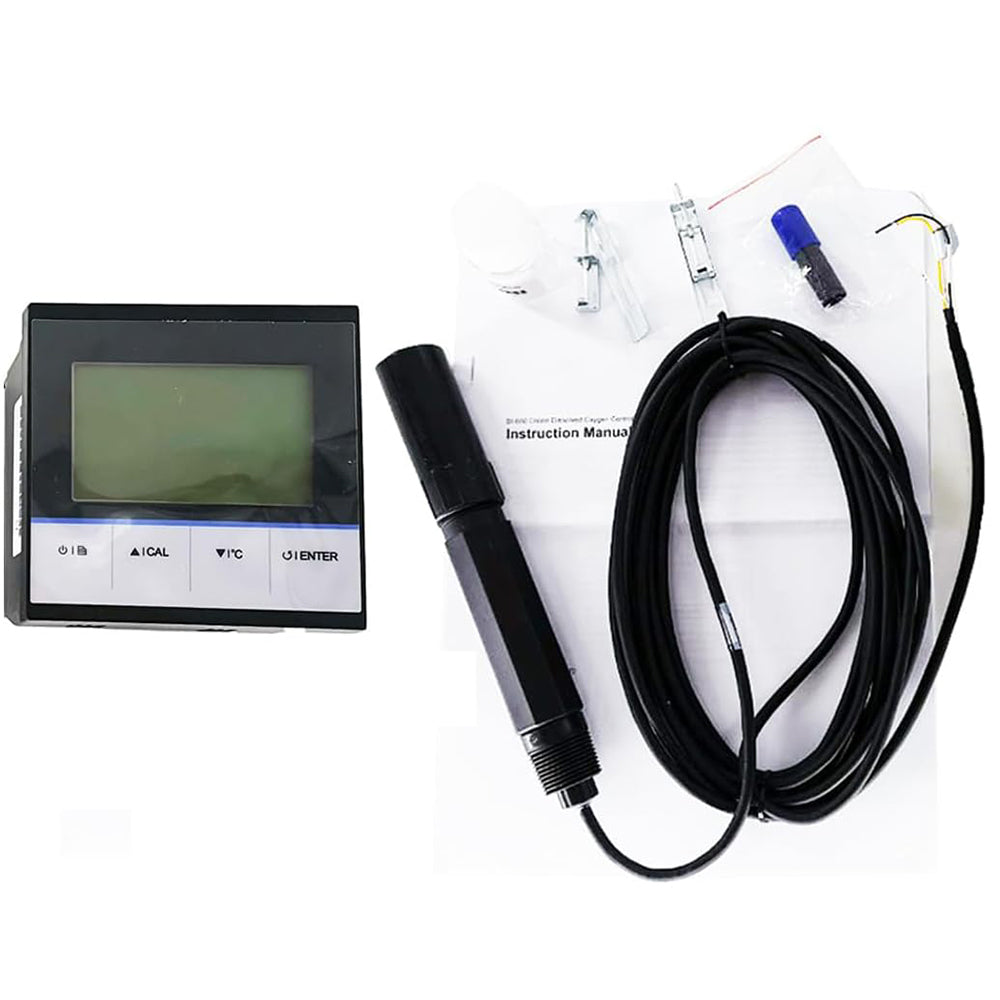

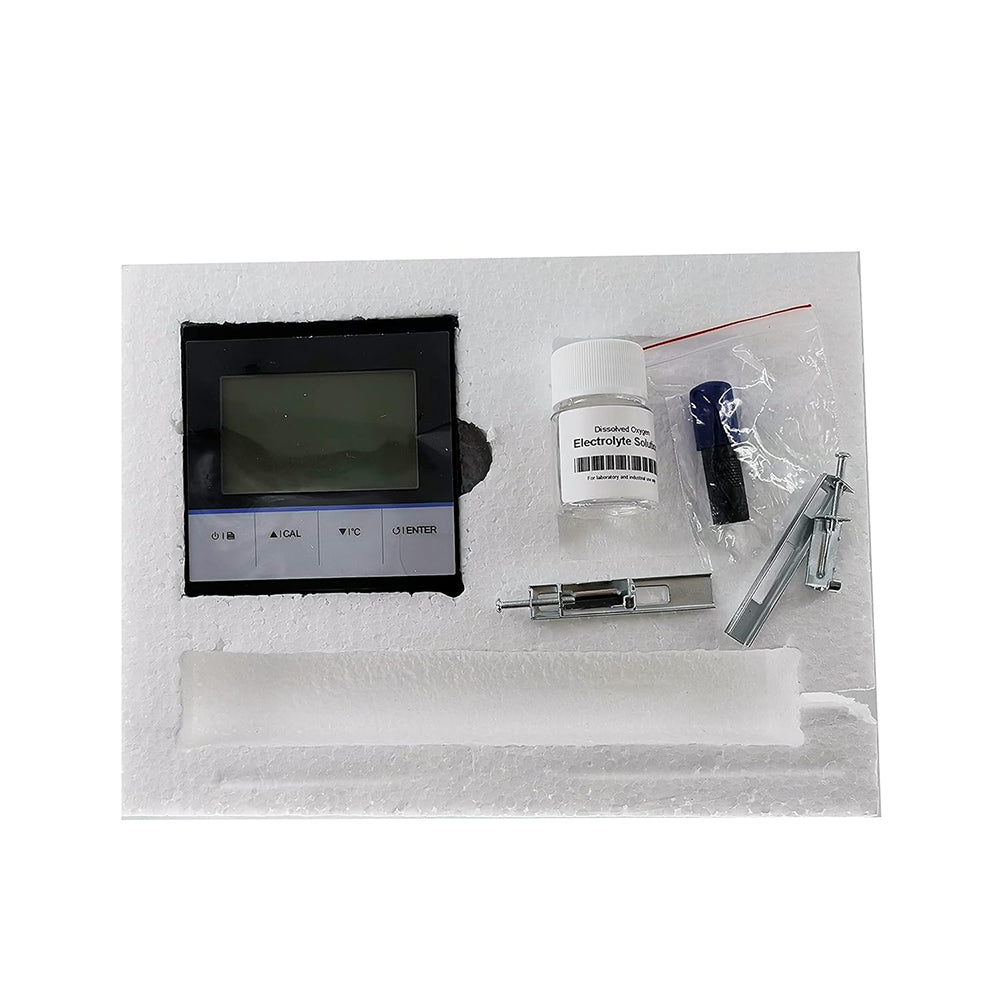

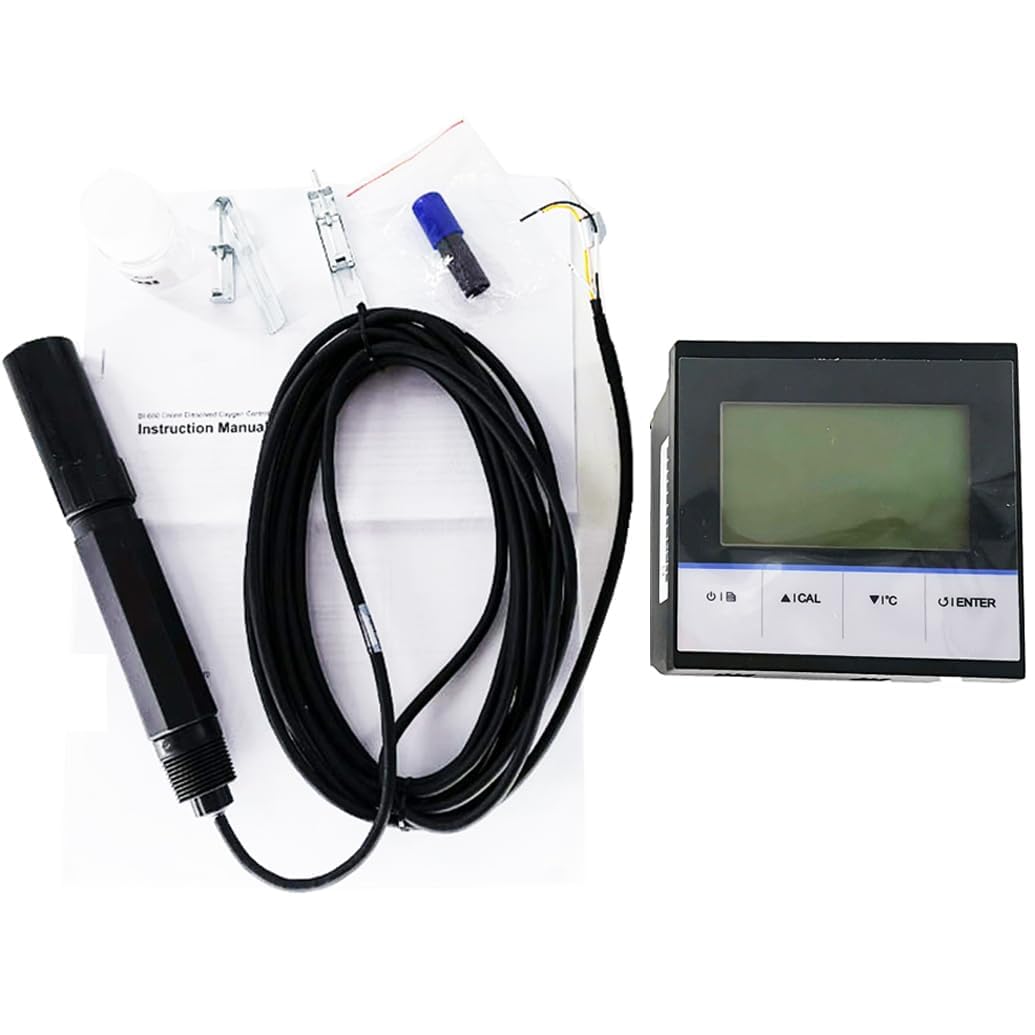

Meter Includes:industrial dissolved oxygen electrode,DO electrolyte solution,DO membrane cap

Optional Accessories(If you need,please contact me:

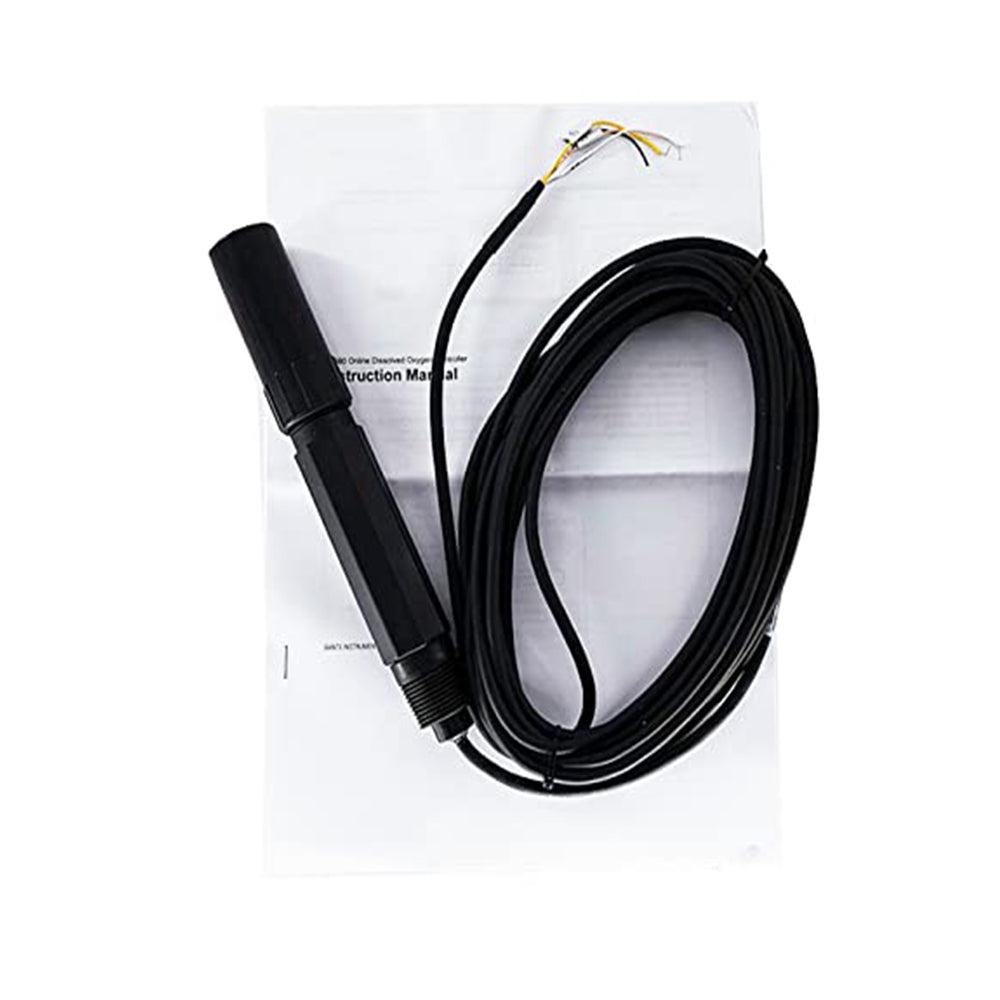

1. IE-80T Dissolved Oxygen Electrode:For measuring the DO and % saturation of oxygen
2. DO Electrolyte Solution:For filling the dissolved oxygen electrode
3. DO Membrane Cap:For polarographic dissolved oxygen electrode
