  • VTSYIQI Digital Ultrasonic Flaw Detector with Measuring Range 1 to 12000mm TFT LCD Display Ultrasonic Defectoscope Velocity 500 to 20000m/s 3 A-scan Waveform Modes Echo Coded

VTSYIQI

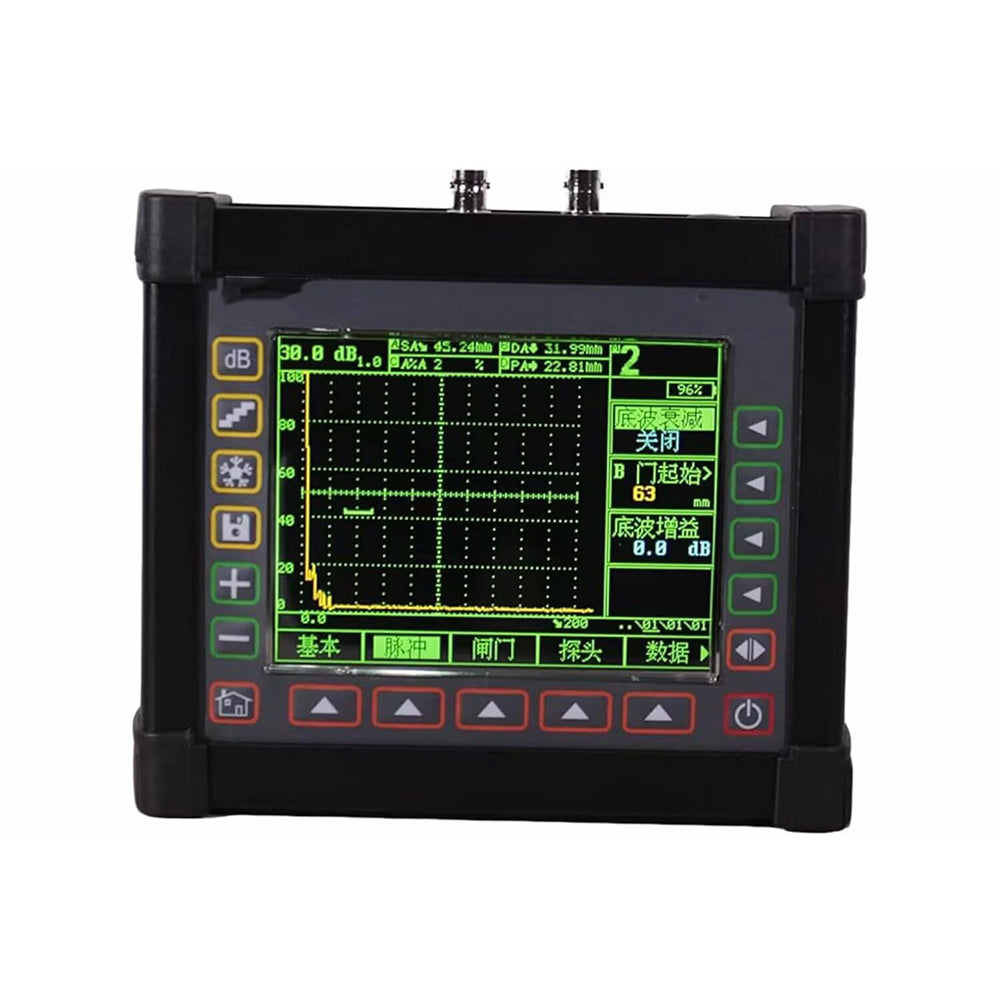

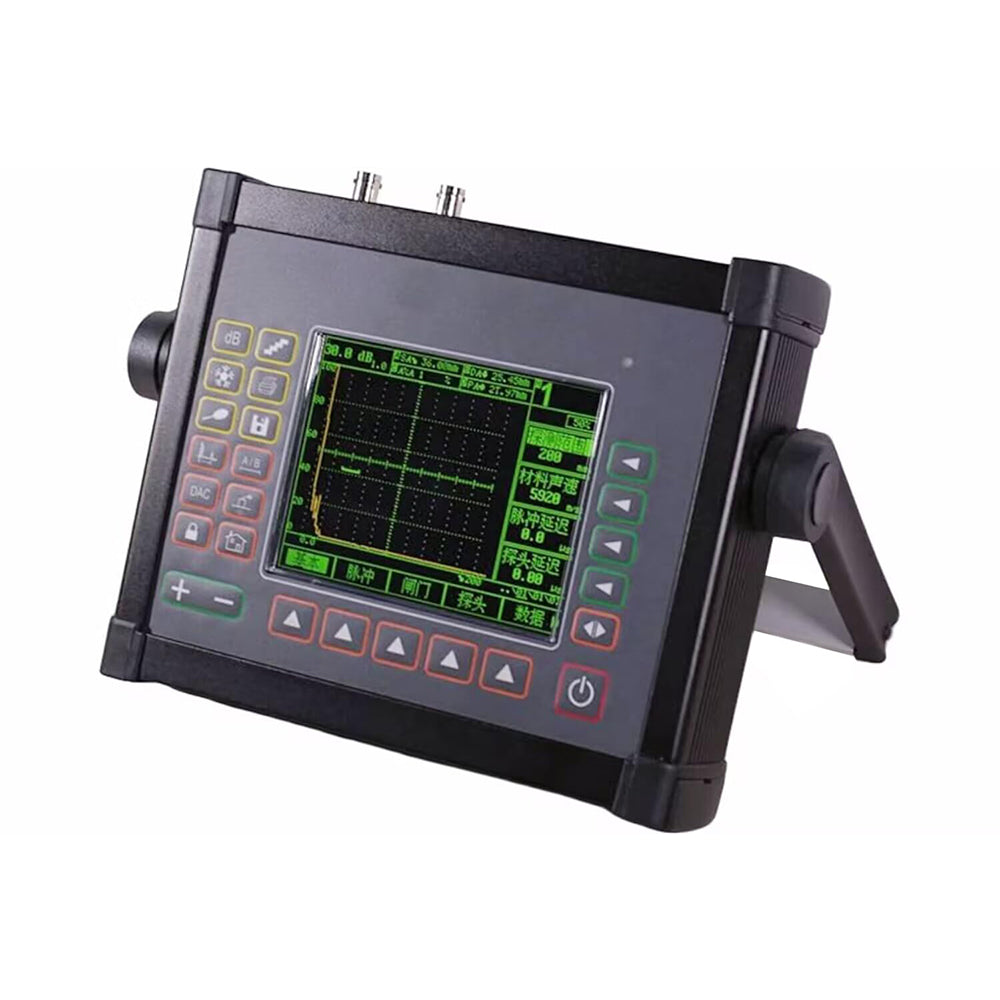

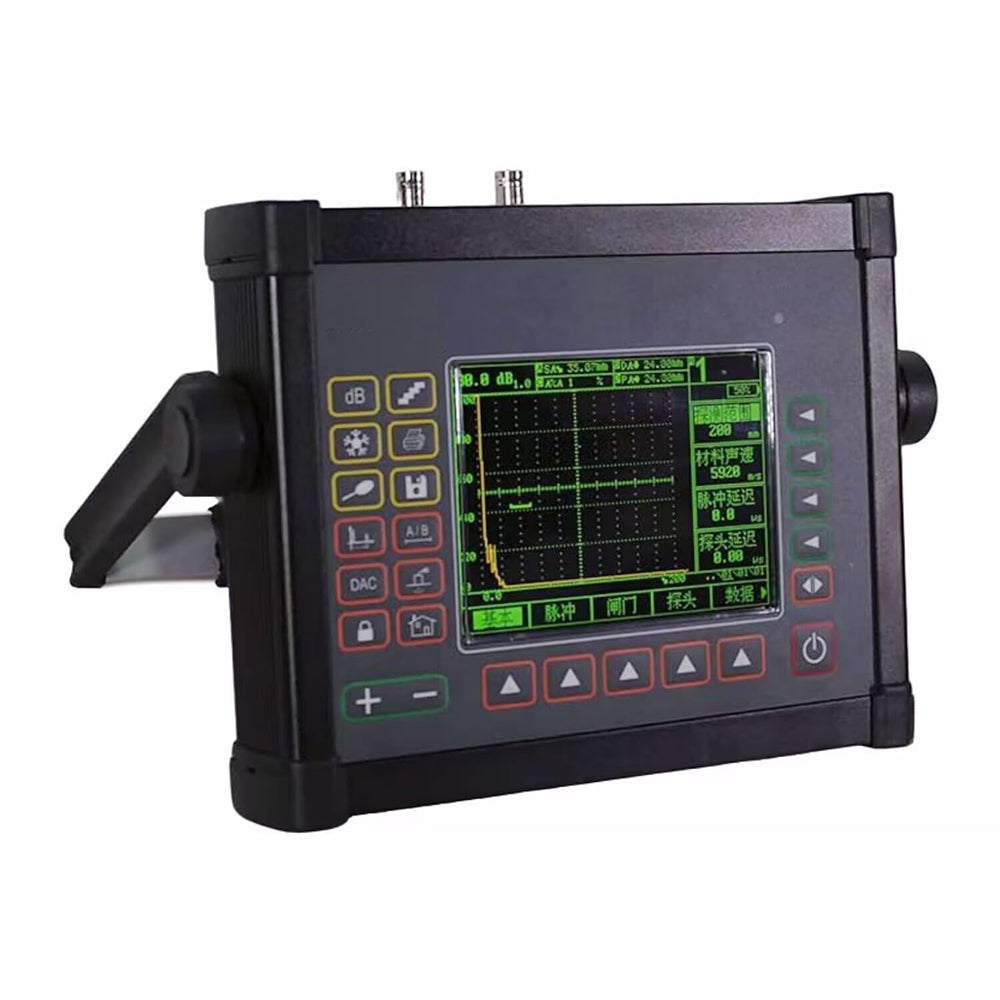

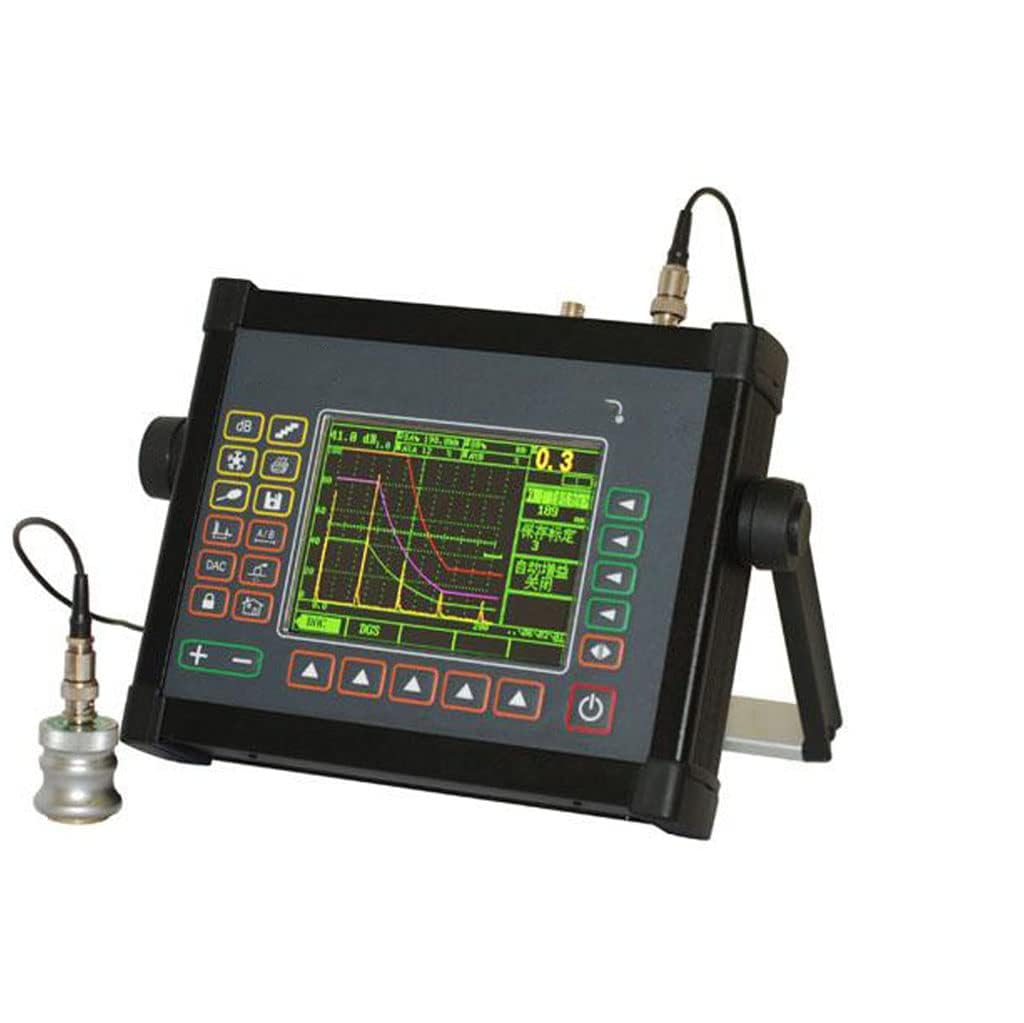

VTSYIQI Digital Ultrasonic Flaw Detector with Measuring Range 1 to 12000mm TFT LCD Display Ultrasonic Defectoscope Velocity 500 to 20000m/s 3 A-scan Waveform Modes Echo Coded

$2,71000
In stock
$2,71000

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

★Gate /measurement /alarming------Gate:A/B separated gates Result of Measurement:5 testing display sections including one main display section used to magnifying display ,can choose measurement content SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB Curve surface correction:Correct the measurement value of curve surface according to angle of probe , thickness and diameter of workpiece Alarm

★Data storage and documentation----Channel parameters:10 A-scan wave:600 Thickness value:6000,linear Waveform video:10minutus Reference wave:4 . Input/Output -------Probe connections:LEMO/BNC Coder input:B-scan coding input IO output:RF output Communication:RS232/USB. Region---RTC:Real time date and time display Language:Chinese ,English unit:mm/inch .Power ------Power adapter:Input 100~240V/50~60Hz output 9VDC/4A

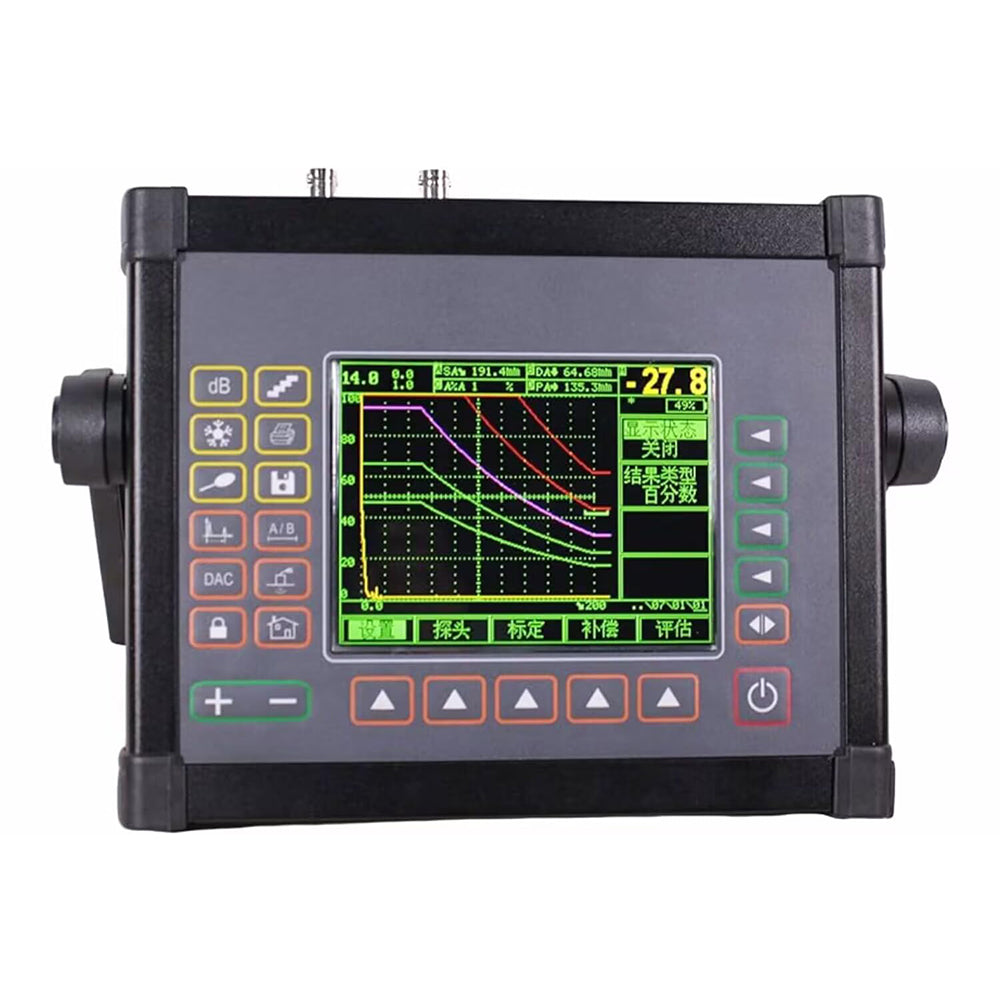

★Equivalent curve------DAC curve:Recording 30 demarcation points ,4 estimation curve whose gain can be adjusted under consideration of material attenuation and surface compensation ,able of increasing or editing the information of demarcation points DGS curve:3 reference types of big flat-bottomed hole / flat-bottomed hole / side drilled hole, under consideration of reference attenuation, material attenuation and surface compensation and AMPL CORRECT ; evaluation of equivalent sizing and

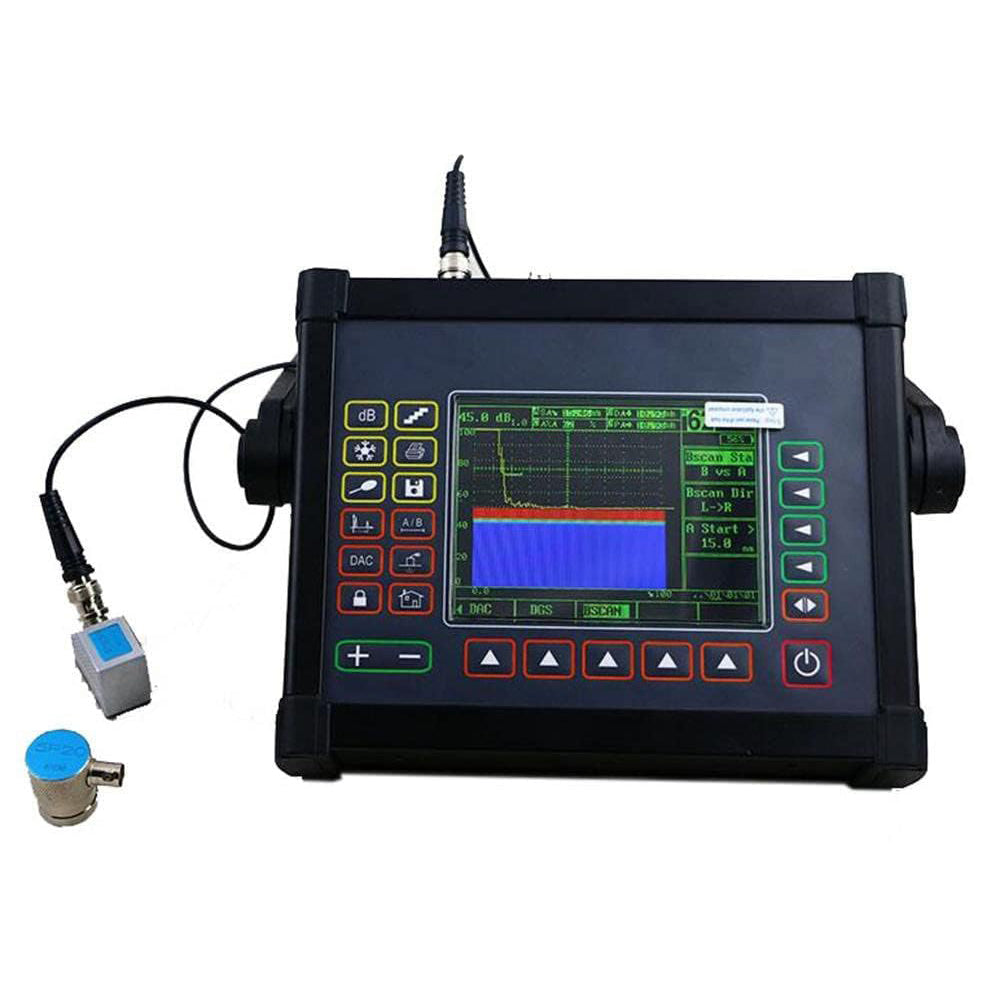

★Advanced------B-scan:two scan modes :thickness / outline ;gray /color palette setting Color Legs:2 color coded modes: coordinates and echoes curve freezing modes:all /peak std/ compare /envelope/delayed envelope A-Scan waveform detecting indication sign:Indicate the sound range and amplitude of measuring position of waveform AWS D1.1/D1.5:Having the function Curve surface correction:Correct the measurement value of curve surface according to angle of probe , thickness and diameter

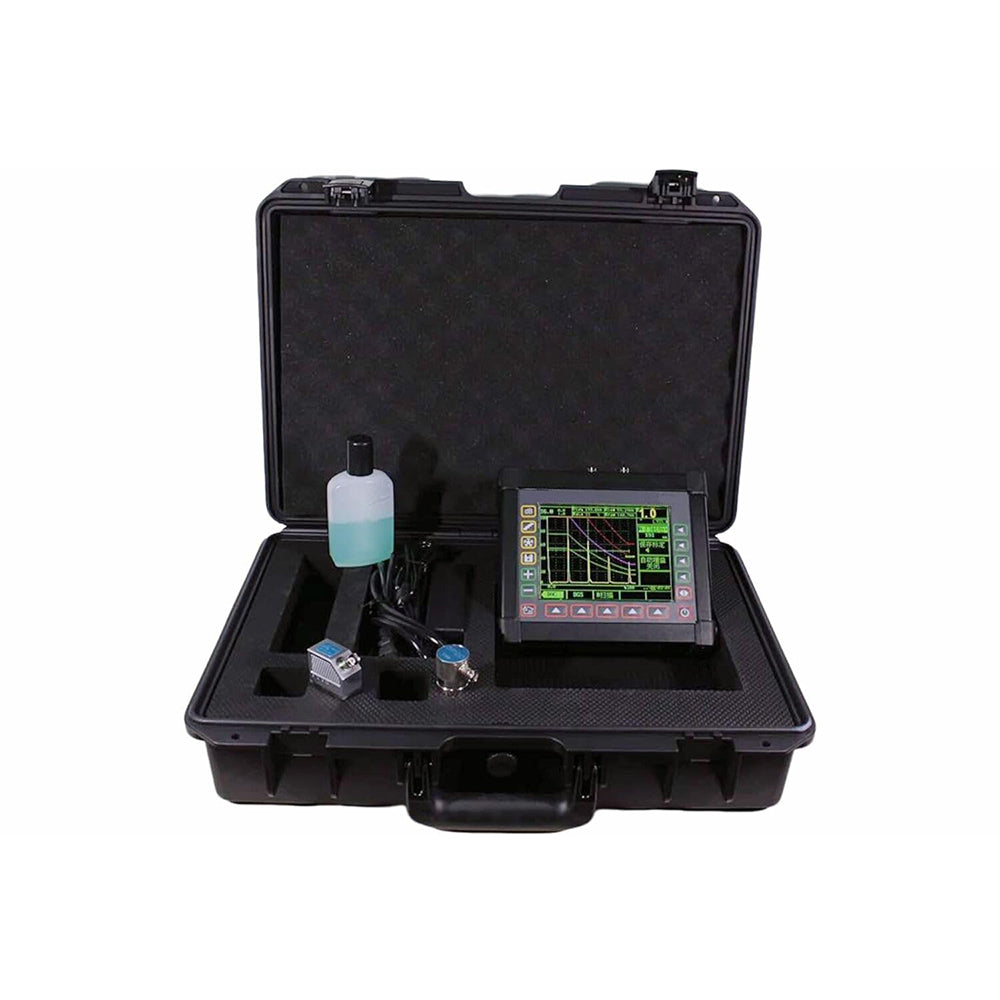

★Standard -----Main unite :1 Straight probe :1 Angle probe:1 Cable:2 Power adaptor :1 Battery pack (not included):1 Operating manual :1 Carrying case :1 Couplant:1 bottle .

SPECIFICATIONS

Measuring Range：1.0~12000mm

Resolution：0.01mm(<100mm)

1mm(>100mm)

Velocity：500~20000m/s

20 fixed velocities

Delay

-20~3400us /resolution : 0.1us

Probe Delay

0~99us /resolution: 0.01us

Auto Calibration

Velocity Calibration &Probe Delay Calibration

Linear Error

Horizontal error≤0.1% Vertical error≤3%

Dynamic Range

≥36dB

Sensitivity

≥64dB 200mm 2 flat-bottomed hole

Dimension (mm)

240×180×50mm

Weight

1.9Kg(including battery pack)

Working Environment

Temperature:-20℃~70℃

Humidity:5%~90%

Pulse

Dive Pulse

Negative spikes, high energy/low adjustable

Launch Repetition Frequency

PFR transmit pulse continuously adjustable

Matched Damp

50/150/400Ω

Receiver

Measuring mode

Peak/Verge

Bandwidth

0.3~1/0.5~4/2~15MHZ

Detector Pattern 0~110dB

0/0.1/0.2/0.5/1/2/6/12/

Detector Pattern

RF/Full-Wave/Positive/Negative/

half-wave

Display

LCD

TFT Color Display 5 options for variable brightness

GUI Theme

Simple/Classical/Gray/Bright

Screen Update Rate ≥60Hz

GUI Theme

simple / classical / gray / strong / weak light 5, the user can through the set text A, background color, sweep waveform coordinate free custom theme

Gate / measuring value / alarm

Sluice gate

Two Separated Gate A/B

Measured value display

5 measured value display area, where a main display area,

Selectable measurement value content

SA/SB/DA/DB/PA/PB/A%A/A%B/dBtA/dBtB/dBrA/dBrB/SBA/DBA/PBA/LA/LB

Alarm

Independent logic gate alarm, alarm threshold thickness measurement

Storage

Channel Parameters 20 groups

Scan A 2000

Thickness values 200,000 data, liner

Wave video 5 min

Reference wave 4

Input / Output

Probe connector LEMO or BNC

Communication RS232

Regional

Clock date and time

Language English

Unit mm/inch

High-energy lithium batteries, excellent overcharge and over-discharge protection

Battery Monitoring

Coulomb energy measurement based on battery monitoring, the percentage / time display the remaining battery life

Working Hours

work continuously for more than 10 hours

Battery Adapter

Input : 100~240V/50~60Hz

Output : 9VDC/4A

High ranking

U disk storage

Storage screenshots / waveform / thickness three data report

Gate broadening

Gate area of concern for the details of observation and analysis

B-scan two-dimensional coding

Thickness / contour scanning; grayscale / color palette settings

Curve freeze YES

Characteristic indicator

Sound path measurement wave front and amplitude measurement position indicator

CSC Surface Correction

According probe angle, diameter of the work piece thickness and curvature correction for the measured values

Lock

Each menu can be locked independently to avoid system-related parameter adjustment; data set can also be locked to avoid accidental deletion of data

Screen Saver

Standby / Text / off

Equivalent curve

DAC curve

Can record 30 calibration points; Automatic Gain; any order calibration; calibration / edit two modified methods; consider the material attenuation and surface compensation factor; five adjustable gain curve to assess compliance with JIS and API Standards

DGS curve

For large flat-bottomed, flat-bottomed hole via three reference types, consider a reference attenuation, attenuation and surface material compensation factors, defect assessment methods: equivalent size / equivalent gain / percentage

Standard

Main engine 1

Straight / angle probe 2

Probe line 1

Charger 1
