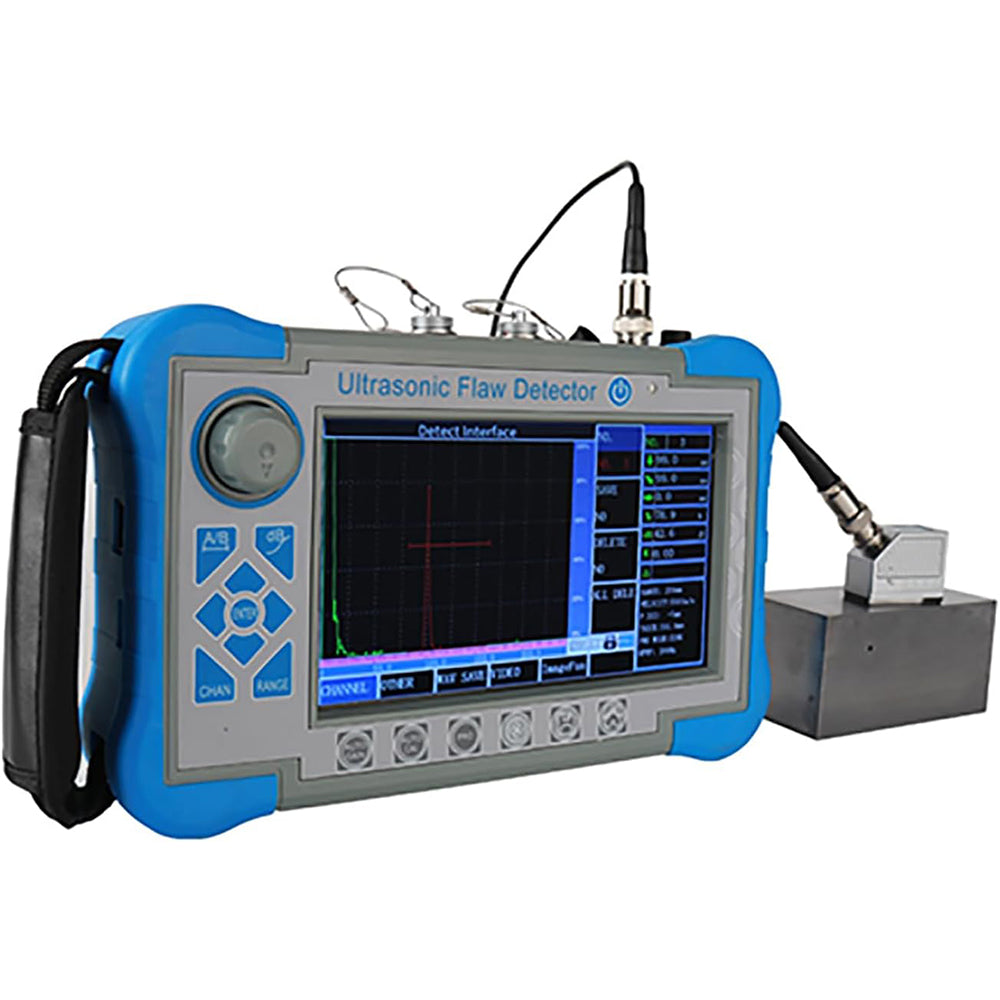

  • VTSYIQI Portable Ultrasonic NDT Tester Ultrasonic Flaw Detector with 0~15000mm 100~20000m/s Material Velocity B Scan for Testing Welds in Construction Pipelines in Petrochemical and Metal Components

VTSYIQI

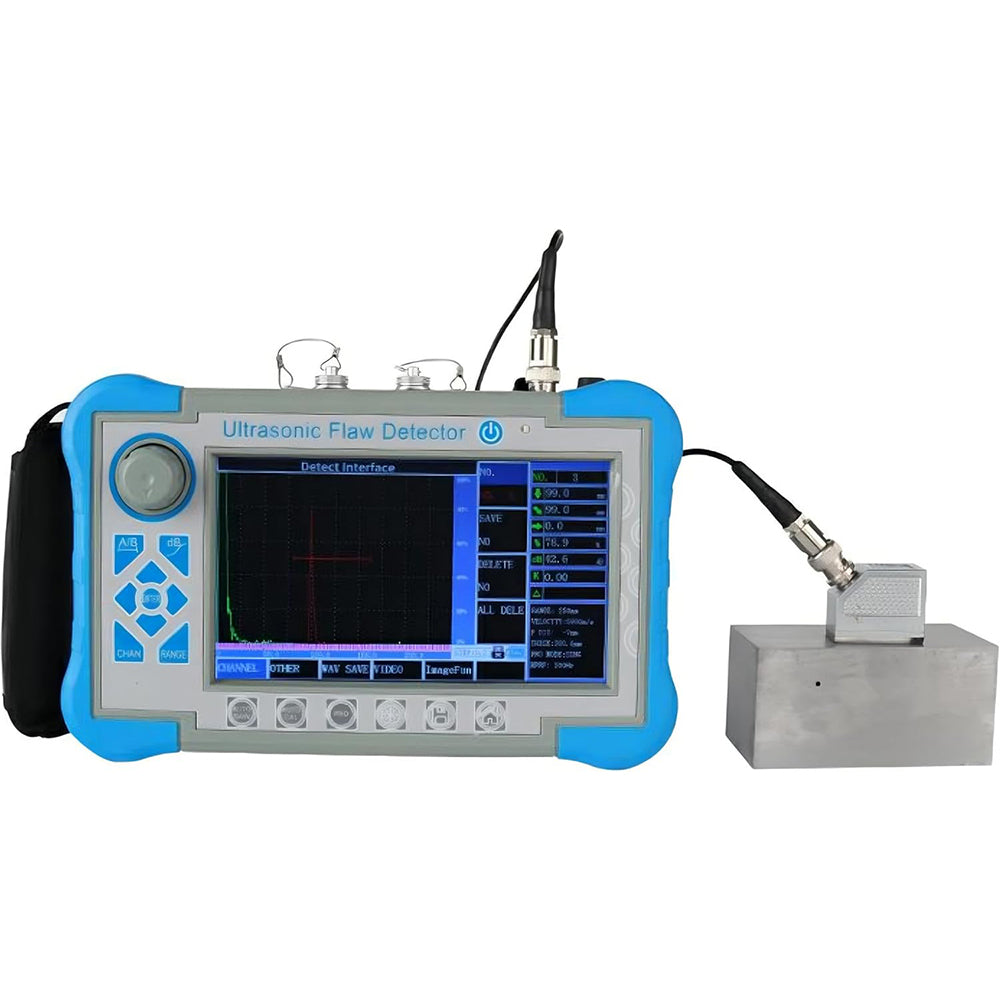

VTSYIQI Portable Ultrasonic NDT Tester Ultrasonic Flaw Detector with 0~15000mm 100~20000m/s Material Velocity B Scan for Testing Welds in Construction Pipelines in Petrochemical and Metal Components

$3,02400
In stock
$3,02400

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

●High-precision quantification and positioning to meet the requirements of near and far distance detection

●The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe.

●Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity

●Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB,ф )

●Switch three scales freely(Depth:d, Horizontal:p,Distance:s)

●Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency.

●Automatically record the flaw detection process and dynamic playback

●φ value calculation ： Forging flaw detection by straight probe, can find the highest wave to conversion φ value automatically

●B scan and B color scan function；

 ●Can communicate with the computer, and export WORD. File, also the detection report ●IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability

●Use (wireless) communication software to analyze data print reports, etc；

●Metal Ultrasonic Equipment Flaw Location

●Pulse width and strength can adjustable

●B scan and B color scan function；

●Can communicate with the computer, and export WORD. File, also the detection report ●IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability

●Use (wireless) communication software to analyze data print reports, etc；

 ●260,000-color true color screen, is suitable for working environment under strong light or low light

●Power-down protection, storage data can not lost

●Flaw detection parameters can be automatically tested or preset

●Digital reject, does not affect gain and linearity

 ●Gain compensation: Db attenuation can be corrected for surface roughness, curved surfaces, long-range flaw detection of thick work-pieces, etc.

●Can operate the flaw detector by software at the PC, achieving the goal of computer-controlled flaw detector to detecting

●High performance lithium battery, can work continuously for 8-10 hours

●Real-time clock recording: real-time flaw detection date, time tracking record, and storage

●14 built-in inspection standards

●Free to enter any industry standards

I.Introduction

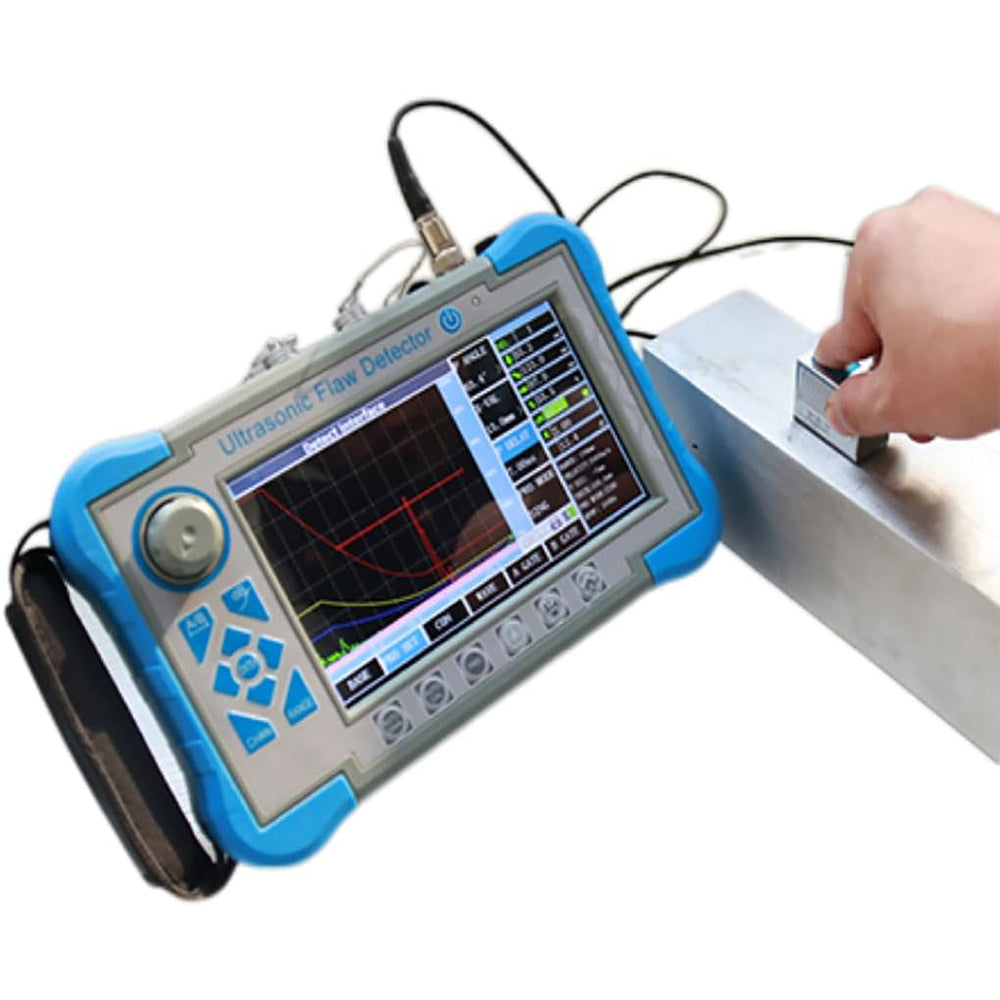

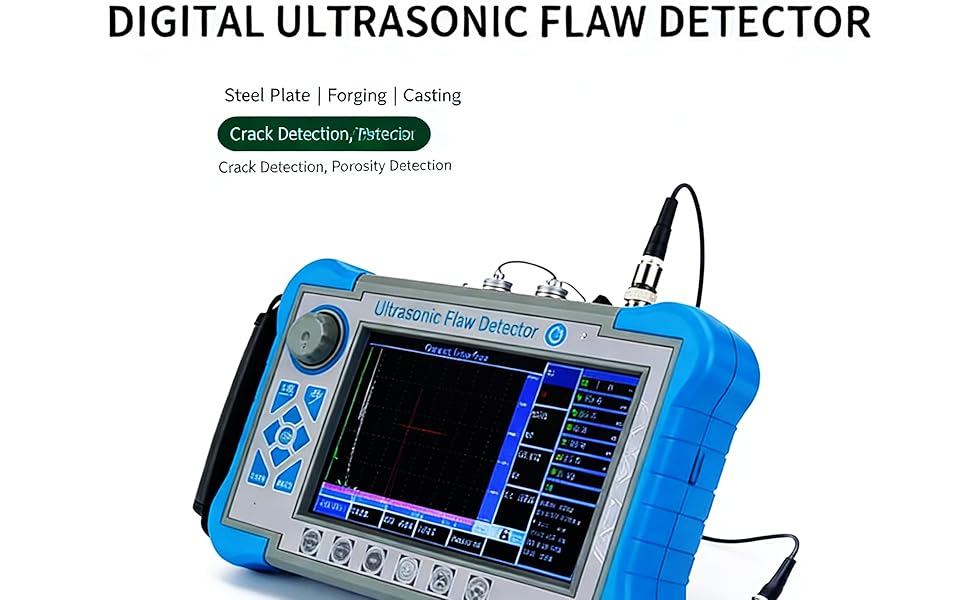

Digital ultrasonic flaw detector is advanced type, can quickly, easily and without damage, accurately detect, locate, evaluate and diagnose

various defects inside the work piece such as cracks, welds, pores, sand holes, inclusions, folding, etc. It has been applied for electric power, petrochemical, boiler and pressure vessel, steel structure, military, aerospace, railway transportation, automobile, machinery and other fields. It is an essential instrument for the non-destructive testing industry.

II.Features

Testing Range:0~15000mm,Minimum display range:15mm（in steel） Material Velocity:100~20000m/s Display:7 inch TFT color screen，800*480 resolution Operation mode:Button, Rotary Power supply:Lithium Ion Battery Gain:0~110dB，step:0.5/2/6/12dB Working Frequency:0.5~20MHz

●High-precision quantification and positioning to meet the requirements of near and far distance detection

●The near-field blind zone is small, can meet the detecting requirements for small-diameter and thin-walled pipe.

●Auto calibration function:one-button auto calibration,easy to operate, automatic test probe “P Delay”,”K value”,”X value” and the velocity

●Automatic display the defect echo position(Depth:d, Horizontal:p,Distance:s, Amplitude,dB,ф )

●Switch three scales freely(Depth:d, Horizontal:p,Distance:s)

●Auto gain, peak envelope, peak memory functions, which can improve the detection efficiency.

●Automatically record the flaw detection process and dynamic playback

●φ value calculation：Forging flaw detection by straight probe, can find the highest wave to conversion φ value automatically

●500 independent channels(can be expandable), which can input and store the detection standards of any industries freely, do not need to carry the standard blocks for on-site inspection.

●Store, playback 500 A-scan waves and data freely

●The DAC, AVG, and TCG curves (depth compensation) are automatically generated and can be segmented. The sampling points are unrestricted and can be corrected and compensated.

●14 built-in inspection standards

●Free to enter any industry standards

●Pulse width and strength can adjustable

●B scan and B color scan function；

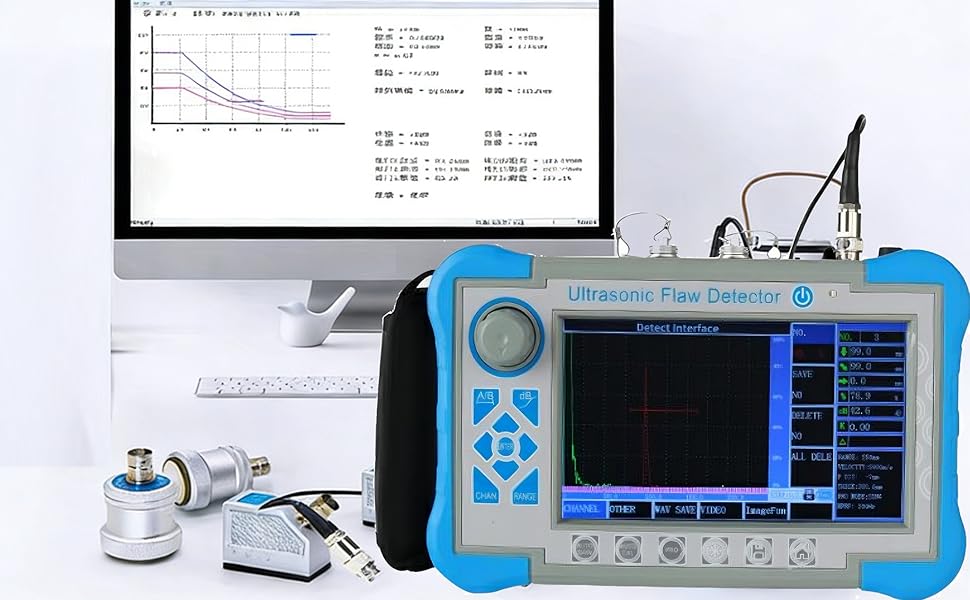

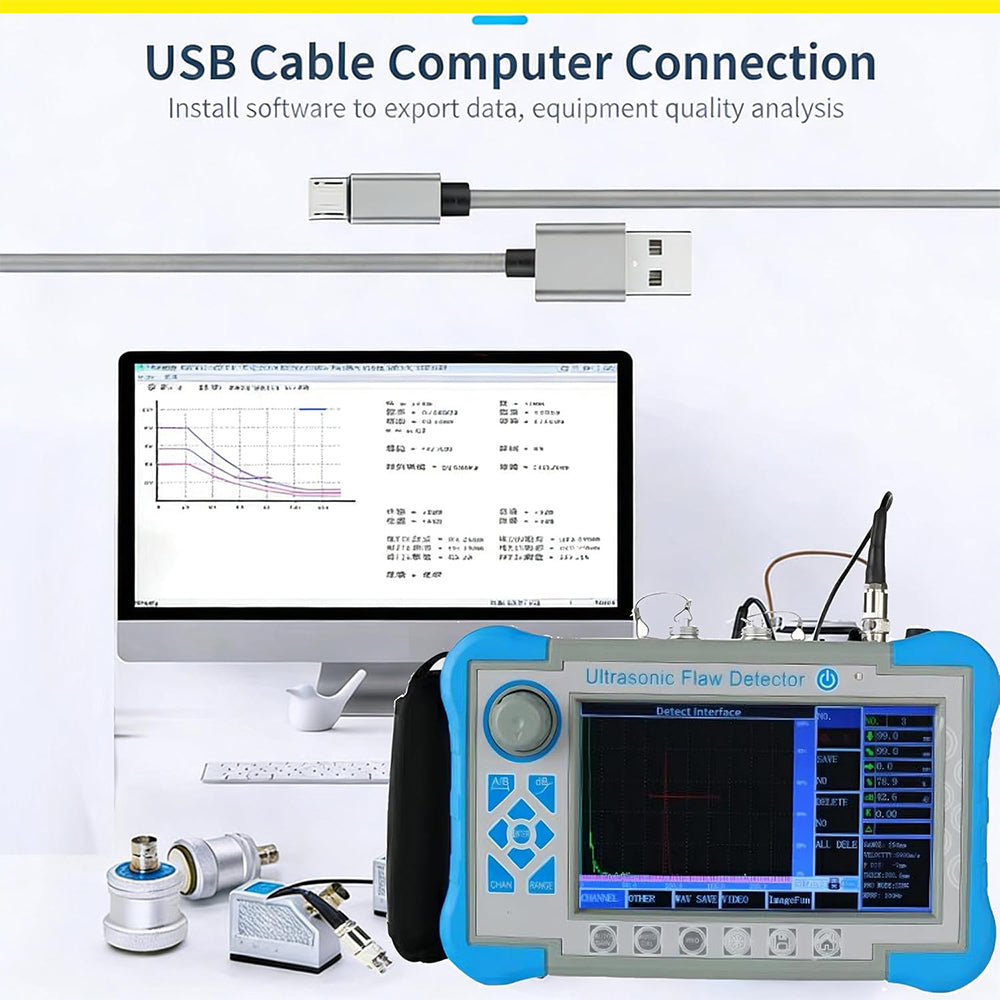

●Can communicate with the computer, and export WORD. File, also the detection report

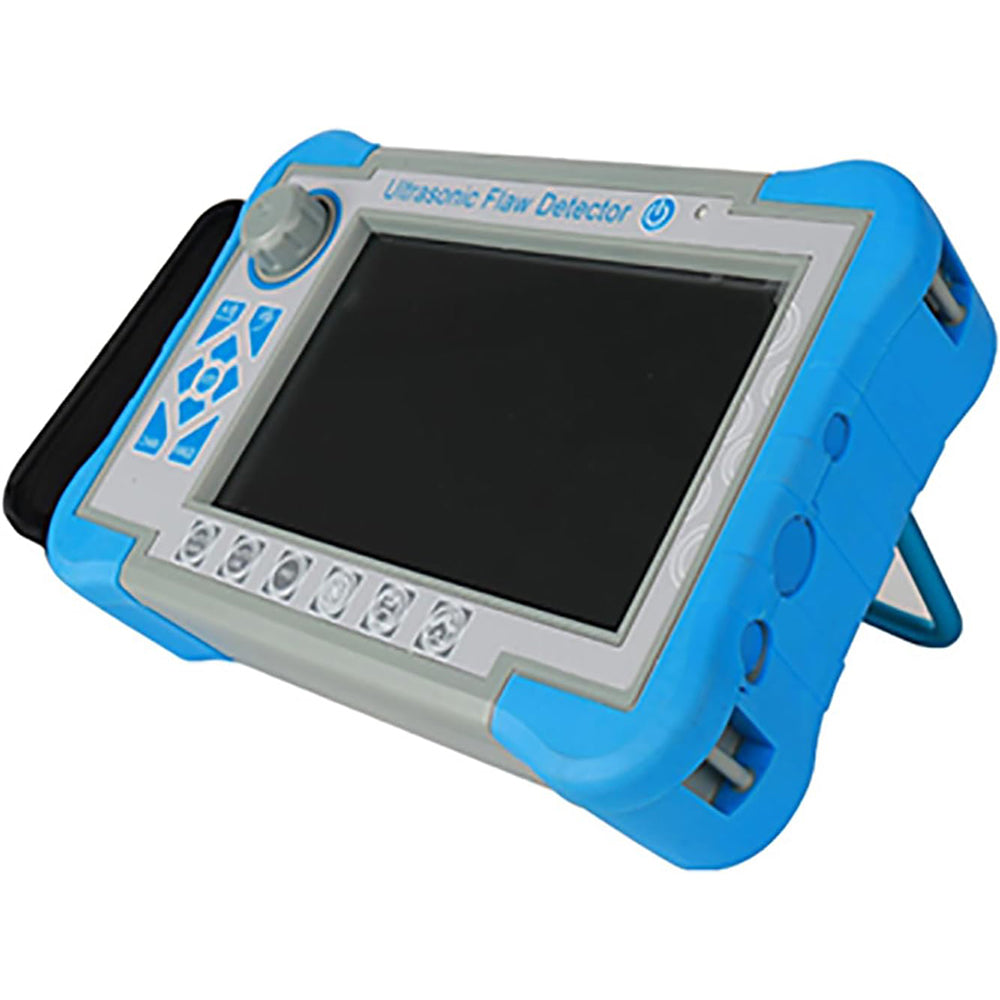

●IP65 ABS plastic case, sturdy and durable,water-proof and dust-proof, and excellent anti-interference ability

●Use (wireless) communication software to analyze data print reports, etc；

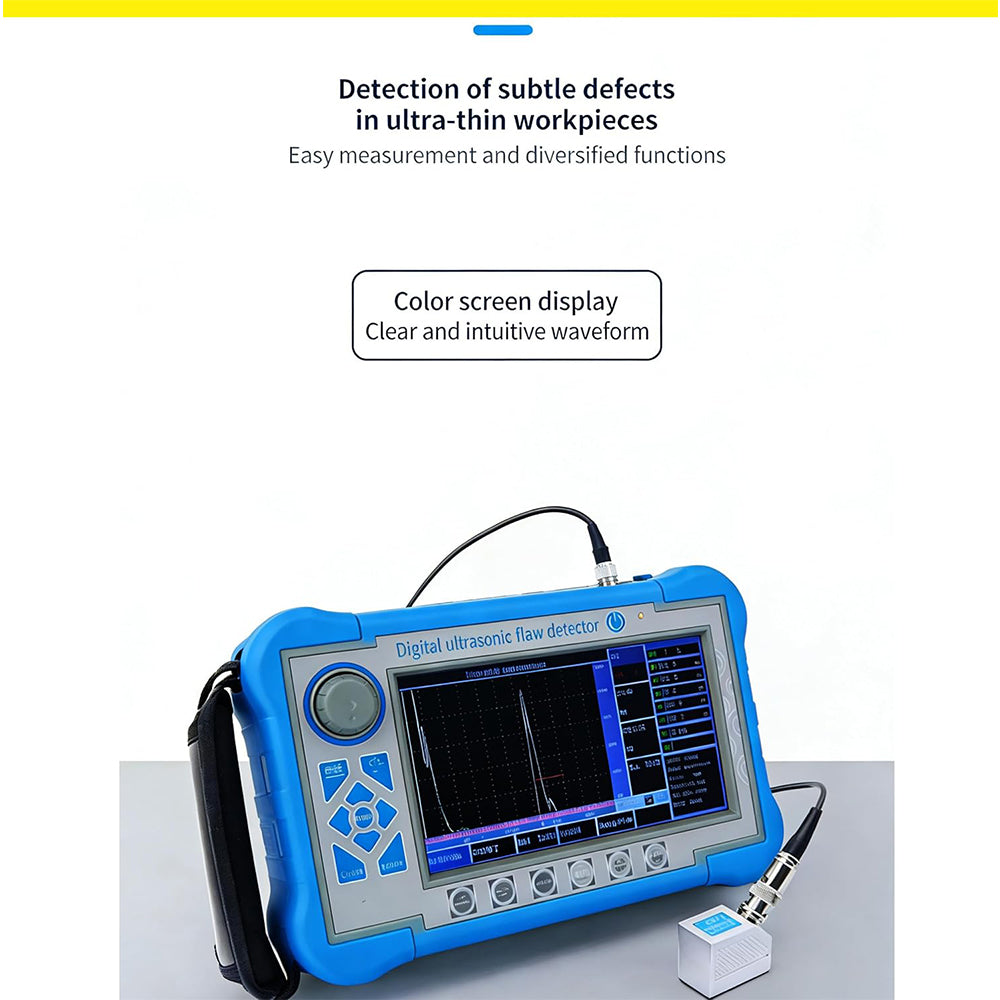

●260,000-color true color screen, is suitable for working environment under strong light or low light

●High performance lithium battery, can work continuously for 8-10 hours

●Real-time clock recording: real-time flaw detection date, time tracking record, and storage

●Power-down protection, storage data can not lost

●Flaw detection parameters can be automatically tested or preset

●Digital reject, does not affect gain and linearity

●Gain compensation: Db attenuation can be corrected for surface roughness, curved surfaces, long-range flaw detection of thick work-pieces, etc.

●Can operate the flaw detector by software at the PC, achieving the goal of computer-controlled flaw detector to detecting

Specification

Display ： 7 inch TFT color screen，800*480 resolution

Operation mode ： Button, Rotary

Power supply ： Lithium Ion Battery

Battery capacity ： 5.0Ah

Power voltage ： 12V

Power quantity ： 1

Working time ： ≥8 hours

Adapter input ： DC100～240V 50Hz/60Hz

Adapter output ： AC 12V

Adapter power ： 36W

Data storage ： SD card(16G)

Alarm ： 1

Working Temperature ： -10℃～45℃

Storage Temperature ： -20℃～60℃

IP Grade ： IP65

Dimension ： 245*155*55mm

Weight ： 1.18kg（included battery）

Conventional UT Model

Probe Connector type ： LEMO 00

Channel Type ： Single channel

Channel Num ： 500 group(able to be scaled)

Pulse Type ： Negative sharp wave

Transmit Voltage ： 50~350V，step in 50V

Damping ： 560Ω

Gain ： 0~110dB，step:0.5/2/6/12dB

Gain Fine Adjustment ： -4~+4

Surface compensation ： All Gain Range

Working Frequency ： 0.5~20MHz;

Probe Type ： Single,Dual, Through, Immersion type

Filter ： Three optional:

1~4MHz/0.5~10MHz/2~20MHz

Detection Mode ： Negative/Positive/Two-way/RF

Reject ： 0~80%,step 1%

Testing Range ： 0~15000mm,Minimum display range:15mm（in steel）

Material Velocity ： 100~20000m/s

Pulse displacement ： -10~1000mm

P DELAY ： 0~200us

X-VAL ： 0~100mm

Guide ： Weld, Sheet, Forging inspection

Testing Point ： Peak/X-val/J val

Measurement ： Gate:Amplitude,Amplitude dB value,Range,Horizontal distance,Vertical distance,The difference value between A and B Gate

Cursor:2 cross cursors, can test the horizontal and vertical distance,and the distance between cursors(under B scan function)

Gate ： Gate start:all range

Gate width:all range

Gate level:10~90%,step:1%
