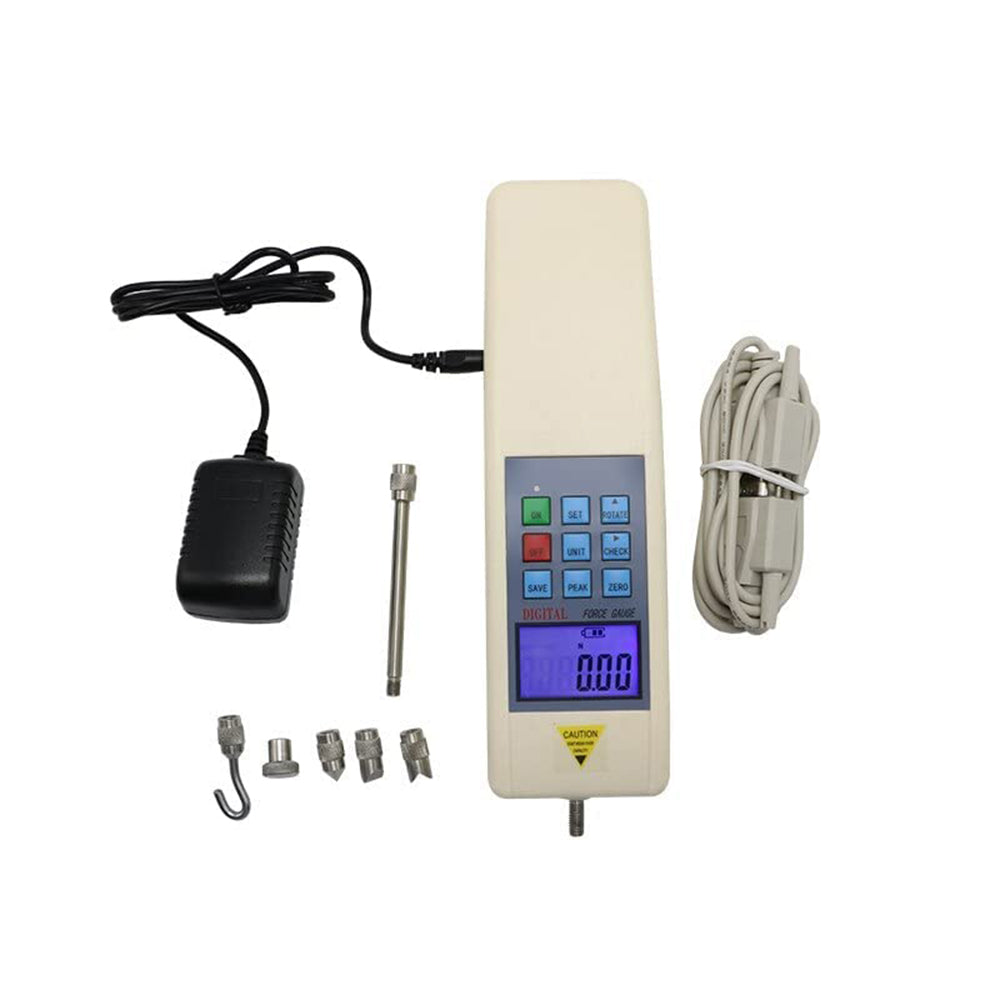

VTSYIQI Digital Force Gauge Meter Tester Push Pull Gauge Dynamometer with Capacity 50000N External Sensor

Features:

Max Load:50KN

Accuracy:±0.5% +/-1%<

Warranty: 1 year

Peak value maintenance and load capacity real-time display can be flexibley shifted

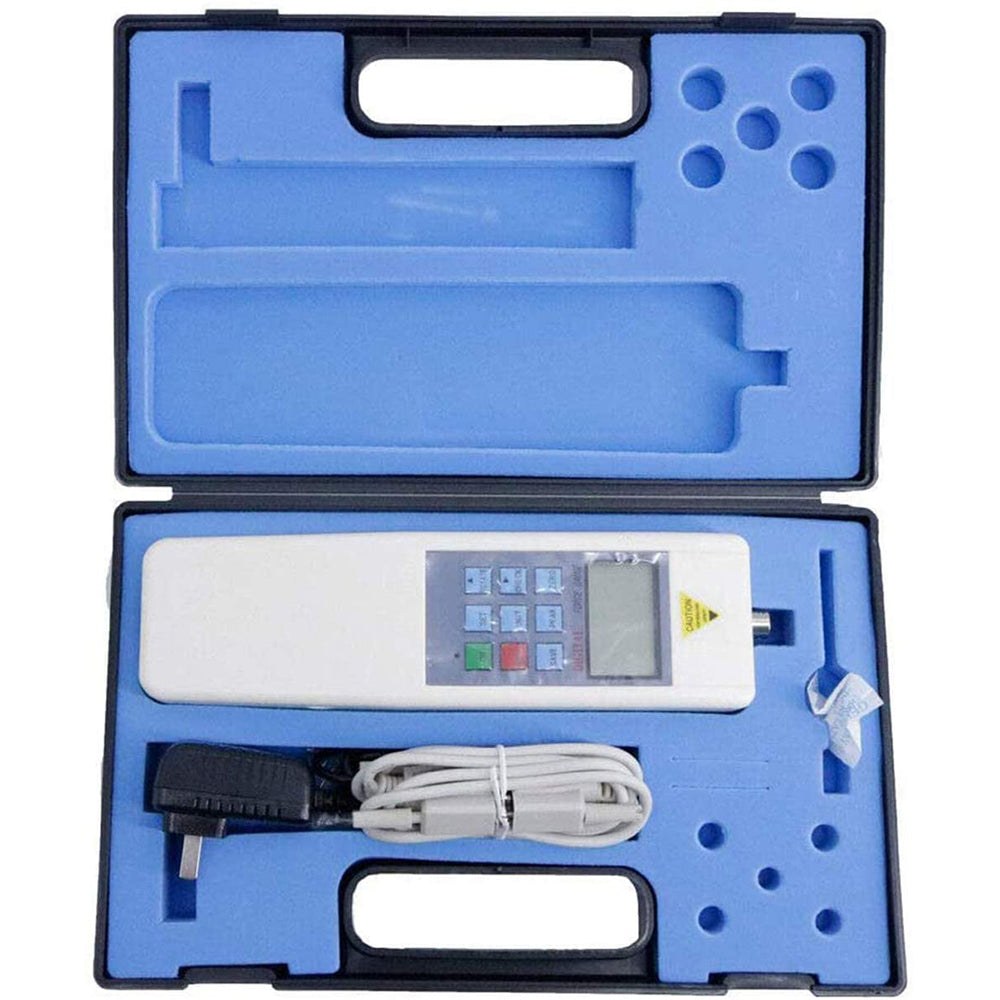

Reliable quality and fine package make the force gauge easy to keep and maintain

High precision and high resolution.

Five testing modes and three display methods for selection N (Newton), kg (Kilogram) and

Ib (Pound) three measuring units for selection and conversion.

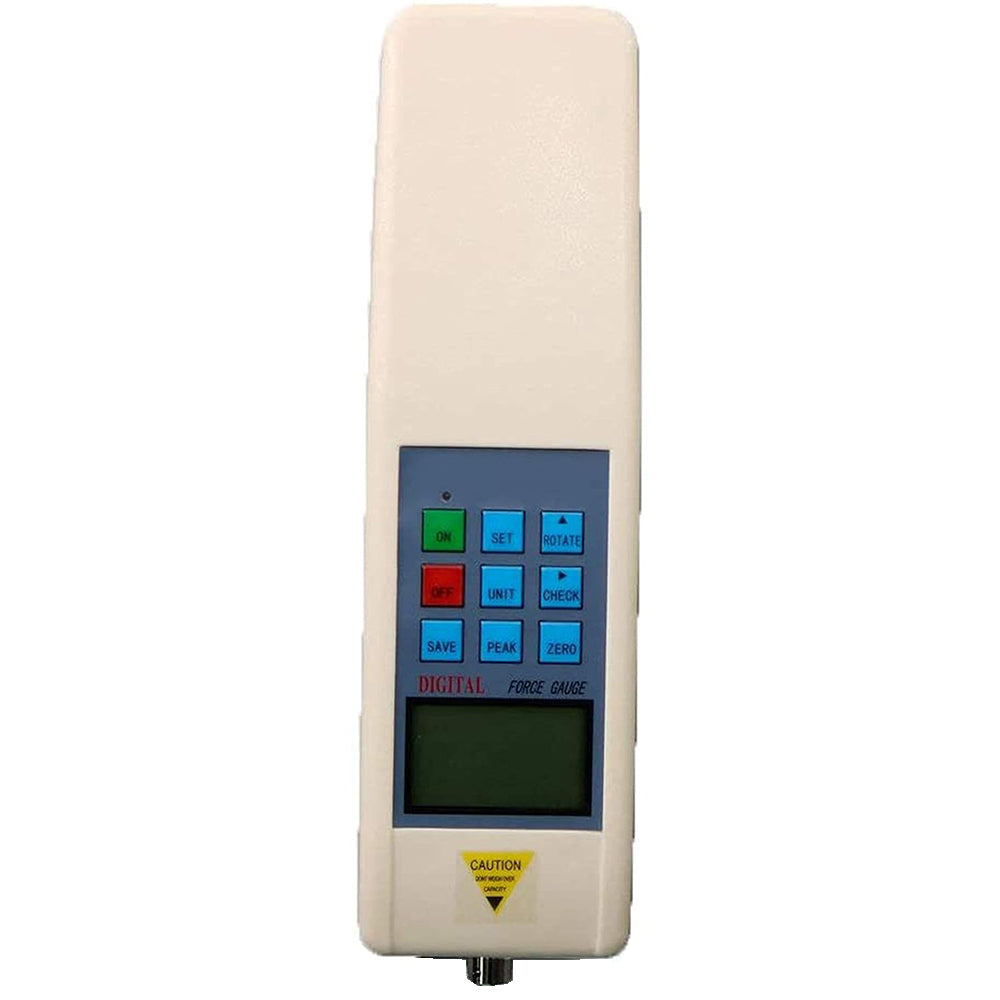

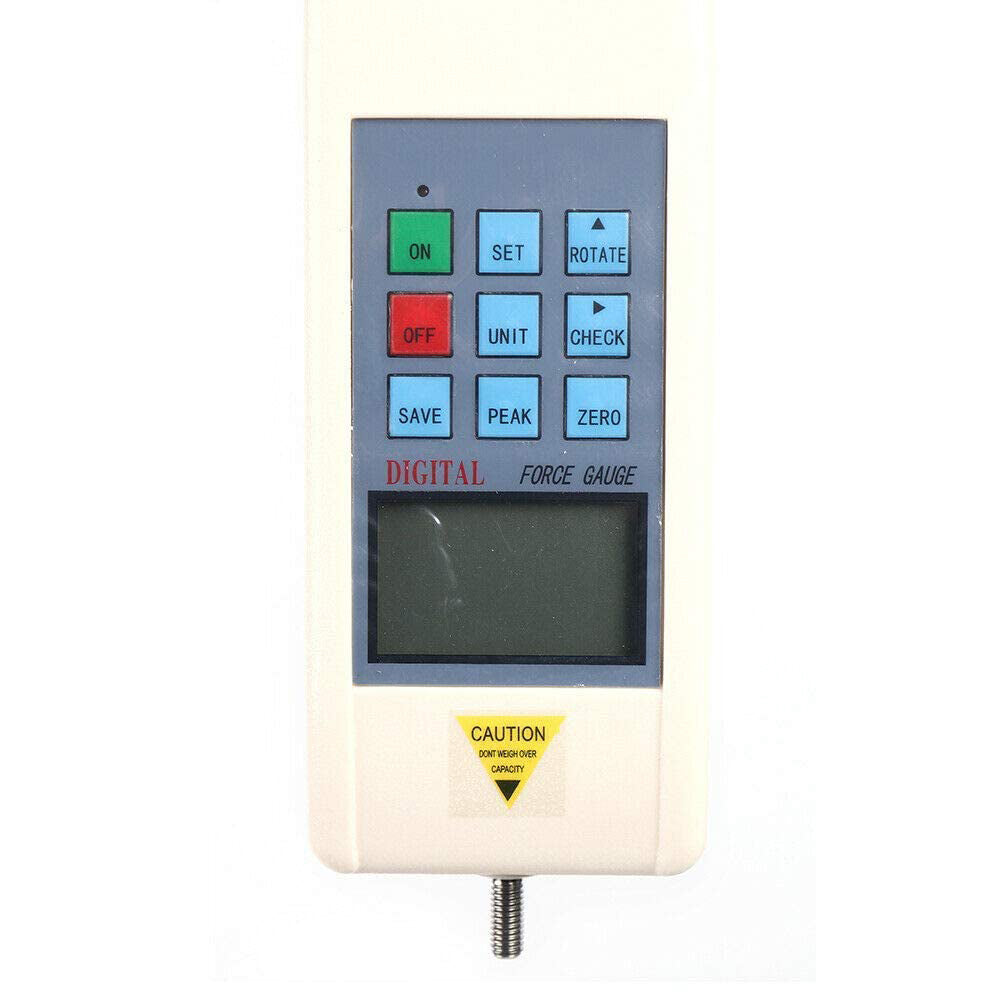

6 digits large screen display.

Setting function of gravity acceleration

Max. and min. and comparison value can be setted for statistic analysis.

Data storage function. 896 testing values can be stored.

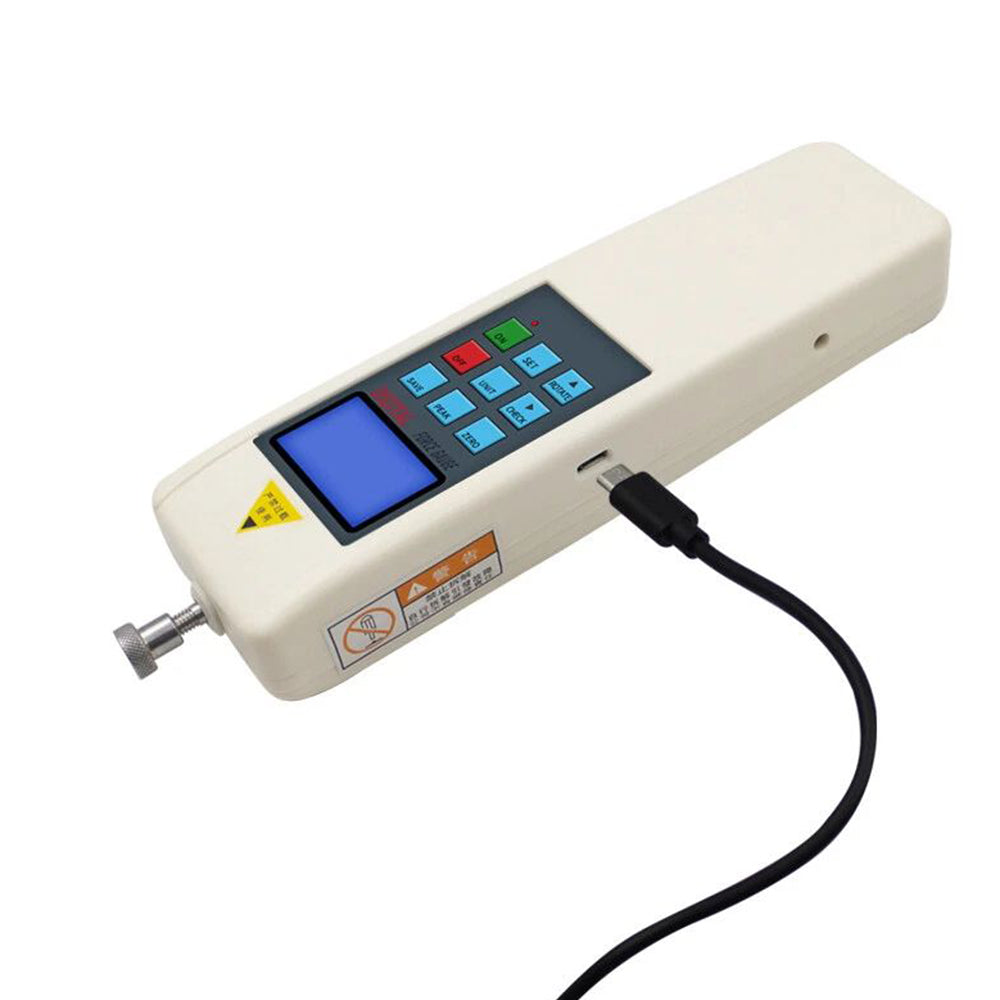

Data output function. The data can be input into computer through data line for various analyses.

LCD overturn display

Automatic PEAK function

Automatic storage test value function

Negative phototropism function

Printer function:this function can print the stored data through computer by USB.

Synchronous test function

Measuring correction

Solve overload instruction

Specification:

Peak load value:50KN

Load division value:0.01KN 0.001Mg 0.001Klbs

Indication error: ±0.5% +/-1%

Unit: N / (KN), kg / (Mg or t), lb (KIb) N / (KN), kg / (Mg or t), lb (KIb)

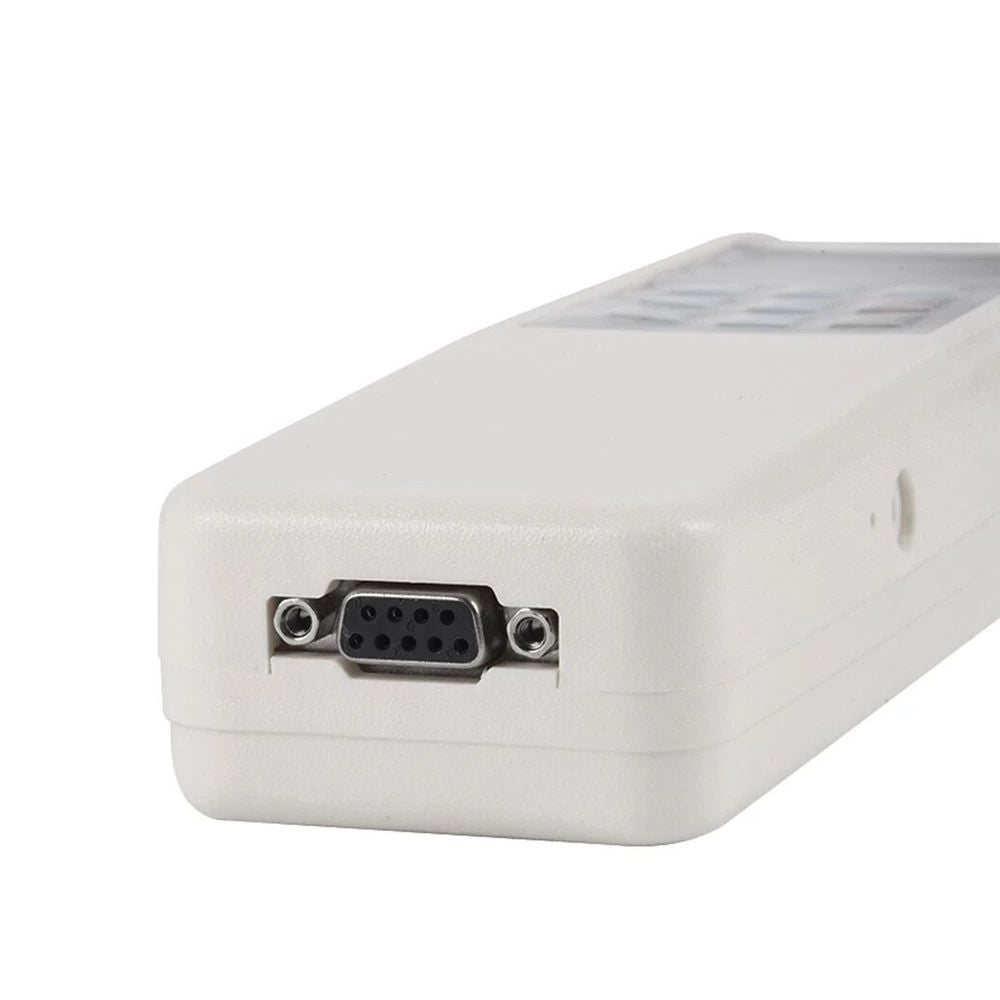

Data interface: RS232 nine-hole socket

Power :rechargeable batteries, charger(charging voltage 100V-240V)

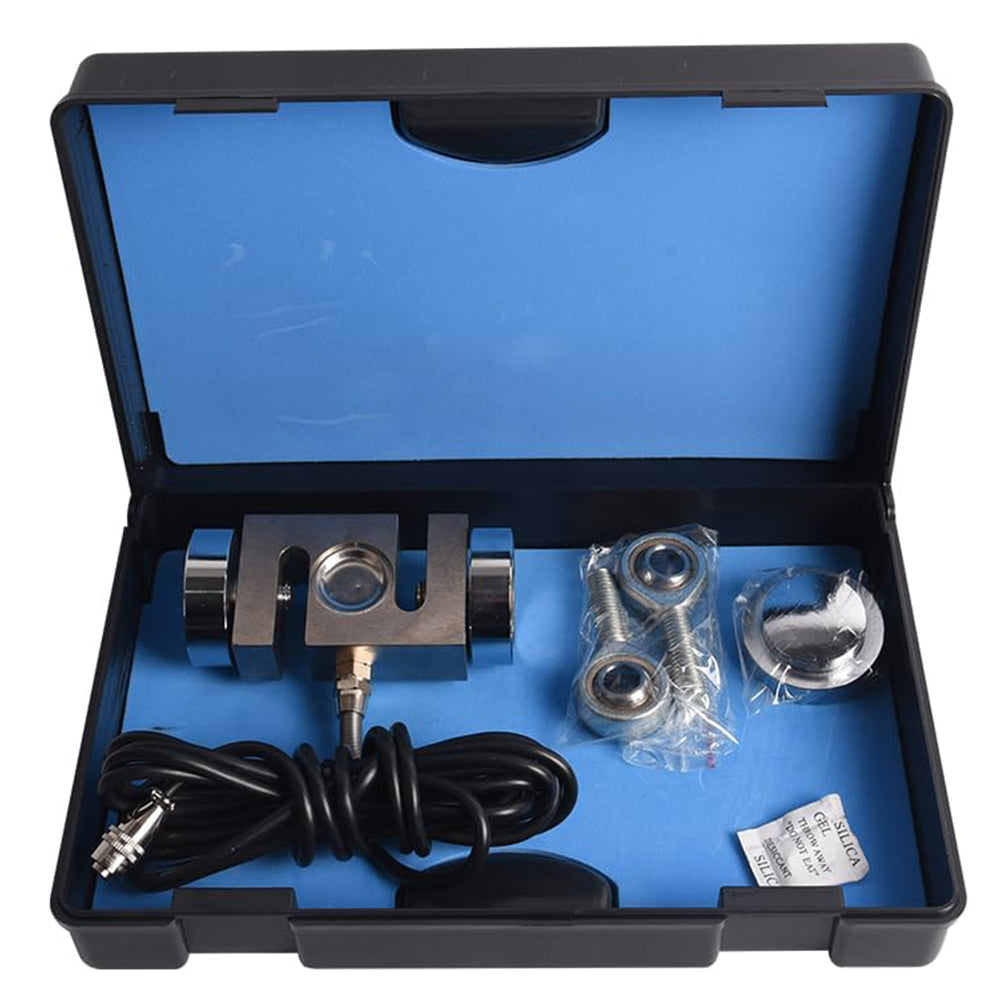

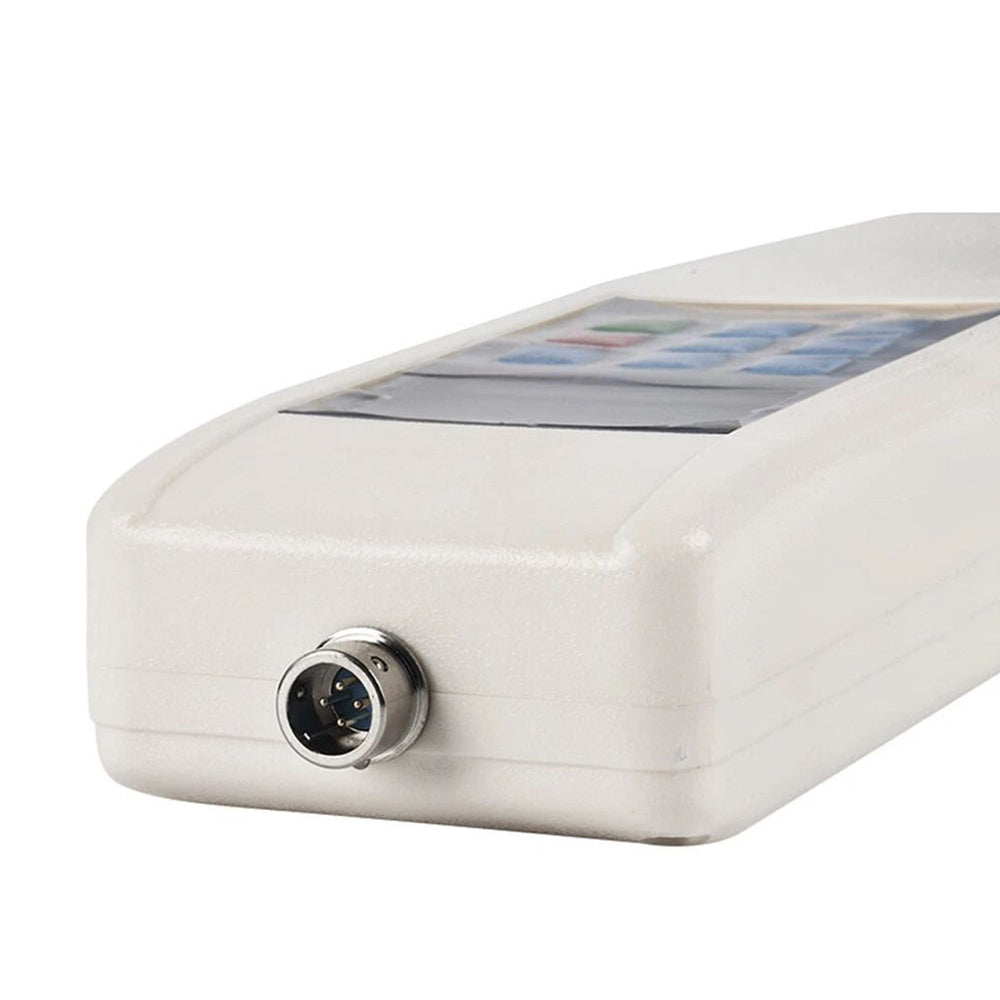

Sensor structureS-tye external sensor(standard), optioal Spoke type sensor S-tye external

sensor(standard), optioal Spoke type sensor

Ambient temperature :5° C~35° C

Transport temperature:-10° C~60° C -10° C~60° C

Relative humidity: 15%~80%RH

Working conditions:No hypocenter and corrosive medium No hypocenter and corrosive medium

Size :280* 200 *170 mm
