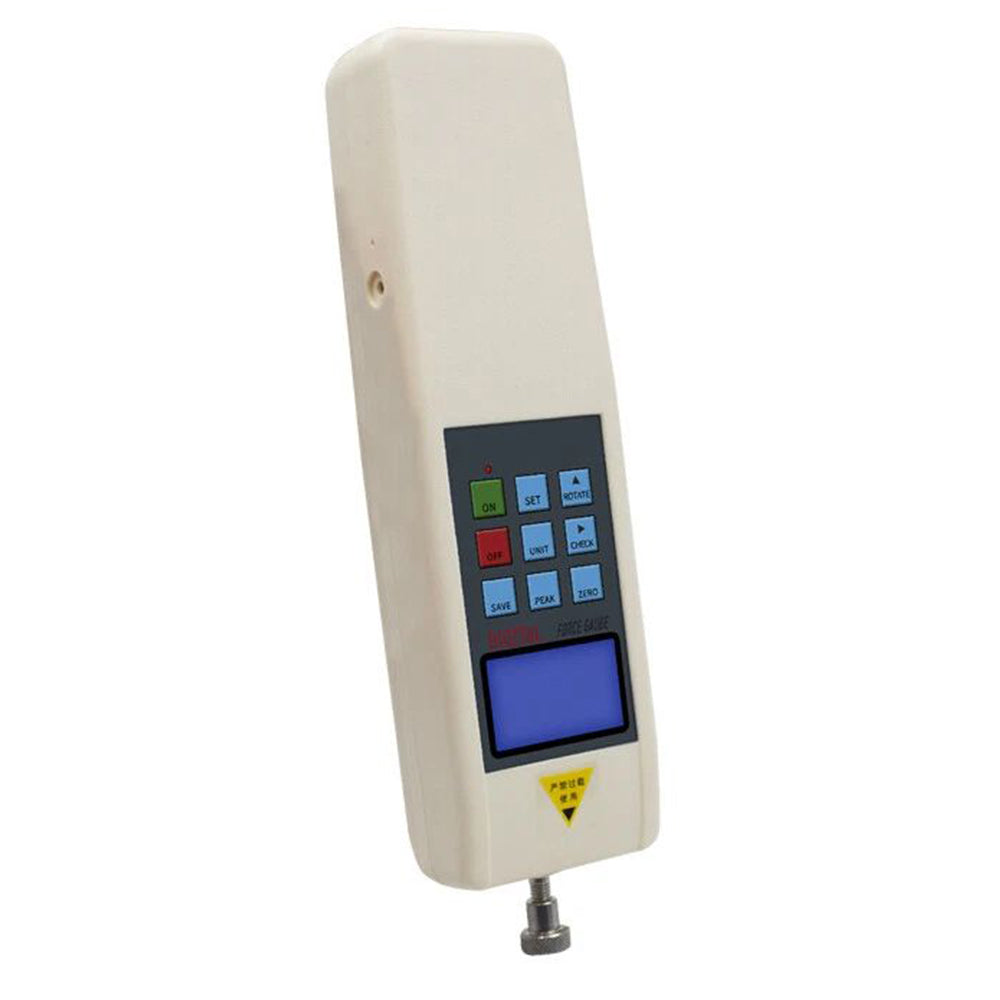

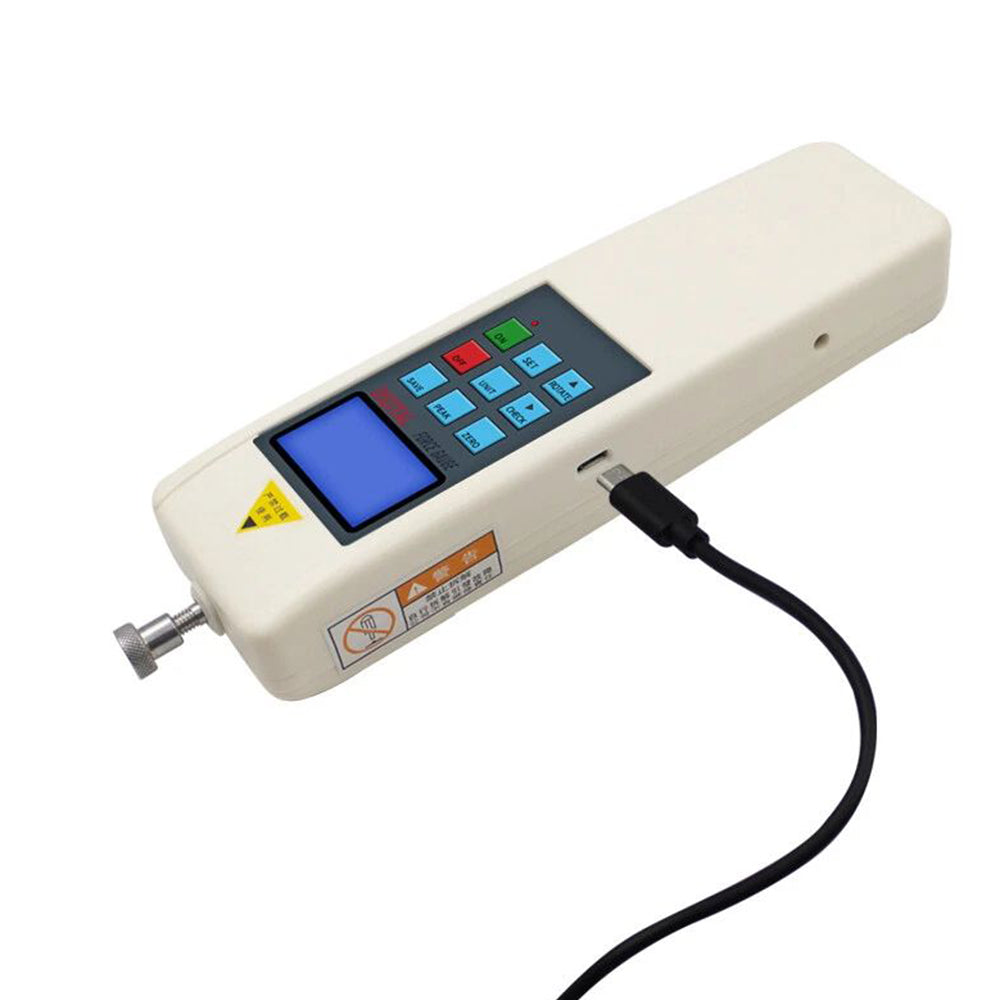

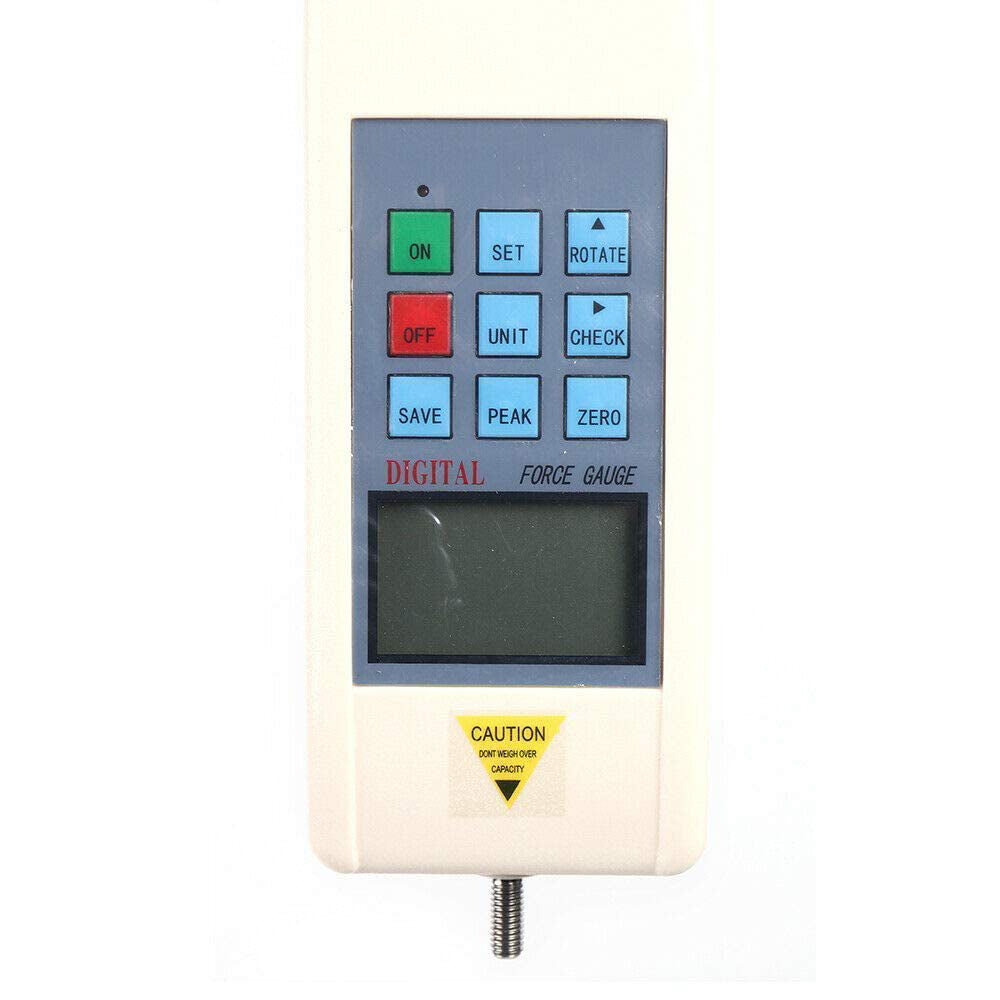

VTSYIQI Push Pull Gauge Digital Force Gauge Meter with Load Division Value 1N/ 0.1kg/ 0.1Lb Peak Load Value 2000N/ 200kg/ 450Lb Indication Error ±1% for Push-Pull Load Insertion Force Test Destructive Test

About this item:

Five test modes and three display modes are available to maximize the test efficiency. N (Newton), kg (kg), Ib (lb) three measurement units are available for selection and mutual conversion.

Gravity acceleration setting function - the user can input the exact value of the gravity acceleration of the place of use. Make test and unit conversion accurate. 6-bit large screen display.

Peak hold function. Keep the peak display until it is manually cleared. Automatic peak function, keep the display peak automatically after 2 seconds.

It can set the upper and lower limits and comparison values for statistical analysis. The buzzer alarm is exceeded for the comparison value. Environmental protection, automatic shutdown for 10 minutes without operation.

The charging voltage is available from 100V to 240V, which can be adapted to most areas in China and abroad. There are also short circuit, leakage, and overload protection.

Feature:

High precision and high resolution.

Five test modes, three display modes to choose from (to maximize test efficiency).

N (Newton), kg (kg), lb (lb) three measurement units are available for selection and mutual conversion.

Gravity acceleration setting function: Users can input the exact value of gravity acceleration of the place of use. Make testing and unit conversion more accurate.

Peak hold function. Keep the peak display until it is manually cleared.

Automatic peak function, free to set the time, from 1 to 9999 seconds.

Can set the upper and lower limits for statistical analysis. The buzzer can be alarmed by setting the upper and lower limits beyond the limited range.

Data storage function, can store 447 test values.

Data output function, the data can be input into the computer through the data line for various analysis. (It can also be applied to multiple instruments for simultaneous analysis with one computer.)

Green, 10 minutes without operation, automatic shutdown, 10 minutes is the default, you can set the automatic shutdown to the required automatic shutdown time, when the automatic shutdown is set to 0, it will not automatically shut down.

The unique switch contact on-off force test function, making the switch on-off force test more accurate.

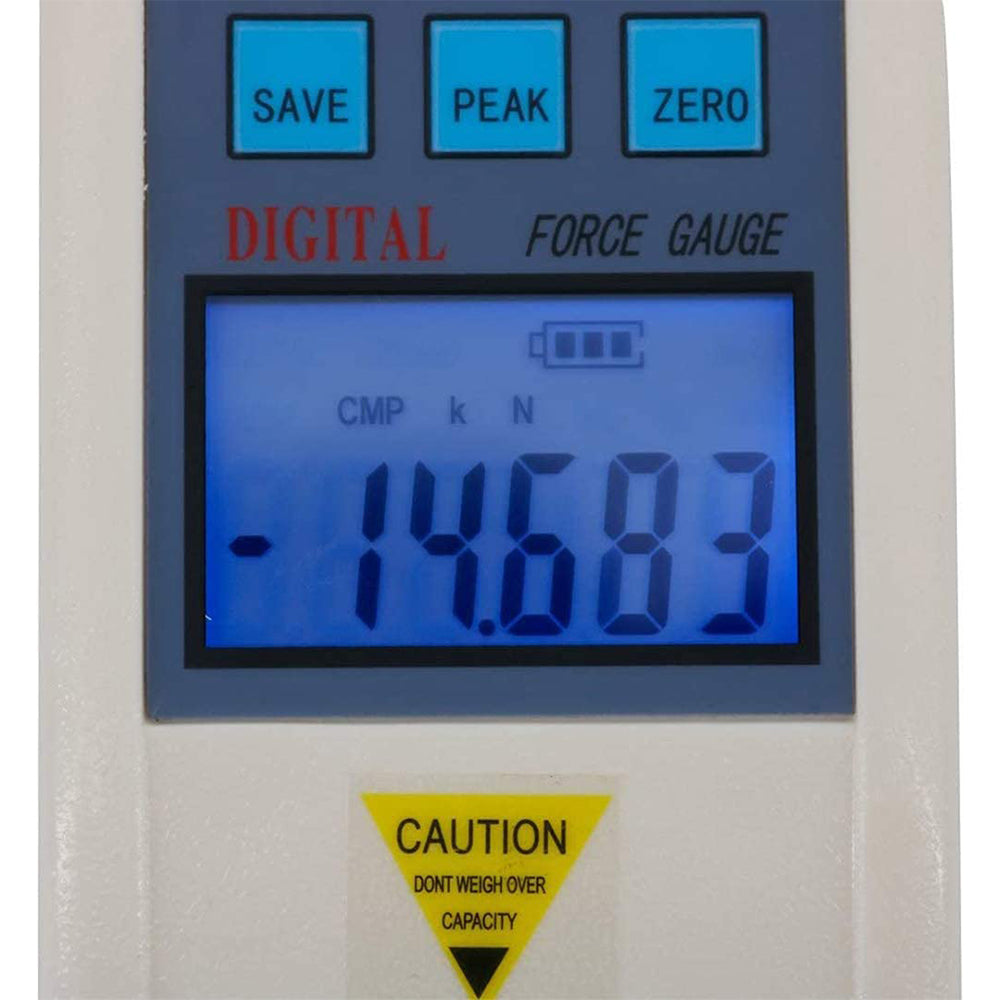

6-bit large screen display.

Technical Specifications:

Peak load value: 2000N/ 200kg/ 450Lb

Load division value: 1N/ 0.1kg/ 0.1Lb

Indication error: ±1%

Unit:N / (KN), kg / (Mg or t), lb (KIb)

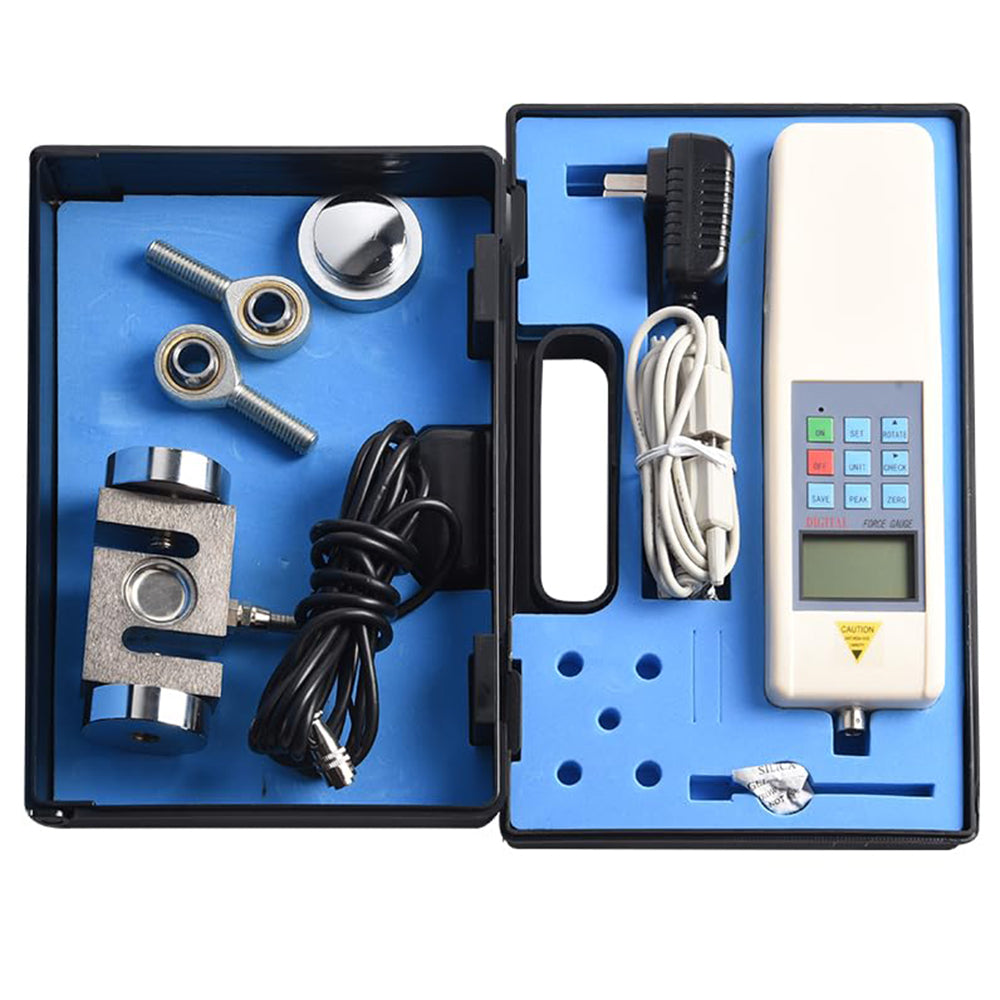

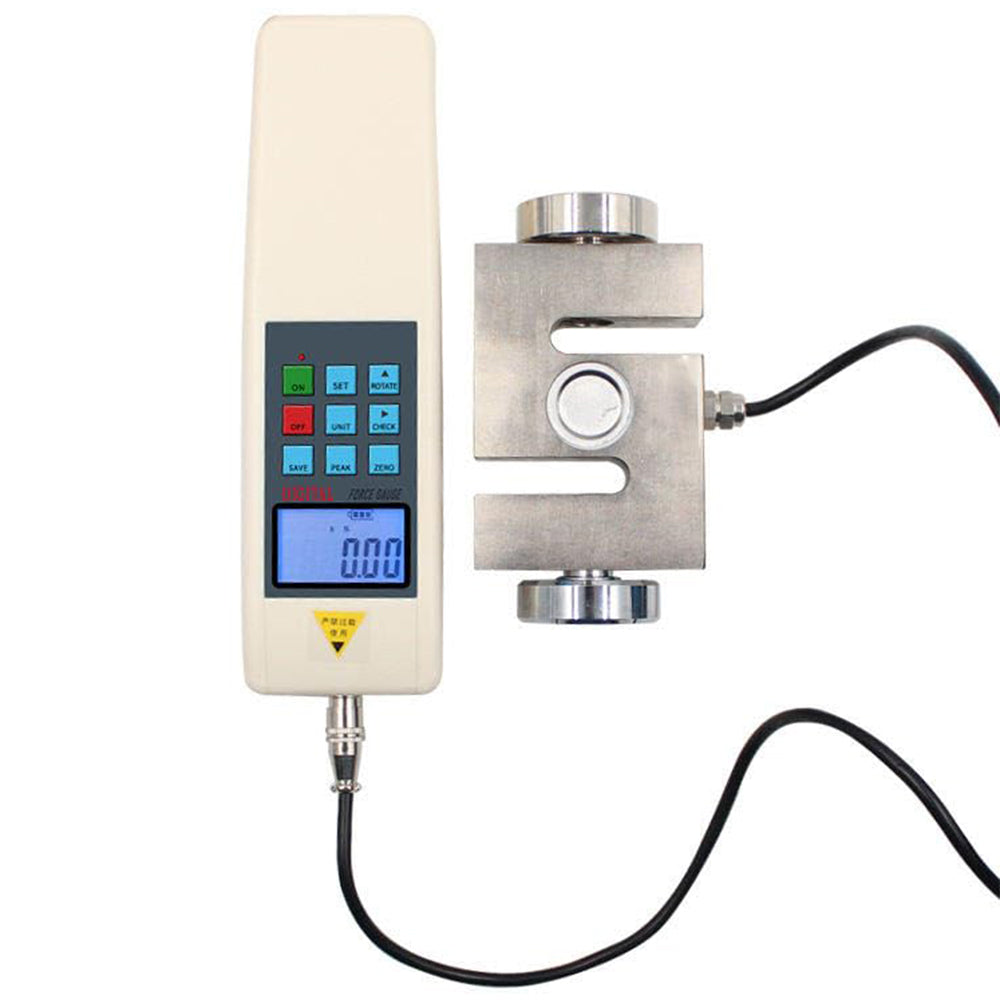

Sensor structure: S-tye sensor with high precision (external sensor)

Power: rechargeable batteries, charger(charging voltage 100V-240V)

Data interface: Rs232 nine-hole socket

Relative humidity: 15%~80%RH

Working conditions: No hypocenter and corrosive medium

Size: 280 x 200 x 170 mm
