VTSYIQI 45 Degree Gloss Meter Portable Gloss Meter with Measuring Range 0~800GU Multi-mode Measurement for Measuring Paint, Ink, Coating, Paper Printing, Plastic Electronics, Furniture, Ceramics, Electroplating, Hardware, Marble, Etc

About this item:

Good operating experience:The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

Multi-mode measurement:Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

Calibration function:Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

Excellent inter-instrument difference and repeatability:The repeatability is very good. In the measurement range of 0-100GU, the repeatability can reach ±0.5GU, and in the measurement range of 100-800GU, the repeatability can reach ±0.5% GU .

PC quality management software:The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.

Feature:

Good operating experience

The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

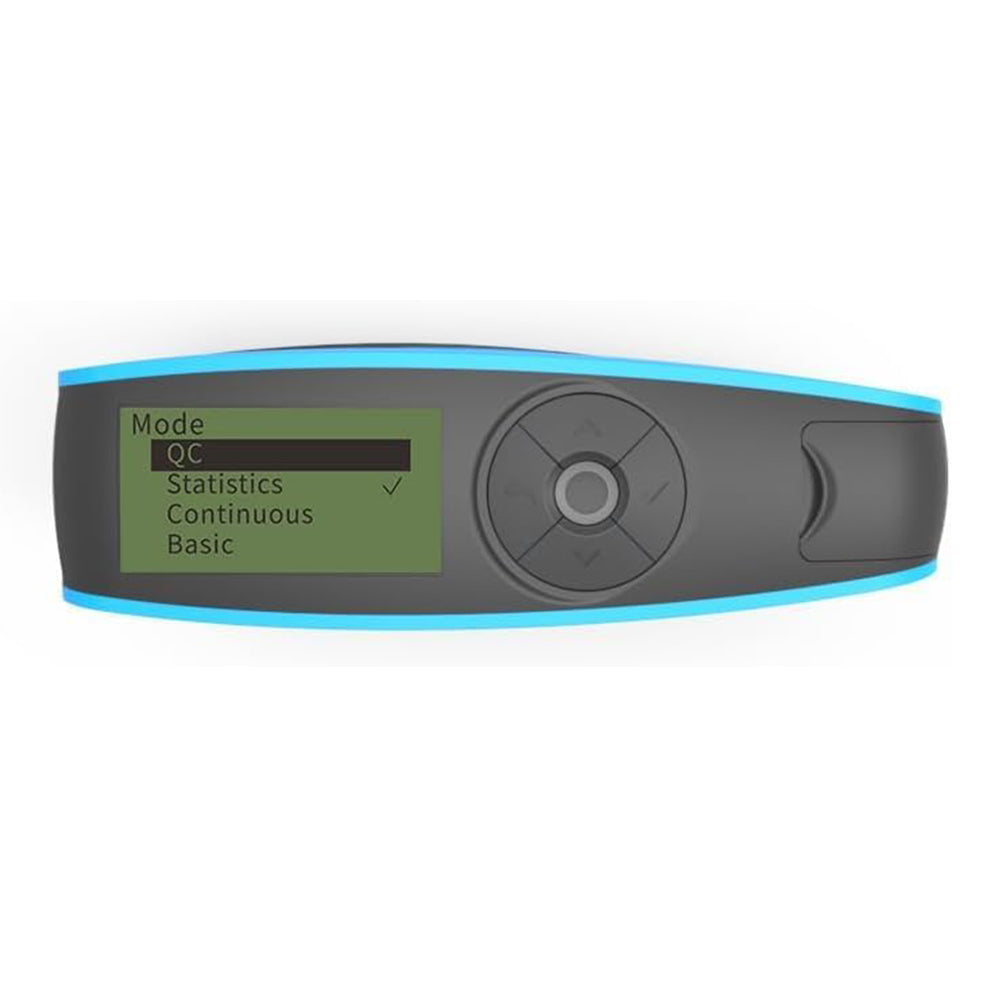

Multi-mode measurement

Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

Low power consumption

A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.

Calibration function

Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

Lightweight and portable

Lightweight design, easy to carry, not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

Excellent inter-instrument difference and repeatability

The repeatability is very good. In the measurement range of 0-100GU, the repeatability can reach ±0.5GU, and in the measurement range of 100-800GU, the repeatability can reach ±0.5% GU .

High-precision measurement

Carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement.

PC quality management software

The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.

Technical Parameters

Measuring Angles 45°

Measuring spot (mm) 45°:10x13

Measuring range 45°: 0~800GU

Graduation value 0~100GU:0.1GU; 100~800GU:1GU

Characteristic

It can be used for gloss measurement and quality inspection in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.

Measurement Mode Basic mode, statistical mode, continuous mode, quality control mode

Measure time 0.5 seconds

Repeatability 0~100GU: ±0.5GU ;100~800GU:±0.5%GU

Accuracy Meet the requirements of JJG 696 working gloss meter

Automatic shutdown time 30~120 seconds optional

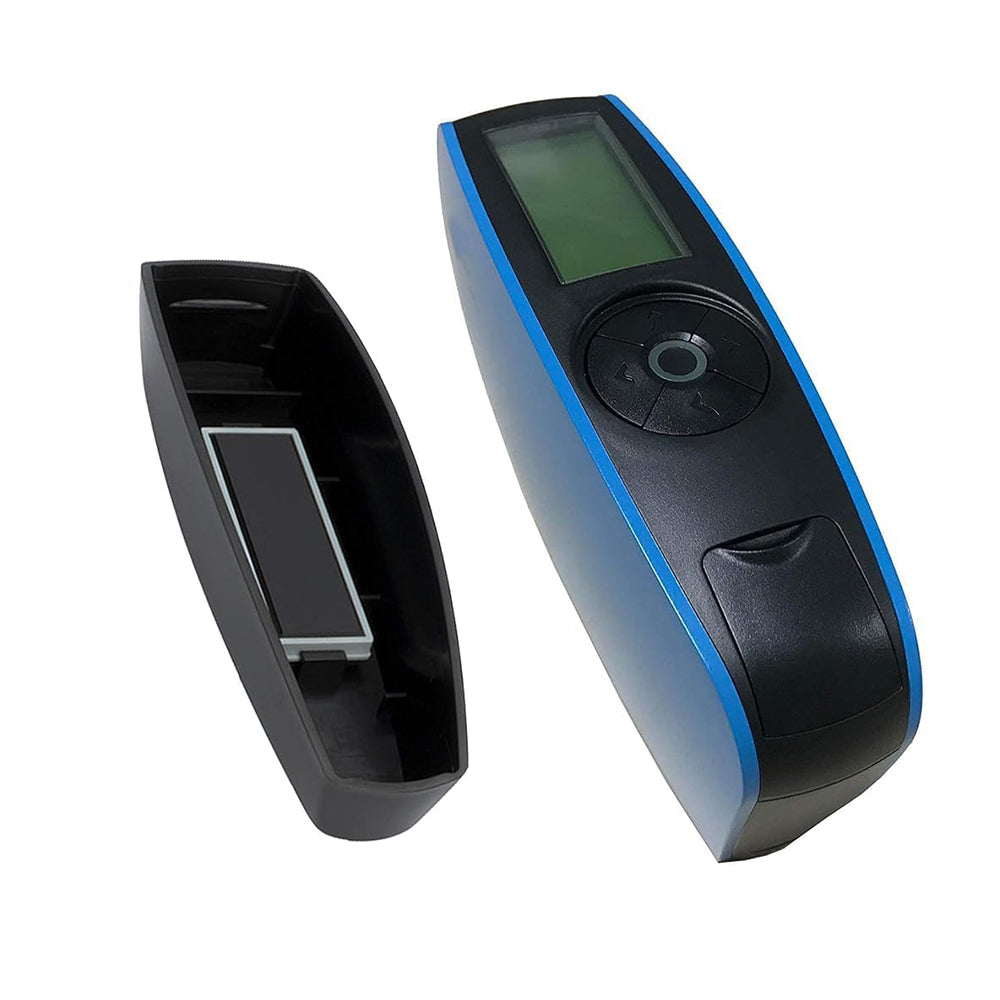

Long time calibration Auto Identify Calibration Board and Calibrate / manual calibration

Language Simplified Chinese, English, Traditional Chinese

Storing data 35,000 ( 15,000 in basic mode and continuous mode , 10,000 in quality control mode , 10,000 in statistical mode )

Display 2.3 inch black and white display

Size 160X52X84mm

Weight About 300g ( including calibration box and batteries )

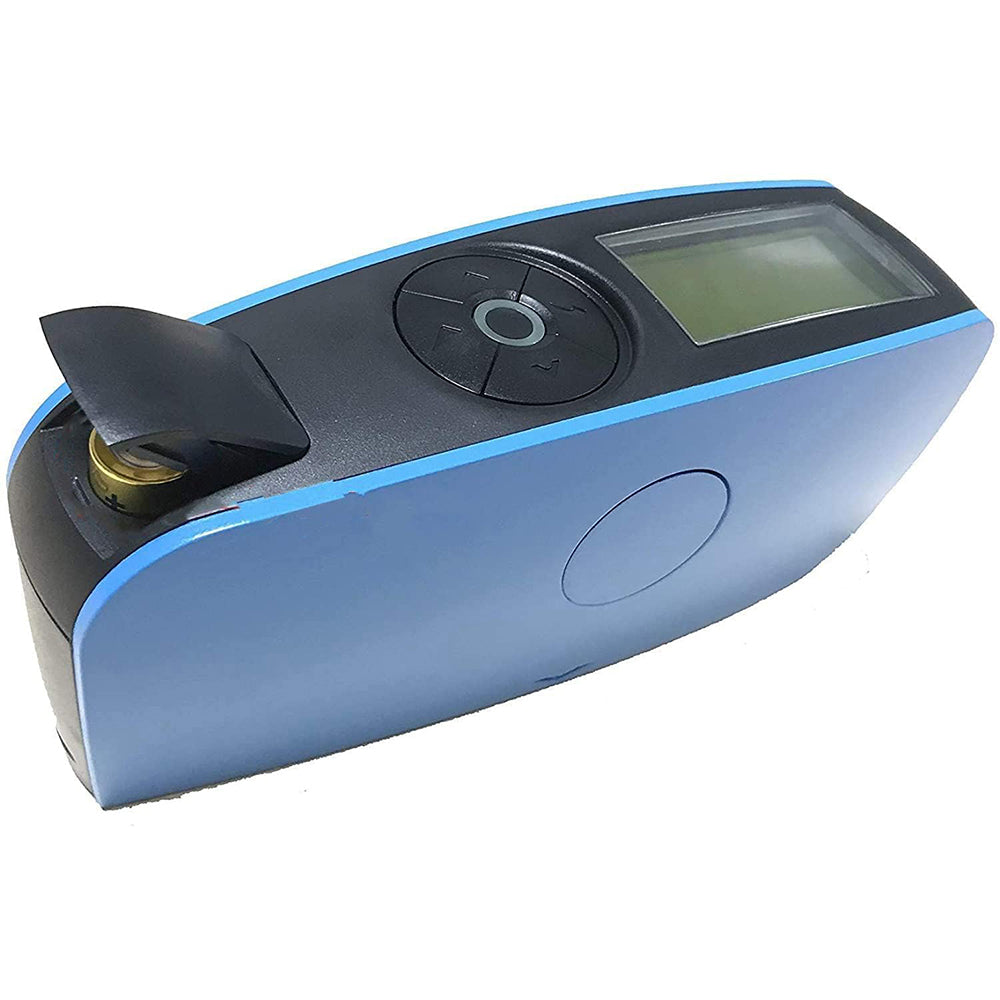

power supply 1 AA alkaline battery or NiMH rechargeable battery , can measure more than 10,000 times

Interface USB

PC Software GQC6 quality management software, quality inspection report printing, more functional expansion

Operating temperature range 0~40 °C ( 32~104°F )

Storage temperature range -20~50 °C ( -4~122°F )

Humidity Less than 85%RH , no condensation

Standard accessories USB data cable, instruction manual, GQC quality management
