VTSYIQI 60 Degree Gloss Meter Single Angle Gloss Meter with Large Touch Screen Operation Measuring Area (mm) 2*3 Measurement Range 0~1000GU Errors ±1.5 ± 1.5% Measuring Time 0.5s for Marble Granite Vitrified Polished Tile Pottery Brick and Porcelain Etc

About this item:

Display 5 sets of measurement data, good for comparison

Connect to PC, more extend functions

Large touch screen operation, easy to use

It can test material with gloss (0-1000Gu)

Universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Introduction:

It can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Features:

Small aperture: 2*3mm

60° angle for semi gloss

Display 5 sets of measurement data, good for comparison

Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

Continuous mode to check uniformity over large areas

Connect to PC, more extend functions

Input gloss value manually

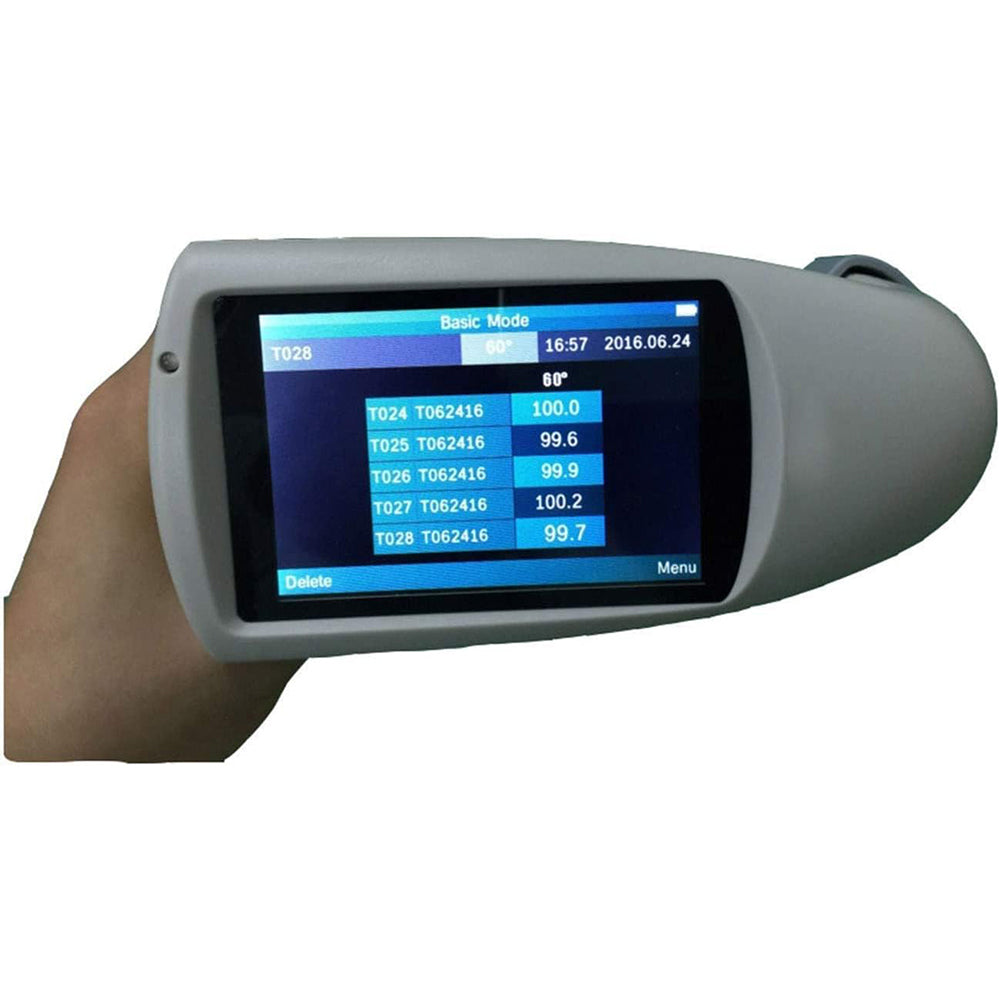

Large touch screen operation, easy to use

Beauty appearance, good man-machine communication interface

Powerful functions to meet many different requirements

Large storage to save over 5000 data

Built-in lithium ion rechargeable battery.

Specifications:

Measure Angle 60 Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D 2457

Measuring Area (mm) 2*3

Measurement Range 0~1000GU

Division Value 0.1GU

Measurement Range 0-10GU;10-100GU;100-1000GU

Repeatability ± 0.1GU;± 0.2GU;± 0.2%GU

Reproducibility ± 0.2GU;± 0.5GU;± 0.5%GU

Measurement Standard Conform with JJG696 first class gloss meter working requirement

Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source

Errors ±1.5 , ± 1.5%

Measuring Time 0.5s

Dimension L*W*H : 160mm*75mm*90mm

Weight 350g

Language Chinese/English

Battery 3.7V,3200mAh Li-ion Battery, >10000 times(within 8 hours)

Viewing Screen TFT 3.5 inch, capacitive touch screen

Interface USB/RS-232

Data Save Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000

Software GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature 0~40℃（32~104°F）

Storage Temperature -20~50℃（-4~122°F）

Humidity <85% relative humidity, no condensation

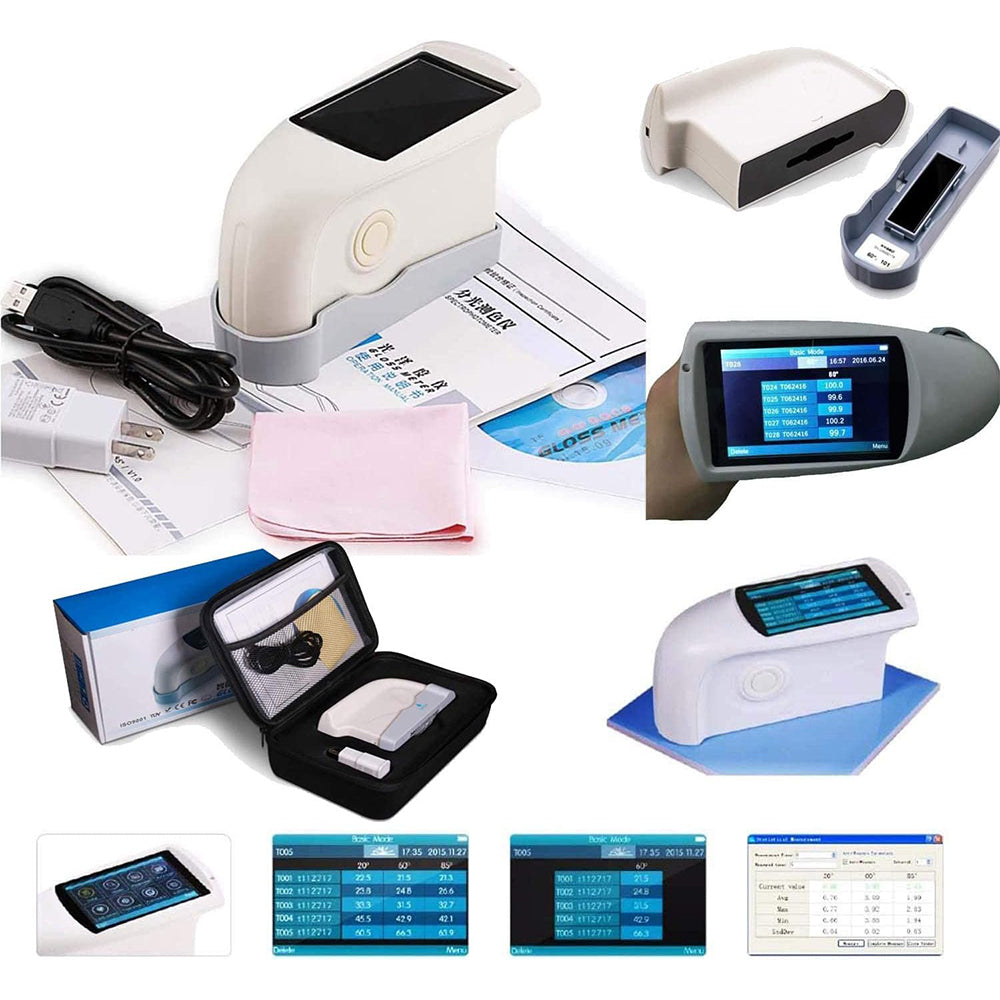

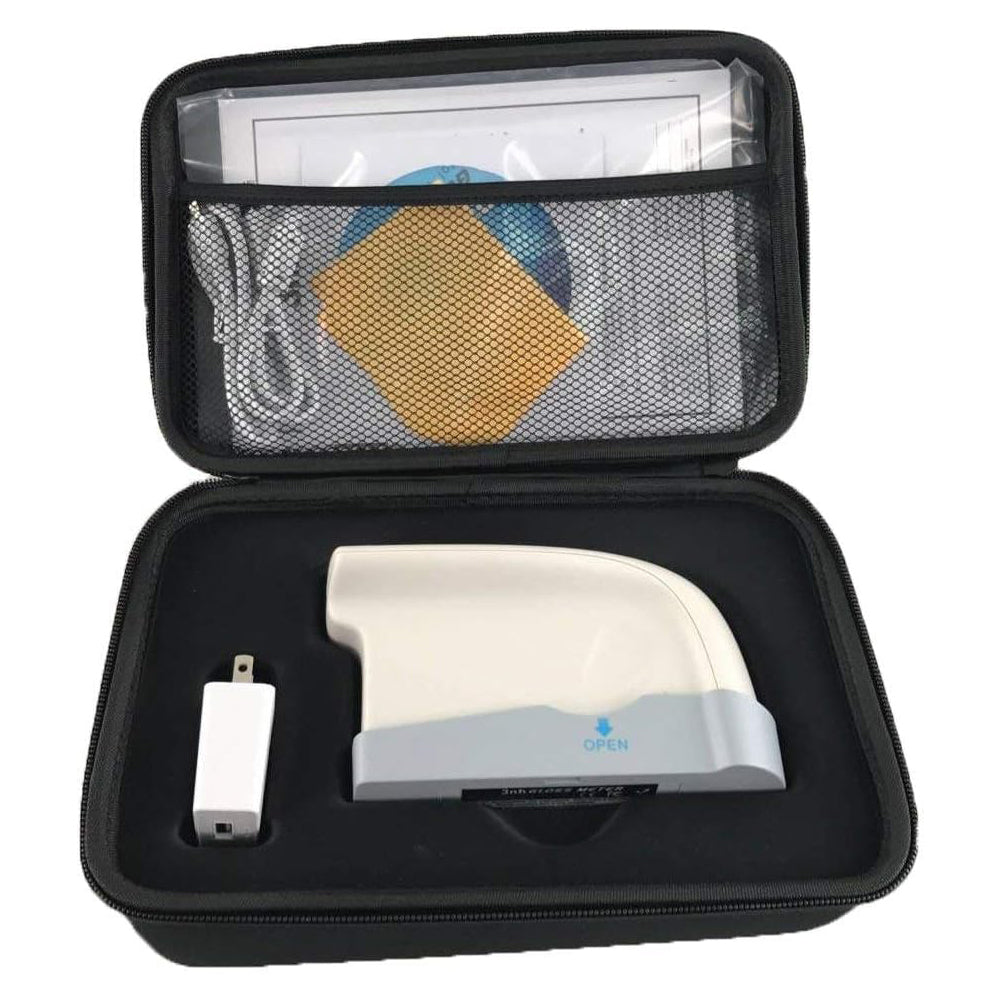

Standard Accessories Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional Accessories Miniature Printer

Note The specifications are subject to change without notice.
