VTSYIQI 60° Gloss Meter Portable Gloss Meter with 60° Angle for Semi Gloss Display 5 Sets Of Measurement Data Division Value 0.1GU Measuring Range 0~300GU Basic Mode Storage 1000 for Gloss Measurement and Gloss Data Transmission

About this item

This glossmeter with 3.5 inches ultra large color screen, high resolution (480*320), full view display.

This Glarimeter tester is small in size, light in weight ,easy to carry out for fieldwork if needed.

Basic model measurement can meet basic glossiness testing requirements;Multiple sets of measurement data are displayed simultaneously, which is convenient for comparison.

This gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

This gloss meter features with 60¡ã angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. It conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

Features:

60° angle for semi gloss

Concise appearance, feel good

Display 5 sets of measurement data, good for comparison

Built-in lithium ion rechargeable battery

Basic model measurement can meet basic glossiness testing requirements

Connect to PC, more extend functions

One button for all angles measurement at the same location

Comply with international standards

Stable performance, easy to read data.

Technical Specifications

Measuring angle: 60°Comply with standard ISO 2813, GB/T 9754, ASTM D 523, AST

Measuring spot (mm): 60°:9X15

Measuring range: 0~300GU

Measuring range: 0-10GU; Repeatability,± 0.1GU; Reproducibility, ± 0.2GU;

Measuring range: 10-100GU; Repeatability,± 0.2GU; Reproducibility, ± 0.5GU;

Measuring range: 100-300GU; Repeatability,± 0.2%GU; Reproducibility, ± 0.5%GU;

Division value:0.1GU

Measurement Standard: Conform with JJG696 first class glossmeter working requiremChromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source

Errors: ±1.5 , ± 1.5%

Measurement time: 0.5s

Size: LXW XH : 160X75X90mm

Weight: approx. 350g

Language: Simplified Chinese, English

Battery capacity: 3200mAh Li-ion Battery, >10000 times(within 8 hours)

Display: TFT color 3.5inch display screen

Interface: USB/RS-232

Storage data: basic mode 1000

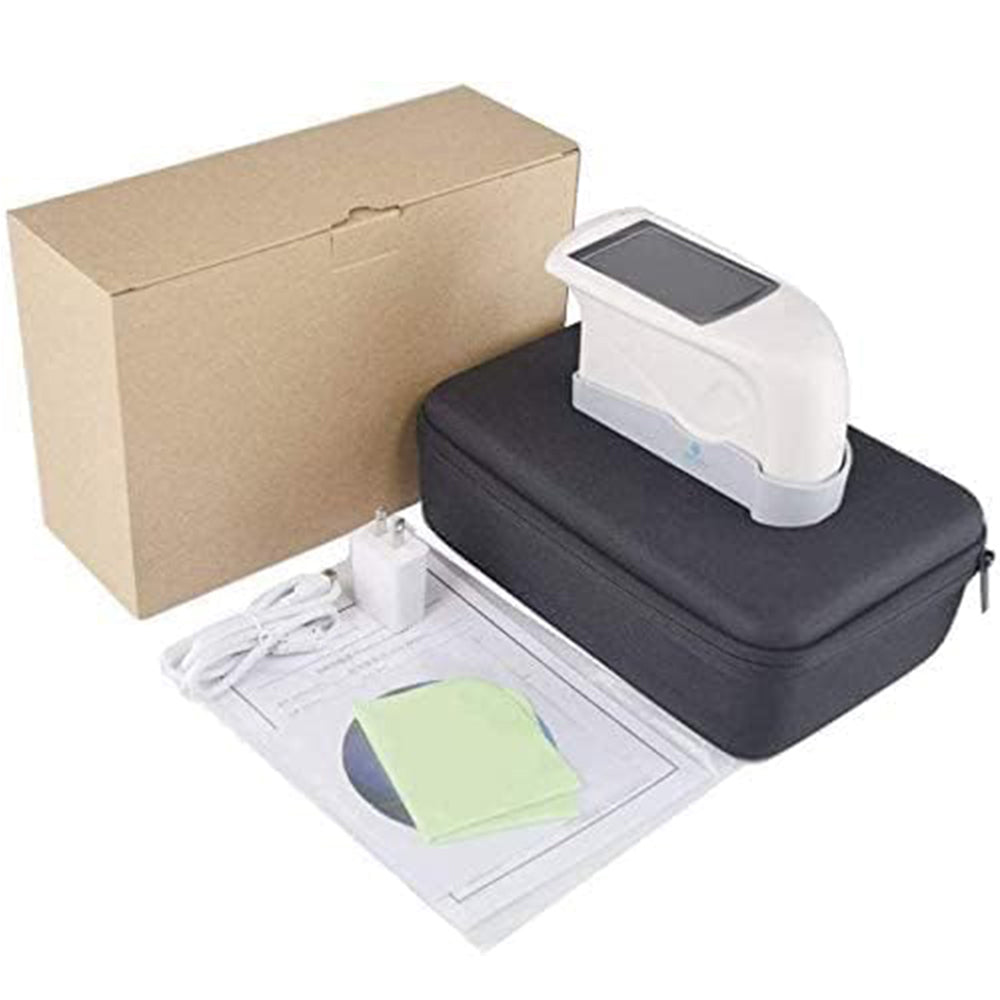

Standard accessories: Power Adapter, USB cable, User Manual, GQC6 software CD

Optional accessories: micro printer

If you need Optional Accessories,Please contact us.
