VTSYIQI Multi-angle Gloss Meter Triple Angle Gloss Meter with Connect to PC Large Touch Screen Operation Measuring Area (mm) 20°:10x10 60°:9x15 85°:5x36 Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU Errors ±1.2 ± 1.2%

About this item

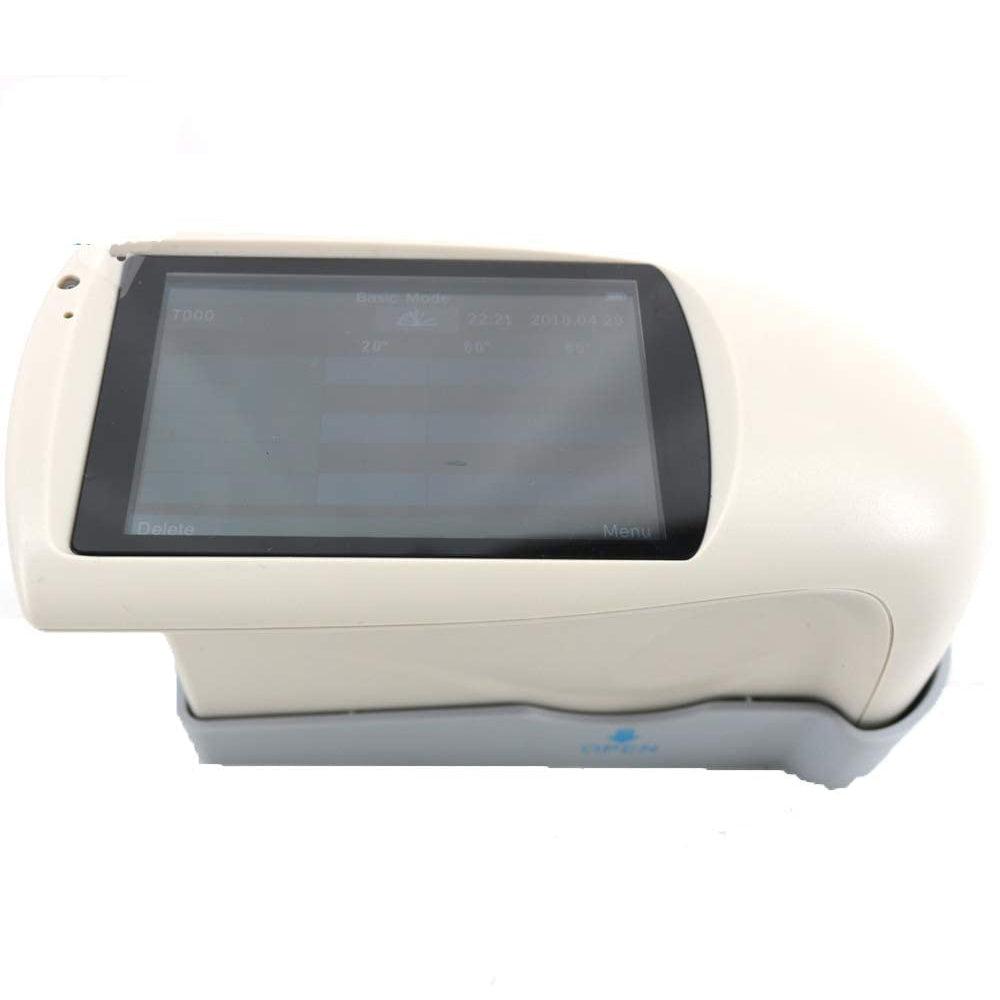

Multi-angle Gloss Meter Ultra large capacitive touch screen, high resolution (480*320), full view display, full function touch control

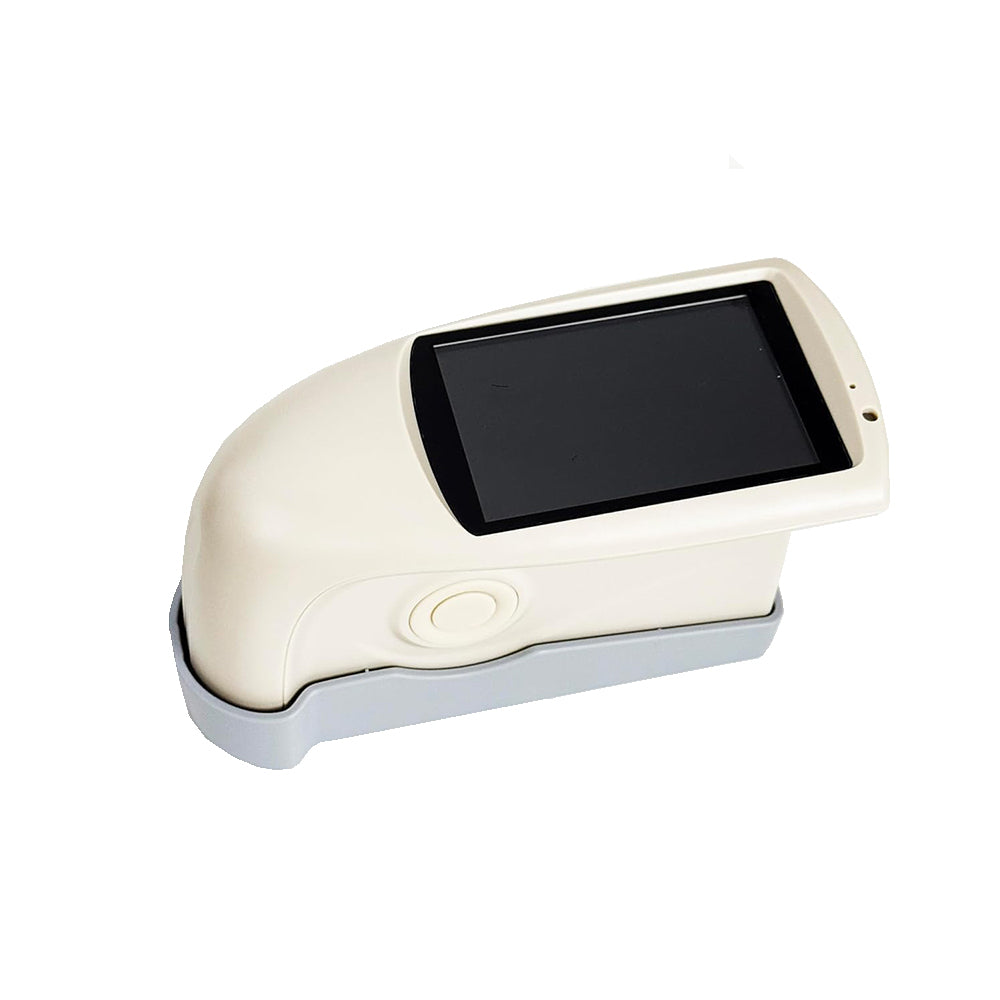

Multi-Angle Gloss Meter Aesthetic surface design combines perfectly with human engineering structure

Three angle gloss meter Three measuring angles (20, 60, 85) can be measured simultaneously Gloss measuring instrument

Tri-angle Gloss Meter Three modes of operation, a variety of functional settings, can meet customer needs

Three angle gloss meter It can input gloss data manually to facilitate customer operation; large capacity storage space

Introduction:

This gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

This gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Features:

20, 60 and 85° in one: from high to low gloss - have the specified angle on hand

Concise appearance, feel good

Display 5 sets of measurement data, good for comparison

Built-in lithium ion rechargeable battery

Basic model measurement can meet basic glossiness testing requirements

Connect to PC, more extend functions

One button for all angles measurement at the same location

Comply with international standards

Stable performance, easy to read data.

Specifications:

Measuring Angle 20°/60°/85

Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457

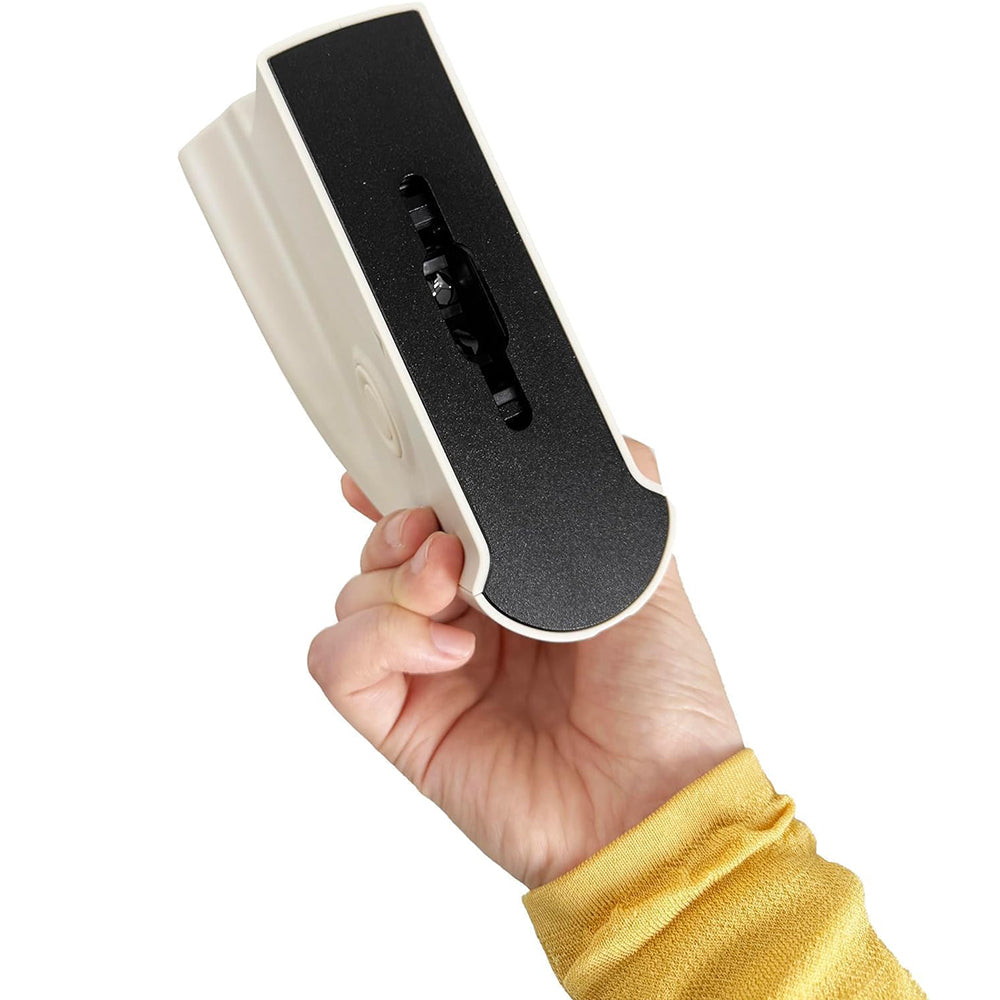

Measuring Area (mm) 20°: 10x10    60°: 9x15    85°: 5x36

Measuring Range 20°:0~1000GU   60°:0~1000GU   85°：0~160GU

Division Value 0.1GU

Measurement Range 0-10GU            10-100GU      100-1000GU

Repeatability            ±0.1GU             ± 0.2GU           ± 0.2%GU

Reproducibility        ± 0.2GU             ± 0.5GU           ± 0.5%GU

Measurement Standard Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source

Errors ±1.5 , ± 1.5%

Measuring Time 0.1s

Dimension L*W*H : 160mm*75mm*90mm

Weight 350g

Language Chinese/English

Battery 3.7V,3200mAh Li-ion Battery ，>10000 times(within 8 hours)

Display TFT 3.5 inch

Interface USB/RS-232

Storage Basic mode: 1000

Software GQC6 Quality Control Software with QC report printing functions and more extended functions.

Operation Temperature 0~40℃（32~104°F）

Storage Temperature -20~50℃（-4~122°F）

Humidity <85% relative humidity,  no condensation

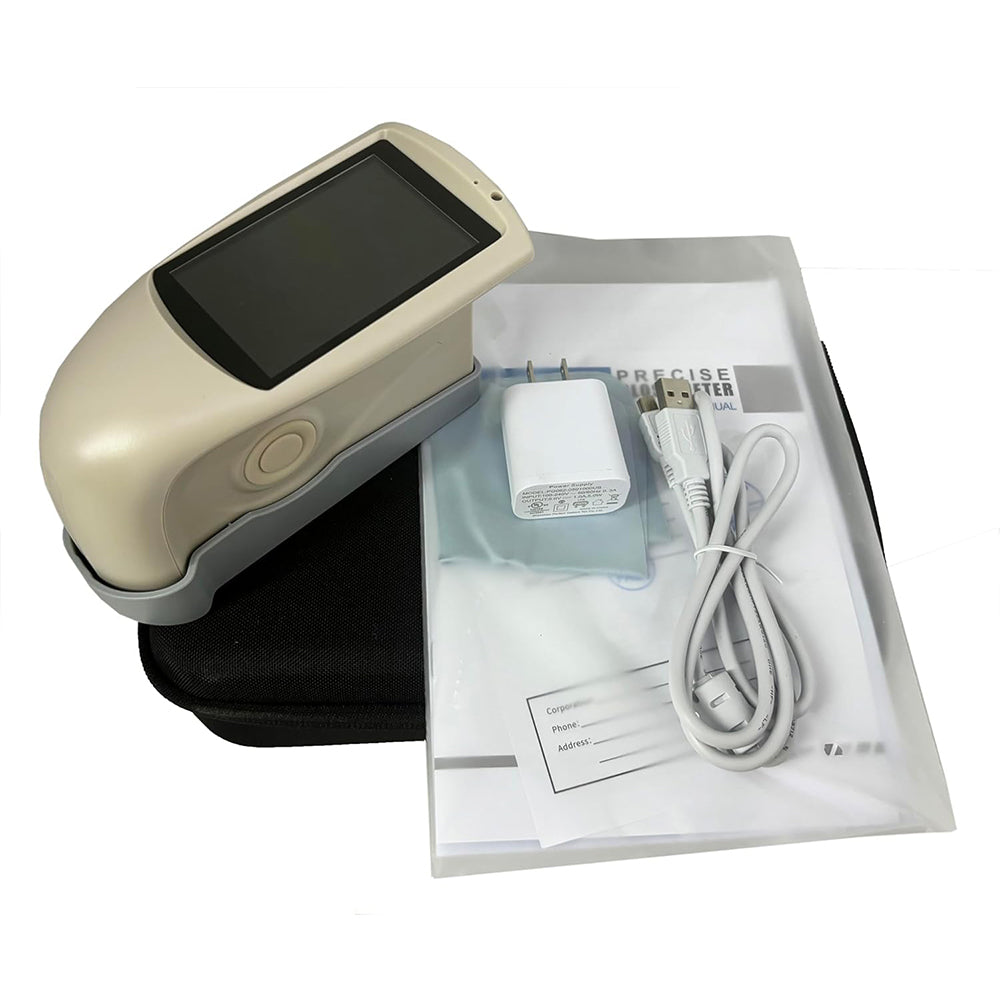

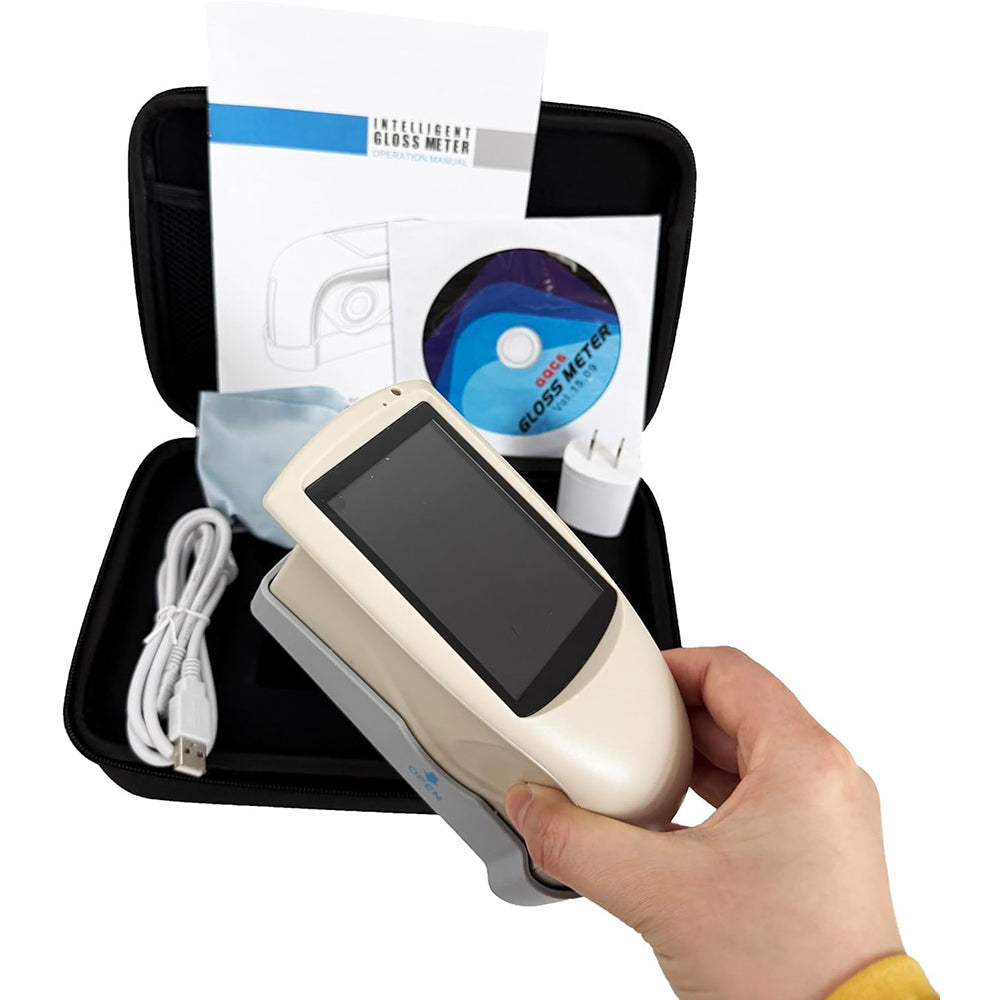

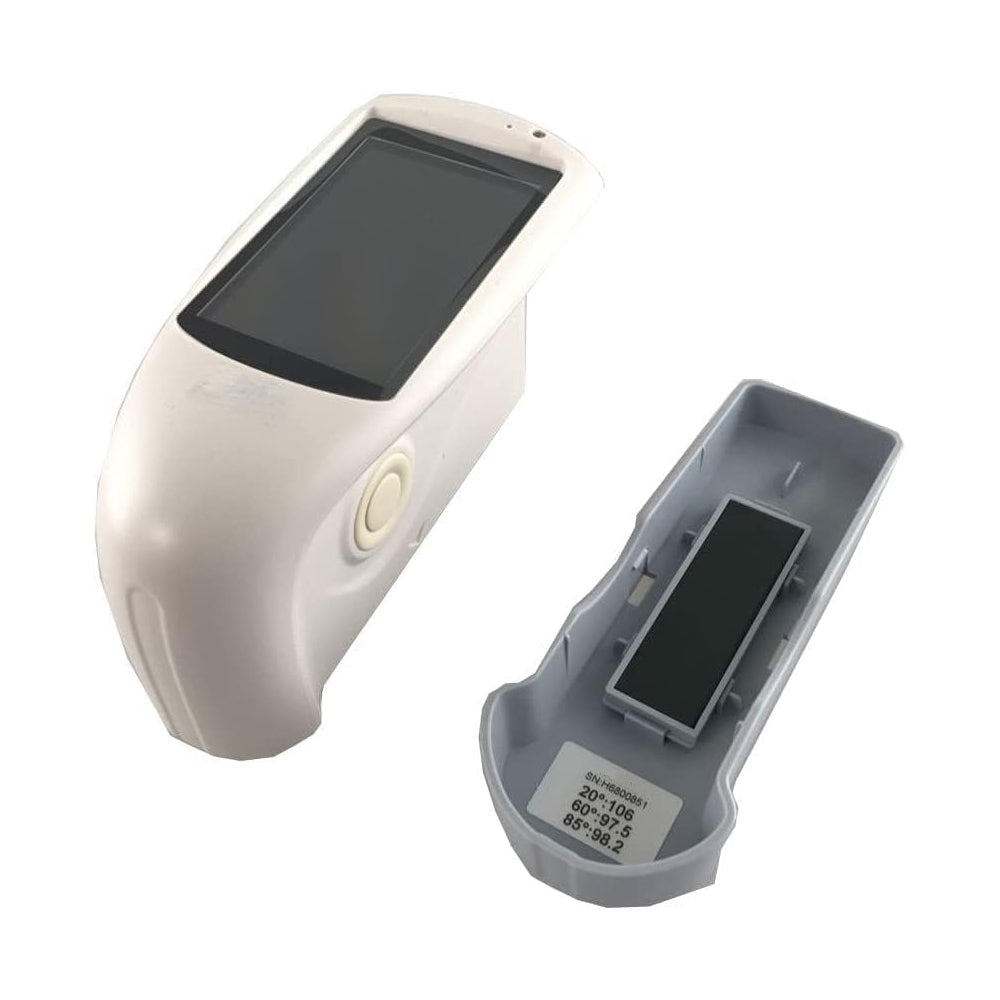

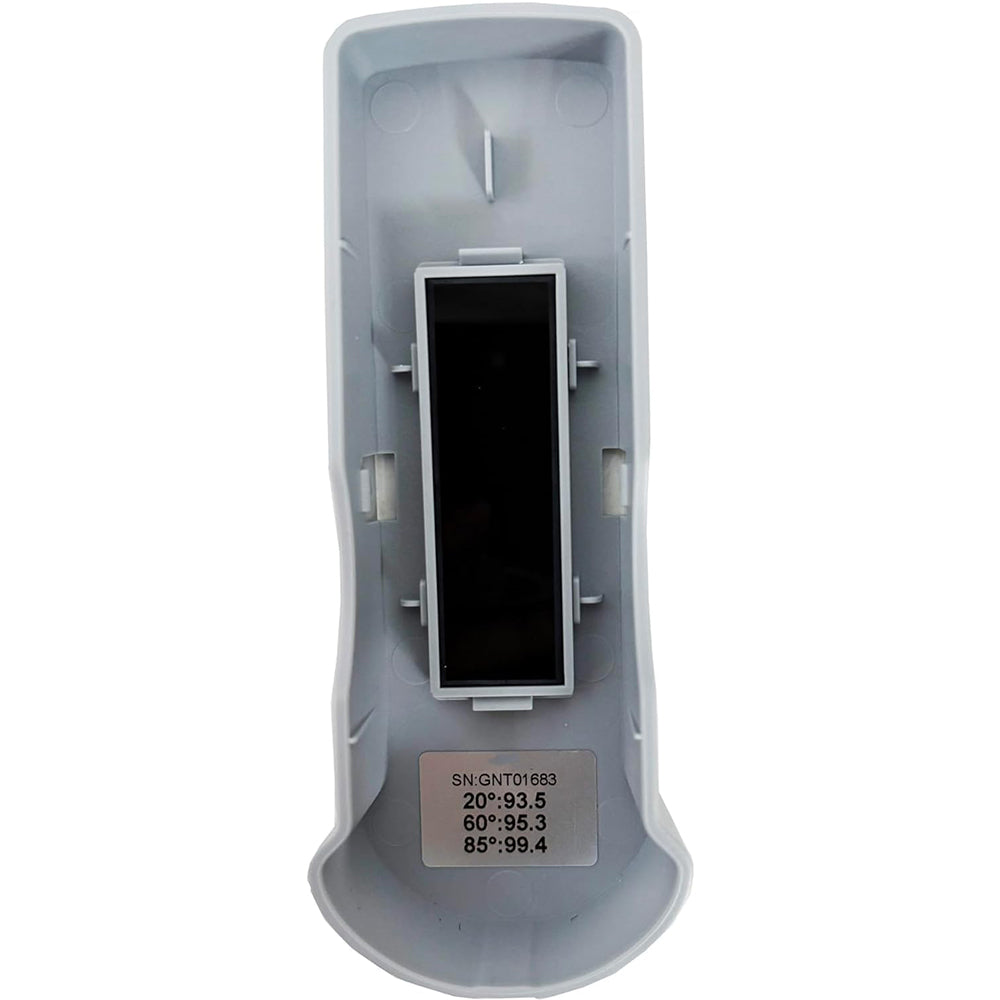

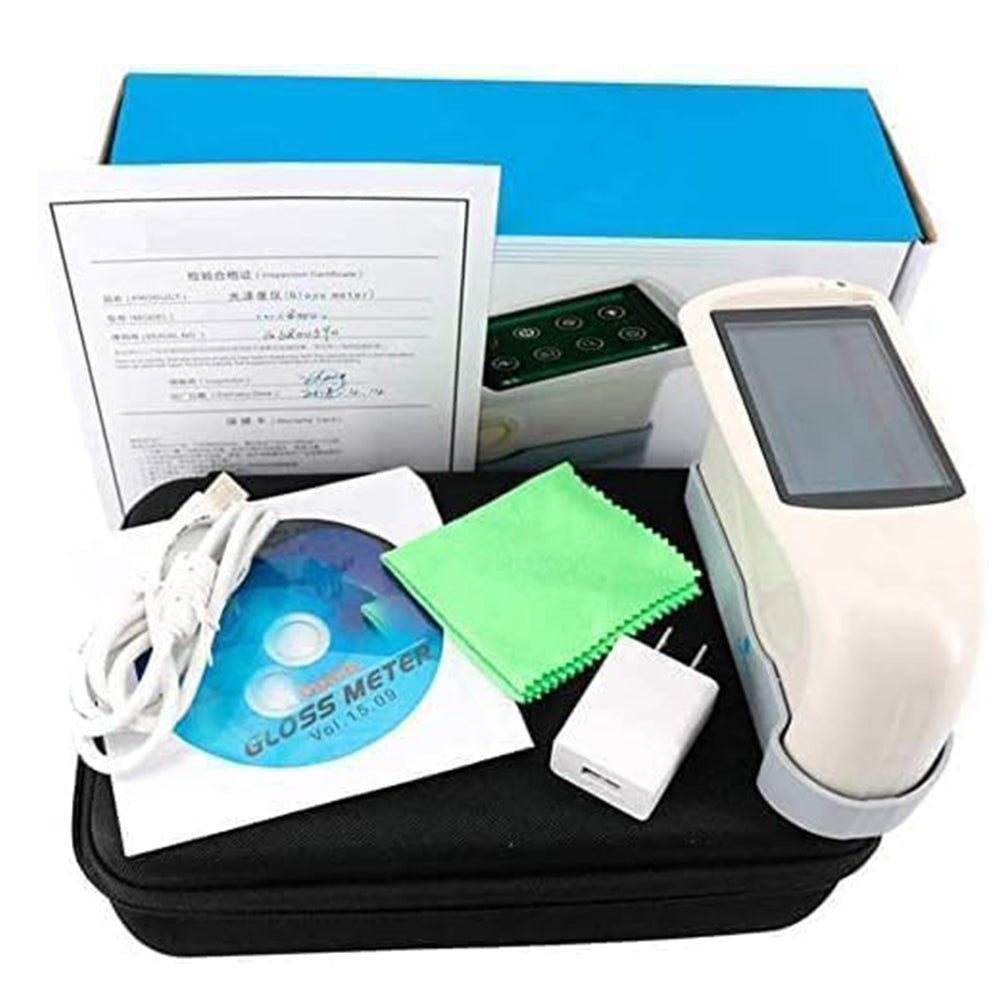

Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD, Calibration Plate

Optional Accessories Miniature Printer
