VTSYIQI Single Angle Gloss Meter 60 Degree Gloss Meter with Measurement Range 0~1000GU Measuring Area (mm) 9X15 Errors ±1.2 , ± 1.2% Measuring Time 0.5s for Marble Granite Vitrified Polished Tile Pottery Brick and Porcelain Etc

About this item:

Takes full use of the experience, large touch screen operation, easy to operate.

Small in size, light in weight ,easy to carry out for fieldwork if needed.Large screen (3.5 inches), high resolution (320*480), full view display, clear image interface.

Measure the angle of 60 degrees to detect spot 9*15mm.A variety of functional settings, to meet customer needs.

With 60 angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG60 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

Can test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Features:

60° angle for semi gloss

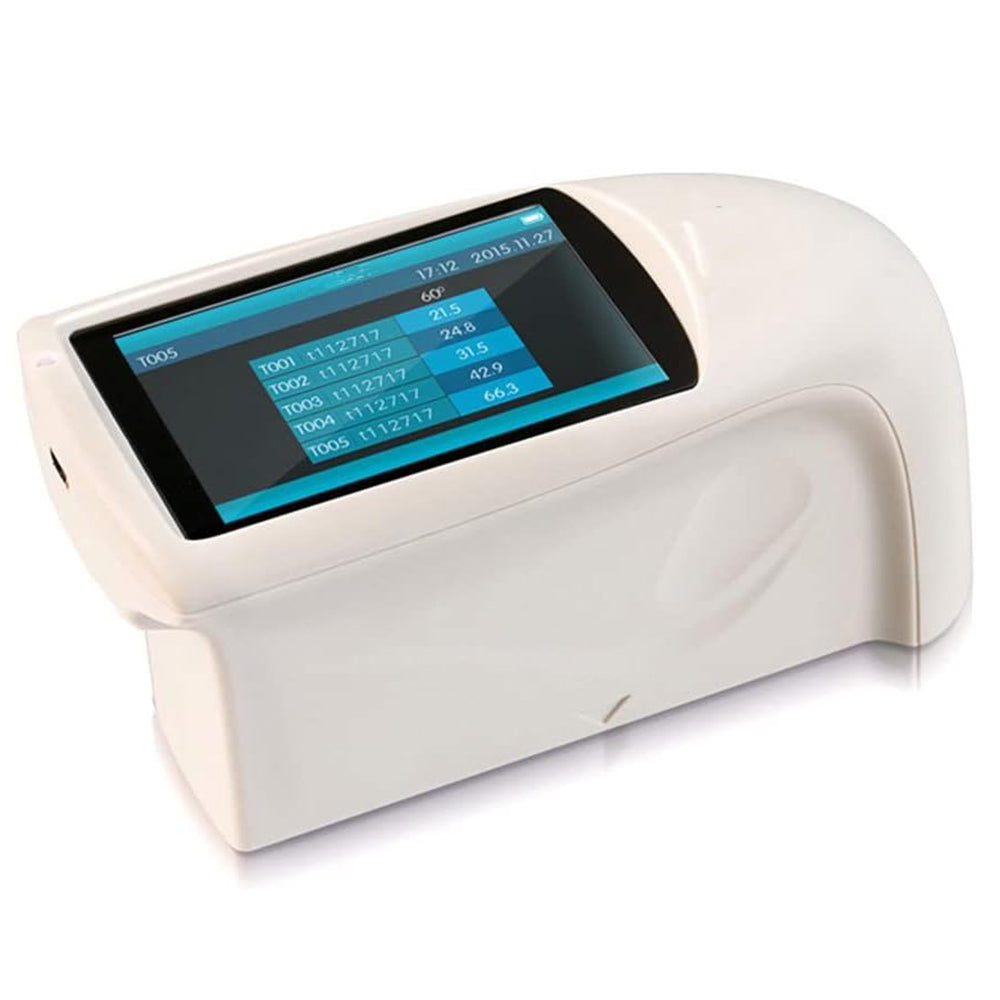

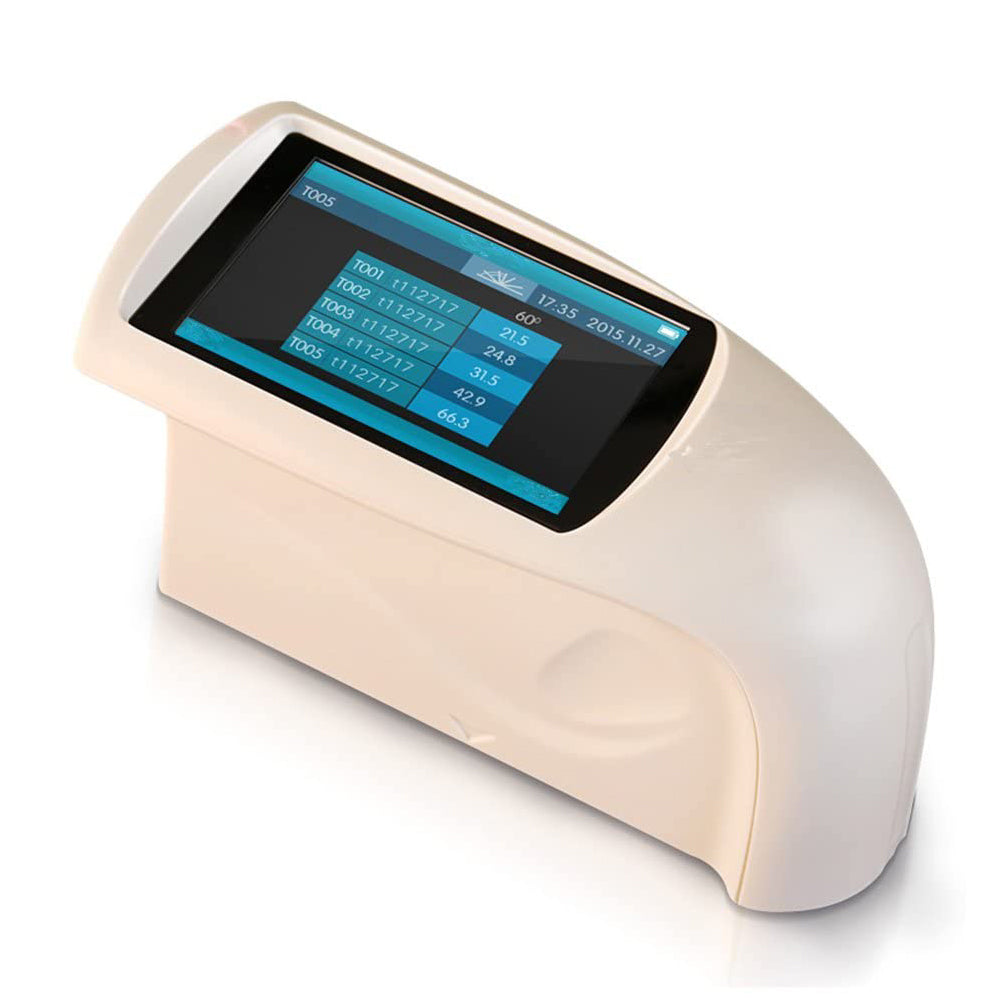

Display 5 sets of measurement data, good for comparison

Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).

Continuous mode to check uniformity over large areas

Connect to PC, more extend functions

Input gloss value manually

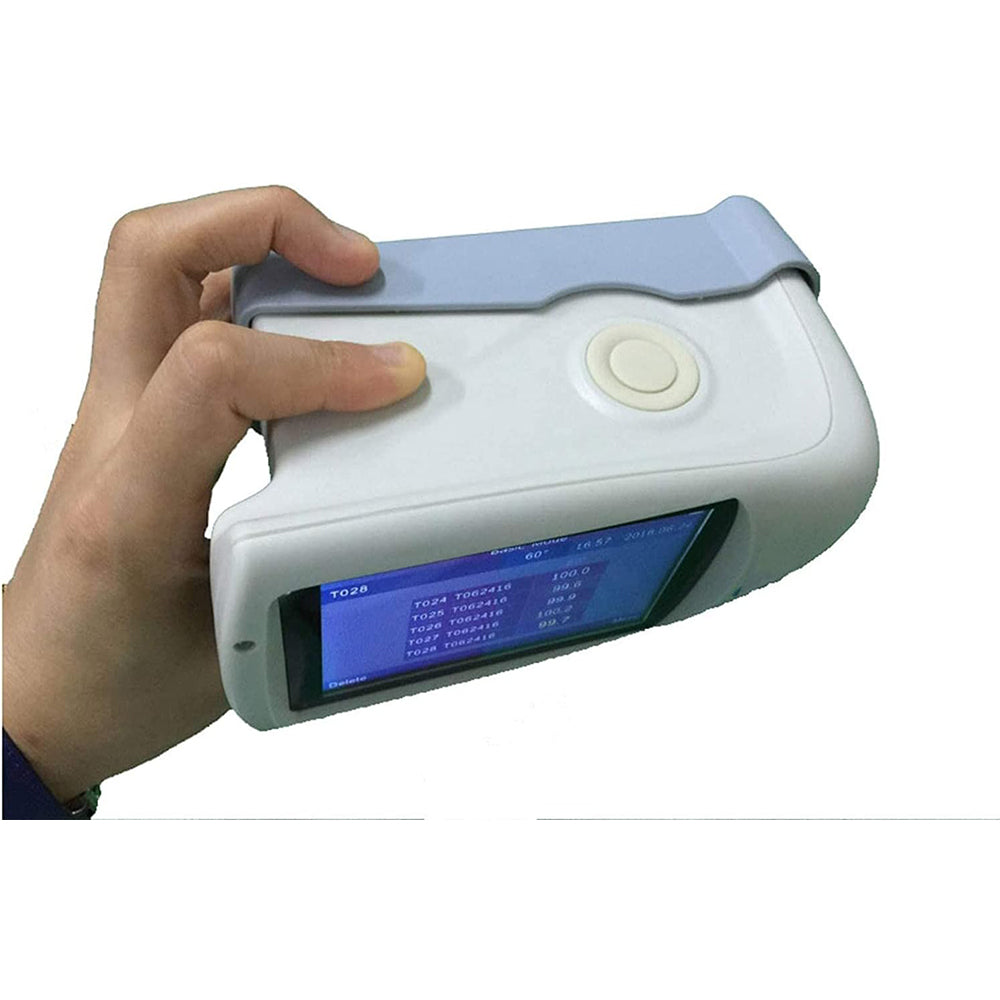

Large touch screen operation, easy to use

Beauty appearance, good man-machine communication interface

Powerful functions to meet many different requirements

Large storage to save over 5000 data

Built-in lithium ion rechargeable battery.

Technical Specifications

Measure Angle: 60°,Comply with standard ISO 2813、GB/T 9754、ASTM D 523、ASTM D

Measuring Area (mm): 9X15

Measurement Range: 0~1000GU

Division Value: 0.1GU

Measurement Range: 0-10GU; 10-100GU; 100-1000GU

Repeatability: ± 0.1GU; ± 0.2GU; ± 0.2%GU

Reproducibility: ± 0.2GU; ± 0.5GU; ± 0.5%GU

Measurement Standard: Conform with JJG696 first class gloss meter working requirement

Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source

Errors: ±1.2 , ± 1.2%

Measuring Time: 0.5s

Dimension: L*W*H : 160mm*75mm*90mm

Weight: 350g

Battery: 3200mAh Li-ion Battery, >10000 times(within 8 hours)

Viewing Screen: TFT 3.5 inch, capacitive touch screen

Interface: USB/RS-232

Data Save: Basic mode: 1000, Statistical Mode: 5000, Continuous mode : 5000

Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.

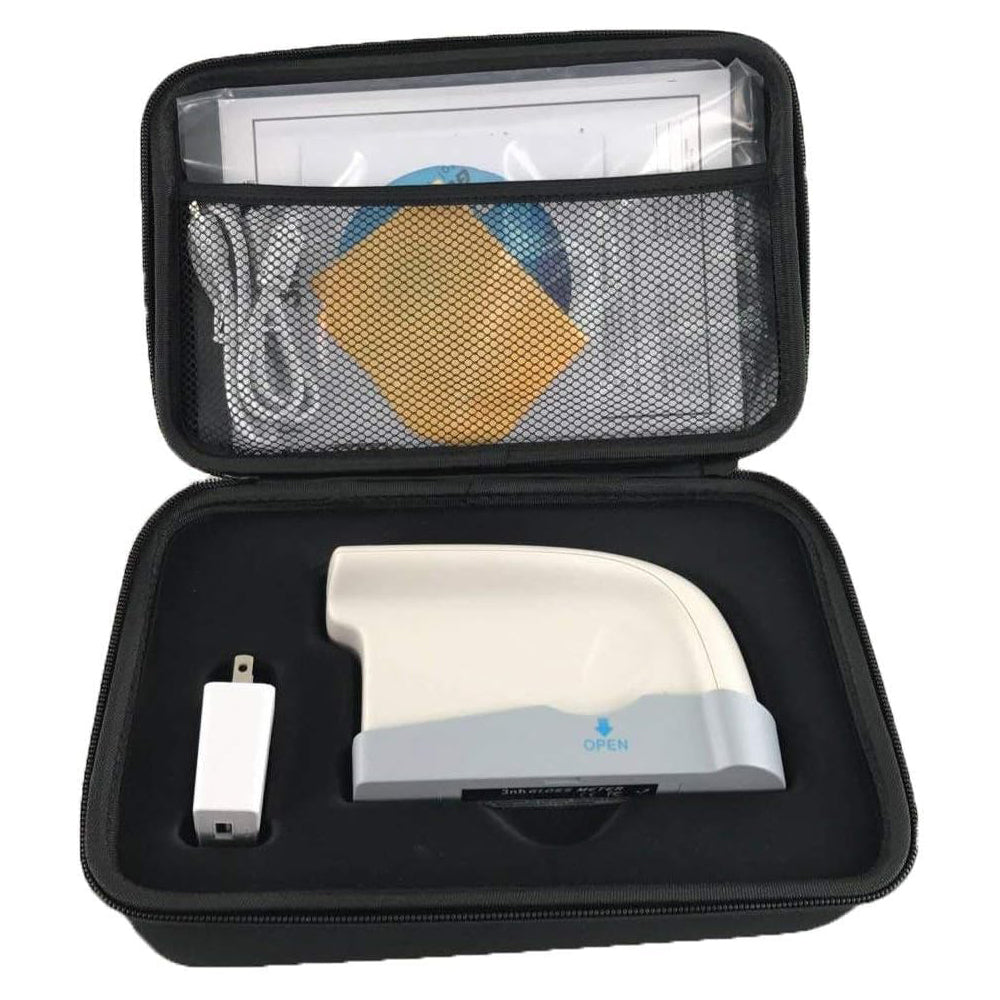

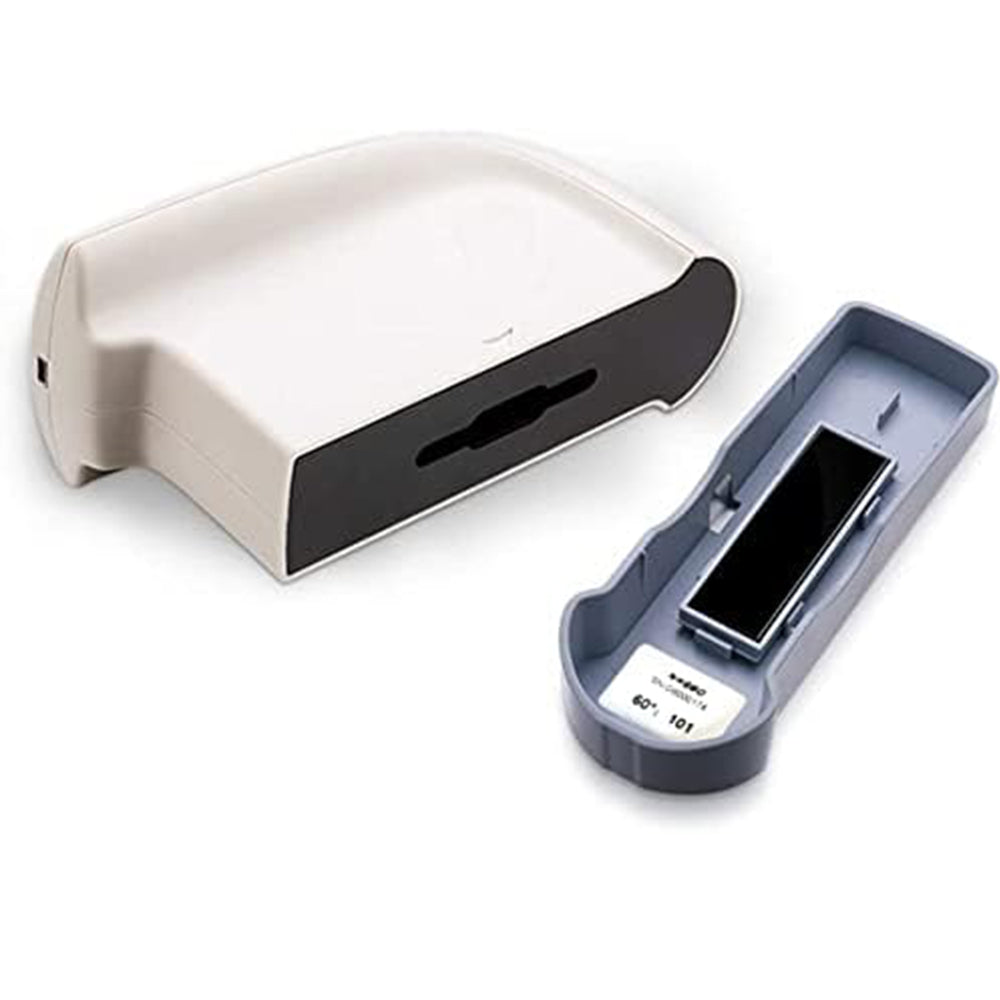

Standard Accessories: Host, Power Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate

Optional accessories: micro printer

If you need Optional Accessories,Please contact us.
