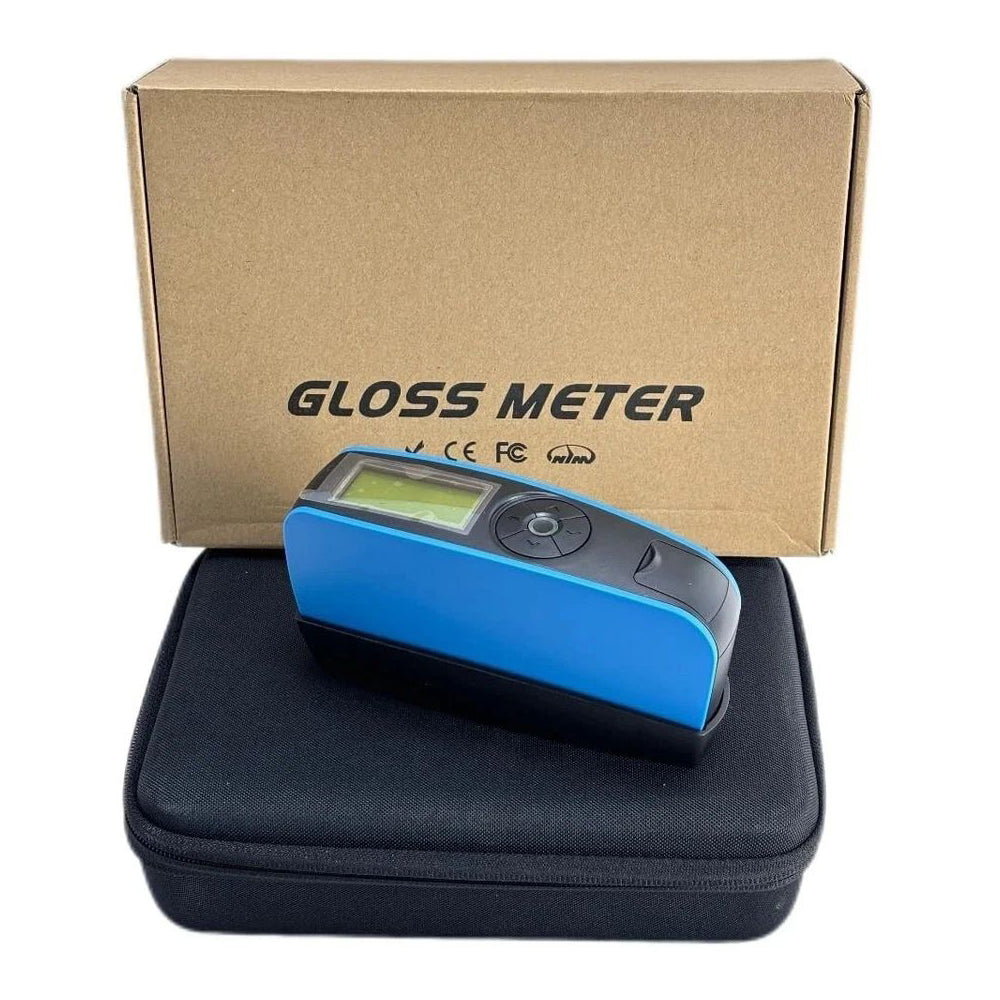

VTSYIQI Three Angle Gloss Meter 20°/60°/85° Multi-angle Gloss Meter with Division Value 0.1GU Measurement Range 20°:0-2000GU;60°:0-1000GU;85°:0-160GU Measuring Time 0.5S Repeatability 0~100GU:±0.2GU;100~2000GU:±0.2%GU

About this item:

Multi-angle Gloss Meter Model:Tri-angle Gloss Meter ， Elegant Design combined with aesthetics and ergonomics;

Three angle gloss meter Measuring Angle:20° 60°85°，With auto-calibration function; Meet the first grade requirements of JJG696;

Tri-angle Gloss Meter Measuring Area: 20°: 0-2000GU 60°: 0-1000GU 85°: 0-160GU，Large storage to save over 35000 data; Auto Power-off within optional 30-120 seconds;

20/60/85° Gloss Meters Division Value:0.1GU，Comply to ISO2813,ASTM523, GB/T9754;With PC software for quality report, more extend functions;

20°/60°/85° Multi-angle Gloss Meter Measuring Modes:Basic mode; Statistic mode; Continuous mode; QC mode，With multi working modes and multi-functions for most customers’ requirements.

Shipping Policy : Battery not included during the shipping

Introduction:

This Tri-angle Gloss Meter manufactured according to international standard ISO2813 and standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.This gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.

Application:

Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

Features:

With auto-calibration function;Meet the first grade requirements of JJG696;

Large storage to save over 35000 data;

With PC software for quality report, more extend functions;

With multi working modes and multi-functions for most customers’ requirements.

Technical Specifications

Model: Tri-angle Gloss Meter

Measuring Angle: 20° 60°85°

Measuring Area: 20°:9X10 60°:9X15 85°:5X38

Measuring Range: 20°: 0~2000GU ; 60°: 0~1000GU; 85°: 0~160GU

Division Value: 0.1GU

Measuring Modes: Basic mode; Statistic mode; Continuous mode; QC mode

Measuring Time: 0.5S

Repeatability: 0~100GU:±0.2GU ; 100~2000GU:±0.2%GU

Accurate:Conform with JJG696 first grade requirements of gloss meter

Long-time Calibration: Automatically check and made the calibration

LanguageChinese & English

Storage: 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)

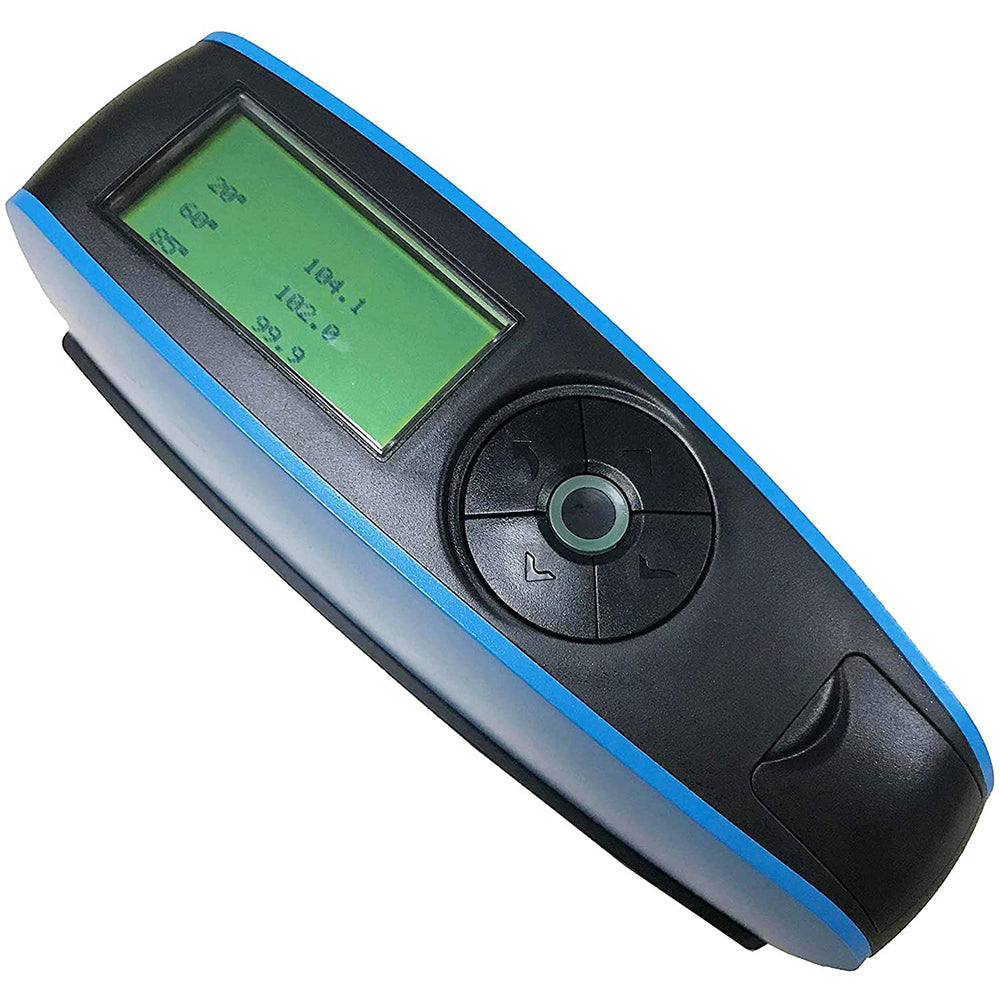

Display: 2.3 inch white and black screen

Power Supply: 1pc dry-cell battery(can measure 10000 times) or use USB Charge（Battery not included in the package）

Interface: USB & Bluetooth 2.1 version

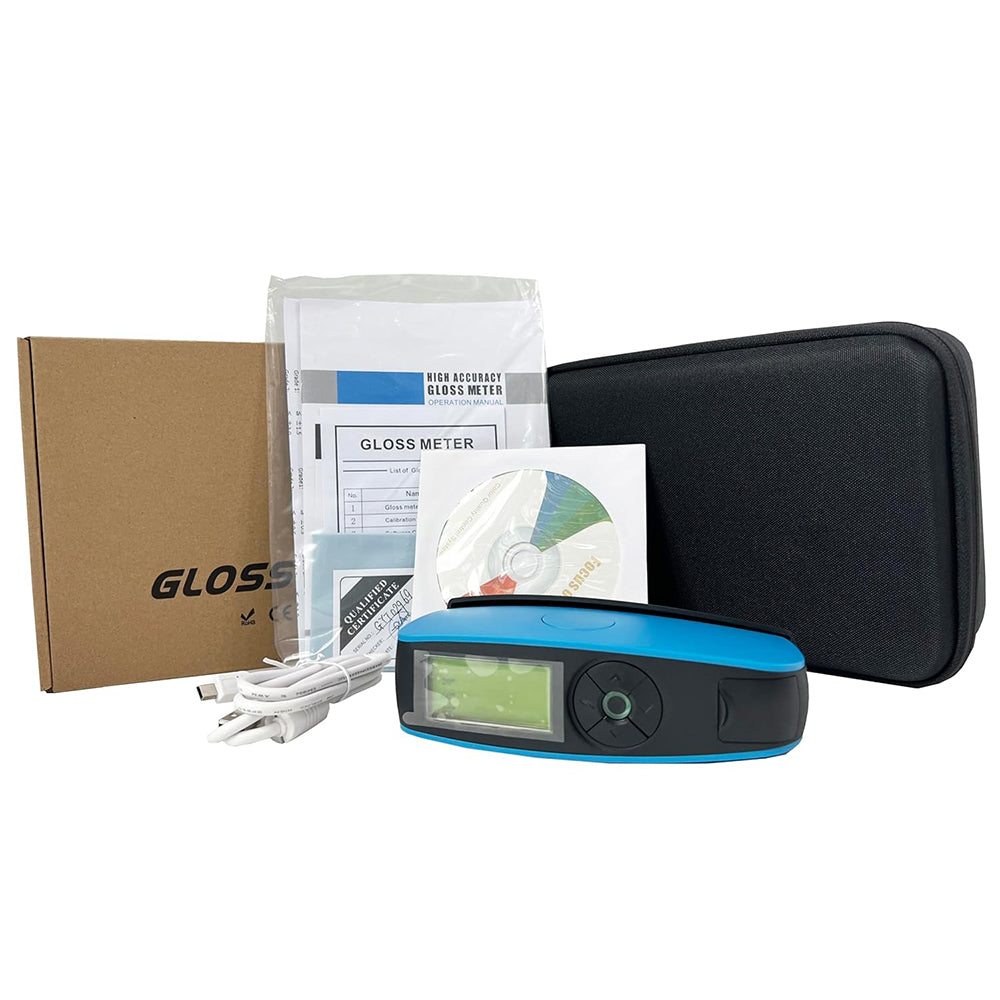

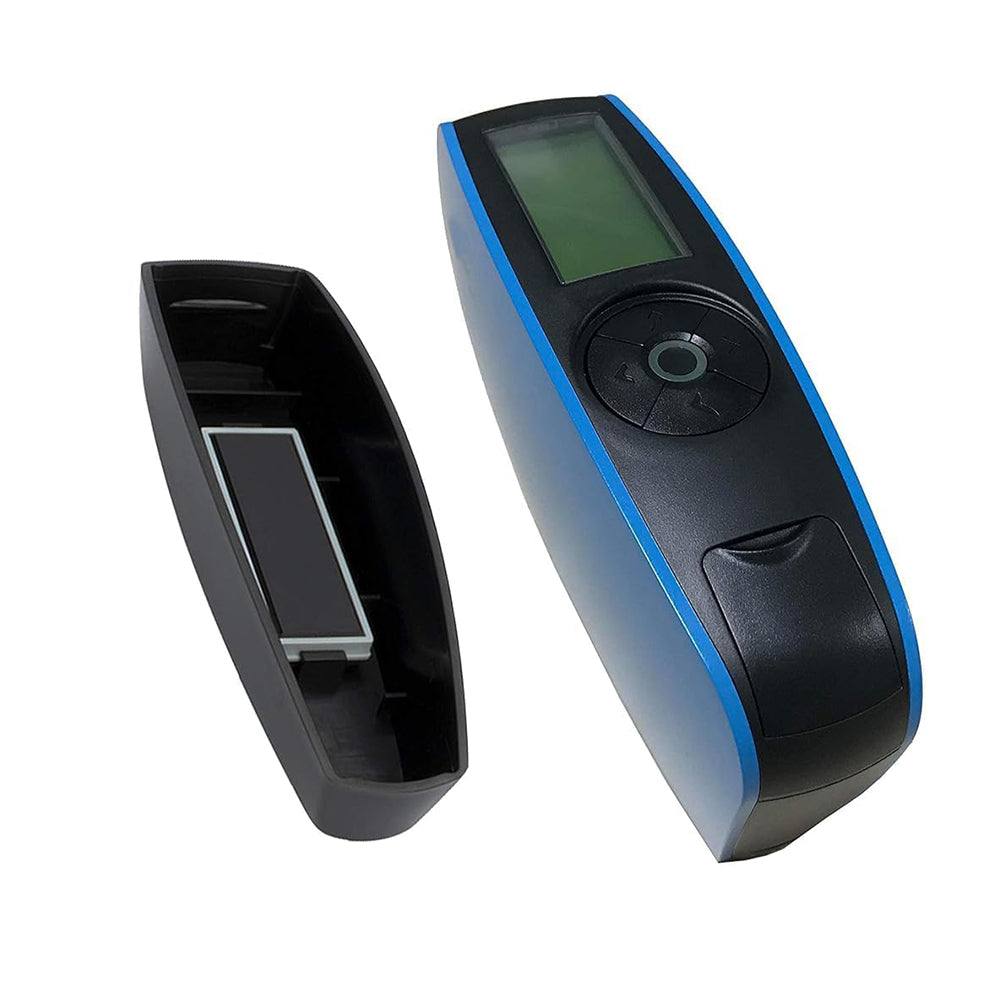

Standard Accessories: main unit, USB cable, user manual, calibration plate, QC software
