VTSYIQI Three Angle Gloss Meter with Display 5 Sets Of Measurement Data Division Value 0.1GU Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU Measuring Time 1.0s for Marble Granite Vitrified Polished Tile Pottery Brick and Porcelain Etc
- Regular price
- $955.00

VTSYIQI Three Angle Gloss Meter with Display 5 Sets Of Measurement Data Division Value 0.1GU Measuring Range 20°:0~2000GU 60°:0~1000GU 85°:0~160GU Measuring Time 1.0s for Marble Granite Vitrified Polished Tile Pottery Brick and Porcelain Etc
About this item
Multi-angle Gloss Meter Ultra large capacitive touch screen, high resolution (480*320), full view display, full function touch control
Multi-Angle Gloss Meter Aesthetic surface design combines perfectly with human engineering structure
Three angle gloss meter Three measuring angles (20, 60, 85) can be measured simultaneously Gloss measuring instrument
Tri-angle Gloss Meter Three modes of operation, a variety of functional settings, can meet customer needs
Three angle gloss meter It can input gloss data manually to facilitate customer operation; large capacity storage space
Introduction:
This gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457. HG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.
This gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Features:
20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
Concise appearance, feel good
Display 5 sets of measurement data, good for comparison
Built-in lithium ion rechargeable battery
Basic model measurement can meet basic glossiness testing requirements
Connect to PC, more extend functions
One button for all angles measurement at the same location
Comply with international standards
Stable performance, easy to read data.
Specifications:
Measuring Angle 20°/60°/85
Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Measuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36
Measuring Range 20°:0~1000GU 60°:0~1000GU 85°:0~160GU
Division Value 0.1GU
Measurement Range 0-10GU 10-100GU 100-1000GU
Repeatability ±0.1GU ± 0.2GU ± 0.2%GU
Reproducibility ± 0.2GU ± 0.5GU ± 0.5%GU
Measurement Standard Conform with JJG696 first class glossmeter working requirement
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Errors ±1.5 , ± 1.5%
Measuring Time 0.1s
Dimension L*W*H : 160mm*75mm*90mm
Weight 350g
Language Chinese/English
Battery 3.7V,3200mAh Li-ion Battery ,>10000 times(within 8 hours)
Display TFT 3.5 inch
Interface USB/RS-232
Storage Basic mode: 1000
Software GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature 0~40℃(32~104°F)
Storage Temperature -20~50℃(-4~122°F)
Humidity <85% relative humidity, no condensation

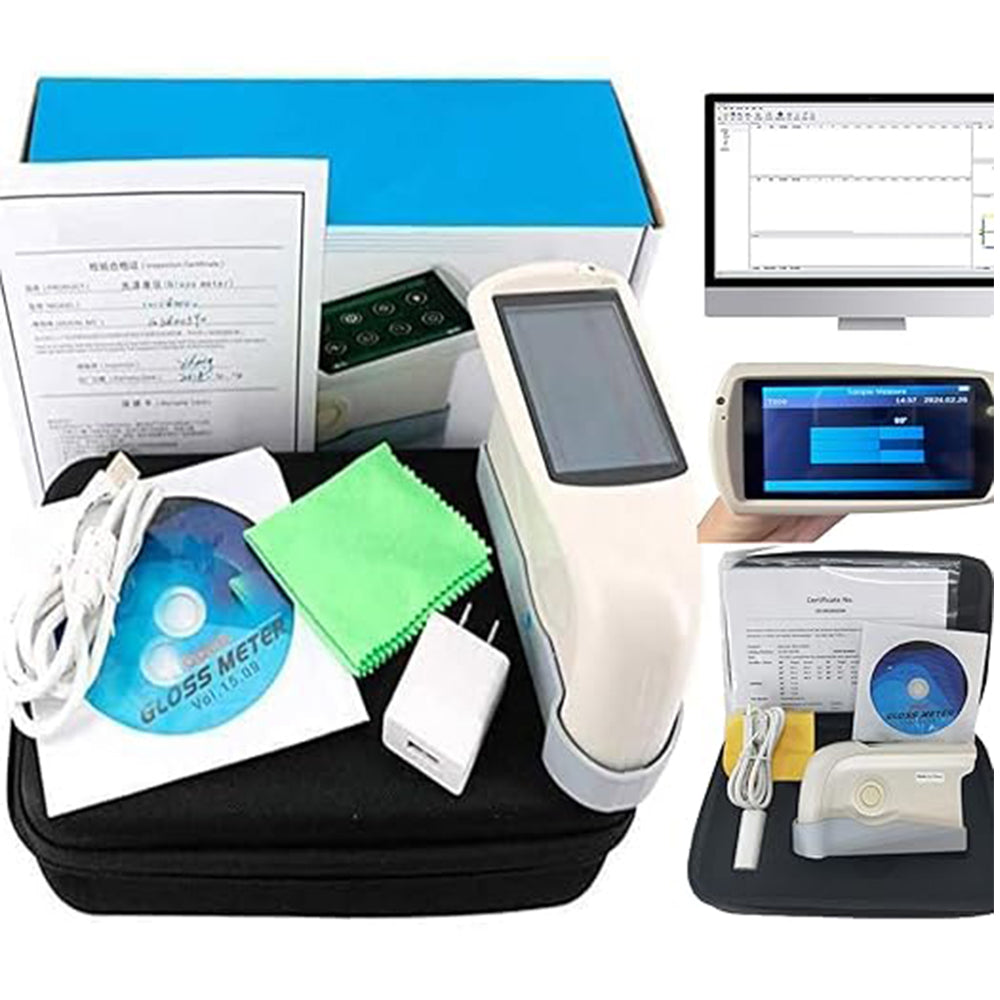

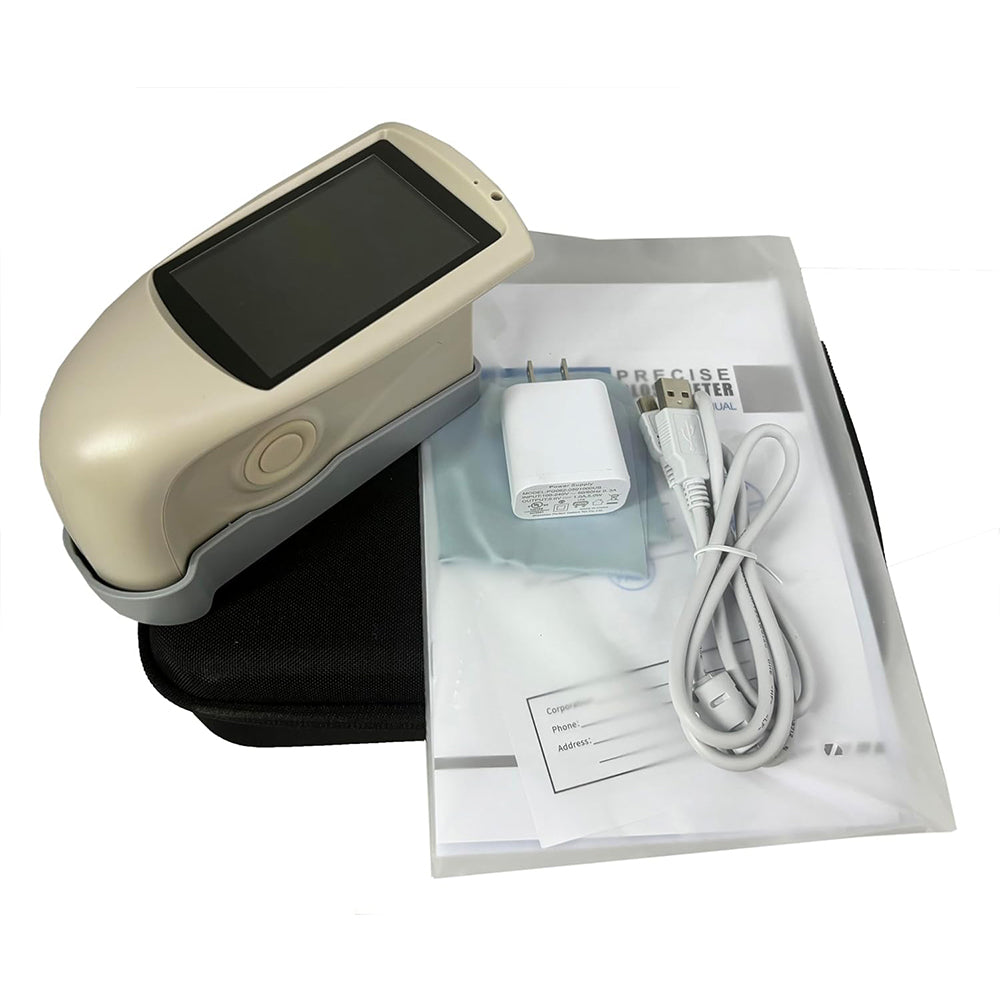

Standard Accessories Power Adapter, USB cable, User Manual, GQC6 software CD, Calibration Plate
Optional Accessories Miniature Printer
