VTSYIQI Tri-angle Gloss Meter Multi-Angle Gloss Meter - 20° 60° and 85° Angles with Connect to PCMeasuring Area (mm) 20°: 10x10 60°: 9x15 85°: 5x36 Errors±1.5 ± 1.5% Measuring Range 20°:0~1000GU 60°:0~1000GU 85°:0~160GU

About this item:

Comply with international standards; Basic model measurement can meet basic glossiness testing requirements; Division Value: 0.1GU

Aesthetic surface design combines perfectly with human engineering structure; Measuring Range: 20°:0~1000GU; 60°:0~1000GU; 85°: 0~160GU; rrors: ±1.5 , ± 1.5%

Concise appearance, feel good; 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand; Stable performance, easy to read data.

Measuring Area (mm): 20°: 10x10; 60°: 9x15; 85°: 5x36; Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source

Widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Application:

Gloss meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.

Introduction:

Gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with international standards of ASTM D523, ASTM D2457.

Conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.

Technical Specifications:

Model: 3 Angle Gloss meter

Measuring Angle: 20°/60°/85°,Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM

Measuring Area (mm): 20°: 10x10; 60°: 9x15; 85°: 5x36

Measuring Range: 20°:0~1000GU; 60°:0~1000GU; 85°: 0~160GU

Division Value: 0.1GU

Measurement Range: 0-10GU; 0-100GU; 100-1000GU

Repeatability: ± 0.1GU; ± 0.2GU; ± 0.2%GU

Reproducibility: ± 0.2GU; ± 0.5GU; ± 0.5%GU

Measurement Standard: Conform with JJG696 first class glossmeter working requirement

Chromaticity Corresponding: Corresponding with CIE 1931(2°) under CIE C light source

Errors: ±1.5 , ± 1.5%

Measuring Time: 0.1s

Dimension: L*W*H : 160mm*75mm*90mm

Weight: 350g

Language: Chinese/English; Display: TFT 3.5 inch

Battery: 3200mAh Li-ion Battery, >10000 times(within 8 hours)

Interface: USB/RS-232

Storage: Basic mode: 1000

Software: GQC6 Quality Control Software with QC report printing functions and more extended functions.

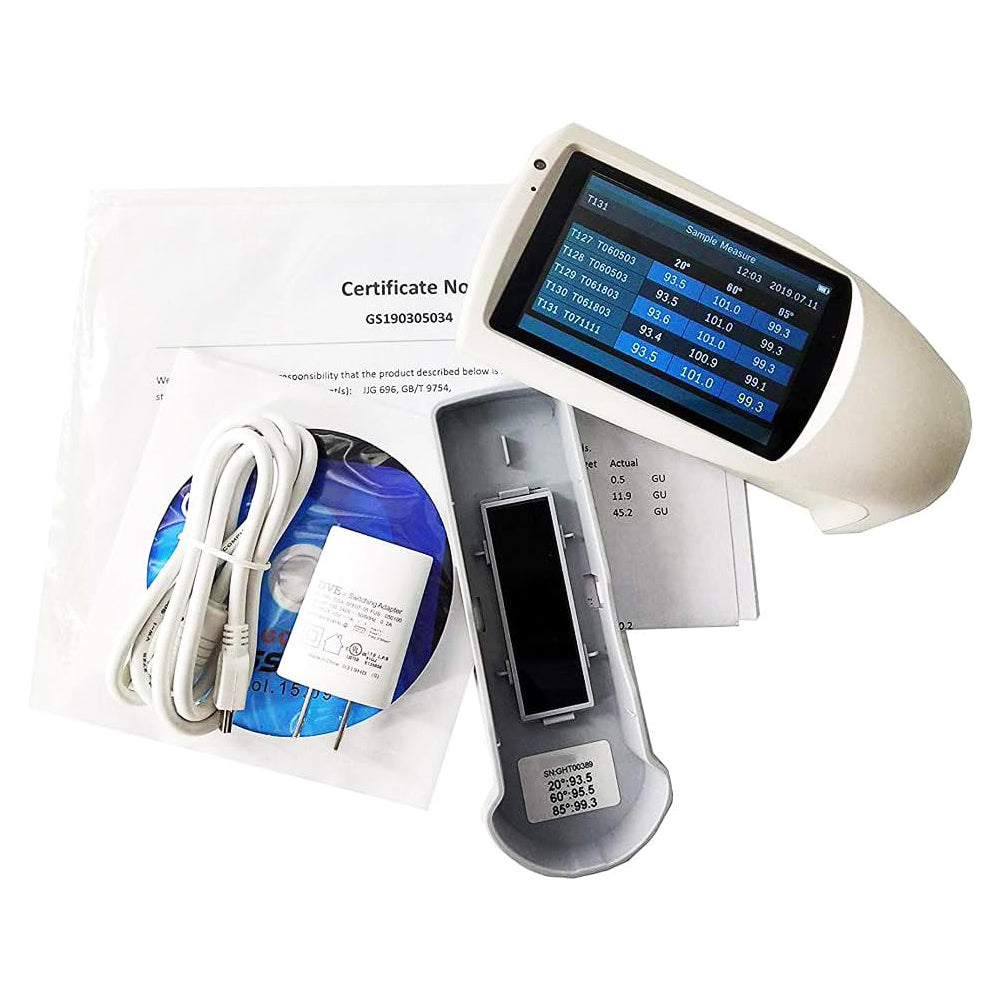

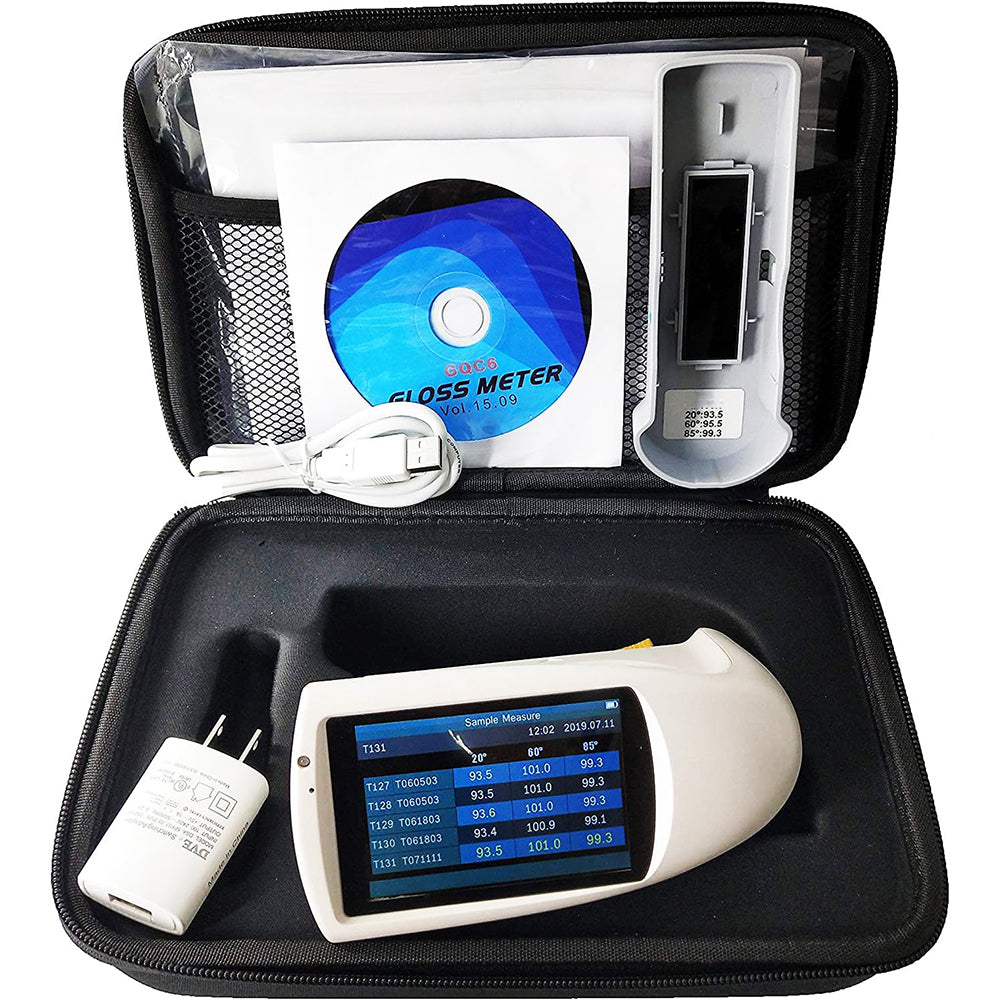

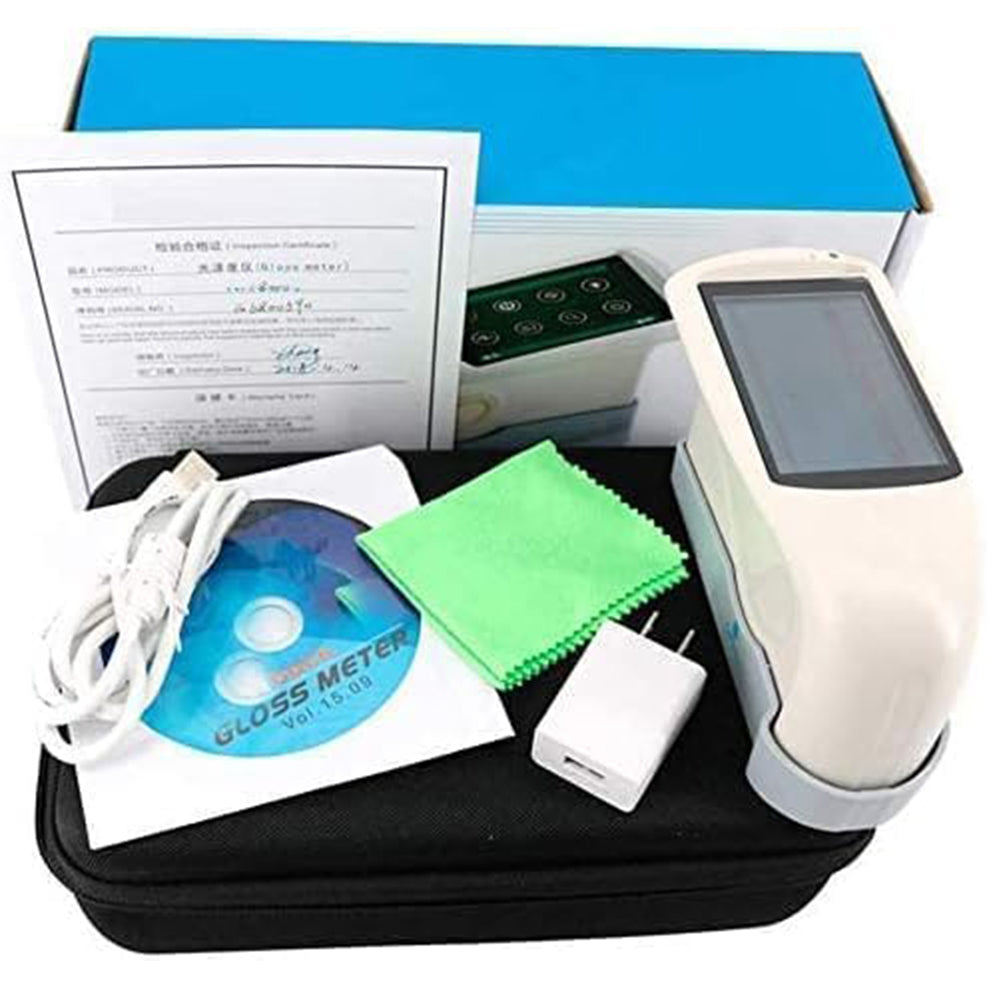

Standard Accessories: Power Adapter, USB cable, User Manual, GQC6 software CD, Calibration Plate
