Introduction：

Soil Resistivity Tester also Known as Ground Resistance • Soil Resistivity Tester, Precision Ground Resistance Tester, etc., is a commonly used meter for measuring grounding resistance.
It adopts a large LCD gray-white screen backlight display and microprocessor technology to meet the requirements of two-wire、three-wire and four-wire test resistance and soil resistivity.
Suitable for telecommunications, electricity, meteorology, computer rooms, oil fields, power distribution lines, iron tower transmission lines, gas stations, factory grounding networks, lightning rods and so on. Instrument testing is precise, fast, simple, stable and reliable.
The Soil Resistivity Tester is controlled by the microprocessor and can automatically detect the connection status of each interface and the interference voltage and interference frequency of the ground network, and has the function of testing the auxiliary grounding resistance value.
At the same time store 500 sets of data, resistance measurement range: 0.00Ω ~ 200.00kΩ, grounding voltage range: 0.000 ~ 1000.0V.
Online monitoring data through monitoring software, USB data uploaded to PC and unique features such as intelligent alarm alert

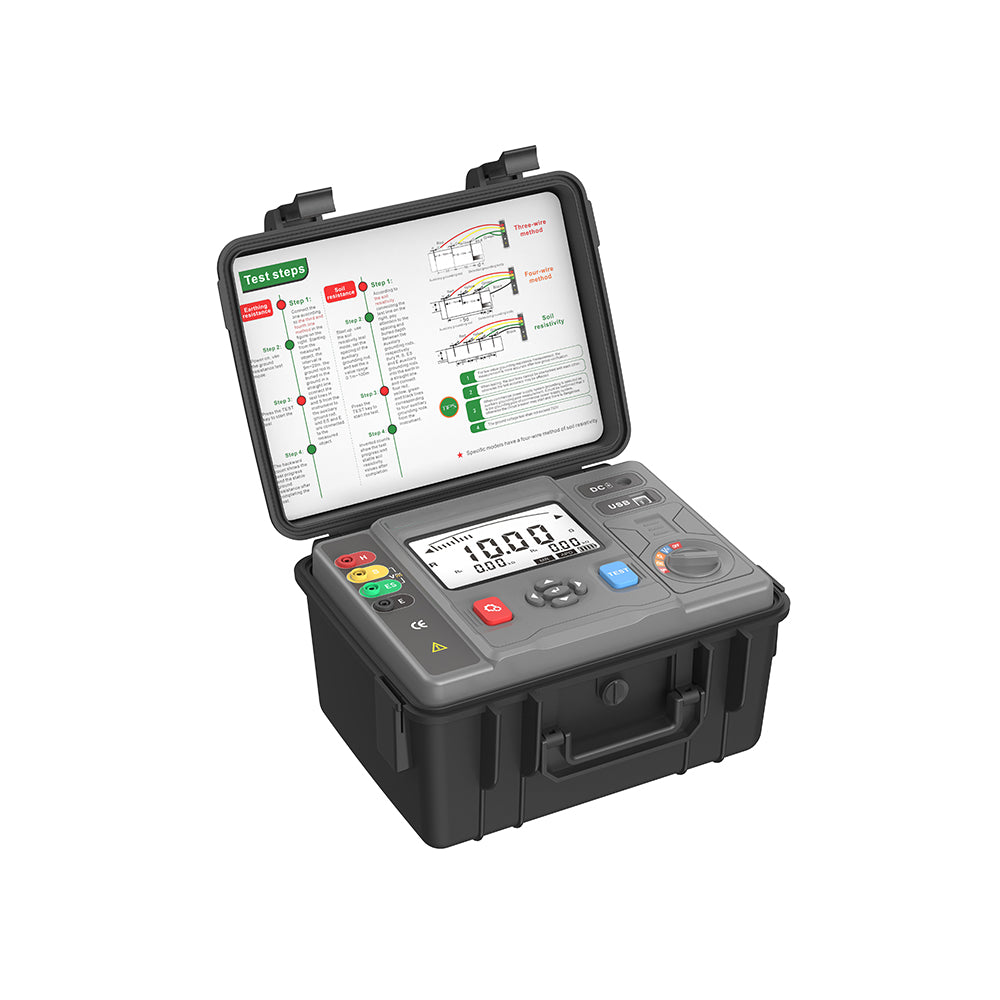

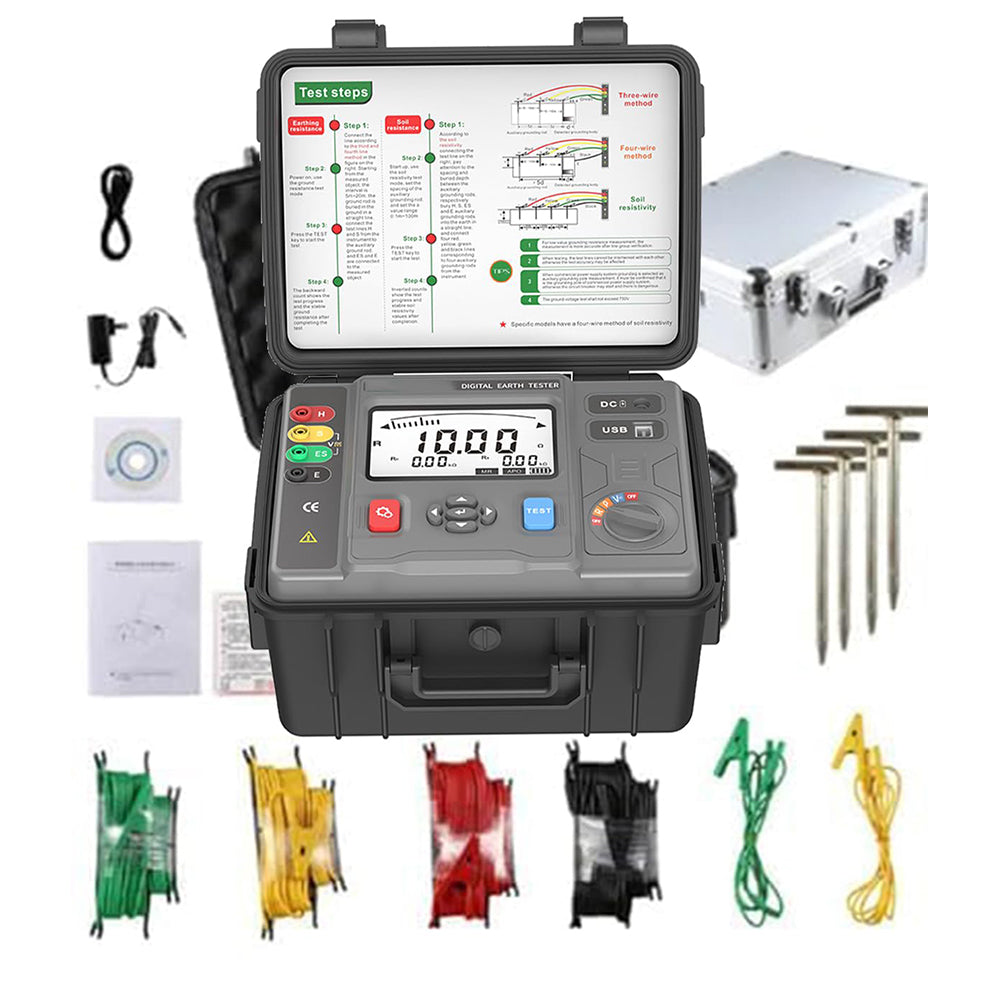

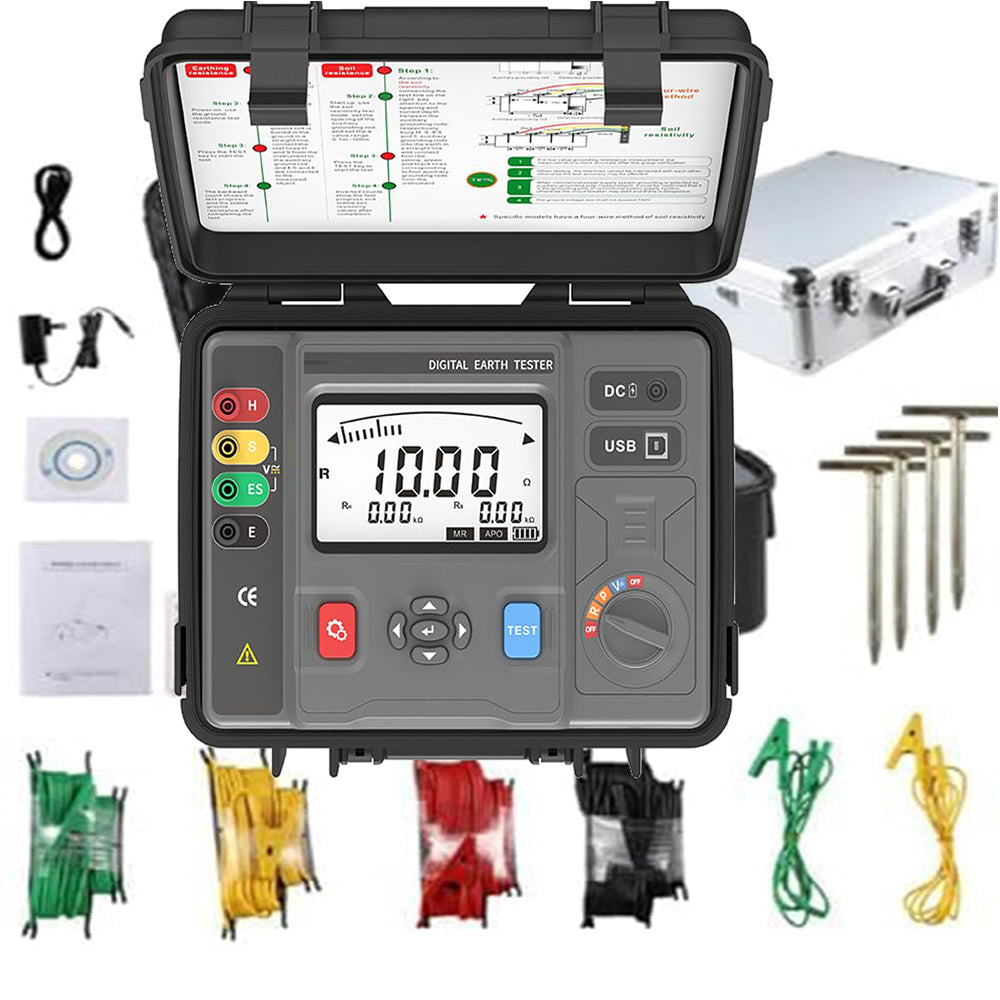

The Soil Resistivity Tester consists of host, monitoring software, test line, USB cable, and grounding rod. It has the functions of reading, checking, saving, reporting and printing of historical data.

Technical Specifications：

Two Three and Four Wire Method Earth Resistance Range：0.00Ω～200.00kΩ   Accuracy ：±1.5%rdg±7dgt  Resolution:0.01Ω
Soil Resistivity Range(ρ)：0.00Ωm～9999kΩm Accuracy ρ=2πaR    Soil Resistivity Resolution：0.01Ωm
Voltage to Earth Range：0.000V～750.0V Precision:±1.5%rdg±50dgt    Resolution:0.001V
DC Voltage Range：0.000V～1000V  Precision:±1.5%rdg±50dgt   Resolution:0.001V

Base condition：23℃±5℃，Below 75%rh
Power：11.1VLithium battery (built-in) full charge can be measured more than 1000 times in AC resistance mode
Backlight：Controllable backlight, suitable for dim places
Test the waveform, and the frequency：Sine wave  128Hz
Auto shut off：“APO” indicates automatic shutdown after 15 minutes (default). The shutdown time can be customized

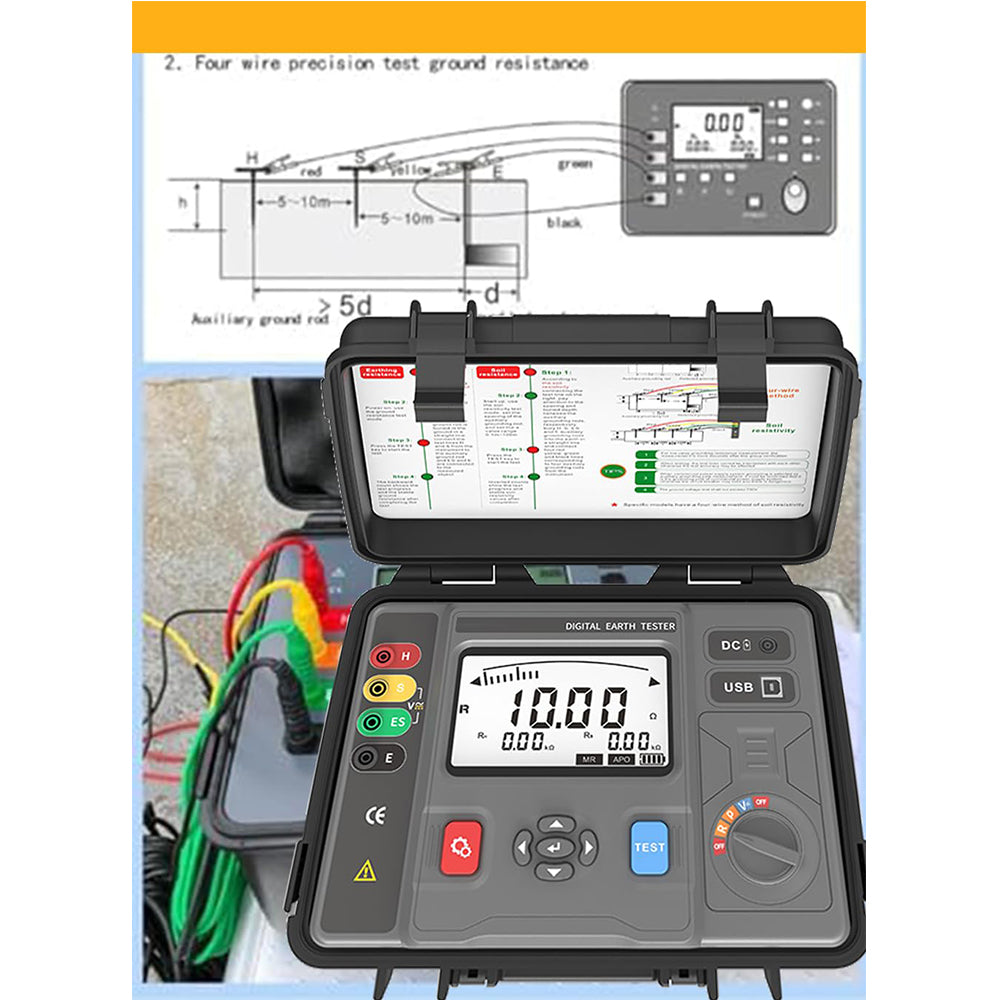

Measurement methods：Precision four-wire, three-wire method measurement, simple two-wire measurement ground resistance, average rectification
Alarm function ：When the measured value exceeds the alarm set value, an alarm prompt is issued

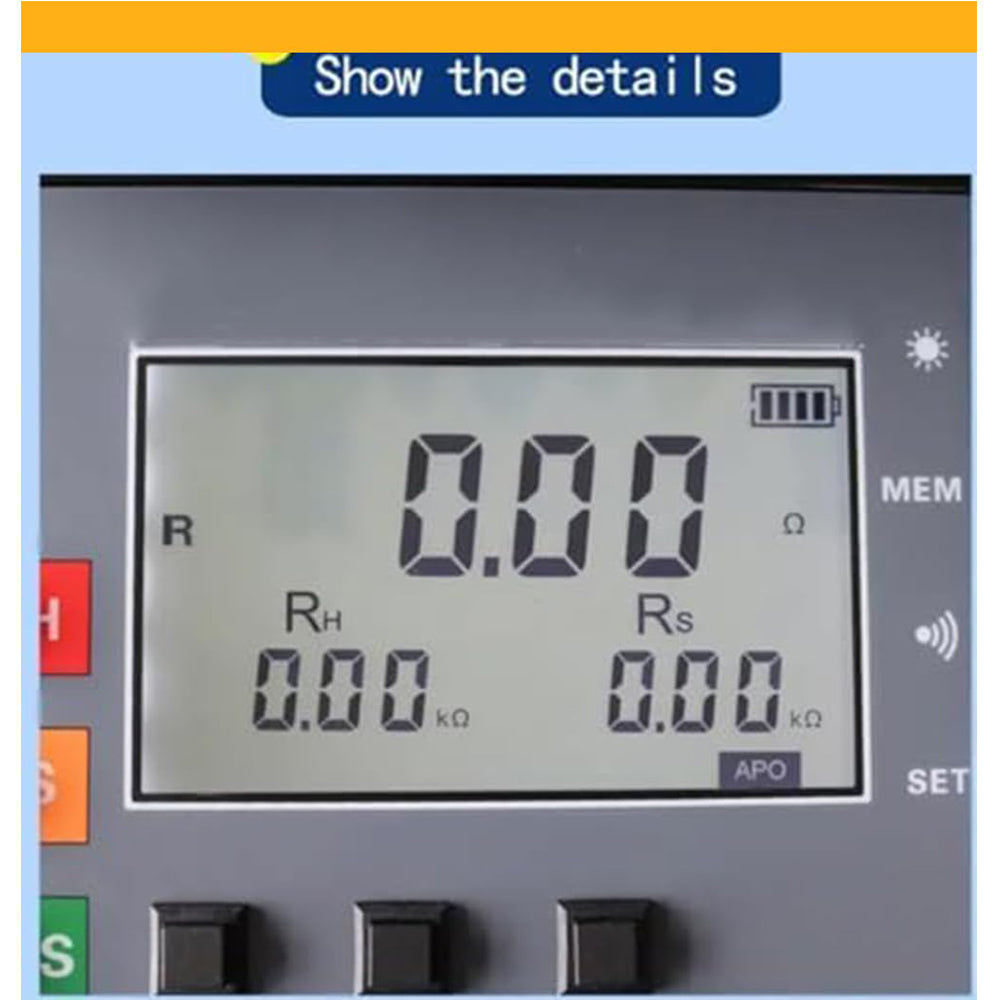

Screen size：5inches
Range of electrode spacing：0.1m～100.0m
Measuring time：Voltage to ground: about 3 times/SEC
Ground resistance, soil resistivity: about 10 seconds / time
USB interface：With USB interface, data reading, saving record data and so on
Bluetooth APP：With remote control, real-time monitoring, data reading and other functions
Data storage：500sets
Overload protection：Measurement of ground resistance: AC 280V/3 seconds between each port of H-E and S-ES
Auxiliary grounding rod：
4pcs：φ10mm×200mm
Auxiliary grounding test：
With auxiliary grounding resistance value test function，
0.00kΩ～200.0kΩ
Power consumption：
Standby：80mA Max(Backlight closed) 90mA Max(Turn on backlight)
Mesure：120mA Max(Backlight closed) 130mA Max(Turn on backlight)
Weight Instrument： 1880g(with batteries)
Test cable：1300g(Includes simple test cables)
Suitable for safety regulations
IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、 degree of pollution )；IEC61010-031；
IEC61557-1( earth resistance )；
IEC61557-5( soil resistivity )；
JJG 366-2004( earth resistance meter )；
