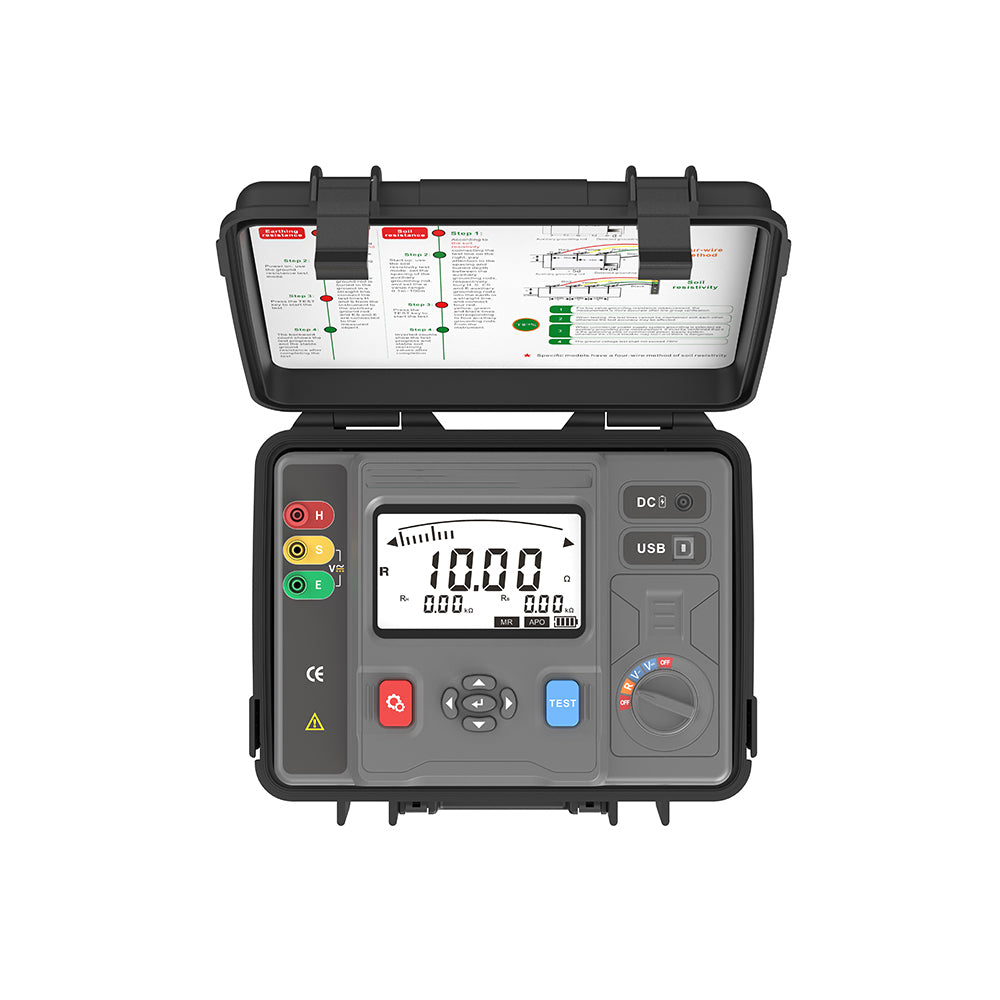

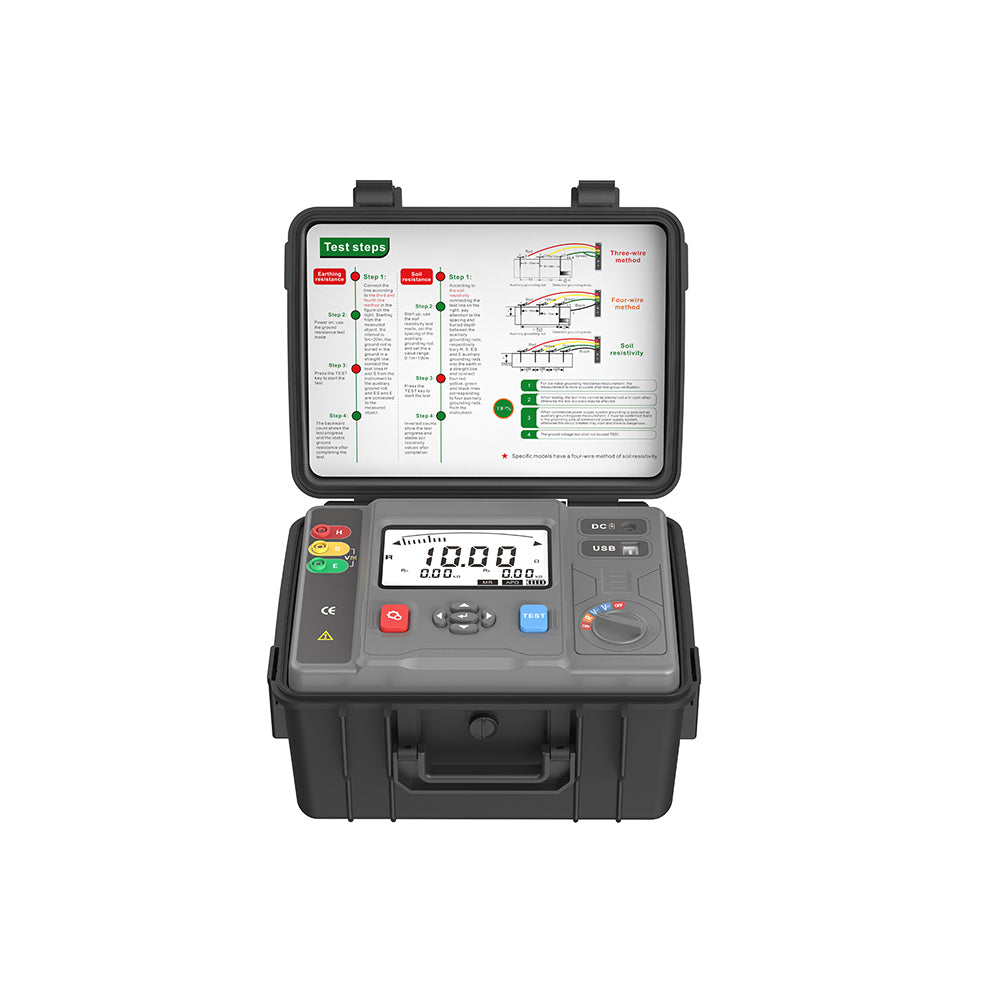

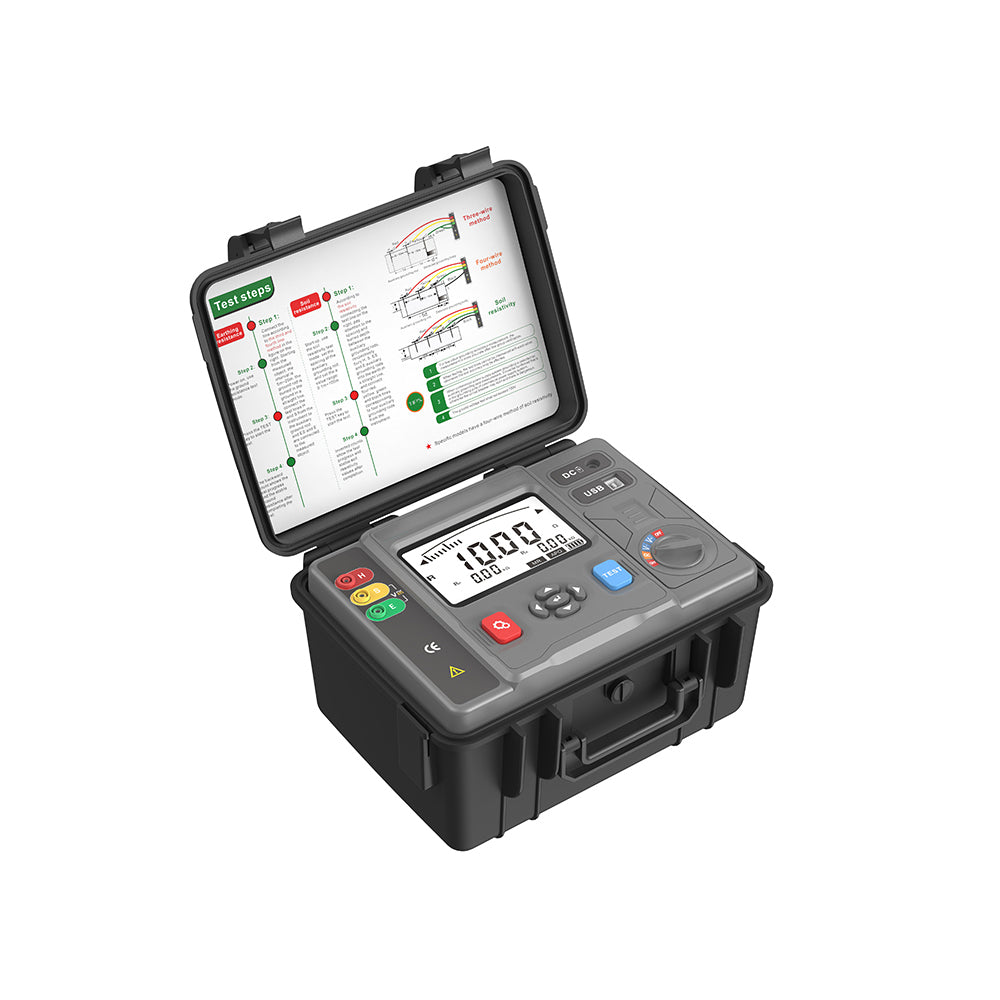

Introduction：

Multifunctional grounding resistance tester is also called grounding resistance tester. It is an advanced grounding resistance tester which integrates various measuring methods. The large-size high-definition segment code LCD screen display and microprocessor technology are adopted, and the grounding resistance test is measured by microprocessor-controlled 3-wire method and simple 2-wire method. Widely used in telecommunications, electric power, meteorology, computer rooms, oil fields, power distribution lines, tower transmission lines, gas stations, factory grounding grids, lightning rods and so on. The instrument has the characteristics of accurate, fast, simple, stable and reliable test.

The multifunctional grounding resistance tester is controlled by microprocessor, which can accurately detect grounding resistance, soil resistivity, grounding voltage and DC voltage. It uses fast filtering technology to minimize interference. The resistance value of auxiliary electrode is displayed on the same screen, which is convenient for judging the measurement error caused by environmental factors and measuring the real resistance value of grounding more accurately. At the same time, 500 groups of data are stored, and the functions of wireless or wired remote measurement, reading historical data, exporting report analysis and so on are realized by connecting the mobile phone APP through Bluetooth or connecting the PC through USB. It has unique functions such as value keeping and intelligent alarm prompt.

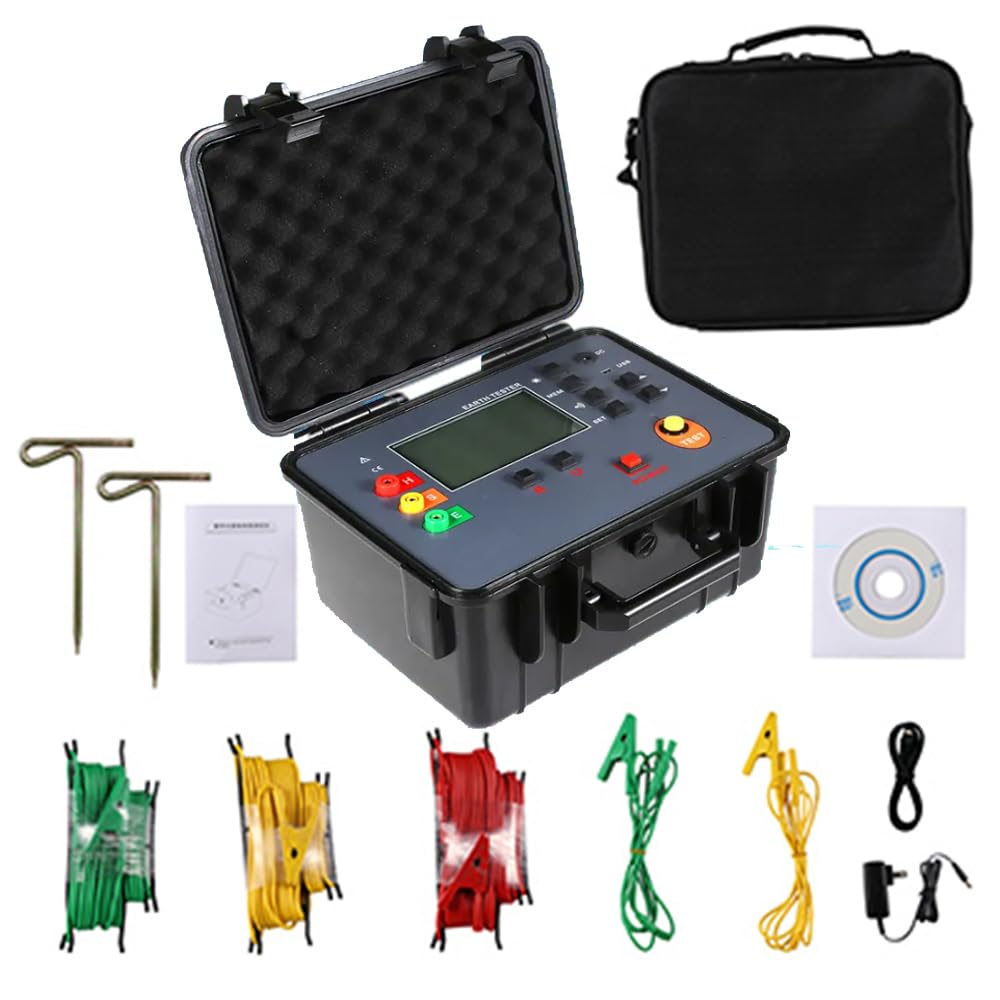

The multifunctional grounding resistance tester is composed of host computer, upper computer software, mobile phone APP software, test cable, USB cable, charger and grounding pin.

Technical Specifications：

Two, three and four wire method earth resistance：0.00Ω～20.00kΩ    Precision:±1.5%rdg±7dgt   Resolution:0.01Ω

Voltage to earth：0.000V～750.0V   Precision:±1.5%rdg±50dgt   Resolution:0.001V

DC Voltage：0.000V～1000V   Precision:±1.5%rdg±50dgt   Resolution:0.001V

Base condition：23℃±5℃，Below 75%rh

Power：11.1VLithium battery (built-in) full charge can be measured more than 1000 times in AC resistance mode

Backlight：Controllable backlight, suitable for dim places

Test the waveform, and the frequency：
Sine wave  128Hz

Auto shut off：“APO” indicates automatic shutdown after 15 minutes (default). The shutdown time can be customized

Measurement methods：
three-wire method measurement, simple two-wire measurement ground resistance, average rectification

Alarm function：When the measured value exceeds the alarm set value, an alarm prompt is issued

Screen size：5inches

Measuring time：
Voltage to ground: about 3 times/SEC
Ground resistance: about 10 seconds / time

USB interface：With USB interface, data reading, saving record data and so on

Bluetooth APP：With remote control, real-time monitoring, data reading and other functions

Data storage：500sets

Overload protection：Measurement of ground resistance: AC 280V/3 seconds between each port of H-E and S-E

Auxiliary grounding rod：4pcs：φ10mm×200mm

Auxiliary grounding test：With auxiliary grounding resistance value test function，0.00kΩ～20.00kΩ

Power consumption：
Standby：80mA Max(Backlight closed) 90mA Max(Turn on backlight)
Mesure：120mA Max(Backlight closed) 130mA Max(Turn on backlight)

Weight：Instrument： 1880g(with batteries)

Test cable：861.5g(Includes simple test cables)

Suitable for safety regulations
IEC61010-1(CAT Ⅲ 300V、CAT IV 150V、 degree of pollution )；IEC61010-031；
IEC61557-1( earth resistance )；
JJG 366-2004( earth resistance meter )；
