Data recording function.

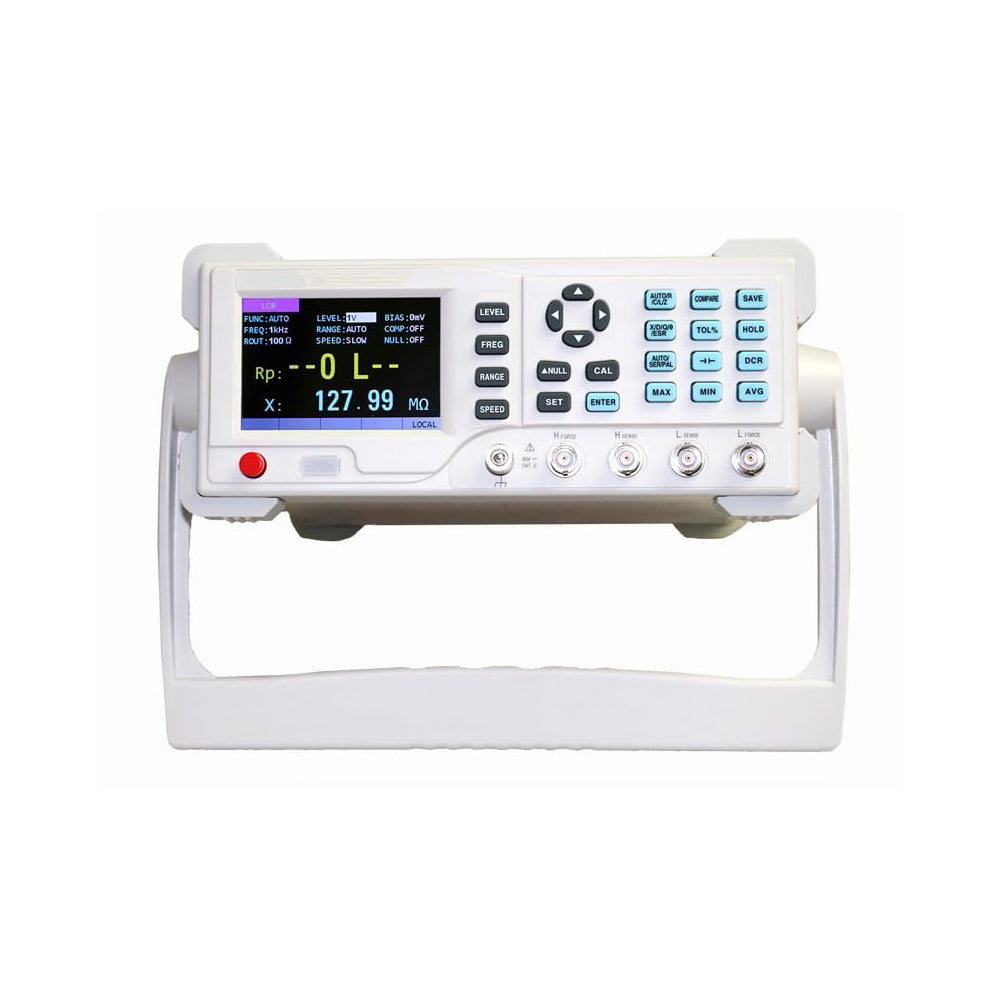

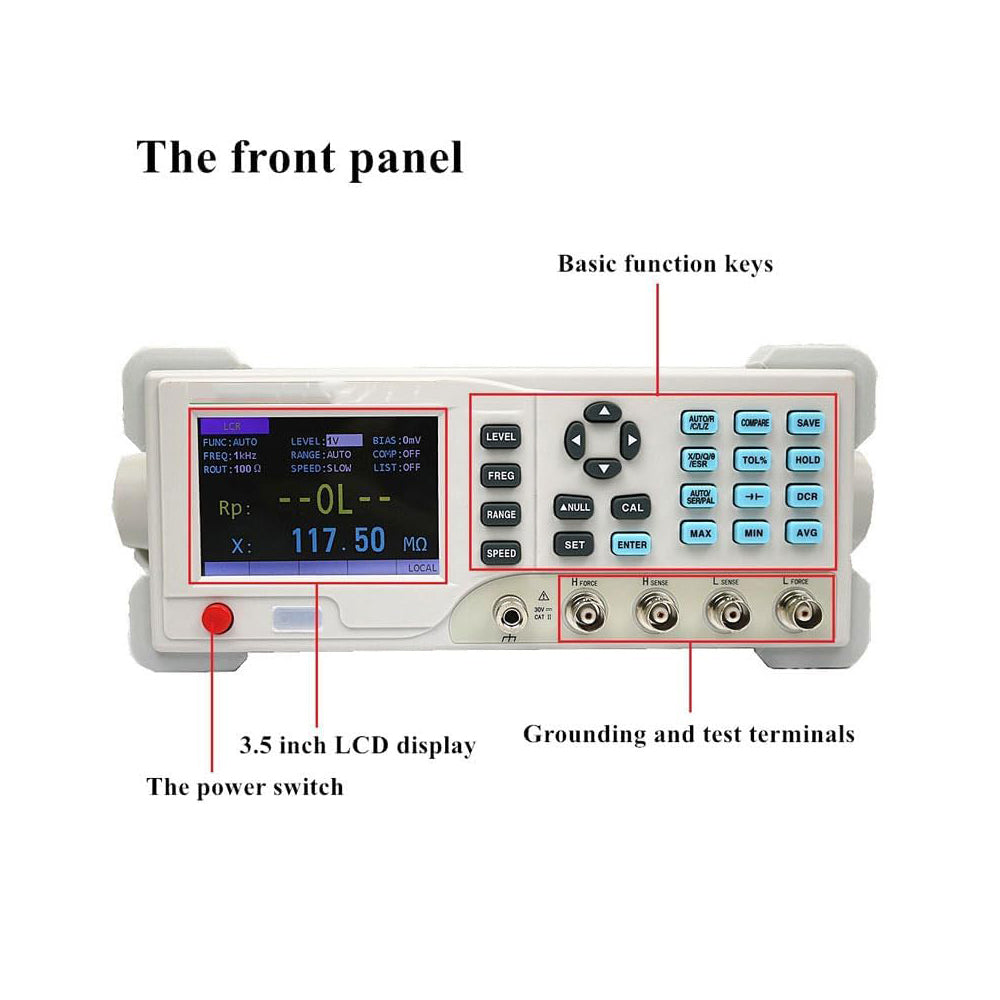

3.5-inch LCD, support English and Chinese interface.

Handler interface, support comparator sorting, list scan.

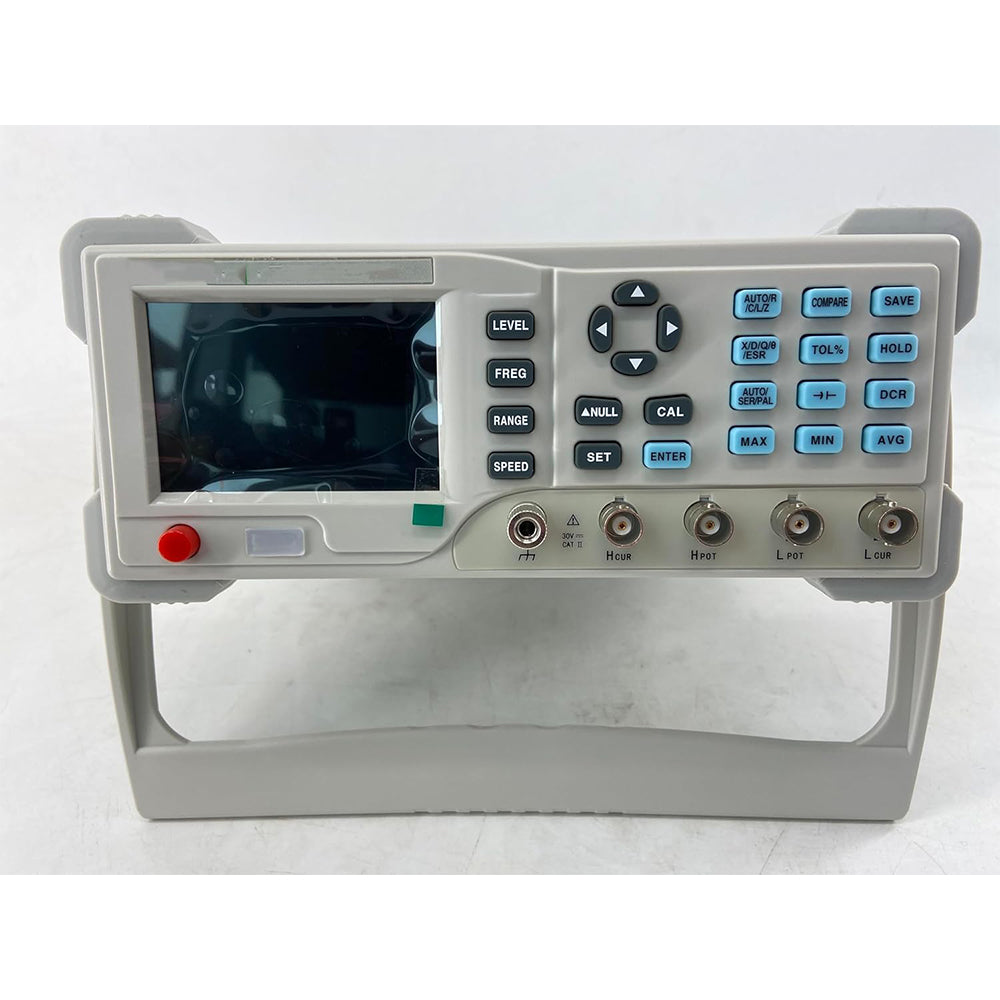

Brief

Dgital bridge adopts 3.5-inch LCD, has friendly user interface and various measurement functions, supports multiple test frequencies and test levels, with basic accuracy up to 0.1%. USB and RS232 can facilitate remote operation. The Handler interface facilitates the automatic sorting of components.

Basic features

Measuring frequency up to 20 kHz.

Level range (100-2000) mVrms.

Internal bias voltage (0-1500) mV.

Automatic identification of component type.

Range can be automatically or locked.

Support DC resistance, electrolytic capacitance measurement.

Basic accuracy 0.1%.

Support open, short calibration.

Data recording function.  3.5-inch LCD, support English and Chinese interface.

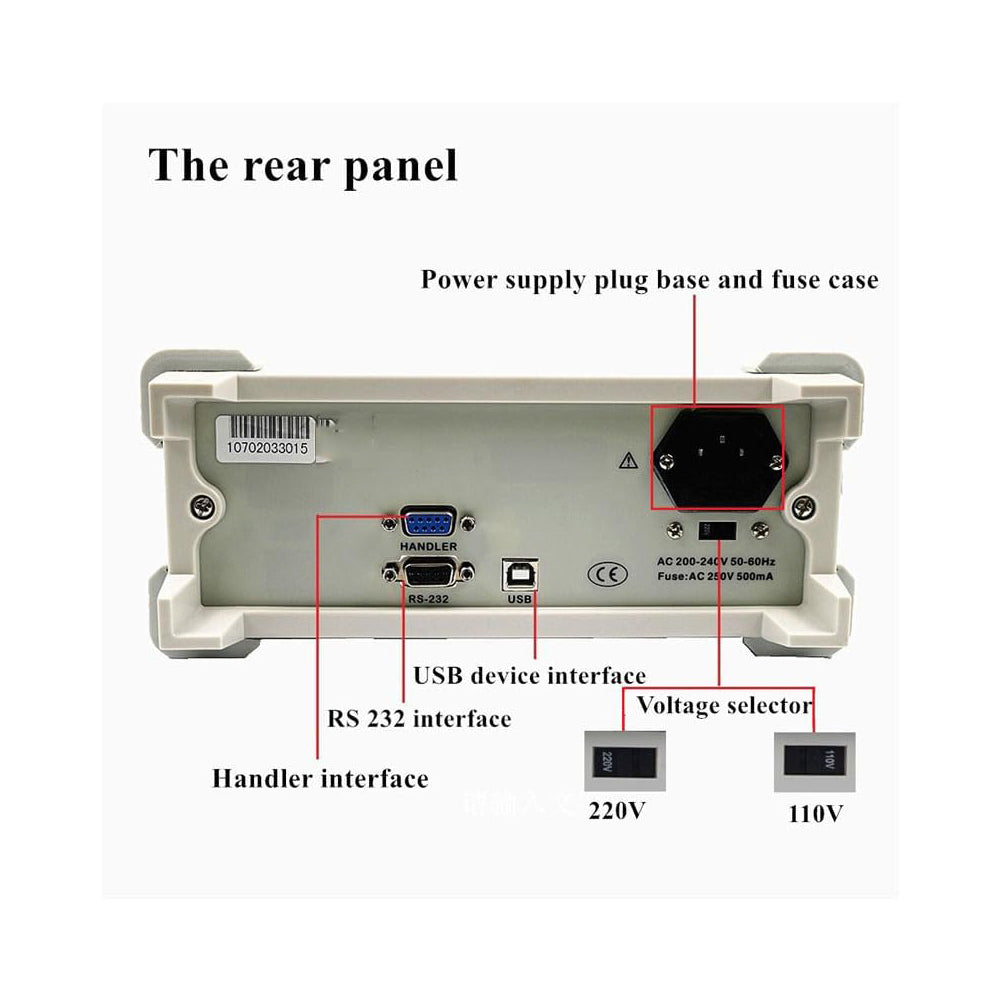

USB, RS232 communication interface, support SCPI communication protocol.

Handler interface, support comparator sorting, list scan.

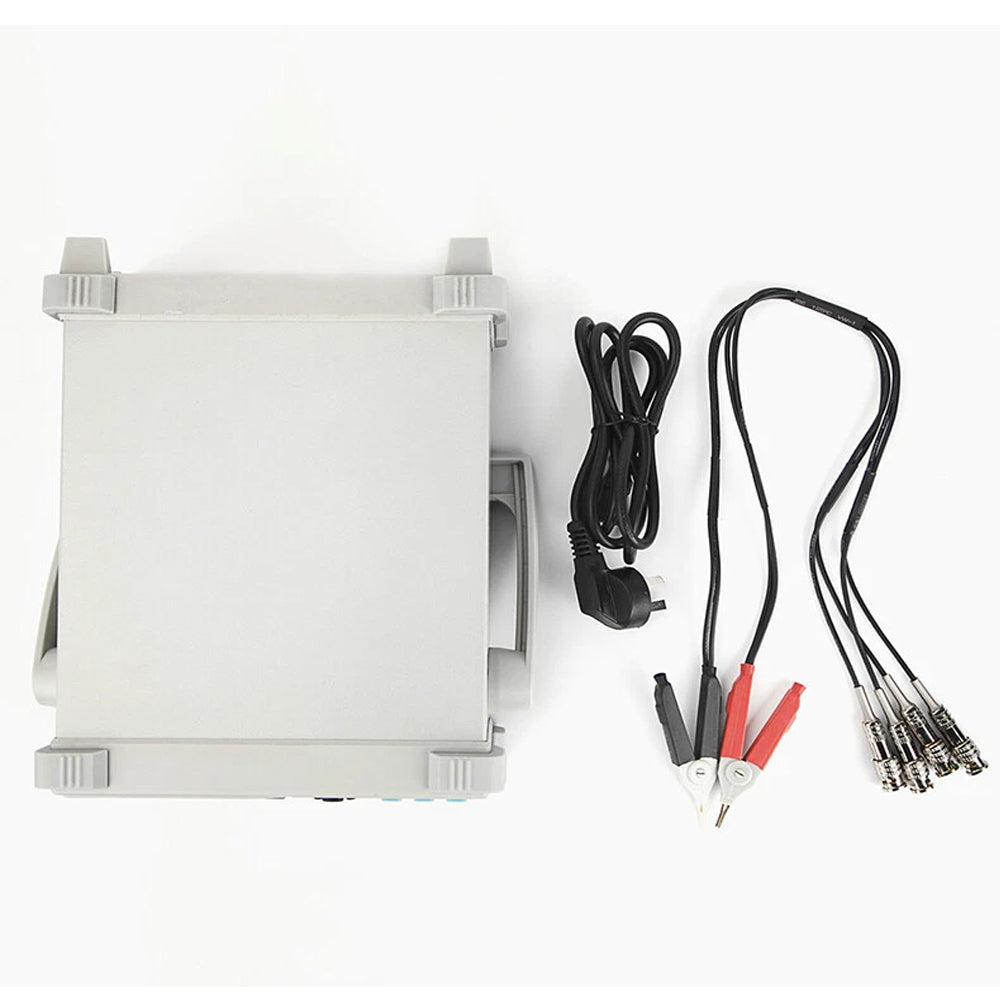

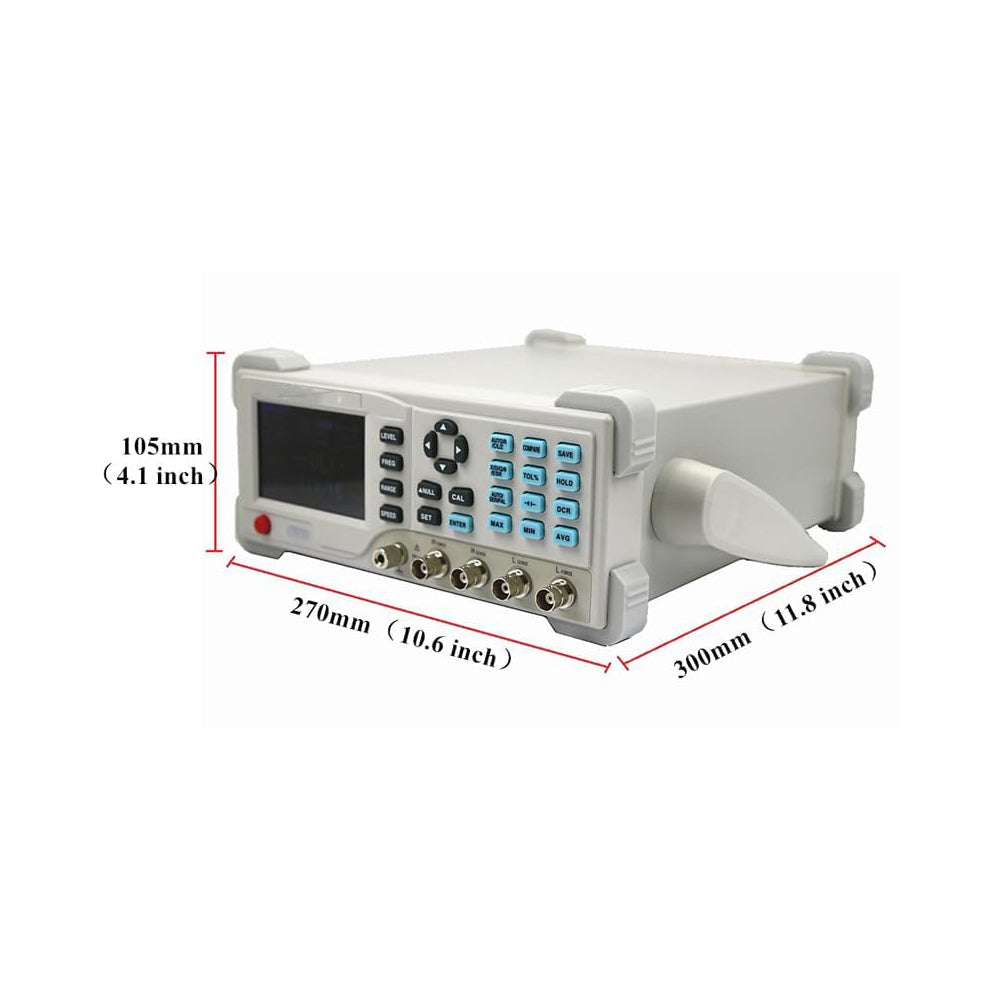

Specification:

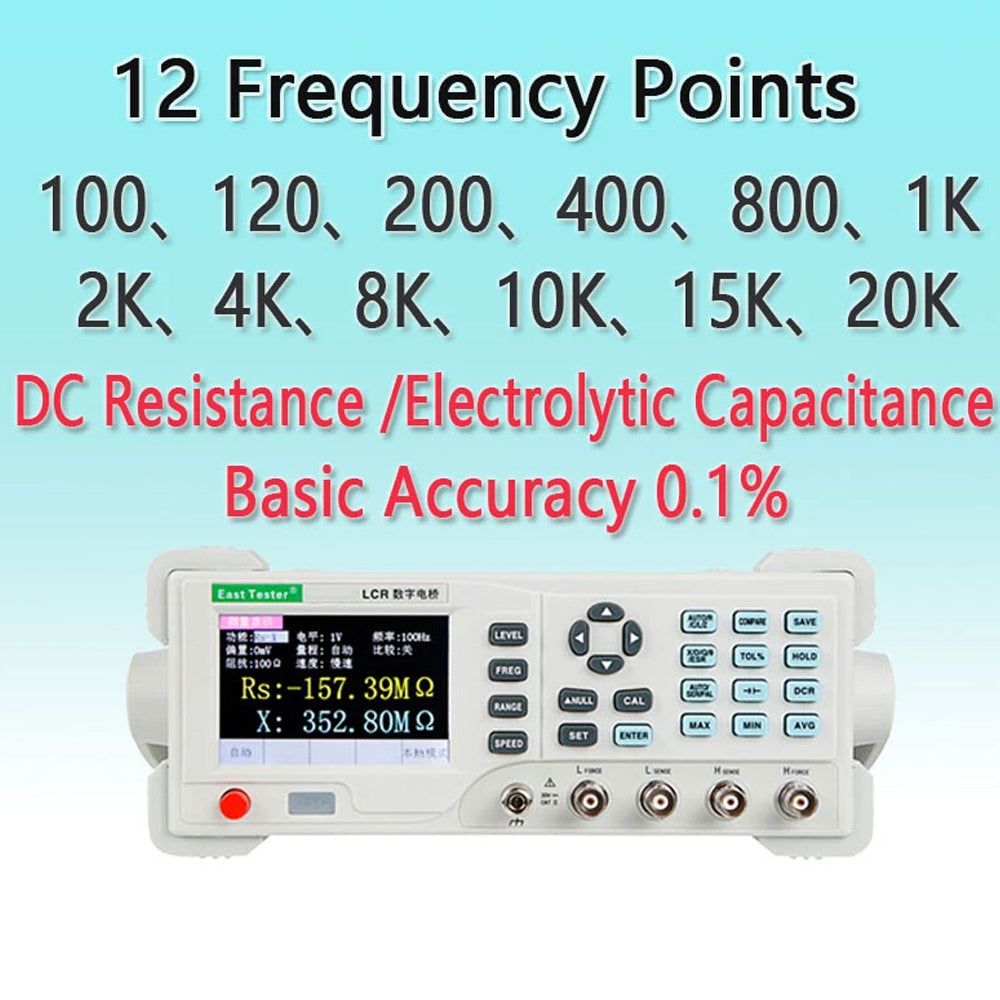

Excitation source frequency (Hz):12 points（100、120、 200、400、800、1k、 2k、4k、8k、10k、15k、20k)

Digits: Main parameter: 5 digits; secondary parameter: 5 digits

Parameter: Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR

Range(L): 0.001μH - 9999H

Range(C): 0.001pF - 9999μF

Range(R): 0.0001Ω - 99.99MΩ

Basic Accuracy: 0.1%

Measurement Display Speed:2 times/second (slow), 5 times/second (medium speed), 10 times/second (fast)

Internal Bias: 0-1500mV adjustable, 1mV stepping

Test Level(Vrms): 100mV、300mV、600mV、1000mV、1500mV、2000mV

Correction Function:Open circuit correction, short circuit correction

Screening function:Tolerance range: -100% ~ +100%, with fixed points of 10%, 25% and 50%

Selection of comparator:Five gear sorting, third gear qualified, one gear failed, one ancillary gear

Communication Interface:Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

Others:Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese
