  • VTSYIQI Digital LCR Bridge Inductance Capacitance Resistance Meter Tester with Parameters L,C,R,|Z|,D,Q,θ(deg),θ(rad) Frequency 100Hz 120Hz 1kHz 10kHz Accuracy 0.1% Test Speed 15t/s 5t/s 3t/s

VTSYIQI

VTSYIQI Digital LCR Bridge Inductance Capacitance Resistance Meter Tester with Parameters L,C,R,|Z|,D,Q,θ(deg),θ(rad) Frequency 100Hz 120Hz 1kHz 10kHz Accuracy 0.1% Test Speed 15t/s 5t/s 3t/s

$69900
In stock
$69900

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

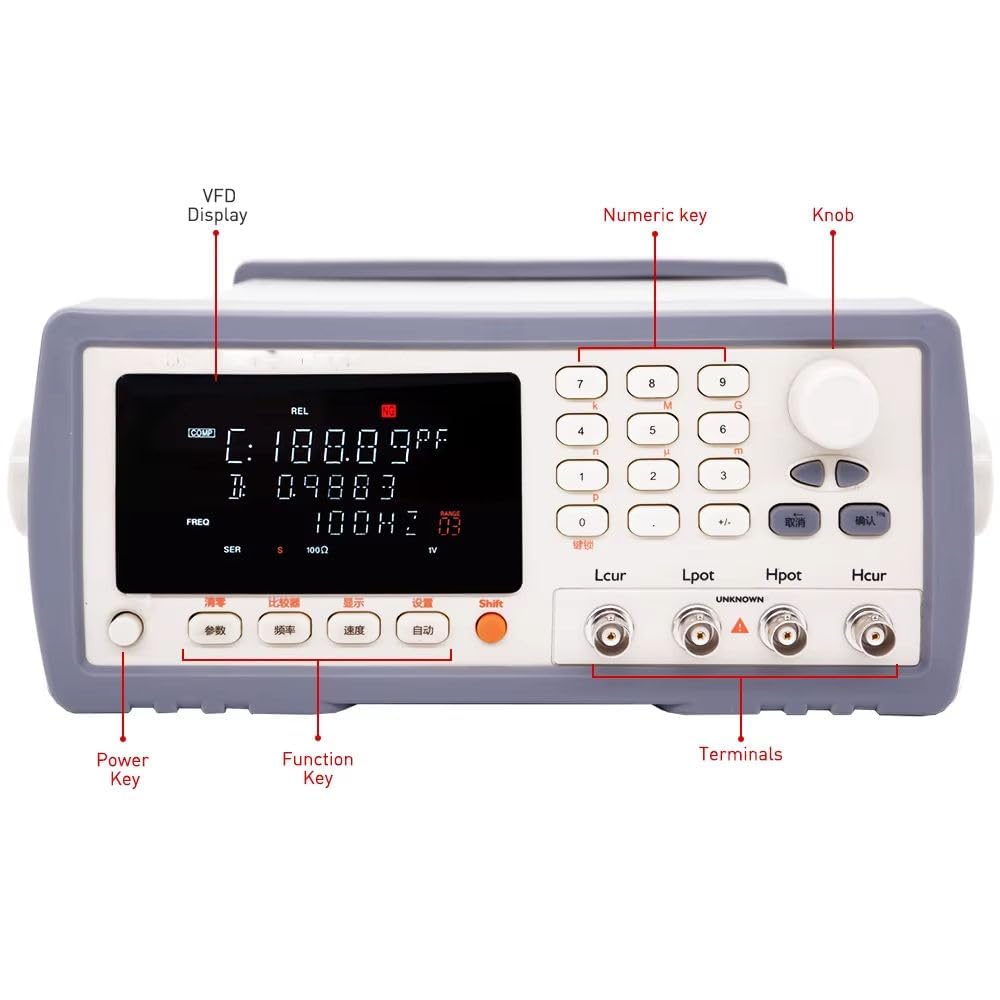

VFD Display

Correction: OPEN and SHORT

View: ΔABS, Δ% or Sorting Result on 3rd Line

Comparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LO

Interface: RS232C and Handler

Key lock function

Data Hold function

OVERVIEW

both high performance, high speed measurements

The basic accuracy of 0.1% makes it suitable for use on production lines and laboratories.

The built-in high speed comparator significantly reduces production line tact time and allows the construction of automatic production lines.

The very compact body features a clearly visible VFD display that facilitates easy operation and allows settings to be confirmed at a glance.

FEATURES

VFD Display

Correction: OPEN and SHORT

View: ΔABS, Δ% or Sorting Result on 3rd Line

Comparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LO

Interface: RS232C and Handler

Key lock function

Data Hold function

APPLICATIONS

Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.

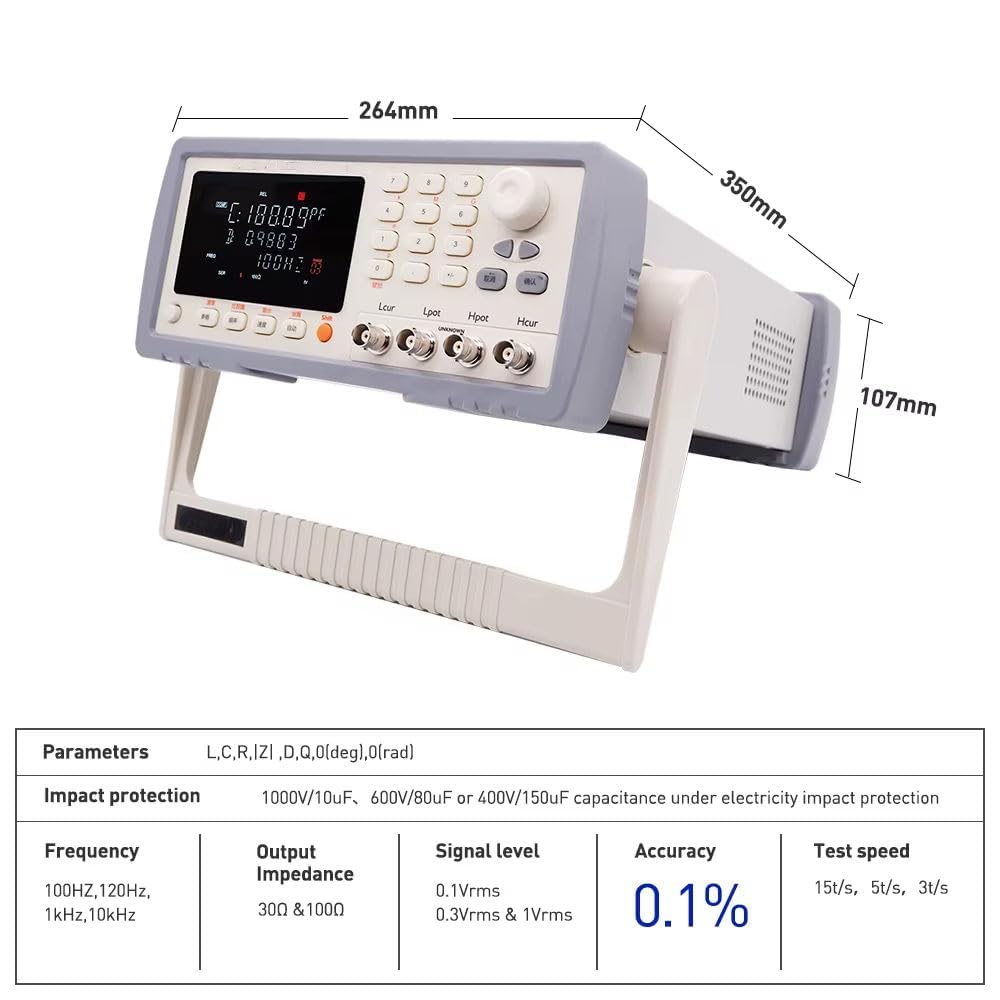

SPECIFICATIONS

Parameters：L,C,R,|Z|,D,Q,θ(deg),θ(rad)
Accuracy ：0.1%
Frequency：100Hz, 120Hz, 1kHz, 10kHz
Range：Auto & Manual , 6 ranges
Display Range： L: 0.01μH-9999H; C: 0.01pF-9999μF; R,Z:0.0001Ω-99.99MΩ; Δ%: -9999% - 9999%; D: 0.0001 - 9.9999; Q:0.0001 - 9999; θ(deg): -179.99° -179.99°; θ(rad) :-3.1416 – 3.1416
Signal level：0.1Vrms / 0.3Vrms / 1Vrms
Test speed：15t/s ,5t/s ,3t/s
Max display：Principle parameter: 99999 Sub parameter：99999
Source Resistance ：30Ω &100Ω
Comparator：20 groups files record, 5-bin sorting, beep function
Equivalent circuit：Series and parallel connection
Impact protection：1000V/10μF、600V/80μF & 400V/150μF Capacitor charged impact protection
Display Results：Direct reading、ΔABS、Δ%、D、Q、|Z|&Sorting results
Calibration：open/short sweep frequency or point frequency

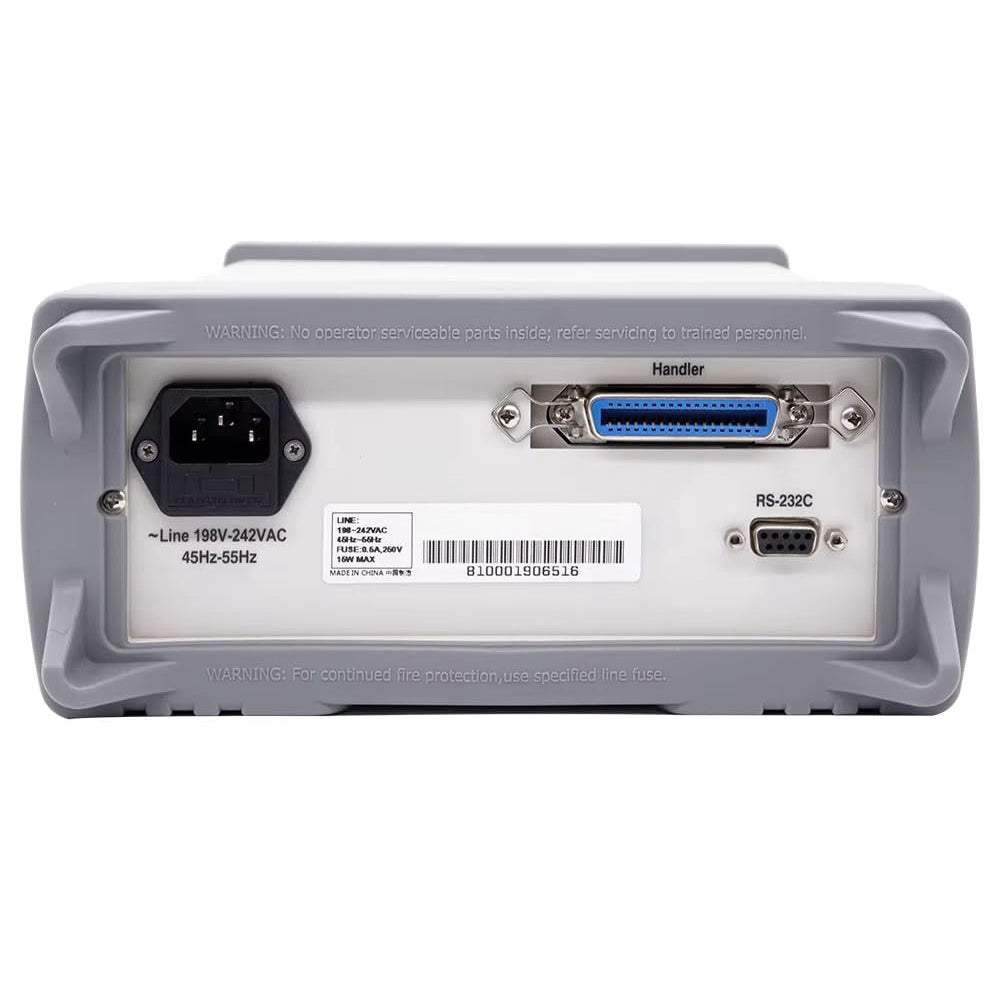

Interface：RS-232C (SCPI) Handler
Others：VFD display，key lock and data hold function

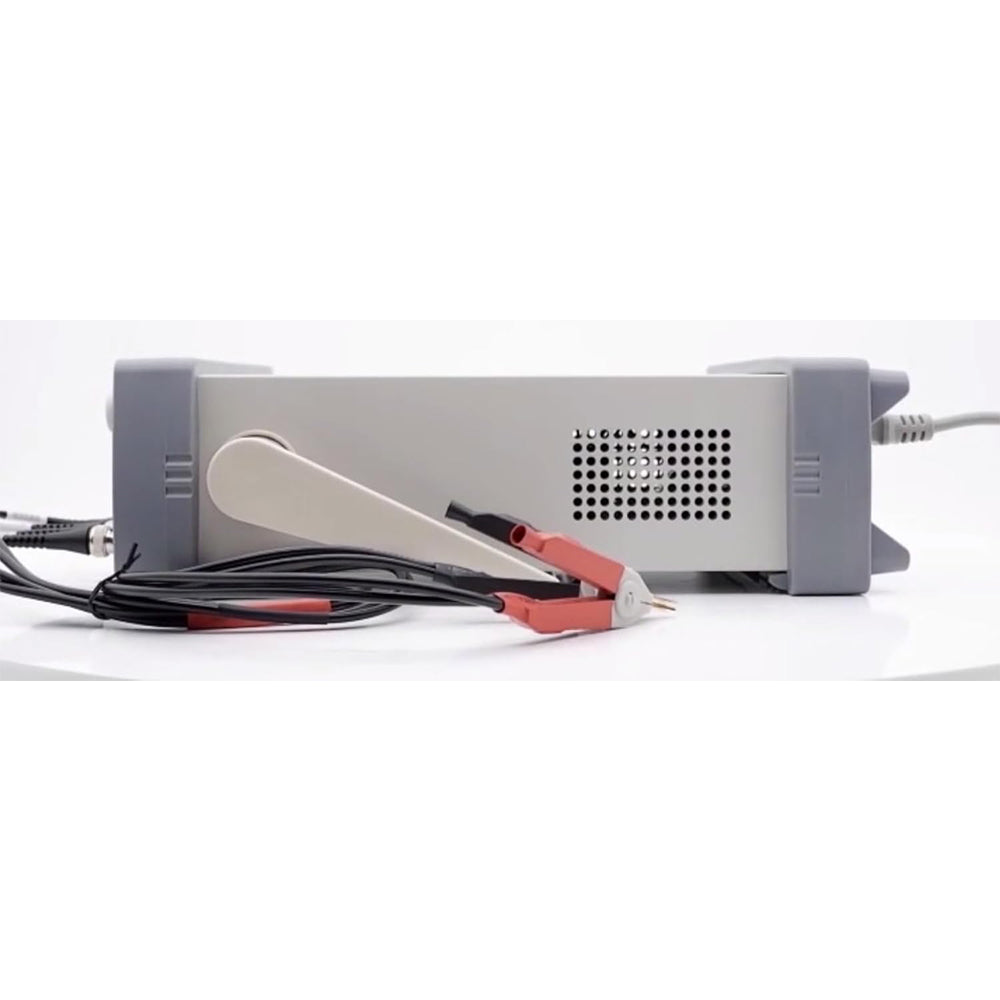

Accessories：Kelvin test clip,Test fixture,short-circle slice,Communication cable
