  • VTSYIQI Digital LCR Meter Inductance Resistance Capacitance Tester Benchtop LCR Meter with Level Range (100-2000) mVrms Accuracy 0.1% Frequency (100 120 200 400 800 1k 2k 4k 8k 10) kHz USB RS232 Interface

VTSYIQI

VTSYIQI Digital LCR Meter Inductance Resistance Capacitance Tester Benchtop LCR Meter with Level Range (100-2000) mVrms Accuracy 0.1% Frequency (100 120 200 400 800 1k 2k 4k 8k 10) kHz USB RS232 Interface

$40400
In stock
$40400

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

Test frequency(Hz): 100、120、200、400、800、1k、2k、4k、8k、10k,Basic accuracy 0.1%.

Level range (100-2000) mVrms;Internal bias voltage (0-1500) mV.

USB, RS232 communication interface, support SCPI communication protocol.

Automatic identification of component type.

Range can be automatically or locked.

Support DC resistance, electrolytic capacitance measurement.

Support open, short calibration.

Data recording function.

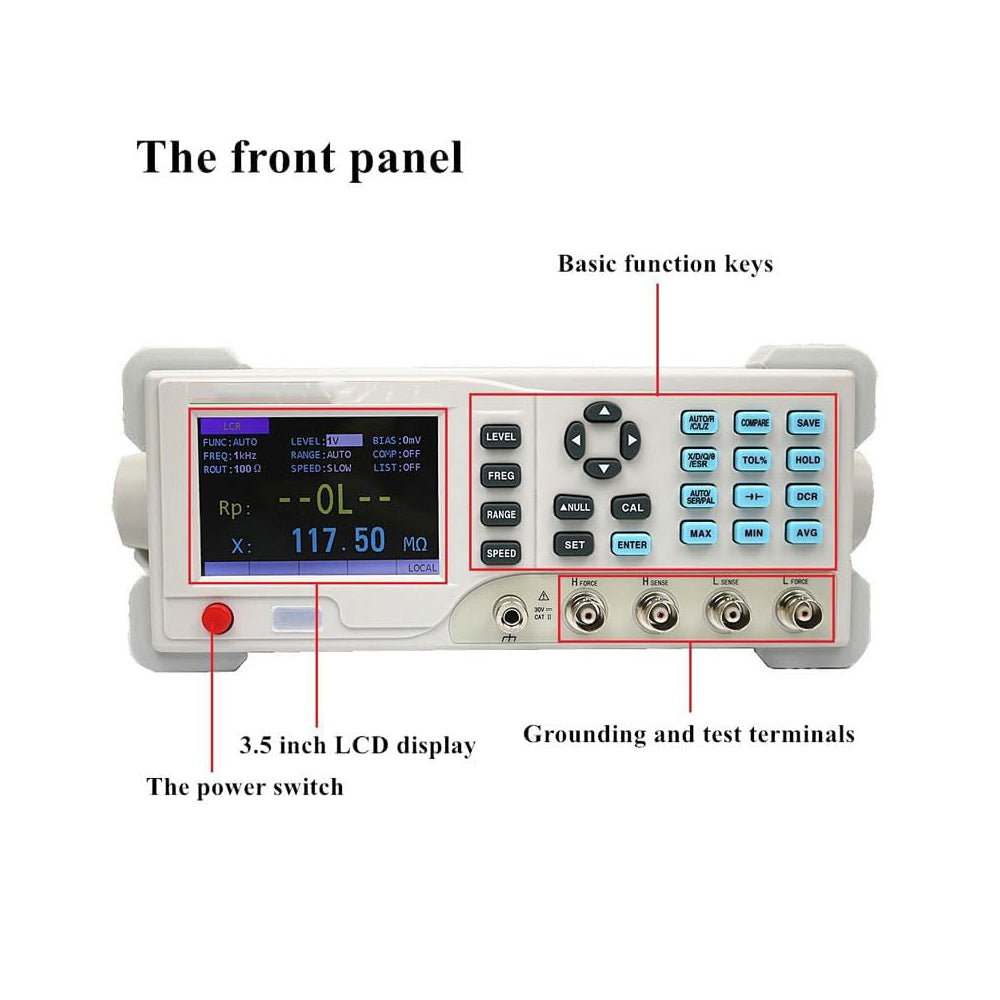

3.5-inch LCD, support English and Chinese interface.

Handler interface, support comparator sorting, list scan.

Brief

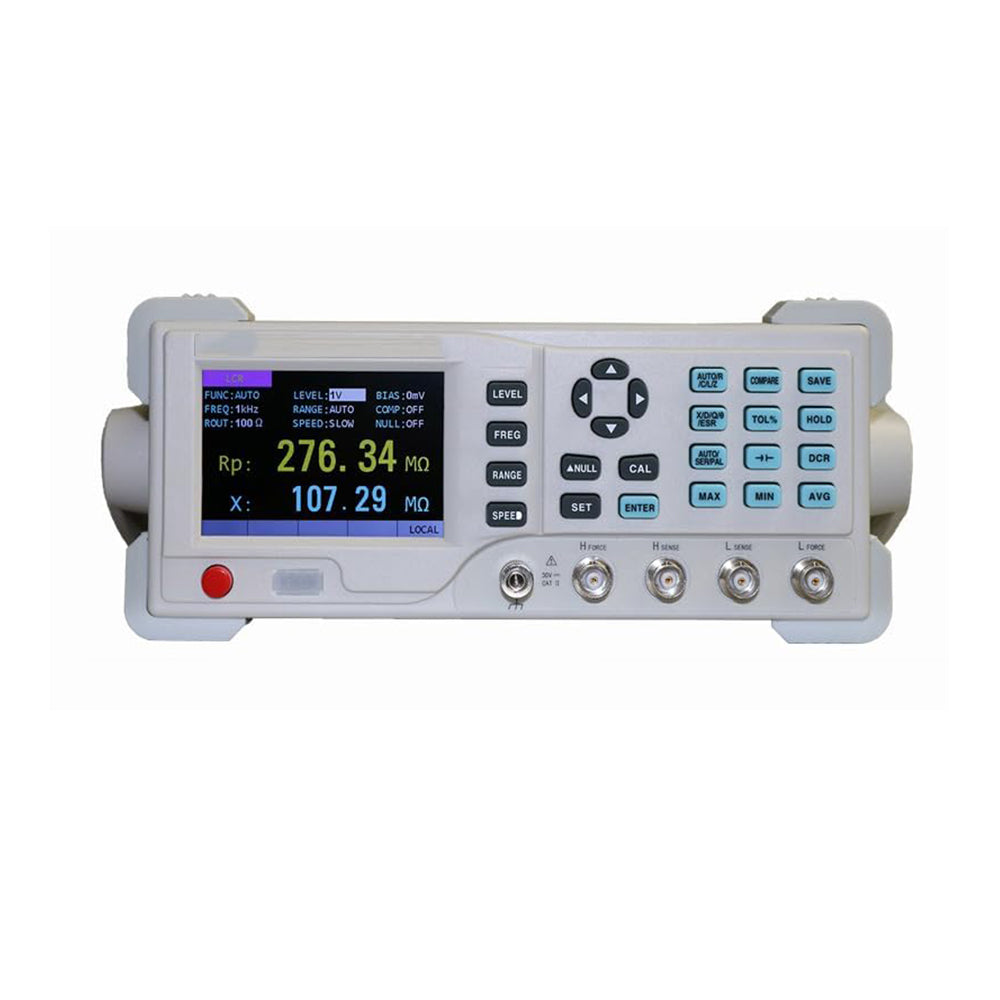

Dgital bridge adopts 3.5-inch LCD, has friendly user interface and various measurement functions, supports multiple test frequencies and test levels, with basic accuracy up to 0.1%. USB and RS232 can facilitate remote operation. The Handler interface facilitates the automatic sorting of components.

Basic features

Measuring frequency up to 10 kHz.

Level range (100-2000) mVrms.

Internal bias voltage (0-1500) mV.

Automatic identification of component type.

Range can be automatically or locked.

Support DC resistance, electrolytic capacitance measurement.

Basic accuracy 0.1%.

Support open, short calibration.

Data recording function.  3.5-inch LCD, support English and Chinese interface.

USB, RS232 communication interface, support SCPI communication protocol.

Handler interface, support comparator sorting, list scan.

Specification:

Excitation source frequency (Hz):10 points（100、120、 200、400、800、1k、 2k、4k、8k、10k）

Digits: Main parameter: 5 digits; secondary parameter: 5 digits

Parameter: Main parameter: L/C/R/Z; secondary parameter: X/D/Q/θ/ESR

Range(L): 0.001μH - 9999H

Range(C): 0.001pF - 9999μF

Range(R): 0.0001Ω - 99.99MΩ

Basic Accuracy: 0.1%

Measurement Display Speed:2 times/second (slow), 5 times/second (medium speed), 10 times/second (fast)

Internal Bias: 0-1500mV adjustable, 1mV stepping

Test Level(Vrms): 100mV、300mV、600mV、1000mV、1500mV、2000mV

Correction Function:Open circuit correction, short circuit correction

Screening function:Tolerance range: -100% ~ +100%, with fixed points of 10%, 25% and 50%

Selection of comparator:Five gear sorting, third gear qualified, one gear failed, one ancillary gear

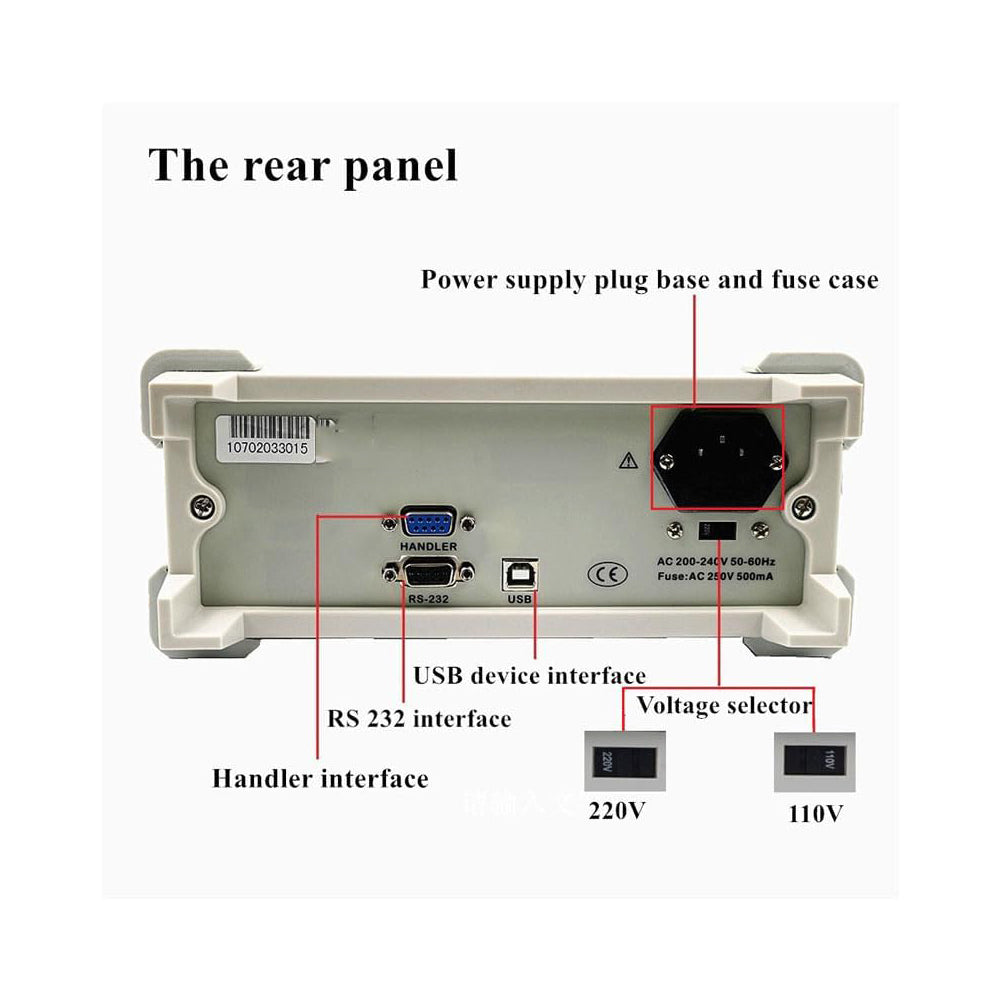

Communication Interface:Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host

Others:Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese
