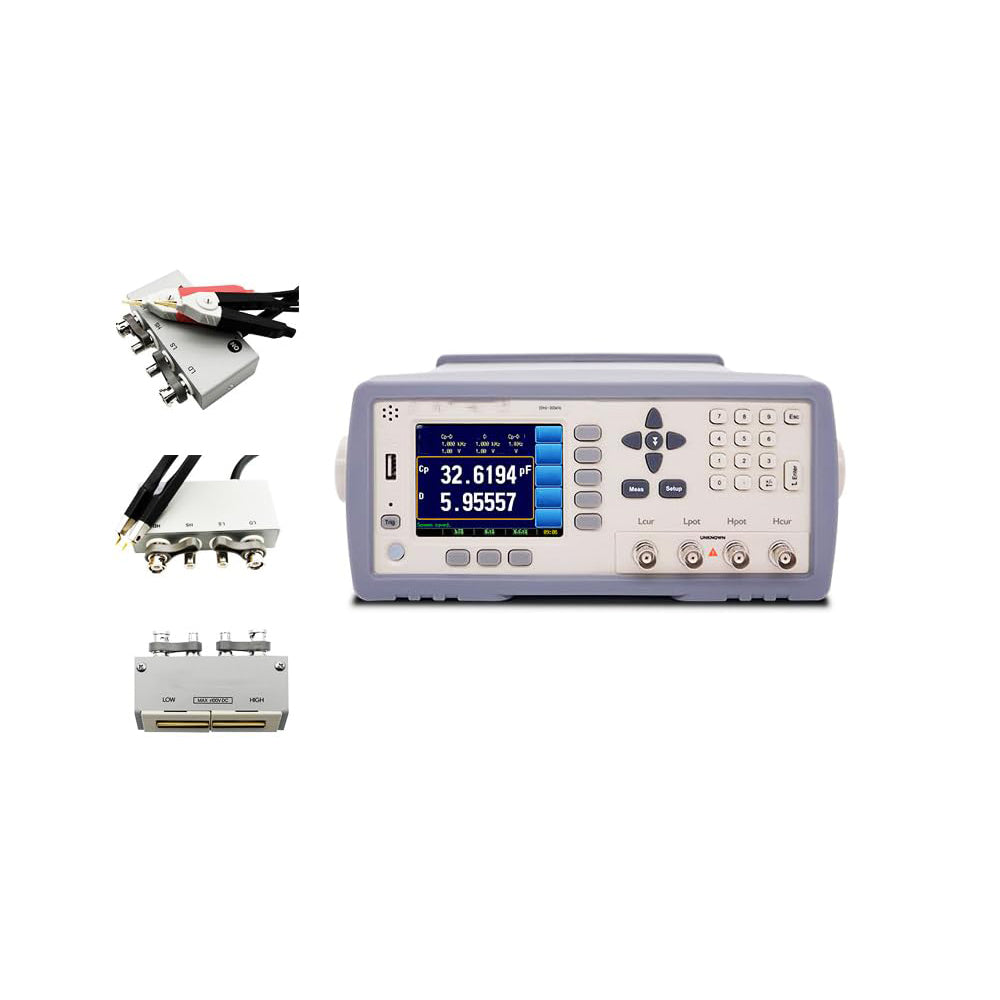

  • VTSYIQI Precision LCR Bridge Tester Benchtop LCR Meter with Continuous Frequency 10Hz～300kHz Resolution 0.001Hz RS232/RS485/USB/Handler Interfaces Comparator Mode SEQ/ABS/PER Protocol SCPI and Modbus

VTSYIQI

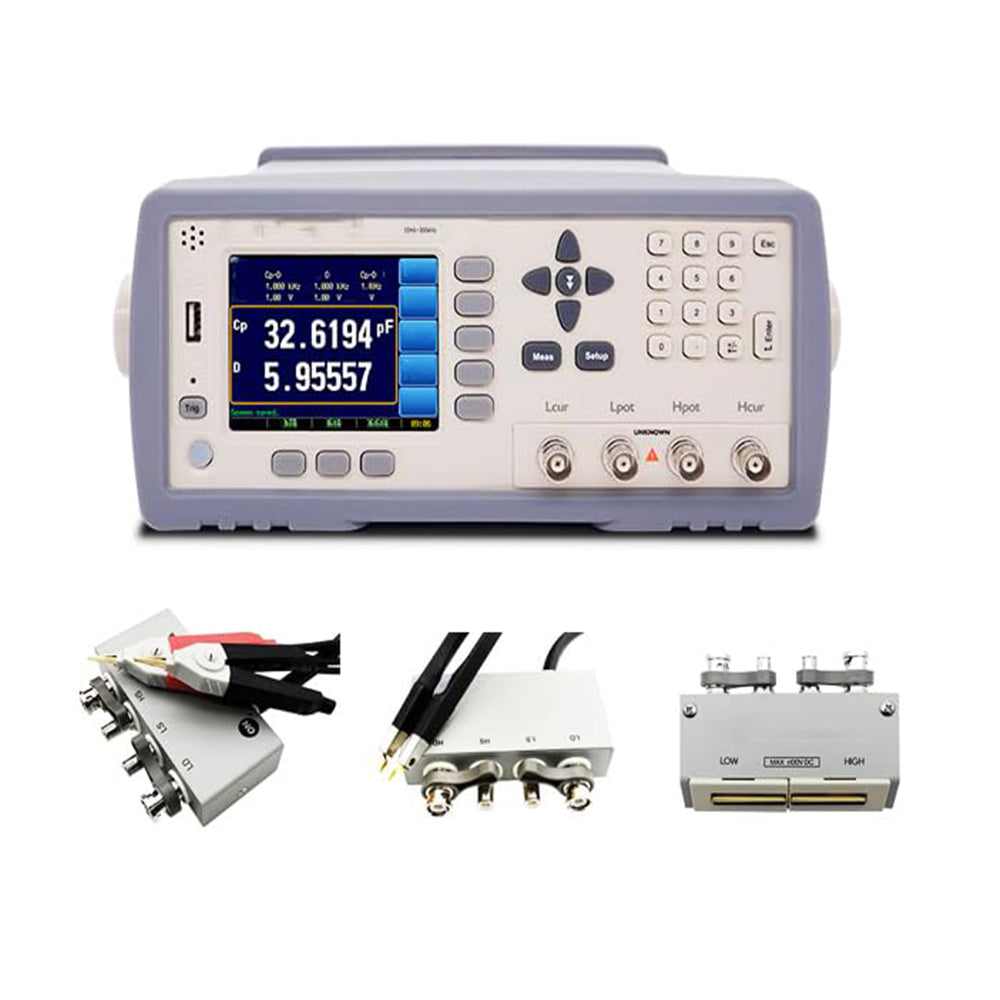

VTSYIQI Precision LCR Bridge Tester Benchtop LCR Meter with Continuous Frequency 10Hz～300kHz Resolution 0.001Hz RS232/RS485/USB/Handler Interfaces Comparator Mode SEQ/ABS/PER Protocol SCPI and Modbus

$2,48800
In stock
$2,48800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item

True color TFT-LCD display.; Store 999 LCD screen files, trigger delay, automatic level control (ALC);

Multi-frequency test: support 10 frequency scan tests; Multi-level test: support 10 level scan tests; 10 sets of file management for full storage of instrument status, list scan settings and comparator settings.;

Correction function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.;

Absolute deviation (ABS) comparison mode, relative deviation (PER) and order (SEQ) comparison.

Switchable accessory file (AUX) sorting.

Programmable from 1 to 200 times to provide stability.

Custom sorting results are heard.

Built-in RS232/RS485/USB interfaces and Handler interface, GPIB interface optional.

Protocol: SCPI and Modbus.

1000V super shock protection

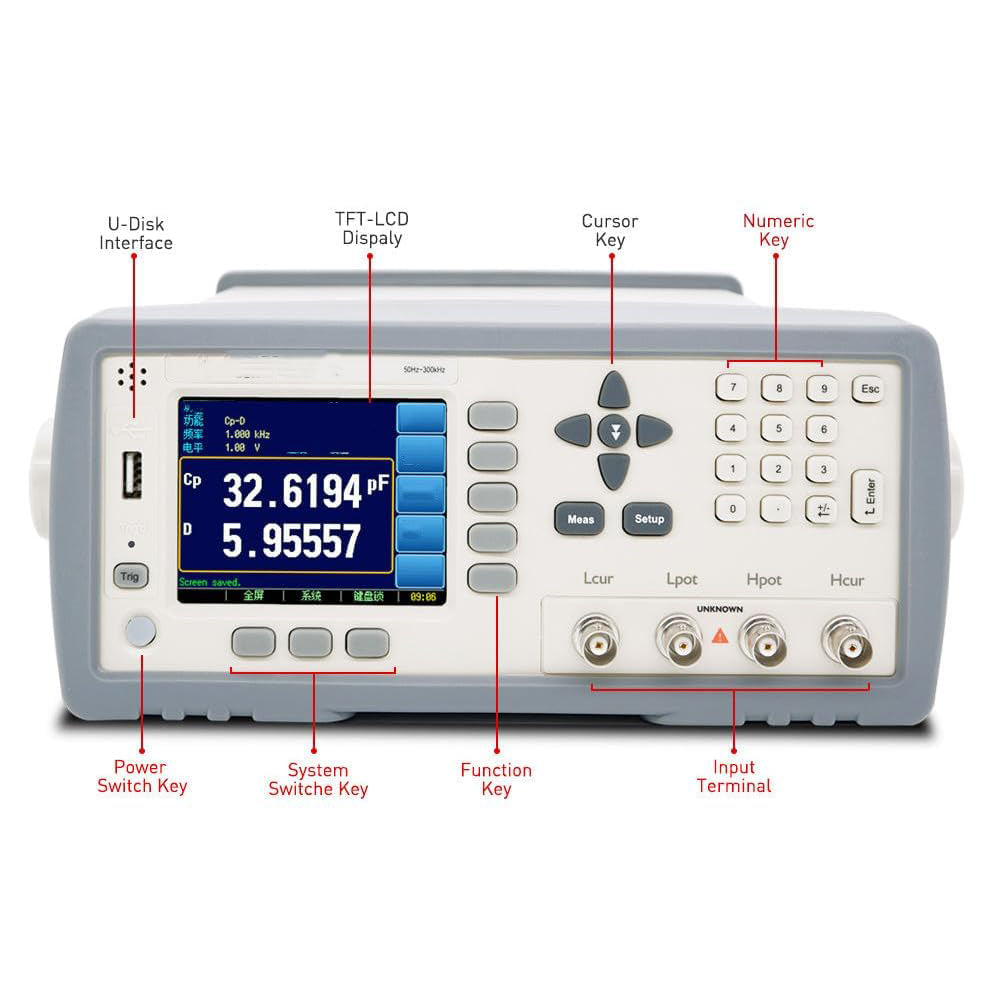

OVERVIEW:

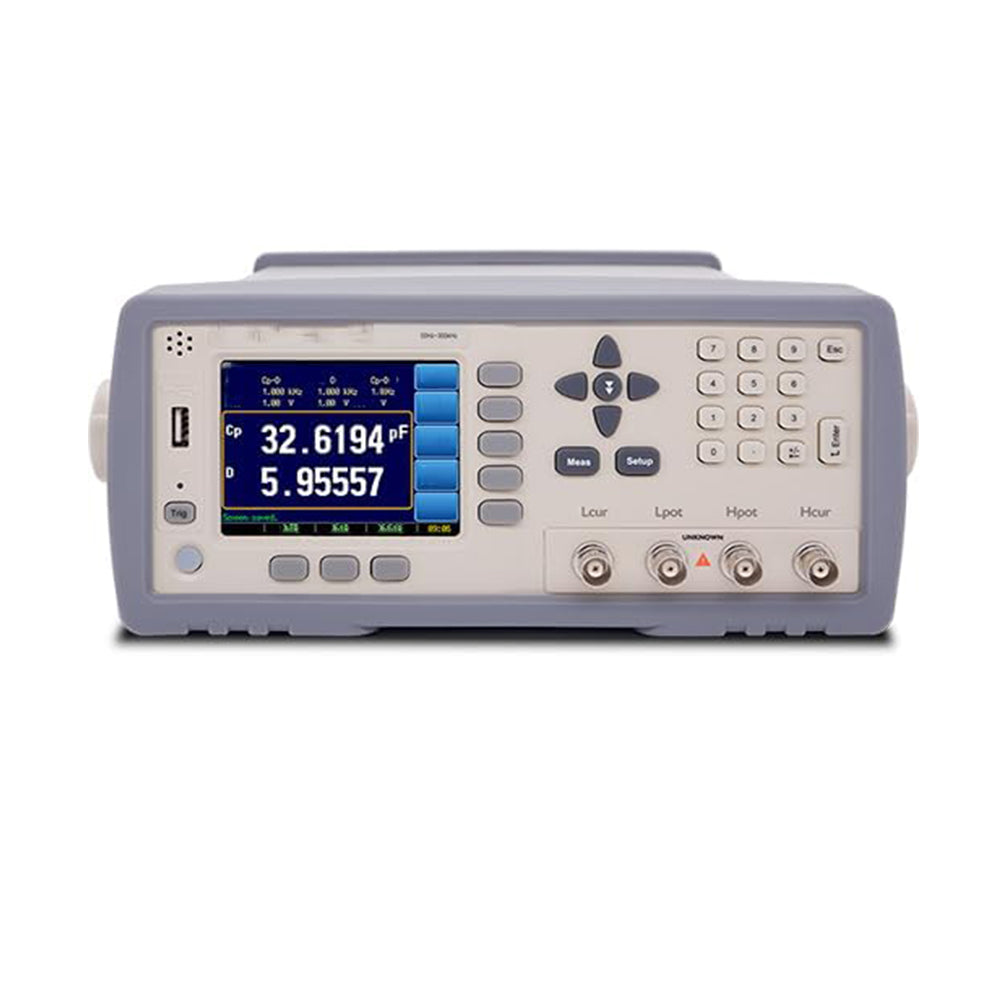

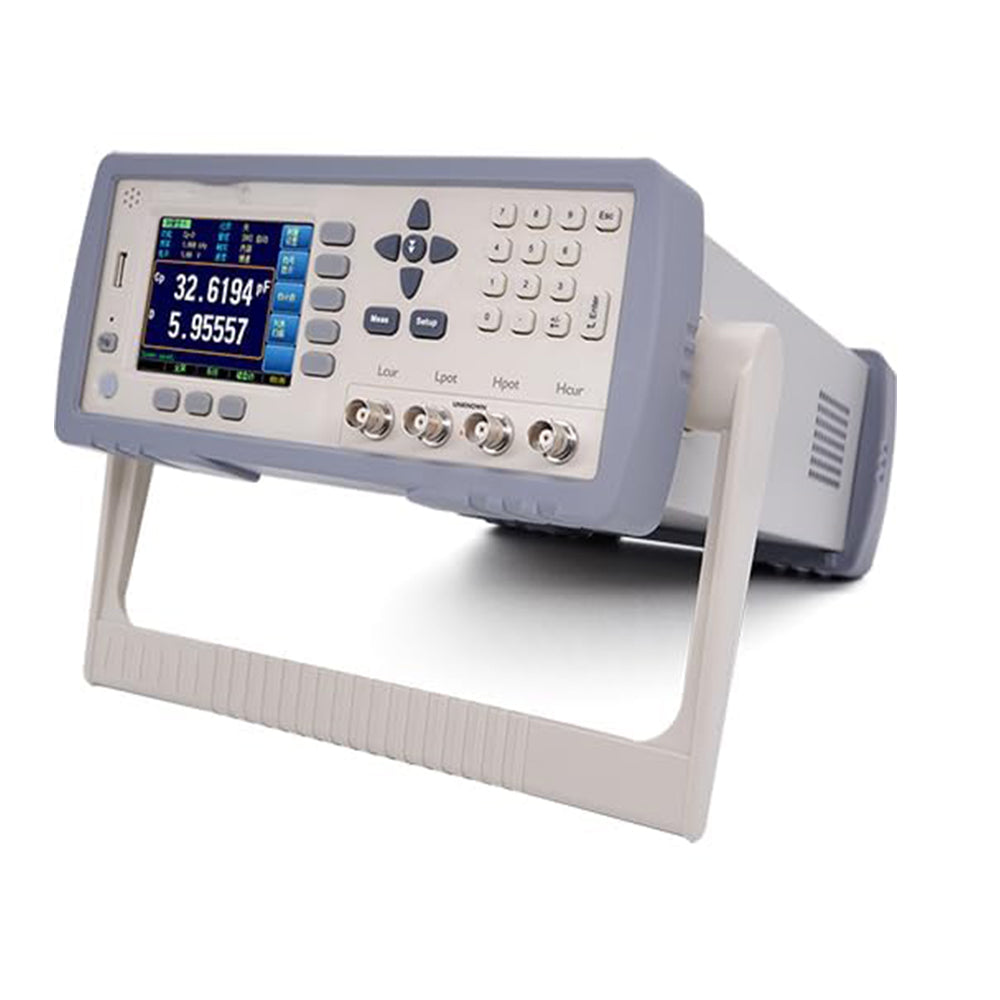

It adopt true color TFT-LCD display.

It with continuous frequency point of 10Hz~300kHz with a resolution of 0.001Hz. Test signal level 0.01Vrms ~ 2.00Vrms , 100μA~20.00mA, (add DCR measurement and internal DC bias (±2.5V)

It can test 4 parameters at the same time, each parameter can be arbitrarily configured. The newly improved instrument realizes display of main and auxiliary four parameters all 6 digits, can scan 10 kinds of frequency or level list, it can also be used for 3 groups frequency be corrected to improve accuracy.

Built-in comparator, through HANDLER interface combined with PLC to complete the automatic sorting of components.

Built-in RS232/Handler/USB interfaces , SCPI and Modbus support.

FEATURES:

True color TFT-LCD display.

Store 999 LCD screen files, trigger delay, automatic level control (ALC)

Correction function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.

Multi-frequency test: support 10 frequency scan tests

Multi-level test: support 10 level scan tests

10 sets of file management for full storage of instrument status, list scan settings and comparator settings.

Enhanced comparator (sorting) function: Programmable P1~P9 Nine-segment sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. Output.

Absolute deviation (ABS) comparison mode, relative deviation (PER) and order (SEQ) comparison.

Switchable accessory file (AUX) sorting.

Programmable from 1 to 200 times to provide stability.

Custom sorting results are heard.

Built-in RS232/RS485/USB interfaces and Handler interface, GPIB interface optional.

Protocol: SCPI and Modbus.

1000V super shock protection

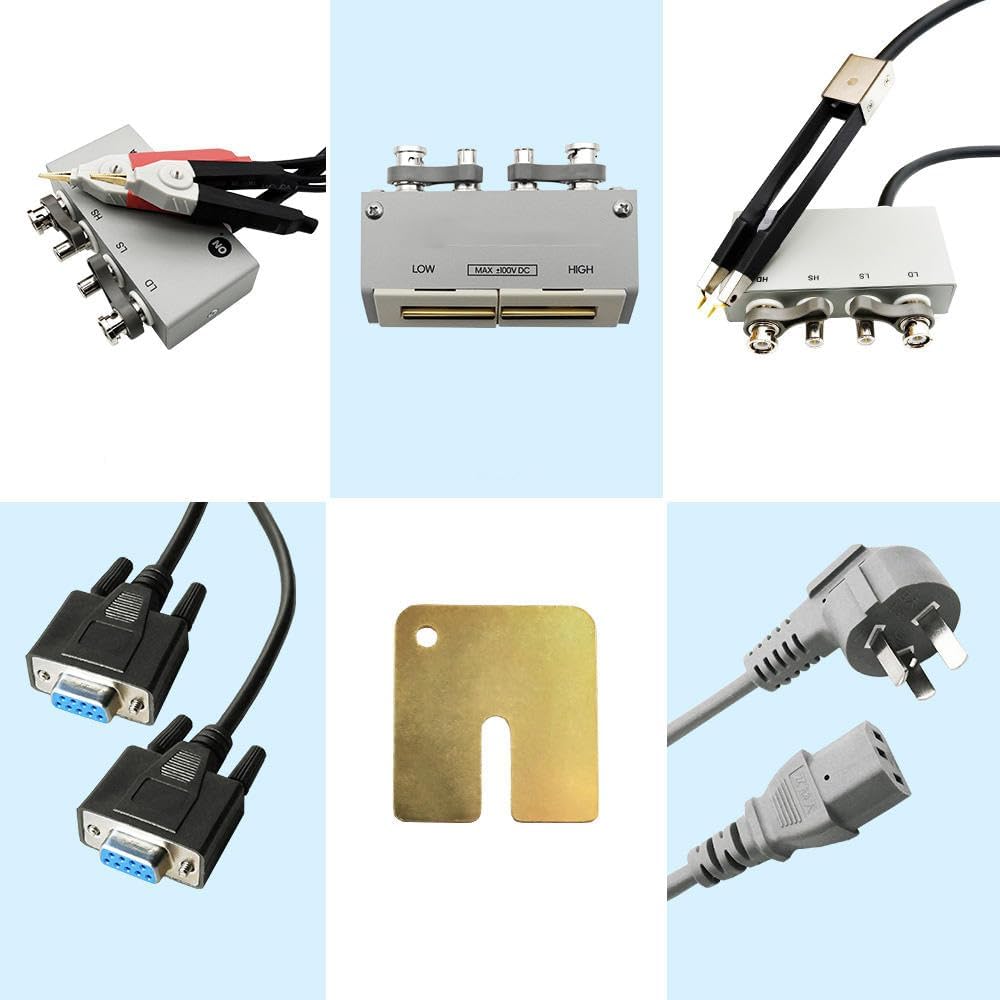

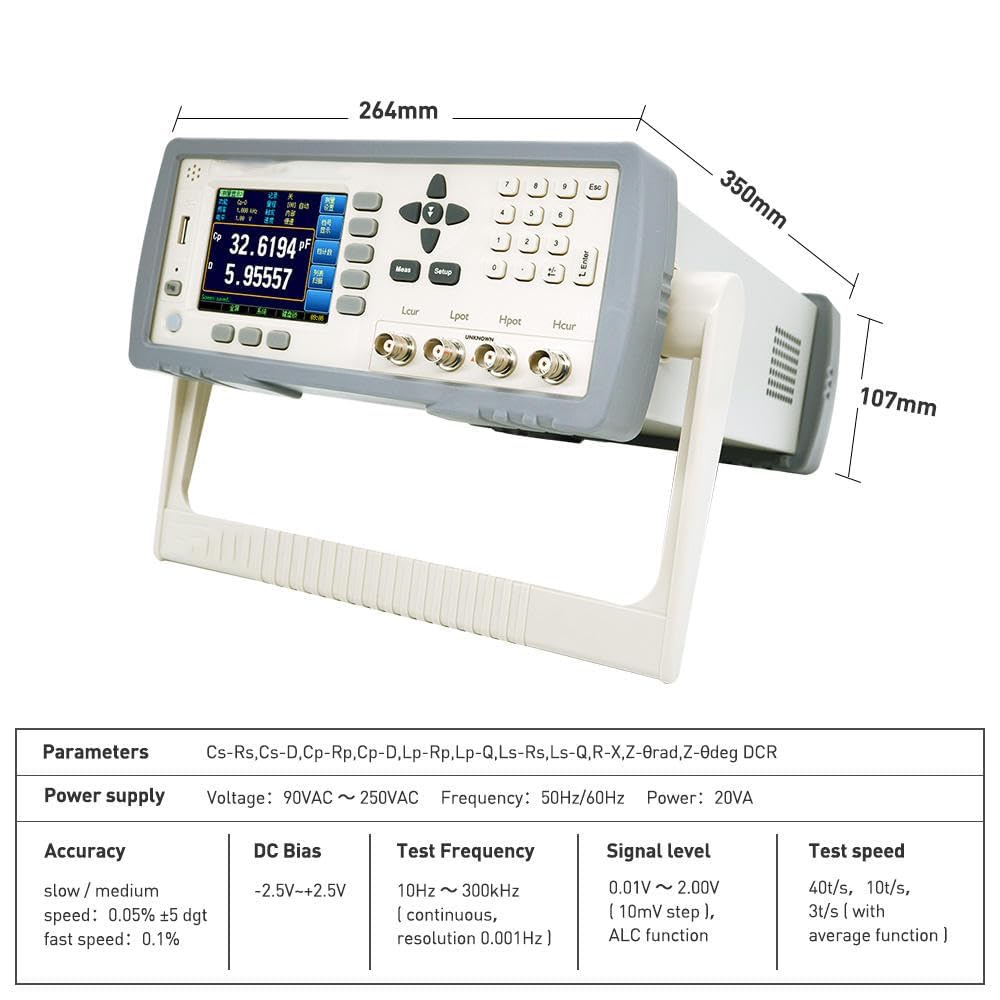

SPECIFICATIONS:

Test Functions: Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR

Accuracy: SLOW/MED: 0.05% ±5 digits，FAST: 0.1%

Measurement Frequency: 10Hz～300kHz (Resolution 0.001Hz）

Measurement Range: AUTO/HOLD/NOMINAL 9 Ranges

Measurement Speed: 40 times/s, 10 times/s, 3 times/s

Display Range:

  1. L: 0.00001μH-9999.99H
  2. C: 0.00001pF – 9999.99mF
  3. R,X,Z: 0.00001Ω - 99.9999MΩ
  4. D:0.00001 – 9.99999
  5. Q: 0.00001 – 99999.9
  6. Δ%: -999999% - 999999%
  7. θ(deg): -179.999° -179.999°
  8. θ(rad):-3.14159 – 3.14159
  9. DCR: 0.00001Ω ~ 99.9999MΩ

Source Resistance: 30Ω, 50Ω and 100Ω

Monitor Parameter: Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%

Display Reader: 6 digits: 999999

Equivalent Circuit: Serial and Parallel

Signal Level: 10.00mV~2.00V AC (ALC);100.0μA~20.00mA AC (ALC)

DC BIAS: -2.5V~+2.5V (0.5%+0.005V)

Average: 1~256

Trigger Mode: INT/HOLD/MAN/BUS

Trigger Delay: 0.01ms~60s

Comparator: OK: 10-BINS NG:1-BIN;AUX: 1-BIN

List Test: 10 Steps (Frequency/Voltage/Current)

Comparator Mode: SEQ/ABS/PER

Adjustment: OPEN/SHORT Zeroing (ALL,SPOT)

Files: built-in 10 files and USB Disk 10 files

Data Logger: 9999 Log Files (.csv)

Beep Feature: OFF/PASS/FAIL

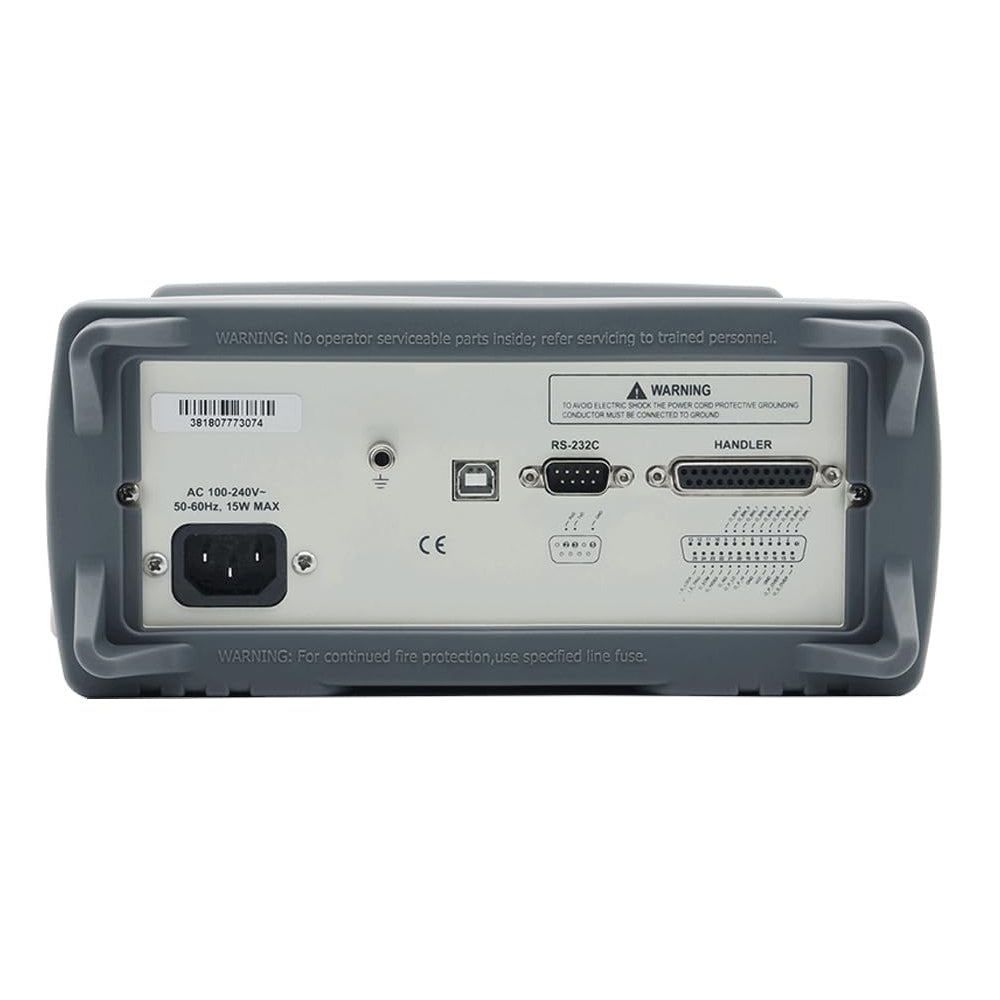

Interface: RS232/Handler/USB

Protocol: SCPI/Modbus

Other Functions: AUTO LCZ

Power Supply: AC 90V-260V, Frequency：50Hz-60Hz；Power：30VA

Dimension & Weight: 264(W)x107(H)x350(L);4kg, net
