VTSYIQI LED Radiography Film Viewer Portable X Ray Film Viewer Industrial Radiographic Film Viewer With 140 Led Light Sources Max Light Intensity 100,000cd/m2 Or 300000Lux For X Ray Flaw Detect

About this item

Long life-time:LED light source, Working time >60000 hours, 10 times longer than ordinary fluorescent lamps. Good shock resistance do not need to worry about long-distance transportation or field work.

Stepless Dimmer:Using PWM pulse width modulation method to achieve 2%-100% ultra wide range dimming.

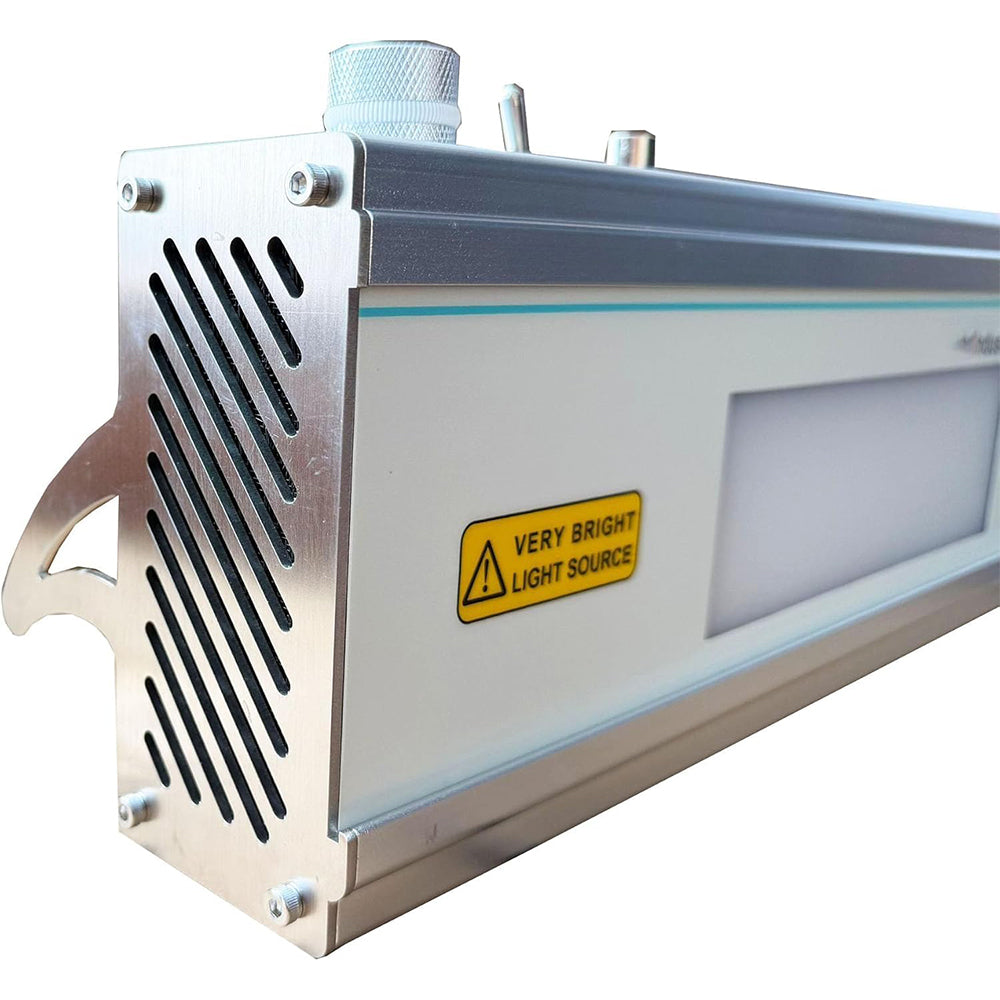

Real cold light source:The aluminum alloy shell is used for easy heat dissipation.low heat generation and no damage to the film. lmported high-efficiency LEDs are selected to achieve low power and high brightness.

Ultra-high brightness,high uniformity,Low Noise.No warm-up time is required, Fast startups.Suitable for frequent switching, and the number of startup times will not affect the life of the light source.

The LED Industrial X-Ray Film Viewer combine advantages of both domestic and overseas film viewers, overcome various defects of traditional fluorescent lamp film viewers, such as low luminance, poor contrast and short lifetime. Meet requirements of EN25580:1992; ASTM E1390-90 and ISO5580:1995. The portable and sturdy design making it extremely suitable for working in the field of outdoor.

Specification:

LED Quantity No.(PC):140

Max Light Intensity:300,000LUX(100,000cd/m²)

Average Temperature:6500K

Observable Film Blackness:＜4.0D

Size of viewing area：220*60MM

Power:170-250VAC 50/60HZ

Power Consumption:50W

Dimension:456*142*68mm

Weight:3.2KG

Working mode:

Manual Mode

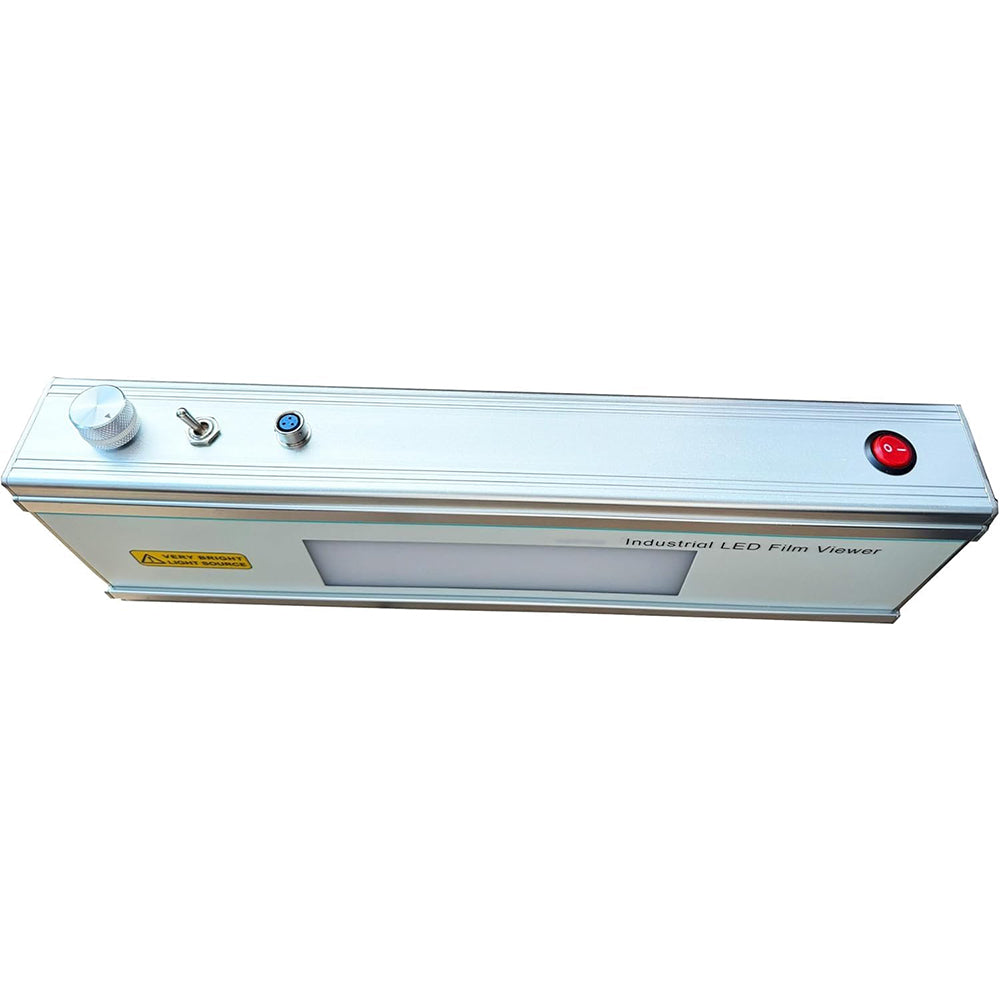

Toggle the switch to manual, turn on the power, then press the power switch to light up the window, the viewing light is steplessly dimmed by the dimming knob. Place the radiographic film in the observation window, manually adjust the brightness adjustment knob, and turn it clockwise to change from dark to bright, which is suitable for viewing the film.

Foot Mode

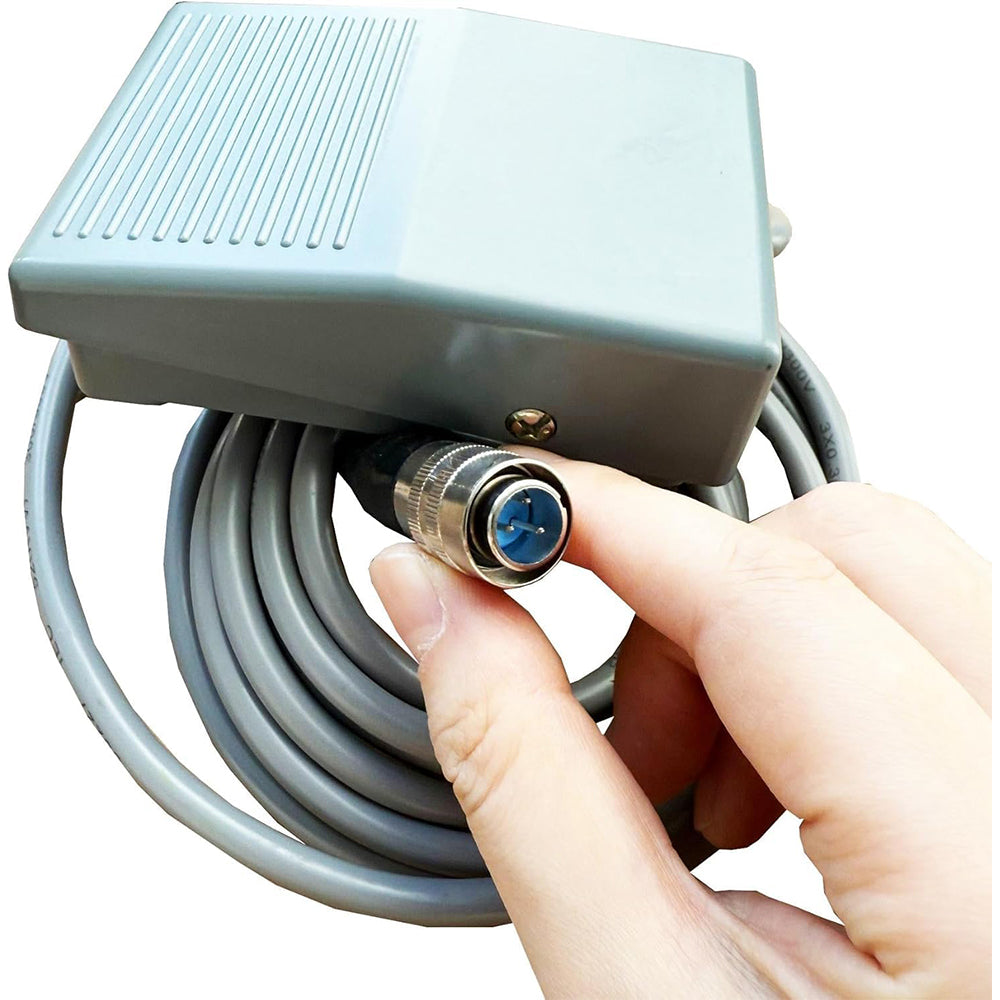

Toggle the switch to the foot pedal to make the foot switch work, turn on the power, and press the main power switch to turn on the power, the film viewer lights up at the lowest brightness, which is convenient for you to check the film number, and can also be used as a desk lamp. The low brightness can prevent the strong light from directly irradiating the eyes, and avoid the glare effect of the users' eyes. Step on the foot switch and the film viewer lights up normally, the viewer light is steplessly dimmed by the brightness adjustment knob to meet the requirements of viewing. Choose a suitable brightness to observe the film, and release the pedal when you are done. Then the film viewer is at the lowest brightness, and you can replace the next film to repeat the above operation.
