Leeb Hardness Tester
VTSYIQI Leeb Hardness Test Equipment Leeb Durometer with Measuring Range (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB for Steel Iron Bronze Copper 10 Materials

files/12_b4103aa7-6c11-4105-9cad-a9246b40908f.jpg
files/2_654a4f95-ed97-421e-8f34-ea6881984155.jpg
files/4_7ba9b724-90af-49a2-be05-9667fd227380.jpg
files/5_510ab54b-39f2-4762-b5ef-fe81ad6a8d47.jpg
files/7_a1cd71eb-86f1-4555-8f47-0bdcc5cf5db3.jpg
files/13_41a0f83f-6ee8-41cf-8131-ecbda1c3da1d.jpg
files/9_ff0b5824-5d74-4a12-99e7-537b3f3dbf88.jpg
files/11_4b0fe63d-a9b9-467a-ae8a-25cb97a12b06.jpg

VTSYIQI

VTSYIQI Leeb Hardness Test Equipment Leeb Durometer with Measuring Range (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB for Steel Iron Bronze Copper 10 Materials

Regular price: $310.⁰⁰

In stock

Regular price: $310.⁰⁰

Quantity

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI

VTSYIQI Leeb Hardness Test Equipment Leeb Durometer with Measuring Range (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB for Steel Iron Bronze Copper 10 Materials

Regular price: $310.⁰⁰

Description

Reviews

Frequently Asked Questions

About this item

Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL

Large screen (segment LCD), showing all functions and parameters. With EL background light.

Large capacity memory could store 500 groups information. Software calibration function.

Datapro Software to connect with PC via RS232 port. Micro printer support

Compact plastic case，suitable for use under poor working conditions. Test at any angle, even upside down.

Main Application:

Die cavity of molds

Bearings and other parts

Failure analysis of pressure vessel, steam generator and other equipment

Heavy work piece

The installed machinery and permanently assembled parts.

Testing surface of a small hollow space

Material identification in the warehouse of metallic materials

Technical Specifications:

Measuring range：(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA,(13-100)HRB

Measuring direction：360°

Hardness Scale：HL、HB、HRB、HRC、HRA、HV、HS

Display: segment LCD

Data memory: max. 100 groups（relative to impact times 32～1）

Working voltage: 3V（2 AA size alkaline battery）(Not Included）

Continuous working period: about 100 hours（With backlight off）

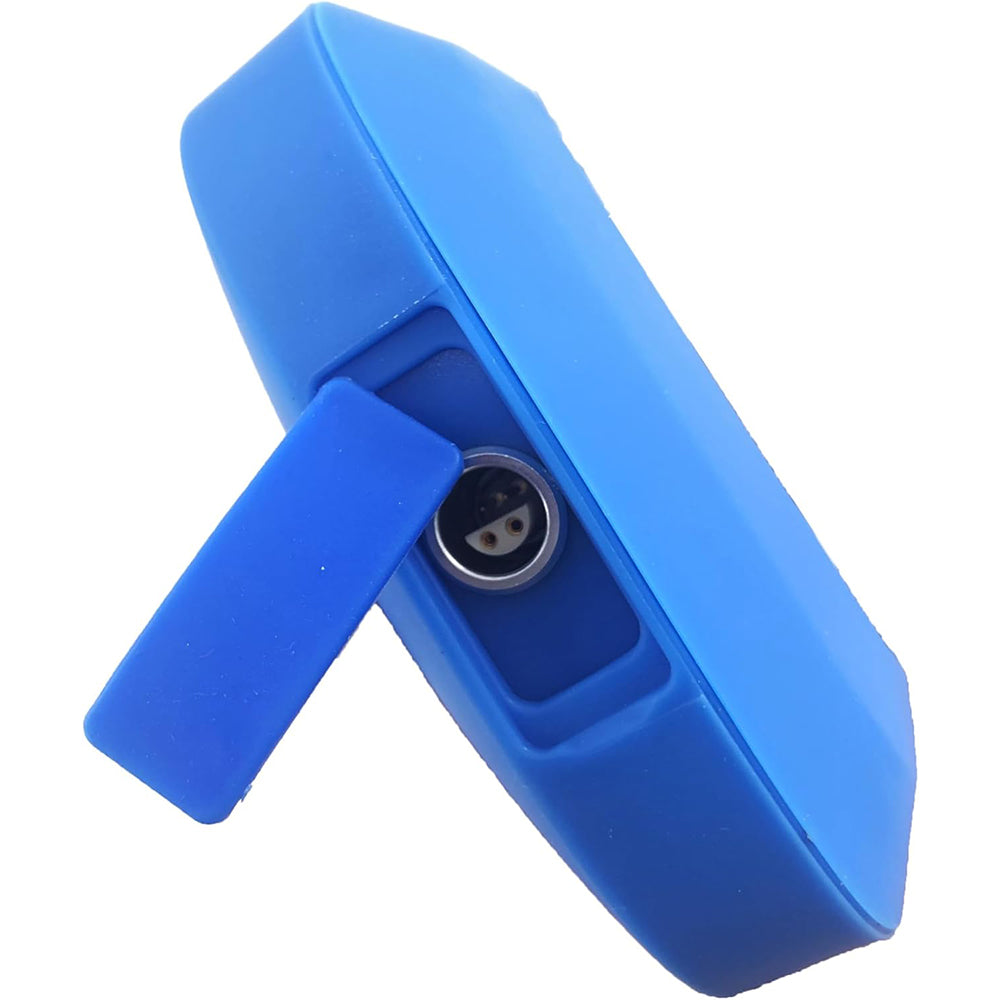

Communication interface: RS232

Rapid testing in large range and multi-measuring areas for large-scale work piece Configuration:

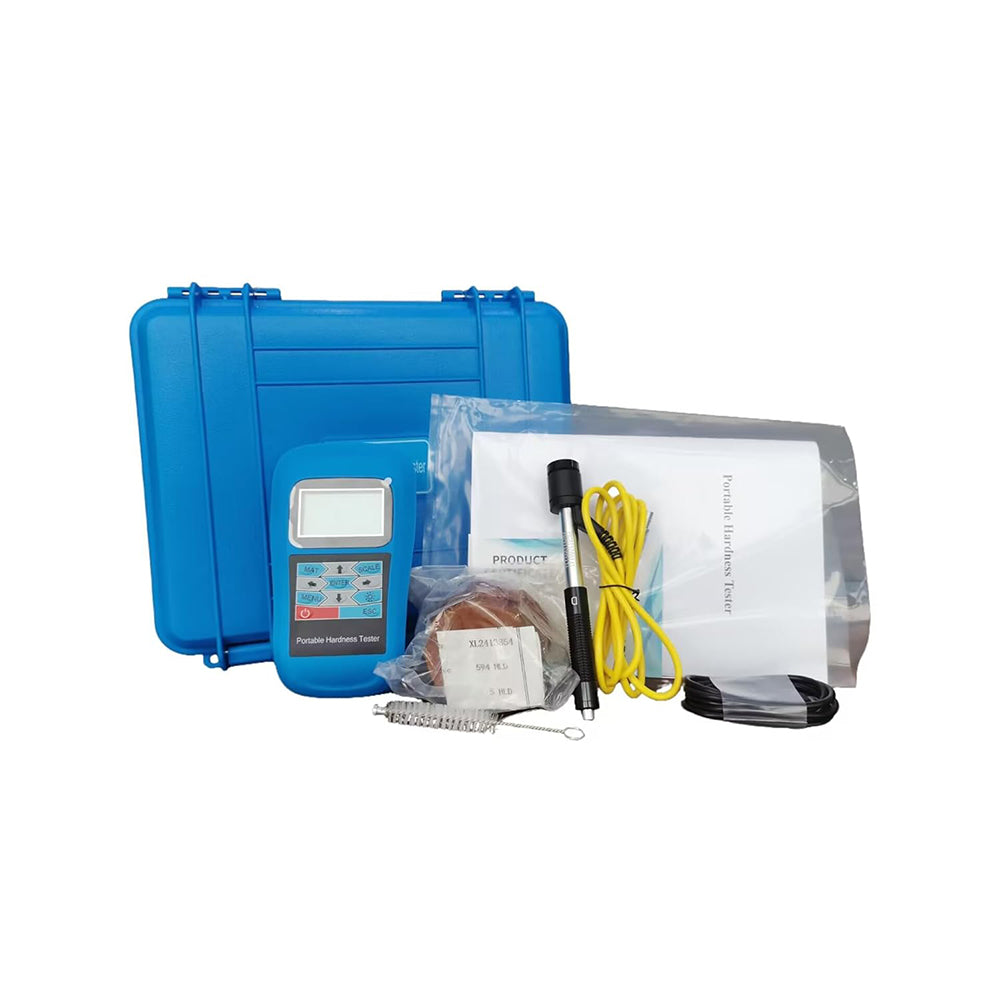

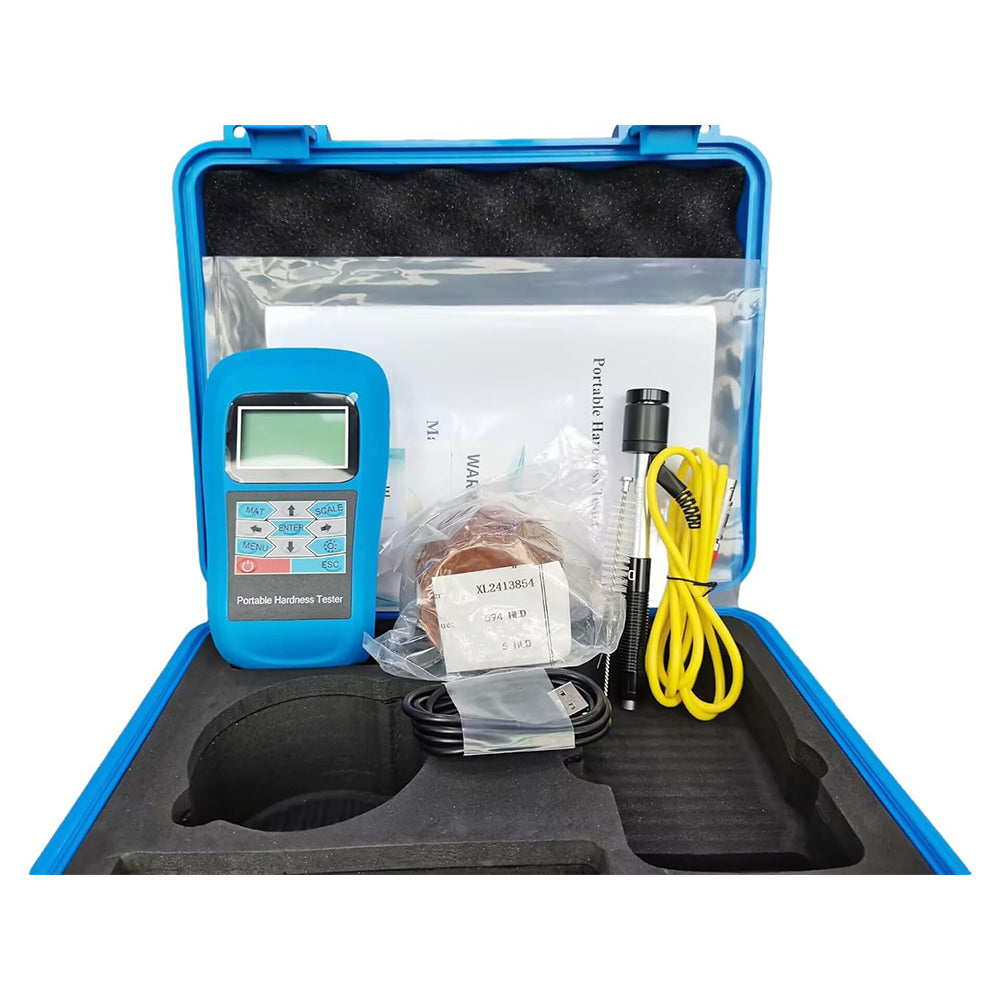

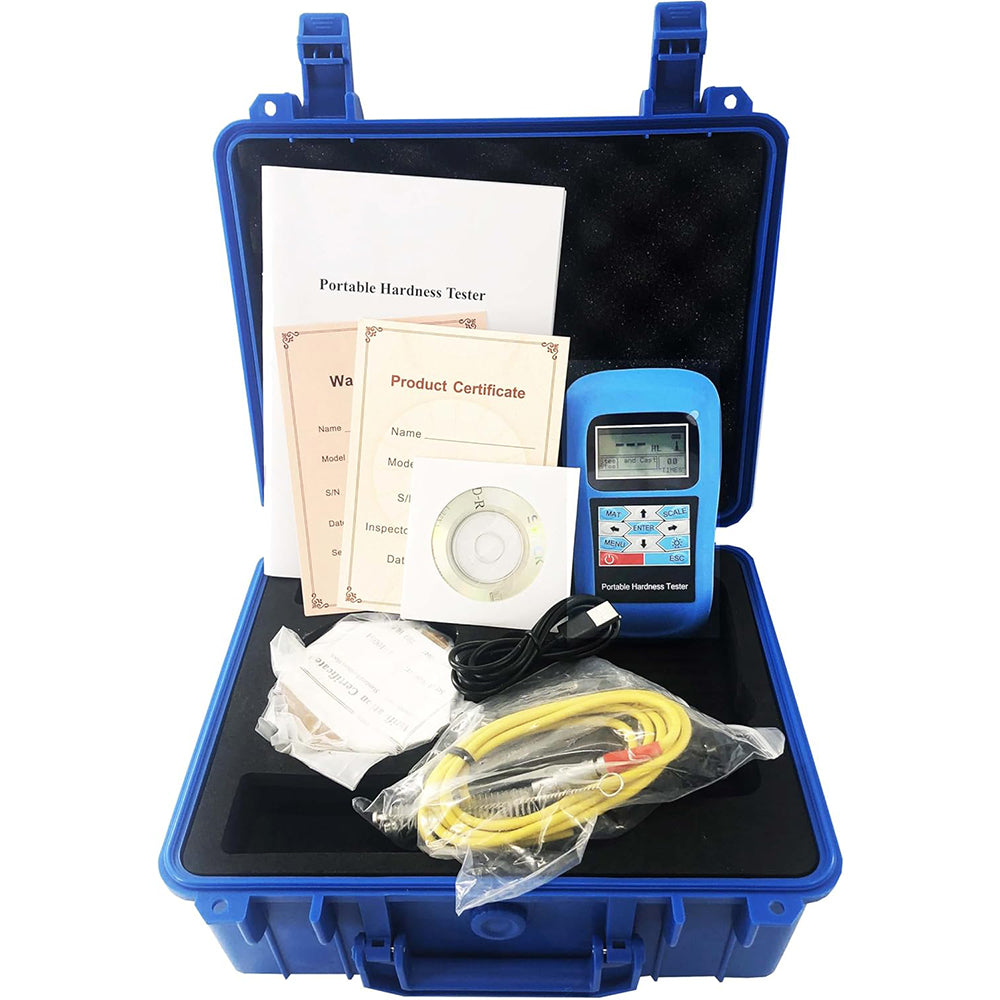

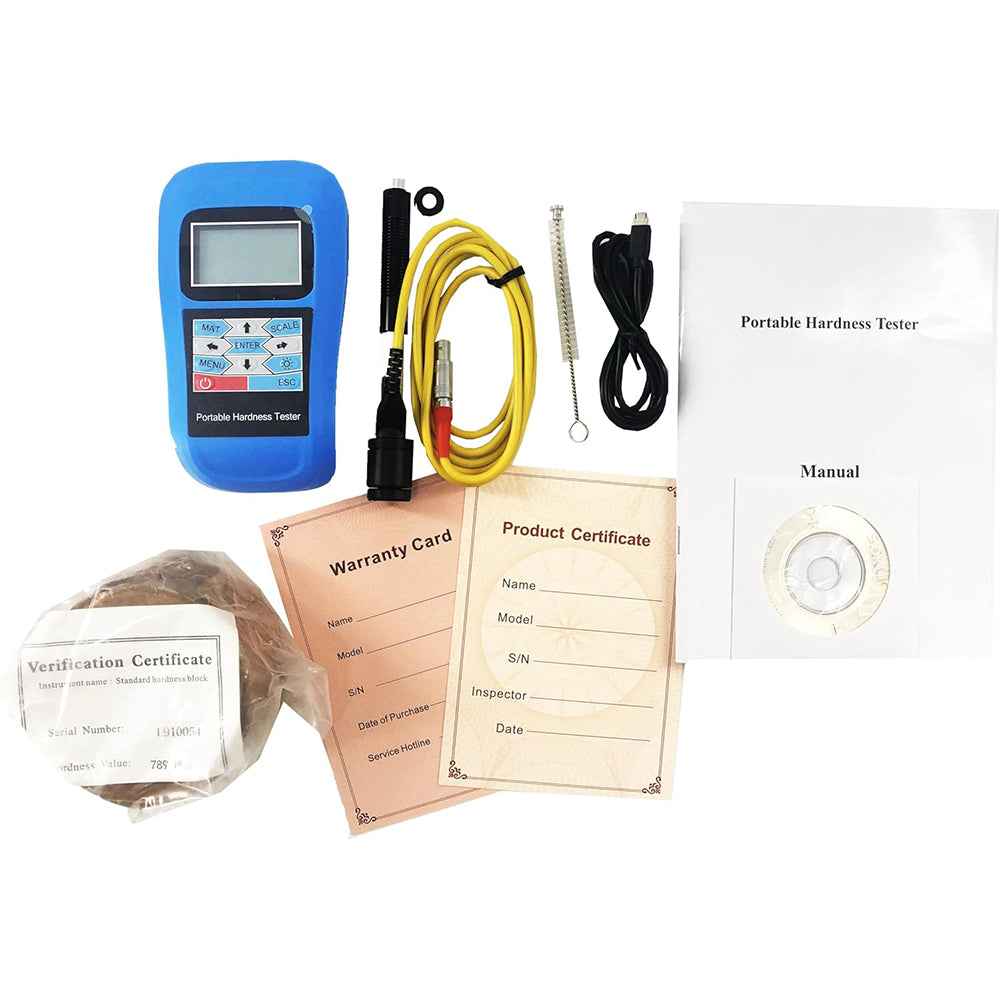

Standard Configuration:

Main unit 1

Standard test block 1

Cleaning brush (I) 1

Small support ring 1

Manual 1

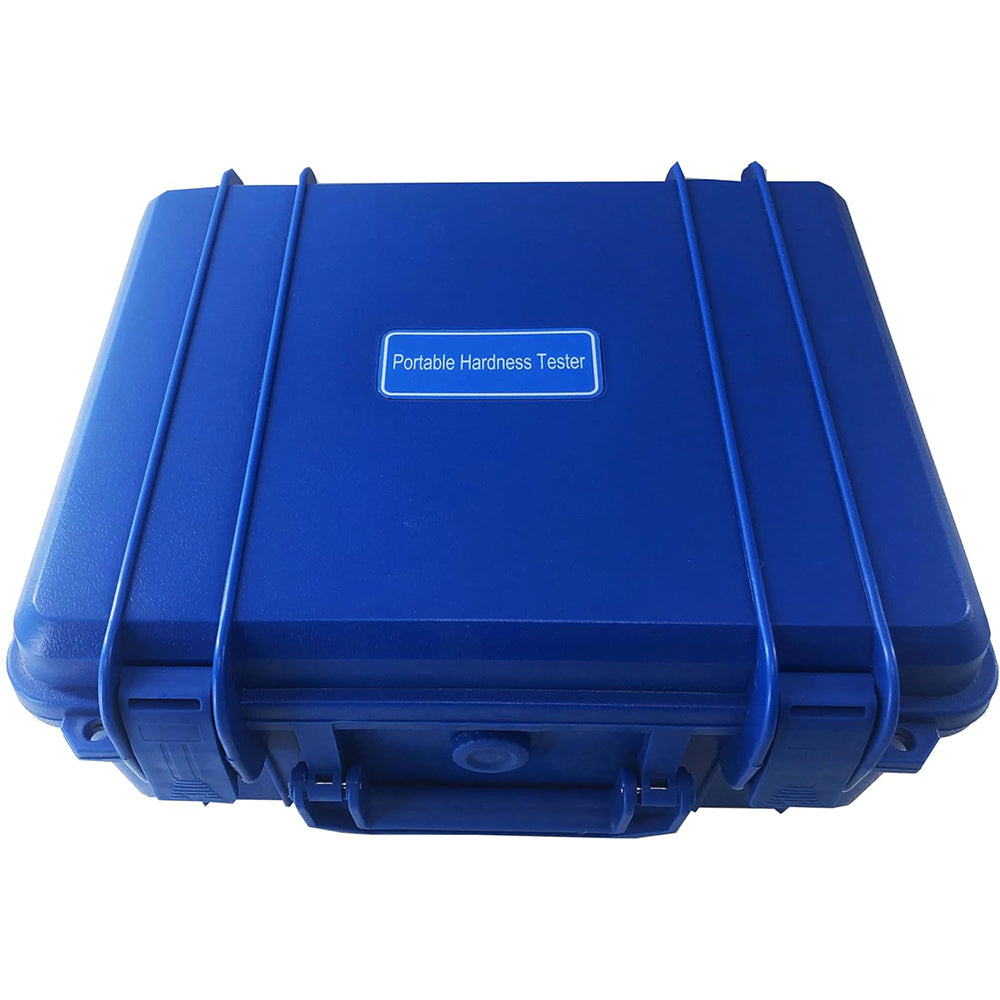

Instrument package case 1

Optional Configuration（not included）

Cleaning brush (II) 1 For use with G type impact device

Other type of impact devices and support rings Refer to Table 3 and Table 4 in the appendix

DataPro software 1

Communication cable 1

Micro Printer 1

Print cable 1
