About this item

◆(1)Shore E Hardness Tester is small in size, light in weight ,easy to carry out for fieldwork if needed.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.

◆(2)The Measurement Range is 10~90HE,Display Range0~100HE,Resolution 0.1H .

◆(3)Shore E Hardness Tester is suitable for Hard Sponge, EVA materials tester; It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

◆(4)Shore E Hardness Tester Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Introduction

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Feature:

It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215

With average calculate function

Peak value deposit function

Under-voltage alarm function

Use USB data output to connect with PC.(Optional Accessories)

Provide Bluetooth data output choice.(Optional Accessories)

Specification:

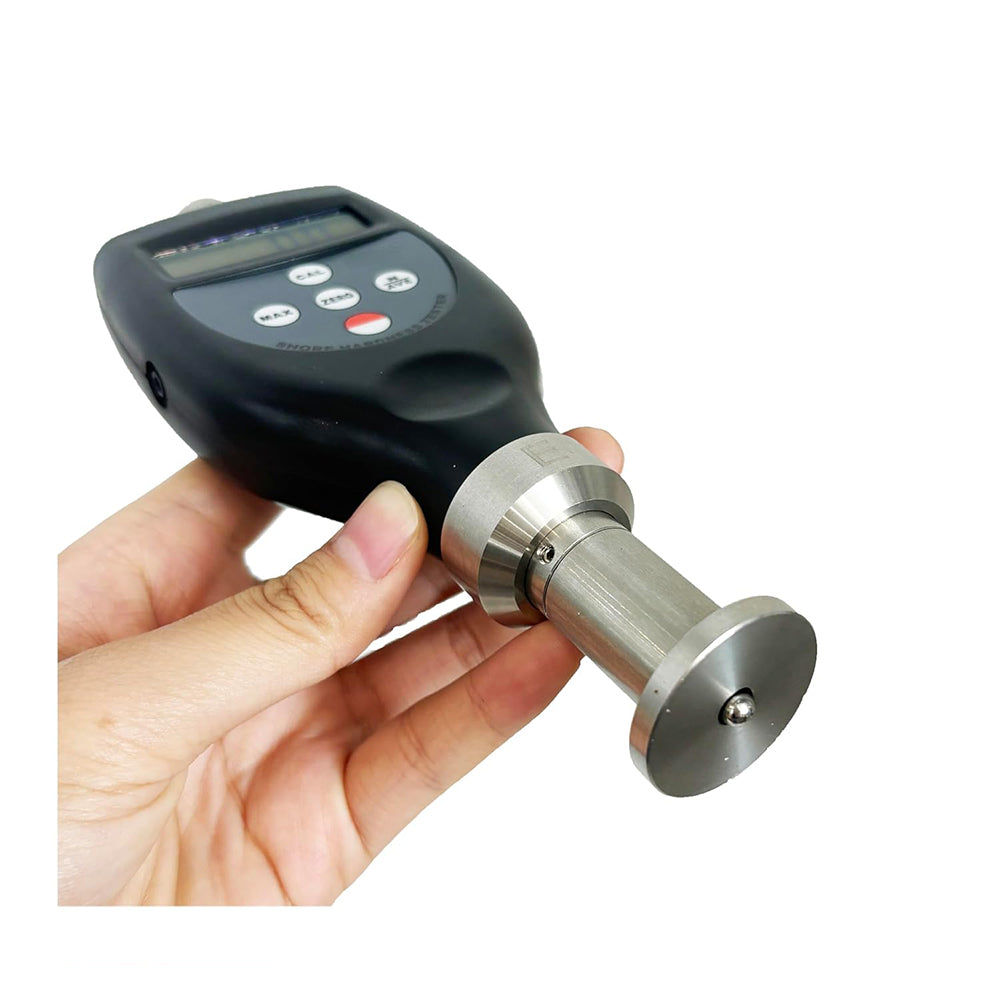

Indenter:R 2.5 Spherical Radius

Hardness Value:Above 90 DO, Below 20 D

Tested Materials:Hard Sponge, EVA

Parameters:Tested Result/Mean Value/Max.Value

Unit:HE

Display Range:0HE~100HE

Measurement Range:10HE~90HE

Accuracy:≤±1H

Resolution:0.1H

Battery Indicator:Low Battery Indicator

Auto Switch Off:√

Operating:Temperature:0ºC~50ºC;Humidity:<80%RH

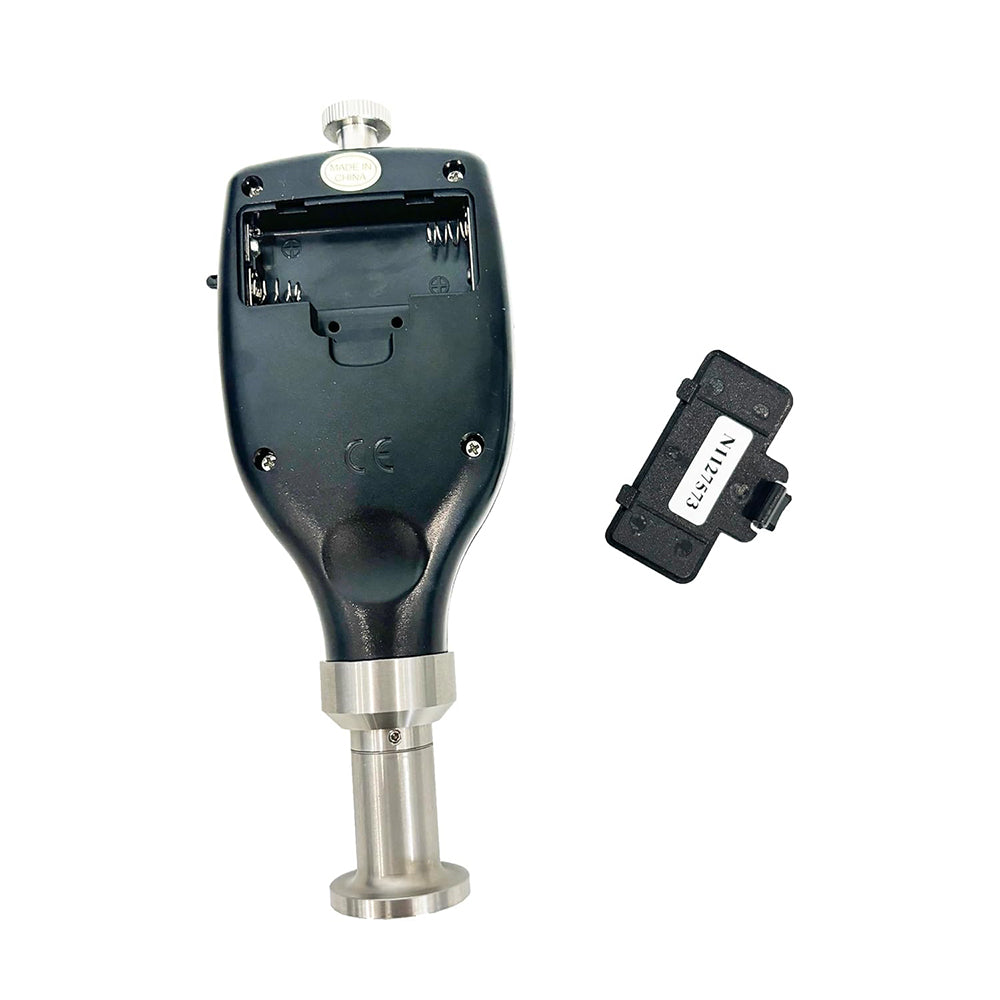

Power Supply:4x1.5V AAA(UM-4)Battery(Batteries are not included during the shipment)

Dimensions:162mmx65mmx28 mm

Weight:170g

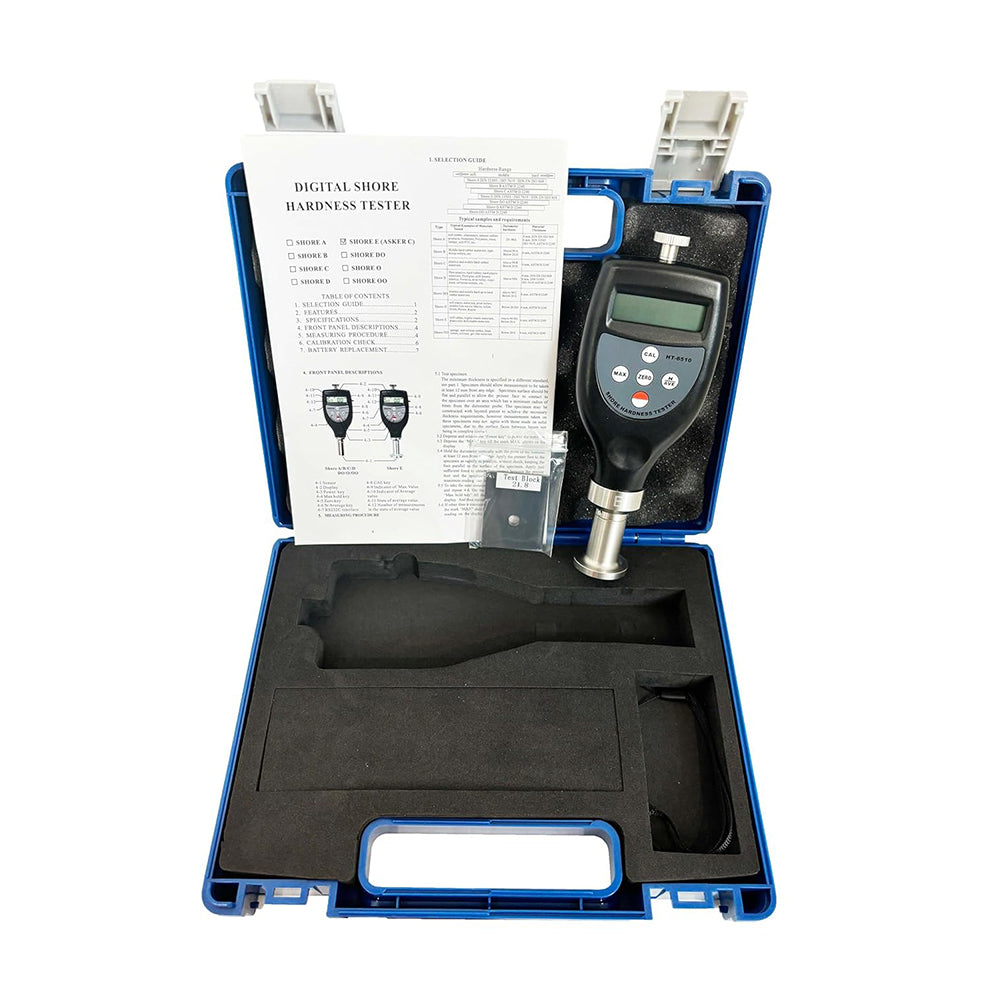

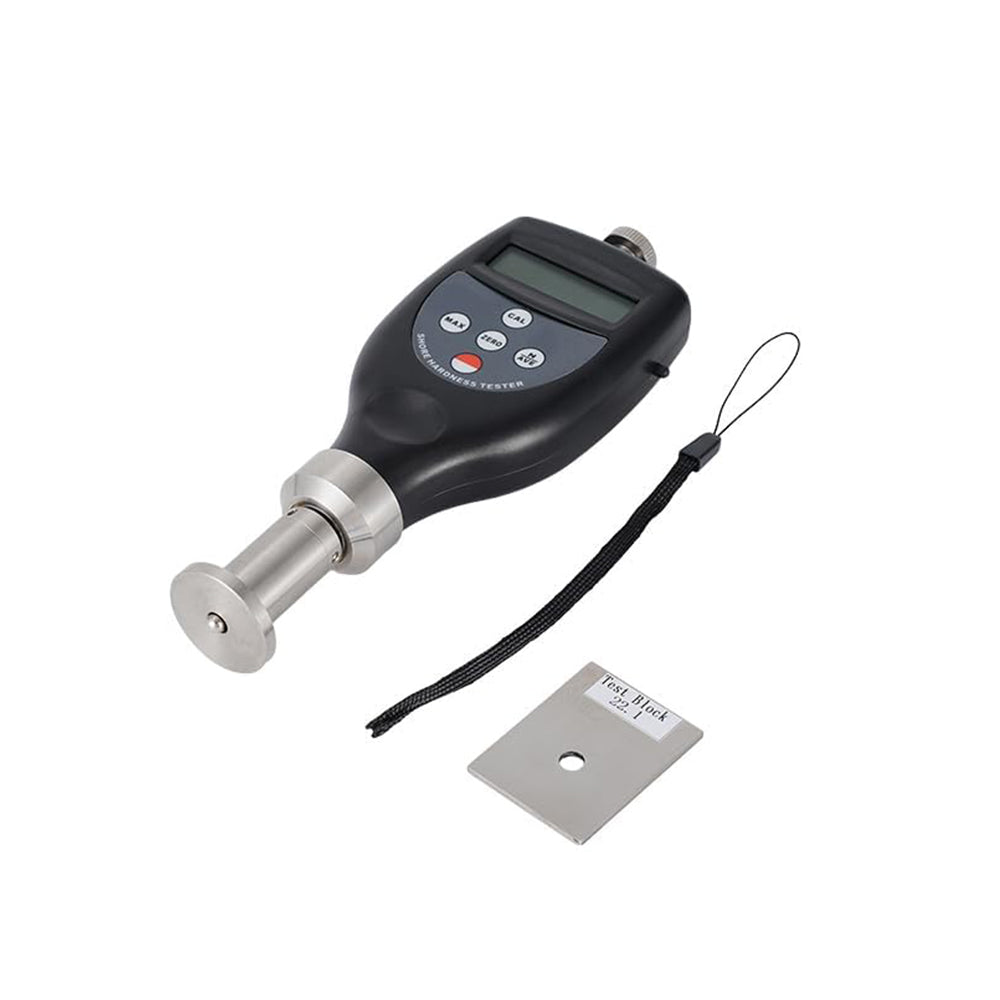

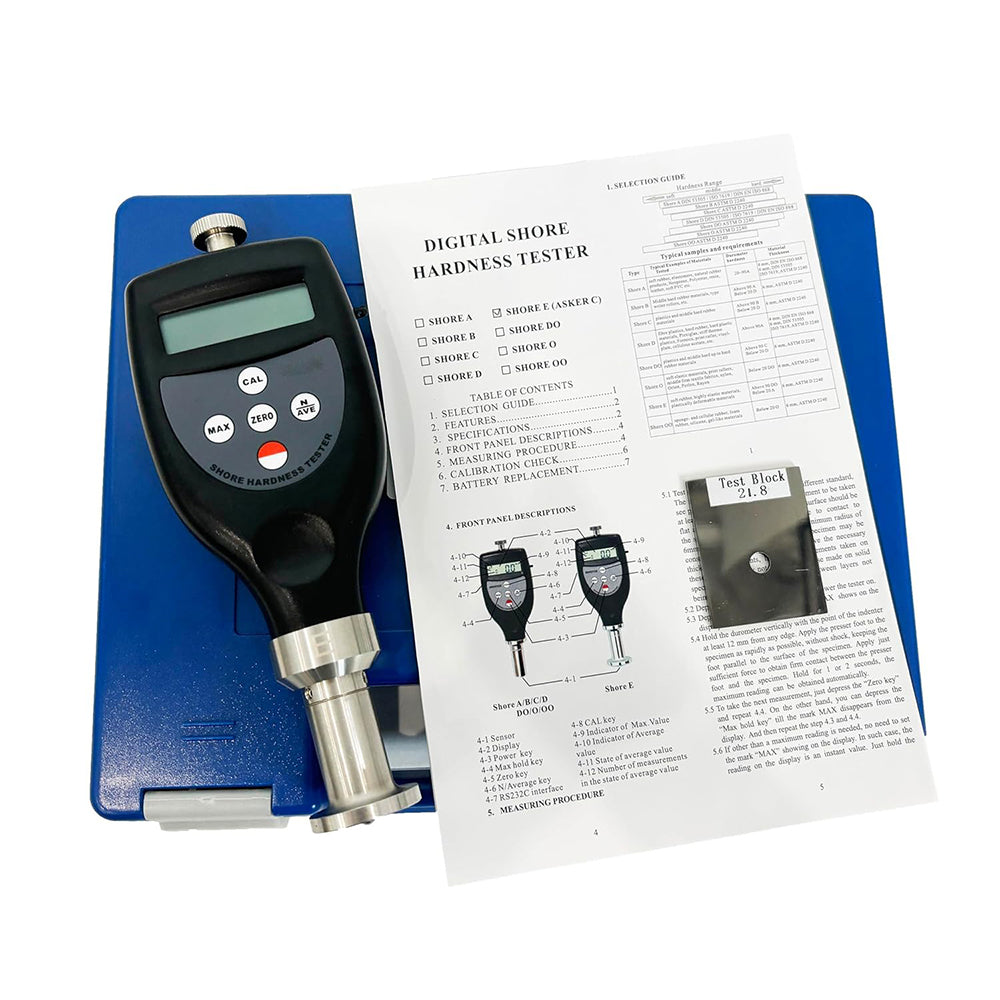

Standard Accessories:Main Unit,Pin Length Teat Block,Carrying Case(B04),Operation Manual

Optional Accessories:Shore Hardness Tester Measurement Stand,Rubber Hardness Test Block(A/D Type),USB Data Cable with Software,Bluetooth Data Adapter with Software
