  • VTSYIQI Shore F Durometer Digital Polyurethane Hardness Tester Meter with USB Data Cable and Software to Connect PC Measurement Range 10 to 90HF Resolution 0.1HF Accuracy ≤±1HF for Sponge Soft Foam Pillow Polyurethane Analysis

VTSYIQI

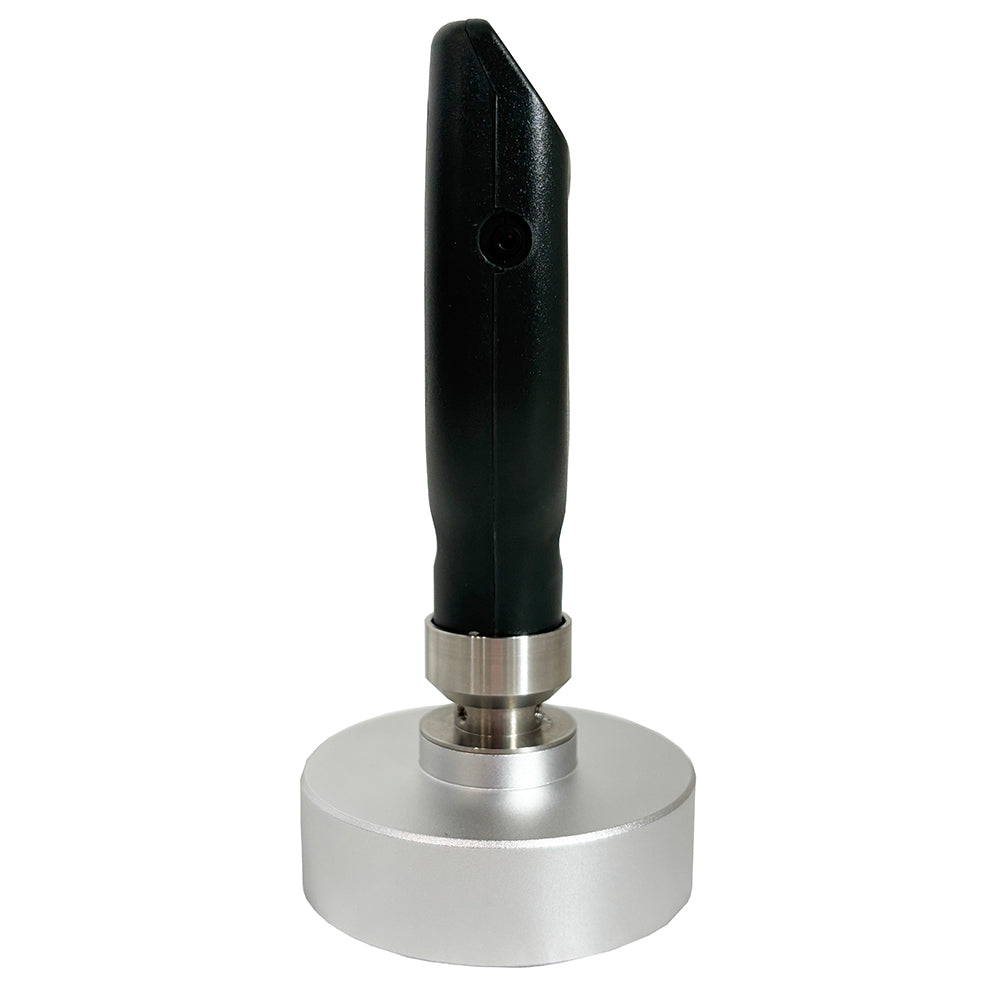

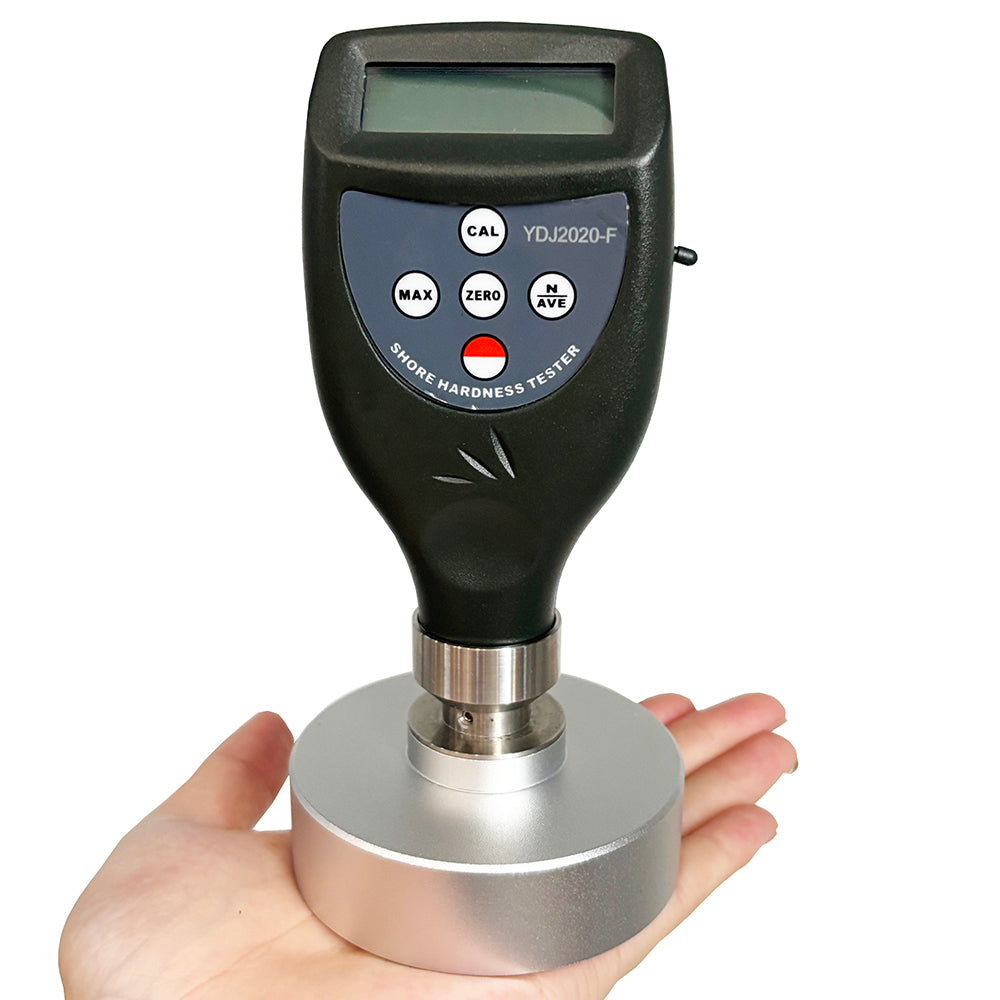

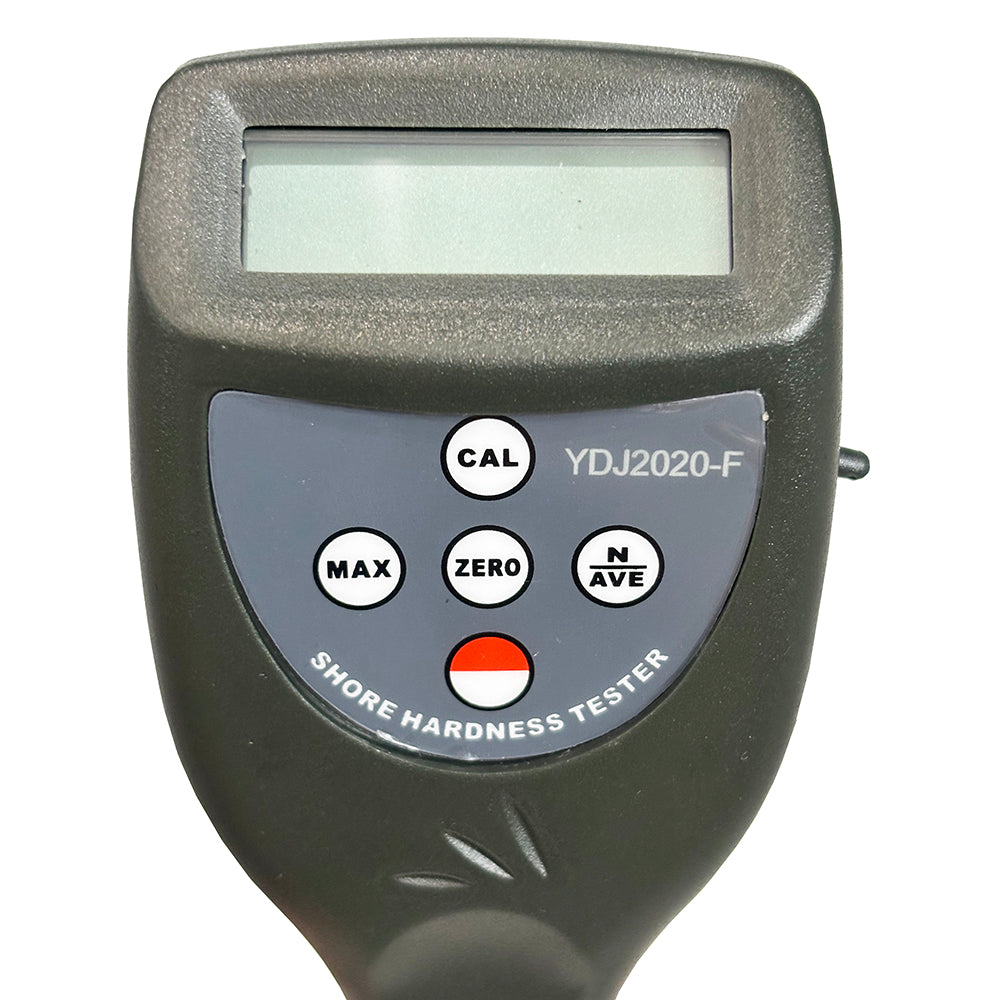

VTSYIQI Shore F Durometer Digital Polyurethane Hardness Tester Meter with USB Data Cable and Software to Connect PC Measurement Range 10 to 90HF Resolution 0.1HF Accuracy ≤±1HF for Sponge Soft Foam Pillow Polyurethane Analysis

$38500
In stock
$38500

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

About this item:

It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.

Display Range 0~100HF； Measurement Range 10~90HF

Resolution 0.1HF ；Accuracy ≤±1HF

The Shore F hardness tester is used to measure soft materials such as sponges. It is specially used to determine the hardness of soft foam materials, dolls, pillows and polyurethane foam rubber products.

Spring Force：455gf ；Sensor Head Diameter：25mm ；Sensor Foot Diamter：80mm

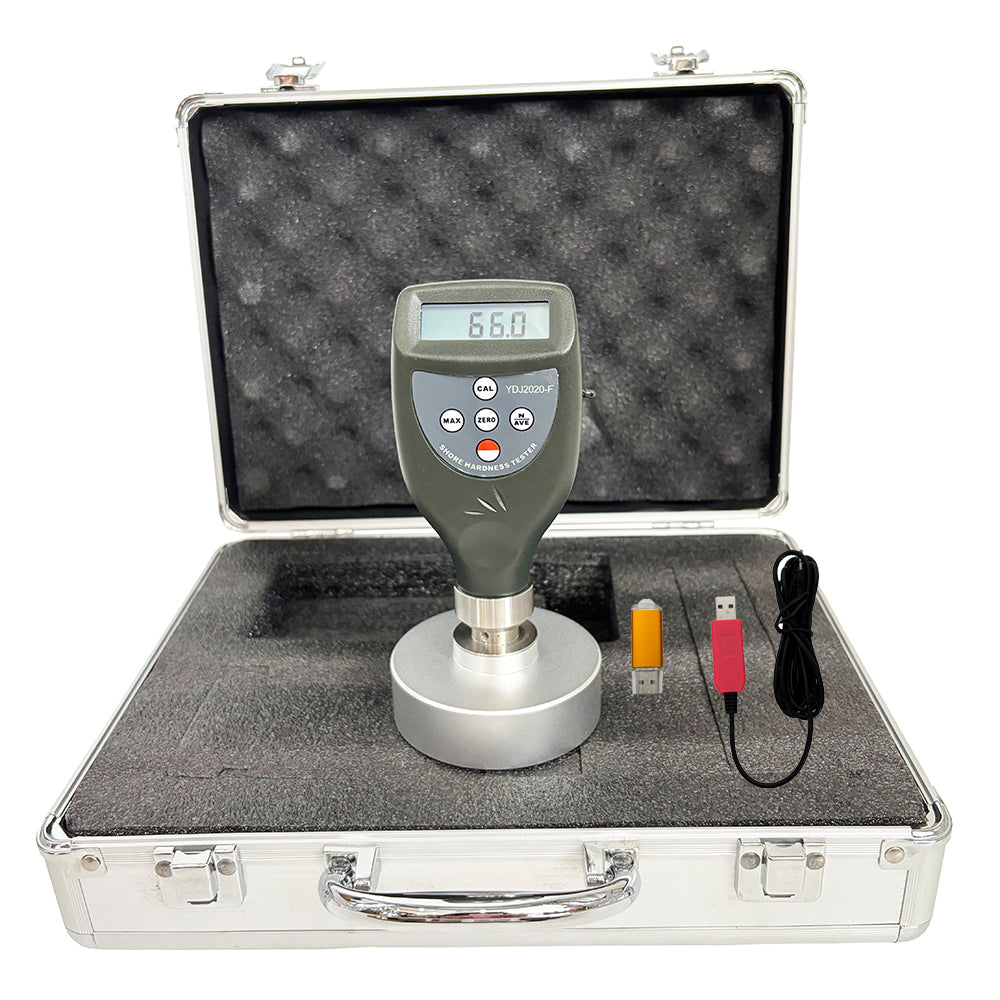

Please note that The package included Shore F Hardness Tester & USB Data Cable and Software.

 Introduction:

The Shore F hardness tester is used to measure soft materials such as sponges. It is specially used to determine the hardness of soft foam materials, dolls, pillows and polyurethane foam rubber products.

Technical specifications

Parameters : Tested Result/Mean Value/Max.Value

Display Range : 0~100HF

Measurement Range : 10~90HF

Resolution : 0.1HF

Accuracy : ≤±1HF

Spring Force : 455gf

Sensor Head Diameter : 25mm

Sensor Foot Diamter : 80mm

Battery Indicator : Low Battery Indicator

Auto Switch Off : √

Operating Conditions : Temp:0~40ºC Humidity:10~90%RH

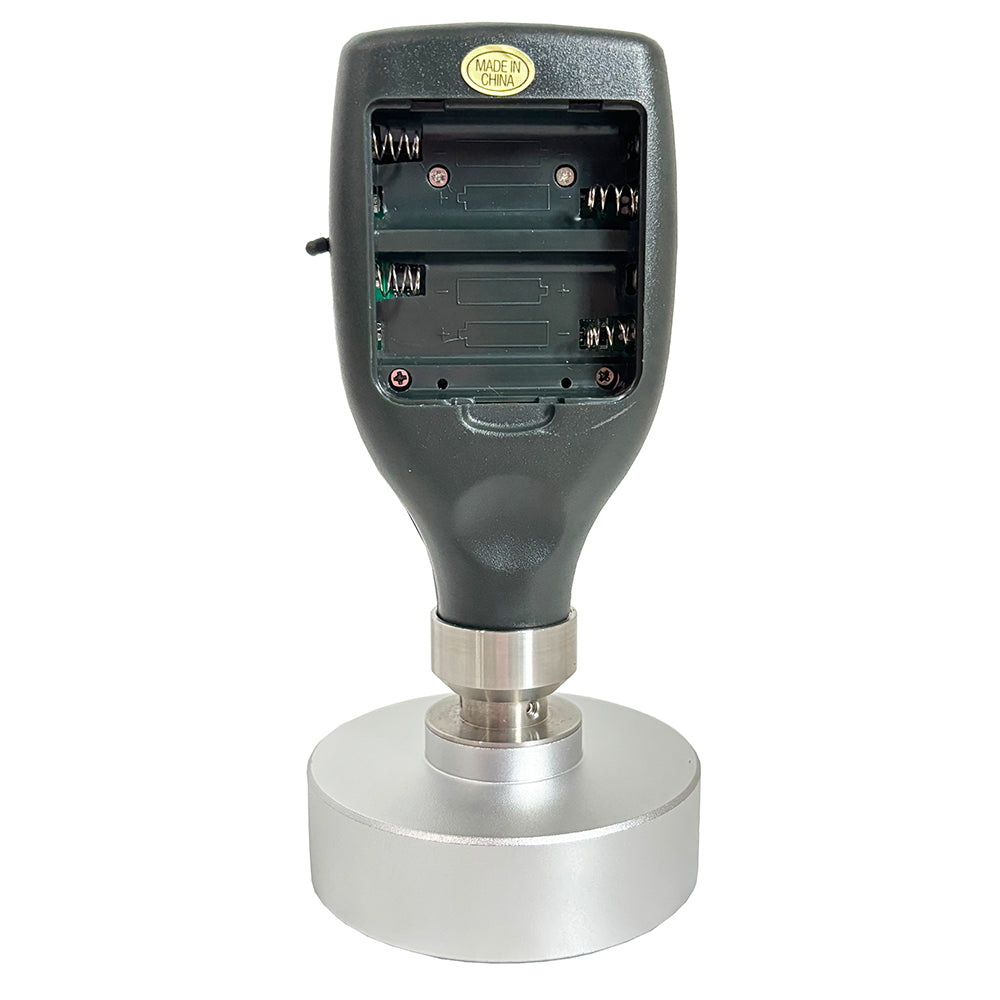

Power Supply : 4x1.5V AAA Size(UM-4)Battery(Batteries are not included during the shipment)

Dimensions : 162x80x80mm(6.4x3.1x3.1 inch)

Weight : 490g

Accessories :

Standard : Main Unit

Carrying Case(B04)

Operation Manual

Data Cable
