About this item

DC brushless motor, stable performance, maintenance-free; Low noise, long service life, low-speed smooth, high-speed strong;

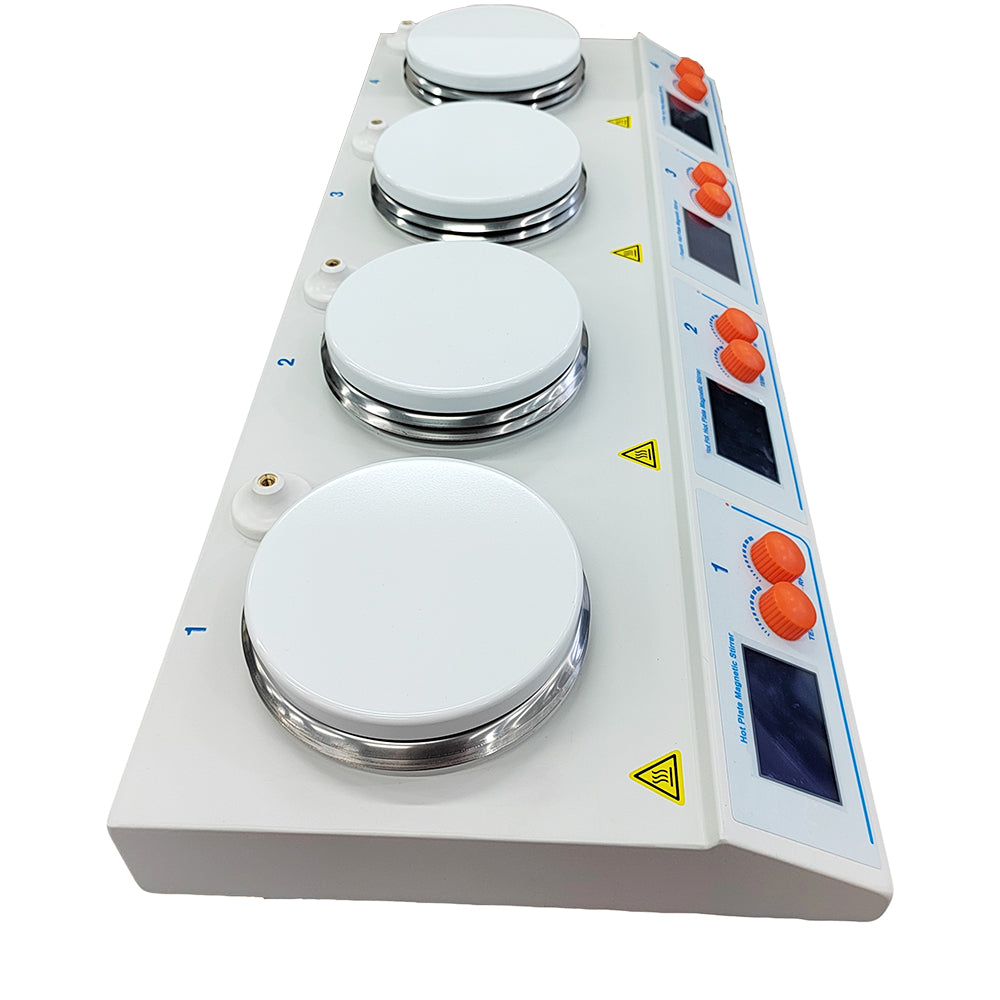

＜30°bevelled control panel is suitable for sitting and standing view; LCD digital display function, display heating temperature, stirring speed, convenient for experimental operation;

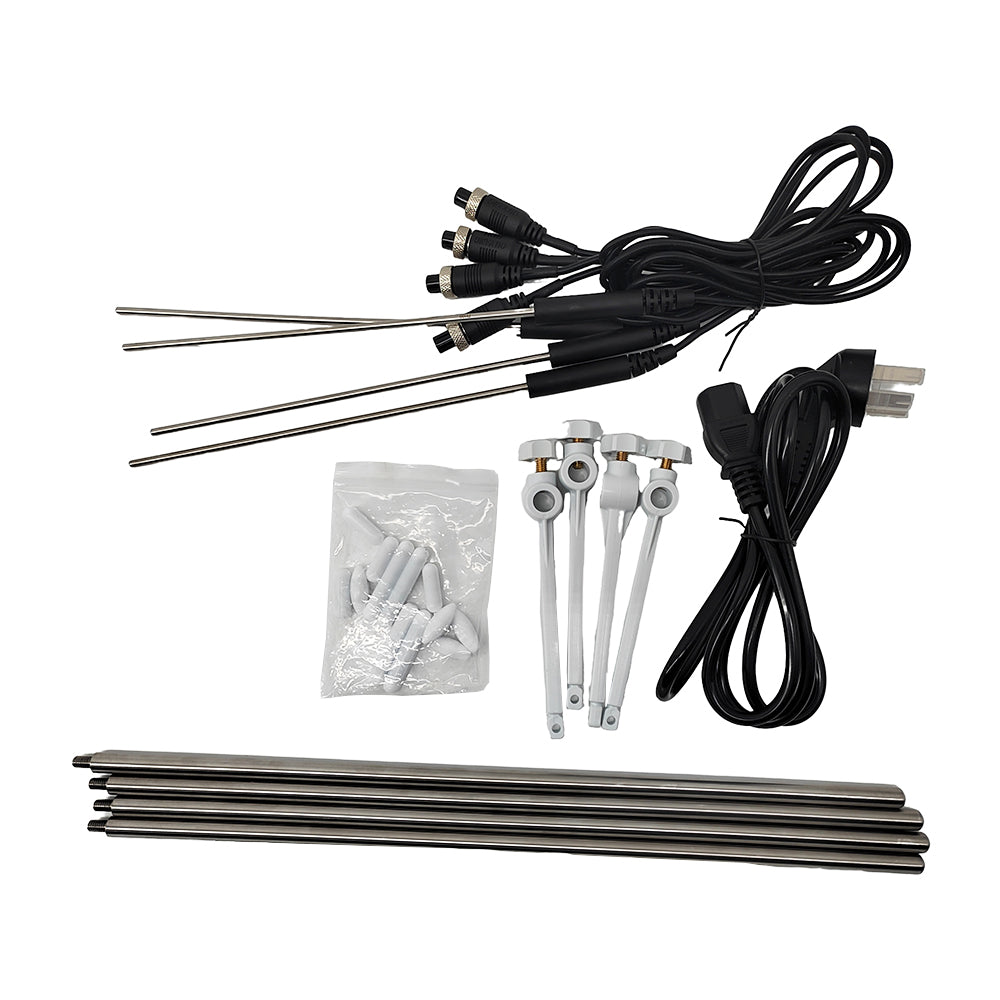

PT100 temperature sensor, achieving ±1 temperature precision control;

Rotary adjustment switch button, waterproof design, high safety factor;

Independent control for each station, can stir up to 4 stations of different samples;

Aluminium die-casting ceramic coated heating surface corrosion resistance, surface temperature up to 320 ℃; subject to corrosion;

Temperature control using PID control algorithms, self-tuning function, with high measurement accuracy, small flushing temperature;

Shell using metal plate stamping and shaping injection moulding shell, high temperature resistance, anti-corrosion, and good insulation properties.

Application：

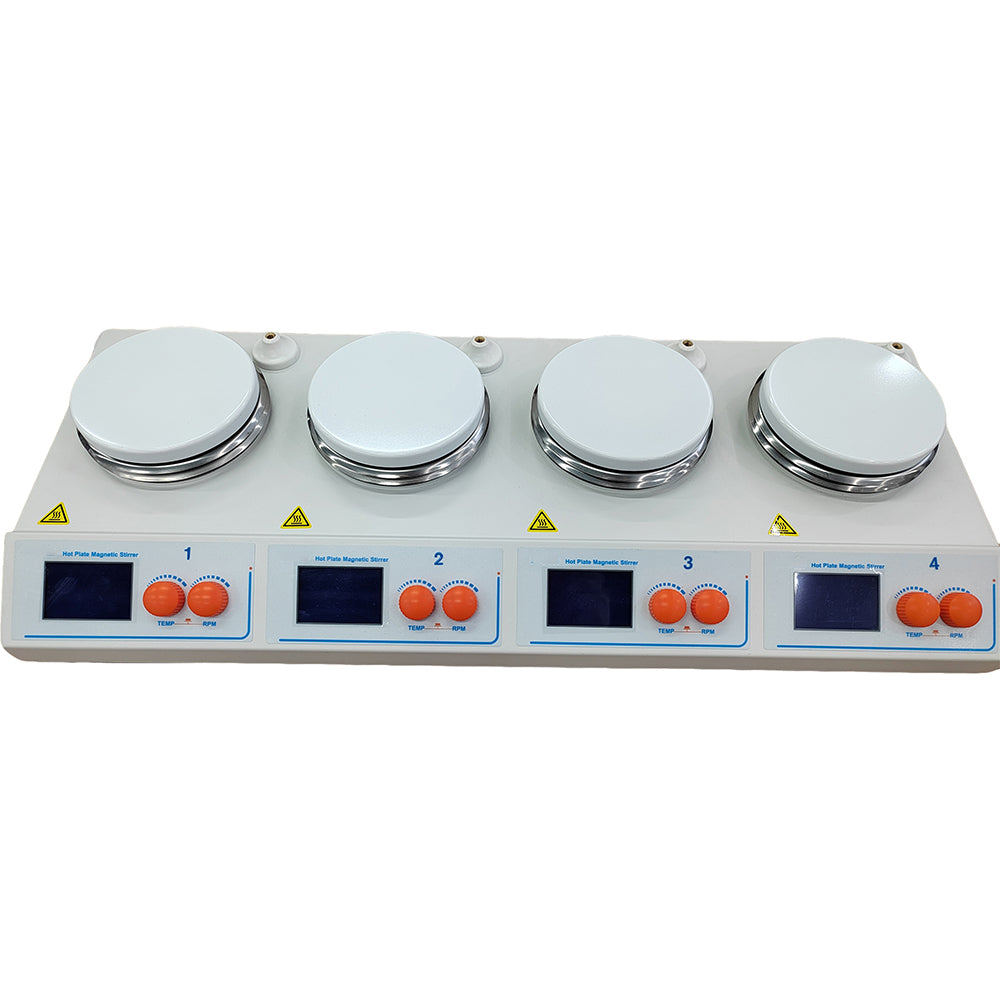

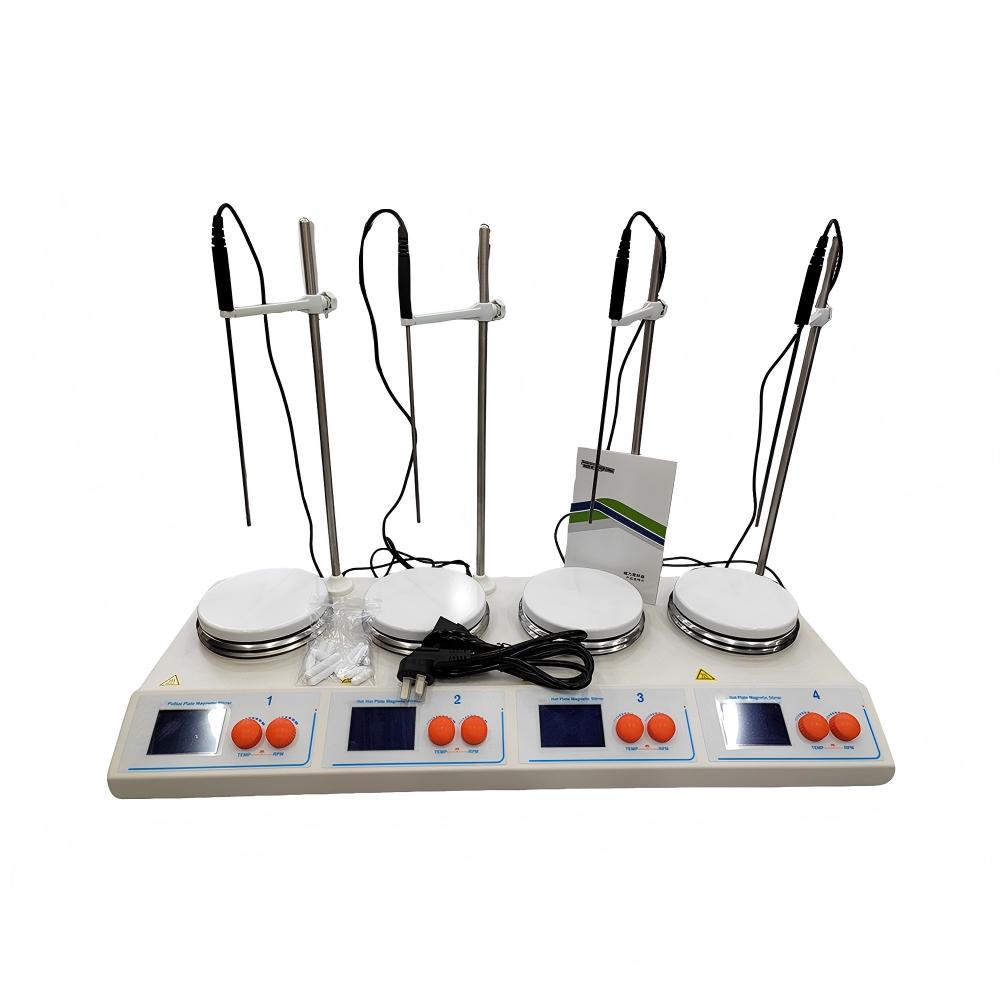

The heating type multi position magnetic stirrer has novel and beautiful appearance design, fast heating, large heating area and uniform heating; it is widely used in medical, petroleum, chemical, and other fields. Waiting for a good helper in the experiment.

Main Features：

DC brushless motor, stable performance, maintenance-free;

Low noise, long service life, low-speed smooth, high-speed strong;

＜30°bevelled control panel is suitable for sitting and standing view;

PT100 temperature sensor, achieving ±1 temperature precision control;

Rotary adjustment switch button, waterproof design, high safety factor;

Independent control for each station, can stir up to 4 stations of different samples;

Aluminium die-casting ceramic coated heating surface corrosion resistance, surface temperature up to 320 ℃; subject to corrosion;

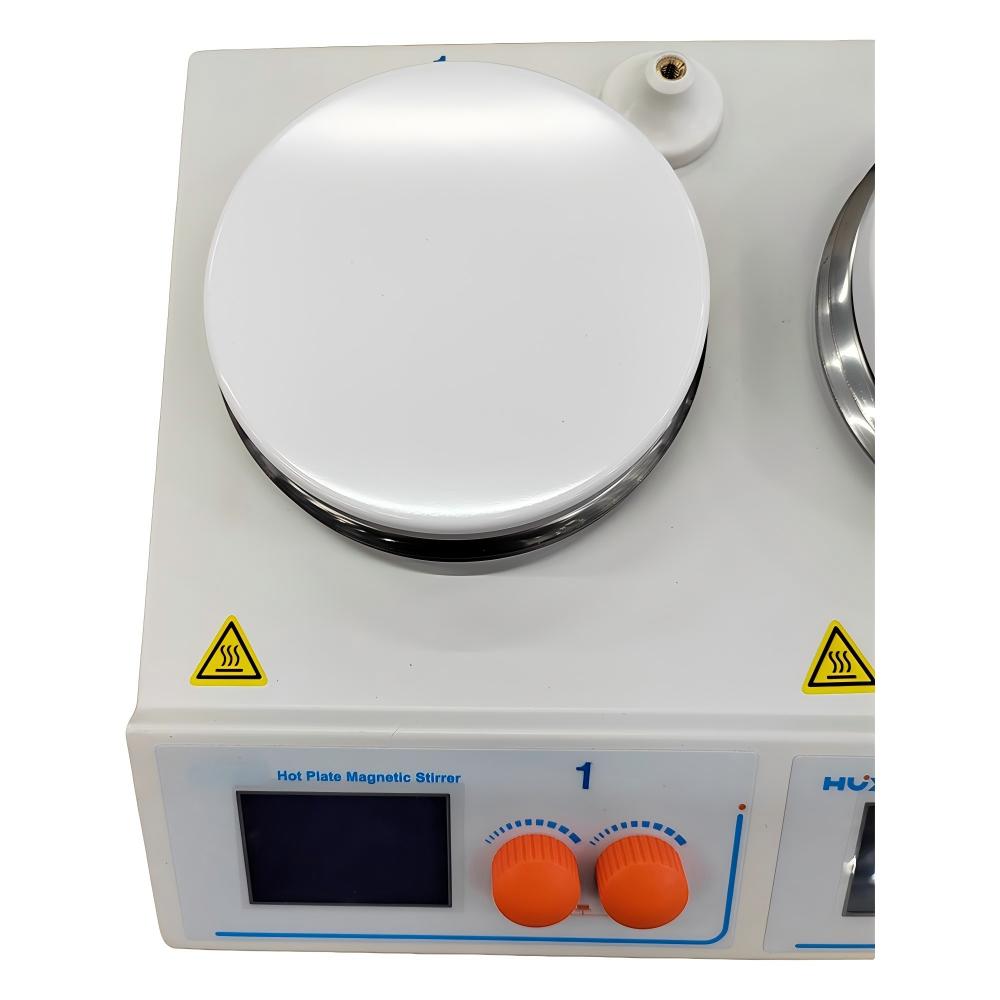

LCD digital display function, display heating temperature, stirring speed, convenient for experimental operation;

Temperature control using PID control algorithms, self-tuning function, with high measurement accuracy, small flushing temperature;

Shell using metal plate stamping and shaping injection moulding shell, high temperature resistance, anti-corrosion, and good insulation properties.

Technical Parameters：

Stirring points: 4

Noise level(dB): ≤27

Display mode: LCD

Display function: Temperature speed

Control mode: Independent operation

Arrangement: Single Row1*4

Speed Range(rpm): 50~2000

Temperature control(℃): RT+5~160

Temperature accuracy(℃): ±1

Working plate diameter(mm): 135

Working point distance(mm): 42~175

Stirring bars(mm): A type 9*25*4+C type 7*25*4+C type 8*45*4

Single position capacity(L): 10

Single position power (W): 10

Single position heating power(W): 350

Allowable ambient temperature(℃): 5-40

Allowable ambient humidity(%): 80

Instrument Size(mm): 713*290*110

Packing dimension(mm): 820*395*220

Instrument NW(kg): 10

Packing GW(kg): 14.5
