About this item

Motor：Brushless Motor

Horizontal gyration amplitude：3mm

RPM range：100~1600rpm

Sample capacity: 4 microplates

Time setting range: 99h59min

Introducing:

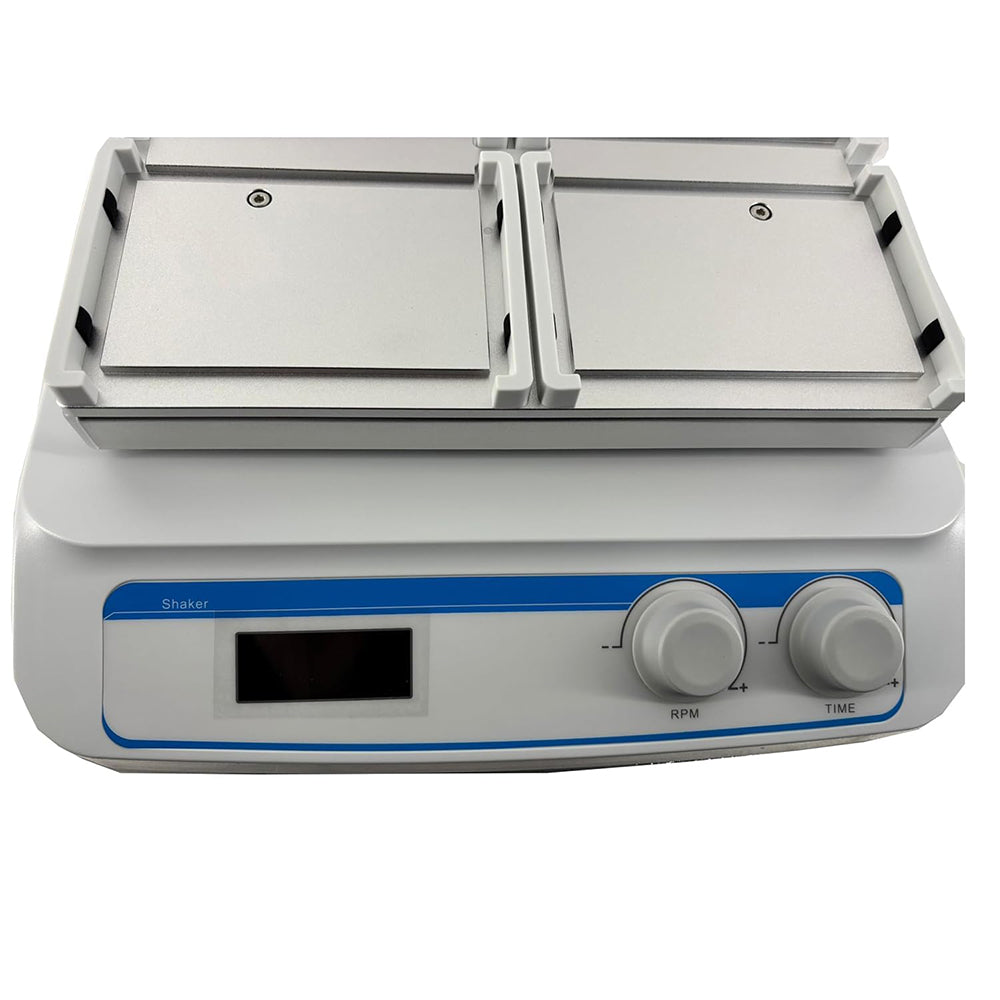

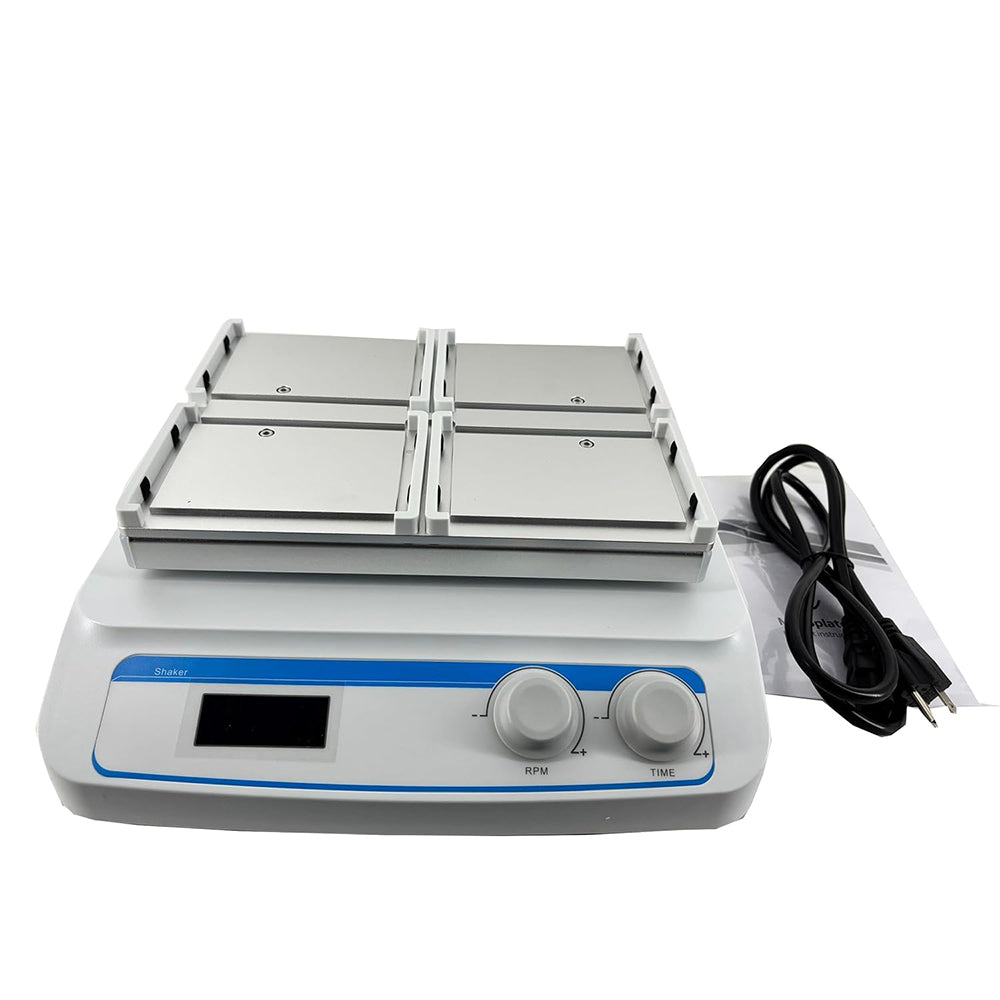

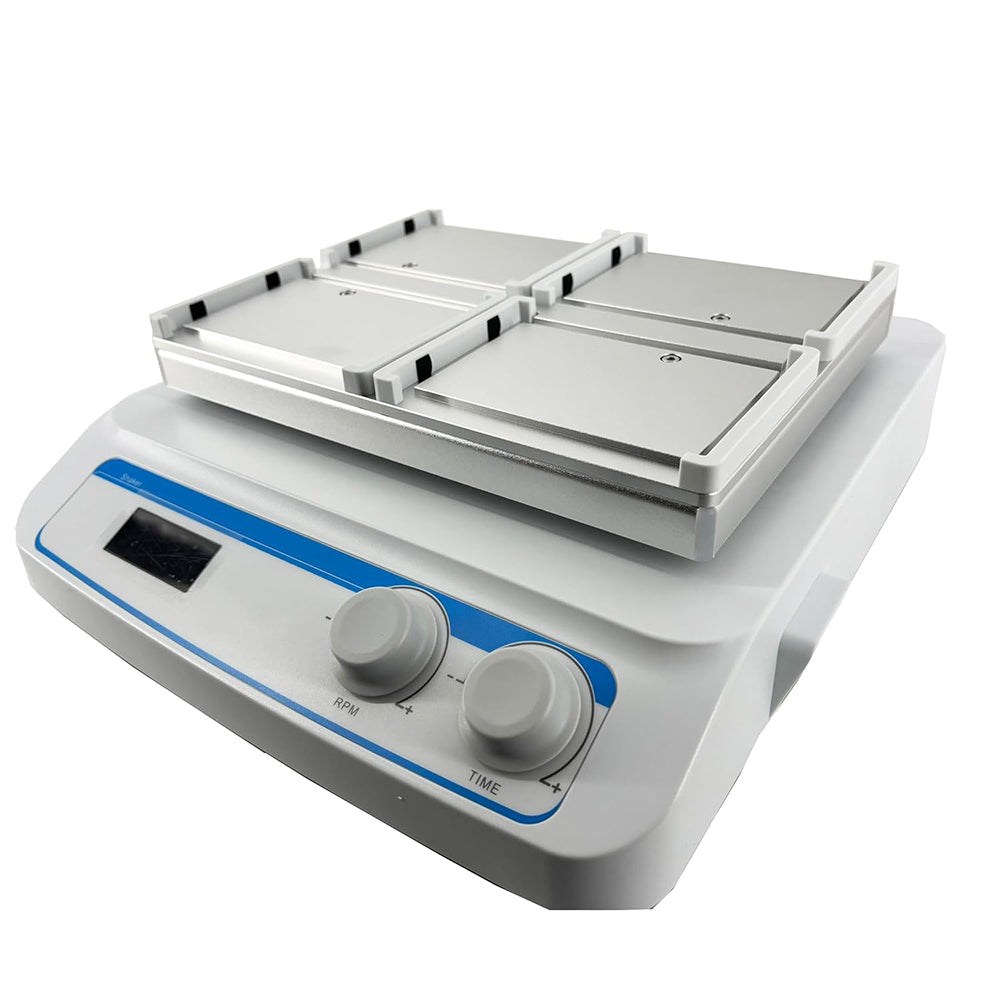

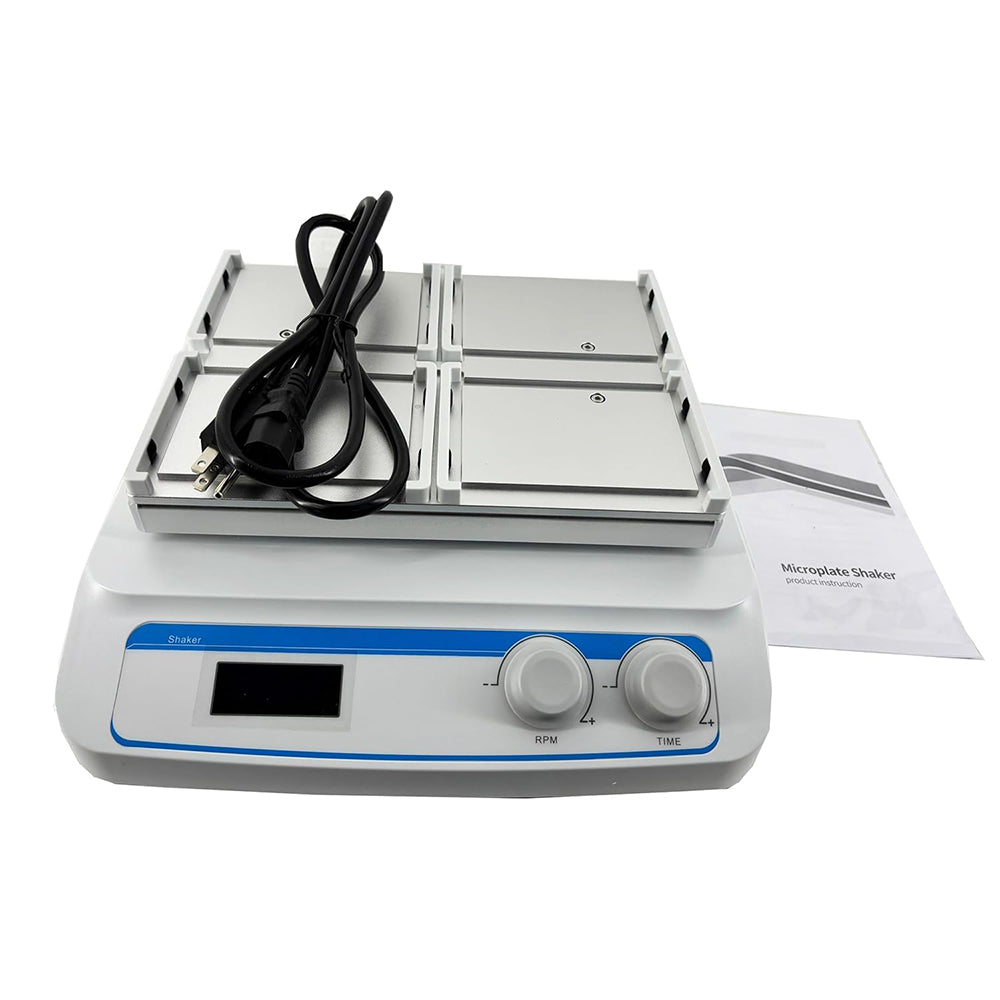

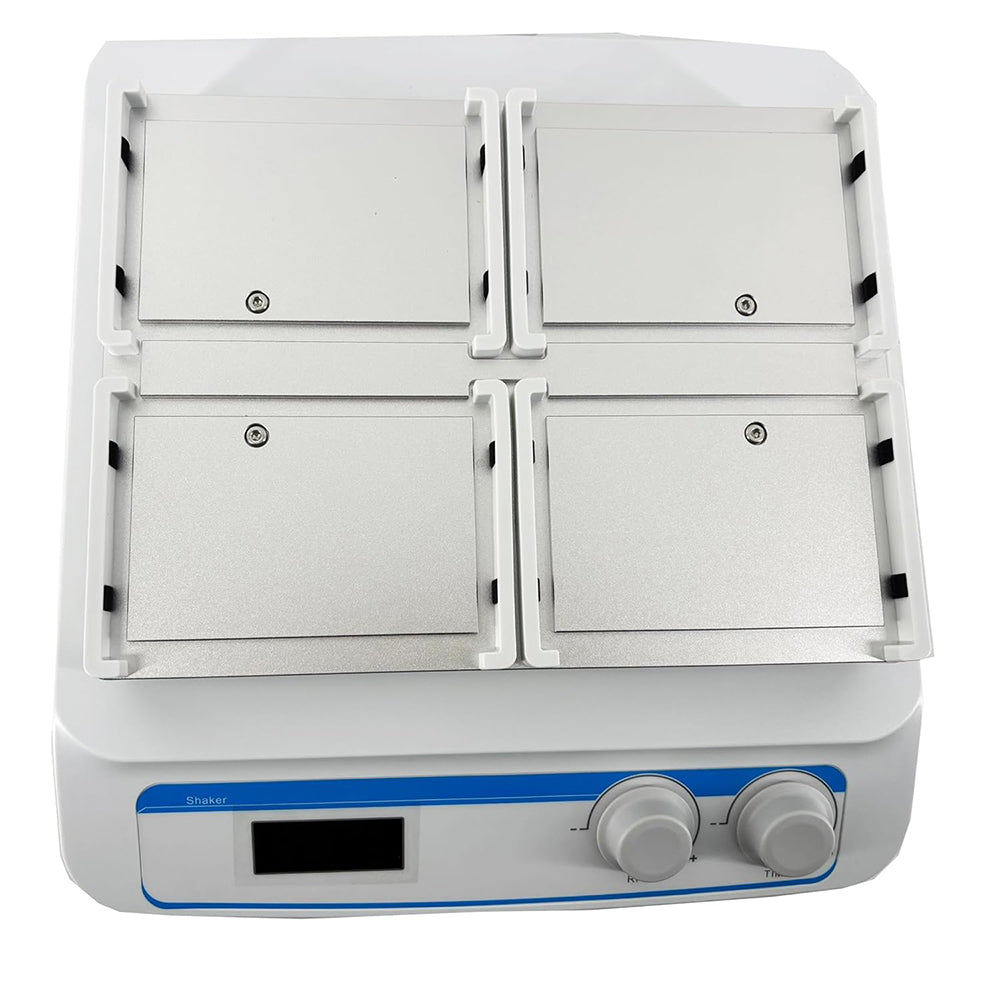

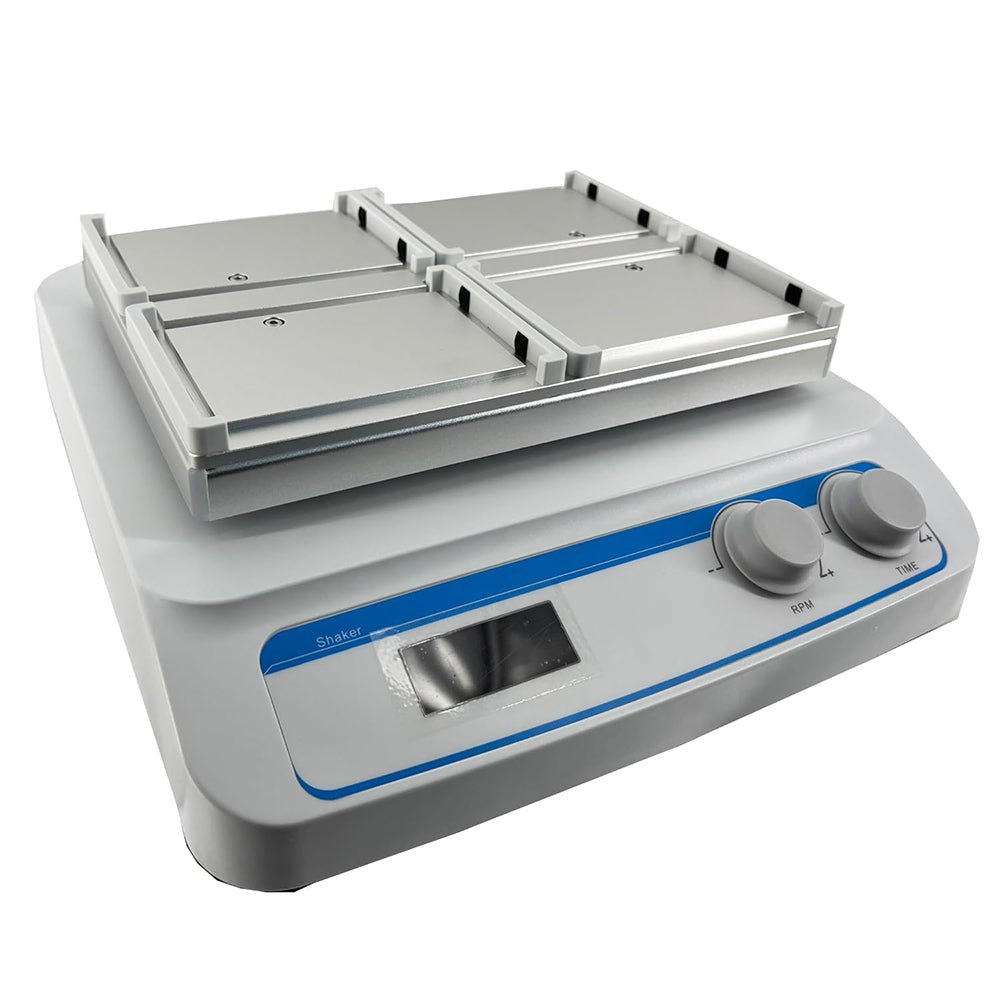

Microplate Oscillator is a high speed oscillator specially designed for enzyme labeling plates and cell culture plates by combining DC brushless motor and microcomputer. The one-button operation mode makes it very convenient for users to set the parameters, simple and easy to use. It is capable of loading up to 4 pieces of enzyme plates (96 wells/384 wells), cell culture plates (24 wells, 48 wells, 96 wells) and other samples at a time.

Product Features:

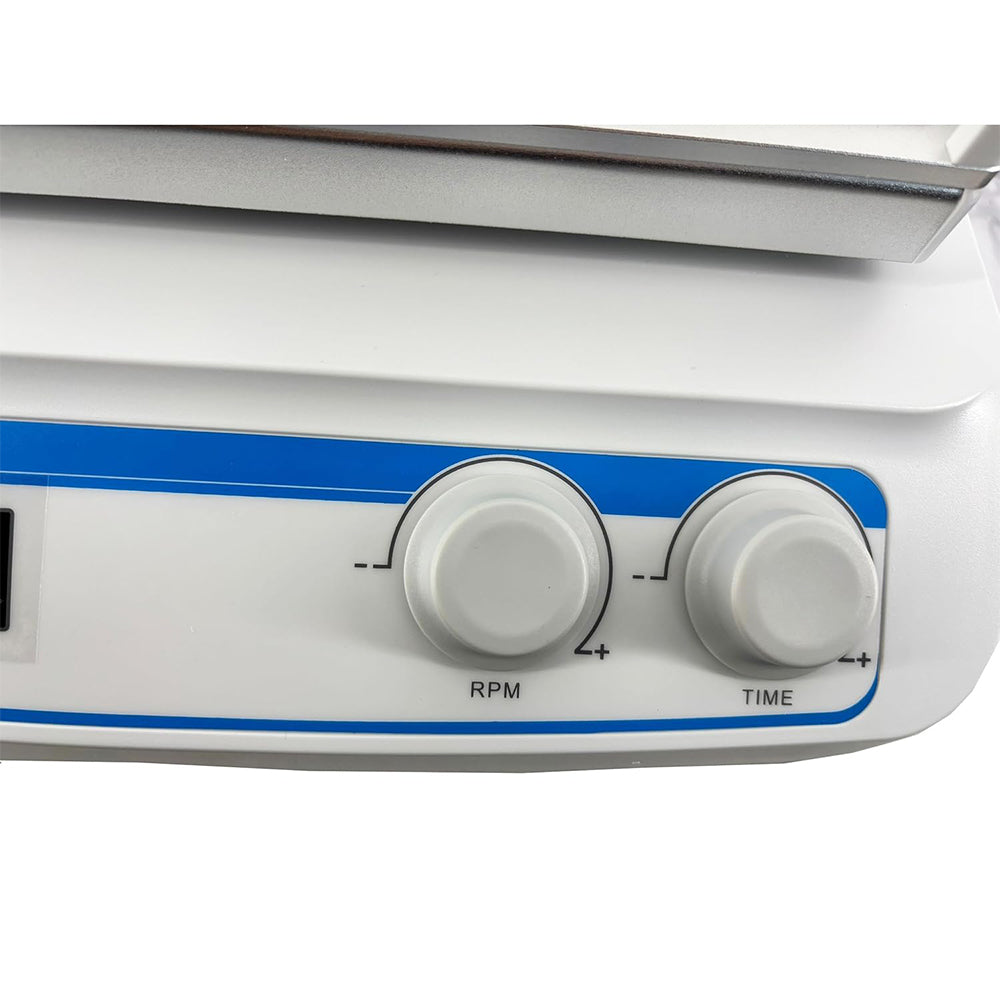

Large LCD display of timing time and rotational speed The operation interface is simple and easy to understand;

Locking operation mode to prevent misoperation;

DC brushless motor drive, low noise, accurate speed, long life, maintenance-free;

Soft start, accelerate evenly, effectively avoid sample splash;

Molded shell to prevent accidental outflow of acid and alkali solutions on the machine damage, and very easy to clean and clean;

Optional RS232 interface, through the RS232 interface to connect to the computer, you can realize the parameters of the instrument set on the computer and the real-time display of the work curve.

Technical parameters

Oscillation mode: rotary

Temperature setting: no

Temperature resolution: no

Power: 35W

Amplitude: 3mm

Speed range: 100~1600rpm

Sample capacity: 4 microplates

Motor type: DC brushless motor

Motor input power: 35w

Motor output power: 25w

Speed display: LCD

Timing display: LCD

Time setting range: 99h59min

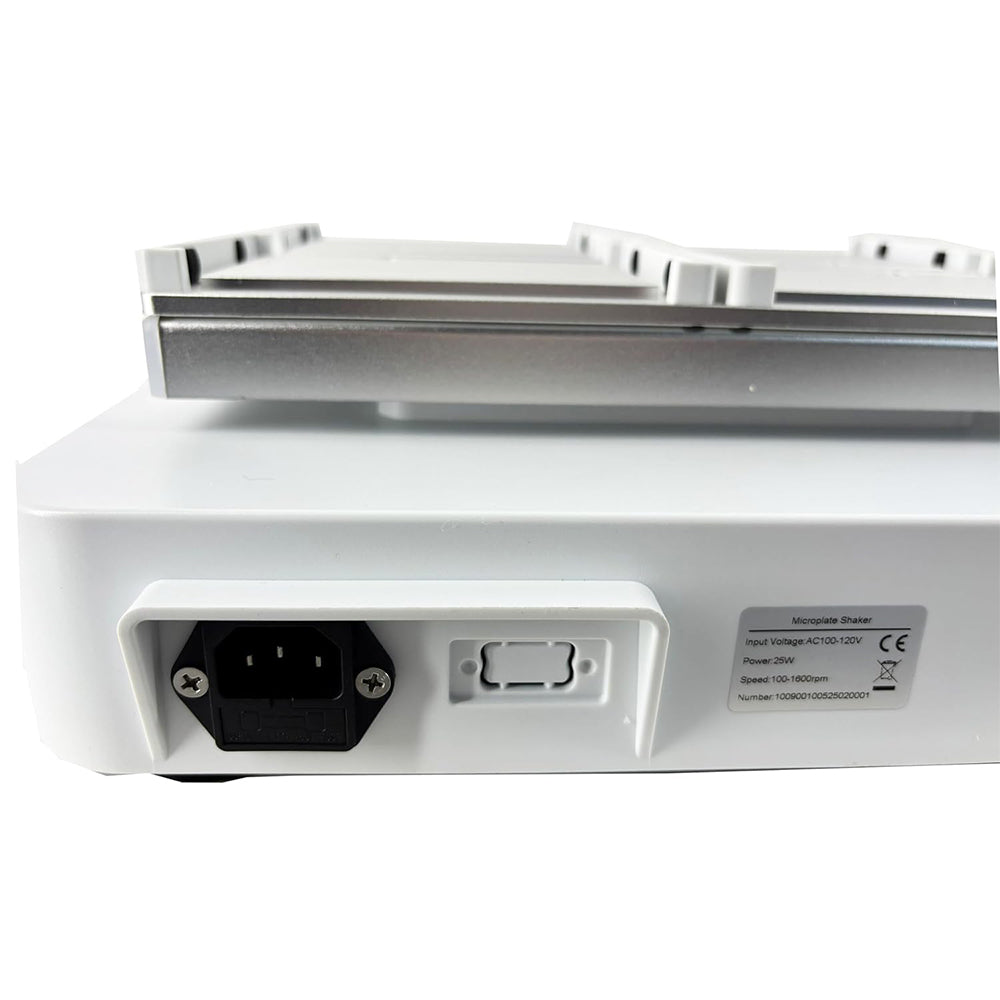

Power supply: 100~240V,50/60Hz

Shell protection grade: IP21

Allowable ambient temperature/humidity: 5~40℃, 80%.

Data interface: RS232 optional

Instrument size (L*W*H): 330*370*130mm
