VTSYIQI Integrated Rebar Locator Concrete Rebar Scanner Rebar Finder with Distance Accuracy ±1mm Rebar Diameter Setting Range φ6mm~φ50mm Protective Layer Thickness Calibration Range 0 ~ ±50 mm The Maximum Error ±1mm Reverse Compensation

About this item
◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;
◆Two-dimensional l◆◆a◆◆s◆◆e◆◆r positioning, real-time display of rebar position and adjacent rebar center line
◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;
◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.
◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;
◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation;
◆Data can be exported from a USB flash drive

Product features:
◆Measure the thickness of the concrete protective layer
◆Positioning of reinforcement
◆Estimated rebar diameter
◆Test rebar spacing, display rebar grid distribution,
◆Detection of magnetic and electrical conductors in non-magnetic and non-conductive media.

Technical features:
◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;
◆Two-dimensional l◆◆a◆◆s◆◆e◆◆r positioning, real-time display of rebar position and adjacent rebar center line;
◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;
◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.
◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;
◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation;

Specification:
◆1. rebar diameter setting range: φ6mm~φ50mm
◆2. Protective layer thickness measurement (nominal) range:
The first range (nominal) range: 1mm ~ 120mm
The second range (nominal) range: 5mm ~ 210mm;
◆3. Protective layer thickness calibration range: 0 ~ ±50 mm;
◆4.Measuring range of different rebar diameters:
Range rebar diameter(mm):φ6～φ8----φ10～φ20----φ22 and abovev
Small range（mm）:1～60----1～80----1～120
wide-range（mm）:5～120----5～160----5～210
◆5.different thickness error range:
Range error range（mm）:±1----±2----±4
Small range（mm）:1～80----81～120----/
wide-range（mm）:5～80----81～120----121～210
◆6. Diameter estimation range: φ6mm~φ50mm
◆7, the maximum error of diameter estimation (mm) : ±1 mm
◆8, distance accuracy: ±1mm
◆9, scanning mode: conventional scanning, procedure scanning, grid scanning, profile scanning, fine scanning, image scanning
◆10, power supply: built-in large capacity lithium battery
◆11, operation language: Chinese and English switch
◆12, backlight brightness: 8 adjustable
◆13, theme setting: 5 kinds of theme choice
◆14, working temperature: -10℃ ~ +50℃
◆15, host volume: 219mm×92mm×106mm
◆16. Weight: 0.6kg

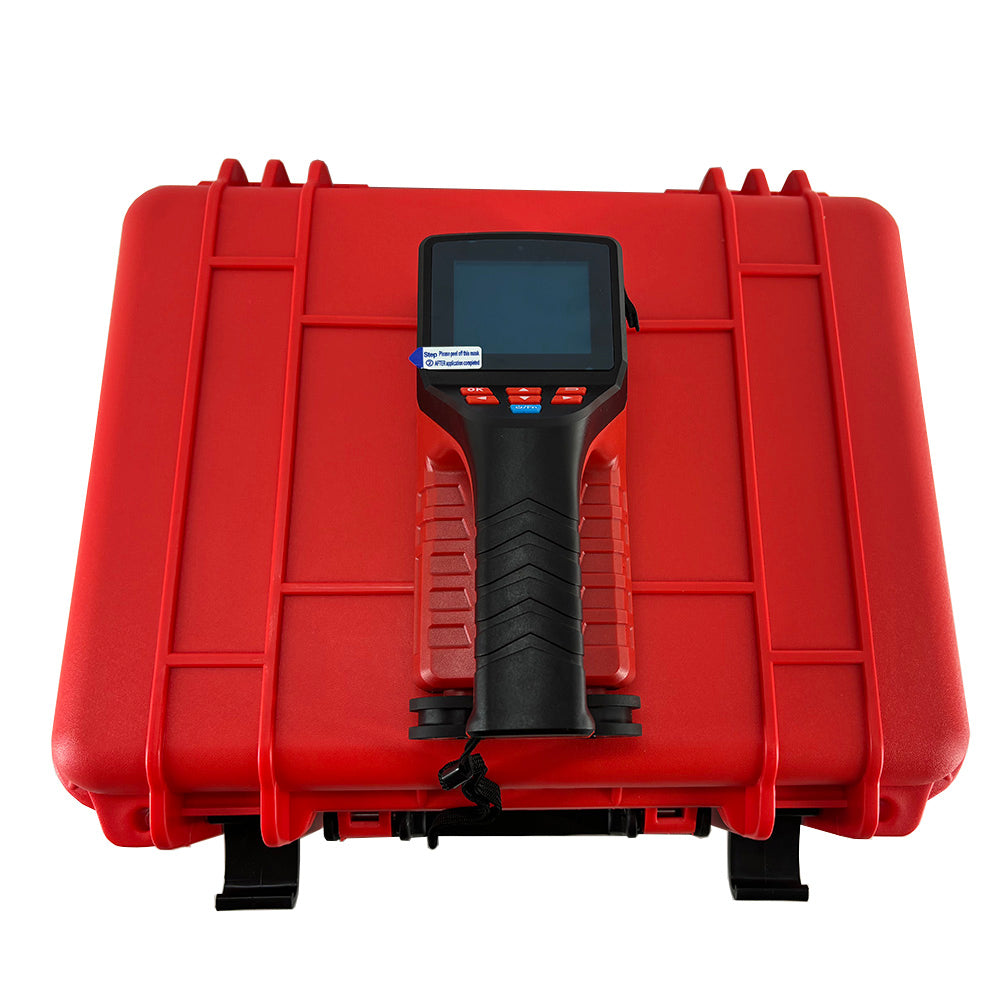

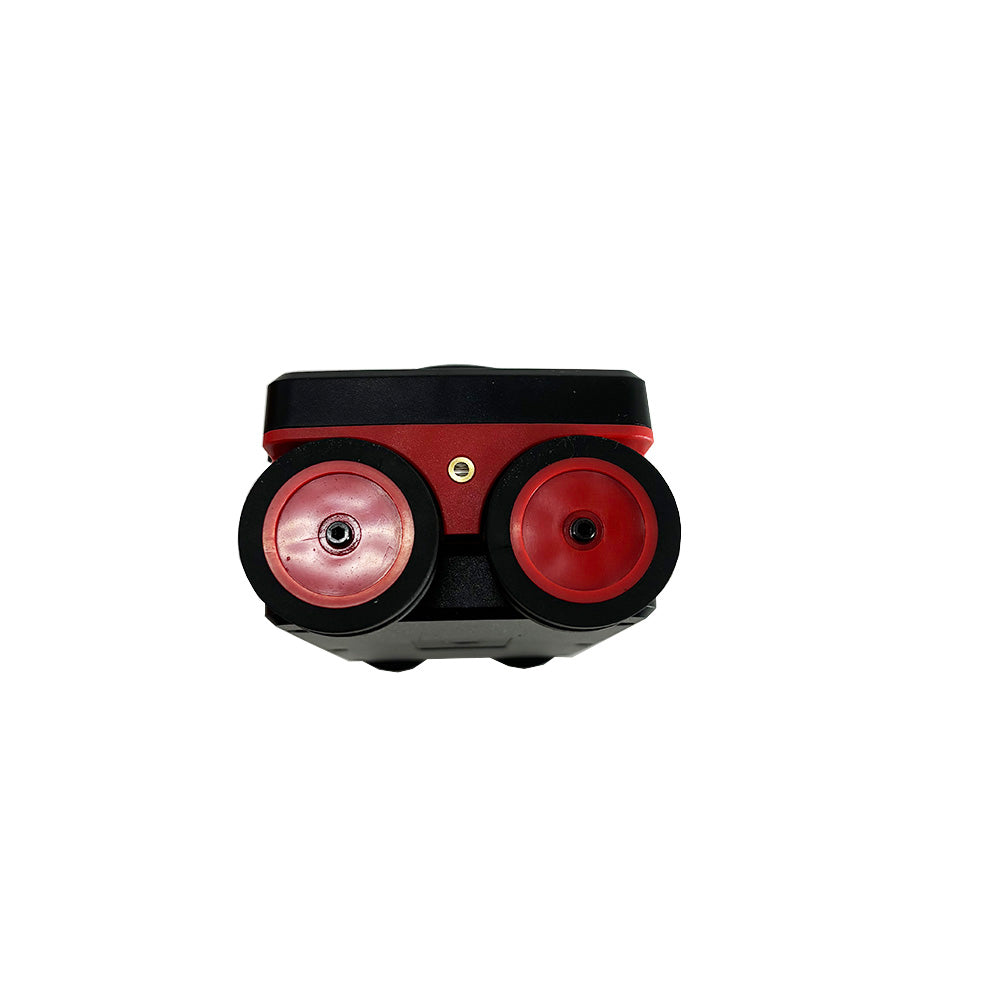

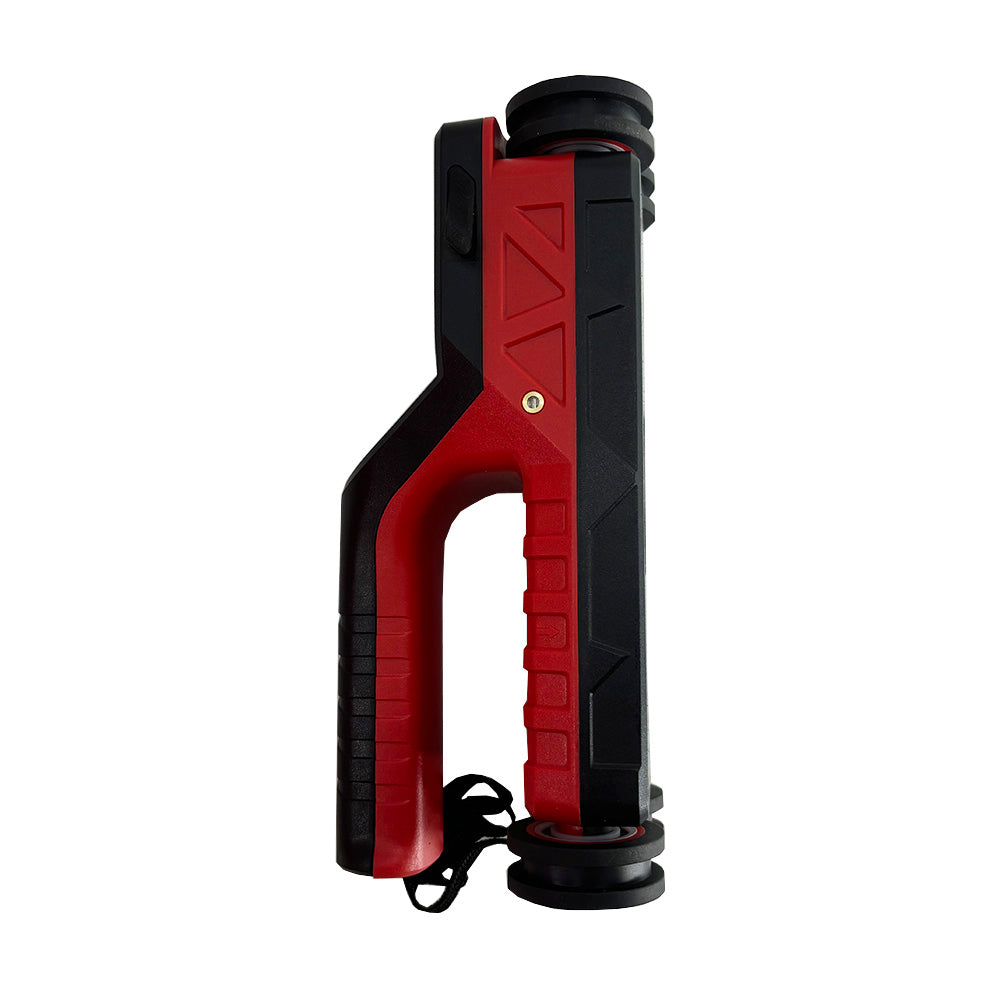

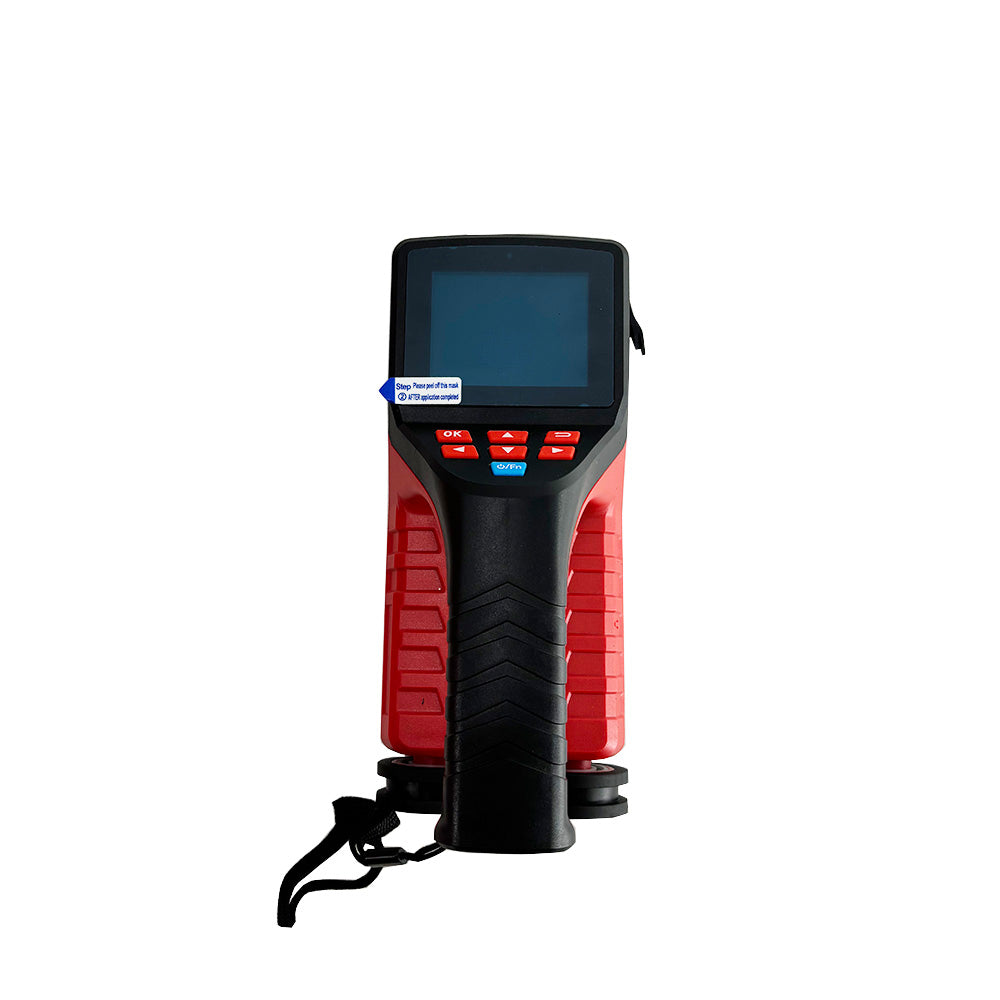

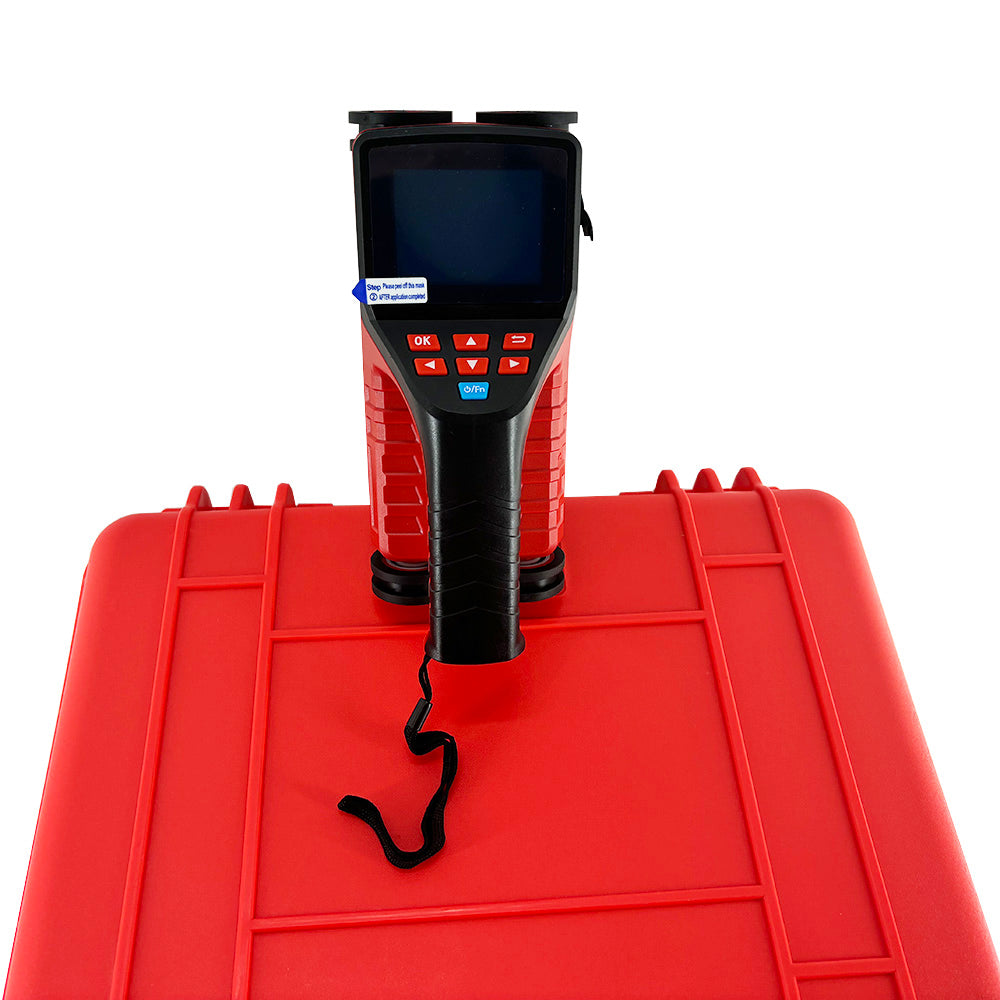

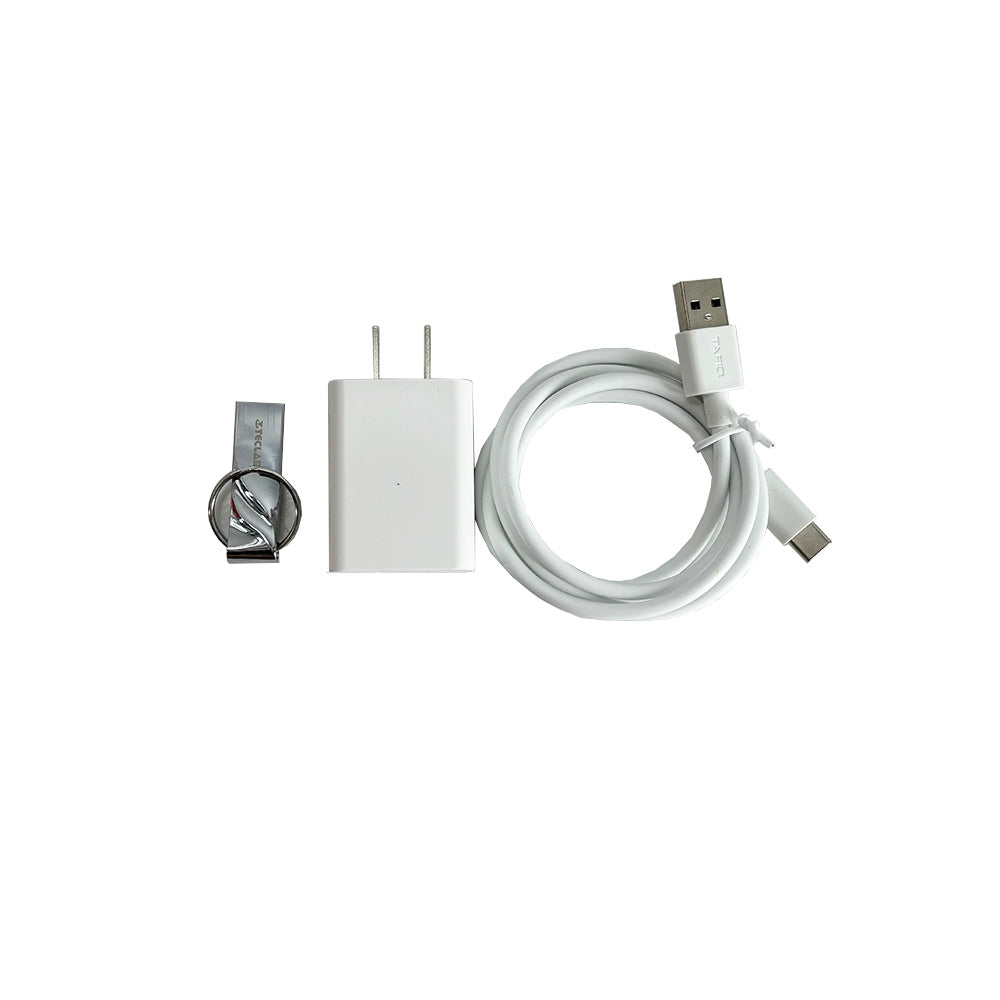

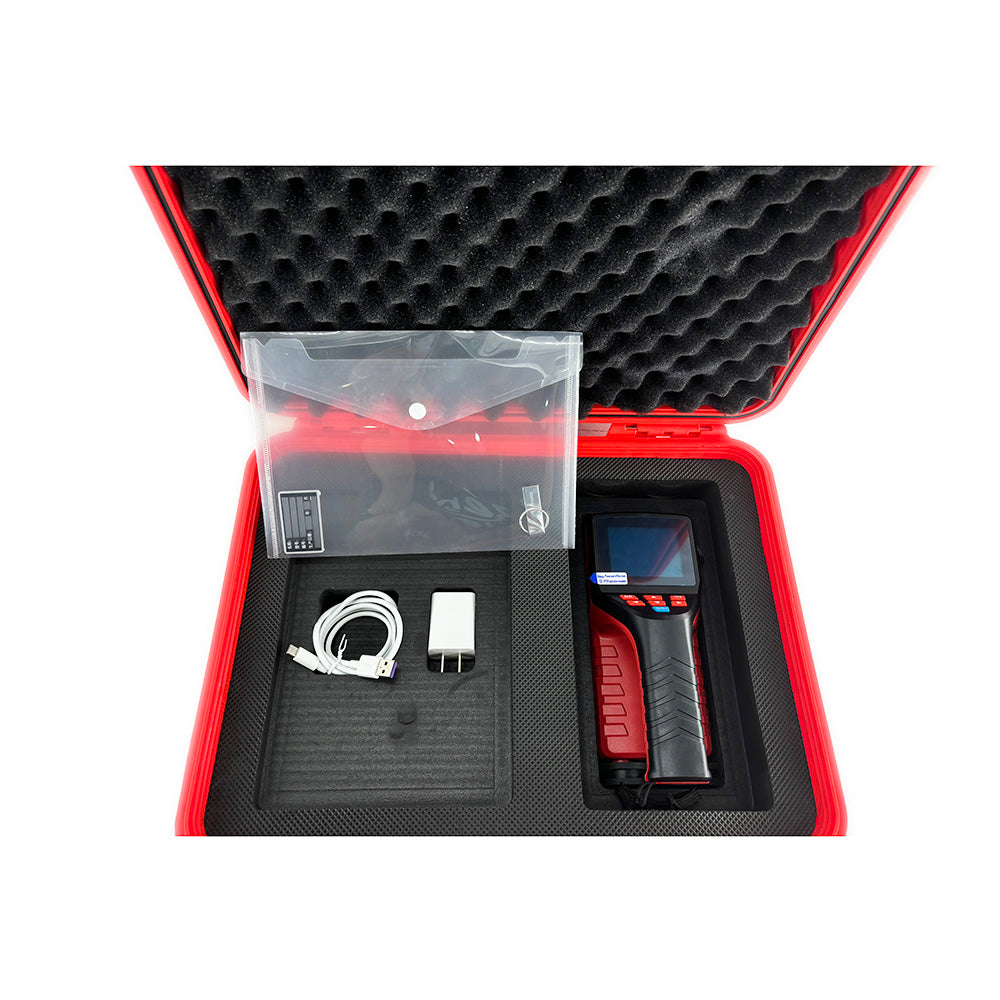

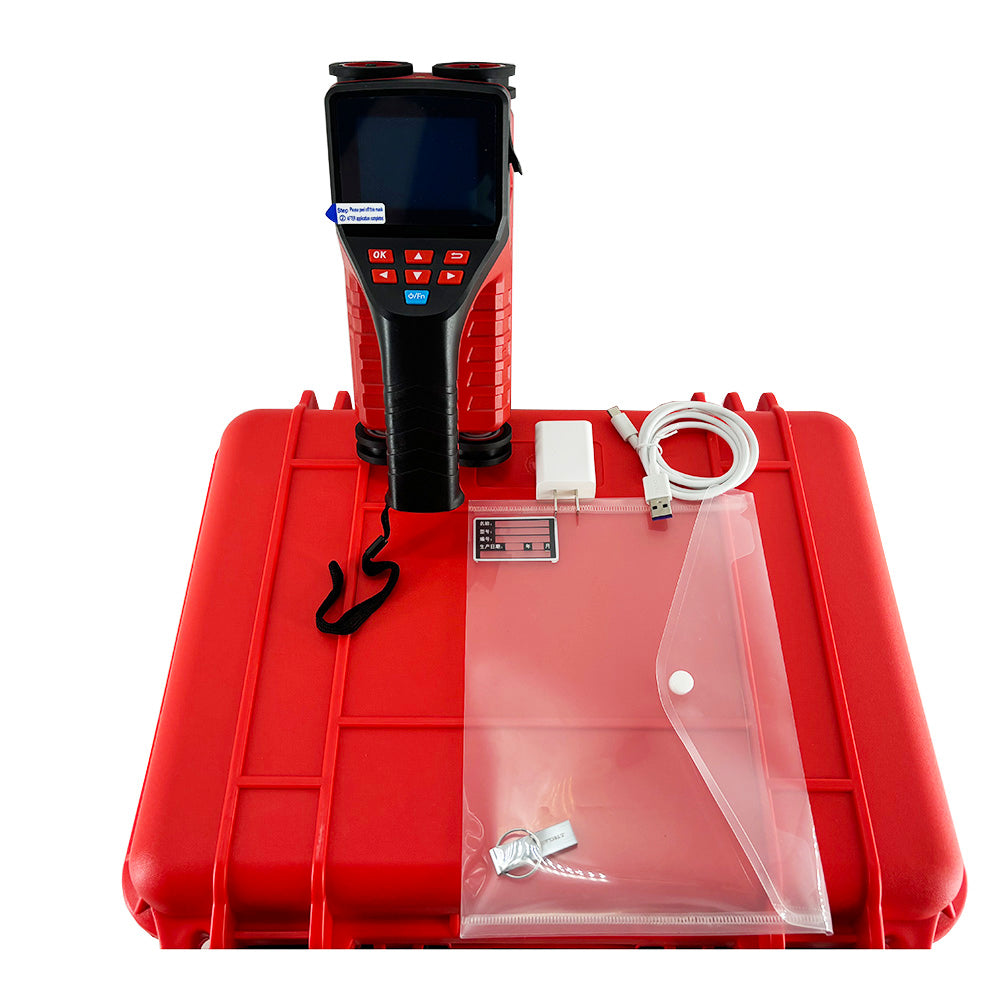

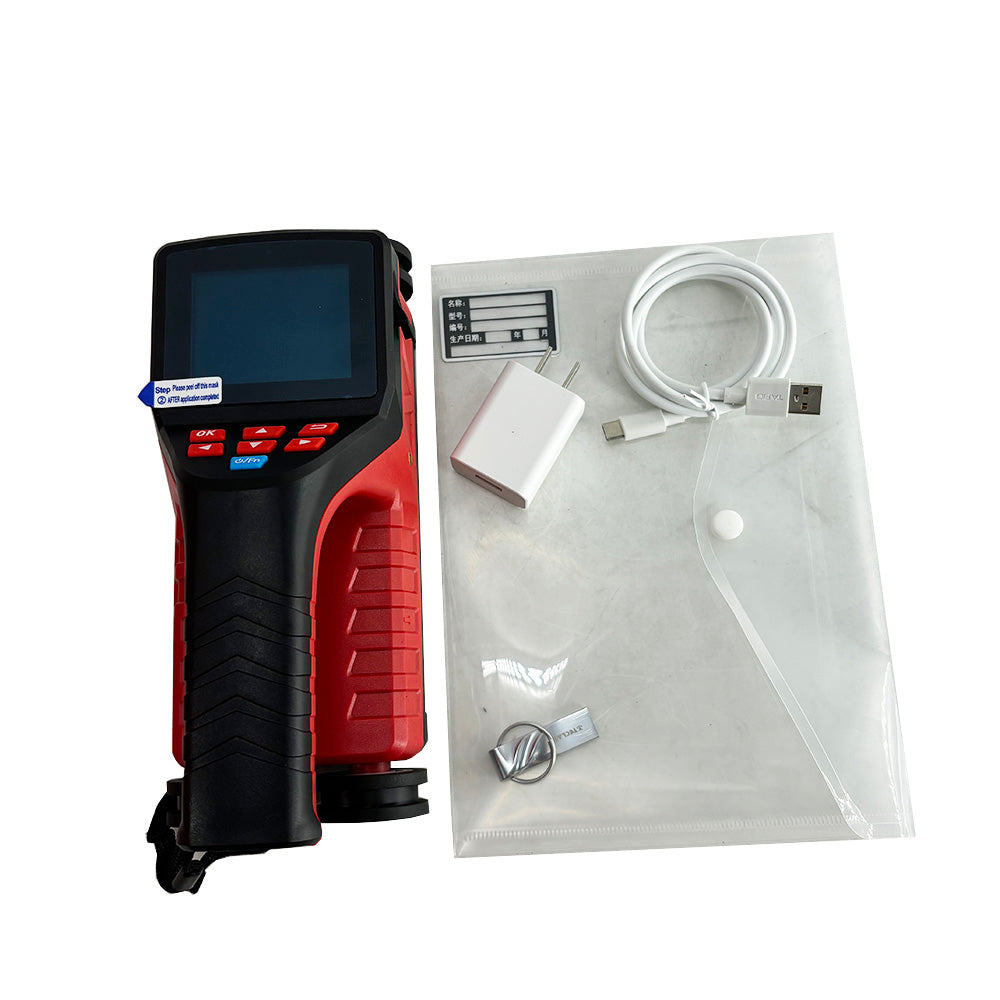

◆Standard accessories：host, charger, software CD, packing case

According to the standard:
◆GB 50010-2010 Code for Design of Concrete Structures (2015 edition)
◆GB 50204-2015 "Concrete structure engineering construction quality acceptance Code"
◆GB/T50344-2019 "Technical Standard for Testing Building Structures"
◆JGJ/T152-2019 "Technical Specification for Inspection of rebars in Concrete"
◆DB11/T365-2016 "Electromagnetic induction method test rebar protective layer thickness and rebar diameter technical specification"
◆GBT/50784-2013 "Technical Standard for On-site Testing of Concrete Structures"
