Application Range

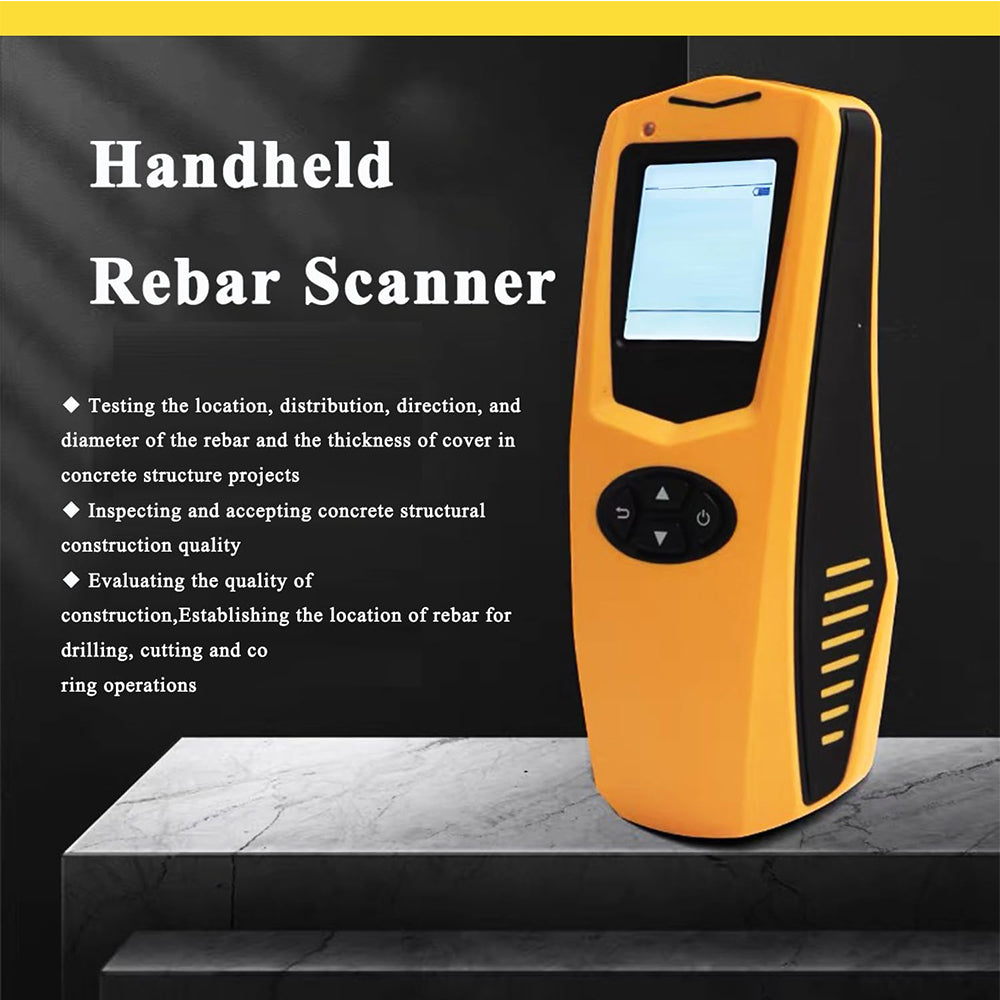

1:Testing the location,distribution direction,and diameter of the rebar and the thickness of cover in concrete structure projects

2:Inspecting and accepting concrete structural construction quality.

3:Evaluating the quality of construction

4:Establishing the location of rebar for drilling,cutting and coring operations.

5:Testing the distribution and direction of electric cables,pipelines and metalwork inside walls and floors.

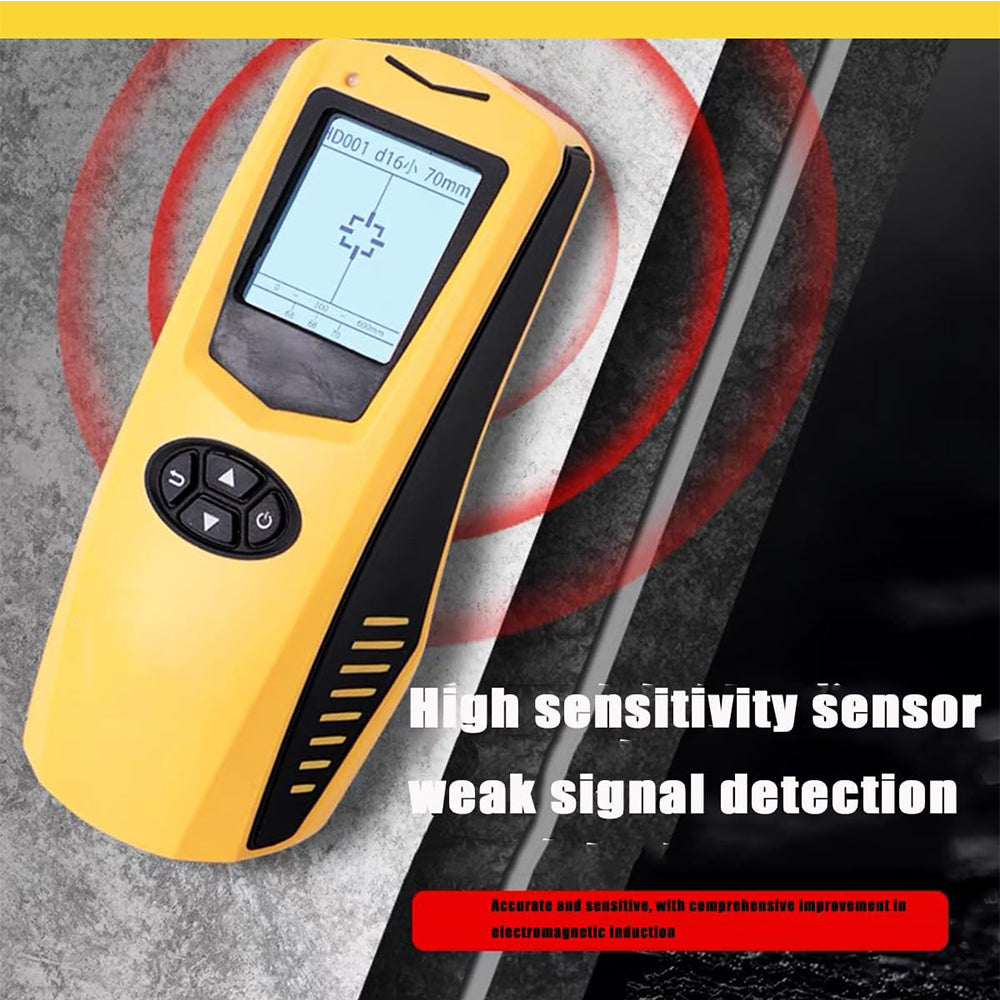

Features:

The high resolution LCD display:128*128 pixels

The intuitive operation and handheld ergonomic design with good durability

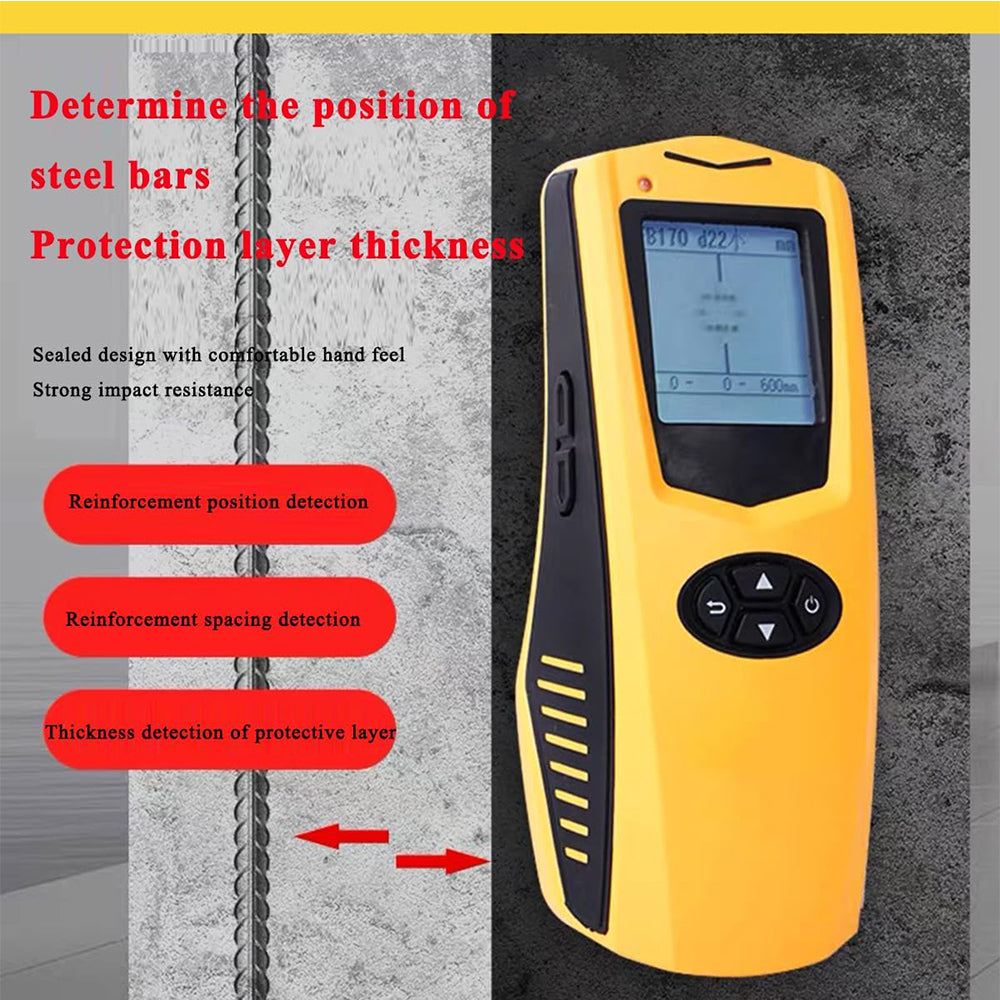

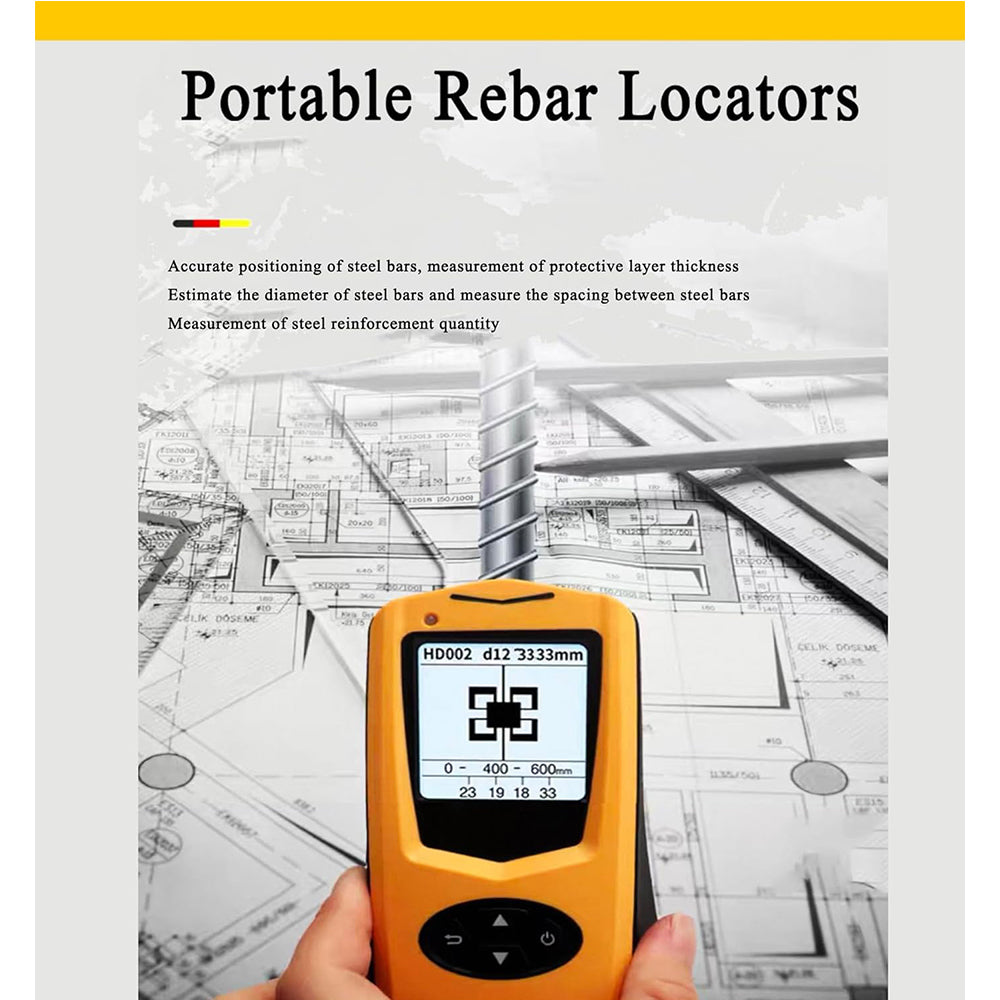

Accurately detect the location of the rebar

Help extend life of drill and avoid damage when drilling and coring

The multi coil structure design with high speed,high precision and high resolution

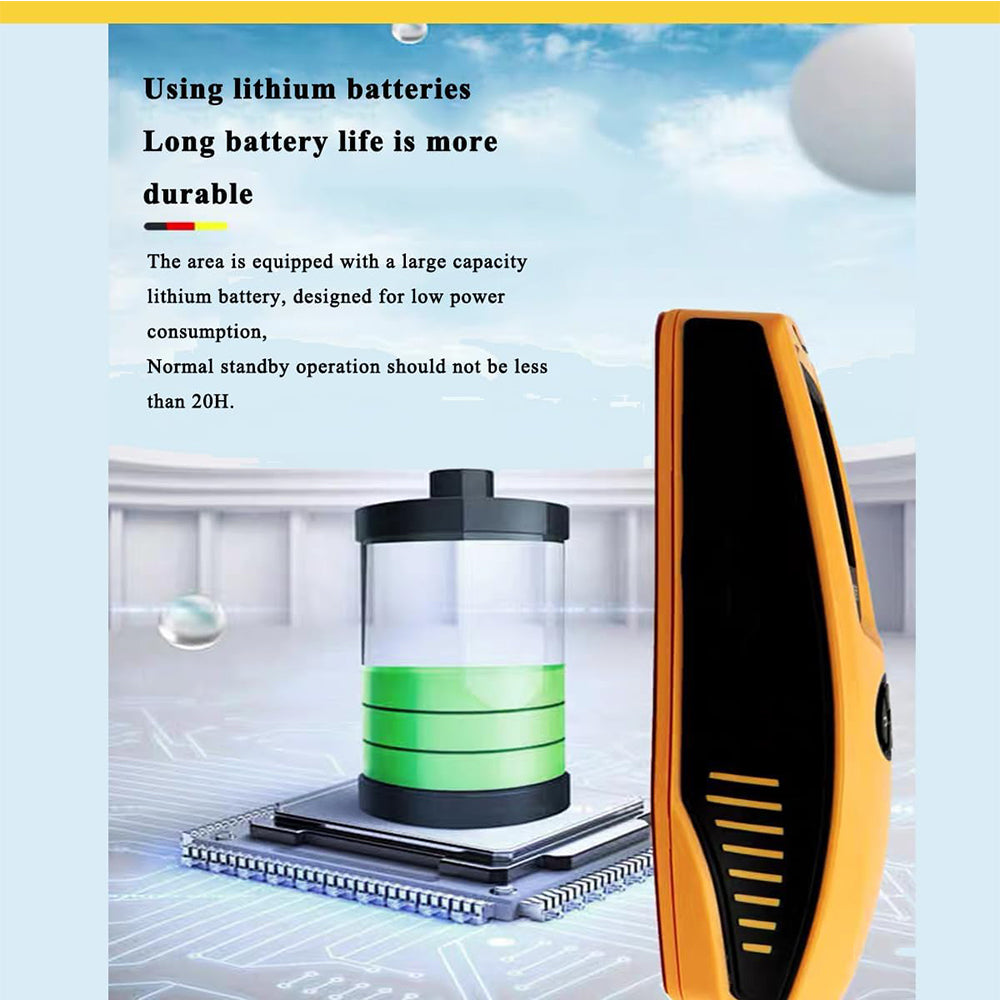

The built-in high capacity lithium battery,low power consumption,standby for no less than 20h

Technical Specification:

Diameter measuring range(mm):Φ6 - 50

Measuring Range(mm)

Location Range:1-120

First Range:1-60

Second Range:30-120

Thickness measuring accuracy(mm)

The measuring range (mm):1 - 40,Accuracy:+/-1

The measuring range (mm):41 - 60,Accuracy:+/-2

The measuring range (mm):61 - 80,Accuracy:+/-3

The measuring range (mm):81 - 100,Accuracy:+/-5

The measuring range (mm):101 - 120,Accuracy:+/-6

Rebar Location Accuracy

The measuring range (mm):1 - 60,Accuracy:+/-3

The measuring range (mm):61 - 120,Accuracy:+/-6

Diameter measuring modes:optional

JGJ measuement:optional

Data storage:optional

Off time:Automatic

Power supply:Rechargeable Lithium battery

Working temperature:-10C-+42C

Size(mm):170*78*38

Weight(kg):0.28
