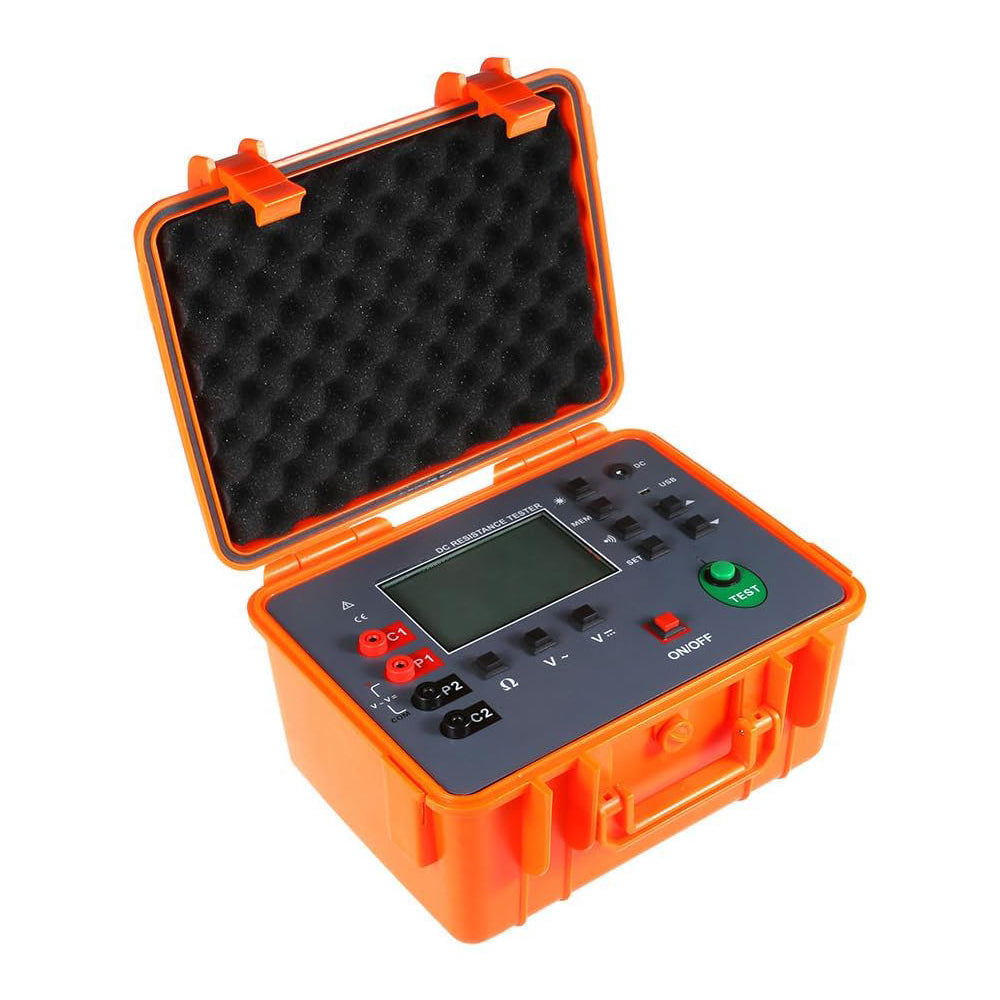

VTSYIQI Equipotential Tester DC Grounding Resistance Tester Equipotential Bonding Resistance Tester  with DC Resistance Range 0.0001Ω～30.00KΩ Four Wire Test Method Test Current ≥1A DC Voltage Range 0.0V～1000V AC Voltage Range 0.0V～750V

About this item

(1) {Function}--------Mainly used for Equipotential bonding resistance test between metal components, low-value resistance test, resistance test of connecting conductors between ground and ground electrodes, contact resistance test, etc.

(2) {DC Resistance range}--------0.0001Ω～30.00KΩ; Resistance resolution 0.0001Ω; Accuracy ±1%rdg±5dgt

(3) {test method}--------Four-wire method test

(4) {DC voltage range}--------0.0V～1000V DC; DC voltage resolution 0.1V; Accuracy ±1.5%rdg±5dgt

(5) {AC voltage range}--------0.0V～750V AC; AC voltage resolution 0.1V; Accuracy ±1.5%rdg±3dgt

(6) {Test current}--------≥1A

(7) {Data Storage}--------500 groups, USB interface

Introduction:

Digital equalpotential tester is also known as micro-ohmmeter, ohmmeter, DC grounding resistance tester, using the most microprocessor technology, four-wire test, safe and reliable.It is a special instrument for detecting equipotential bonding quality between metal components of objects such as housings, lightning protection belts, ground beams, structures, cabinets, steel bars, pipes, windows, guardrails, radiators, and assembly lines.

It can also measure the resistance of the connection conductors between various electrical equipments and earth ground, the DC resistance of transformers, and also can measure the contact resistance of switches and socket contacts, coils, metal wires, welding points and other low-value resistances.

Widely used in telecommunications, electric power, meteorology, computer room, oil field, power distribution lines, iron tower transmission lines, gas stations, factory grounding grids, lightning rods, etc. It also has the function of measuring DC voltage and AC voltage.

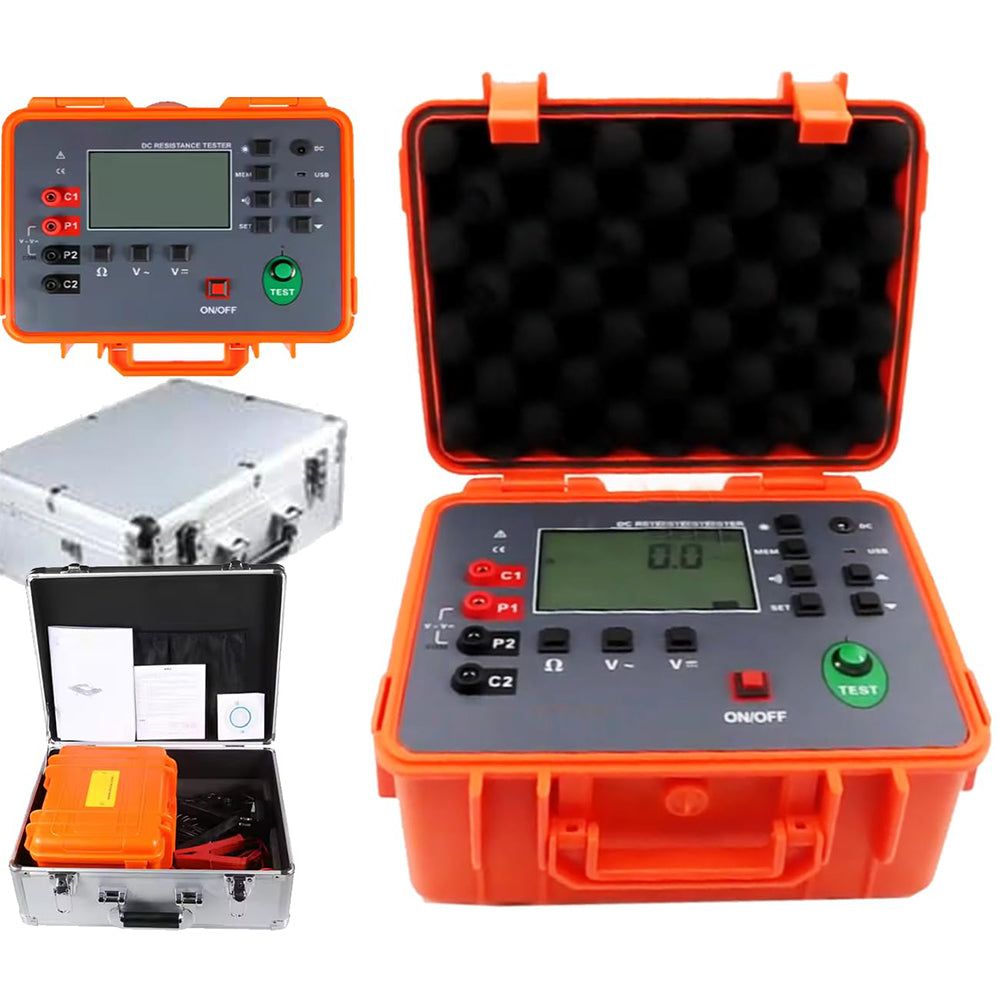

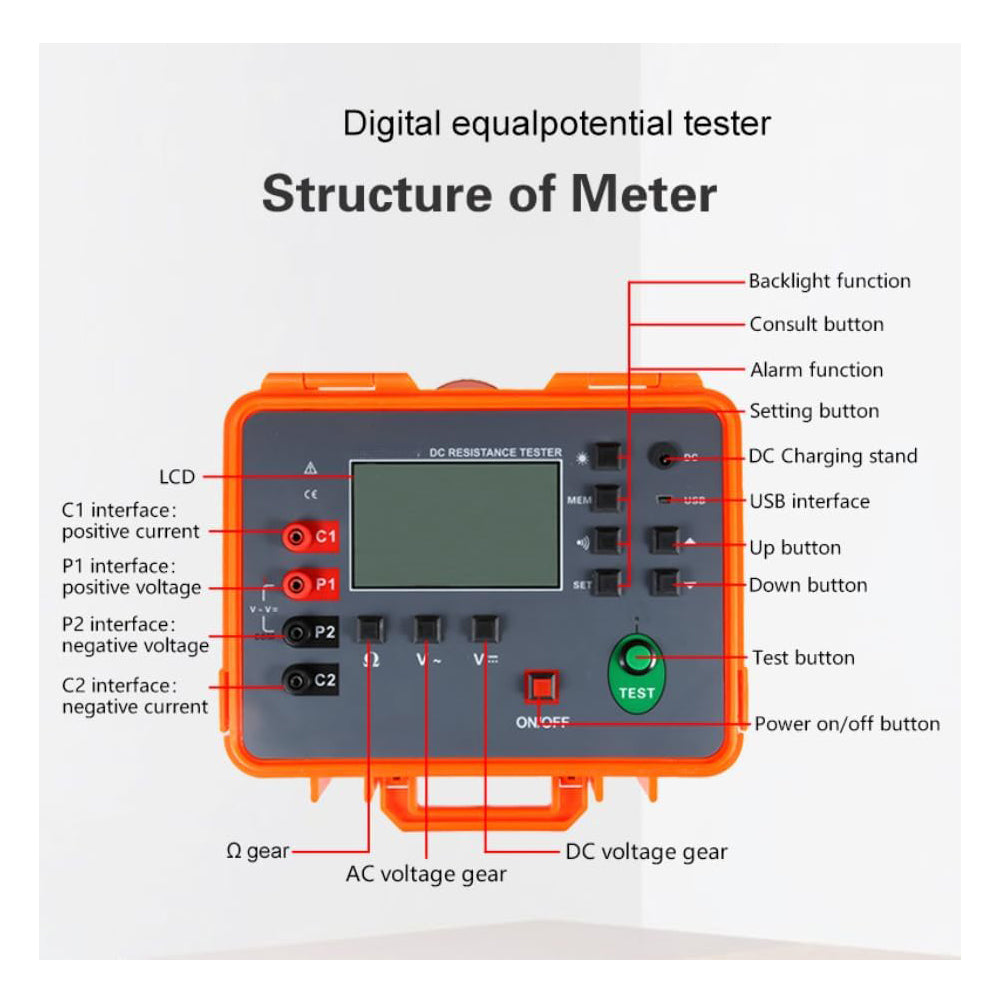

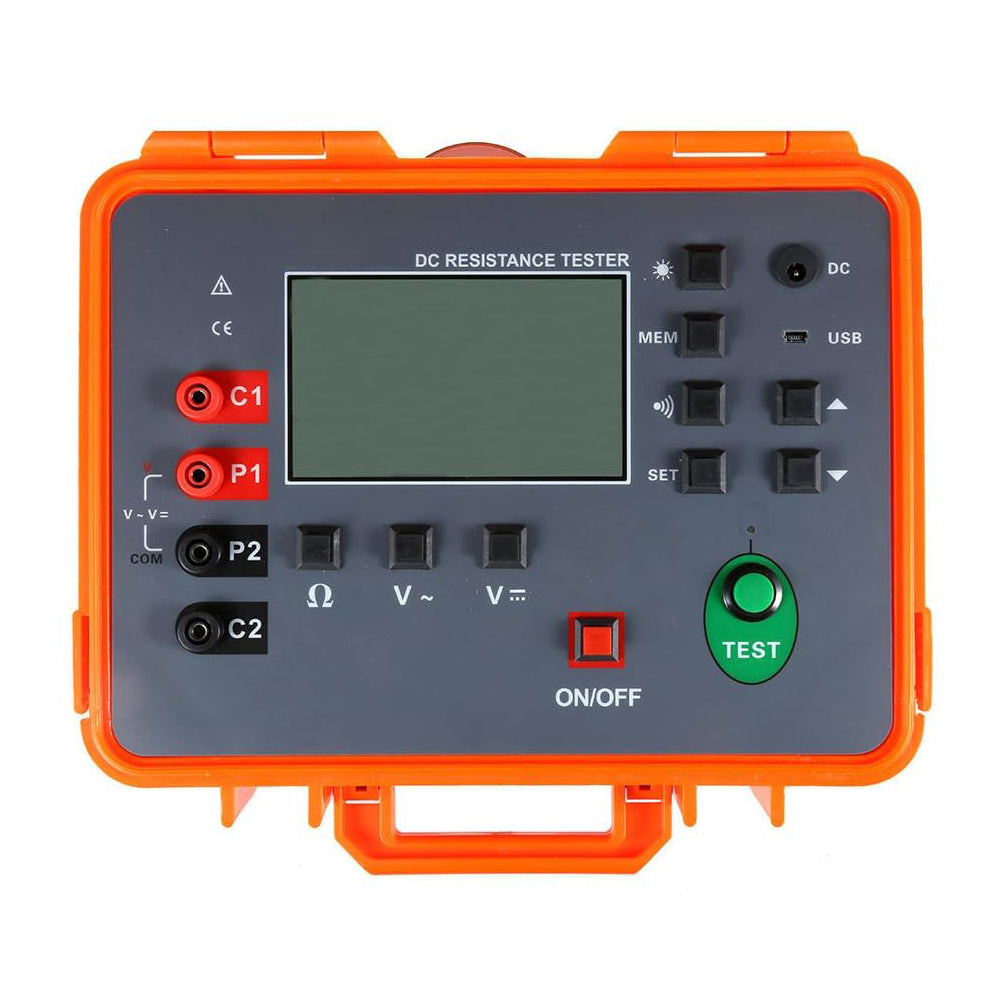

Digital equipotential tester consists of a host computer, monitoring software, test leads, and communication lines.

The mainframe large-screen LCD display is clear at a glance.Can store 500 sets of data, resistance measurement range: 0.0001 Ω ~ 30K Ω, DC voltage range: 0.0 ~ 1000V, AC voltage range: 0.0 ~ 750V.

The monitoring software has on-line real-time monitoring and historical query functions, dynamic display, alarm value setting and alarm indication function, and functions such as reading, reviewing, saving, reporting and printing of historical data.

Technical Specifications:

Function:Equipotential bonding resistance test between metal components, low-value resistance test, resistance test of connecting conductors between ground and ground electrodes, contact resistance test, etc.

DC resistance range:0.0001Ω～30.00KΩ ; Accuracy±1%rdg±5dgt

Resistance resolution:0.0001Ω

Test method:Four-wire test

Test current:≥1A

Open circuit voltage:≤7V

Capacity factor:Measuring capacity factor≤15W

DC voltage range:0.0V～1000V DC ;Accuracy±1.5%rdg±5dgt

DC voltage resolution:0.1V

AC voltage range:0.0V～750V AC ; Accuracy±1.5%rdg±3dgt

AC voltage resolution:0.1V

Power:DC 6V 4.5Ah Large-capacity battery Continuous standby for more than 100 hours

Backlight:Controllable gray screen backlight, suitable for use in dim places

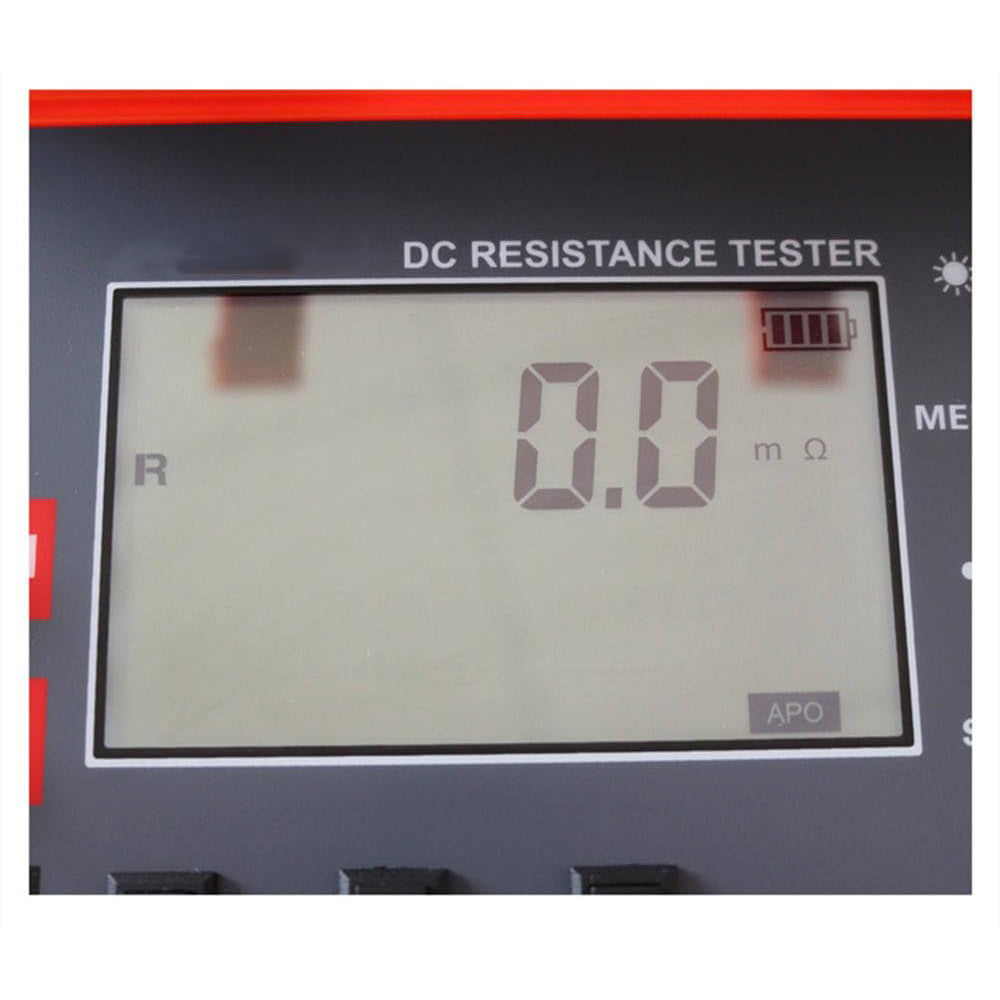

Display mode:4-bit large LCD display, gray screen backlight

Measurement instructions:LED flashing indicator during measurement, LCD countdown display

LCD Size:108mm×65mm

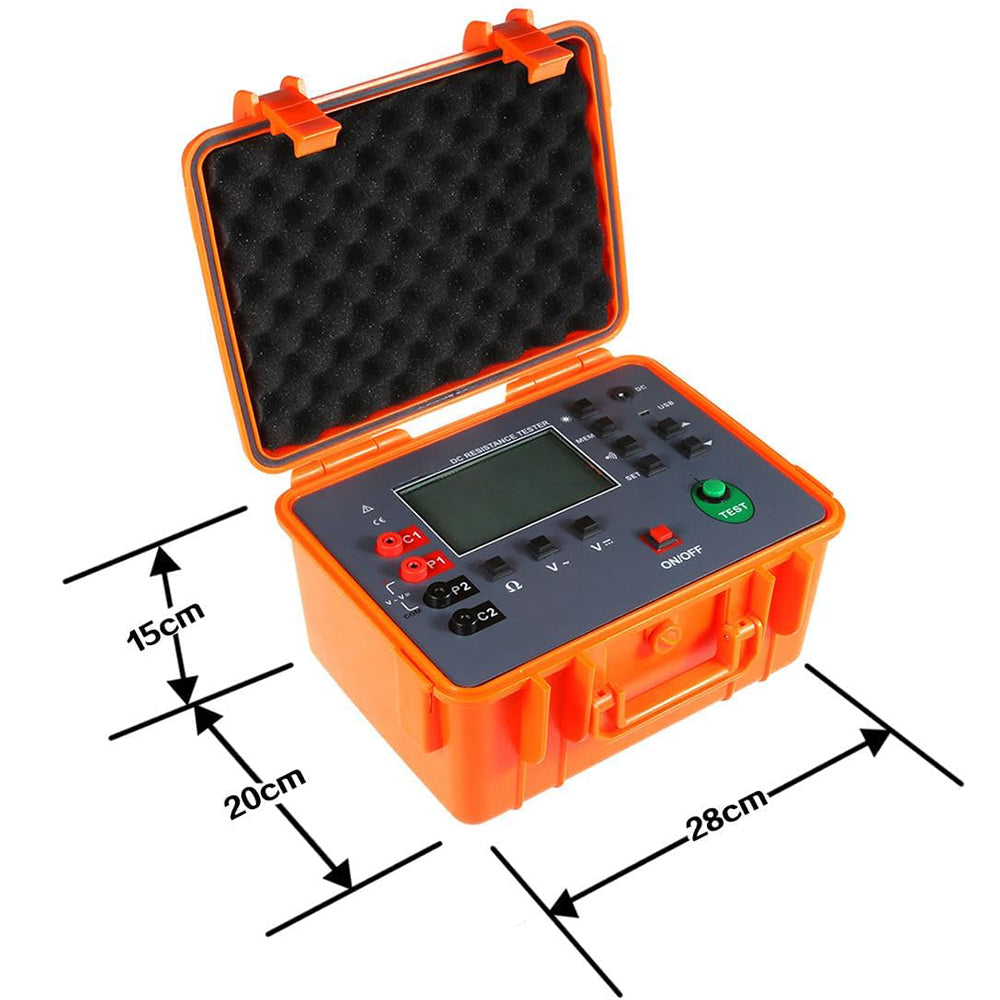

Instrument size:L/W/H：277.2mm×227.5mm×153mm

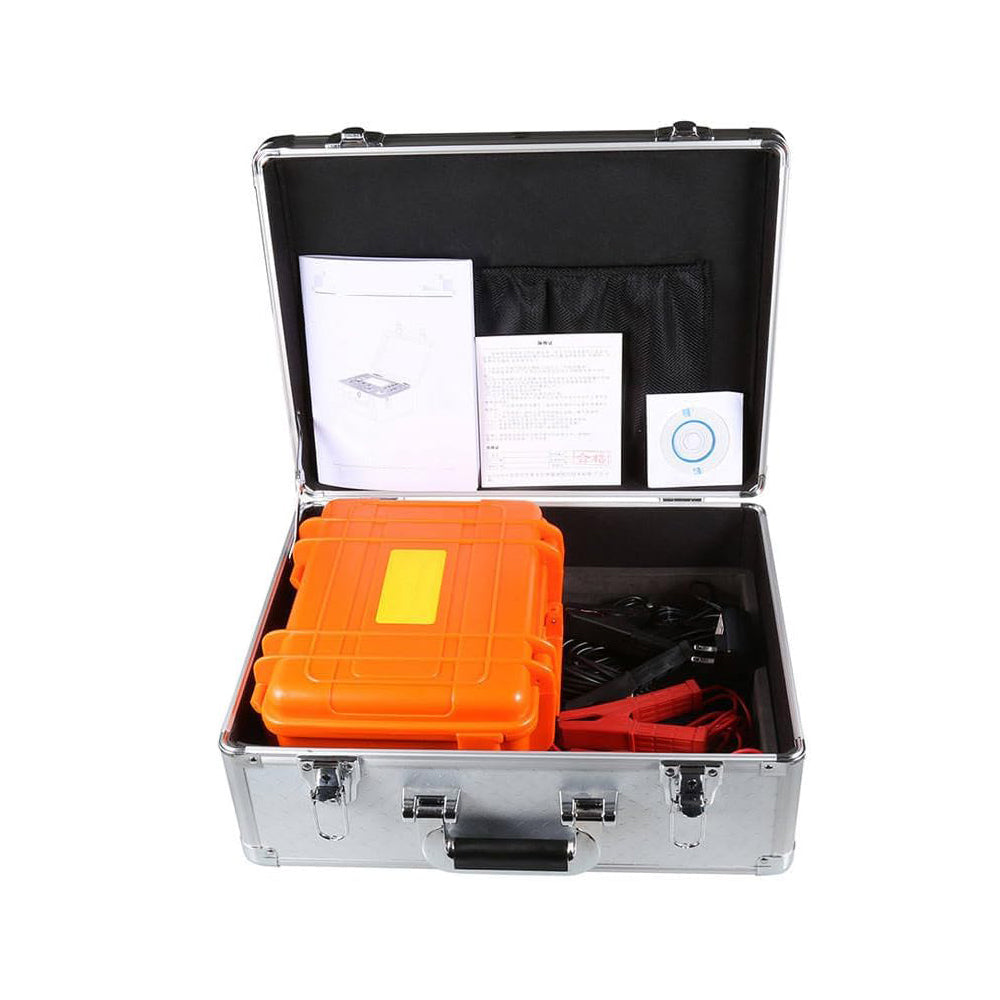

Test line length:Red 5m，black 5m each 2PCS

Measure time:Resistance test：about 3second/time；Voltage test：about 2times/sec

USB interface:With USB interface, software monitoring, storage data can be uploaded to the computer, save and print

Communication Line:USB Communication Line 1PC

Data storage:500 groups，"MEM" stores indicates, the "FULL" symbol indicates that the storage is full

Data review:Data review function: "MR" symbol display

Overflow display:Over-range overflow function: "OL" symbol display

Alarm function:Alarm when the measured value exceeds the alarm setting value

Battery voltage:Real-time display of battery power, reminding timely charging when battery voltage is low

Automatic shut-down:"APO" indicates automatic shutdown after 15 minutes

Power consumption:Standby: 30mA Max(backlight off);Turn on backlight: 43mA Max;Measure：2A Max(backlight off)

Weight:Instrument： 2397g(including battery);Test line：850g(including simple test line);Instrument box：1200g

Working temperature and humidity:-10℃～40℃；below 80%rh

Storage temperature and humidity:-20℃～60℃；below 70%rh

Overload protection:C1-C2 P1-P2 AC 280V/3 seconds between ports

Insulation resistance:Above 10MΩ(500V between circuit and housing)

Pressure resistance:AC 3700V/rms( between circuit and housing)

Electromagnetic properties:IEC61010-4-3，Wireless frequency electromagnetic field≤1V/m

Suitable for Safety Regulations:IEC61010-1, CAT III 600V, pollution degree 2, JJG724-1991 "DC digital ohmmeter verification procedure", JJG166-1993 "DC resistance verification procedure", "DL/T967-2005 loop resistance tester and DC resistance fast Tester verification procedure
