Introduction:

This DC resistance tester is also known as transformer DC resistance tester, DC resistance rapid tester, grounding conduction tester, using microprocessor technology, four-wire method test, safe, precise and reliable.

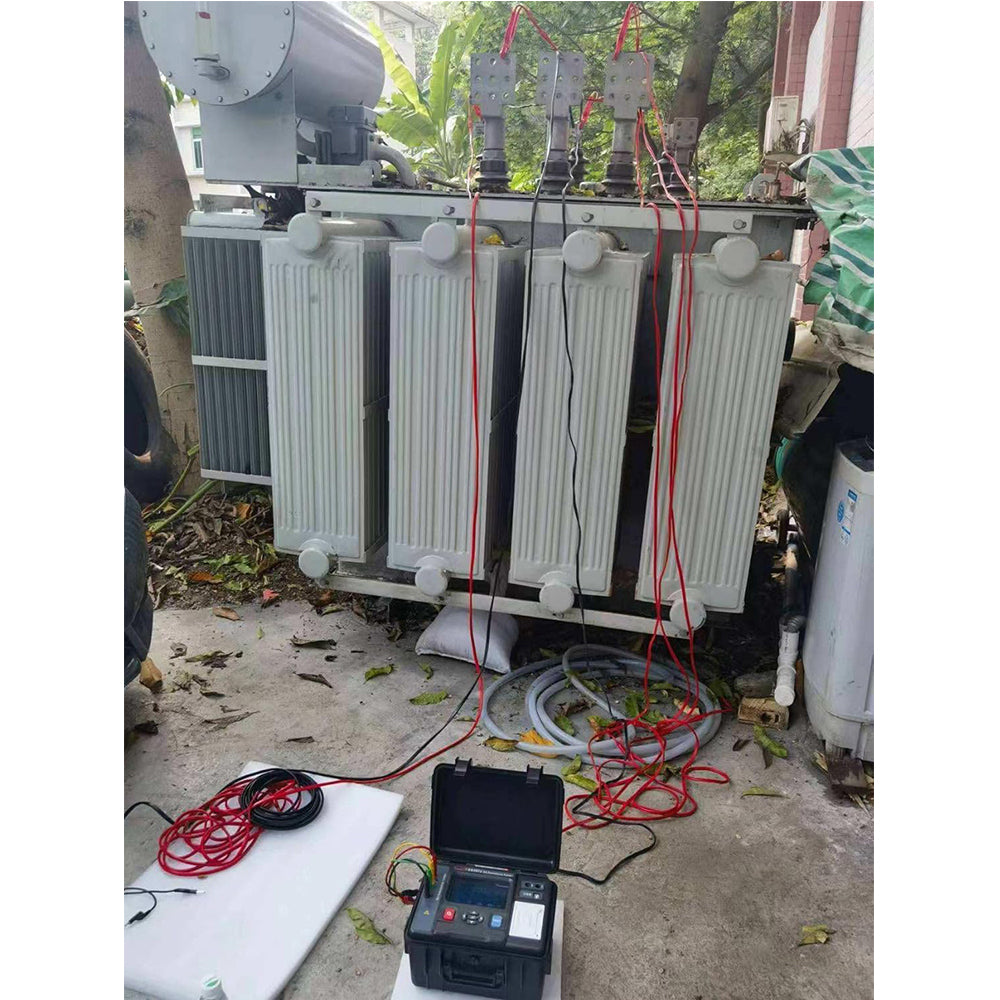

It is mainly used to measure the resistance of transformer winding, transformer resistance resistance, grounding conductor conduction test, wire resistance, cable switch, connector, relay, contact resistance, coil, motor, equipment shell, lightning belt, beam, structure, cabinet, steel bar, water pipe, window, guardrail, radiator, line test between metal components.

Widely used in telecommunications, electric power, meteorology, machine room, oil field, power distribution line, iron tower transmission line, gas station, factory grounding network, lightning rod, etc.

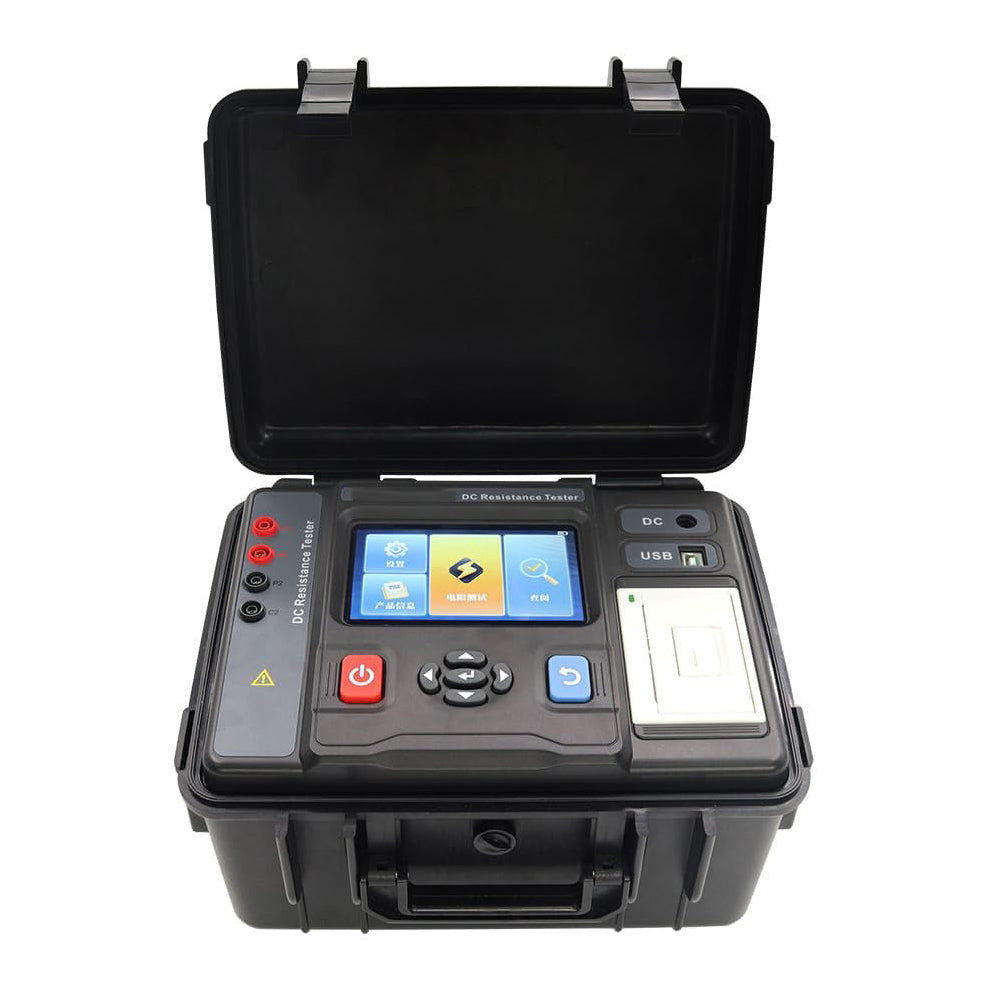

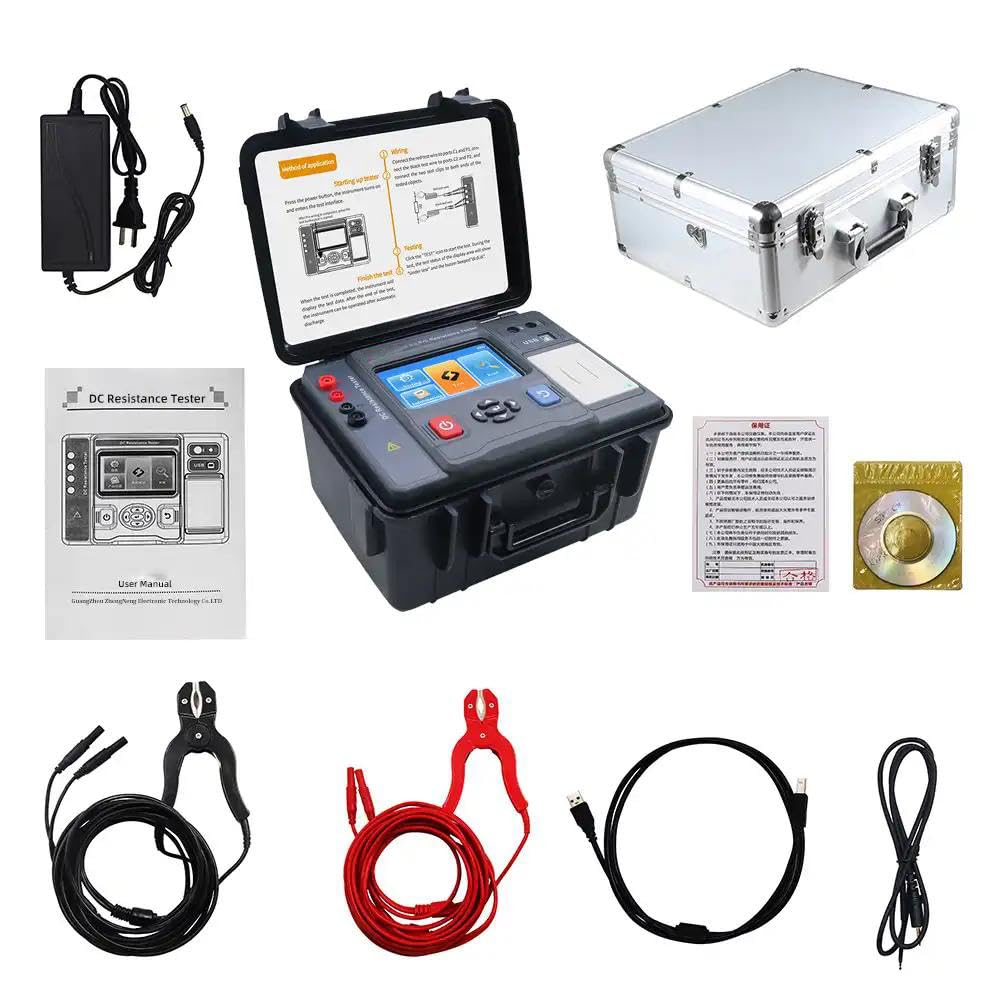

The DC resistance tester is composed of the host machine, monitoring software, test line, communication line, etc.

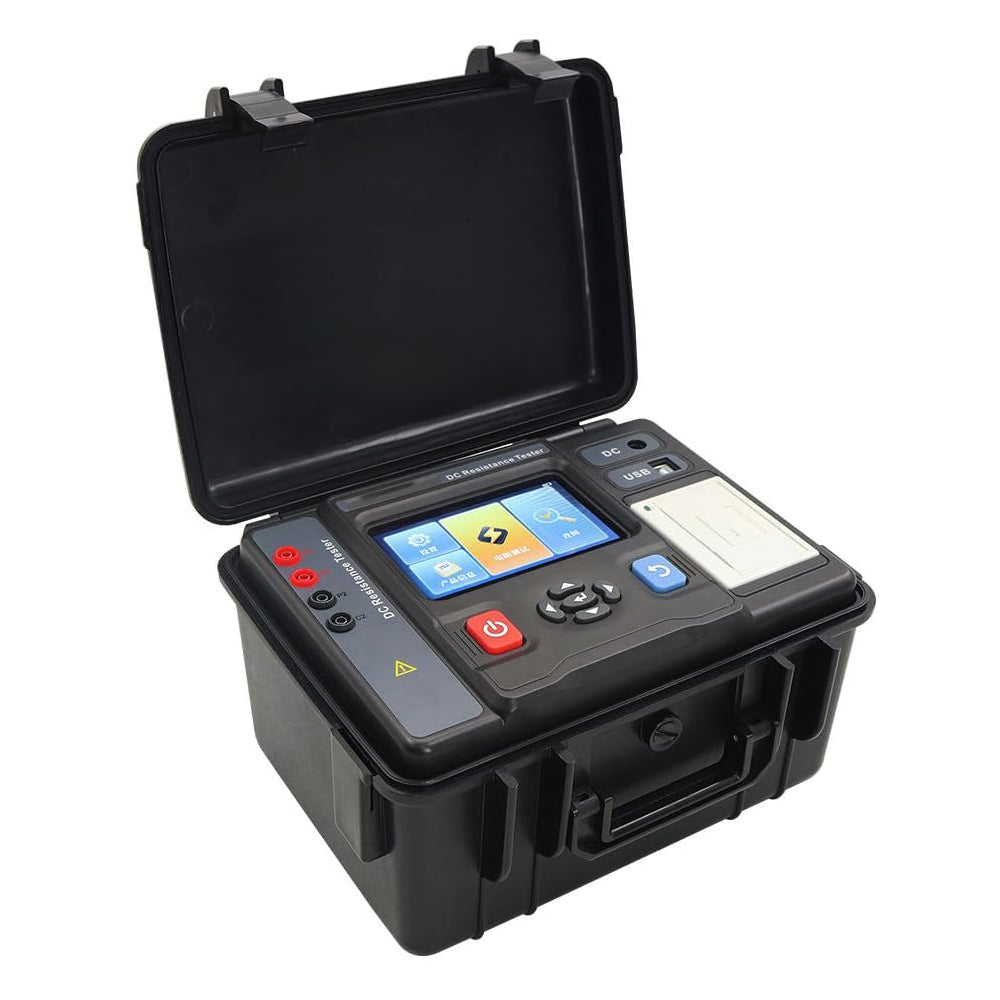

The host handheld portable design is convenient for field application, with charging function without field power search, full-color large screen LCD display, clear at a glance, touch screen operation is convenient and easy to use, port anti-overload function.

Large capacity storage of 800 sets of data, resistance measurement range: 10.0uΩ-1.0000 MΩ, measurement accuracy: ± 0.2%FS ± 10 dgt.

The upper computer software has the functions of historical data reading, consulting, saving, reporting and so on.

Specifications:

Function:Mainly used for measuring the transformer DC resistance, transformer winding resistance, ground grid connection conductivity, cable wire resistance, switch, connector, relay contact resistance, coil, motor, transformer winding resistance and metal riveting resistance, metal components between resistance test, low value resistance test, contact resistance test, etc.

Test object type:Optional Cu, Al, Fe, Au, Ag materials

Resistance range:10.0uΩ-1.0000MΩ

resolving power:0.1 uΩ

Accuracy:±0.2%FS

test method:Four line method test

Test current:20A、10A、5A、1A、0.1A、10mA、1mA

Maximum short-circuit current:20A

Temperature detection:The temperature probe

Temperature conversion:Yes, in the temperature conversion, it can be converted to 75℃ measurement results

Alert setting function:Yes

overpower protection:Yes

self discharge:Have, LCD display reminder

source:Built-in: 14.6V 10000mAh rechargeable lithium iron phosphate battery

Charging function:Yes 14.6V/3A

be in a poor light:Yes, sliding adjustable, suitable for dim place use

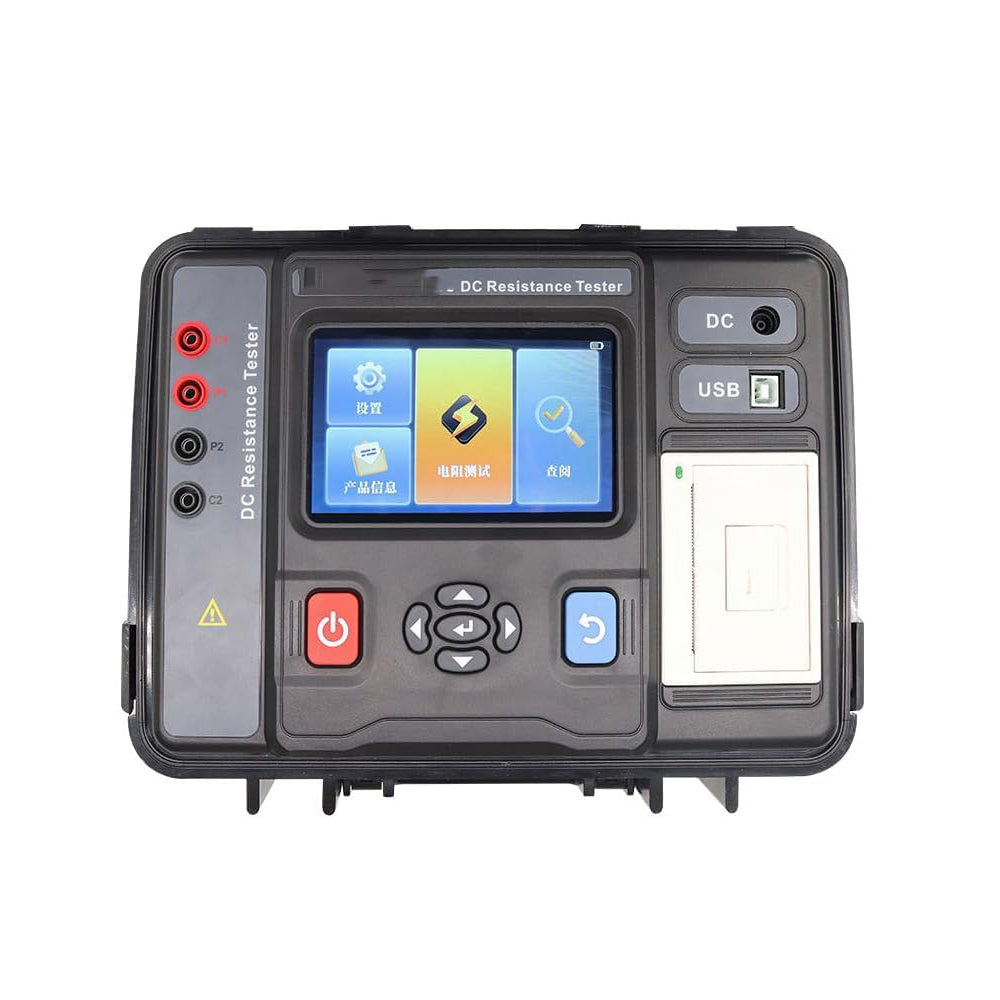

Display mode:5-inch touch (854dots 480dots) Full-color LCD display

Touch screen operation:Yes

LCD size:Long wide：108 mm×65mm

Instrument size:length, width and height：277.2mm×227.5mm×153mm

Test line length:5 meters, red, black each

cloud services:Android APP, the upper machine

printer:The instrument panel is embedded with a printer. press the print key to print the test results

USB joggle:Has a USB interface

Communication line:1 USB communication line

data storage:800 Groups

data transmission:USB, PDA

Data access:There is a data access function

Overflow display:Overload overflow function: The OL symbol display

cell voltage:Real-time display of battery power indicates that the battery should be charged in time when the voltage is low

auto shut off:The instrument is shut operated for about 15 minutes

power dissipation:Standby: about 230 mA (20% brightness); Test：27W Max

quality:Meter：2300g(Including battery); private wire：850g

Working temperature and humidity：-10℃～50℃；70%rh under

Store temperature and humidity：-20℃～60℃；70%rh under

insulation resistance：Above 10 MΩ (500V between circuit and housing)

withstand voltage：AC 3700V/rms(Between the circuit and the enclosure)

Electromagnetic characteristics：IEC61010-4-3, wireless frequency electromagnetic field 1V / m

Suitable for safety regulations：IEC61010-1, CAT Ⅲ 600V, Pollution Grade 2, JJG724-1991 Verification Procedure for DC Digital Ohms Table, JJG166-1993 Verification Procedure for DC Resistor, DL / T967-2005 Verification Procedure for Circuit Resistance Tester and DC Resistance Rapid Tester
