VTSYIQI

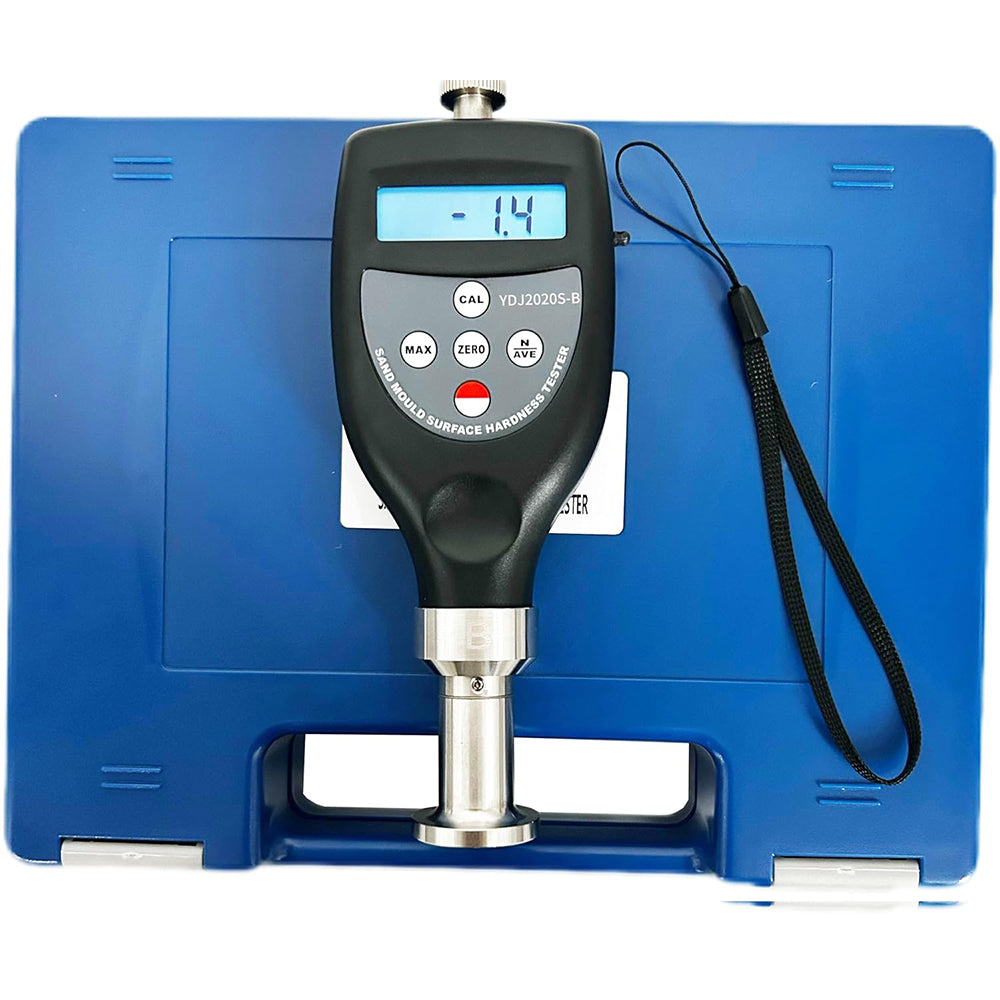

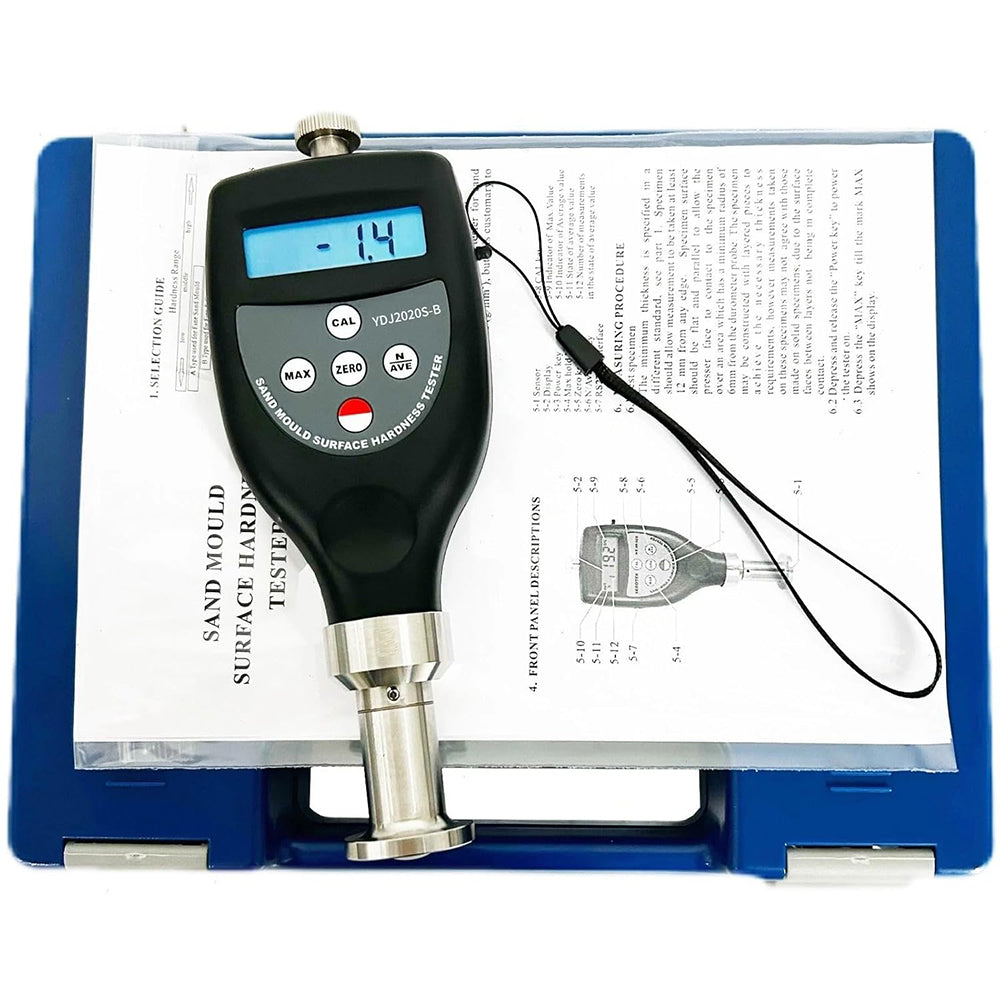

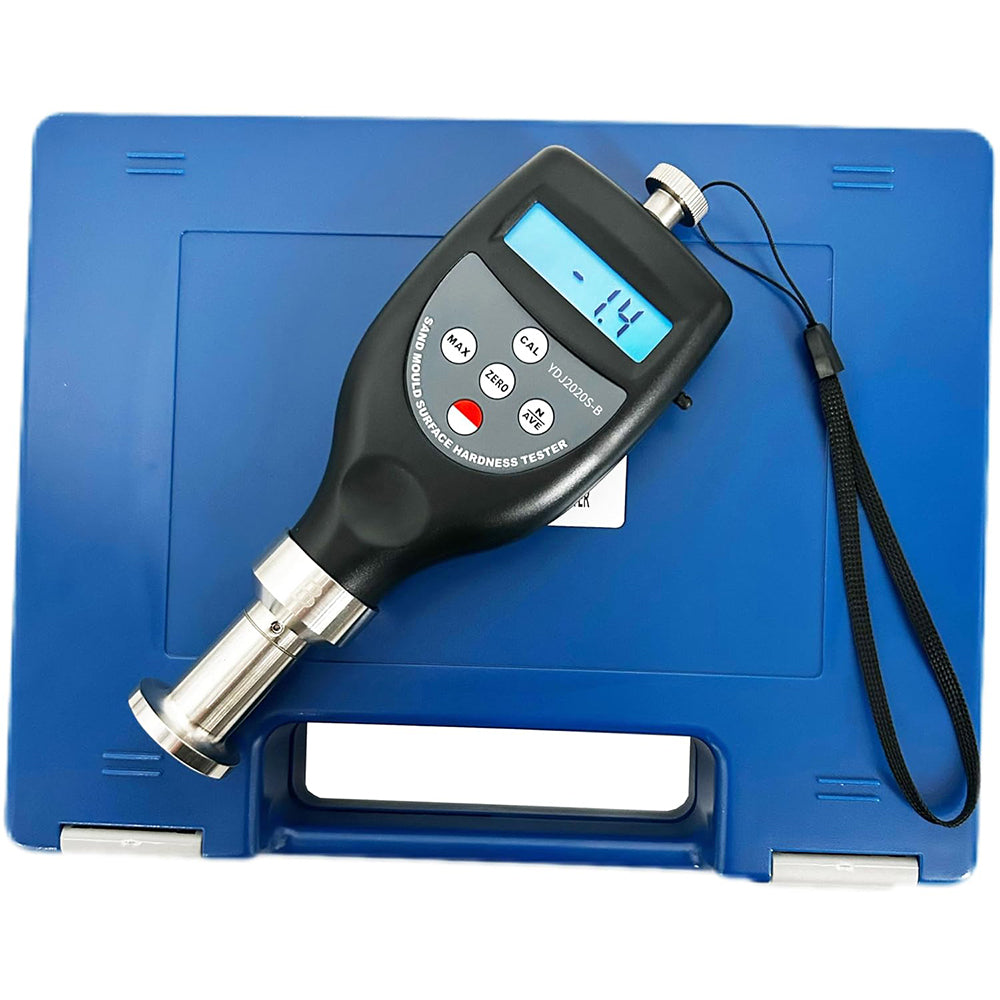

VTSYIQI Sand Mould Surface Hardness Tester Fine Coarse Sand Mould Surface Hardness Test with Load 980g Testing Range 10~90HB Accuracy ≤±1HB Resolution 0.1HB Pressure Load 50g
- Regular price
- $362.00
About this item
1.Unit： HB
2.Peak value deposit function.
3.Under-voltage alarm function.
4.With average calculate function
5.Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Features:
It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
The surface hardness of sand mold is divided into three types: A, B and C, The common model is type B, among them:
Type A: Suitable for the surface hardness test of fine sand mold/core in manual or mechanical low and medium pressure molding.
Type B: Suitable for the surface hardness test of fine and coarse sand mold/core in manual or mechanical low and medium pressure molding.
Type C: Suitable for the surface hardness test of sand mold in high pressure molding.
The unit of type B hardness tester for sand mold surface is (g/mm2), but it is customary to use hardness H(A/B/C) instead of unit. Because their values are related and consistent, the corresponding hardness value is also large when the unit value is large (g/mm2).
With average calculate function.
Peak value deposit function.
Under-voltage alarm function.
Specifications:
Stroke: 2.50mm
Load: 980g
Pressure Load: 50g

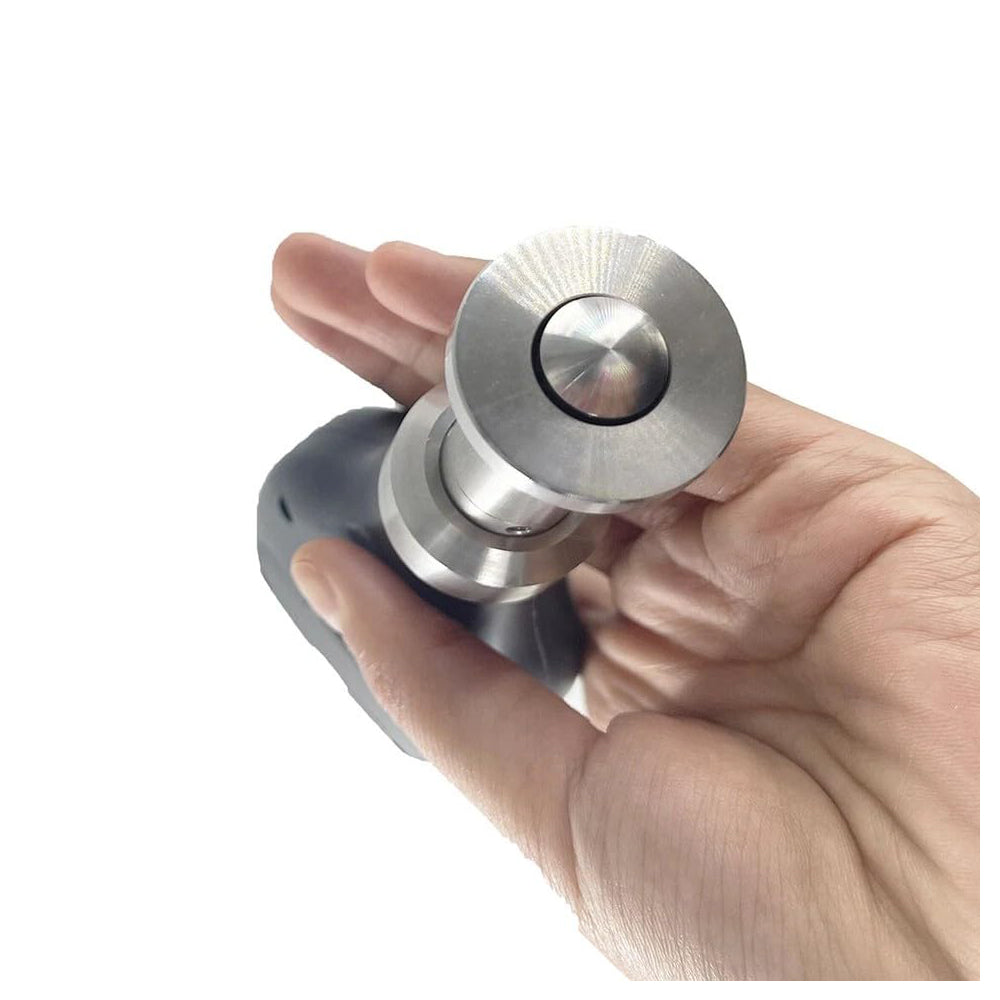

Shape and size of indenter: Spherical R12.70
Display Range: 0~100HB; Testing Range: 10~90HB
Accuracy: ≤±1HB; Resolution: 0.1HB
Unit: HB
Display: 4 digits, 10mm LCD
Parameters: Tested Result / Mean Value / Max. Value
Battery Indicator: Low Battery Indicator
Auto Switch Off: √
Operating: Temperature: 0~40°C ; Humidity: <80%RH

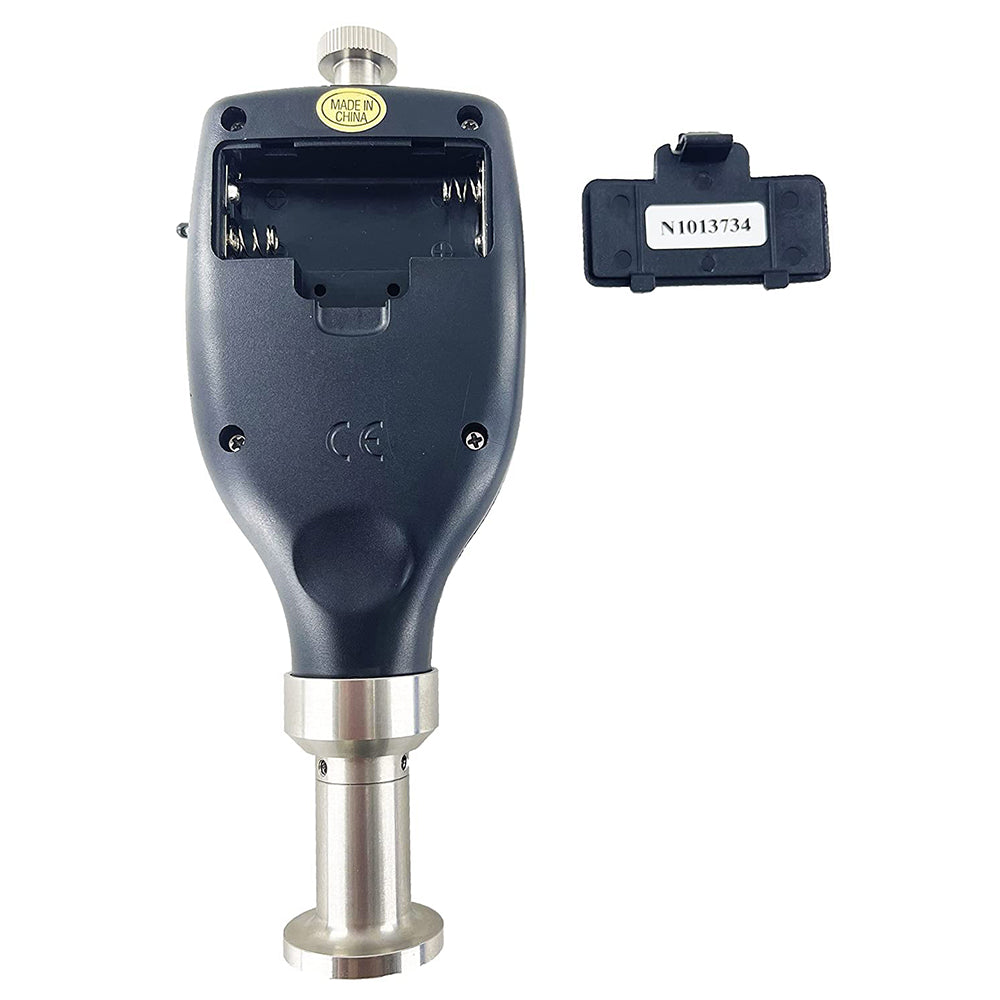

Power Supply: 2x1.5V AAA (UM-4) Battery（Batteries are not included durring the shipping）
Dimensions: 162x65x28mm; Weight: 170g

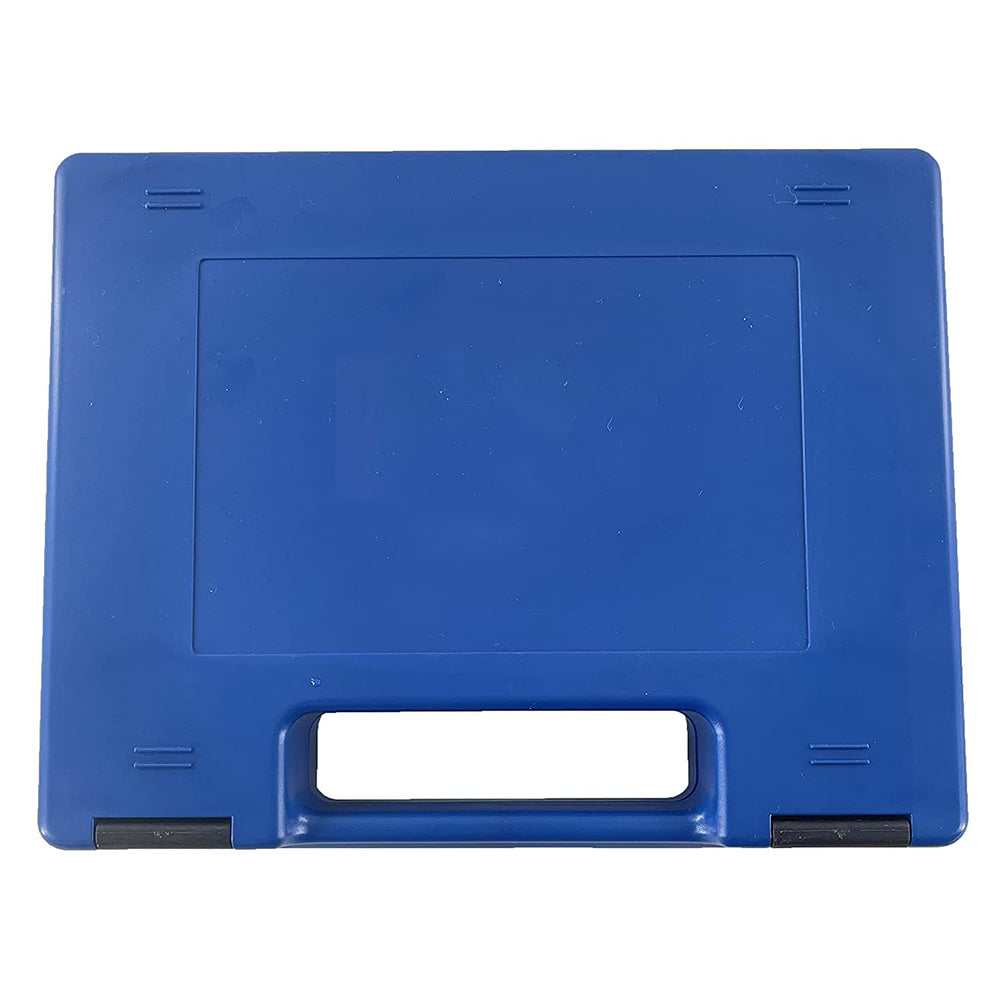

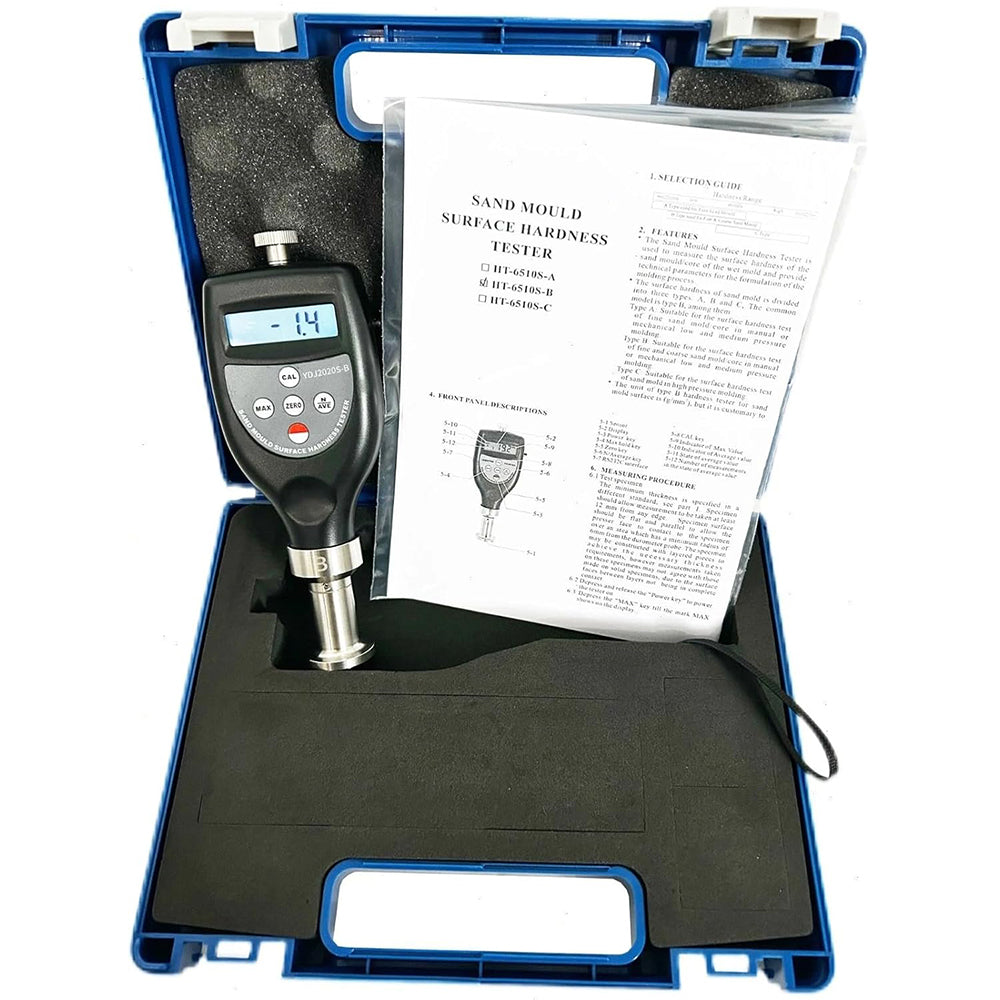

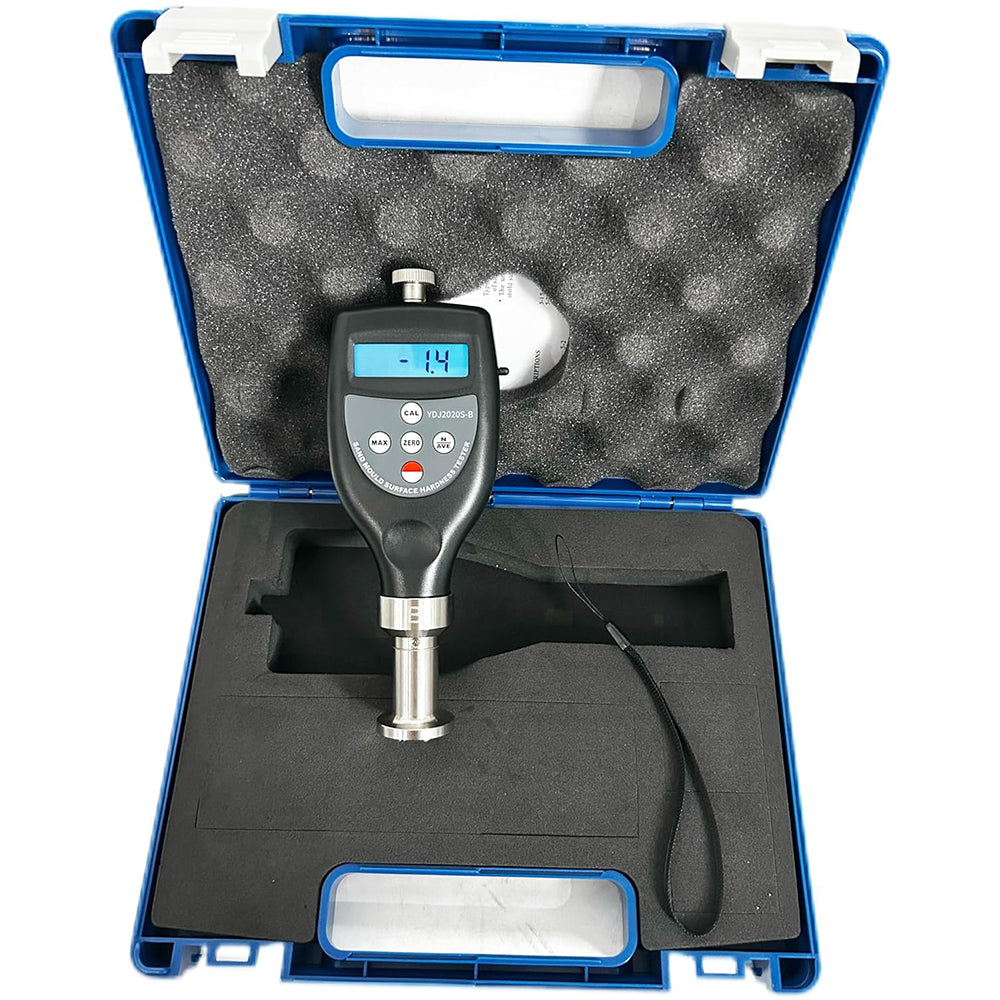

Standard Accessories：Main Unit; Carrying Case (B04);Operation Manual
