About this item

Measuring range: 0~100kg; Probe Length: 30cm; Connection Rod Length: 20cm; Total Measuring Depth: 50cm

Sensitivity: 2.0±0.1mv/V; Comprehensive accuracy: 0.1 %F∙S; repetitiveness: ±0.05 %F∙S

Large-capacity FLASH memory, can store 8,000 pieces of data; Automatic storage: 1S~180S is tunable

The handheld collector can be configured with GPS and 2/4G data upload and other functions according to the users needs, and the data in the device can also be directly exported to the Excel table through the U disk.

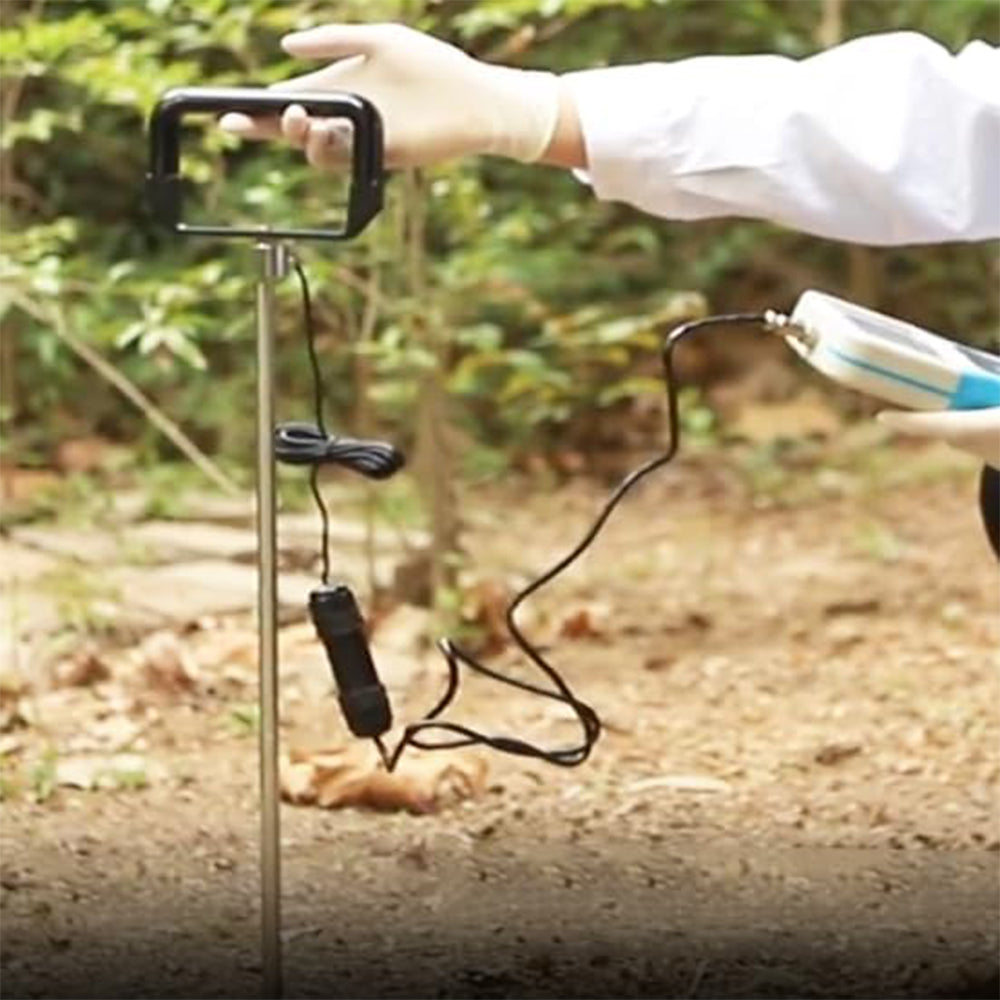

Soil compactness is also called soil hardness or soil firmness or soil penetration resistance. The resistance is generally expressed by a metal plunger or probe when pressed into the soil (in Pa). Soil firmness refers to the ability of soil to resist compaction and crushing by external forces, which is one of the aspects of soil properties.

Specification:

Location: GPS; GSM upload: GPRS/2G/4G

Unit: kg/cm²; N/cm²; Lbf three units switchable

Soil compaction sensor range: 0~100kg

Probe Length: 30cm; Connection Rod Length: 20cm; Total Measuring Depth: 50cm

Dsiplay: 2.8-inch color TFT LCD

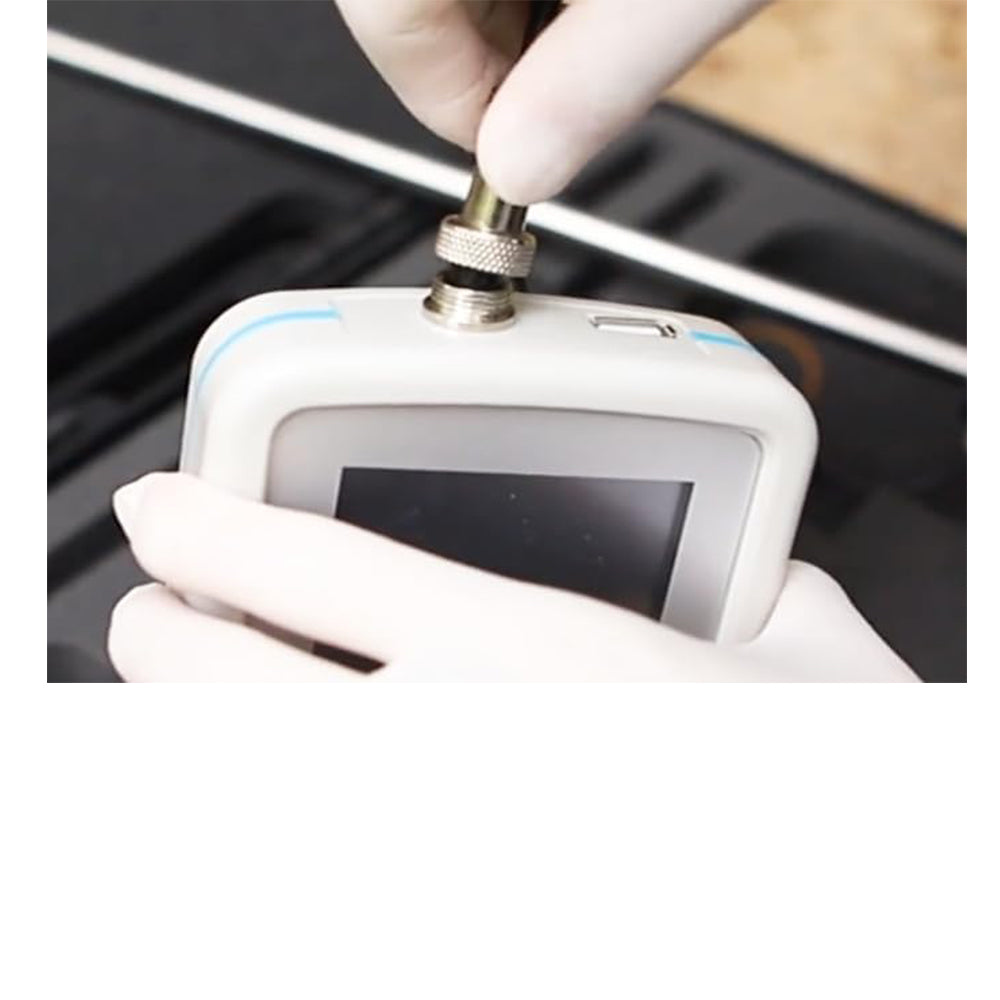

joggle: TypeC connector: Charge; USB interface: U disk; Aviation plug: RS485

Memory: Large-capacity FLASH memory; Can store 8,000 pieces of data; Automatic storage: 1S~180S is tunable

Cell: 12V 3000mah lithium battery; Working time: 10H; Charging time: 3H

Comprehensive Accuracy: 0.1%F.S

sensitivity: 2.0±0.1mv/V

repetitiveness: ±0.05 %F∙S

working temperature: -20-+70℃

material quality: stainless steel

input impedence: 735 ±35Ω; output impedence: 700±3Ω

nolinear: ±0.05 %F∙S

Sealing grade: IP66

driving voltage: 5～12 VDC

cable: φ3×2000mm

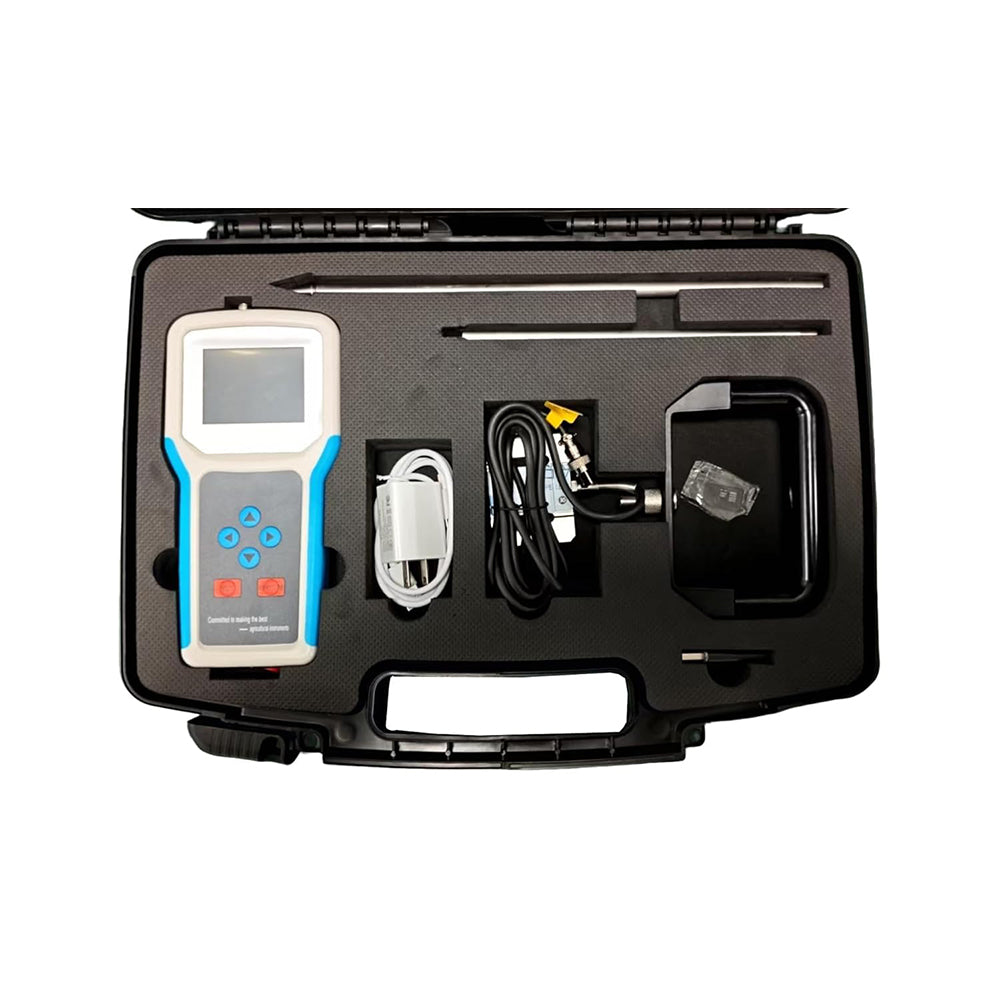

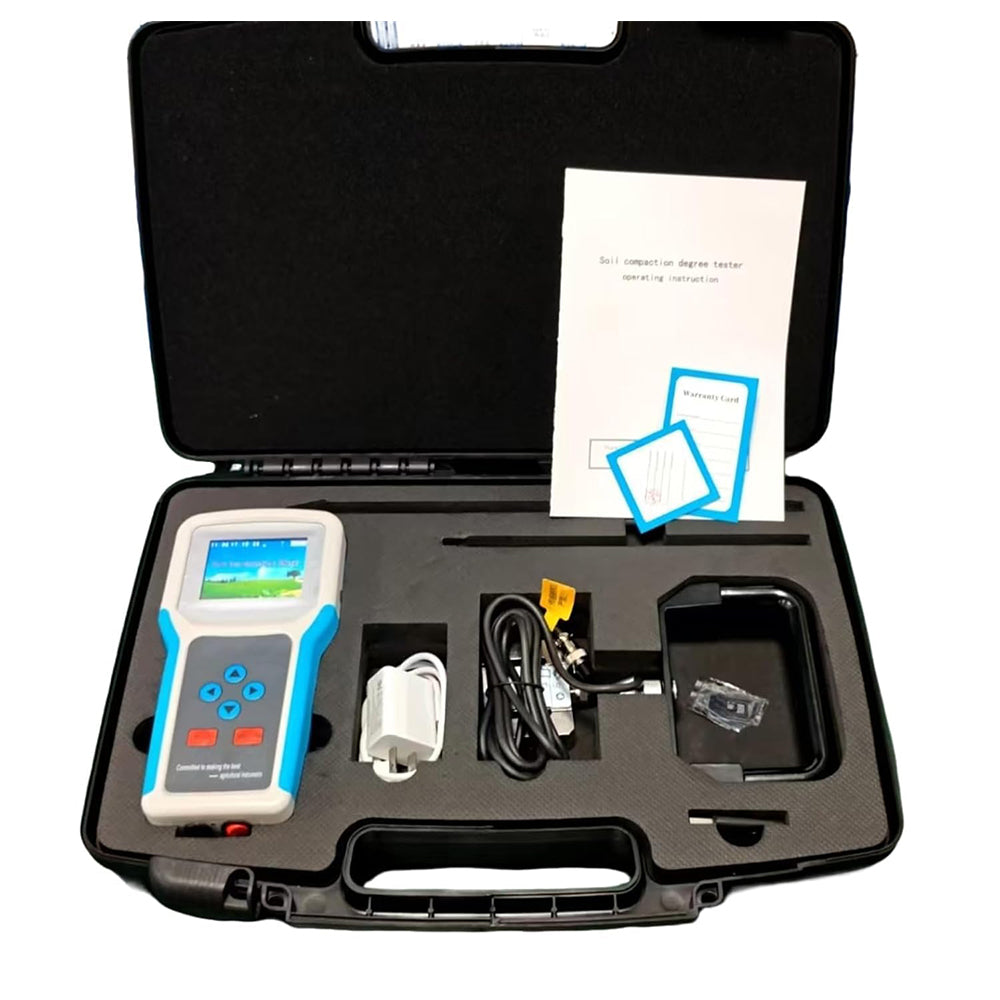

Configuration List: 1 USB cable (1M), 1 USB flash drive with 32MB rotation,1 aluminum alloy handle,1connecting rod, 1 probe, 1 aluminum alloy box, 1 instruction manual, 1 certificate of conformity/w-arranty card
