Product Description

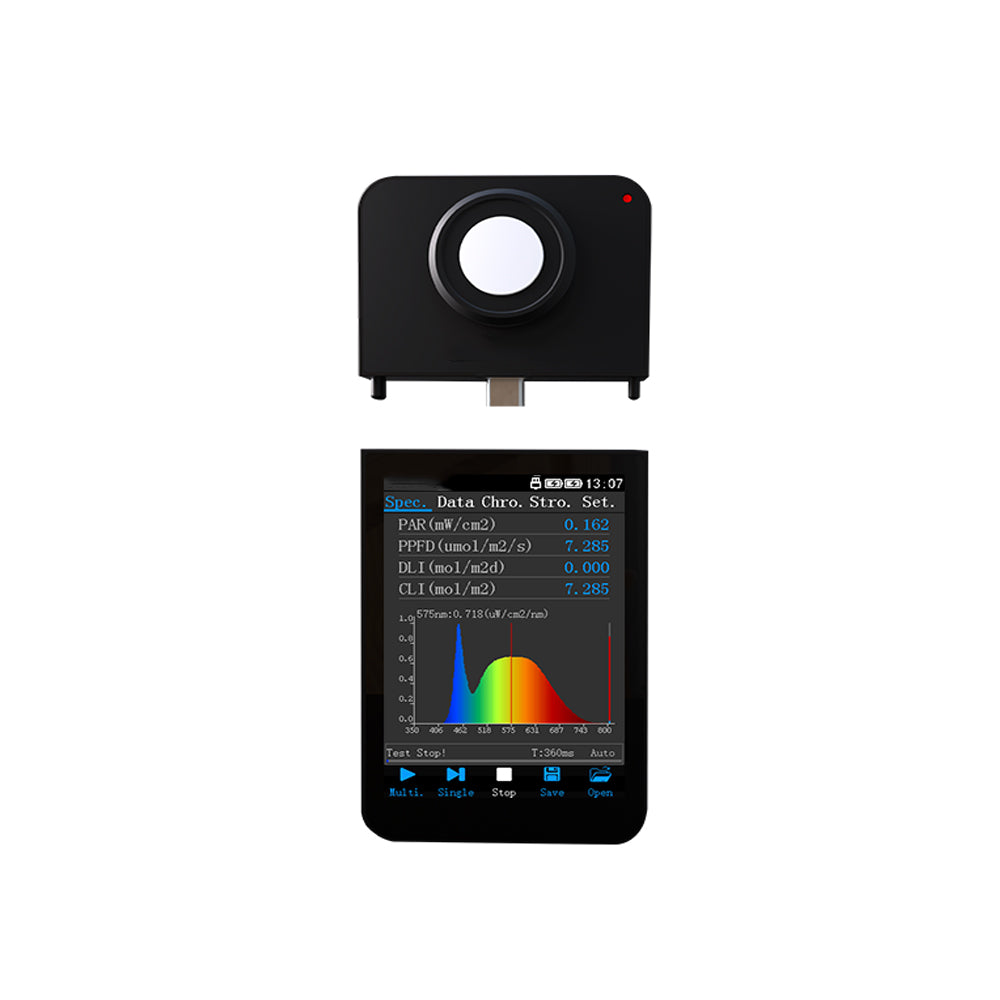

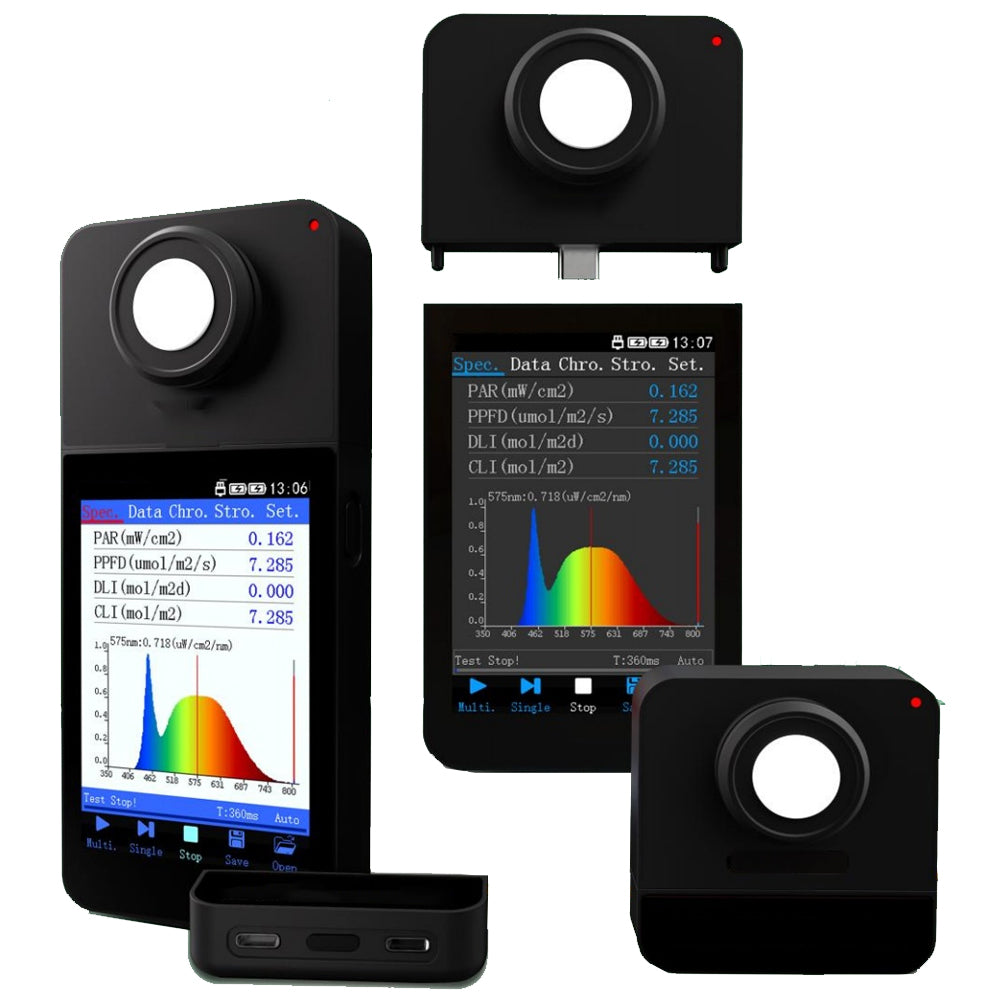

It is designed for plant light measurement and analysis, while taking into account the measurement oflighting environment, integrating spectrum, PPFD, PAR, CLl, DLl, illuinance, radiant illuminance, color temperaturecolor renderinq index and other measurement function parameters. The probe and host adopt split maqnetic desigrand Bluetooth communication. The host adopts a 3.5-inch LCD screen with PPFD real-time measurement, spectrumcurve and other parameter display interface, which is convenient and fast to use. It is widely used in plant growth,supplementary lighting, and field light analysis and recording, It has wireless Bluetooth split technology

Characteristics

Wireless Bluetooth Connection,easy to use

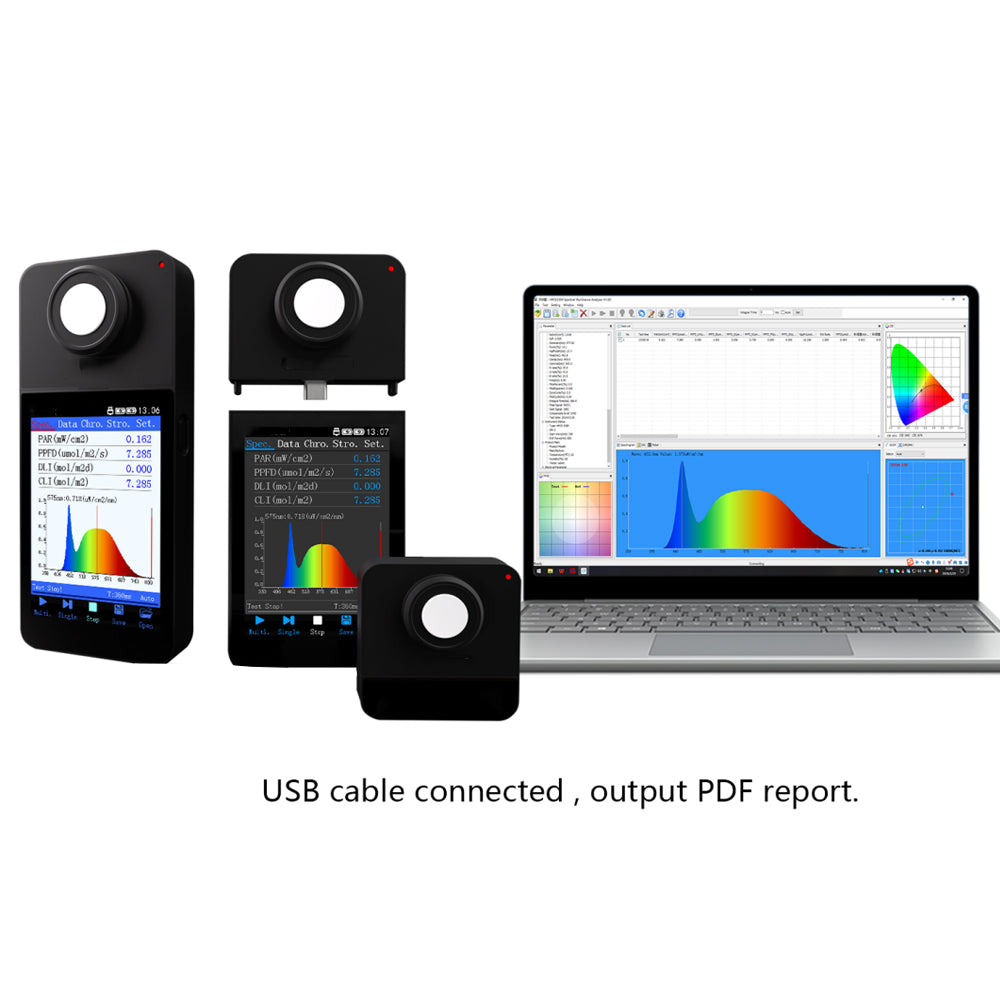

USB/Bluetooth connection automatically switches3.5-inch touch screen, Spectrum data shows
Large capacity data recordling
Chinese/English convert

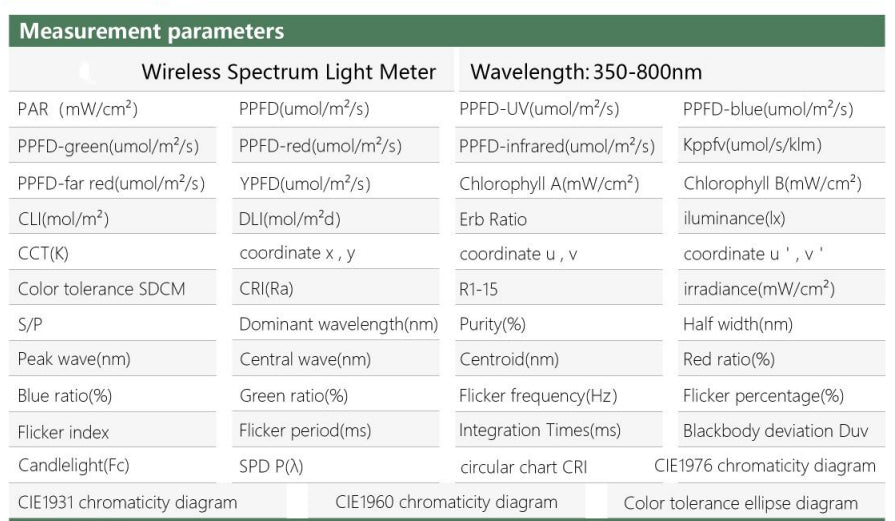

Measurement

1. CCT Tc (K) and Blackbody deviation Duv

2. light illumination E (LX), candlelight E (Fc)

3. chromaticity coordinates (x, y), (U, V), (U ', V')

4. relative spectral power distribution P (lambda)

5. color index Ra, Ri (i=1 ~ 15)

6. color tolerance SDCM

7. Dominant wavelengths, peak wavelengths

8. Visual ratio of light and shade S/P

9. color purity, red ratio, green ratio, blue ratio, CIE1931 three basic color stimulus value X, Y, Z

10.PAR(mW/cm2) PPFD(umol/m2/s) PPFD-UV, PPFD-R,PPFD-G,PPFD-B,PPFD-IR,PPFD-FIR

11.FLICKER,Flicker index ,flicker frequency , flicker percent

Technical indicators

Wavelength:350-800nm
