  • VTSYIQI Handheld Spectrophotometer Color Difference Measurement Tool with Display Accuracy 0.1 Aperture Ø8mm Repeatability ΔE*ab＜0.1 TFT True Color 3.5inch ASTM ISO Standard

VTSYIQI

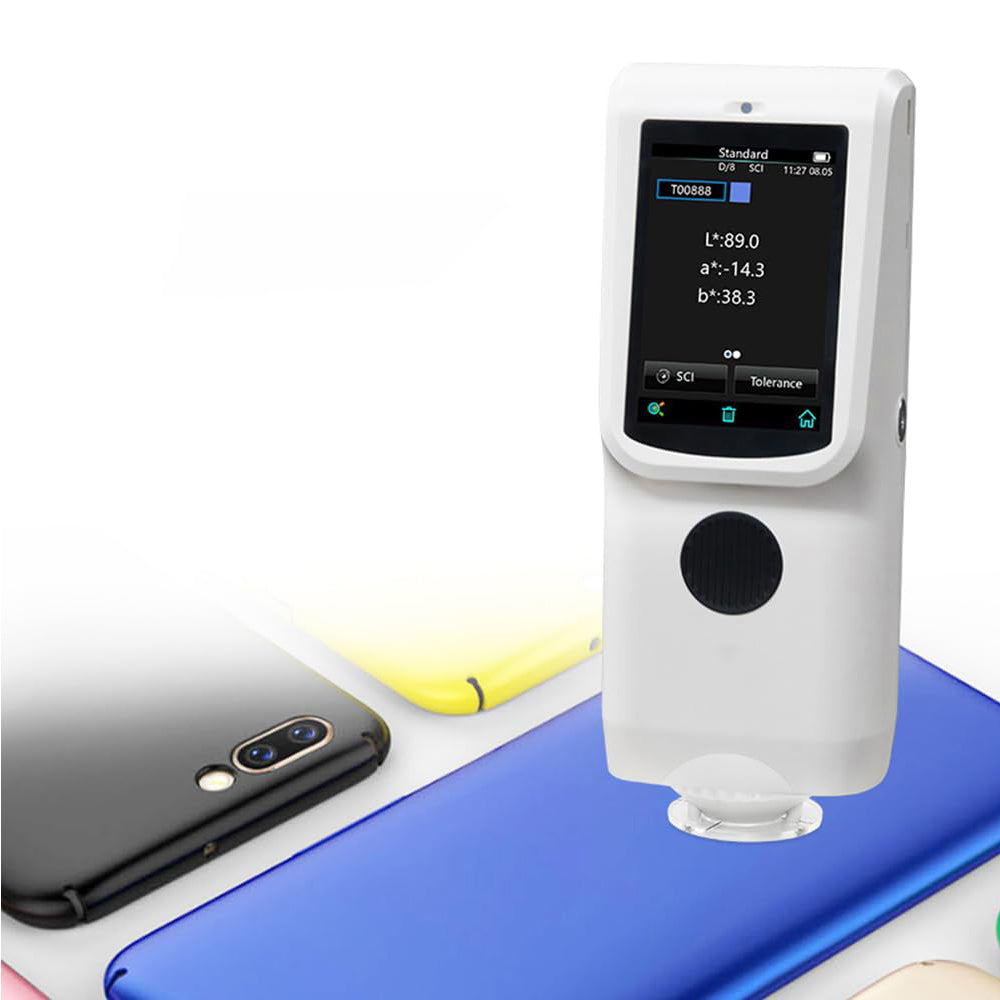

VTSYIQI Handheld Spectrophotometer Color Difference Measurement Tool with Display Accuracy 0.1 Aperture Ø8mm Repeatability ΔE*ab＜0.1 TFT True Color 3.5inch ASTM ISO Standard

$84500
In stock
$84500

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

VTSYIQI Handheld Spectrophotometer Color Difference Measurement Tool with Display Accuracy 0.1 Aperture Ø8mm Repeatability ΔE*ab＜0.1 TFT True Color 3.5inch ASTM ISO Standard

About this item

1. Novel and fashionable appearance design based on ergonomics The position of the hand grip and the measurement button are carefully designed to meet different gripping habits. The smooth and fine surface is derived from the art of high-precision appearance processing.
2. Adopt full-band balanced LED light source The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the lack of spectrum of white LEDs in a specific band, and ensures

3. Silicon photodiode array (double 24 array) sensor The dual-24 array sensor with larger area has strong light but not saturate, higher sensitivity of low light and wider spectral response range, which ensures the measurement speed, accuracy, stability and consistency of the instrument.Mastering the core technology and fully compatible with international standards.

4. Grating Spectrophotometric technology Using grating spectrophotometric technology, it has higher resolution and makes color

5. Place the base safely to ensure that the whiteboard is not dirty 6. Professional whiteboard, a promise that will never change color forever

7. Fast charging Special fast charging method, low-voltage reminder to charge or use of off-hours to charge, to ensure the capacity and life of the battery (note: frequent repeated charging of the battery is more harmful).

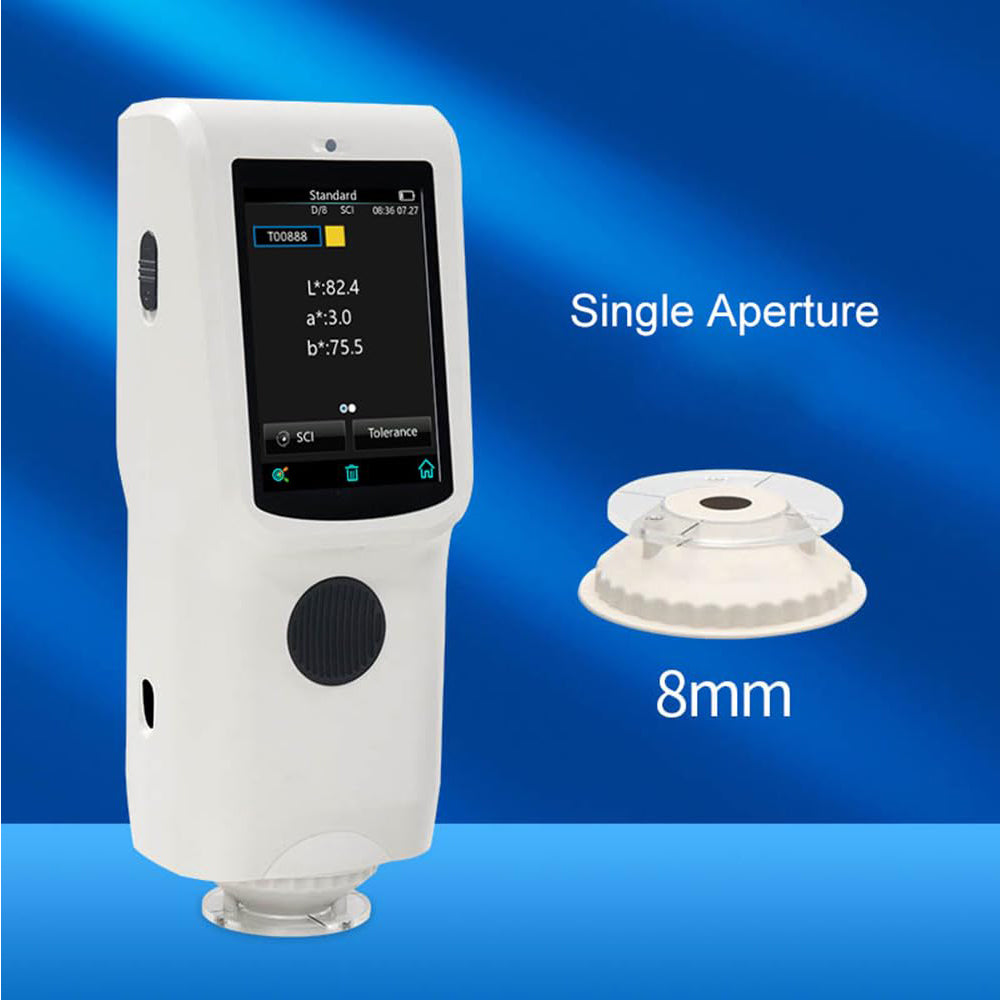

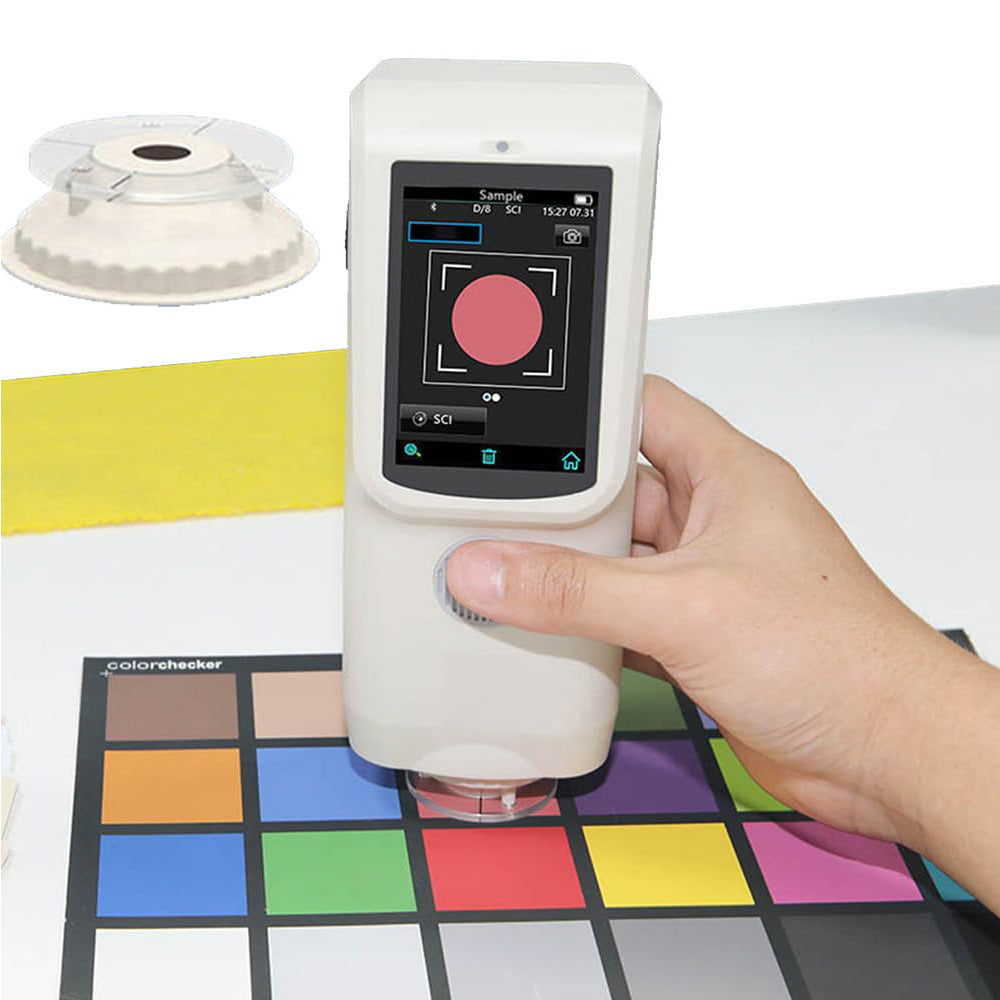

8. Single measuring aperture can accurately meet the needs of sample measurement Spectrocolorreader is equipped with a Ø8mm platform aperture to meet your sample measurement needs.

9. Excellent inter- instrument error and repeatability to ensure the consistency of measurement data of multiple equipment

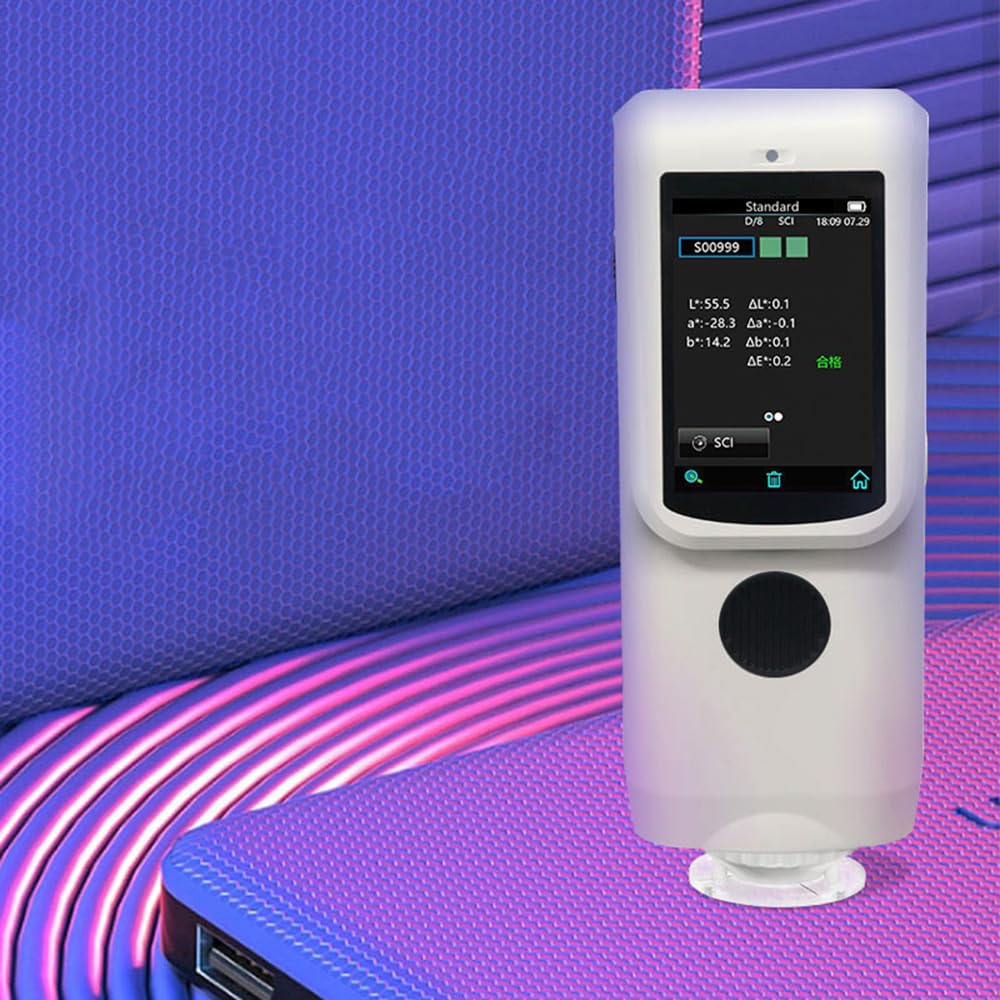

10. Diversified data display Spectrocolorreader can intuitively display reflectance (reflectance at a specific wavelength specified by the user), sample chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset and other data .It is convenient to view and also greatly improves the user's work efficiency.

Spectrocolorreader

Optical geometry :

D/8 (diffuse illumination, 8° direction reception)

SCI measurement

Comply with standard CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristics : Single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries

Integrating sphere size:Φ40mm

Light source:Combined full-spectrum LED light source

Spectroscopic method : Planar grating

Sensor : Silicon photodiode arrays (dual row 24 groups)

Wavelength range : 400~700nm

Wavelength interval : /

Semiband Bandwidth : 10nm

Measurement range :

L:0~100

Reflectivity: can test the reflectance at a specific wavelength specified by the user (default 550nm)

Measurement aperture : Single aperture：Φ8mm

Focusing method : Fixed Focus

Specular component : SCI

Color space : CIE LAB,XYZ,Yxy,LCh

Color difference formula : ΔE*ab, ΔE*00

Other colorimetric indexs : /

Observer angle : 10°

Illuminant : D65,A,F2(CWF)

Displayed data : Reflectivity(at 1 specific wavelengths specified by the user)chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset

Display Accuracy : 0.1

Measurement time : Approx. 1.5s

Repeatability : Chromaticity value: MAV/SCI, ΔE*ab within 0.1 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument error : MAV/SCI, within ΔE*ab 0.4(Average for 12 BCRA Series II color tiles)

Measurement method : Single measurement, average measurement (2~99 times)

Locating method : Stabilizer locating

Size : LxWxH=81X71X214mm

Weight : About 460g

Battery power : Lithium battery, 6000 times in 8 hours

Illuminant life span : 5 years, more than 3 million times measurements

Display : TFT true color 3.5inch, capacitive touch screen

Data port : USB is for charging only, does not support quality control software

Data storage : 500 standard samples, 1,0000 samples

Language : Simplified Chinese, English, Traditional Chinese

Operating temperature range : 0~40℃, 0~85%RH (no condensation), altitude< 2000m

Storage temperature range : -20~50℃, 0~85%RH (no condensation)

Standard Accessories : Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm platform aperture

Optional Accessories : USB micro printer, powder test box,holder base

Notes. : Technical parameters are for reference only, subject to the actual sales of products
