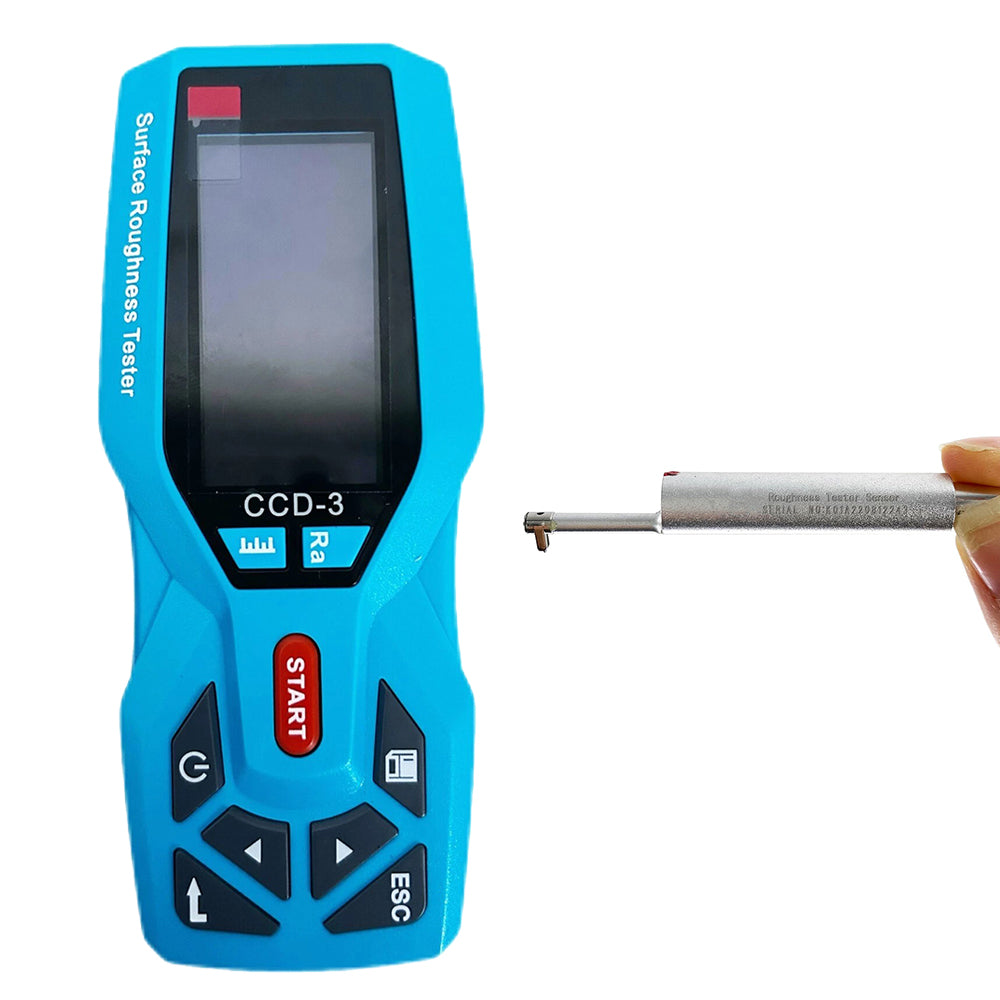

Curved Surface Sensor, for convex or concave surfaces with a curvature radius of 3 mm or more.

About this item：

◆(1)Digital display ( 128 x 64 OLED dot matrix display,digital / graphic display ),with back light gives exact and clearly reading although you stay at the somber conditions.Electromechanical integration design, small volume, light weight, easy to use.

◆(2)This surface roughness tester with automatic dormancy, automatic shutdown and power saving function.Real-time clock settings and display, convenient data recording and storage.

◆(3)Pocket-size & economically price.Large measuring range suitable for most materials.Testing Parameters: Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;Measuring Range: Ra: 0.005~16.000μm; Rz: 0.02~160.00μm.

◆(4)Measurement information display, menu prompt information, false information and switch machine and other tips that information.

◆(5)Visual waveform display;Using DSP chip to control and data processing, high speed, low power consumption;Intuitive and rich display information, can display all the parameters and graphics;

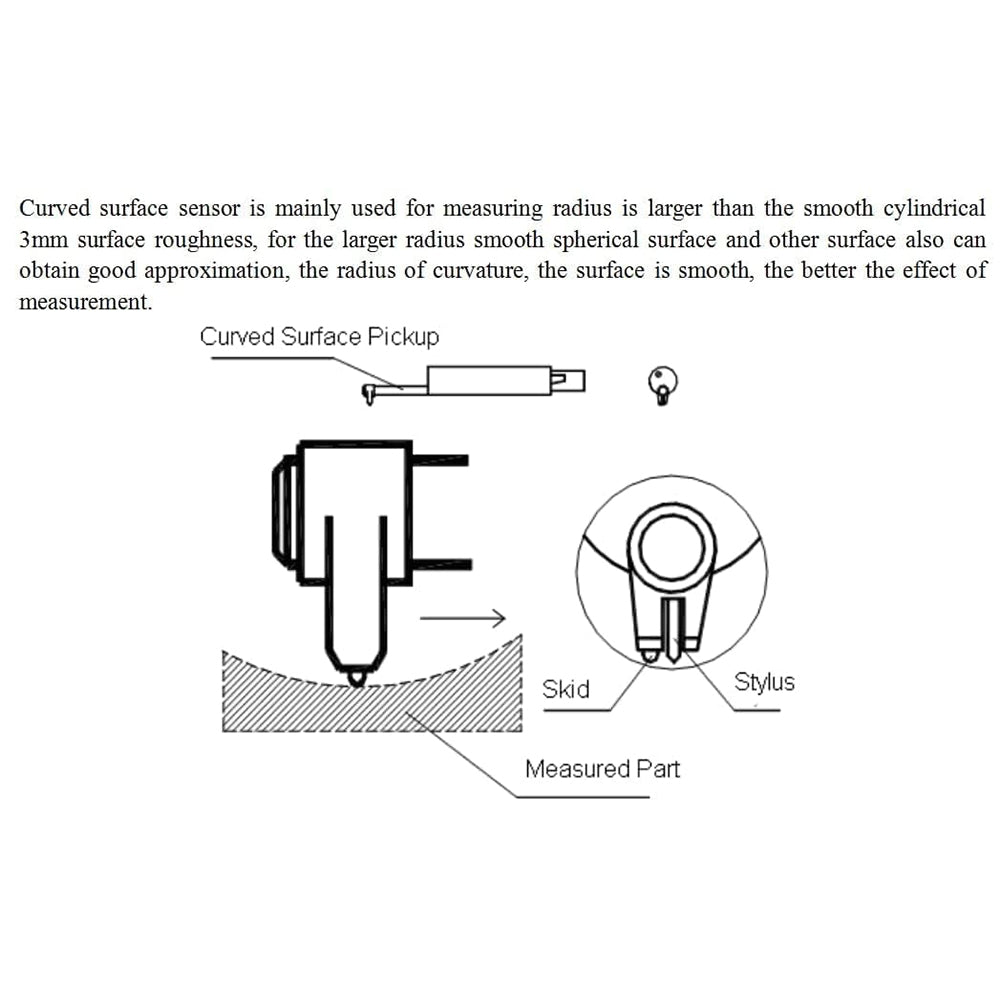

◆(6)Curved surface sensor is mainly used for measuring radius is larger than the smooth cylindrical 3mm surface roughness, for the larger radius smooth spherical surface and other surface also can obtain good approximation, the radius of curvature, the surface is smooth, the better the effect of measurement.

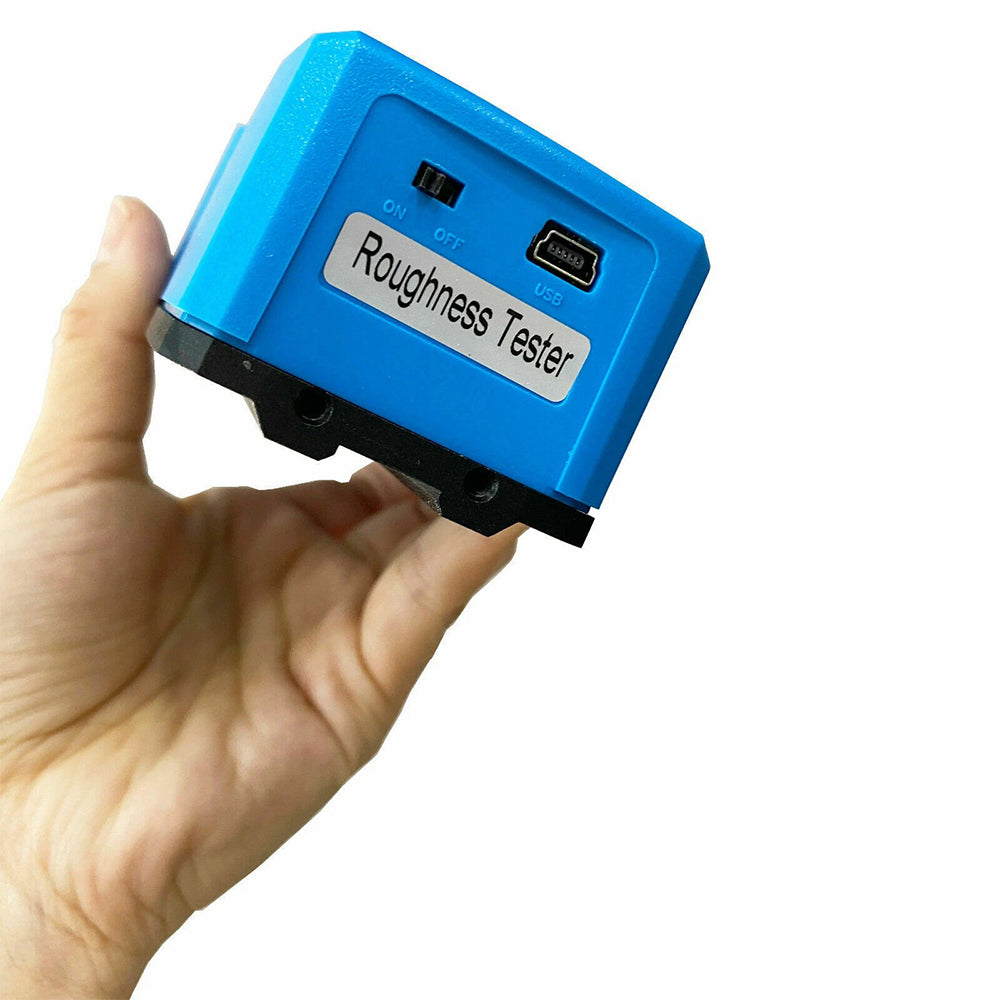

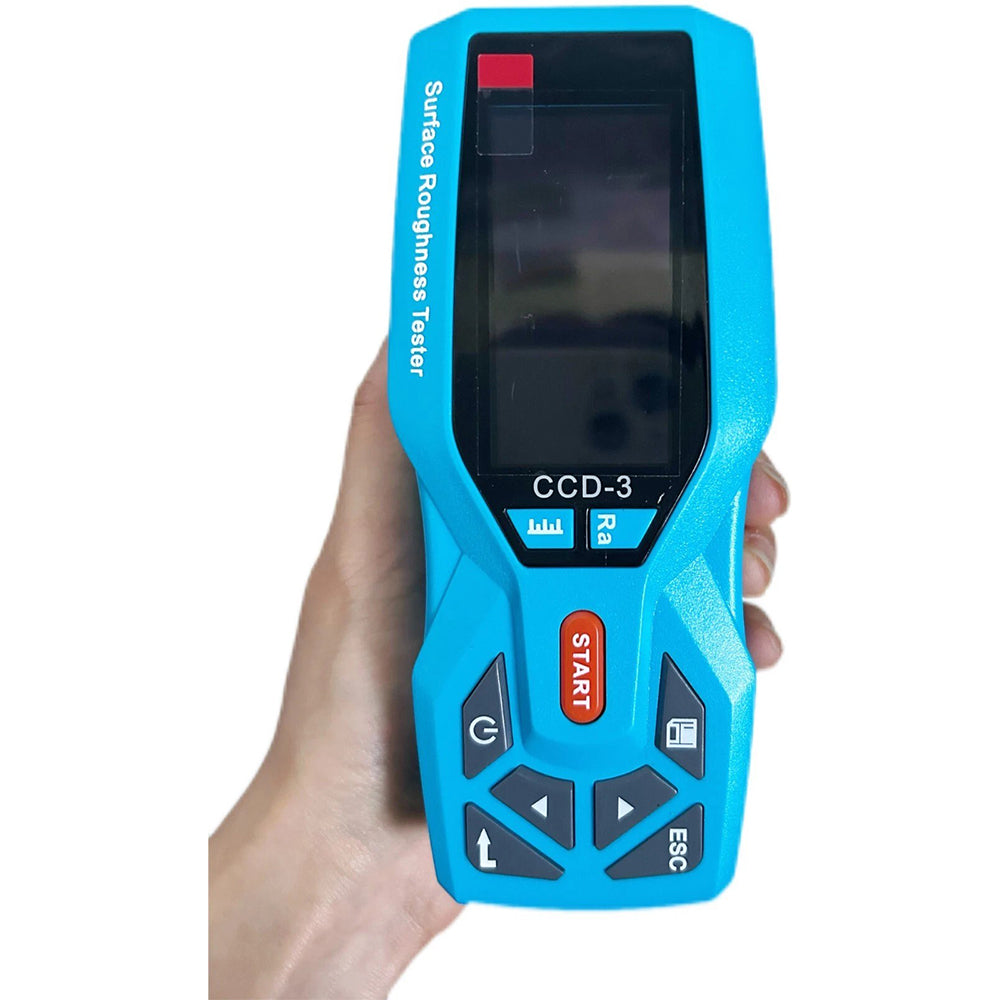

Features:

Stylish design with plastic shell portable, high reliability.

Visual waveform display;

Electromechanical integration design, small volume, light weight, easy to use;

Using DSP chip to control and data processing, high speed, low power consumption;

128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

Intuitive and rich display information, can display all the parameters and graphics;

Compatible with ISO, DIN, ANSI, JIS national standards;

Residual quantity icon, prompting the user to charge;

Continuous working time: more than 20 hours;

Real-time clock settings and display, convenient data recording and storage;

With automatic dormancy, automatic shutdown and power saving function;

Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.

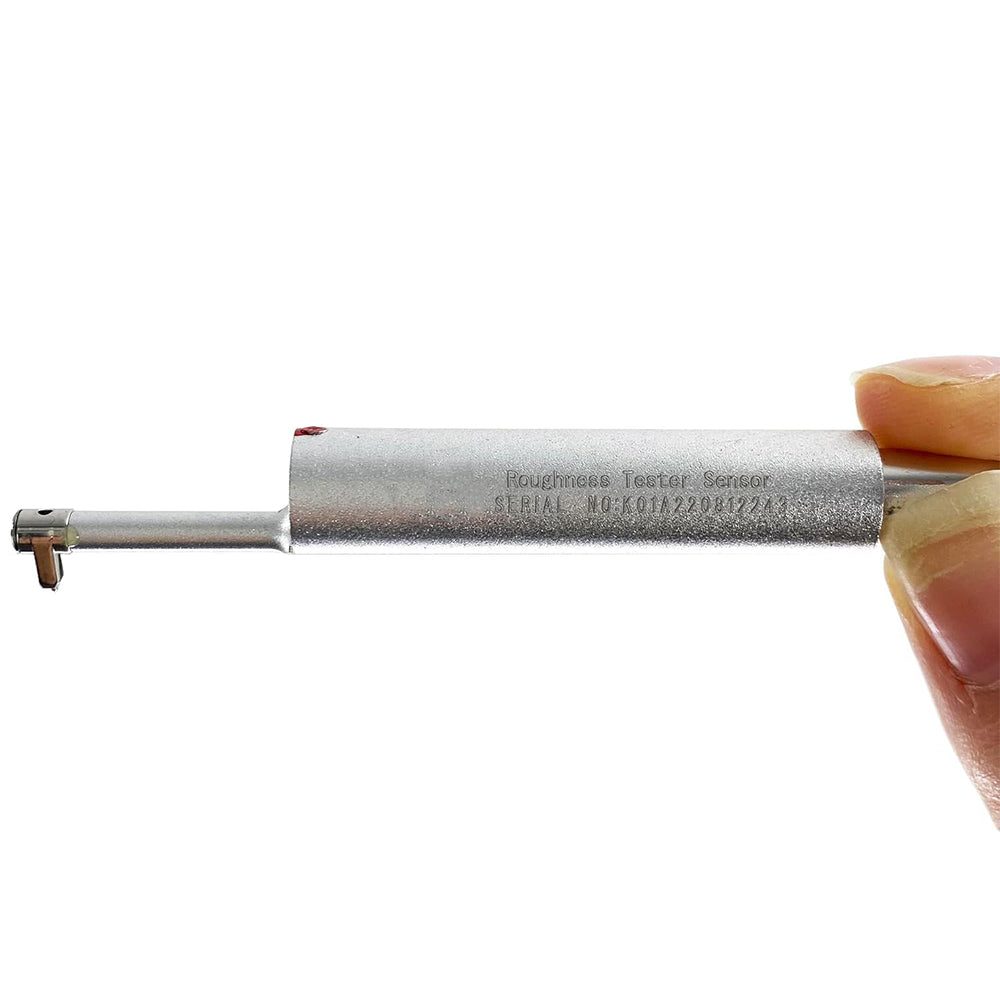

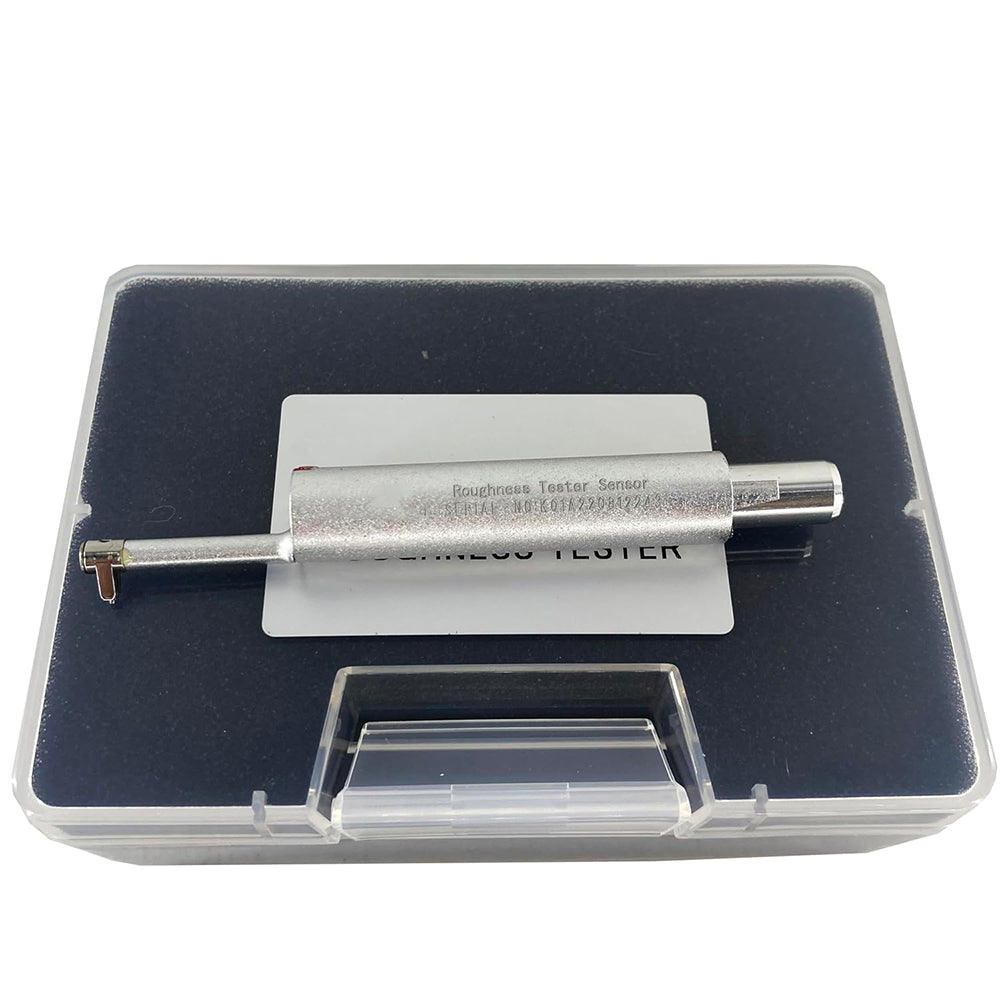

Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation

The Curved Surface Sensor can measure the surface roughness of the surface roughness of the uneven curved surface workpiece having a radius of curvature, and also measures suitable planes, cylinders.

Curved surface sensor is mainly used for measuring radius is larger than the smooth cylindrical 3mm surface roughness, for the larger radius smooth spherical surface and other surface also can obtain good approximation, the radius of curvature, the surface is smooth, the better the effect of measurement.

Technical Specifications

Testing Parameters: Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;

Measuring Range: Ra: 0.005~16.000μm; Rz: 0.02~160.00μm

Sample Length: 0.25, 0.80, 2.50mm

Evaluation Length: (1~5)L

Maximum Drive Stroke: 17.5mm/0.7inch

Indication Accuracy: 0.001μm

Indication Error: ≤(±10)%

Variability: <6%

Data Storage: 100 groups

Power: Rechargeable Li-battery

Relative Humidity<90%; Working Temperature: -20°C~40°C

Size: 141x55x40mm

Weight of Host: 0.4kg

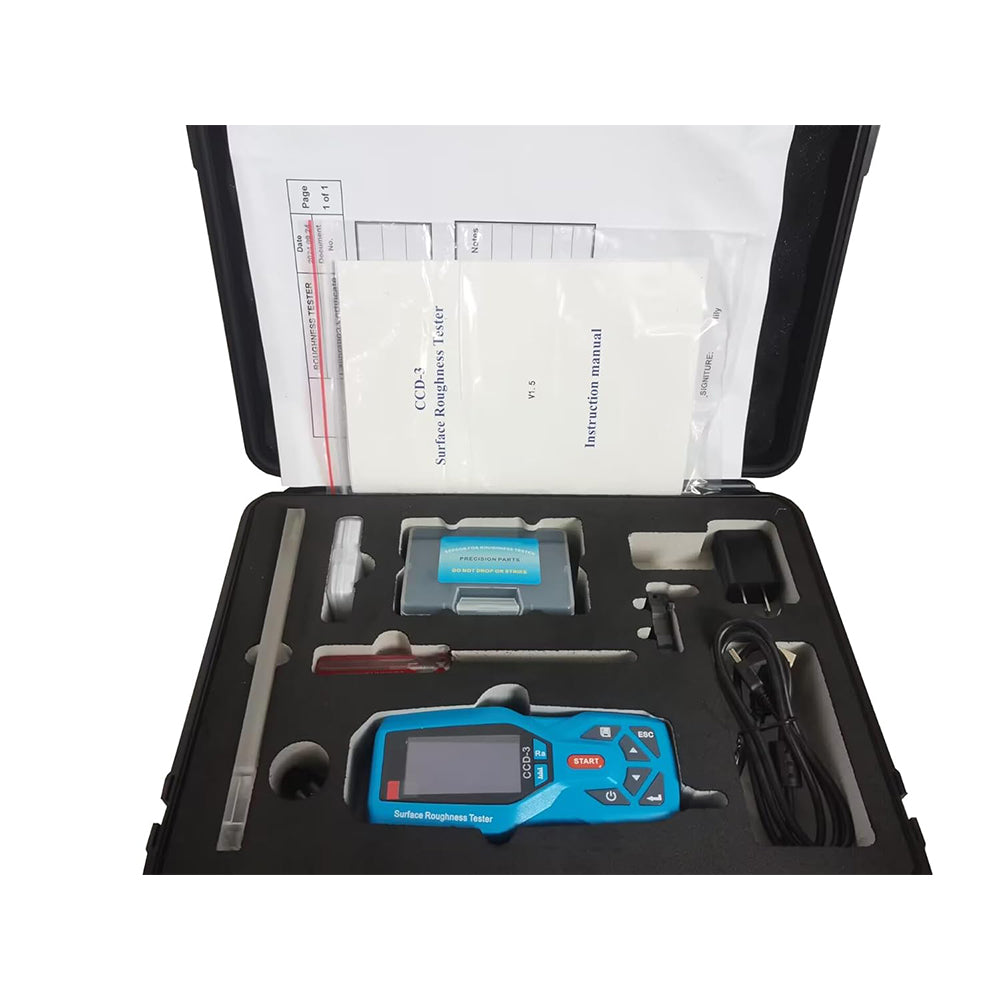

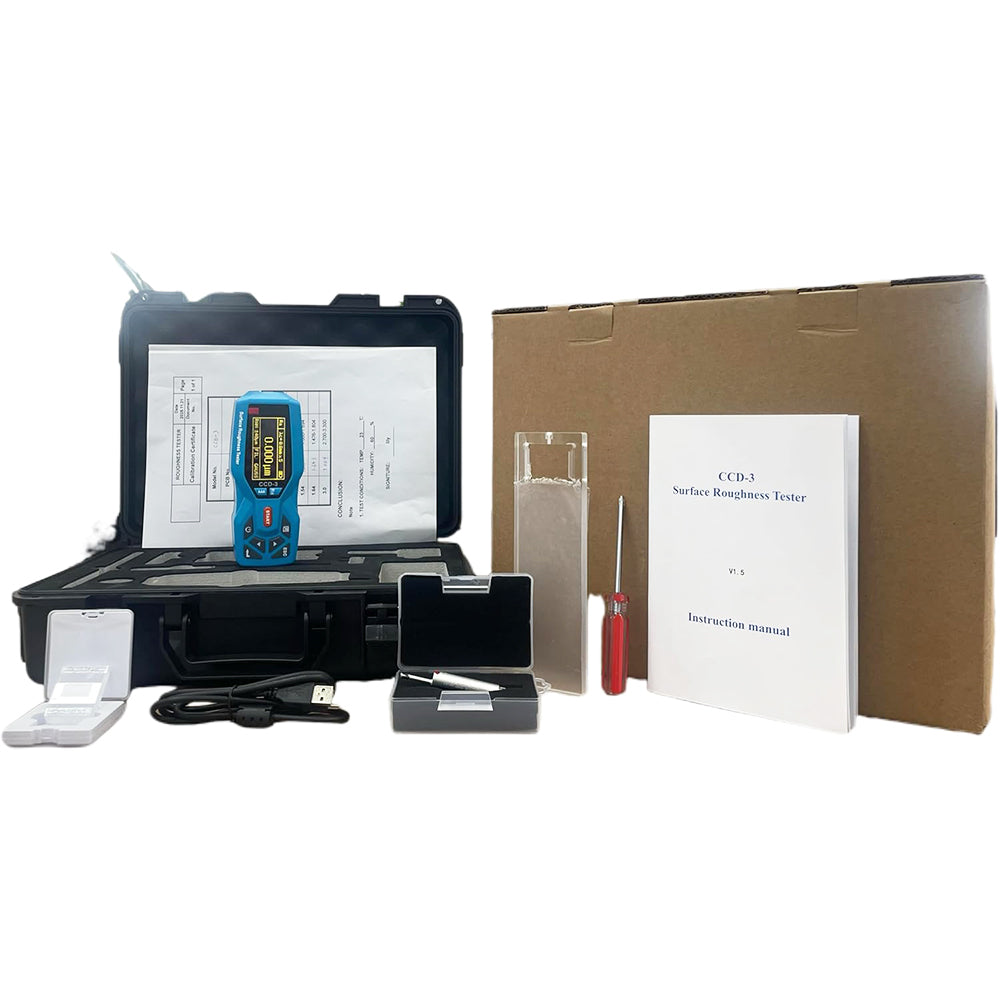

Optional Accessories:Different types of sensors can be selected to measure the roughness of surfaces, measuring platform, mini printer, extension rod and other accessories
