  • VTSYIQI Surface Roughness Tester Machine Digital Surface Roughness Tester with Groove Sensor Indication Accuracy 0.001μm 100 Groups Data Storage Suitable for Groove Width >2mm Groove Depth <3mm

VTSYIQI

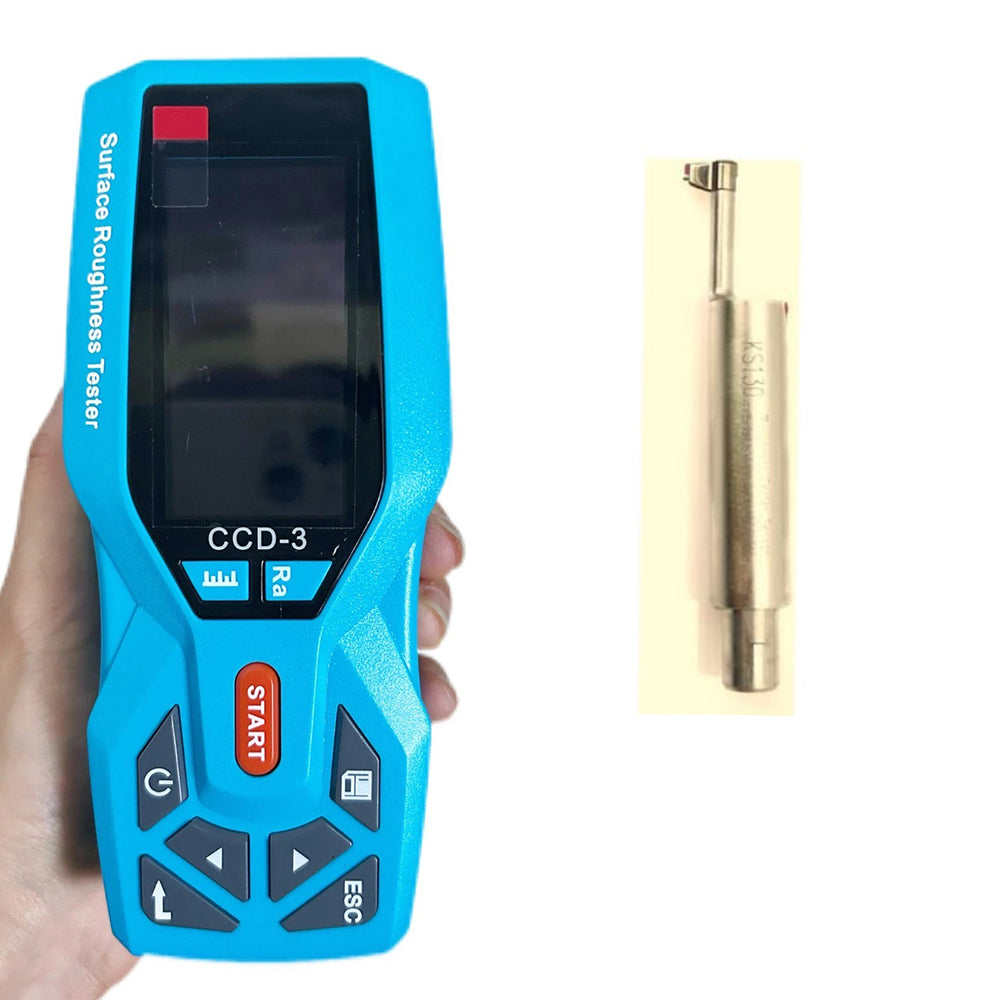

VTSYIQI Surface Roughness Tester Machine Digital Surface Roughness Tester with Groove Sensor Indication Accuracy 0.001μm 100 Groups Data Storage Suitable for Groove Width >2mm Groove Depth <3mm

$1,36300
In stock
$1,36300

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

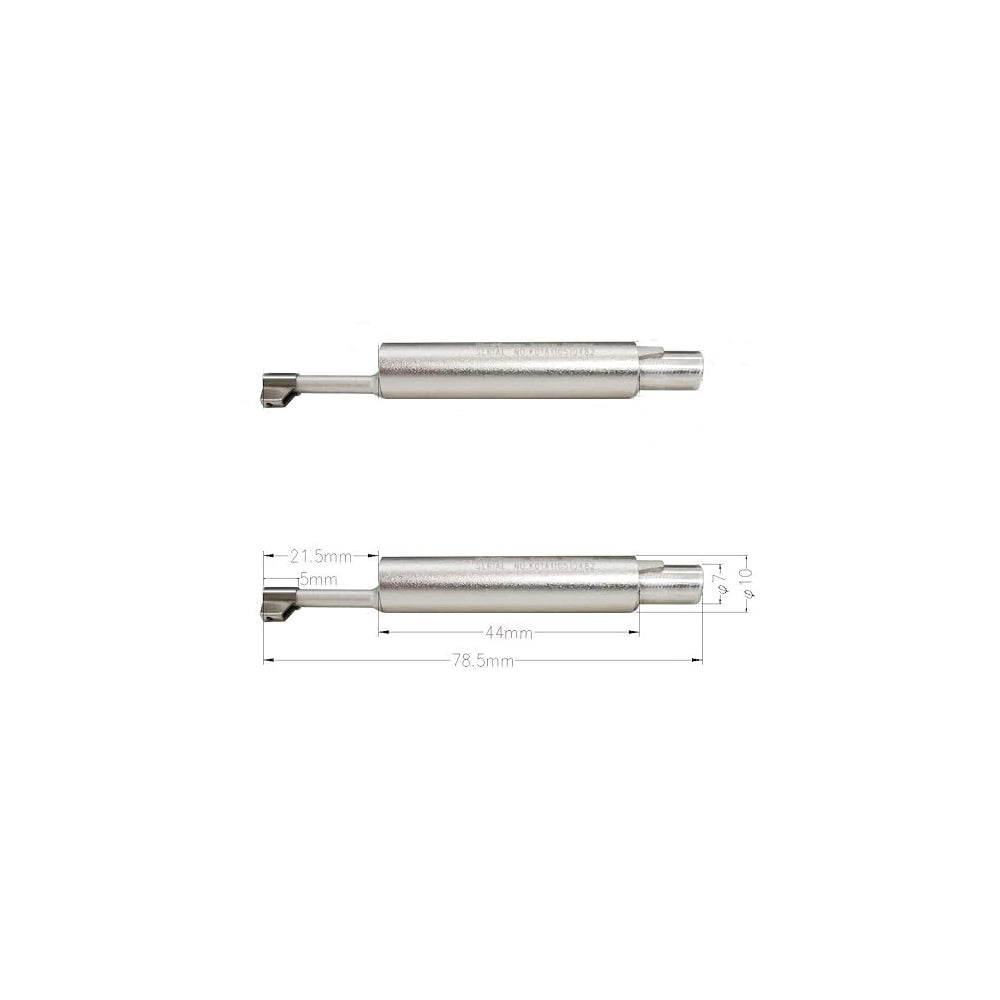

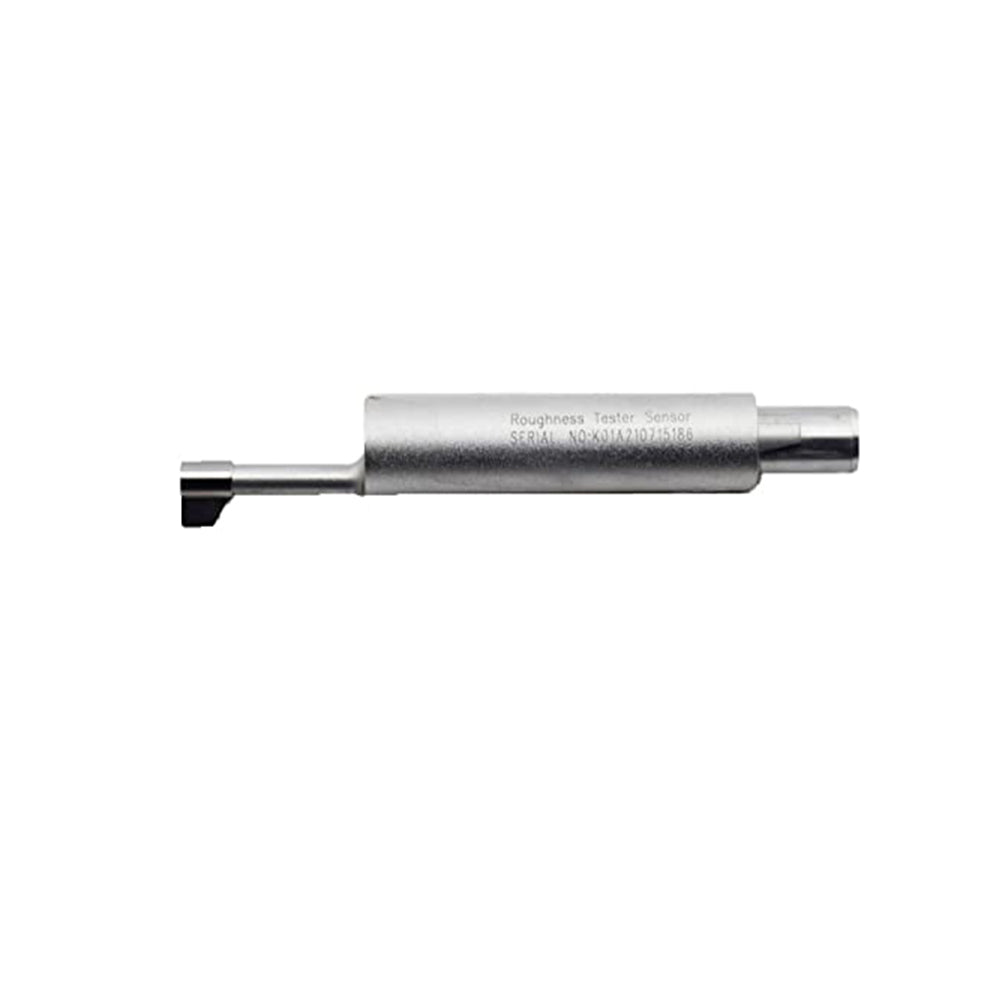

Groove Sensor for Groove Width >2mm Groove Depth <3mm

About this item：

◆ Stylish design with plastic shell; Measuring Range: Ra: 0.005~16.000μm; Rz: 0.02~160.00μm; Using DSP chip to control and data processing, high speed, low power consumption;

◆ Testing Parameters: Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;

◆ Sample Length: 0.25, 0.80, 2.50mm; Evaluation Length: (1~5)L; 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

◆ Maximum Drive Stroke: 17.5mm/0.7inch; Indication Accuracy: 0.001μm; Intuitive and rich display information, can display all the parameters and graphics;

◆ Electromechanical integration design, small volume, light weight, easy to use; With automatic dormancy, automatic shutdown and power saving function;

Surface Roughness Gauge Features:
* Stylish design with plastic shell portable, high reliability.
* Visual waveform display;
* Electromechanical integration design, small volume, light weight, easy to use;
* Using DSP chip to control and data processing, high speed, low power consumption;
* 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
* Intuitive and rich display information, can display all the parameters and graphics;
* Compatible with ISO, DIN, ANSI, JIS national standards;
* Residual quantity icon, prompting the user to charge;
* Continuous working time: more than 20 hours;
* Real-time clock settings and display, convenient data recording and storage;
* With automatic dormancy, automatic shutdown and power saving function;
* Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
Technical Specifications
* Testing Parameters: Ra, Rz=Ry(JIS), Rq, Rt=Rmax, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx, RPc, Rk, Rpk, Rvk, Mr1, Mr2;
* Measuring Range: Ra: 0.005~16.000μm; Rz: 0.02~160.00μm
* Sample Length: 0.25, 0.80, 2.50mm
* Evaluation Length: (1~5)L
* Maximum Drive Stroke: 17.5mm/0.7inch
* Indication Accuracy: 0.001μm
* Indication Error: ≤(±10)%
* Variability: <6%
* Data Storage: 100 groups
* Power: Rechargeable Li-battery
* Relative Humidity<90%; Working Temperature: -20°C~40°C
* Size: 141x55x40mm
* Weight of Host: 0.4kg
