About this item:

(1)Small size, easy to carry and install.

2)The module can be used alone as a flow meter.

(3)Communication with RS-232 output available to choose.

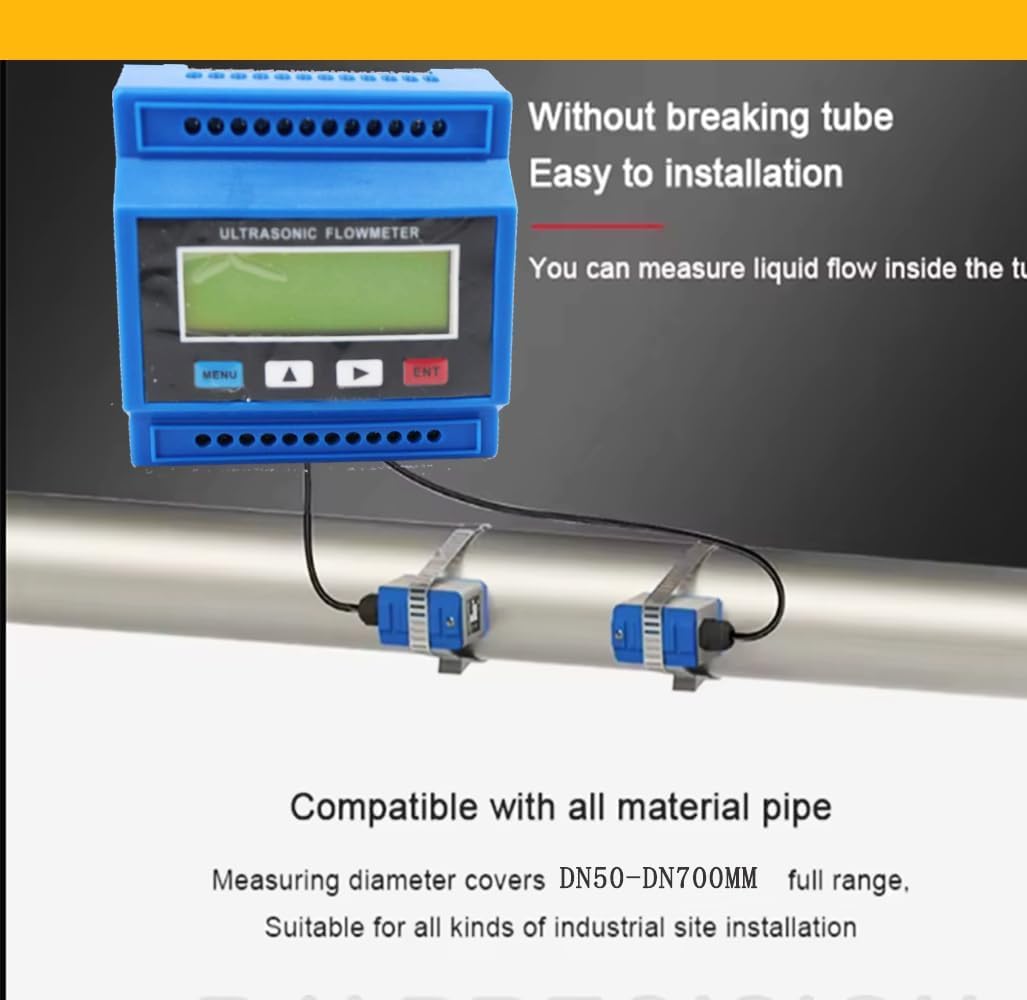

(4)Non-contact measuring way, convenient to use.

(5)Made of premium aeronautical ABS, practical and durable.

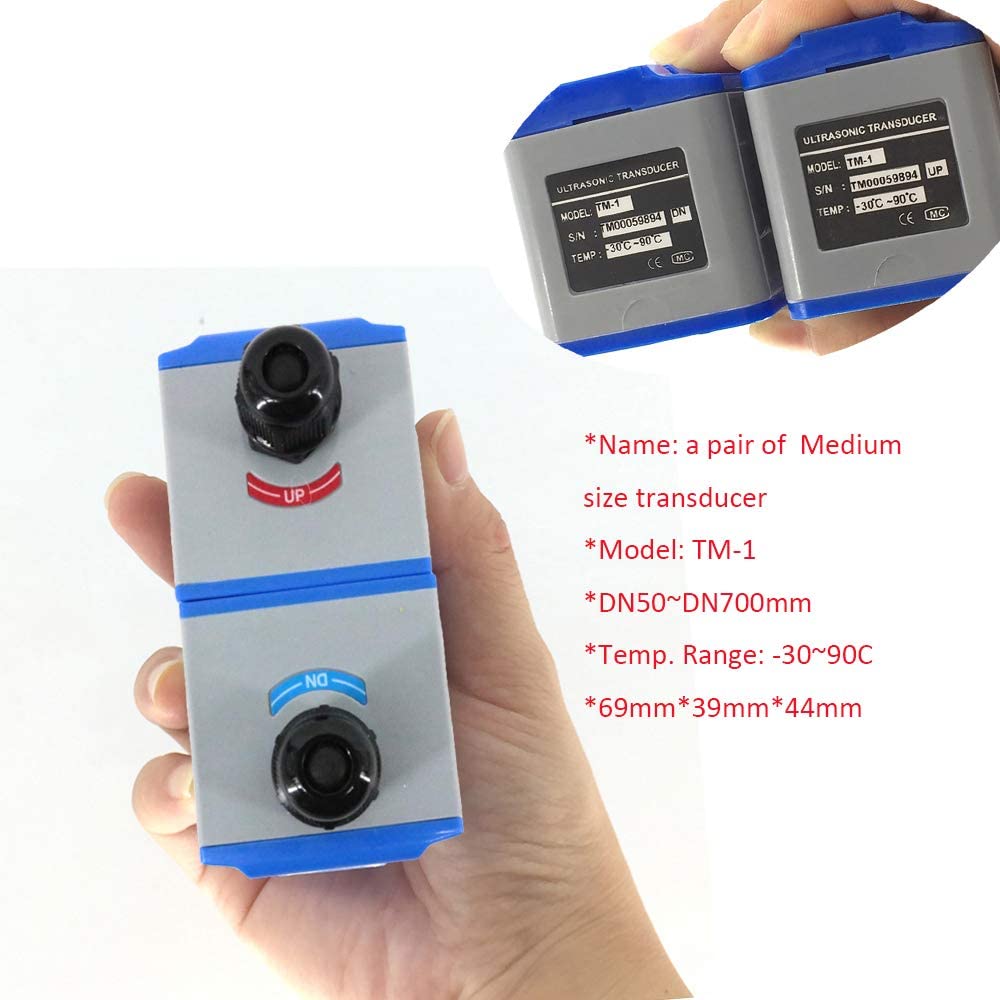

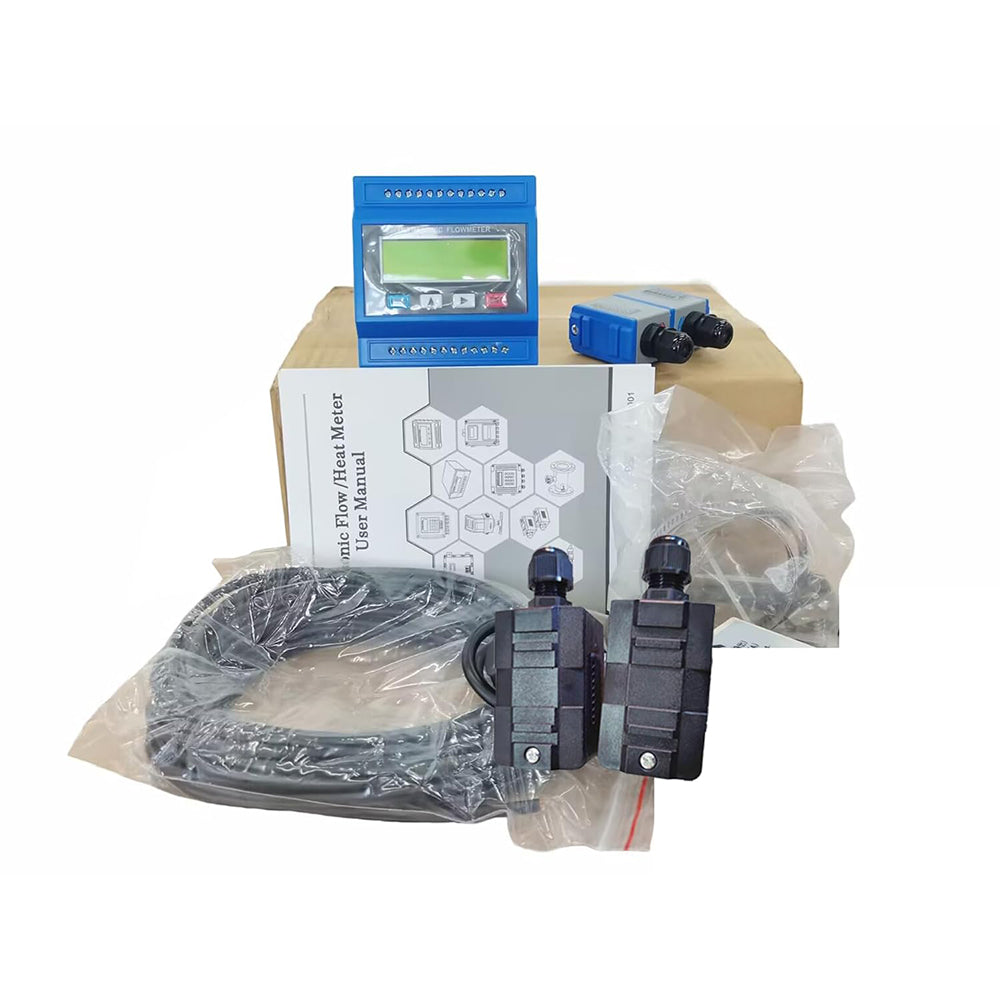

 ◆This type Ultrasonic Flowmeter is package with Medium Transducer TM-1 (size: 64*39*44mm) AND CT-1 Temperature Transducer for Pipe Diameter DN50 to 700mm, Temperature : -30~90C◆

◆Please note that the power converter is optional,the power converter is used to convert the AC220V power supply to DC24V.if you need ,you need extra payment USD35.◆

Technical Specifications:
◆Accuracy: ≤1%
◆Velocity range: 0~±10m/s, Bi-directional measurement
◆Pipe size: DN50 to 700mm
◆Temperature: -30~90°C

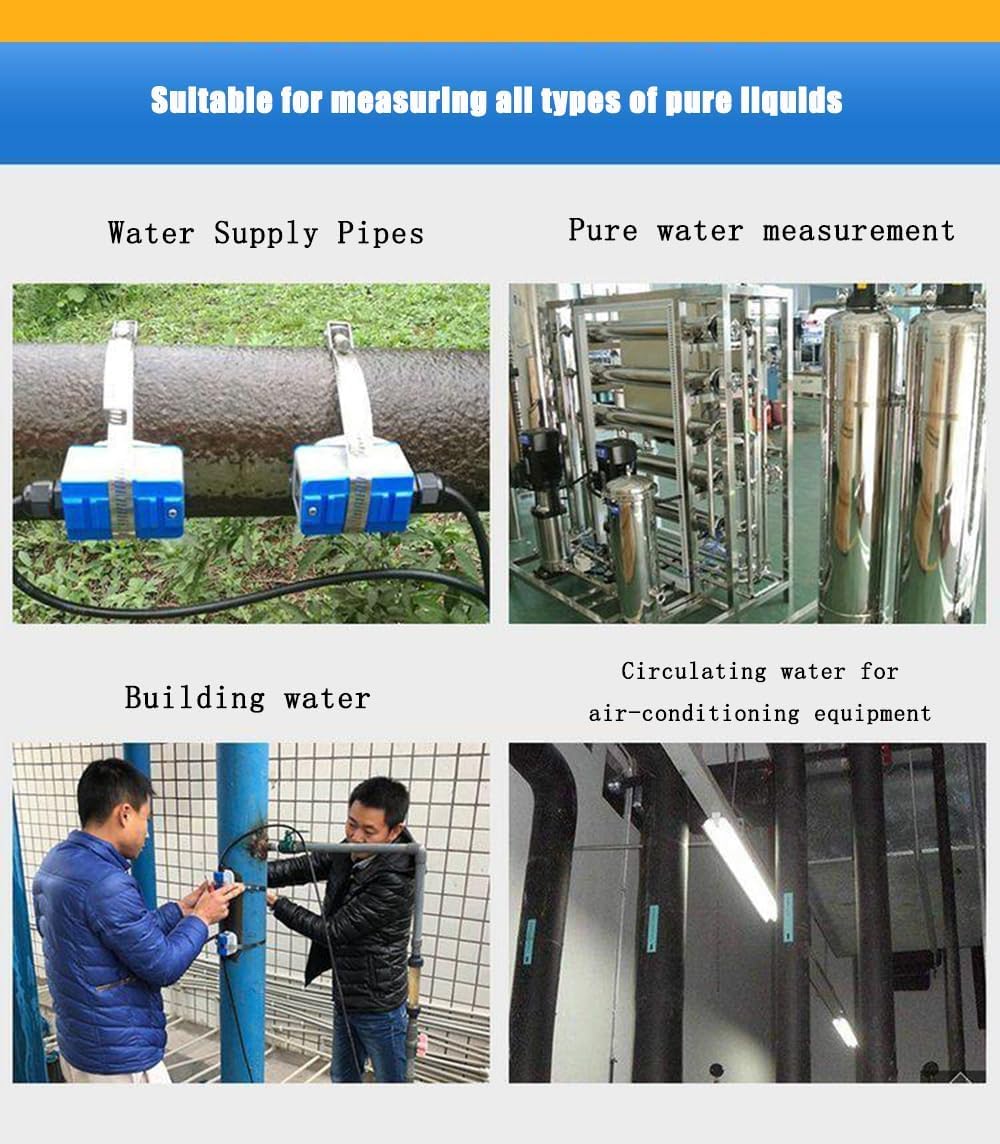

◆Type of liquid: Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
◆Pipe material: Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
◆Signal output:◆
◆1 way 4-20mA output
◆1 way OCT pulse output
◆1 way Relay output
◆Signal input: 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
◆Interface: RS485, support MODBUS
◆Power supply: DC8~36V or AC85~264V

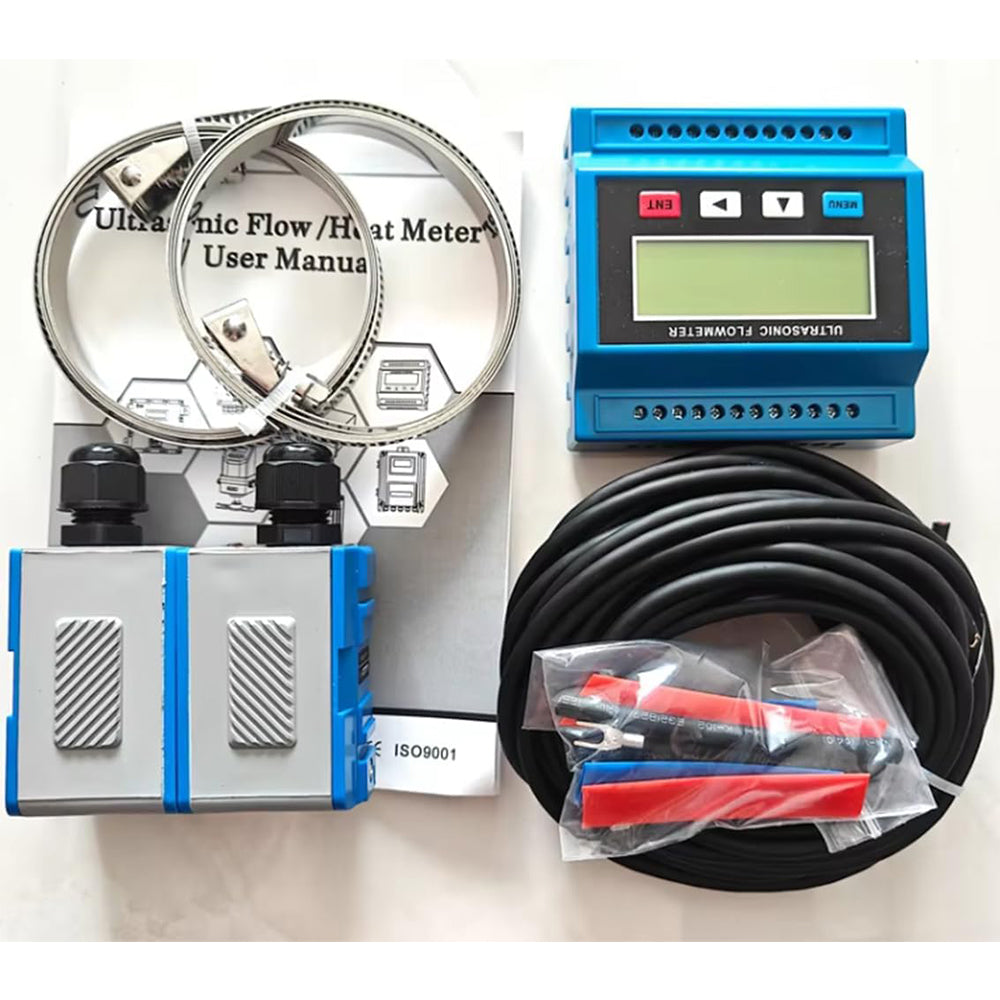

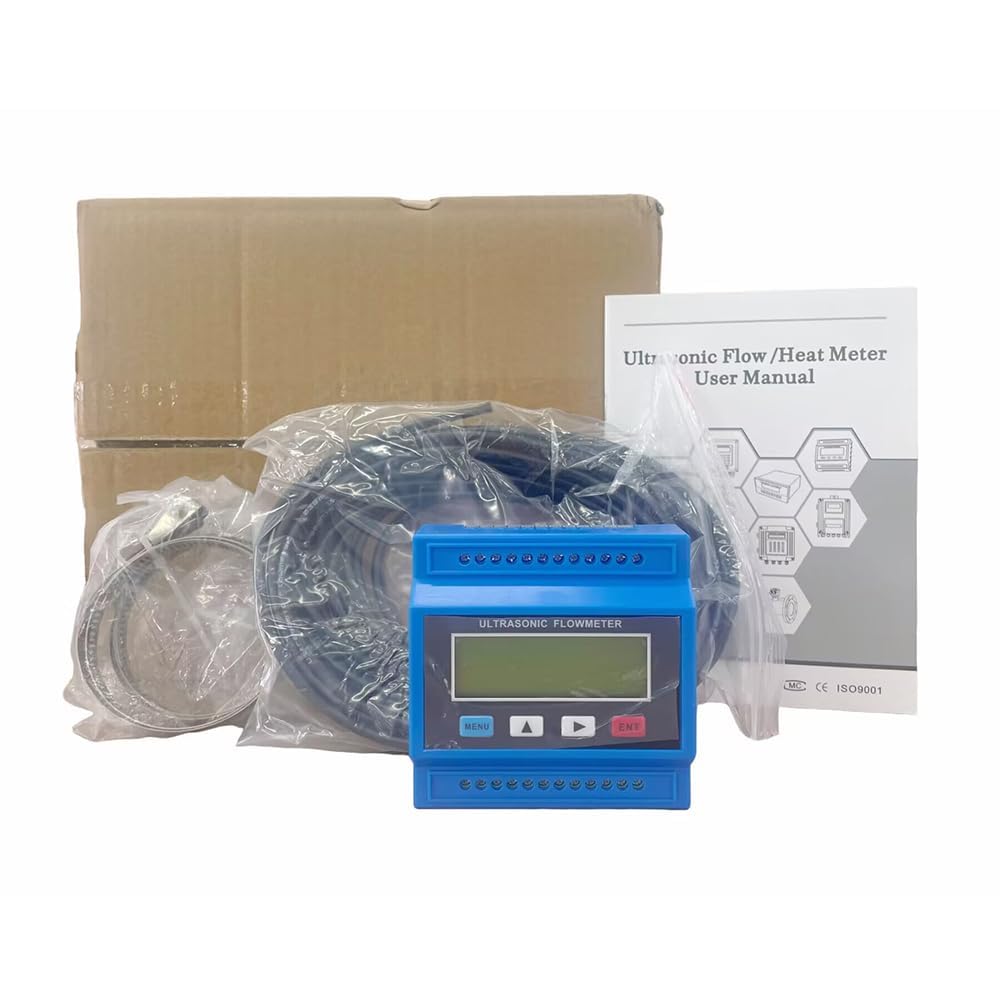

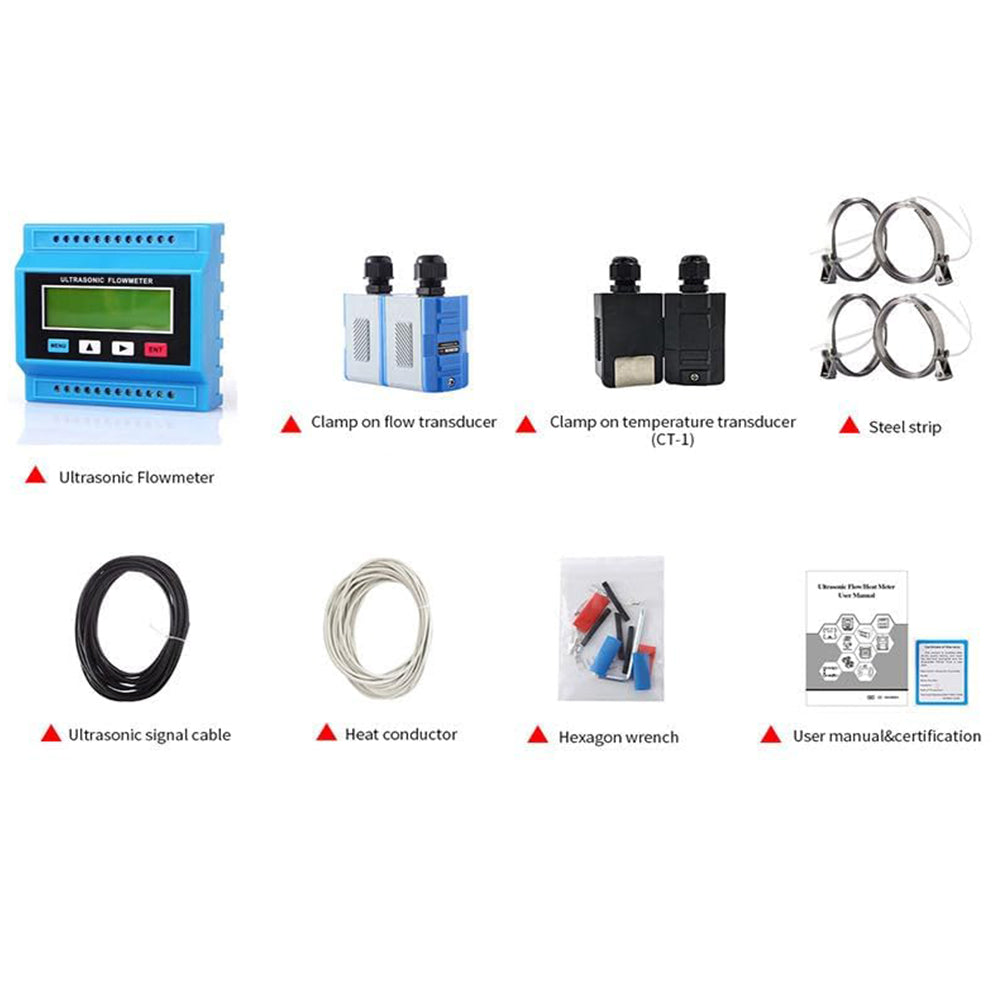

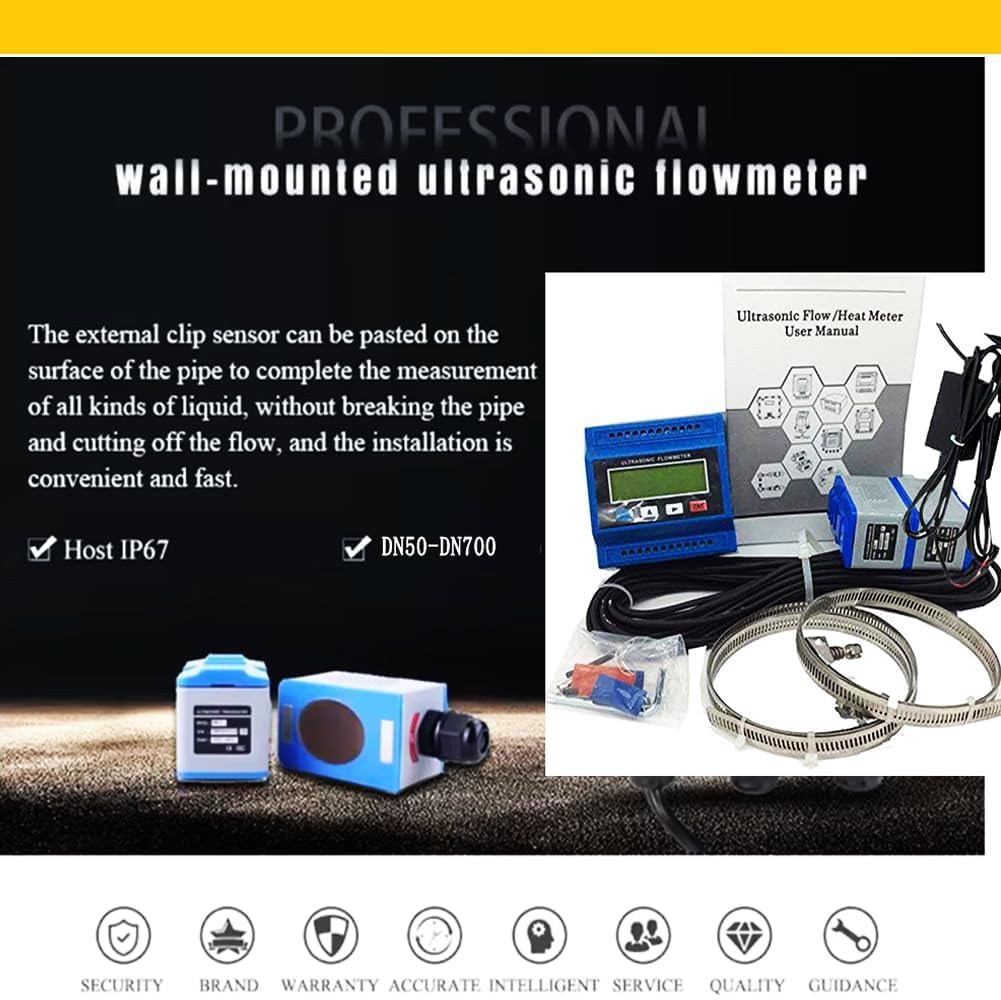

Standard Configurations:
1. Ultrasonic Flow Meter
2. TM-1 Transducer
3. Steel Belt
4. 2 x 5m Signal Cable

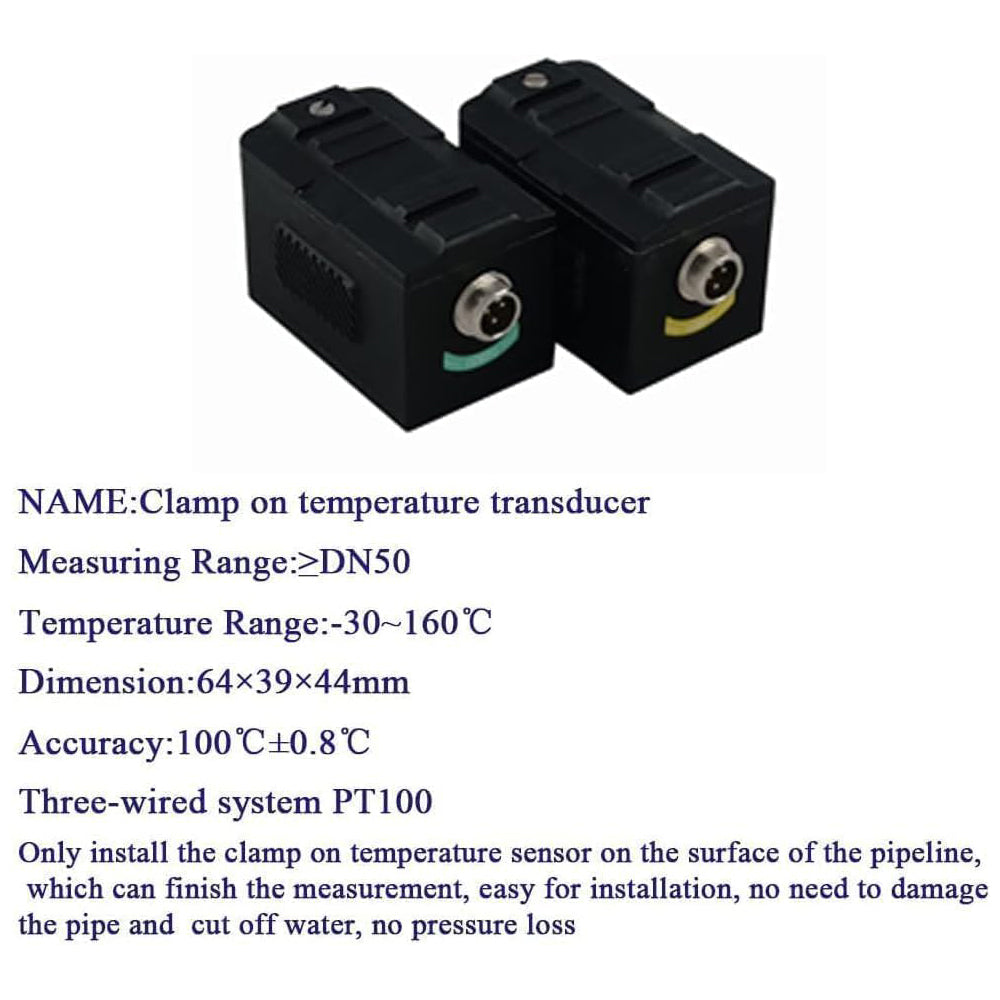

5.CT-1 Temperature Transducer
