VTSYIQI Digital Wall Mount Ultrasonic Flowmeters with Temperature Transducers CT-1-40~160℃ and TM-1 Transducer DN50-700mm Pipe Size 1.97-27.56in IP67 Protection for Water Sewage Oil Test
- Regular price
- $498.00
About this item:

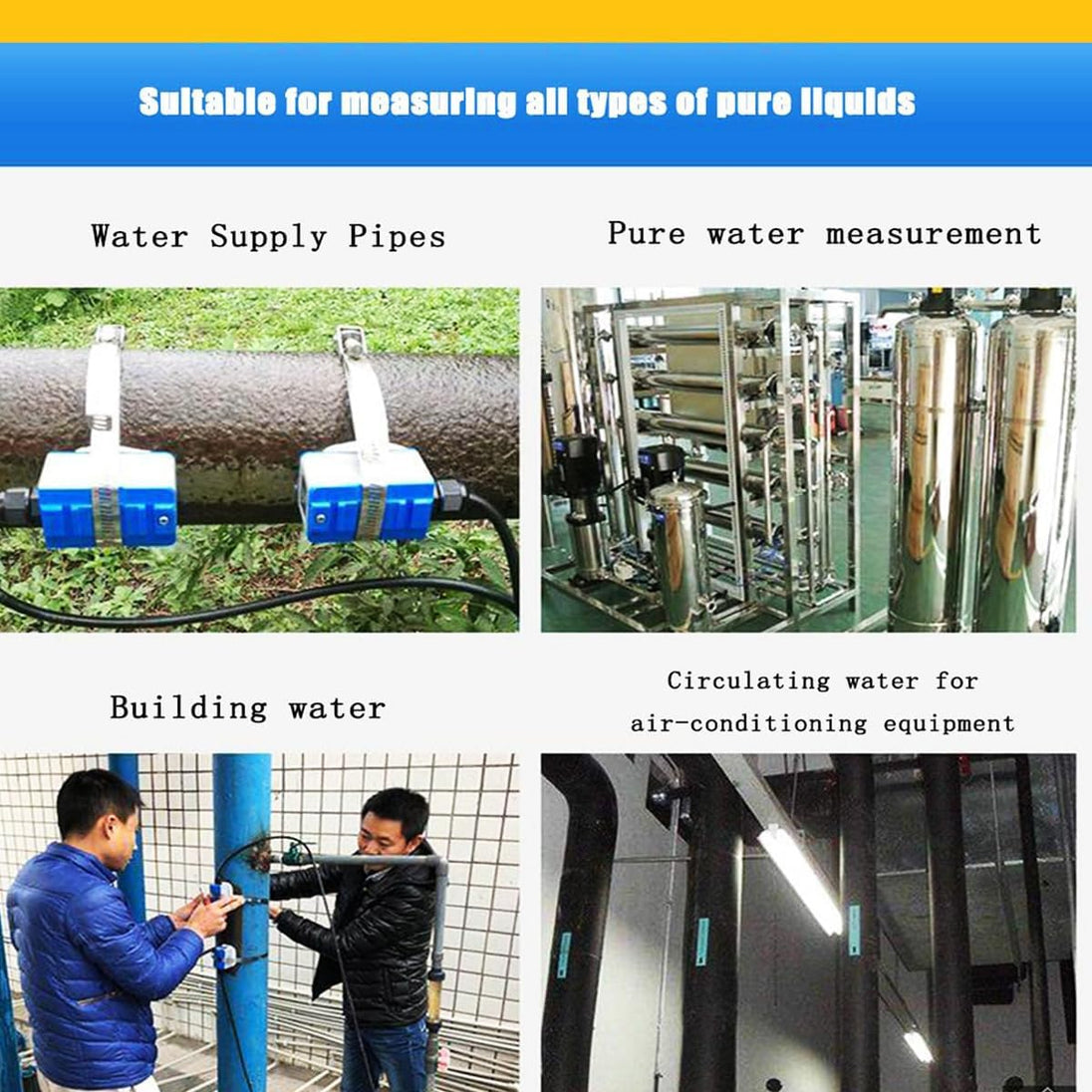

(1)【Type of liquid:】Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
(2)【Pipe material:】Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

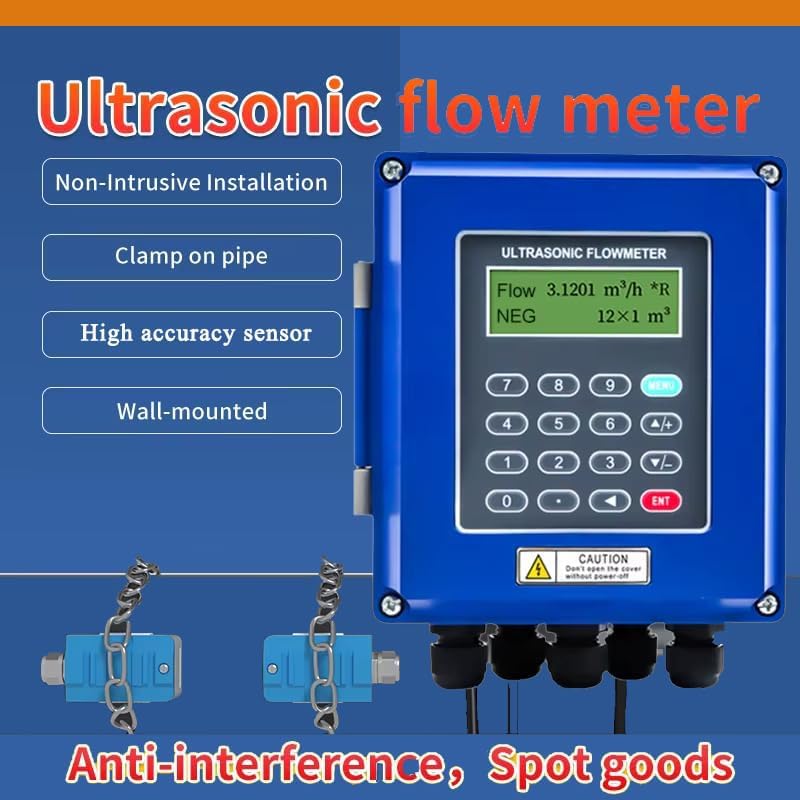

(3)【Installation methods: 】Wall mounting and Two ways of Din-rail mounting
(4)【Signal input:】3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
(5)【Data storage:】SD card regularly store the pre-set results(SD card slot Need to pay for customization)
This type of Ultrasonic flow meter package with Medium Size Transducer(size: 64*39*44mm) and CT-1 Temperature Transducer for Pipe Diameter DN50 to 700mm, Temperature : -30~90C◆
Technical Specifications:

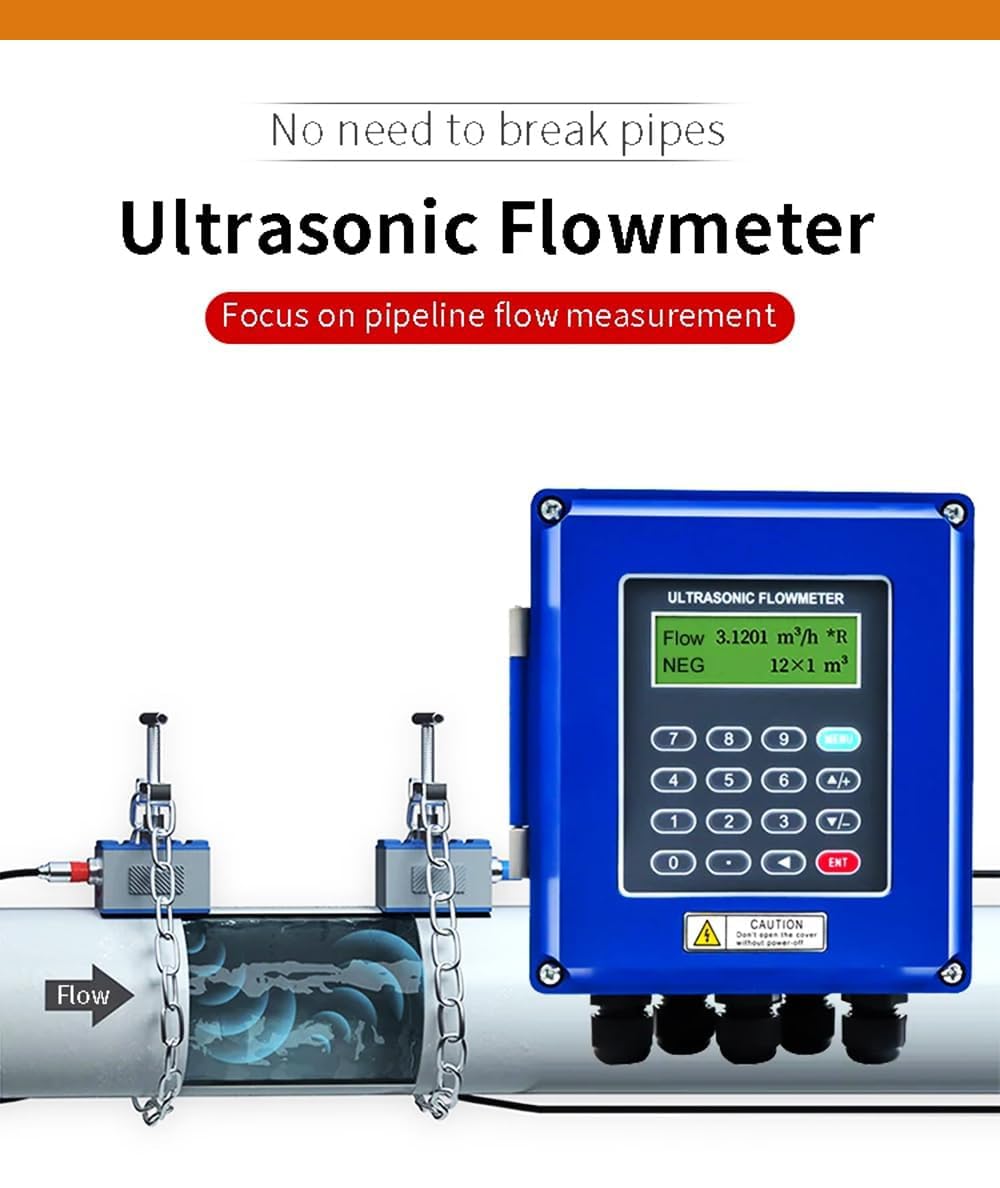

◆Principle: Transit-time ultrasonic flowmeter
◆Accuracy: ±1%

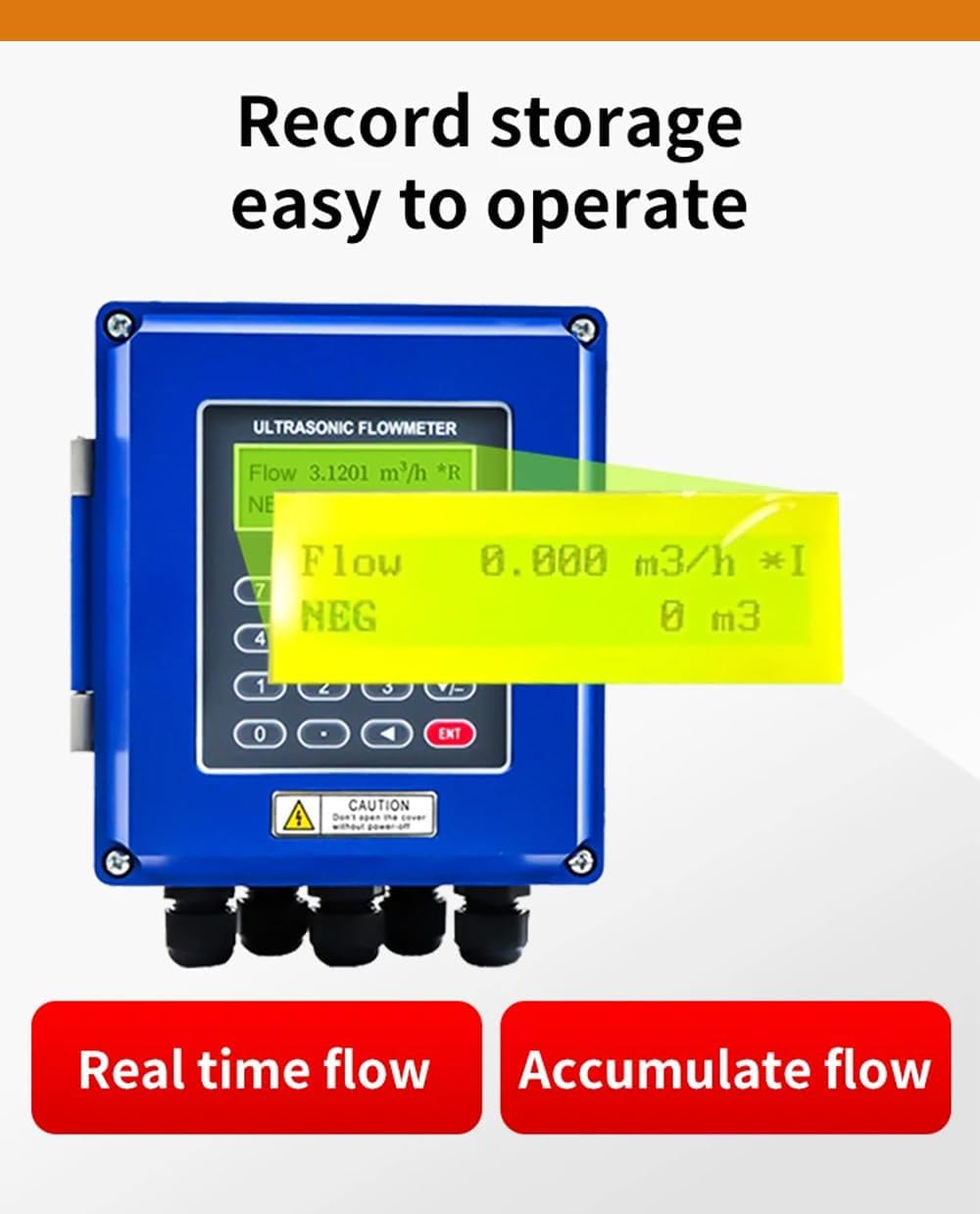

◆Display: 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish
◆Signal output:◆
1way 4-20mA output, electric resistance 0-1K, accuracy0.1%
1 way OCT pulse output(Pulse width-1000ms, default is 200ms))
1 way Relay output
◆Signal input:◆
3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level
Connect the temperature transducer P100, can finish the heat/energy measurement.
◆Data Interface:Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
◆Special Cable:Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m
◆Pipe Installation Condition◆
Pipe material:Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed
Pipe diameter:DN50~700mm
Straight pipe:Transducer installation should be satisfied: upstream10D, downstream5D, 30D from the pump.

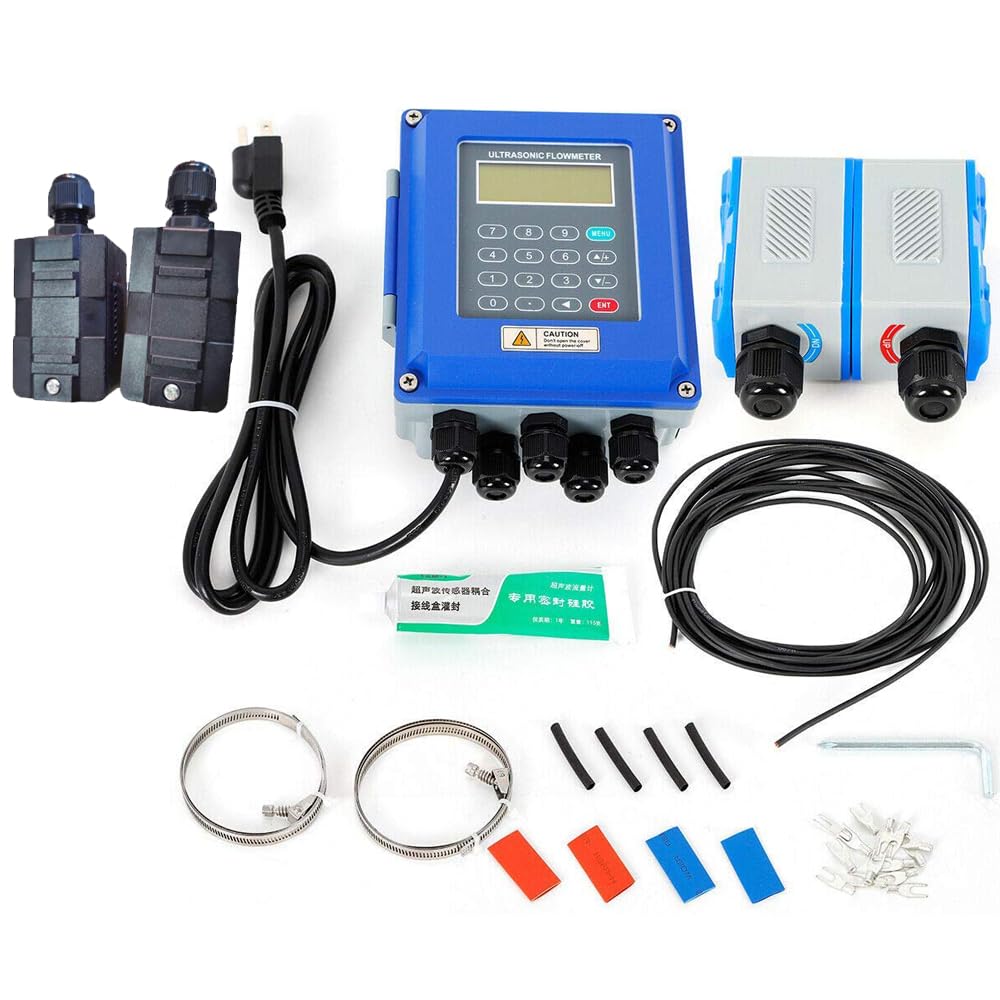

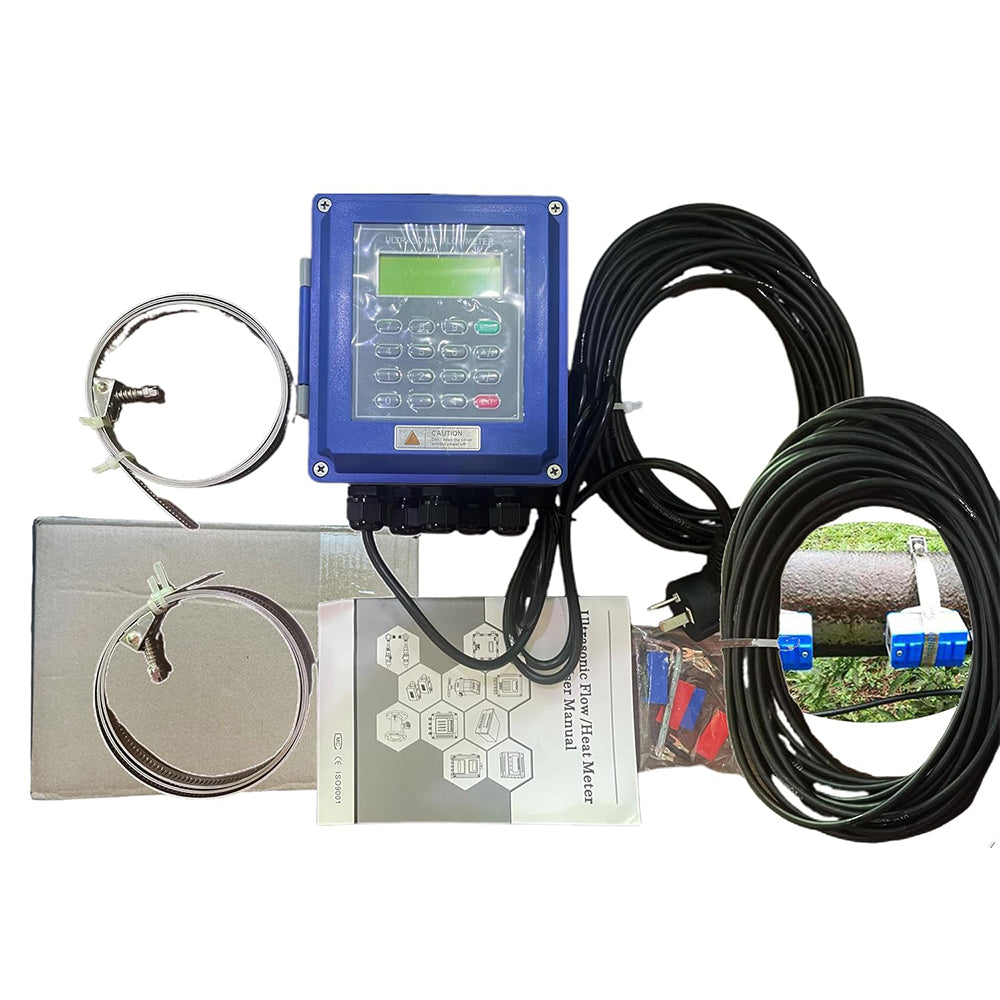

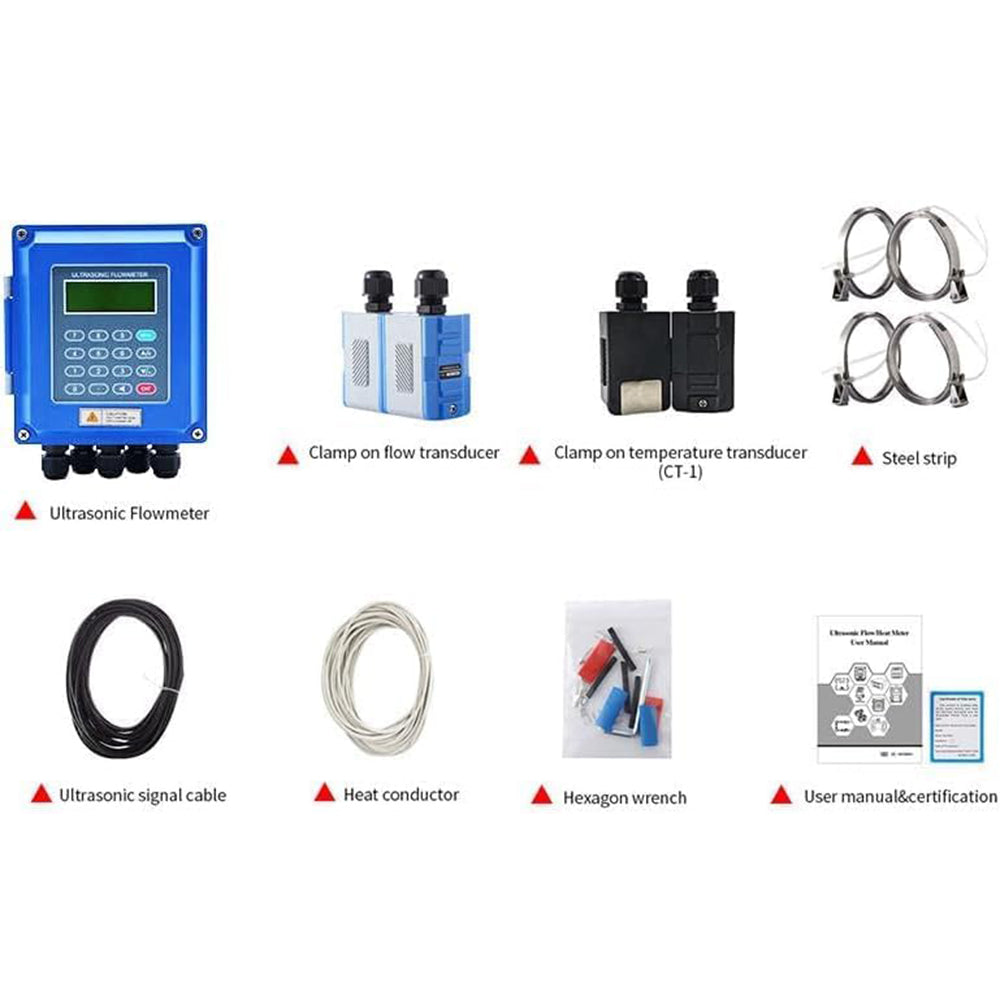

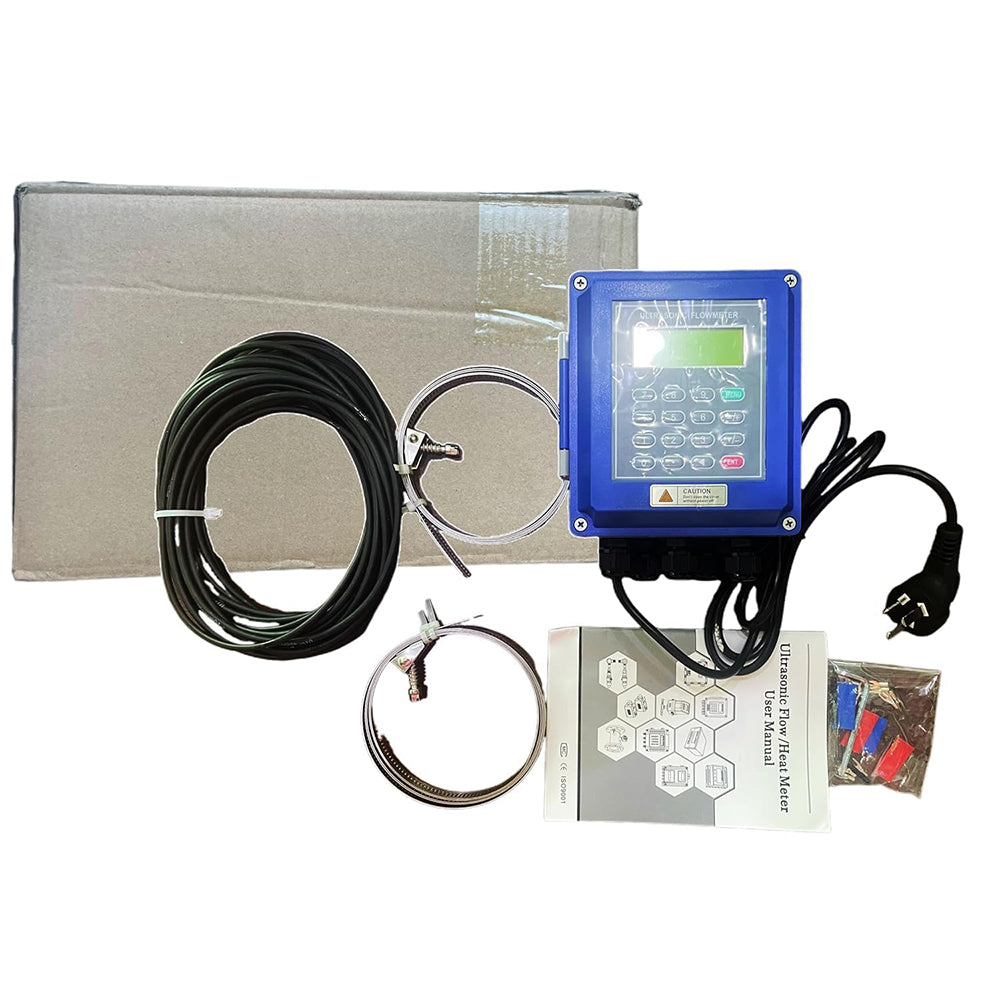

Standard Configurations:
1. Ultrasonic Flowmeter

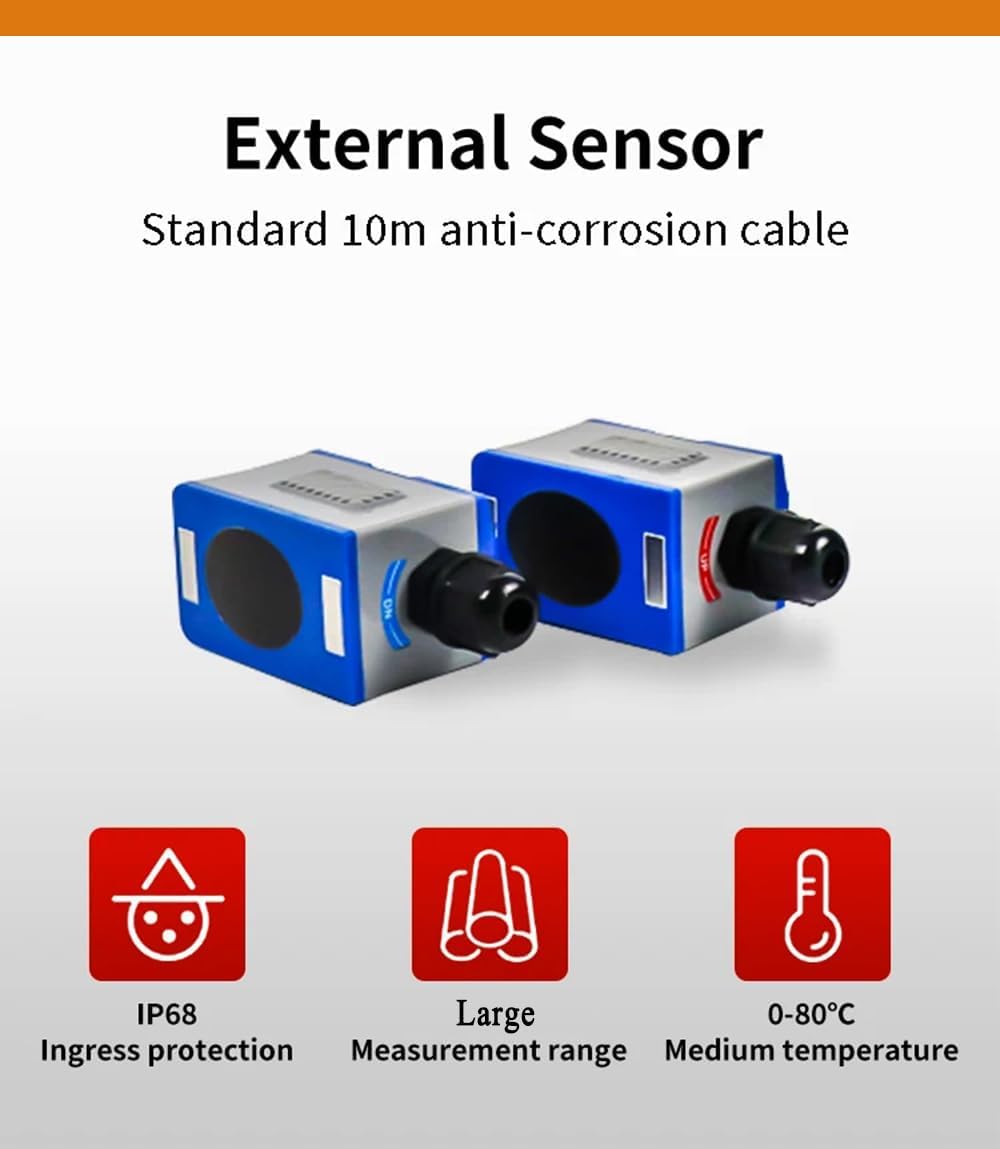

2. Medium Size Transducer
3. 2 x5m Signal cable
4. Steel Belt
5. Certificate of Warranty
6.CT-1 Temperature Transducer
