  • VTSYIQI Ultrasonic Water Flow Meter Flowmeter Tester With TS-2+TM-1+TL-1 Transducer Measuring Range DN50-6000mm For Liquid Testing

VTSYIQI

VTSYIQI Ultrasonic Water Flow Meter Flowmeter Tester With TS-2+TM-1+TL-1 Transducer Measuring Range DN50-6000mm For Liquid Testing

$48800
In stock
$48800

Customer Service

Post your customer service details here.

Return Policy

Post your policy conditions details here.

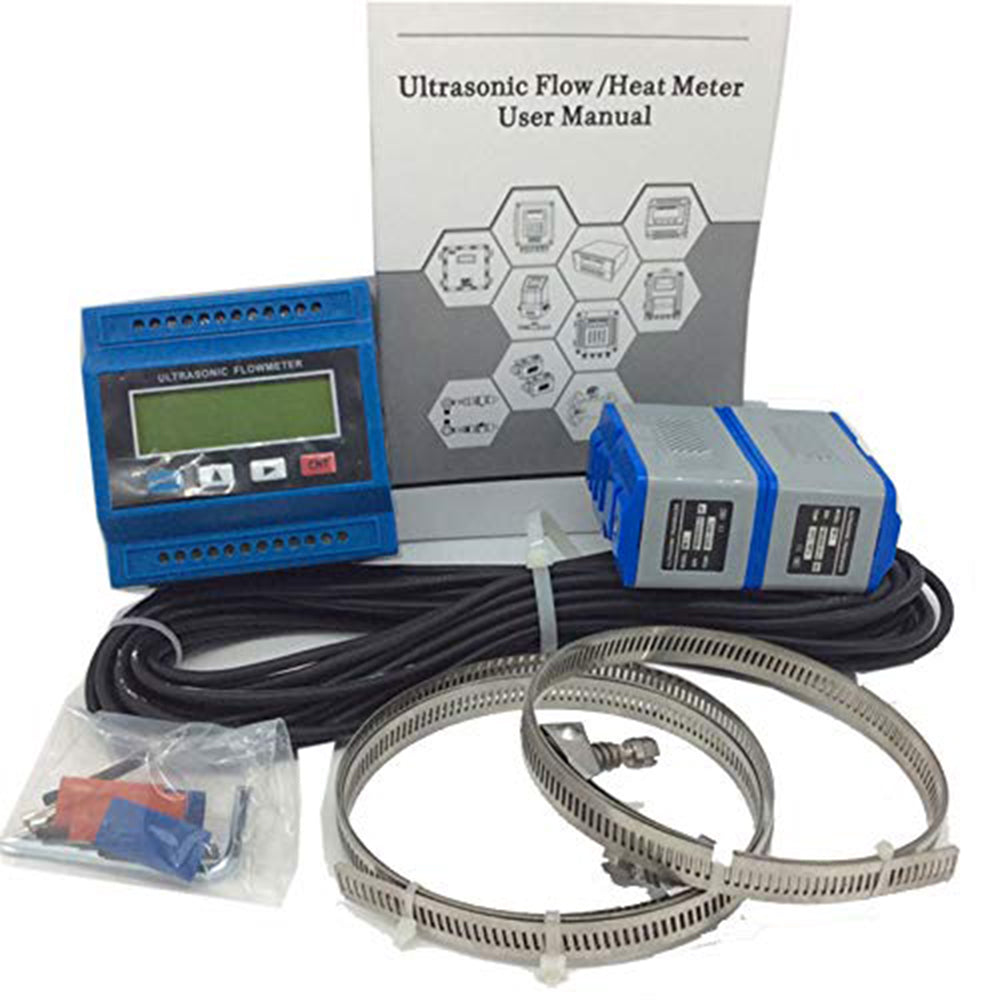

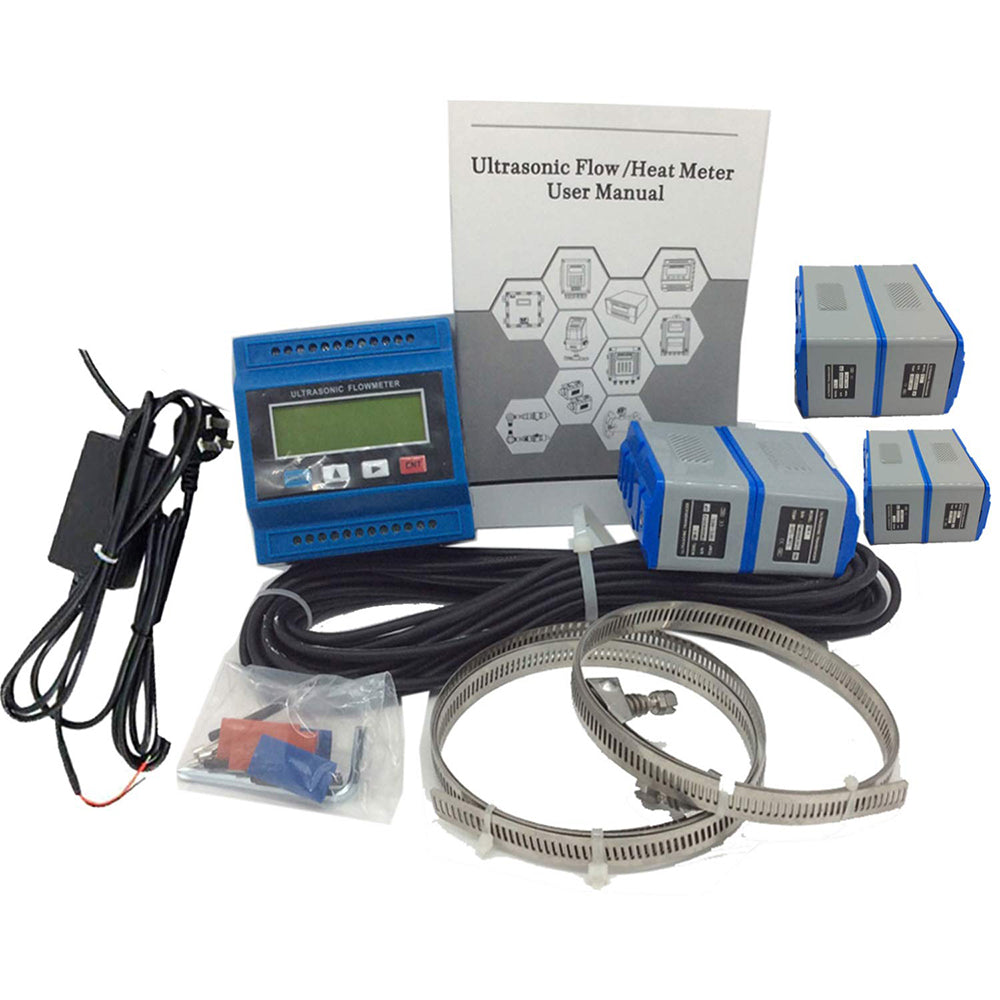

This type Ultrasonic Flowmeter is package with Clamp-on Standard Small Transducer TS-2 (size: 45*25*28mm) for Pipe Diameter DN25~100mm, Temperature : -30~90°C
This type Ultrasonic Flowmeter is package with Medium Transducer TM-1 (size: 64*39*44mm) for Pipe Diameter DN50 to 700mm, Temperature : -30~90°C
This type Ultrasonic Flowmeter is package with Large Transducer TL-1 (size: 97*54*53mm) for Pipe Diameter DN300~6000mm, Temperature : -30~90°C

Product Description

◆Accuracy:"+/-1%
◆Velocity range:0~+/-10m/s, Bi-directional measurement
◆Pipe size:DN25~DN6000mm
◆Temperature:-30~90°C
◆Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.

Feature:

Accuracy:"+/-1%

Velocity range:0~+/-10m/s,

Bi-directional measurement Pipe size:DN25~DN6000mm

Temperature:-30~90°C

Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc. Pipe material:Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.

Signal output:
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal input: 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Interface: RS485, support MODBUS
Power supply: DC8~36V or AC85~264V
