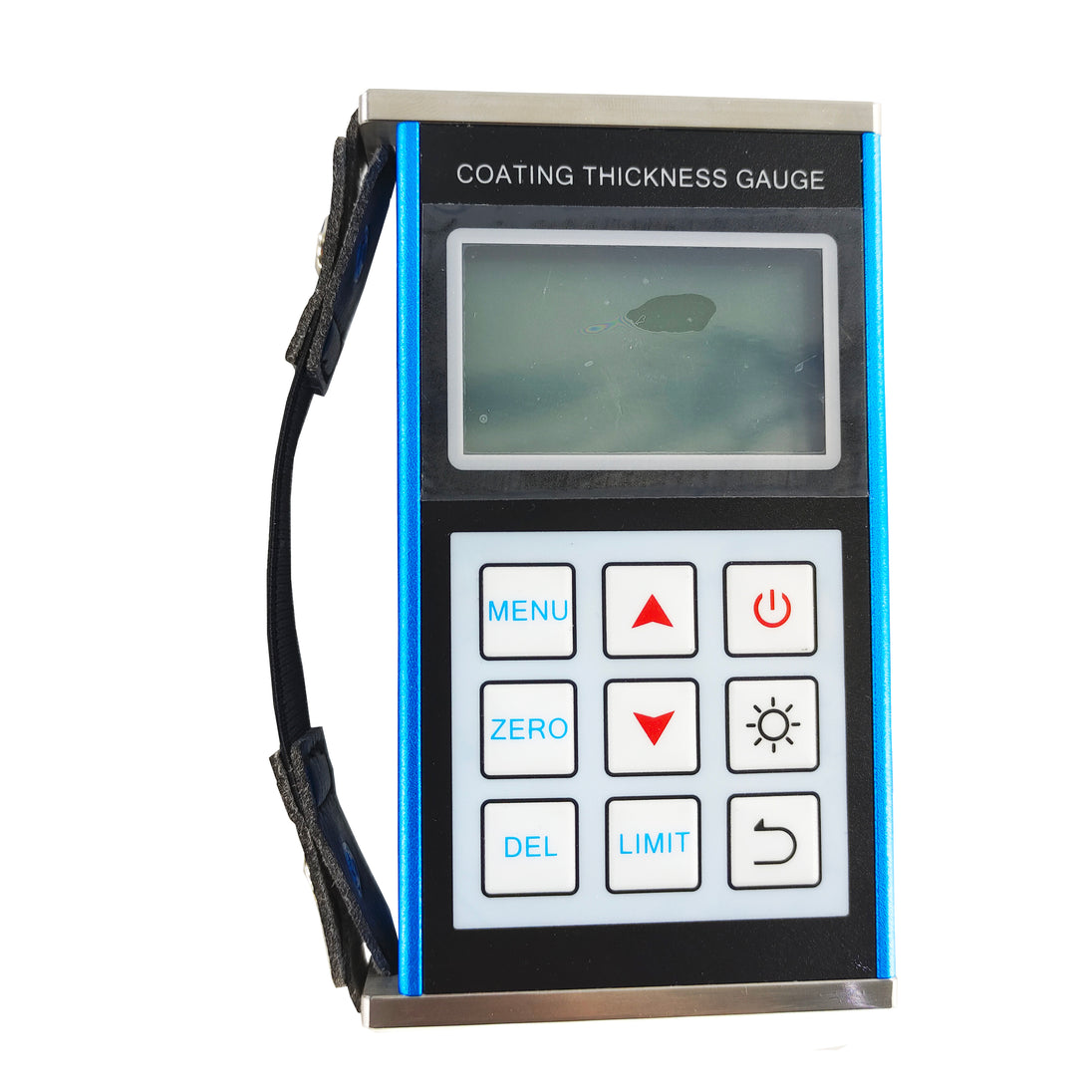

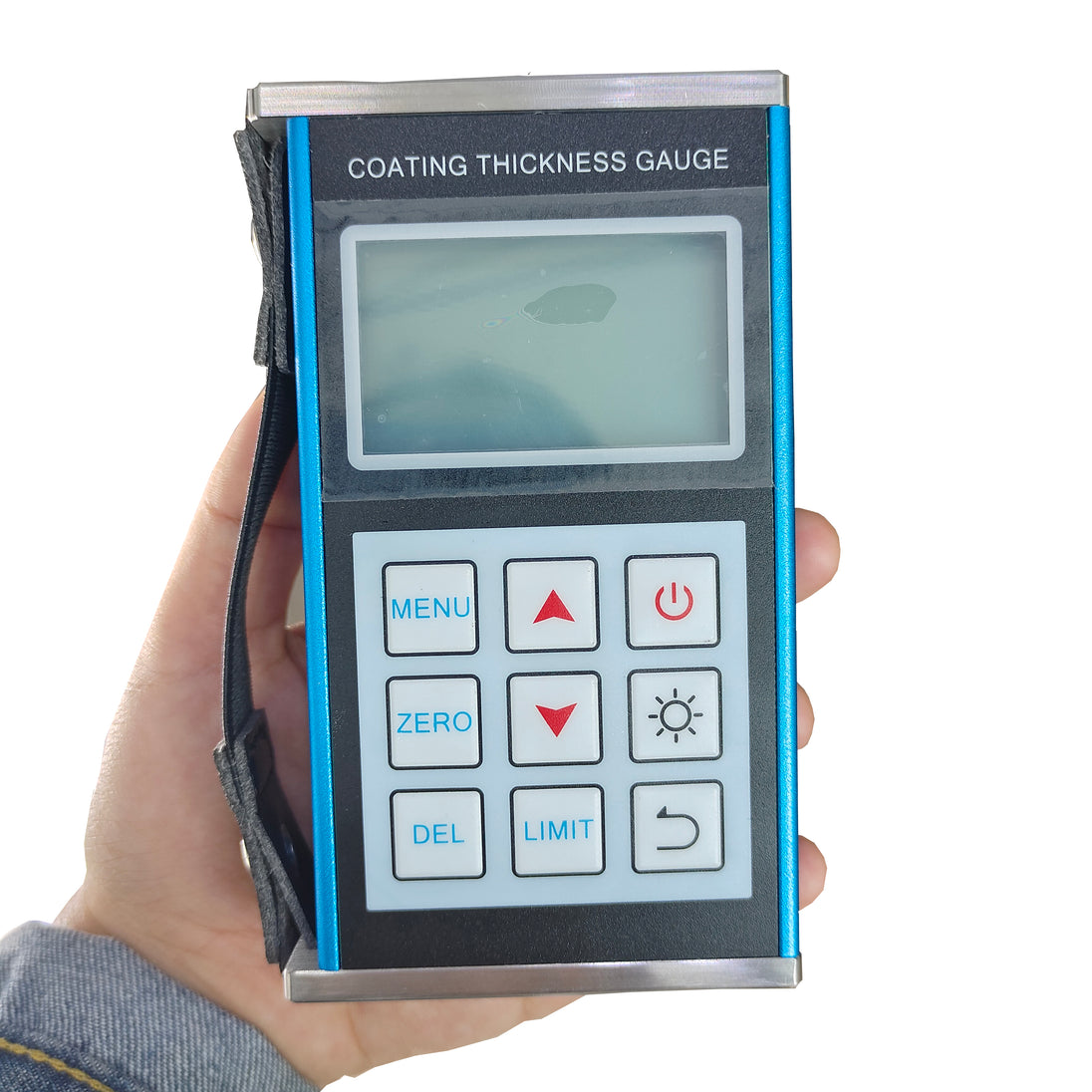

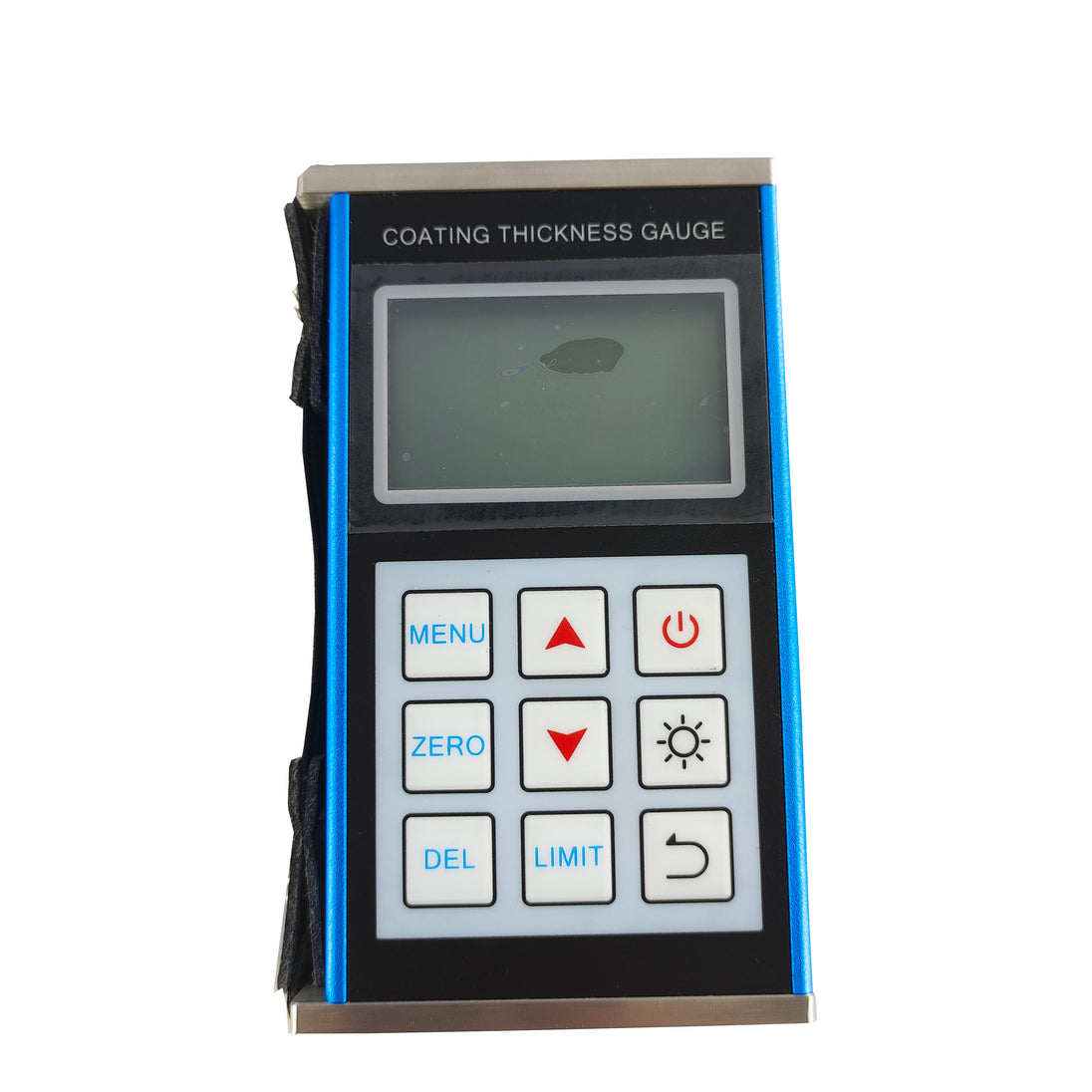

Product Description

Various probes optional, probe auto matching

Durable ruby probe, more wear and precise

Full metal shell design, sturdy, portable, high reliability

Alarm function when overrun the settable limiting range

Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy

Main feature:
*Various probes optional, probe auto matching.
*Durable ruby probe, more wear and precise.
*Full metal shell design, sturdy, portable, high reliability.
*Alarm function when overrun the settable limiting range.
*Five statistics values [MEAN, MAX, MIN, NO., S.DEV] higher measurement accuracy.
*Large storage, easy to delete single or multiple saved values.
*PC software optional, convenient the data transmission, analysis, printing etc.

Specification:
Measuring range:0-1250μm, depends on probes, MAX 10mm for the probe F10.
Working principle:Magnetic & Eddy
Substrate:FE / NFE base
Resolution:0.1μm

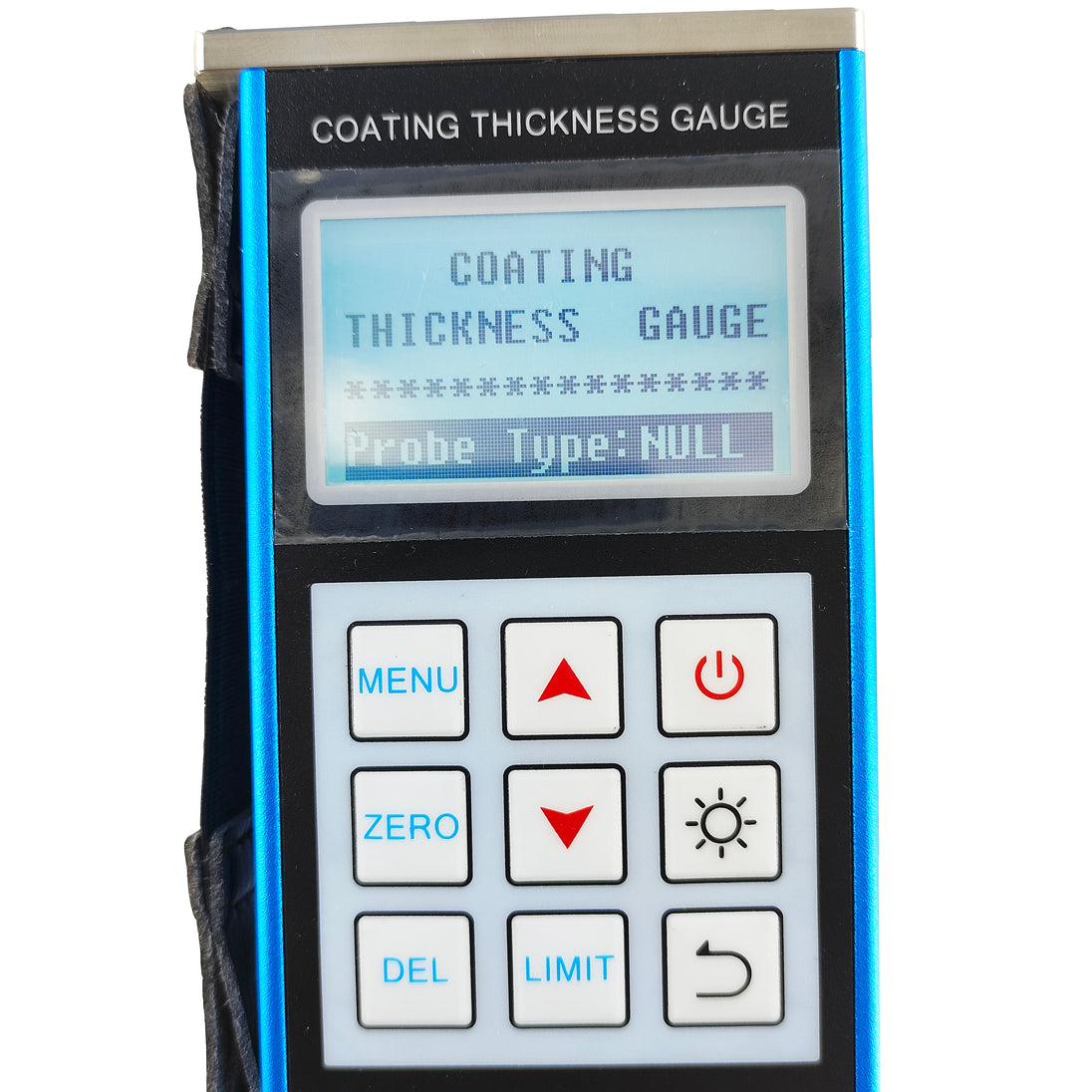

Display:128x64 LCD with backlight
Accuracy:±2%H+1um Note: H is thickness reading
Memory:5 files x 100 values
Unit switch:Metric (μm) Imperial (mil)
Working temperature:Operation Temp. : -10~50°C Storage Temp. :-30~70°C
Weight:340g
Size:115*67*31mm

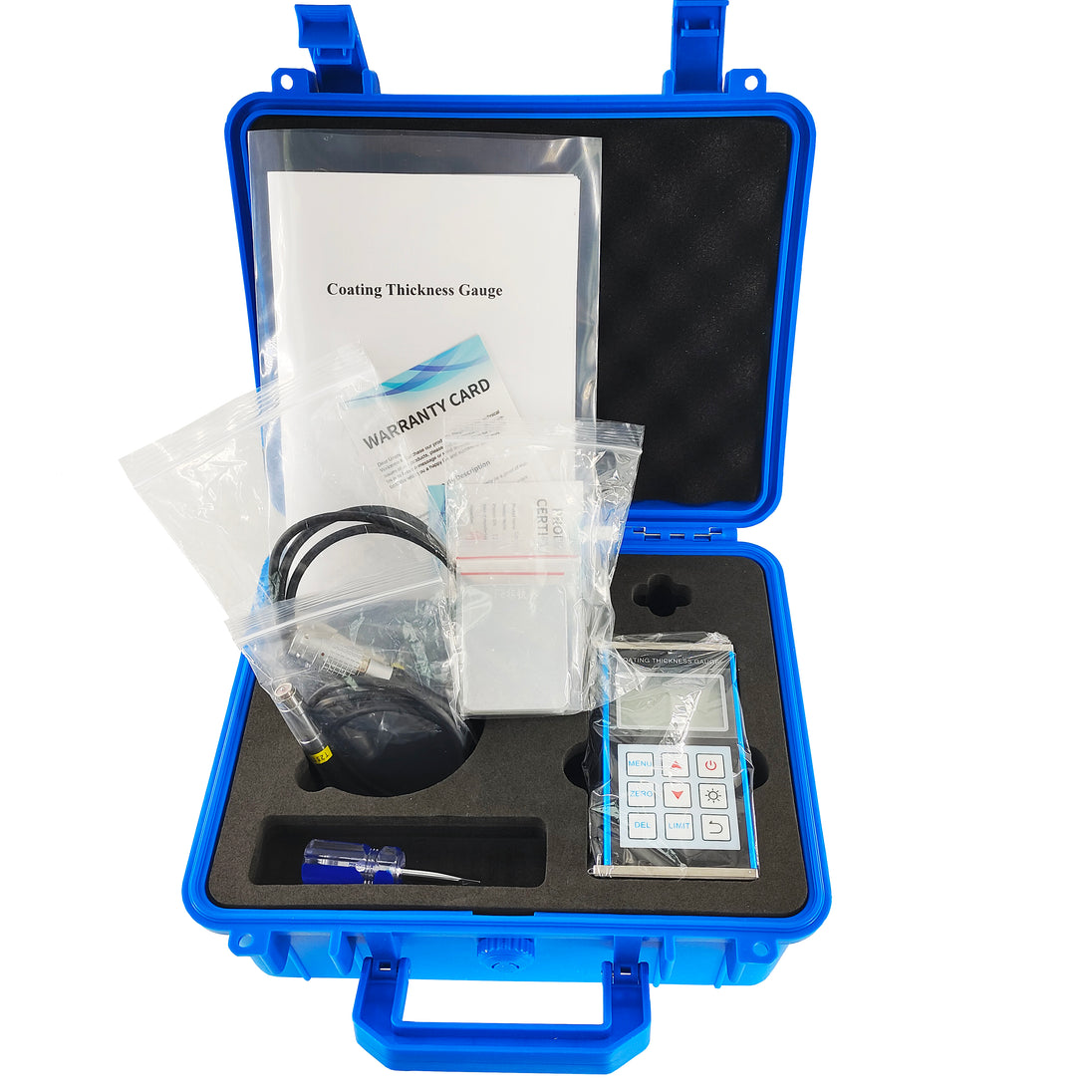

Standard configuration:

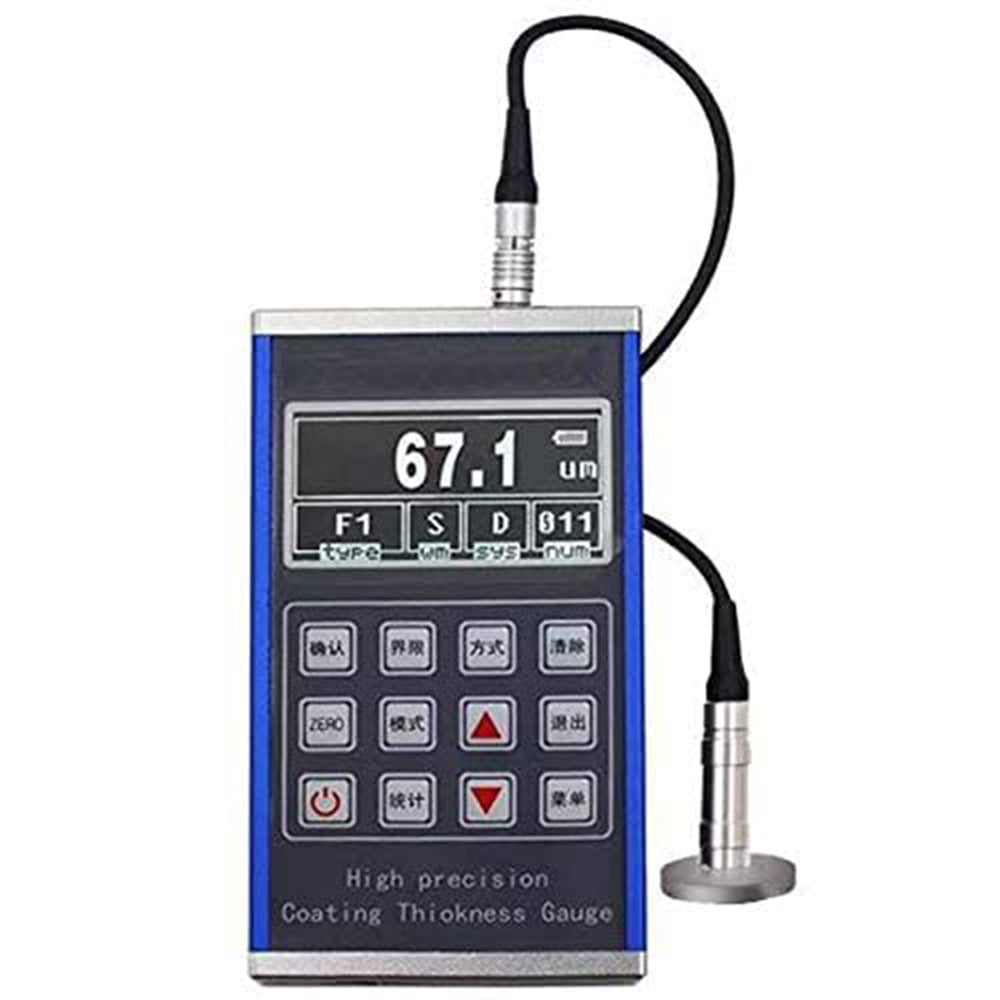

Main unit---1

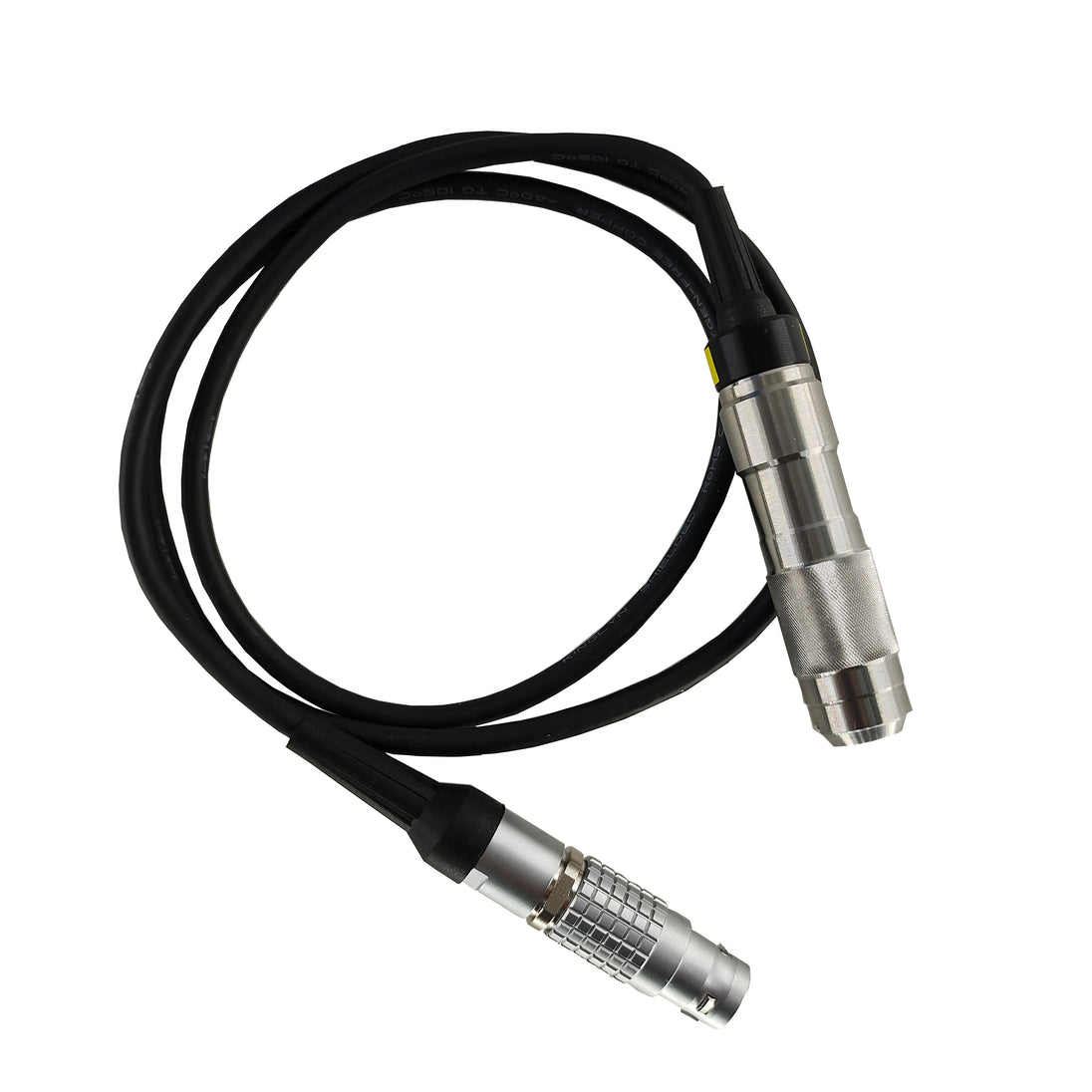

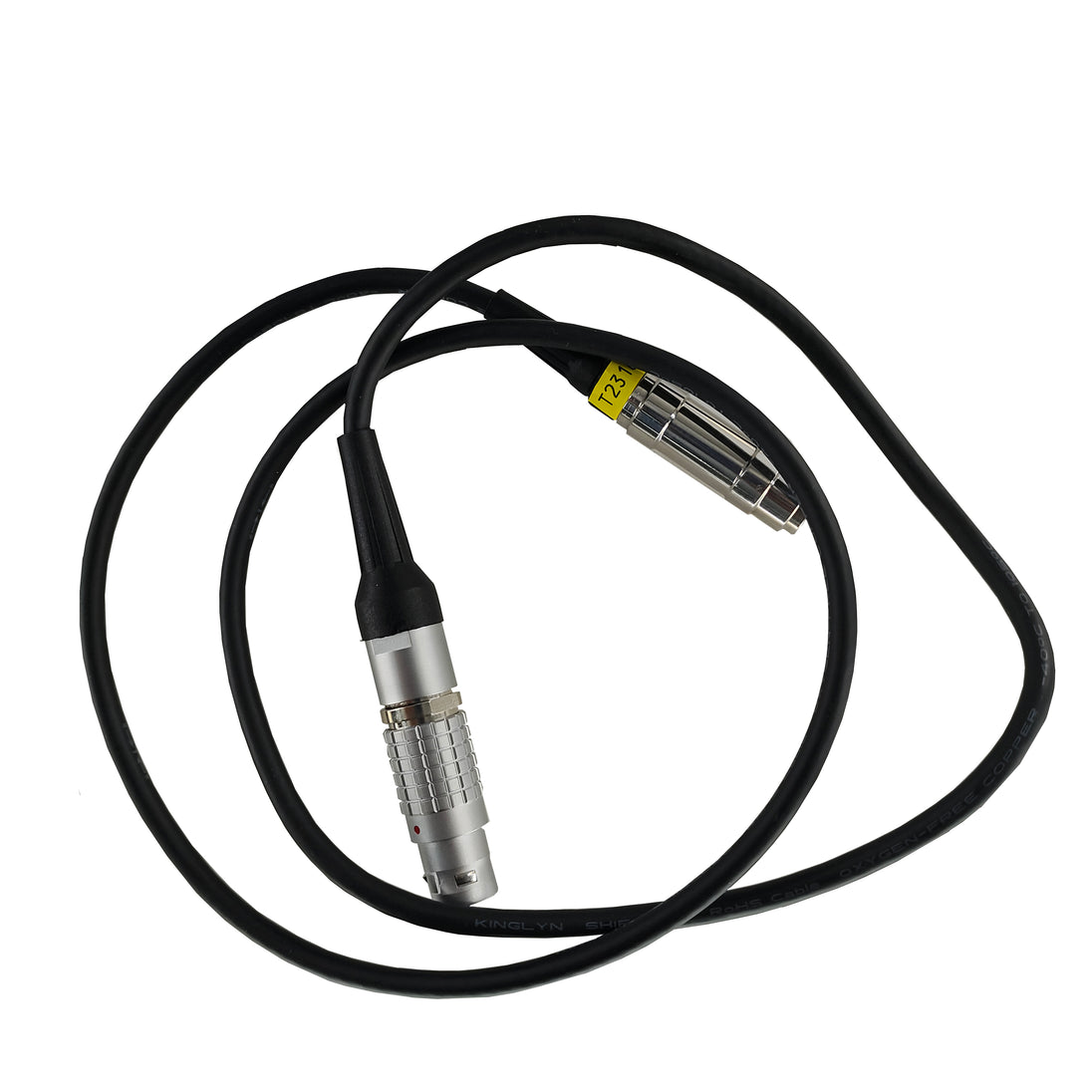

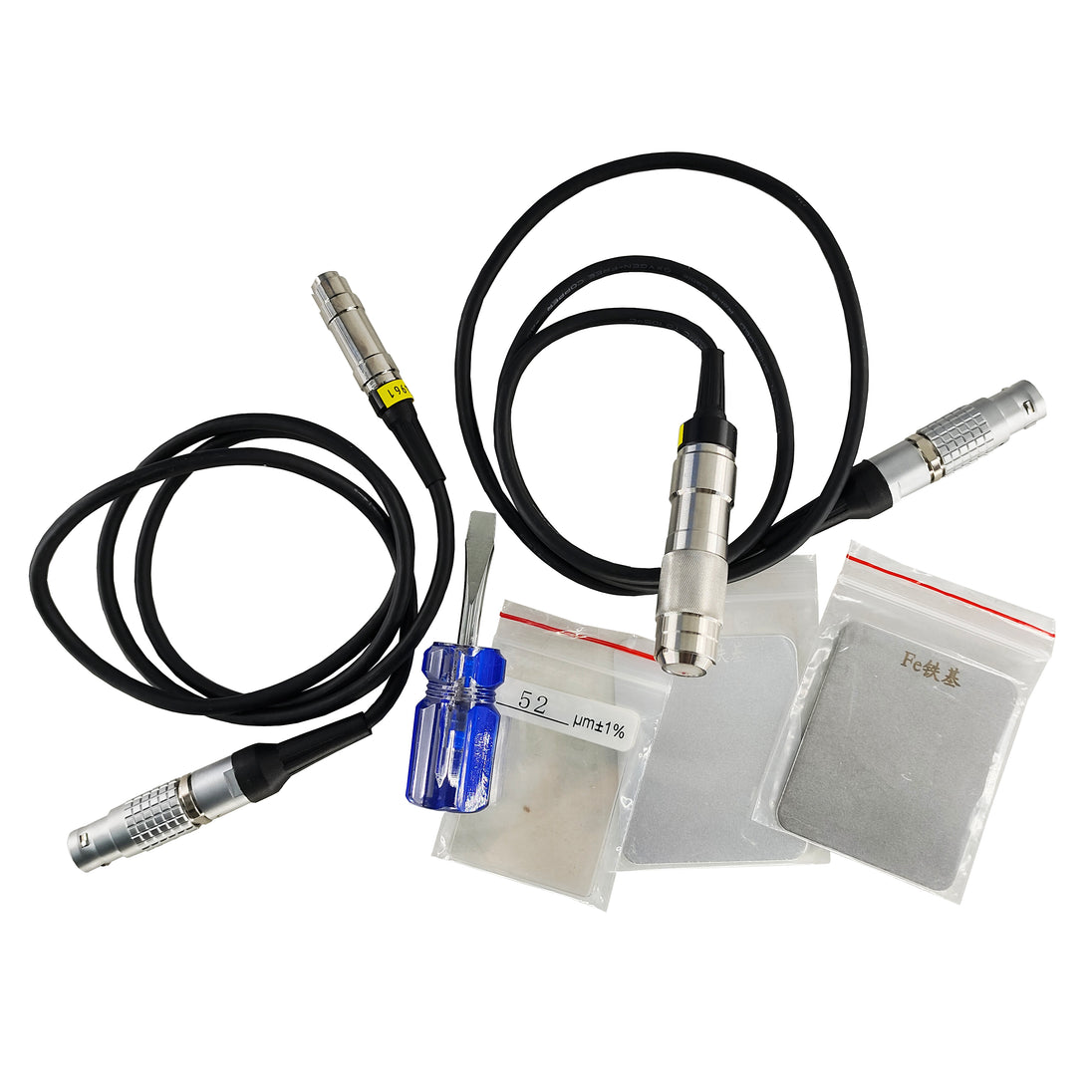

Probe (Fe or NFe)---1

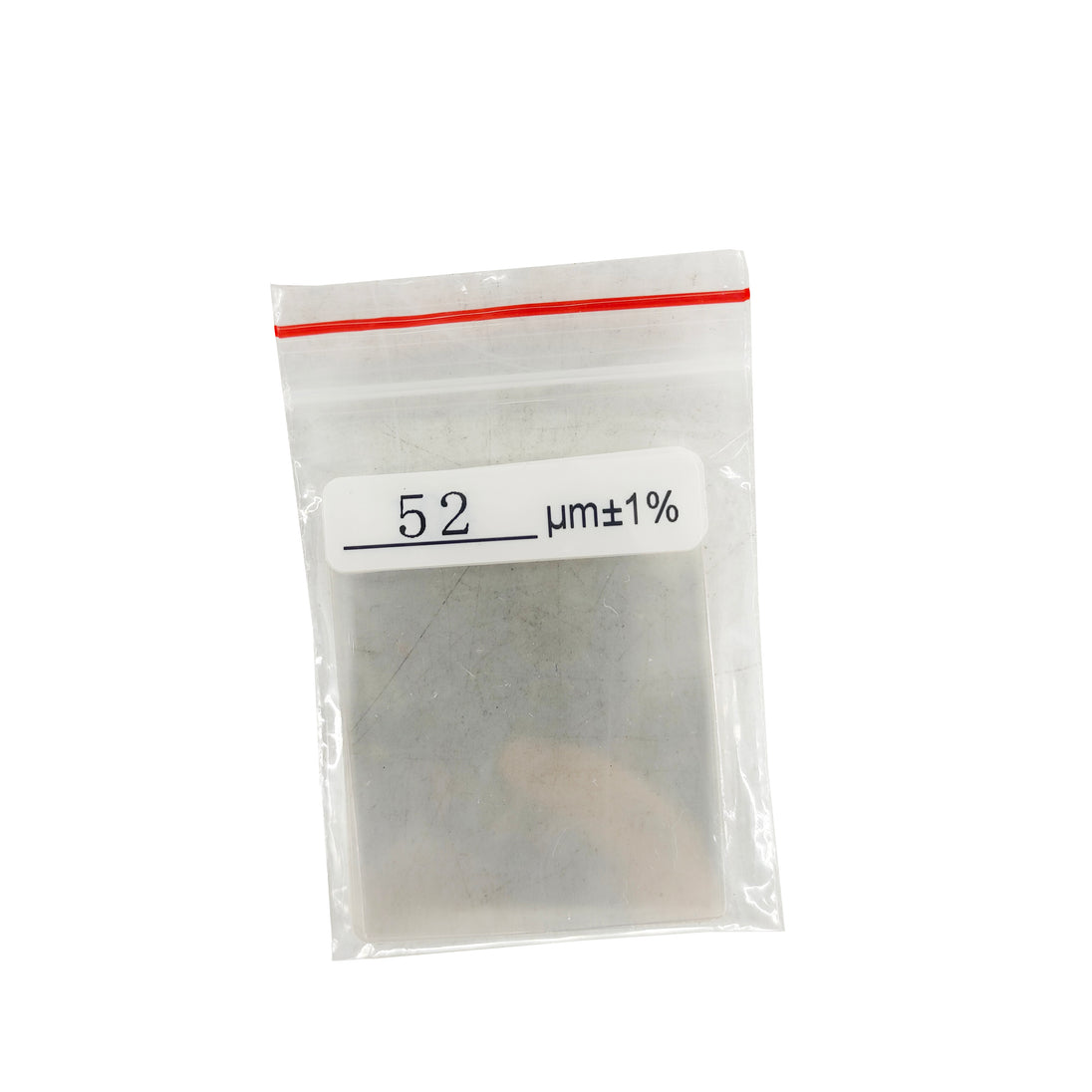

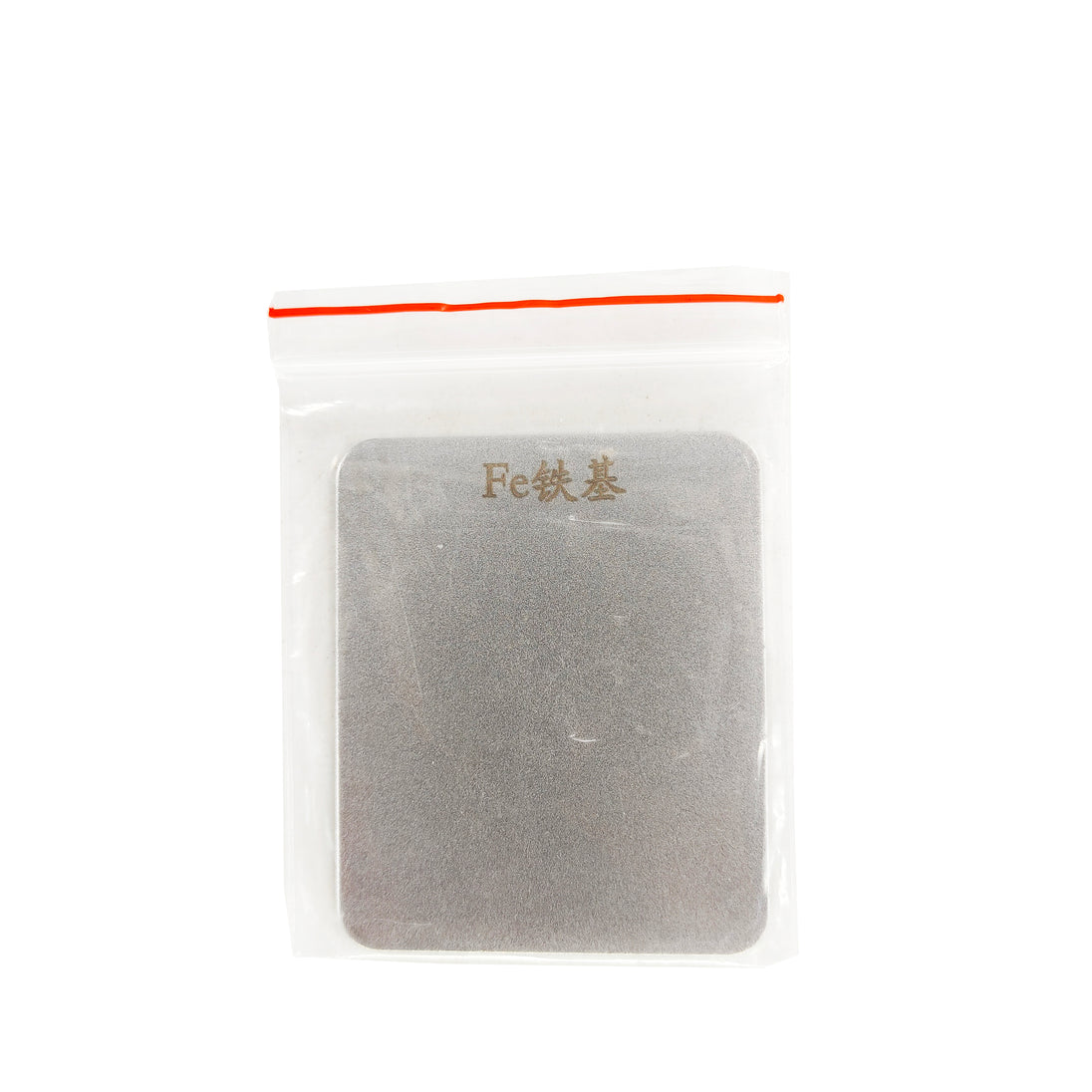

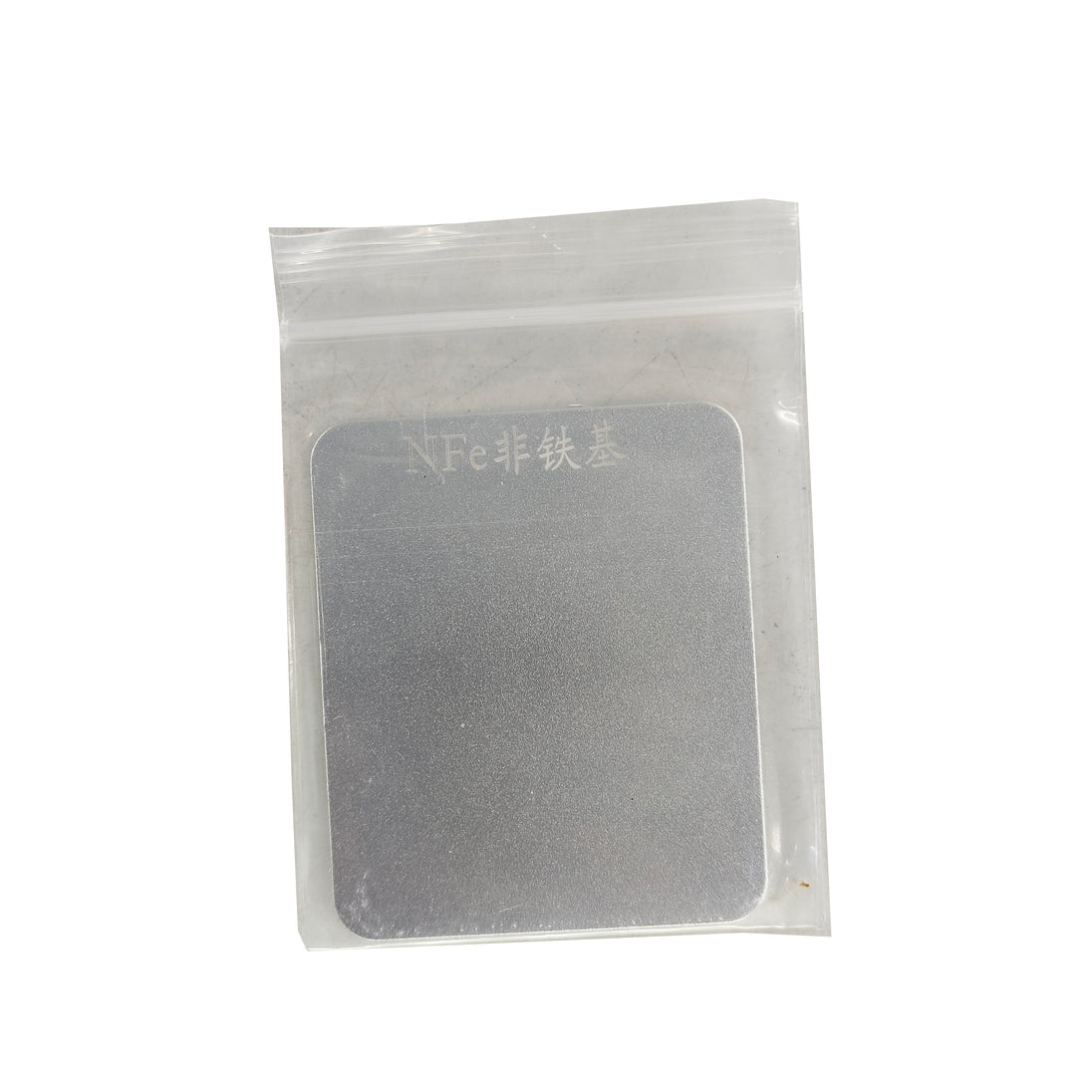

Calibration piece + Zeroing plate----5+1
AA battery (Non-aviation)----2
Operating manual-----1
Warranty card----1
Instrument case----1
